Wide-screen LCD Television (22LT SERIES)
Wall Mount Kit
Installation Manual
Model No. TY-WK22LT1U
●Please read this instruction manual carefully for the correct usage. After reading,
retain it in a convenient location for future reference.
●To achieve the best possible performance and to maintain safety, always request a
certified professional for the installation of the wall mounting bracket.
●Retain all removed parts. They may become necessary when returning to the original
installation condition.
●
Caution: This bracket intended for use only with Panasonic LCD TV Model TC-22LT1/TX-
22LT2 series. Use with other apparatus may result in instability causing possible injury.
TQZH376
Wall mounting bracket A (Main unit side)
Wall mounting bracket dimensional drawings
Wall mounting bracket B (Wall side)
Metal plate (main unit side)
[Unit: mm]
© 2002 Matsushita Electric Industrial Co., Ltd. All rights reserved
Printed in Japan MBS0202-0(MS)

■Be aware of safety factors
concerning the mounting
strength
Insufficient strength may
cause the wide-screen
LCD television to fall, re-
sulting in bodily injury.
■Do not hang anything from the
wide-screen LCD television,
place a stepladder against it,
etc.
The wide-screen LCD tele-
vision may become dam-
aged or it may fall, causing
bodily injury.
Installation
Prohibited
WARNING
■Do not install in humid or
dusty areas, or where the
wide-screen LCD television
may be exposed to lampblack,
steam or heat.
Fire or electrical shock may
occur as a result.
■Make sure there is sufficient
air circulation so that the am-
bient temperature does not
exceed 35°C.
Heatmaybuildupwithinthe
wide-screen LCD televi-
sion,causing fire asa result.
Installation
Prohibited
CAUTION
This symbol indicates that the item must be followed with caution.
Safety precautions Be sure to follow
To prevent injury to the user and others and to prevent damage to property, items that must
be followed are explained as shown below.
■The following displays categorize the degree of danger when mishandled.
WARNING
■Items that must be followed are explained using the following symbols.
This symbol indicates that the item must always be followed.
This symbol indicates that the item is prohibited.
Possibility of serious injury and even death when
mishandled.
CAUTION Possibility of injury or damage to surrounding
property.
■Installation to be performed by
certified personnel only.
Inadequate installation
may cause the wide-screen
LCD television to fall, re-
sulting in bodily injury.
■Do not install where tolerance
is weak.
If the tolerance of the
mounting location is weak,
the wide-screen LCD tele-
vision may fall resulting in
bodily injury.
Installation
Prohibited Prohibited
WARNING
3
2

Cautions concerning installation work
To achieve the best possible performance and to maintain safety, always
request a certified professional for the installation of the wall mounting
bracket.
1
The stand of the wide-screen LCD television must be removed.
Before performing work, always turn off the power and disconnect the power
plug of the AC adapter from the wall outlet.
2
Allow sufficient strength for safety.
The weight of the wide-screen LCD television is approximately 9.5 kg.
When mounting on a wall, perform work so that it can withstand the weight of
the television and so that the bracket will not come loose from vibration, etc.
Reinforce the bracket if the mounting section strength is insufficient.
The television may fall if the installation is insufficient or if the screws are loose.
●Wall surface strength
Wall surface material
Plywood................... Thickness of at least 20 mm is required.
Concrete.................. Thickness of at least 55 mm is required.
* Use reinforcing plate or bar if the wall surface material is < board, plaster-
board, particle board, > concrete, etc., or if there is not enough mounting
strength due to aging, etc.
3
Use the supplied cable clampers to fix cables. Never fix cables using staples.
■Do not install with the wide-
screen LCD television facing
downward, on its side, or up-
side down.
Heatmay build up withinthe
wide-screen LCD televi-
sion,causing fire asa result.
■Maintain space of at least 5 cm
on top and to the sides of the
wide-screen LCD television
and at least 4 cm in the rear.
Vent holes are located on
the rear of the wide-screen
LCD television. Blocking
these holes may result in
fire.
■Always remove the wall
mounting bracket when re-
moving the wide-screen LCD
television.
Injury may result when ac-
cidentally hitting the pro-
jected parts.
Take caution when removing for re-
pairs, etc.
■The wide-screen LCD televi-
sion is heavy. Always work in
pairs.
The television may fall,
causing bodily injury.
Installation
Prohibited
CAUTION
5
4

Wall mounting bracketA
(main unit side)
(1)
Wall mounting bracket B
(wall side)
(1)
Cable clamper
(3)
Clamper
(3)
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Metal plate (main unit)
(1)
Bracket mounting screwA
(main unit side) (6)
Angle fixing screw (for main
unit side/wall side fixing) (2)
M4x10 mm (Total: 8)
Bracket mounting screw B
(for plywood)
ø4x25 mm (4)
Fall prevention string
(2)
Accessories
Check for the following accessories before installing and connecting the wide-screen LCD
television to the wall mounting bracket. ( ) indicates quantity.
Cautions concerning installation location
■Avoid places with vibration and mount on a vertical surface with no vibration or
shock.
■Do not imbed the wide-screen LCD television, cover or block the vent holes.
For the usage environment, the ambient temperature must be in the range of
5°C – 35°C, and humidity must be in the range of 5% – 90%.
■Keep the wide-screen LCD television away from magnets, heat, steam,
lampblack, etc.
■Install in a location where the main unit power switch can be easily accessed
and where the signals from the remote control may easily reach the television
(about 6 m from the front).
■About the installation location
For the installation location of the wide-screen LCD television, thoroughly con-
sult the following items with the customer.
●The wide-screen LCD television is best viewed directly from the front.
●Avoid areas where the florescent lighting reflects on the wide-screen LCD
television surface. Although vertical angles can be adjusted, the mounting
bracket does not move horizontally.
●For the installation height, do not exceed the range of the connection cords
(AC adapter, antenna, etc.).
Be sure to install in a location where the AC adapter is not suspended and
where it can be placed on the floor, table, etc.
●Install where there are no objects within 20 cm below the wide-screen LCD
television.
●Check the installation height, depth, wall structure, etc., before performing
installation work.
7
6

Fall prevention string
x2 units
Wall mounting bracket B
(wall side)
Wall outlet
Bracket mounting screw B
x4 units
(ø4x25 mm)
Angle fixing screw
x2 units
(M4x10 mm)
Installation wall types
See 8a and 8b of “Installation (wall side preparation)”on
the back.
Plywood Concrete
Wall mounting
bracket B Wall mounting bracket B
Cable clamper x3 units
AC adapter
Wide-screen LCD television
Video connection cable (optional)
Antenna
Bracket mounting screw A
x4 units
(M4x10 mm)
Metal plate
(main unit side)
Bracket mounting screwA
x2 units
(M4x10 mm) Clamper x3 units
Wall mounting bracketA
(main unit side)
Installation diagram
9
8

11
10
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
3
Slide the stand in the
direction of the arrow
and remove by pulling
it up.
2
Removethe stand mount-
ing screws (6 units).
Locking
tabs
2
Hold the locks at the center of the
cable cover (both sides) and remove
the cover.
Locks
2
Pull the cover up in the direction the
shown and remove the stand cover.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

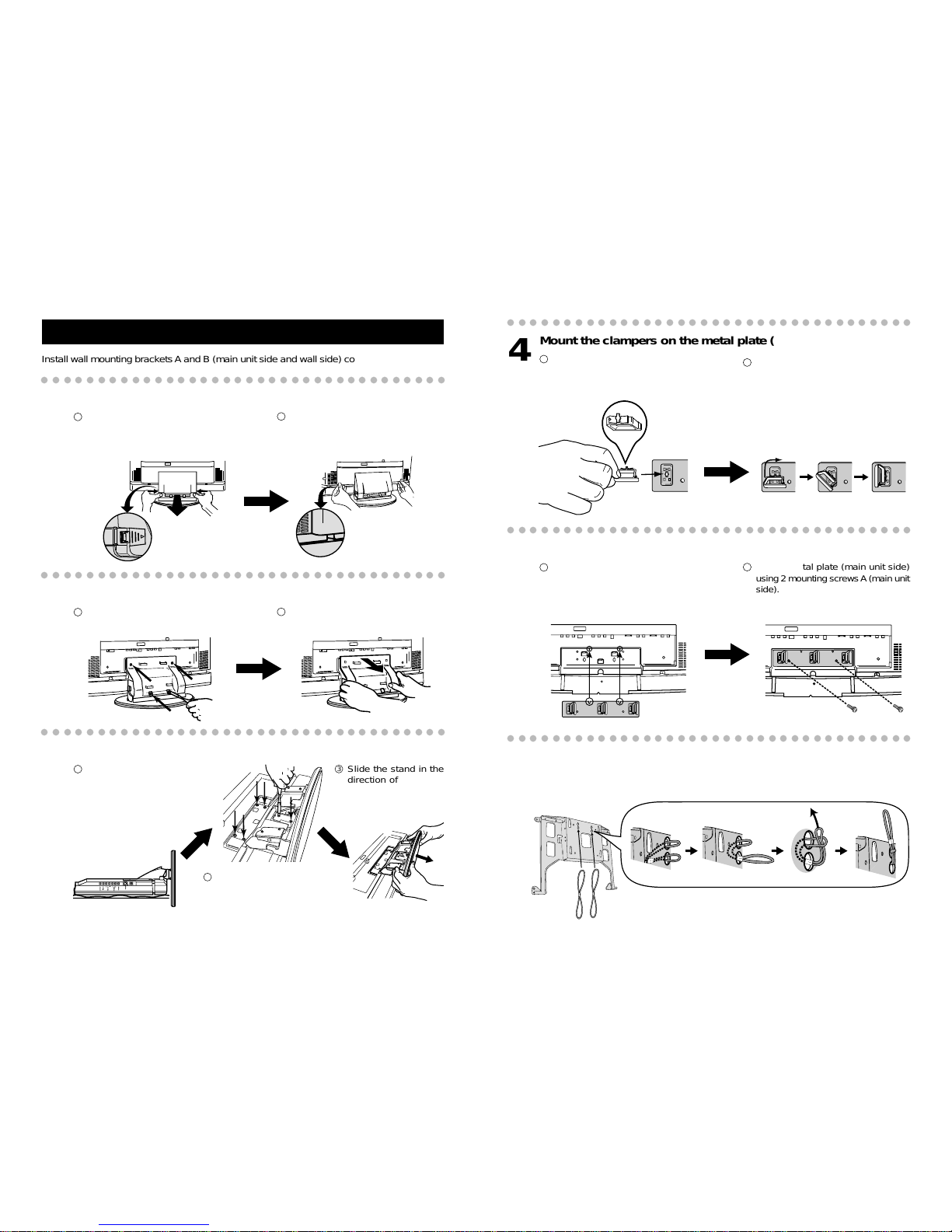

Installation (main unit preparation)
Install wall mounting bracketsA and B (main unit side and wall side) correctly and securely.
1Remove the cable cover
1
Press down on the tabs (2 locations)
on the lower section of the cable
cover to release the locks, and pull
the tabs toward you.
2Remove the stand cover
1
Remove the cover mounting screws
(4 units).
3Remove the stand
1
Place a soft cloth on a
flat surface and place
the television on the
cloth with the LCD
panel facing down. Take
caution so that the LCD
panel does not get
scratched.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2
Turn the clampers 90°to lock.
At this time, mount the clampers so
that the hooks are facing down.
2
Fix the metal plate (main unit side)
using 2 mounting screwsA(main unit
side).
4Mount the clampers on the metal plate (main unit side)
1
Insert the clampers (3 units) into the
clamper mounting holes of the metal
plate (main unit side) from the side
with bulges.
5Mount the metal plate (main unit side)
1
Align the concave sections (2 loca-
tions) located on the upper section of
the metal plate with the convex sec-
tions on the rear of the wide-screen
LCD television.
6Attach the fall prevention strings
Attach the fall prevention strings (2 units) from the inner side of wall mounting bracket A
(main unit side) as shown in the diagram.
(M4x10 mm)

13
12
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2
Fix wall mounting bracketA (main unit side)
using 4 mounting screws A(main unit).
Be sure to securely fasten the screws on 4
locations (top, bottom, right and left).
7Mount wall mounting bracket A (main unit side)
1
Align the screw mounting section of
wall mounting bracket A (main unit
side) with the screw mounting sec-
tion on the rear of the wide-screen
LCD television.
Installation (wall side preparation)
8a Mount wall mounting bracket B (wall side) (Plywood)
1
Place wall mounting bracket B (wall side) on the installation position, determine
the screw positions so that the bracket is level, and make markings on the wall.
2
Fix wall mounting bracket B (wall side) using the 4 bracket mounting screws B
(plywood).
(M4x10 mm)
For plywood, thickness of at least 20 mm is required.
Use supplied bracket mounting screws B (for plywood) (ø4x25 mm)
Check to make sure there are no electrical wires within the wall.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
8bMount wall mounting bracket B (wall side) (Concrete)
1
Place wall mounting bracket B (wall side) on the installation position, determine
the screw positions so that the bracket is level, and make markings on the wall.
2
Embed the anchor bolt flush nuts into the installation position holes using the
method specified by the manufacturer.
3
Align wall mounting bracket B (wall mount) holes with the flush nuts, and screw in
the anchor bolts. Securely tighten the anchor bolts so that they do not become
loose. If necessary, lock the screws.
If washers are necessary, use washers that cannot be removed from the screw
holes of wall mounting bracket B or from the tip of the anchor bolts.
Anchor: Purchase commercially available product
Anchor bolt flush nut: 4 units
Anchor bolt: 4 units
For concrete, thickness of at least 55 mm is required.
Use a commercially available anchor (at least 5 mm in diameter, 30 mm in
length)
Check to make sure there are no electrical wires within the wall.

15
14
To prevent damage to the
wall, make sure that the
main unit is securely
mounted on the notches of
wall mounting bracket B
(wall side) before letting go
of the main unit.
Always work in pairs or
more when installing the
unit on the wall.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Example of
clamped cables
9a Bundling connector cables
1
Press down on the upper section of
the clamper with your thumb and pull
the edge using your index finger to
remove the hook.
Edge
Hook
9bBundling cables below the connector
Outer hole
Tip Inner hole
1
Clamp a single cable using the cable
clamper and insert the tip into the in-
ner hole.
2
Bundle all cables and insert the tip
into the outer hole.
Installation (mounting to wall)
10 Mount wall mounting bracket B (wall side)
1
Be sure to attach the fall prevention strings (2 units) on the hooks of wall mounting
bracket B (wall side).
2
Mount the main unit on wall mounting bracket B (wall side).
Cable
clamper
Clamper
2
Bundle the cables and apply the
clamper hook.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
11 Angle adjustment
This wide-screen LCD television wall mounting bracket can be installed in 4 angles:
5°upsweep, vertical, 5°downsweep and 10°downsweep.
Set the angle by adjusting the notches of wall mounting bracket B (wall side) and the
concave section of wall mounting bracket A (main unit side) to the desired angle by
referring to the diagrams below.
5°upsweep
5°downsweep
Vertical
10°downsweep
Lower notch
Upper notch
Fixing
hole
Lower notch
Upper notch
Fixing
hole
Lower notch
Upper notch
Fixing
hole
Lower notch
Upper notch
Fixing
hole
12 Angle fixing method
To prevent the main unit from falling, fix the main unit using angle fixing screws (2
units) from both sides using the fixing holes located on wall mounting brackets A and
B (main unit side and wall side).
If the fixing holes of the brackets do not align, installation is insufficient.
Check the installation again and fix so that screw holes are aligned.
Example: When adjusting the angle to 10°downsweep.
Angle fixing screw
(M4x10 mm)
Fixing hole
Caution
