Panasonic Viera TX-32LX600F User manual

Service Manual
Colour LCD Television
TX-32LX600F
TX-32LX600P
TX-26LX600F
TX-26LX600P
LH50 Chassis
Specifications
(Informations in brackets [ ] refers to models 26´´)
Power Source: 220-240V AC, 50/60Hz
Power Consumption 136W TX-32LX600F
169W TX-32LX600P
82W TX-26LX600F
118W TX-26LX600P
Stand-by Power Consumption: 0,4W
Aerial Impedance: 75Ωunbalanced, Coaxial Type
Receiving System: PAL-I, B/G, H, D/K,
SECAM B/G, D/K, L/L’
PAL-525/60, M.NTSC, NTSC (AV only)
Receiving Channels:
VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (Hyperband)
Operating Conditions: Temperature: 0°C ÷35°C
Scanning format: 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),
1.080i(50Hz)
PC signals: VGA, SVGA, XGA
SXGA(compressed)
Horizontal scanning frequency 31 – 69 kHz
Vertical scanning frequency 59 – 86 Hz
Intermediate Frequency:
Video/Audio
Video 38,9MHz, 33,9MHz
Audio 33,4MHz (B/G), 33,16MHz (A2)
33,05MHz (NICAM B/G, D/K, L)
32,4MHz (D/K), 32,66MHz (CZ STEREO)
40,4MHz (L’), 39,75Mhz (L’NICAM),
Colour 34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L’)
Terminals:
AV1 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
ORDER No. PCZ0608056CE
All manuals and user guides at all-guides.com
all-guides.com

AV1 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV2 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
S-video IN (21-pin)Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
AV2 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV3 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
S-video IN (21-pin)Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
AV3 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV4 IN S-Video IN (4-pin) Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω
HDMI1, HDMI2 Type A Connector
COMPONENT YUV Video (RCAx3) Y:1V p-p 75Ω
Pb, Pr: 0,7V p-p 75Ω
AUDIO IN Audio (RCAx2) 500mV rms 10kΩ
AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ
PC HIGH-DENSITY D_SUB 15PIN
CARD SLOT SD CARD slot x1
LCD screen: L5EDD8Q00025 [L5EDD6Q00019]
1366 x 768 XGA, 16:9
Visible Diagonal 800mm [660mm]
Audio Output: 20W (5W + 5W, 5W + 5W)
Headphones: 3,5mm, 8ΩImpedance
Accessories supplied : Remote Control 2 x R6 (UM3) Batteries
Dimensions:
Height: Width: Depth:
Including TV stand 624mm 857mm 300mm
[549mm] [724mm] [300mm]
TV set only 563mm 857mm 141mm
[487mm] [724mm] [141mm]
Net weight: 22,5kg [19,5kg]
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product or products deal within this service information by anyone else could result in serious injury or death.
Warning
2
All manuals and user guides at all-guides.com

CONTENTS
SAFETY PRECAUTIONS ........................................... 4
GENERAL QUIDE LINES...................................... 4
TOUCH – CURRENT CHECK............................... 4
PREVENTION OF ELECTROSTATIC DISCHARGE
(ESD) TO ELECTROSTATICALLY SENSITIVE (ES)
DEVICES .................................................................... 5
ABOUT LEAD FREE SOLDER (PBF)......................... 6
SUGGESTED PB FREE SOLDER ........................ 6
APPLICABLE SIGNALS.............................................. 7
SERVICE HINTS ........................................................ 8
CHASSIS BOARD LAYOUT ....................................... 9
SETTING INSPECTION.............................................. 9
SELF-CHECK ........................................................... 10
POWER LED BLINKING TIMING CHART ................ 11
SERVICE MODE FUNCTION ................................... 12
SERVICE 1 ............................................................... 13
SERVICE 2 ............................................................... 14
OPTION DESCRIPTION........................................... 15
ADJUSTMENT METHOD ......................................... 17
WIRING DIAGRAM................................................... 18
BLOCK DIAGRAMS.................................................. 19
PARTS LOCATION................................................... 22
REPLACEMENT PARTS LIST.................................. 24
SCHEMATIC DIAGRAMS ......................................... 49
AP-BOARD (1 OF 3) SCHEMATIC DIAGRAM.... 50
AP-BOARD (2 OF 3) SCHEMATIC DIAGRAM.... 51
AP-BOARD (3 OF 3) SCHEMATIC DIAGRAM.... 52
DG-BOARD (1 OF 8) SCHEMATIC DIAGRAM ... 53
DG-BOARD (2 OF 8) SCHEMATIC DIAGRAM ... 54
DG-BOARD (3 OF 8) SCHEMATIC DIAGRAM ... 55
DG-BOARD (4 OF 8) SCHEMATIC DIAGRAM ... 56
DG-BOARD (5 OF 8) SCHEMATIC DIAGRAM ... 57
DG-BOARD (6 OF 8) SCHEMATIC DIAGRAM ... 58
DG-BOARD (7 OF 8) SCHEMATIC DIAGRAM ... 59
DG-BOARD (8 OF 8) SCHEMATIC DIAGRAM ... 60
G-BOARD SCHEMATIC DIAGRAM .................... 61
GS-BOARD SCHEMATIC DIAGRAM.................. 62
H-BOARD (1 OF 4) SCHEMATIC DIAGRAM...... 63
H-BOARD (2 OF 4) SCHEMATIC DIAGRAM...... 64
H-BOARD (3 OF 4) SCHEMATIC DIAGRAM...... 65
H-BOARD (4 OF 4) SCHEMATIC DIAGRAM...... 66
V ,K-BOARD SCHEMATIC DIAGRAM ................ 67
CONDUCTOR VIEWS......................................... 68
3
All manuals and user guides at all-guides.com

Safety Precautions
General Guide Lines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated
or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.
4. Always ensure panel TKKL5290 is correctly replaced before returning to customer (see Fig.1).
Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth
ground such as a water pipe, as shown in Fig. 2.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values:
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U1 = 1.0 V,
Note:
The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and
2.0 mA d. c.
The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100
kHz.
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the customer.
Fig. 2
Fig. 1
4
TO
A
PPLIANCES
EXPOSED
METAL PARTS
Resistance values in ohms (Ω)
V
R0=500
Ω
RS=1500
Ω
CS=0.22
µ
F
10k
Ω
0.022
µ
F
U1
COLD
WATER PIPE
(EARTH GROUND)
V: Voltmetr or oscilloscope
(r.m.s. or peak reading)
Measuring network for TOUCH CURRENTS
Input resistance: ≥ 1M
Ω
Input capacitance: ≤ 200pF
Frequency range: 15Hz to 1MHz and d.c.respectively
NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms
U2(V)
All manuals and user guides at all-guides.com

Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect
transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of
component damage caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD
wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD
protected)" can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity
(ESD) sufficient to damage an ES device).
There are special components used in this equipment which are important for safety.
These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do
not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
5
All manuals and user guides at all-guides.com

About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work,
we’d suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol
stamped on the back of PCB.
Caution
•Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)
higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
•Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before
applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
•After applying PbF solder to double layered boards, please check the component side for excess solder which may
flow onto the opposite side. (see Fig.3)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.
However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)
Fig.3
Fig.4
6
All manuals and user guides at all-guides.com
all-guides.com

Applicable signals
Note:
•Signals other than above may not be displayed properly.
•Applicable input signal for PC is basically compatible to VESA standard timing.
•PC signal is magnified or compressed for display, so that it may not be possible to show fine detail.
Signal name Horizontal
frequency (kHz)
Vertical frequency
(Hz) Conponent HDMI PC
525 (480)/60i 15,73 59,94 ∗∗
525 (480)/60p 31,47 59,94 ∗∗
625 (576)/50i 15,63 50,00 ∗∗
625 (576)/50p 31,25 50,00 ∗∗
750 (720)/60p 45,00 60,00 ∗∗
750 (720)/50p 37,50 50,00 ∗∗
1.125 (1.080)/60i 33,75 60,00 ∗∗
1.125 (1.080)/50i 28,13 50,00 ∗∗
640 x 400 @70 Hz 31,46 70,07 ∗
640 x 480 @60 Hz 31,47 59,94 ∗
640 x 480 @75 Hz 37,50 75,00 ∗
852 x 480 @60 Hz 31,47 59,94 ∗
800 x 600 @60 Hz 37,88 60,32 ∗
800 x 600 @75 Hz 46,88 75,00 ∗
800 x 600 @85 Hz 53,67 85,06 ∗
1.024 x 768 @60 Hz 48,36 60,00 ∗
1.024 x 768 @70 Hz 56,48 70,07 ∗
1.024 x 768 @75 Hz 60,02 75,03 ∗
1.024 x 768 @85 Hz 68,68 85,00 ∗
1.280 x 1024 @60 Hz 63,98 60,02 ∗
1.366 x 768 @60 Hz 48,36 60,00 ∗
Macintosh 13” (640 x 480) 35,00 66,67 ∗
Macintosh 16” (832 x 624) 49,72 74,54 ∗
Macintosh 21” (1.152 x 870) 68,68 75,06 ∗
7
All manuals and user guides at all-guides.com

Service Hints
How to remove the Pedestal assembly
Lay the main unit face down. (see Fig.5)
Remove the cable cover. (see Fig.6)
Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)
How to remove the backcover
Remove the cable cover. (see Fig.6)
Remove the 15 fixing screws. (see Fig.8)
Fig.5
Fig.6
SCREWS
Fig.7
SCREWS SCREWS
Fig.8
8
All manuals and user guides at all-guides.com

Chassis Board Layout
Setting Inspection
Voltage Confirmation
Board Name Function
AP-Board Mains Input, Power Supply Regulator
DG-Board Global Core, HDMI
G-Board Local Key, Audio Amplifier
GS-Board SD Card Slot, SD Card Interface
H-Board AV Connector, TV tuner, AV Switch
K-Board Main Switch
P-Board DC Power Supply
SD-Module MPEG/JPEG interface
V-Board Remote Receiver, LED IR, Bats
9
V-BOARD
K-BOARD
AP-BOARD
DG-BOARD
H-BOARD
P-BOARD
Confirm the following voltages:
AP board Normal mode
Test point Position Voltage
TP7201 Cathode D7102 7V ± 1V
TP7301 J218 9V ± 0,45V
TP7303 J415 5,1V ± 0,25V
TP7401 JS7958 18,8V ± 0,8V
TP7403 J213 3,3V ± 0,15V
TP7501 JS7503 5,1V ± 0,25V
TP7502 J221 9V ± 0,45V
TP7601 J406 31,5V ± 2,5V
TP7702 JS7702 12,2V ± 0,6V
Standby mode
TP7201 Cathode D7102 10V ± 2V
TP7301 J218 max 2V
TP7303 J415 max 2V
TP7401 JS7958 max 2V
TP7403 J213 max 2V
TP7501 JS7503 max 2V
TP7502 J221 max 2V
TP7601 J406 max 4,5V
TP7702 JS7702 max 2V
SD-MODULE
GS-BOARD
G-BOARD
All manuals and user guides at all-guides.com

Self Check
Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep
pressing the STATUS button on the remote control and press the down (-/v) button on the TV set. To exit Self Check,
switch off the TV set at the power button.
Display Ref. No. Description P.C.B.
MEM IC1102 EAROM DG-Board
GC5 IC4037 GLOBAL CORE DG-Board
GC3FS IC4020 GLOBAL CORE FOR SUB DG-Board
AVSW1 IC3005 AV SWITCH H-Board
AVSW2 IC2105 AV SWITCH H-Board
TUN1 TU3201 MULTISTANDART SOUND
PROCESSOR H-Board
VIF TU3201 VIDEO INTERMEDIATE FREQUENCY H-Board
MSP IC2106 MAIN SOUND PROCESSOR H-Board
SDM SD-MODULE MPEG/PHOTO VIEW, SD RECORDING SD-MODULE
HDMI IC4026 HDMI I/F RECEIVER DG-Board
ADV IC4019 A/D CONVERTER DG-Board
If the CCU
p
orts have been checked and found to be incorrect or not located then " - - " will a
pp
ear in
p
lace of "O.K.".
MEM O.K.
GC5 O.K.
GC3FS O.K.
A
VSW1 O.K.
A
VSW2 O.K.
TUN1 O.K.
VIF O.K.
MSP O.K.
SDM O.K.
HDMI O.K.
A
DV O.K.
TX-32LX600F TX-32LX600P TX-26LX600F TX-26LX600P
OPTION 1 4F 4F 4F 4F
OPTION 2 11 11 11 11
OPTION 3 3A 3A 3A 3A
OPTION 4 D9 59 D9 59
OPTION 5 EB EB 6B 6B
OPTION 6 AB AB AB AB
OPTION 7 00 00 00 00
OPTION 8 78 78 78 78
OPTION 9 00 00 00 00
OPTION 10 80 80 80 80
OPTION 11 C1 C1 C1 C1
OPTION 12 20 20 20 20
OPTION 13 20 20 20 20
CHECK 02 82 82 02
10
All manuals and user guides at all-guides.com

Power LED blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by number of blinking of the Power LED on the front panel of the unit.
Blinking
times Blinking timing Contents Check point
1Inverter SOS POWER UNIT
LCD PANEL
3BT_30V, SOUND 18V,
PANEL 12V AP BOARD, H BOARD
4SUB 9V AP BOARD, H BOARD
DG BOARD
5SUB 5V AP BOARD, H BOARD
DG BOARD
6MAIN 9V AP BOARD, DG BOARD
8MAIN 3,3V AP BOARD, H BOARD
DG BOARD
11
No Light
Light
Once 4 sec
All manuals and user guides at all-guides.com
all-guides.com

Service Mode Function
MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can
be adjusted by remote control in Service Menu
How to enter SERVICE 1
In main menu, move to choose sound menu, set BASS to MAXIMUM, and set TREBLE to MINIMUM.
Simultaneously press INDEX button on remote control and DOWN button (-/v) on the TV set.
How to enter SERVICE 2
Enter the SERVICE 1 mode.
Press the GREEN button to step down to the last menu position.
Set the program position to 99.
Press HOLD button on remote control.
Note:
To exit from Service mode, press N or Power button on remote control.
12
All manuals and user guides at all-guides.com

SERVICE 1
P A N A S O N I C 2 0 0 6 L C D
V 1 . 02 0
S e r
v
i c e 1
S D ( R D – S D 0 0 8 ) : 1 0 5
F l a s h P R O G R A M
E x t >> T V
S D >> T V
S D P R O G R A M
U p d a t e
O K t o p r o g r a m
Sub-Bright
2056
[GREEN]
[RED]
Sub-Contrast
640
[GREEN]
[RED]
Sub-Colour
43
[GREEN]
[RED]
[GREEN]
[RED]
Sub-Backlight
479
Video Gain 2
216
[GREEN]
[RED]
Sub-NTSC-Tint
254
[GREEN]
[RED]
[GREEN]
[RED]
R-Gain
238
G-Gain
255
[GREEN]
[RED]
B-Gain
240
[GREEN]
[RED]
[GREEN]
[RED]
B-Cent
104
G-Cent
128
[GREEN]
[RED]
R-Cent
140
[GREEN]
[RED]
[GREEN]
EQ 120Hz
0
EQ 200Hz
-3
[GREEN]
[RED]
EQ 500Hz
0
[GREEN]
[RED]
[GREEN]
[RED]
EQ 7,5kHz
-3
EQ 3kHz
-3
[GREEN]
[RED]
EQ 1,2kHz
1
[GREEN]
[RED]
[GREEN]
EQ 12kHz
-3
CEC Check
OFF
[GREEN]
[RED]
SD Auto Check
Access
[GREEN]
[RED]
[HOLD]
+Pos. 99
[INDEX]
+ Pos. 99
[RED] [RED]
13
All manuals and user guides at all-guides.com

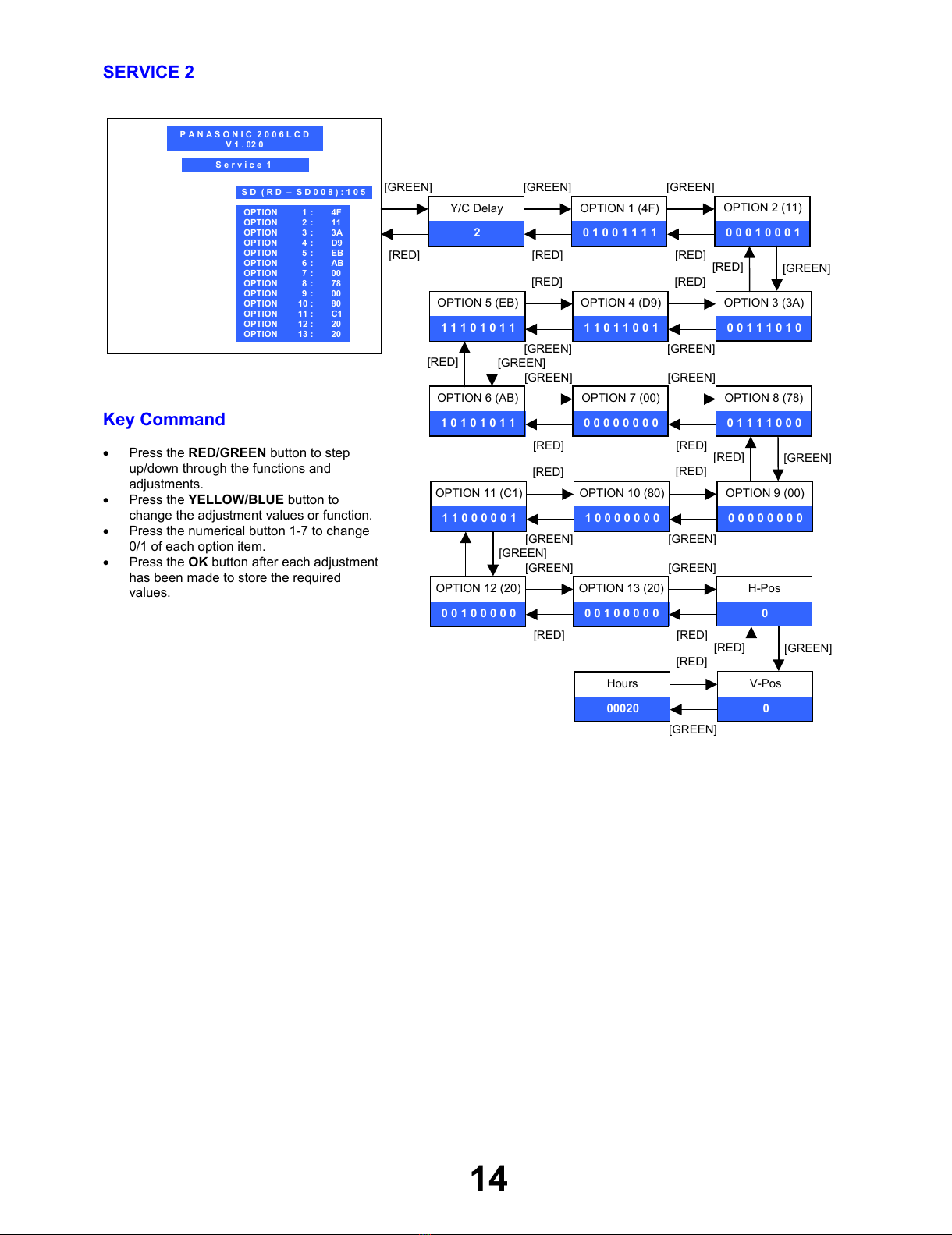

SERVICE 2
P A N A S O N I C 2 0 0 6 L C D
V 1 . 02 0
S e r
v
i c e 1
S D ( R D – S D 0 0 8 ) : 1 0 5
OPTION 1 : 4F
OPTION 2 : 11
OPTION 3 : 3A
OPTION 4 : D9
OPTION 5 : EB
OPTION 6 : AB
OPTION 7 : 00
OPTION 8 : 78
OPTION 9 : 00
OPTION 10 : 80
OPTION 11 : C1
OPTION 12 : 20
OPTION 13 : 20
Y/C Delay
2
[GREEN]
[RED]
OPTION 1 (4F)
0 1 0 0 1 1 1 1
[GREEN]
[RED]
OPTION 2 (11)
0 0 0 1 0 0 0 1
[GREEN]
[RED]
[GREEN]
[RED]
OPTION 5 (EB)
1 1 1 0 1 0 1 1
OPTION 4 (D9)
1 1 0 1 1 0 0 1
[GREEN]
[RED]
OPTION 3 (3A)
0 0 1 1 1 0 1 0
[GREEN]
[RED]
[GREEN]
[RED]
OPTION 6 (AB)
1 0 1 0 1 0 1 1
OPTION 7 (00)
0 0 0 0 0 0 0 0
[GREEN]
[RED]
OPTION 8 (78)
0 1 1 1 1 0 0 0
[GREEN]
[RED]
[GREEN]
[RED]
OPTION 11 (C1)
1 1 0 0 0 0 0 1
OPTION 10 (80)
1 0 0 0 0 0 0 0
[GREEN]
[RED]
OPTION 9 (00)
0 0 0 0 0 0 0 0
[GREEN]
[RED]
[GREEN]
OPTION 12 (20)
0 0 1 0 0 0 0 0
OPTION 13 (20)
0 0 1 0 0 0 0 0
[GREEN]
[RED]
H-Pos
0
[GREEN]
[RED]
[GREEN]
[RED]
Hours
00020
V-Pos
0
[GREEN]
[RED]
Key Command
•Press the RED/GREEN button to step
up/down through the functions and
adjustments.
•Press the YELLOW/BLUE button to
change the adjustment values or function.
•Press the numerical button 1-7 to change
0/1 of each option item.
•Press the OK button after each adjustment
has been made to store the required
values.
14
All manuals and user guides at all-guides.com

Option Description
option1
b0 Auto (1)
b1 SECAM (1)
b2 NTSC (1)
b3
Colour system
M.NTSC (1)
b4 A2 select 6,5MHz 5,742MHz (0) 6,742MHz (1)
b5
b6
SIF I only (0), BG only (1)
I/BG/DK/L (2), BG/DK (3)
b7 free
option2
b0 enable (1)
b1 not use
b2 not use
b3
A2 enable
not use
b4 enable (1)
b5 not use
b6 not use
b7
NICAM enable
not use
option3
b0 SASO enable SASO enable (1)
b1 Fine tuning Enable (1)
b2 Search speed Slow (1), Fast (0)
b3 Tuner MACO Tuner (1), Others (0)
b4 HYPER UHF only (0), UHF/VHF (1)
b5 IF I2C I2C controlled Tuner IF module (1)
b6 NICAM C4 bit enable (1)
b7 Blue Back BLUE BACK on/off selection in menu (0)
option4
b0 Aspect AUTO enable (1)
b1 S1/S2 enable enable (1)
b2 ID-1 enable (1)
b3 User aspect Just enable (1)
b4 User aspect 14:9 enable (1)
b5 ALBD 14:9 14:9 enable, Zoom3 disable at self wide (1)/Zoom1, Zoom3 enable at self wide (0)
b6 TEXT enable (1)
b7 TEXT TOP TOP enable (1)
option5
b0 CH Blanking Blanking enable (1)
b1 AV Blanking Blanking enable (1)
b2 Noise mute Noise mute enable (0)
b3 sub picture without sub-picture (0), with sub-picture (1)
b4 2tuner 2tuner (1), 1tuner (0)
b5 AV input 3rotation (1)/2rotation without front RCA (0)
b6 Panel (LCD) HITACHI Panel (1)/LG Panel (0)
b7 Large size (LCD) 32 (1)/26 (0) for LCD
option6
b0 SD module with SD module (1)
b1 SD module Ext. Rec(PAL) enable (1)
b2 SD module Ext. Rec(NTSC) enable (1)
b3 SD module Ext. Rec(SECAM) enable (1)
b4 IDTV enable (1)
b5 HDMI enable (1)
b6 Ext. HV input Without HV input (0)/ with HV input (1)
b7 PC enable (1)
option7 Area option
b0 Asia Asia (1), Europe (0)
b1 Australia not use
b2 Ireland/India Ireland (1)
b3 UK/Korea UK (1)
b4 Lang1 not use
b5 Lang2 not use
b6 Lower POS not use
b7 Owner ID not use
15
All manuals and user guides at all-guides.com

option8 Euro option
b0 ACI all country ACI enable (1), only Netherlands (0)
b1 ACI auto MP ACI auto multi package enable (1)
b2 ACI offset ACI offset for VCR prog. enable (1)
b3 Power up EC-Mode Power on EC enable (1)
b4 AVLink Q-Link off selectable in menu (1)
b5 Volume correction TV Volume correction enable (1)
b6 MPX/NICAM display Display NICAM (0), Display MPX (1)
b7 Albd Reset Off enable (1)
option9 Asia option1
b0 ASIA / M.E. / HK / UK / CHINA (1)
b1 NZ/ INDNES (1)
b2 AUSTRALIA (1)
b3 E.EUROPE (1)
b4 SPECIAL (1)
b5 AMERICA (1)
b6 CATV (1)
b7
CH Plan
JAPAN (1)
option10 Asia option2
b0 ASIA / M.E. (1)
b1 HK / UK (1)
b2 CHINA (1)
b3 NZ / INDN (1)
b4 AUSTRA (1)
b5 E.EURO (1)
b6
NICAM priority
SPECIAL (1)
b7 HDMI AVI Aspect enable (1)
option11 Additional
b0 Remocon Type Delux (1), Leader (0)
b1 Environment AI (PDP) Enable with viewing mode auto (1)/ disable without viewing mode auto (0)
b2 WSS 14:9 off WSS 14:9 off (1)
b3 Child lock Child Lock Tuning Menu skip (1)
b4
b5 Contrast AI enable (1) LCD only
b6 Service H-POS enable (1)
b7 Service V-POS enable (1)
option12 Additional
b0
b1
b2
b3
b4
b5 SRS enable (1)
b6
b7
option13 Additional
b0
b1
b2
b3
b4
b5 FTZ enable (1)
b6
b7
16
All manuals and user guides at all-guides.com
all-guides.com

Adjustment Method
Sub-Contrast/White Balance Adjustment
Instrument Name Connect to Remarks
1. Remote controller
2. LCD WB meter (Minolta CS-1000A equivalent)
3. Comunication jig
4. Computer for external control
Correlation can be also taken by
CA-210 or equivalent
Procedure Remarks
Subcontrast adjustment
1. Receive PAL colour bar (100% white) RF signal.
2. Enter “Sub-Contrast” adj. In SERVICE 1 mode.
3. Start adjusting by using Blue Key.
4. If the adjustment finished normally, the letter of “Sub-Contrast” will change
from red to black
White Balance adjustment
1. Procedure basically perform checking using the production software and make
automatic adjustment using external computer.
2. It adjust in the mode of Colour balance Normal as follows.
TX-32LX600F, TX-32LX600P TX-26LX600F, TX-26LX600P
TOP Normal TOP Normal
x: 0,2800 ±0,003 x: 0,2800 ±0,003
y: 0,2850 ±0,003 y: 0,2850 ±0,003
GRAY Normal GRAY Normal
x: 0,2800 ±0,003 x: 0,2800 ±0,003
y: 0,2850 ±0,003 y: 0,2850 ±0,003
The address of EEPROM to write is as follows
Add. C148-C159
Let the panel standfor more than 3
hours at more than 20 °C.
Basically perform adjustment in the
ambient environment of room
temperature more than 20 °C.
The aging time is more than20 min
at above room temperature.
Applied signal
100% full colour bar
0,7V p-p white peak
87.5% modulation
17
All manuals and user guides at all-guides.com

DG-BOARD
DG2
DG3
P-BOARD
CN202
DG4 DG5
DG7
CN203
CN101
CN201
AP-BOARD
AP1
AP2
AP3
AP4 AP5
AP6
AP10
GS-BOARD
GS3
GS9 GS8
JK6701
SD CARD
SLOT
H-BOARD
H1
H2 H3
JK3001
PC IN
H4 H5
H8H9
AV1 AV2
AV3
AV3C
JK2002
A
UDIO
OUT
JK2001
PC AUDIO
OUT
G-BOARD
G1
G4
G5
JK3801
A
V4
FRONT
G10 G11
SP-L SP-R
SD
MODULE
K-BOARD
K6
V-BOARD V1
MAINS IN
LCD PANEL
HDMI1 HDMI2
DG6
DG11
32” models only
26” models only
Wiring diagram
H12
SERVICE

All manuals and user guides at all-guides.com

WF_R
IC4037 – GC5
MNA84522-A
DG3
40
38
36
34
30
28
26
SD_V_IN
H5
11
13
17
19
A
V1 21PIN SCART
AV1_V 20
AV1_VOUT 19
AV1_RED 15
AV1_GREEN 11
AV1_BLUE 7
AV1_L 6
AV1_LOUT 3
AV1_R 2
AV1_ROUT 1
AV2 21PIN SCART
AV2_V 20
AV2_VOUT 19
AV2_C 15
AV2_L 6
AV2_LOUT 3
AV2_R 2
AV2_ROUT 1
A
V3 21PIN SCART
AV3_V 20
AV3_VOUT 19
AV3_RED/C 15
AV3_GREEN 11
AV3_BLUE 7
AV3_L 6
AV3_LOUT 3
AV3_R 2
AV3_ROUT 1
AV3C
Y
PB
PR
H-BOARD DG-BOARD
G-BOARD
GS-BOARD
IC3005
VIDEO SWITCH
3, 4 AV3_ V
AV4_C 1
17 AV1_GREEN
SUB_PR 44
SUB_PB/C 45
SUB_CY/Y/V 46
MAIN_PR/B 48
MAIN_PB/C/R 49
SD_VIN 13
19 AV1_RED
20 AV1_BLUE
22 AV3_GREEN
25 AV3_BLUE
27 AV3C_Y
29 AV3C_PB
30 AV3C_PR
AV4_Y 64
AV4_V 63
61 AV2_C
58, 59 AV2_V
VOUT5 42
SD_REC_V 41
37 AV3_VO
6, 24 AV3_RED/C
53 AV1_V
51 AV1_VO
38 AV2_VO
MAIN_CY/Y/V/G 50
Q3004
Q3003
JK3001
23
PC_B
PC_G
PC_R
H3
1
3
5
7
11
13
15
Q3014
Q3017
Q3011
Q3015
MAIN_CY/Y/V/G _OUT
MAIN_PB/C/R _OUT
MAIN_PR/B _OUT
MAIN_CVBS _OUT
SUB_CY/Y/V _OUT
SUB_PB/C _OUT
SUB_PR _OUT
MAIN_RF_CVBS 14
MAIN_RFVIDEO_OUT
SIF_OUT MSP
SD_REC_
V
JK2001
L
R
Q2009
Q2010
Q2006
Q2007
Q2003
Q2004
AV4_R AV4_L
HP_R
HP_L
IC2101
HP AMPLIFIER
3
1
5
7
IC2106
AUDIO
PROCESSOR
24 HEADPHONE R
25 HEADPHONE L
SPEAKER_ R 27
SPEAKER_ L 28
57 MAIN_ R
56 MAIN_ L
33 TV_R
34 TV_ L
IC2105
AUDIO SWITCH
AV4_R 7
4 AV2_R
MAIN_R 33
MAIN_L 32
30 AV3_LO
28 AV2_RO
3 AV2_L
AV4_L 6
16 PC_LIN
TV_R 15
17 PC_RIN
18 SD_MONO_IN_L
19 SD_MONO_IN_R
23 AV1_LO
24 AV1_RO
25 SD_AUDIO_L_OUT
HDMI_L 10
8 AV3_L
31 AV3_RO
TV_L 14
1 AV1_L
2 AV1_R
9 AV3_R
26 SD_AUDIO_R_OUT
27 AV2_LO
HDMI_R 11
IC2104
AUDIO
AMPLIFIER
53
Q2105
Q2104
7
1
L_OUT
R_OUT
IC2302
AUDIO
AMPLIFIER
62
IC2303
AUDIO
AMPLIFIER
62
7117
SK_L
SK_R WF_R
WF_L
Q3002
Video & Stereo Audio Block Diagram
HDMI_R
HDMI_L
TUNER
14
17 Q3202 Q3010
Q3203 Q2108 Q2106
ANA_IN1+ 67
G4
7
11
14
22
26
29
30
H4
7
11
14
22 26 29
30
L
L
V
R
R
C
Y
GUARD_SR
GUARD_SL
GUARD_V
GUARD_C
GUARD_Y
GUARD_SR
GUARD_SL
JK3801
G5
11 13
17
19
IC2500
AUDIO
AMPLIFIER
4
16 13
IC2501
AUDIO
AMPLIFIER
4
16 13
SQ_L
WF_L
G10
1
2
3 4
SQ_L+
SQ_L-
W
oo_L+
Woo_L-
GS9
3
5
7
9
11
15
H9
3
5
7
9
11
15
SD V_OUT
SD V_IN
SD L_OUT
SD R_IN
SD R_OUT
SD L_IN
GS3
6
12
16
14
20
18
SD MODULE
DG2
23
21
25
13
11
HDMI_R
HDMI_L
H2
18
20
16
28
30
HDMI 1
IC4026
C1AB00002535
HDMI I/F
8Bit data
8Bit data
39,40,43,44
47
,
48
,
51
,
52
58,59,62,63,
66,67,70,71
HDMI_Y0-Y7, HDMI_UV0-UV7
IC4020
GC3FS-S
IC4019
ADV7499B
56 PC_B
54,52 PC_G
58 PC_R
Q4050 Q4058
Q4081 Q4057
Q4080 Q4056
Q4053 Q4055
MAIN_CY/Y/V/G
MAIN_PB/C
MAIN_PR
RGB_CVBS 57 RGB_CVBS
72 PR
74 PB/C
76 YIN
Q4059 77 RESET
IC1103
MICROPROCESSOR
MCU
ANALOG
VIDEO
EURO TEXT
CVBS0
CVBS1
142
151
PORT D-OSD INPUT
HDMI_R
HDMI_L IC4028
AMP
7
1
2
6
IC4025
AUDIO DAC
10 11
13
PC_B
PC_G
PC_R
4
2
HDMI_R_AUDIO
HDMI_L_AUDIO
MCLK 88
SCK 86
SDO 84
WS 85
MCLK
SCK
SDO
WS
SUB_PR
SUB_PB
SUB_Y
VIN2 35
VCLP 44
VIN1 30
OCLP 43
VIN3 40
YCLP 45
Q4040
Q4041
Q4042
Q4044
Q4043
Q4046
Q4052
Q4051
Q4054
UBIN2-UBIN9,
Y
BIN2-
Y
BIN9
CLK, VSIB, HSIB
PORT B (FS&HDMI)
HDMI_VS
HDMI_HS
HDMI_OE
REFCK_HDMI
Y
IN0-
Y
IN9, UVIN0-UVIN9
CLK, VSIA, HSIA, REFCK_ADV
PORT A (
A
DV7499)
IC4040
LVDS TRANSMITTER
2,3,4,6,7,8,10,11,12,14,15,16,18,19,20,22,23,24,
27,28,30,31,50,51,52,54,55,56
PORT E
B0E2-B0E9, G0E2-G0E9, R0E2-R0E9
VS0E, HS0E, CLK0E, LVDS-ENB
DG7
38 39 40 41
37 42 45 46 47 48
RX0-
RX0+
RX1-
RX1+
RX2-
RX2+
RXCLK-
RXCLK+
RX3-
RX3+
6
7
9
10
11
13
15
16
18
19
TO LCD PANEL
A
V4_C
AV4_Y AV4_
V
SD_MONO_IN_L
SD_MONO_IN_R
SD_AUDIO_L_OUT
SD_AUDIO_R_OUT
HDMI 2
IC2502
AUDIO
AMPLIFIER
4
16 13
IC2503
AUDIO
AMPLIFIER
4
16 13
SQ_R
G11
1
2
3 4
SQ_R+
SQ_R-
W
oo_R+
Woo_R-
1
LR
Q3333
Q3331
Q3332
JK2002
SC1_OUT_L 37
SC1_OUT_R 36
PC AUDIO IN
AV4 FRONT
PC AUDIO IN
AUDIO OUT
HP_R
HP_L
THIS IS EXCHANGE UNIT
SD CARD
JK6701

All manuals and user guides at all-guides.com

Q6702
SOUND_16V
BT_30V
AP10
1
2
MAINS IN
+
~
D7004
~
-
Line
Filte
r
LF7002
PFC
Filter
L7001
3
21
4
RL7001
AP2
1
3
IC7301
PS
CONTROL
IC7302
COMPARATOR
SUB DC/DC
IC7701
REGULATOR
PANEL Vcc
PANEL_12V
24V
24V
Q7301 SUB_5V
Q7302 SUB_9V
UNREG_30V
D7602
D7601
MAIN_5V MAIN_5V
Q7504
MAIN_9V MAIN_9V
Q7501
SUB_5V
SUB_9V
IC7401
PS
CO
NTR
O
L
IC7402
COMPARATOR
MAIN DC/DC
Q7402
Q7401
SOUND_16V
MAIN_3,3V
Q7601
AP1
17÷18
11
15
23
21
7-9
H1
17÷18
11
15
23
21
7-9
SOUND_16V
MAIN_5V
SUB_5V
SUB_9V
MAIN_3,3V
BT_30V
SOUND_16V
MAIN_5V
SUB_5V
SUB_9V
MAIN_3,3V
BT_30V
DG5
2÷4
7
22÷23
AP5
2÷4
7
22÷23
DG4
3÷4
8÷10
13÷14
20÷22
AP4
3÷4
8÷10
13÷14
20÷22
H5
1÷5
G5
1÷5
T7101
2
3
8
7
+
~
D7102-5
~
-
MAIN_SW_ON
AP6
1
2
K6
1
2
AP - BOARD
K - BOARD
SW001
STB_7V
SUB_5
V
STB_7
V
MAIN_5
V
MAIN_9
V
MAIN_3,3V
SUB_9V
PANEL_12
V
DG - BOARD
H - BOARD
IC1108
4Vin
5Vout
REGULATOR
D1120
SUB_5V
STB_7V
STB_3,3V
IC1110
4Vin
5Vout
REGULATOR
STB_1,5V
IC4013
8Vin
1Vout REGULATOR
D4064
MAIN_5V
ADV_3,3V
IC4019
63
12, 39, 90 ADV7499B
MAIN_3,3V
1,8V 1 6, 18
IC4018
1VDD
5Vout REGULATOR
MAIN_3,3V
1,8V 1
IC4016
1VDD
5Vout REGULATOR
MAIN_3,3V
1,8V
ADV_3,3V
47,48
1,8V
IC4020
6, 12, 17, 51,
62, 69, 81, 97
8, 15, 53, 66, 82, 95
GC3FS-S
AD_2,5V
MAIN_2,5V
28, 33, 38, 41
MAIN_3,3V
49, 57
PLL_2,5V
IC4014
1 VDD
5 Vout
MAIN_3,3V
AD_2,5V REGULATOR
IC4045
MAIN_3,3V
MAIN_2,5V REGULATOR
IC4017
1 VDD
5Vout
MAIN_3,3V
PLL_2,5V REGULATOR
IC4026
5, 26, 76, 89, 98,
109, 122, 134,
HDMI RECEIVER
MAIN_3,3V 38, 42, 46, 50, 57,
61, 65, 69
MAIN_3,3V
IC4027
7 Vin
1 Vout
MAIN_3,3V
MAIN_1,8V REGULATOR
IC4037
AF6, AC4,
A
G5,
A
G14,
PLL_3,3V W15
2,5V
IC4030
MAIN_5V
PLL_3,3V REGULATOR
GC5
IC4029
5 Vin
4 Vout
MAIN_3,3V
2,5V REGULATOR
MAIN_3,3V AA26, AB26,
A
K26, D11, D15,
D19, D20, E7, E8, E11, E12, E15,
E16, E19, E20, E23, E24, F26, F27,
J26, J27, K5, K26, K27, L5, M18,
M19, N18, N19, N26, N27, W5, P4,
P5, P26, P27, R4, R5, U26, U27,
V5, V26, V27, AF19, AF18
MAIN_1,2V AE26, AE27,
A
F26,
A
F27,
AG27, AH28, AJ29, AK30,
B1, C2, D3, E4, F5, M12,
M13, M14, N12, N13, N14,
P12, P13, P14, R15, T16,
T17, T18, T19, U17, U18,
U19, V18, V19, W18, W19
IC4031
MAIN_5V
3,3V REGULATOR
3,3V AF22, AK20
IC4046
SUB_9V
MAIN_1,2V REGULATOR
IC1100
1, 3, 9, 14,
27, 43, 49
STB_3,3V
64MBIT SDRAM
IC1101
37
STB_3,3V
FLASH MEMORY
IC1102
8
STB_3,3V
EAROM
IC1103
55, 98, 137,
182, 204
STB_3,3V
16, 30, 49, 73,
88, 108, 129,
154, 170, 191,
201, 214
STB_1,5V
MICRO
PROCESSOR
IC1106
14
STB_3,3V
ANALOG SWITCH
IC1107
14
STB_7V
ANALOG SWITCH
IC4023
8
MAIN_5V
2KBIT EEPROM
IC4022
8
MAIN_5V
2KBIT EEPROM
IC4025
14
MAIN_5V
D/A CONVERTER
IC4028
8
MAIN_9V
OP AMP
IC4044
MAIN_3,3V
DDR_2,5V REGULATOR
IC4038
C6, C7, D3, D10, K3, K6,
K7, K10, B3, B2, B4, B6,
B7, B9, B10, B11, D2, D11,
E3, E10, F3, F10, H3, H10,
J3, J10, G3, G10
DDR_2,5V
DDR SDRAM
DDR_2,5V AA1, AA2,
A
B2,
A
B3,
A
B4,
A
B5,
AF7, AF10, AF11, AG6, AG7, AG10,
AG11, AJ1, V12, V13, W12, W13,
MAIN_1,8V 22, 23, 35, 74, 79, 92,
94, 105, 114, 128, 139
MAIN_3,3V 6, 7, 13, 16, 19
H12
1
SERVICE
MAIN_5V
IC2101
8
MAIN_5V
HP AMPLIFIER
IC2104
8
SUB_9V
A
UDIO
A
MPLIFIER
IC2105
5
SUB_9V
A
UDIO
SWITCH
IC2103
3 Vin
1 Vout
SUB_9V
8V REGULATOR
IC2106
39
A
UDIO
PROCESSOR
8V
5V 12, 13,
65, 66,
80
IC2107
1 Vin
3 Vout
SUB_9V
5V REGULATOR
IC3005 7, 39
V
IDEO
SWITCH
SUB_9V
IC2302
8
SUB_9V
A
UDIO
A
MPLIFIER
TU3201
2÷3
TUNER
SUB_5V
15
BT_30V
SOUND_16V
5 Vin
4 Vout
5 Vin
4 Vout
2 Vcc
4 Vout
1 VDD
5 Vout
1 Vin
2 Vout
H9
1
GS9
1
SUB_5V
G - BOARD
IC2500
5, 18
AUDIO AMPLIFIER
SOUND_16V IC2501
5, 18
AUDIO AMPLIFIER
SOUND_16V IC2502
5, 18
AUDIO AMPLIFIER
SOUND_16V IC2503
5, 18
AUDIO AMPLIFIER
H4
2
G4
2
SUB_5V
19
19
STB_3,3V
IC2303 8SUB_9V
A
UDIO
A
MPLIFIER
SUB_5V
SOUND_16
V
SUB_5
V
STB_3,3
V
V - BOARD
RM1001
LED RECEIVER
REMOTE CONTROL
R&G LED
D1005
Q1003
PC1001
PHOTO COUPLER
CATS
STB_3,3V
V1
2
5
G1
2
5
SUB_5V
STB_3,3V
DG3
14
H3
27
STB_3,3V STB_3,3V
SUB_5V
SD LED
D6702
IC6701
1, 5 Vin
4 Vout
SUB_5V
3,3V REGULATOR
IC6703
14
3,3V
BUS BUFFER
GS3
38-40
TO SD MODULE
SUB_5V
JK6701
4
SD CARD
SLOT
GS - BOARD
SUB_5V
3,3V
IC2108 25V
RESET IC
Q1004
IC1109
2
STB_7V
RESET IC
POWER UNIT
CN101
1
3
AP3
1÷4
5÷9
CN201
1÷4
5÷9
IC3301
8
MAIN_3,3V DUAL
BUFFER
Q1148 5V
IC4040
1, 9, 26,
34, 44 LVDS
TRANSMITTER
MAIN_3,3V
DG7
26
÷
31
TO LCD PANEL
PANEL_12V
CN203
CN202
TO LCD PANEL
THIS IS
EXCHANGE
UNIT
THIS IS EXCHANGE
UNIT
F7000
D7003
Power Supply Block Diagram
BT_30V

All manuals and user guides at all-guides.com
