MATRIX SYSTEM150 PRODUCT COMPONENTS
16 Inputs
Matrix Switcher
WJ-SX150A
16 Inputs Multiplexer Integrated
Matrix Switcher
WJ-SX155
RS-485 System Controller
with 3D-Joystick & Jog/Shuttle
WV-CU650
RS-485 System Controller
with 3D-Joystick
WV-CU360CJ
16 Inputs
Matrix Switcher
WJ-SX150A
16 Inputs Multiplexer Integrated
Matrix Switcher
WJ-SX155
support up to 64 Camera Systems3
with optional Panasonic Digital Disk Recorder; WJ-HD300A Series1with optional Single Channel Recorder2
Slave 1 Slave 2 Slave 3 Slave 4
WV-CU650 System Controllers Max. 4
Monitor Outputs Max. 4
Matrix Switcher WJ-SX150A
Max. 16
Camera Inputs
Camera
(1)
Camera
(3)
Camera
(16)
Camera
(2)
WV-CU650 WV-CU360CJ
System Controllers Max. 4
Matrix Switcher WJ-SX150A
Digital Disk Recorder
WJ-HD316A
(with 16ch Multiplexer)
Loop-through
Loop-throughLoop-throughLoop-throughLoop-through
EXT IN
Multiscreen
Ethernet
(10Base-T/100Base-TX)
LAN / WAN
Internet
PC
PC
WV-CU650 WV-CU360CJ
System Controllers Max. 4
Monitor Outputs Max. 4
Matrix Switcher WJ-SX155
(with Multiplexer Function)
Max. 16
Camera Inputs
Camera
(1)
Camera
(3)
Camera
(16)
Camera
(2)
Monitor Outputs Max. 4
16 Camera Inputs
Camera
(1)
Camera
(3)
Camera
(16)
Camera
(2)
Digital Disk Recorder WJ-HD316A Digital Disk Recorder WJ-HD316A
16 Camera Inputs
Camera
(17)
Camera
(19)
Camera
(32)
Camera
(18)
16 Camera Inputs
Camera
(33)
Camera
(35)
Camera
(48)
Camera
(34)
16 Camera Inputs
Camera
(49)
Camera
(51)
Camera
(64)
Camera
(50)
Master
PC
RS-232C Port
Single Channel Recorder
Matrix Switcher WJ-SX150A
Digital Disk Recorder WJ-HD316A
Matrix Switcher WJ-SX150A Matrix Switcher WJ-SX150A
Digital Disk Recorder WJ-HD316A
Matrix Switcher WJ-SX150A

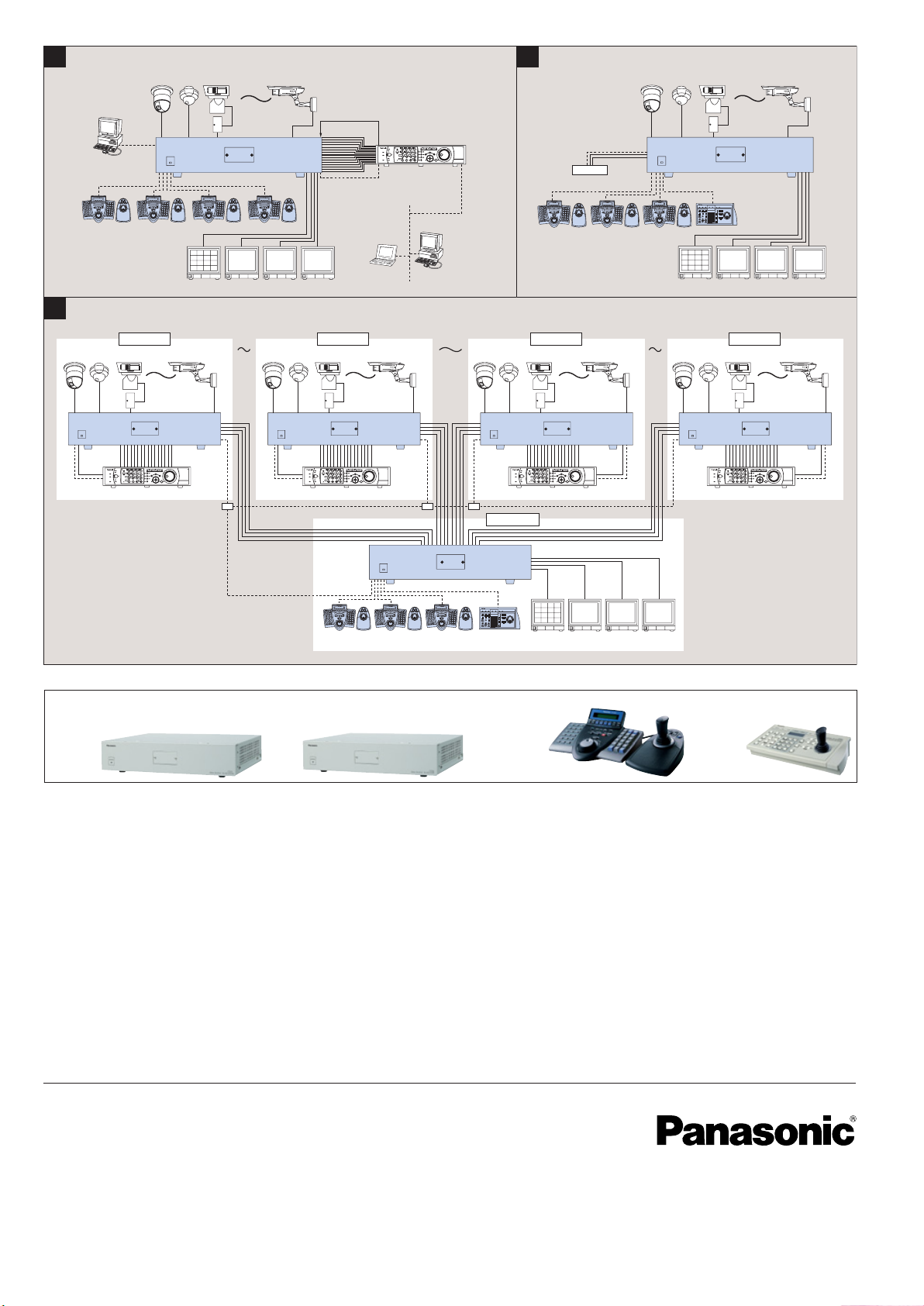

SYSTEM EXAMPLES 64 Inputs Matrix Switcher System
Matrix System150
RS-485 System Controller
with 3D-Joystick &
Jog/Shuttle
WV-CU650
Version 2.03
http://panasonic.net/security/
Printed in Japan (2N-694G)
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
DISTRIBUTED BY:
Important
–Safety Precaution: carefully read the operating instructions and installation manual before using this product.

23
The new Panasonic Matrix System150 is ideal
for small-scale surveillance applications. The
Matrix Switcher can link up to 64 cameras,
4 monitors and 4 controllers. It can be
combined with our dome cameras providing
excellent image quality.
All of the Matrix System150’s 64 channels
employ Panasonic proprietary coaxial,
multiplex connectors. Video signals, control
data, synchronous signals (VD2) and alarm
signals all travel over a single cable, reducing
the number of lines required for camera
installation. Cables can be as long as 1,200 m.
This System also supports remote camera
control using RS-485 data.
The Matrix System150 is loaded with special
features including tour sequencing, alarms,
video loss detection, and character displays on
the monitor. All features are easy to operate
using the WV-CU650 dedicated system
controller.
One major feature is the ease of changing
system settings using menus displayed on a
personal computer. Providing direct control of
all device settings as well as user management
features, the system administration software
bundled with the Matrix System150 imposes
no extra burden on system administrators.
Access to vital settings data can be restricted
to a specified level of user through use of User
ID (operator number) and passwords.
The Matrix System150 is ideal for schools,
supermarkets, banks, parking lots, warehouses,
and correctional facilities. The Matrix
System150’s small-scale system simplifies
operation while providing all the features
required for high-level surveillance.
*When cascade configuration
Camera
• Supports up to 64 cameras.
• All 64 channels are coaxial, multiplex cables,
reducing the number of cables required and
simplifying installation.
• Supports up to 64 RS-485, remote-controlled
cameras.
• Pan, tilt and other cameras lens motions can be
controlled either by coaxial, multiplex cable or
RS-485 remote-control signals.
• Cables can be up to 1,200 m long.
• The video loss detection function automatically
detects camera malfunctions.
System
• All sequence and alarm modes can be adjusted
as needed.
• User management features include operator
number, password, level, and priority.
• Personal computer screen displays simplify set-
up and management of alarm histories.
• Supports up to 80 alarm inputs and four alarm
outputs.
Monitor
• Output supports up to 4 monitors.
• Character displays show date, time, camera
number, camera title, and event information.
• Alarm history display shows up to 100 most
recent alarms.
External Links
• The RS-485 camera ports allow remote
surveillance.
• The RS232C ports enable connection to
personal computers or VTRs.
The above all photographs were taken for the purpose of explanation; actual images may differ.
Major Features and Functions
Controls up to 64*cameras and 4 monitors.
The Matrix System150 is compact,
high in quality and cost effective.

Pre-set the sequence in which to view an image from a series of different cameras. The WV-CU650 System Controller
makes it possible to choose from a variety of sequence patterns with push-button ease. Just select the one that
provides the most effective coverage.
Tour Sequence
The monitor switches automatically, following a pre-set sequence from
channel 1 to channel 64. Each sequence can include up to 64 steps,
with each step set from one to 30 seconds in length. In addition, dome
cameras can also be pre-set to precisely the viewing angle you need.
Up to 32 touring patterns can be stored in memory for easy recall.
step 1
Tour 1
C1
Tour 2
C5
Tour 3
C9
Tour 32
C13
step 2
C2
C6
C10
C14
step 3
C3
C7
C11
C15
step 64
C16
C4
C8
C12
The image shifts automatically from one camera to another, as programmed.
The images can
be seen on any
monitor.
Group Sequence (Simultaneous tour sequencing)
Sequence mode (In response to spot alarm)
This feature allows you to activate multiple, pre-set tour sequences by
pushing a single button. Each group can include up to four tour
sequences. Up to four group sequences can be stored in memory.
When the alarm signal is received, the monitor and camera
instantly switch to the spot from which it originates. When
two or more alarms are received, the system switches
instantly to the spot from which the latest alarm originates.
Pressing the ACK key switches operator control to the
camera from which the alarm was received.
Camera 1 shows spot where alarm originated. Image shifts from Camera 8 to Camera 1.
Group sequence 1
Monitor 1
Tour 1
C1
Monitor 2
Tour 5
C20
Monitor 3
Tour 2
C5
Monitor 4
Tour 7
C15
Group sequence 2
Group sequence 3
Group sequence 4
Monitor 1: Alarm 1 received
from Camera 1.
Monitor1: Alarms are received sequentially
from Alarm 1 (Camera 1) to Alarm 8 (Camera 8).
Sequencing Increases Monitoring Efficiency
Concerning start of Sequence Alarm
The system can also be pre-set to start a tour sequence
when an alarm signal is received. However, once a
sequence begins, a second alarm cannot enter the monitor,
as it can in sequence or hold mode.
Most recent 100 alarms display
The monitor display shows up to 100 of the most recent
alarms in chronological order, allowing quick
confirmation of alarm location, date, and time. Images
can be recalled and reviewed with push button ease
using the WV-CU650 system controller.
Alarm history management using
a personal computer
The alarm log can be output to a personal computer using
the RS232C serial port, allowing use of the personal
computer to manage alarm histories.
CH 1
ALARM 01
CH 8
ALARM 08
CH 5
ALARM 05
CH 1
ALARM 01
Hold mode (In response to spot alarm)
When the alarm signal is received, the monitor shows the
image from the pre-set camera. When two or more alarms
are received, the monitor continues to show the image of
the spot from which the first alarm was received. Pressing
the ACK key switches operator control to the camera from
which the alarm was received.
Camera 1 shows spot where alarm originated.
Only the image from Camera 1 is seen. The * signal that appears
on the monitor indicates that additional alarms have been received.
Monitor 1: Alarm 1 received
from Camera 1.
Monitor1: Alarms are received sequentially
from Alarm 1 (Camera 1) to Alarm 8 (Camera 8).
CH 1
ALARM 01
Tour Sequence 1 starts automatically.
Monitor 1: Alarm 1
(Tour Sequence 1)
CH 1
ALARM 01
T-SEQ 1
ALARM 01
Sequencing and Alarm. Just Two of Many Features that Support Effective Surveillance.
Sequencing Increases Monitoring Efficiency
Instant No-Escape Alarms
Instant No-Escape Alarms
RS-485 Port
Up to 64 cameras can be controlled through the built-in RS-485 ports.
RS232C External Serial Interface
The RS232C port permits system set-up and alarm history
management from a personal computer. It also supports time-lapse
VTR and other peripherals.
User Management Protects Against Misuse
OPE
7
OPE
8
OPE
9
OPE
10
OPE
11
OPE
12
OPE
13
OPE
14
OPE
15
OPE
16
Level 3
Level 2
Level 1
Priority
OPERATOR’S LEVEL TABLE
31256 34397
32356 34682 34645 31625
OPE
2
OPE
3
OPE
4
OPE
5
OPE
6
Password
21233
OPE
1
12123
25376
21325 22342 24953
39262 39768
37322 31828
SX150 Setup
Camera Setup
Indicate Alarm History
Indicate Video Loss History
Indicate System Status
One Alarm Reset
All Alarm Reset
Camera Cleaning
Select Camera
Start Sequence
Register Preset
Display OSD
Control Camera
Control Recorder
Indicate System Status
One Alarm Reset
All Alarm Reset
Camera Cleaning
Select Camera
Start Sequence
Register Preset
Display OSD
Control Camera
Control Recorder
Display OSD
Control Camera
Control Recorder
1. Video signal
Transmits the image captured by the camera to the Matrix Switcher.
2. Control data
Transmits control data from the switcher to the cameras that are
compatible with Panasonic coaxial control system. Transmits alarm
signal from the cameras to the switcher.
3. Synchronous signals (VD2)
Supports almost all Panasonic CCD cameras (see compatible
camera list). Allows simultaneous image switching by cameras
and the Matrix Switcher, preventing image distortion.
4. Alarm signals
Transmits alarm signals received from the camera to the Matrix
Switcher, initiating the pre-set alarm event sequence.
This system manages user names and other user information
for up to 16 users, who may use the controller itself or log in
from a personal computer. Matrix System150 operation can be
limited by use of five user attributes including operator number,
password, level, priority, and the cameras the user is permitted
to operate. This user management feature prevents improper
use by outsiders or unauthorized persons.
Operator Registration Video Loss Detection automatically senses
camera malfunction
This feature automatically senses
loss of video signal input and
displays a warning on the monitor,
allowing speedy response to such
problems as power outage,
severed camera cables or
damaged cameras.
Monitor Character Displays
Four types of information are displayed on the monitor using the built-in
character generator IC.
1. Date and time
Choice of five date styles and 24-hour or 12-hour time displays.
2. Camera title
A label up to 20 characters long can
be added to the camera number.
3. Monitor status
Shows monitor number, keyboard
number, and sequence status.
4. Event information
Shows time and other information
concerning alarm or timed events.
User Management Protects Against Misuse
Other Convenient Features
Other Convenient Features
Timing Pulse (VD2) for Vertical Genlock
Camera to Matrix Switcher Matrix Switcher to Camera
Data 8-bit x 4 Alarm
Video
Vertical Blanking
Since 1988, most of Panasonic cameras have been designed and manufactured to accept VD2 signal for system integration.
WV-CU650
WJ-SX150A
WJ-SX155
VD2 Compatible Panasonic Camera List
Video signals, control data, synchronous signals (VD2), and alarm signals are all transmitted over the same coaxial,
multiplex cable. Use of the same cable reduces both time and trouble required for camera installation. Each coaxial
cable can be up to 1,200 m long.
64 Channels are All Transmitted via the Same Coaxial Cable
64 Channels are All Transmitted via the Same Coaxial Cable
Video Loss History Table
Example of Character Displays
The above all photographs were taken for the purpose of explanation; actual images may differ.
B/W Camera WV-BP330 Series
Colour Camera
WV-CW480 Series, WV-CW240 Series, WV-CF284/294,
WV-CL930 Series, WV-CL270 Series,
WV-CW380 Series, WV-CP250 Series,
WV-CP280 Series, WV-CP480 Series
Integrated WV-CW960/970 Series, WV-CS950 Series,
Dome Camera WV-CS570 Series
4 5

Simple System Setup from a PC
Simple System Setup from a PC System Configuration Software is Included.
Flexible and Compatible with a Wide Range of Equipment
Flexible and Compatible with a Wide Range of Equipment
System Configuration is Simple and Trouble-Free.
The above all photographs were taken for the purpose of explanation; actual images may differ.
MAJOR OPERATING CONTROLS
16 Inputs Matrix Switcher; WJ-SX150A
16 Inputs Multiplexer Integrated Matrix Switcher; WJ-SX155
Front View Rear View
RS-485 System Controller with 3D-Joystick & Jog/Shuttle; WV-CU650
Front View Rear View
Main Menu
Operator Registration
This menu can be used to program which monitor
will carry out the spot/tour sequence of a specific
camera, when an alarm signal is input.
This window is used to edit a tour sequence. There
are 32 tour sequences available, each with up to 64
steps. Each step needs a camera number associated
pan/tilt preset position and a dwell time.
Alarm Event
Tour Sequence
Timer Event
This window is used to edit a group sequence. There
are 4 group sequences available, each with up to 4
monitors.
Group Sequence
This window is used to
restrict the operators'
control of functions
according to their levels.
Level Window
This window is used to
assign the camera control to
the operators, according to
their priorities.
The main menu is the heart of the System150 Setup Utility.
This window can be used to edit the time and type of
action.
Logical Camera Number
Master - Slave
SPECIFICATIONS
RS-485 System Controller with 3D-Joystick & Jog/Shuttle; WV-CU650 (for WJ-SX150A/SX155)
16 Inputs Matrix Switcher; WJ-SX150A
16 Inputs Multiplexer Integrated Matrix Switcher; WJ-SX155
APPEARANCE
WJ-SX150A
WJ-SX155
Unit: mm
Model No. WJ-SX150A WJ-SX155
Power Source 220V - 240V AC, 50Hz
Camera Input (1 - 16) 1.0 V[p-p]/75 Ωcomposite video signal
0.5 V[p-p]/75 Ωdata signal and
2.5 V[p-p]/75 Ωvertical timing pulse multiplexed
Camera Output (1 - 16) 1.0 V[p-p]/75 Ωcomposite video signal
Monitor Output (1 - 4) 1.0 V[p-p]/75 Ωcomposite video signal
External Input 1.0 V[p-p]/75 Ωcomposite video signal
External Output 1.0 V[p-p]/75 Ωcomposite video signal
RS-485 (Camera) Port RS-485 6-conductor modular jack
Data Port RS-485 6-conductor modular jack
Alarm Port 25-pin D-sub connector
Serial Port 9-pin D-sub connector
Camera Switching Input RCA pin jack
Ambient Operating Temperature –10 °C ~ +50 °C
Ambient Operating Humidity Less than 90 %
Dimensions 420 mm (W) x 88 mm (H) x 350 mm (D) (without rubber foot)
Weight (approx.) 6 kg 6.5 kg
480
420
465 (Mounting Pitch)
350
27040
88
98
76
(Mounting Pitch)
10
WV-CU650
290 134
111
2.5
180
194
221
218 1
146
64
CLEAR
OPERATE
ADJUST MENU F1 F2 F3 F4 EXIT ENTER
ALARM
PLAY/PAUSE
SHUTTLE
HOLD
STOP
REV FWD
REC STOP REC
ALARMALMRESET
ACK
ALMSUSPENDALMALLRESET
OSDCAMFUNC
ALMRECALL
SEQP
AUSEMONLOCK
TOURSEQ
MULTISCREEN
GOTOLAST
EL-ZOOM
AUX1ON
MARK
AUX2ON
OFFOFF
WIPERSEARCH
DEFON
OFF
T&DSEARCH
SEQSTOP
LOGOUT
GROUPSEQ
SYSFUNC
13
PREV
RECORDER
PRESET
PGM
PRESET
CAM
POSI
CAM
(SET)
MON
(ESC)
UNIT
2
46
5
79
8
0
ALM
SUSPEND
SHIFT
+–
SYSTEM CONTROLLER
WV-CU650
DC9V IN
MODE
DATA
SERIAL
CONTOROLLER
NO.
JOYSTICK
OPEN
IRIS
CLOSE
FAR
FOCUS
NEAR
A B
PAL
The Matrix System150 can be connected to a WJ-HD300A Series Digital Disk Recorders equipped with a high-capacity hard disk
drive to construct a featured-loaded system for long-duration recording of multiple types
of high-quality images. The Filtered Search function supports searches using multiple
date/time and camera channel criteria. The Playback VMD function instantly identifies
scenes with movement, making it simple to find and playback critical scenes buried in
large amounts of image data. Search results can be displayed as thumbnails.
Viewing and Recording Enhancement with WJ-SX155
Viewing and Recording Enhancement with WJ-SX155
• Quad, 9 split screen, 16 split screen for Live or Playback.
• Real time refresh in live Quad screen.
• Minimum 2 fields switching for multiplex recoding.
• Camera switch input for external switching.
• VMD: 4 Areas, 3 Levels x 16CH.
WJ-HD316A Ensures
High-quality, Moire-free Images Power Source 9 V DC, 300 mA (using the supplied AC adapter)
Power Source (supplied AC adapter) 230 V AC, 50 Hz, 150 mA
Data Output/Input Port 6-conductor modular jack (RS-485, Full duplex) x2
Serial Port 9-pin D-sub connector
Controller Number 1 to 8 (rotary switch)
Ambient Operating Temperature –10 °C ~ +50 °C
Monitor Number Selection 1 to 4
Camera Number Selection Up to 64
Dimensions (W x H x D) Main Unit:
290 x 111 x 221 mm
3D Joystick Unit: 134 x 146 x 218 mm
Weight (without the AC adapter) Main Unit: 1.3 kg
3D Joystick Unit: 0.8 kg
6 7

MATRIX SYSTEM150 PRODUCT COMPONENTS
16 Inputs
Matrix Switcher
WJ-SX150A
16 Inputs Multiplexer Integrated
Matrix Switcher
WJ-SX155
RS-485 System Controller
with 3D-Joystick & Jog/Shuttle
WV-CU650
RS-485 System Controller
with 3D-Joystick
WV-CU360CJ
16 Inputs
Matrix Switcher
WJ-SX150A
16 Inputs Multiplexer Integrated
Matrix Switcher
WJ-SX155
support up to 64 Camera Systems3
with optional Panasonic Digital Disk Recorder; WJ-HD300A Series1with optional Single Channel Recorder2
Slave 1 Slave 2 Slave 3 Slave 4
WV-CU650 System Controllers Max. 4
Monitor Outputs Max. 4
Matrix Switcher WJ-SX150A
Max. 16
Camera Inputs
Camera
(1)
Camera
(3)
Camera
(16)
Camera
(2)
WV-CU650 WV-CU360CJ
System Controllers Max. 4
Matrix Switcher WJ-SX150A
Digital Disk Recorder
WJ-HD316A
(with 16ch Multiplexer)
Loop-through
Loop-throughLoop-throughLoop-throughLoop-through
EXT IN
Multiscreen
Ethernet
(10Base-T/100Base-TX)
LAN / WAN
Internet
PC
PC
WV-CU650 WV-CU360CJ
System Controllers Max. 4
Monitor Outputs Max. 4
Matrix Switcher WJ-SX155
(with Multiplexer Function)
Max. 16
Camera Inputs
Camera
(1)
Camera
(3)
Camera
(16)
Camera
(2)
Monitor Outputs Max. 4
16 Camera Inputs
Camera
(1)
Camera
(3)
Camera
(16)
Camera
(2)
Digital Disk Recorder WJ-HD316A Digital Disk Recorder WJ-HD316A
16 Camera Inputs
Camera
(17)
Camera
(19)
Camera
(32)
Camera
(18)
16 Camera Inputs
Camera
(33)
Camera
(35)
Camera
(48)
Camera
(34)
16 Camera Inputs
Camera
(49)
Camera
(51)
Camera
(64)
Camera
(50)
Master
PC
RS-232C Port
Single Channel Recorder
Matrix Switcher WJ-SX150A
Digital Disk Recorder WJ-HD316A
Matrix Switcher WJ-SX150A Matrix Switcher WJ-SX150A
Digital Disk Recorder WJ-HD316A
Matrix Switcher WJ-SX150A
SYSTEM EXAMPLES 64 Inputs Matrix Switcher System
Matrix System150
RS-485 System Controller
with 3D-Joystick &
Jog/Shuttle
WV-CU650
Version 2.03
http://panasonic.net/security/
Printed in Japan (2N-694G)
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
DISTRIBUTED BY:
Important
–Safety Precaution: carefully read the operating instructions and installation manual before using this product.
