Panasonic NB-H3801 User manual

Operating Instructions
⢪欽霹僈⛼
Arahan Penggunaan
+ѭӟQJGүQVӱGөQJ
зѬҕєѪѠдѥіѲнҖкѥь
Model No. NB-H3801
Electric Oven ( Household Use )
歏掐盲 ( 㹻䏭欽 )
Ketuhar Elektrik ( Penggunaan Di Rumah )
/zQѭӟQJ ( SӱdөQJWURQJJLDÿuQK
ѯшѥѠэѳђђҖѥ (ѝѥўіѤэѲнҖѓѥѕѲьзіѤњѯіѪѠь )
English ፩ၭ˄৿ ࿒ ˅
Bahasa Malaysia
9,ӊ71$0 ѓѥќѥѳъѕ

EN2
Contents Page
Safety Precautions EN3
Important information EN7
Part Names and Handling Instructions EN8
Before Use EN11
How to Use EN12
Menu EN13
Key Points for Baking Food EN19
How to Clean EN20
Troubleshooting EN21
Specifications EN21
Thank you for purchasing the Panasonic product.
●Please read these instructions carefully to use the appliance correctly and safety.
●Before using this product, please give your special attention to
"Safety Precautions" and "Important Information". (See P. EN3 - EN7)
●Please keep this Operating Instructions for future use.
●Panasonic will not accept any liability if the appliance is subject to improper use, or
failure to comply with these instructions.

EN3
English
In order to prevent accidents or injuries to the user, other people, and damage to property,
please follow the instructions below.
ŶThe following charts differentiate and explain the degree of damage caused by
incorrect operation.
ŷThis symbol indicates requirements that must be followed.
This symbol indicates prohibition. This symbol indicates things you
have to do.
To avoid risk of electric shock, fire, scalding burns or serious injury.
●Do not disassemble, repair or modify this appliance.
➜Consult the place of purchase or a Panasonic service center.
●Do not damage the power cord or power plug.
The following actions are strictly prohibited:
Damaging, modifying or placing near heating elements ; bending, twisting, pulling
along, pulling over sharp edges, putting heavy objects on top, bundling the power
cord and carrying the appliance by the power cord.
●Do not allow infants and children to play with packaging material which may
lead to suffocation.
●Do not use the appliance if the power cord or power plug is damaged or the
power plug is loosely connected to the outlet.
➜If the power cord is damaged, it must be replaced by the manufacturer, its
service center or similarly qualified person in order to avoid hazards.
●Before placing enamel baking tray, cooking racks or other baking wares in
your product,make sure that there are no unknown objects attached as they
may result in accidents.
●Do not plug or unplug the power plug with wet hands.
●Do not immerse the appliance, power cord and power plug in water or
splash it with water / any liquid.
●Prevent power cord hanging down from edges of table or bench or touching
hot surfaces.
●When baking, avoid objects from touching the heater.
WARNING
Indicates potential hazard that could result in serious
injury or death.
Indicates potential hazard that could result in injury or
property damage.
WARNING :
&$87,21
Safety Precautions Please make sure to
follow these instructions.

EN4
To avoid risk of electric shock, fire, scalding burns or serious injury.
●This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
●Always keep the infants and children away from the appliance including
power cord. Children do not realize dangers that are likely to occur because
of improper use of appliances.
●Do not use your product near or under curtains or other flammable
materials as foods may catch fire during baking.
●Make sure the voltage indicated on the label of the appliance is the same as
your local supply. Also avoid plugging other devices into the same outlet
to prevent electric overheating. However, if you are connecting a number of
power plugs, make sure the total wattage does not exceed the rated
wattage
of the outlet.
●Make sure that the power plug is fully inserted in the socket.
●Discontinue using the appliance immediately and unplug in the unlikely
event that this appliance stops working properly.
< abnormal occurrences and breaking down >
ƕThe power plug and the power cord become abnormally hot.
ƔThe power cord is damaged or the appliance power fails.
ƔThe main unit is deformed, has visible damage or is abnormally hot.
ƔYour product makes noises during use.
ƔThere is another abnormality or failure.
➜In case of any of the aforementioned situations, please unplug the power
cord immediately and call a Panasonic customer service center for
maintenance services.
●Dust off the power plug regularly.
➜Unplug the power plug, and wipe with a dry cloth.
Safety Precautions Please make sure to
follow these instructions.
WARNING

EN5
English
To avoid electric shock, fire, smoke, burns, scalding, injury or property loss.
●Do not use the appliance for any purpose other than those described in
these instructions.
●Do not use the appliance while on the following places.
ƔOn uneven surfaces, on carpet, non-hot-resistant surface or tablecloths etc.
ƔPlaces where it may be splashed with water or near a heat source.
ƔNear any open water sources such as sinks, or the like.
●Do not use the appliance near walls, furniture, or in enclosed spaces such
as a built-incupboard. (It may cause discoloration or deformation.)
●When baking with the appliance the back of the metal case will be
extremely hot. Please place the back of the oven towards the wall to avoid
burning.
●Never leave the appliance unattended when using it.
➜
Do not leave the oven unattended when baking flammable objects, such as cookies.
Try to monitor the entire process.
●Do not open the glass door if there is smoke or fire during baking.
ƔTurn off the timer and remove the power plug immediately.
ƔDo not open the glass door before the fire goes out.
ƔDo not extinguish the fire with water.
●Do not directly heat cans or glass bottles.
●Do not place oil in the enamel baking tray for heating.
●Do not touch the appliance with wet hands.
●Do not touch, block or cover the heat vents during use.
●Do not touch hot surfaces, such as the top of the oven body, the enamel
baking tray and the cooking rack while the oven is in use or just after use.
The oven is easy to become hot during use, and the surface temperature
during use is very high. Let it cool down before cleaning after use.
➜Please pay special attention to heat after use.
●Do not place anything on the top or below the appliance.
Leave a space between the oven
and walls or kitchen cabinets. The
lampblack discharged during baking
may contaminate the wall and cabinet,
RUHYHQFDXVH¿UHGXHWRRYHUKHDWLQJ
Ŷ20 cm or more
10 cm or more
&$87,21

EN6
To avoid electric shock, fire, smoke, burns, scalding, injury or property loss.
●Do not insert any object in the gaps.
●Do not use knives, sharp objects or tools on your product as the heater may
get damaged.
●Do not use an external timer etc.
➜This appliance is not intended to be operated by means of an external timer or
separate remote-control system.
●Place the appliance on a firm, dry, clean flat heatproof worktop.
●Make sure the crumb tray is clean and set correctly when using the
appliance.
●Beware not to be tripped over or get caught in the power cord while in use.
●When using and cleaning the rotisserie spit, be careful of the sharp edges
to prevent being cut.
●To fetch accessories with the baking tray holderor extraction bracket, get
hold of the former at its center or it may rock or sway. This may result in
liquid spillage, food ingredients falling off to the ground, or accessories
separating and causing accidents.
●Do not pull on the power cord to unplug it. Instead, hold the plug to
disconnect the cord.
●Unplug the power plug from the outlet when the appliance is not in use,
before moving,or before cleaning.
●Let the appliance cool down before moving, cleaning and storing away.
●Ensure to clean the appliance especially surfaces in contact with food after
use. (See P. EN20 “How to Clean”)
●This product is intended for household use only.
&$87,21
Please make sure to
follow these instructions.
Safety Precautions

EN7
English
●Do not drop this product as it may get damaged.
●Do not place anything or press by force on the glass door when it is opened.
●Do not hit the glass door with an external force.
●Do not heat the appliance when unnecessary.
●Do not place this product close to water tanks or any open water sources.
●Make sure to clean the appliance after every use.
To indicate that the marked item can be hot and should not
be touched without taking care.
Important information

EN8
Accessory
●Abaking menu is printed on the glass door. (See P. EN13 - EN18)
●Please use thick insulating gloves to remove heated accessories or trays from the oven.
Note
* Take extra care when opening
or closing the glass door as it
may get damaged.
* The shape of plug may be
different form illustration.
* Position for placing the enamel baking tray
and cooking rack.
Glass door
Control knob
Heat vents
Main unit
Crumb tray
Power plug
Power cord
Heater
Rotisserie spit insertion hole Layer 1 - 4 from the top to the bottom
Door handle
* It's recommended to cover the enamel baking tray with
a layer of aluminum foil to prevent baking residue
from adhering to it.
Enamel baking tray
●For baking oily food, such
as meat and fish, and for
placing containers used for
baking.
* Tilt the tong fork slightly to the left and
remove rotisserie spitslowly.
Extraction bracket
●For holding the
rotisserie spit.
Baking tray holder
●For holding the
enamel baking
tray and cooking
rack.
* Make sure that you have mounted the crumb tray
correctly to collect breadcrumbs and grease before
using the cooking rack.
Cooking rack
●For baking other foods.
Part Names and Handling Instructions
1
2
3
4

EN9

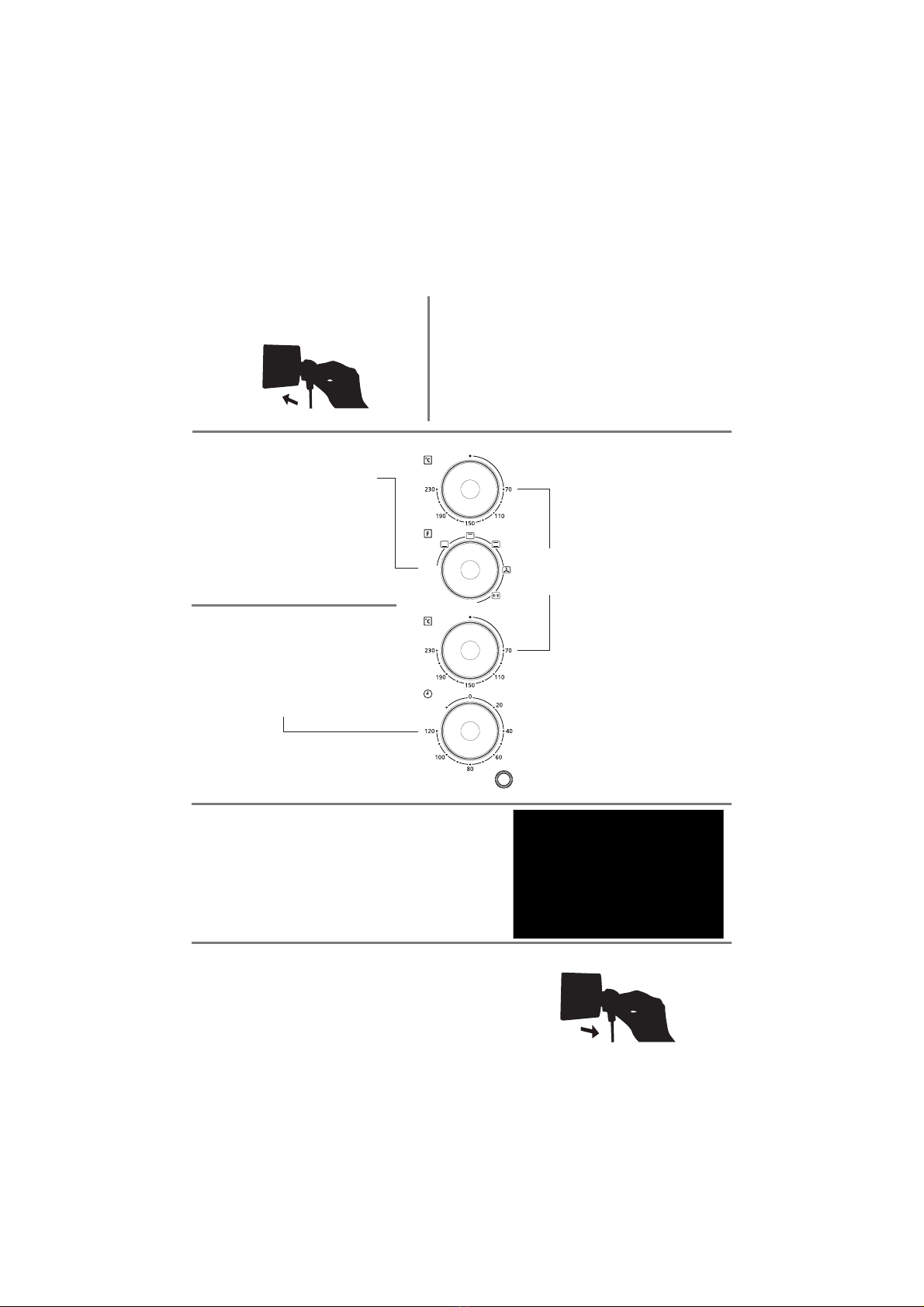

Upper
Temp.
Function
Off
Fermentation
Temp.
Lower
Time
(min.)
Stay
On
Power
English
●Power indicator:
The power indicator lights up
when the product is in use.
●Function knob:
Operates the lower heater
Operates the upper heater
Operates the lower
& upper
heater at the same time
Convection
(Lower
&
upper heater heating)
Rotary
(Upper heater heating)
Fermentation
(See P. EN19)
●Timer :
The electric oven beeps when
the timer reaches " 0 ". Tips:
to set baking time less than
20 minutes, turnup the knob
beyond 40 minutes then return
to the desired time. In case of
“Stay On” mode, you have to
disable the timer manually as
the latter cannot be adjusted
automatically.
Operating Controls
●For roasting whole chicken or
chunks of meat
●Installing the crumb tray
1.
Before use, place the
convex facing upward, in the
inward position.
2.
Ensure the crumb tray is
inserted at the bottom.
●Removing the crumb tray
1. Open the glass door.
2. Remove the crumb tray
only after it has cooled
down.
Crumb tray
●For collecting debris from baked food in the oven. ( See P. EN10 for rotisserie spit
/ extraction bracket )
Baking stick
Baking fork
Rotisserie spit
Convex
Holding edge
●Upper and lower heaters
temperature knobs:
Temperature range:
70 ºC - 230 ºC
Note
●To reach quickly the temperature of 70 ºC to 230 ºC in the oven, set the function knob:
" Operates the lower & upper heater at the same time " selection or select " Convection ",
and the Upper and lower heater temperature knobs must be set to the same temperature at the
same time.

EN10
Rotisserie spit / Extraction bracket
Caution
Insert the
rotisserie spit
tip end into the
rotisserie spit
insertion hole on
the right.
Position the
left end of the
EDNLQJVWLFNWR¿W
the left insertion
EUDFNHW¿UPO\DV
indicated in the
diagram above.
Use the
extraction bracket
to position the
rotisserie spit in
the oven.
Fasten the
screw to
secure the
baking fork.
Attach the other
baking fork on
the opposite
end of the
baking stick and
compress the
food tightly.
Insert the baking
stick into one
baking fork.
Fasten the screw
at the baking
fork to secure a
¿UPSRVLWLRQRQ
the baking stick.
Use the baking
stick to skewer the
chunky piece of
food at the center.
7865
4
123
●When using and cleaning the rotisserie spit, be careful of the sharp edges to
prevent being cut.
Baking tray holder
Bottom hook
●Cooking rack removal:
Before removing the
cooking rack, ensure
both the bottom hooks
are attached to the
cooking rack. Upper hook
●Enamel baking tray
removal: Before
removing the enamel
baking tray, ensure
both the upper hooks
are attached to the
baking tray.
Part Names and Handling Instructions
