Panasonic HL-FN645SJPQ User manual

Operating and Installation Instructions 2 - 23
Thank you for purchasing the Panasonic product.
• This appliance is intended for household use only.
• Please read these instructions carefully before attempting to install, operate or service this product.
• For optimum performance and safety, please read these instructions carefully and follow safety precautions when
using this product.
• Before using this product please pay extra attention to “Safety Precautions” (Page 3 - 5).
Keep this Operating and Installation Instructions for future use
Operating and Installation Instructions
Household UseBuilt-in Oven
Model No. : HL-FN645SJPQ

2
Safety Precautions 3 - 5
Parts Identification 6 - 8
• Parts Identification 6
• Accessories 7
• Control Panel 8
Using the Oven 9 - 16
• Function Setting 9
• Before Using the Oven 10
• While Using the Oven 10
• Operations 11 - 14
• Rack Placement Warning 14
• Cooking Advice and Instructions 15 - 16
• Tips for Energy Saving 16
Cleaning and Maintenance 17 - 19
• Cleaning the Oven Door 17
• Cleaning the Inside of the Oven 17 - 18
• Bulb Replacement 19
Specifications 19
For Installer
Installation Instructions 20 - 23
• IMPORTANT 20
• Electrical Connection 20 - 21
• Positioning the Oven 22 - 23
• Securing the Oven to a Cabinet 23
Tables of Contents

3
WARNING
In order to prevent accidents or injuries to the users, other people, and damage to
property, please follow the instructions below.
ڦThe following charts indicate the degree of damage caused by wrong operation.
ڦThe symbols are classified and explained as follows.
These symbols indicate
prohibition.
This symbol indicates requirement
that must be followed.
WARNING
Indicate
serious injury
or death.
CAUTION
Indicate risk of
injury or property
damage.
Stop using the product when any
abnormality/failure occurs and
turn ‘OFF’ the isolating switch or
remove power plug if fitted.
(Risk of smoke/fire/electric shock)
Example of abnormality/failure:
• Abnormal noise or heat.
• Abnormal emission of smoke, fire.
• The product sometimes does not start
when turned on.
• The power is sometimes disconnected
when the cord is moved.
• Burnt odour or abnormal noise is
detected during operation.
• The body is deformed or abnormally
hot.
• The Oven door is cracked.
Contact a Panasonic Authorised
Service Centre immediately for
maintenance/repair.
The oven must be earthed. Plug
the power cord to socket outlet
with earthing continuity terminal.
Improper grounding could cause
electric shock.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
Ensure that the appliance is
switched OFF before replacing the
lamp to avoid the possibility of
electric shock.
When disconnecting the Power
Plug, hold the plug itself. Do not
pull the cord in anyway. The cord
may be damaged and may cause
fire or electric shock.
The means for disconnection must
be incorporated in the fixed wiring
in accordance with the wiring
rules.
This appliance is necessary to
allow disconnection from the
supply after installation. The
disconnection may be achieved
by having the plug accessible or
by incorporating a switch in the
fixed wiring in accordance with the
wiring rules.
Be sure to disconnect the Power
Plug from the wall outlet or switch
OFF the external switch before
maintenance, repair or service.
Also, do not handle the Power Plug
or external switch with wet hand.
Safety Precautions Make sure to follow these instructions

4
Installation and servicing must be
carried out by competent persons
in accordance with the regulation
in force.
Never obstruct the openings and
slits provided for ventilation and
heat release.
Before the oven is operated, all
the protective film applied must
be removed (apart from the Name
Plate).
Take care that no objects are stuck
in the door of the oven.
Please use caution when
unpacking, installing or moving
this product, as some exposed
edges may be sharp to the touch
and may cause injury if not
handled with care.
Oven become very hot during use.
Suitable heat-proof gloves should
be worn when handling.
All cooking operations must take
place with the door closed.
CAUTION
Safety Precautions Make sure to follow these instructions
WARNING
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance
by a person responsible for
their safety. Children should be
supervised to ensure that they do
not play with the appliance.
During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside
the oven.
Accessible parts may become hot
during use. Young children should
be kept away.
Make sure the Wire Shelf and
Enamel Baking Tray are fully
inserted and not in contact with
the glass door, it may cause
shattering of glass door.
Insert the Power Plug firmly,
otherwise it may cause fire or
electric shock.
Clean the Power Plug regularly
with dry cloth, otherwise, it may
cause insufficient insulation due
to moisture, and may cause fire.
Do not damage the power cord or
Power Plug.
Do not connect the power voltage
other than 220 - 240 V , may
cause fire or electric shock.
The oven must not be installed
behind a decorative door in order
to avoid overheating.
Do not disassemble the oven for
reconstruction.
Do not discard the packaging
or any part of it, or leave it
unattended. It can constitute a
suffocation hazard for children,
especially the plastic bags.

5
When the oven is first switched
on, it may emit an unpleasant
smell. This is due to the bonding
agent used for insulating panels
within the oven. Heat up the new
empty oven with the conventional
cooking function, 250 °C for
15 - 20 minutes in order to remove
any manufacturing residues. It is
normal that there will be a slight
smoke and odours.
Spray cleaner is not to be used for
cleaning.
Do not use harsh abrasive
cleaners or sharp metal scrapers
to clean the oven door glass, since
they can scratch the surface,
which may result in shattering of
the glass.
A steam cleaner is not to be used.
Do not use this oven for heating
rooms.
Do not rest any weight or sit on the
open door of the oven.
The Name Plate with the technical
data, serial number and brand
name has been visibly affixed to
the oven.
DO NOT REMOVE THE NAME
PLATE FOR ANY REASON.
Do not allow residues of sugary
food (such as jam) to set inside the
oven since they might damage the
enamel lining of the oven.
Safety Precautions Make sure to follow these instructions
CAUTION
Do not use plastic kitchenware or
containers.The high temperatures
inside the oven could melt the
plastic and damage the oven.
Do not use sealed tins or
containers in the oven. Over
pressure may occur inside the
containers during cooking,
creating a danger of explosion.
Do not leave the oven unattended
during cooking process where fats
or oils could be released. Fats and
oils may catch fire.
Do not cover the bottom of the
oven with aluminium or tin foil
sheets during cooking and do not
place pans or trays on it to avoid
damage to the enamelled surface.
If the surfaces are still very hot
during cooking, do not pour water
directly onto the trays. The steam
could cause severe burns and
damage the to enamelled surfaces.
Do not insert pointed metal
objects into any aperture in the
oven.
Do not modify this oven.
Do not replace the parts of the
appliance with spare parts other
than authorised Panasonic parts.
Do not put inflammable material
inside the oven; if it is switched on
by accident, it may cause a fire.
■Note:
• Contact the Panasonic service centre or authorized dealer for maintenance and repair.

6

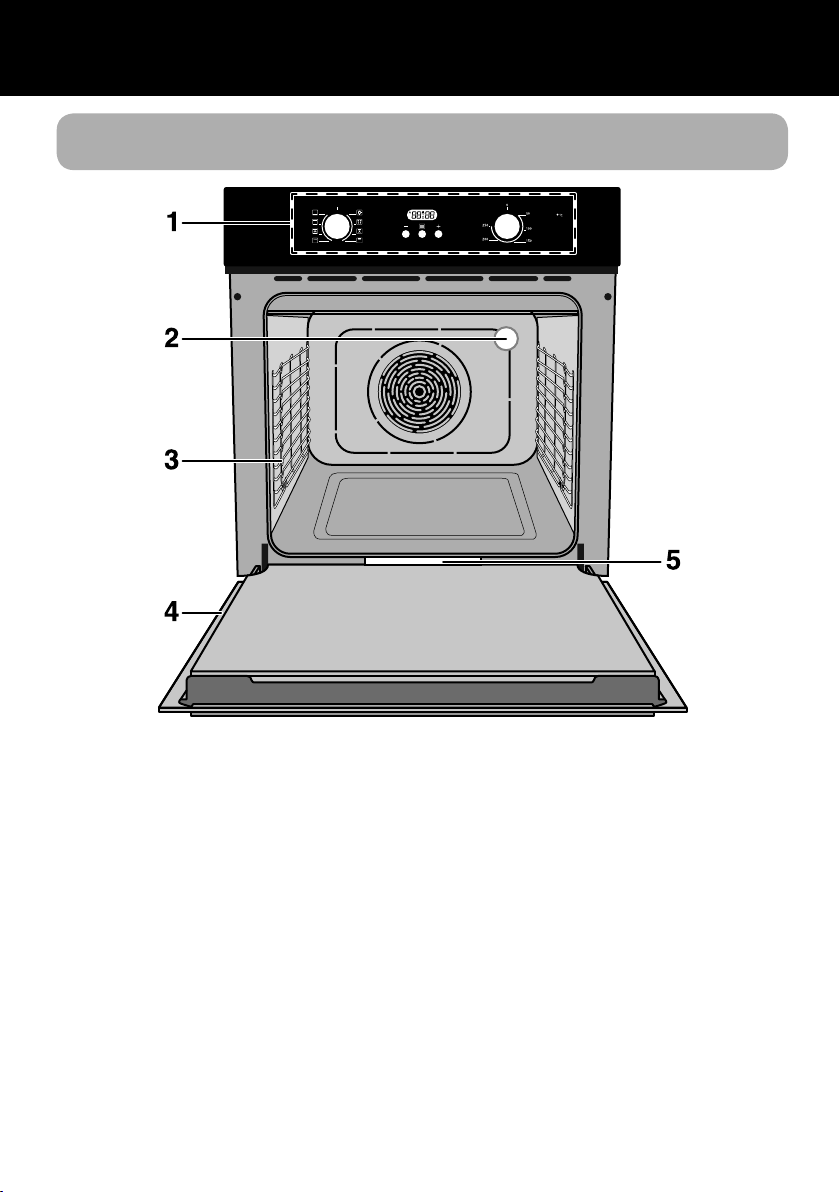

1. Control Panel
2. Oven Lamp
3. Removable Rack
4. Removable Door
5. Name Plate
Parts Identification
Parts Identification

7
Parts Identification
Accessories
Wire Shelf
For roasting and grilling.
Removable Rack
The shelf and tray support rails on the right and left sides
of the oven and can be removed when cleaning the oven
walls.
Enamel Baking Tray
For cooking large quantities of food such as moist cakes,
pastries and frozen food or for collecting fat/spillage and
meat juices.
Warranty Card
Operating and Installation Instructions
(a) (b)
Screw Pack
a. Screw Cap (2 pcs.)
b. Screw (2 pcs.)
■Note:
• Contact the Panasonic service centre or authorized dealer for maintenance and repair.
• Use original Panasonic accessories only.

8
Control Panel
7
1. Function Setting
• Pop-up rotary knob, push to release/lock to avoid turning.
2. Main Display
3. Minus Key Push Button
4. Timer Setting Mode Push Button
5. Plus Key Push Button
6. Temperature Setting
• Pop-up rotary knob, push to release/lock to avoid turning.
7. Indicator Light
• Will light off to confirm that the set temperature has been reached.
Parts Identification

9

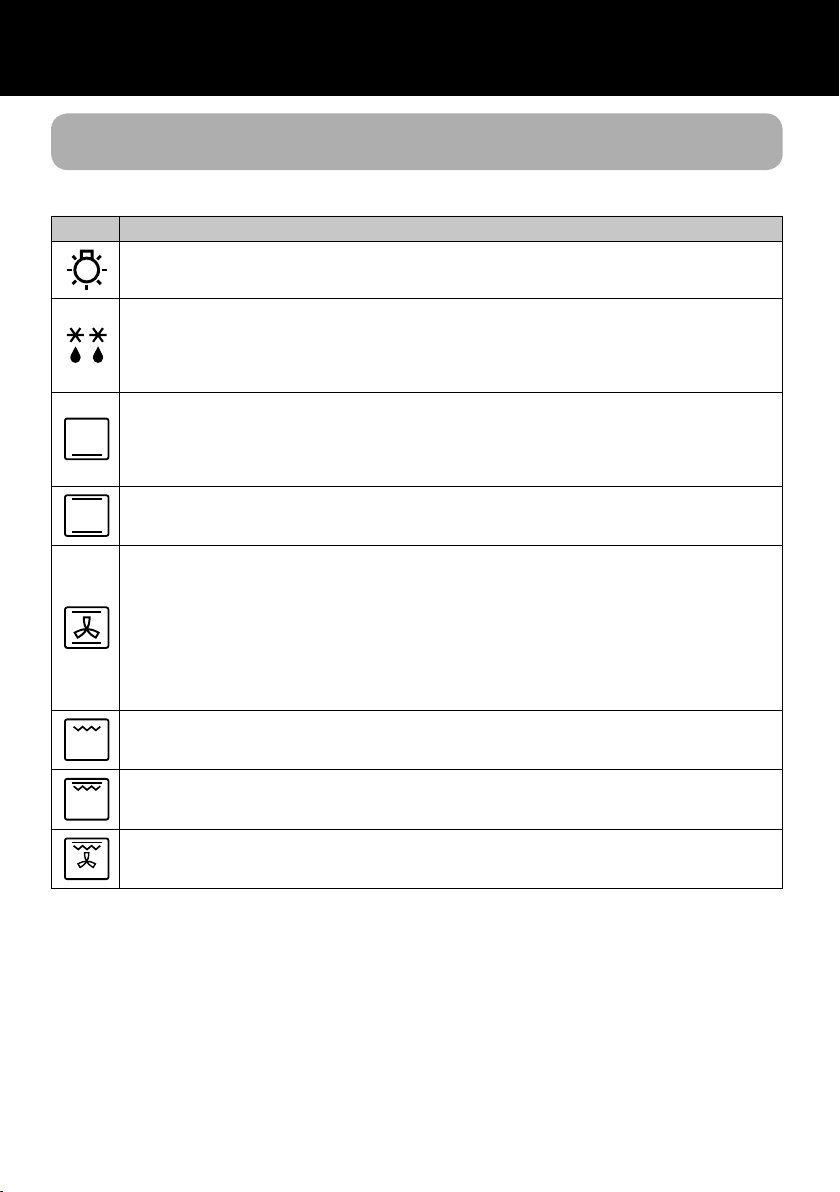

Function Setting
To select the desired cooking function, turn the knob to the related symbol.
Symbol Function description
Oven Lamp
Enables the user to observe the progress of cooking without opening the door.
Defrost
The circulation of air at room temperature enables quicker thawing of frozen food,
(without the use of any heat). It’s a gentle but quick way to speed up the defrosting
time and thawing of ready-made dishes and cream filled product, etc.
Bottom Heat
A concealed element in the bottom of the oven provides a more concentrative heat
to the base of food without browning. This is ideal for slow cooking dishes such as
casseroles, stews, pastries and pizzas where a crispy base is desired.
Conventional Cooking
The top and bottom elements work together to provide conventional cooking.
Conventional Cooking with Fan
Combination of the fan and both heating elements provides more even heat
penetration, saving up to 30 - 40% of energy. Dishes are lightly browned on the
outside and still moist on the inside.
■Note:
• This function is suitable for grilling or roasting big pieces of meat at a higher
temperature.
Radiant Grilling
The inner grill element switches on and off to maintain the temperature.
Double Grilling
The inside radiant element and top element are working.
Double Grilling with Fan
The inside radiant element and top element are working with fan.
Using the Oven

10

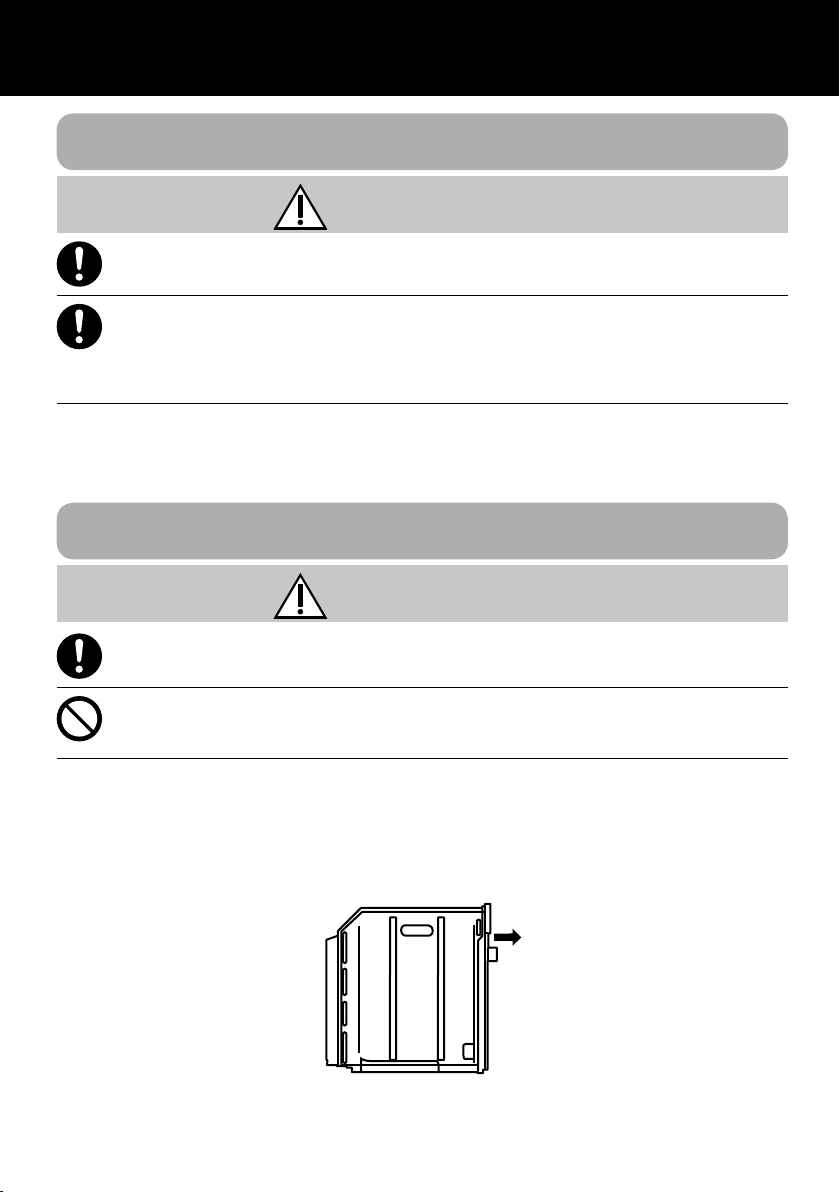

Before Using the Oven
CAUTION
Before the oven is operated, all the protective film applied must be removed
(apart from the Name Plate).
When the oven is first switched on, it may emit an unpleasant smell. This is
due to the bonding agent used for insulating panels within the oven. Heat up
the new empty oven with the conventional cooking function, 250 °C for
15 - 20 minutes in order to remove any manufacturing residues. It is normal
that there will be a slight smoke and odours.
■Note:
• Before the first operation, remove all accessories and clean with soft cloth and mild
detergent.
While Using the Oven
CAUTION
All cooking operations must be carried out with the door fully closed.
Do not cover the bottom of the oven with aluminium or tin foil sheets during
cooking and do not place pans or trays on it to avoid damage to the enamel
coating surface.
■Note:
• The oven is equipped with a cooling system which comes into operation when
temperature sensor detects 70 °C during cooking, the fan causes a steady outflow of
air from above the door. If the temperature drops to below 60 °C, the fan will stop its
operation.
Using the Oven

11
Operations

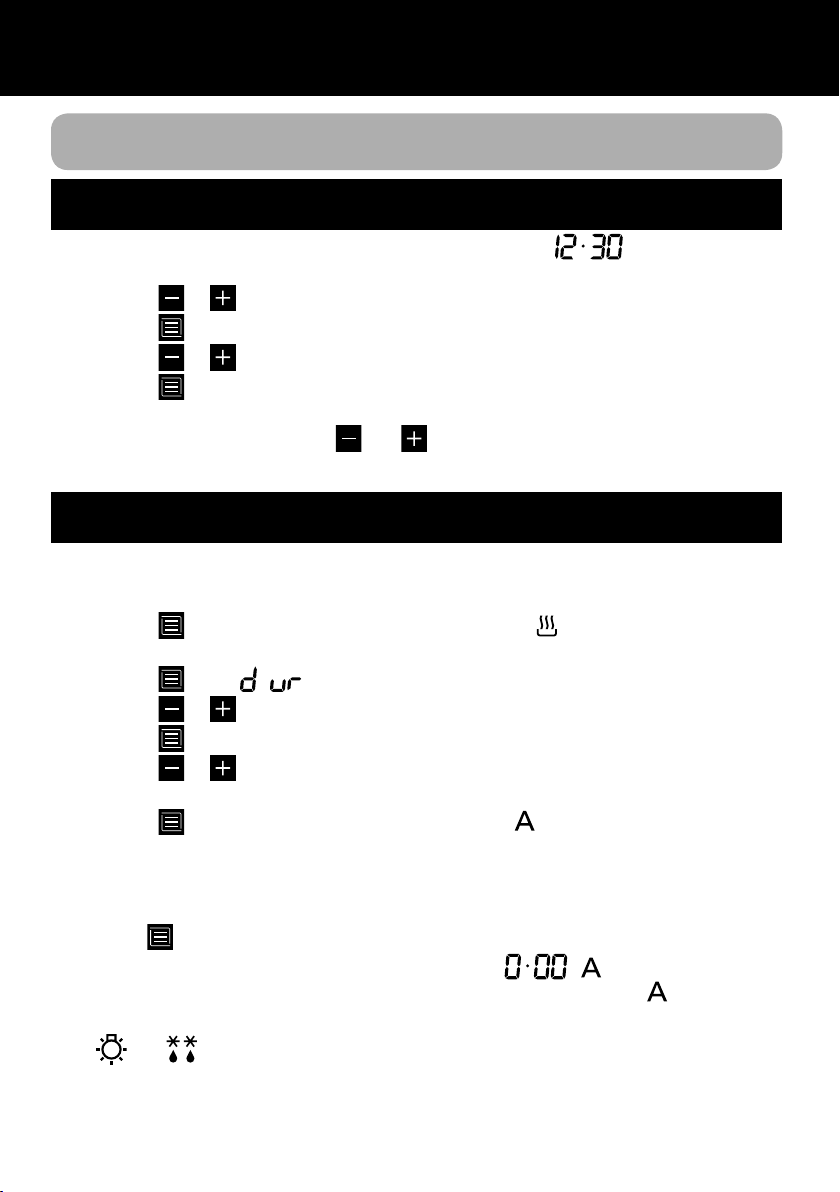

Clock Setting
After connecting the oven to the power supply, the symbol will be visible on
the display. The hour is flashing.
1. Press or to adjust the hour. (Hour should be within 0 - 23.)
2. Press , the minutes will flash.
3. Press or to adjust the minutes. (Minute should be within 0 - 59.)
4. Press to finish the clock setting.
■Note
• To modify clock setting, press and simultaneously for approximate 3 seconds,
the hour will flash, and follow step 1 - 4 above.
Function Setting
1. Rotate “Function Setting” knob to choose the cooking function as require.
2. Rotate “Temperature Setting” knob to choose the cooking temperature as require.
3. Press for approximate 3 seconds to start cooking. will be visible on the
display, indicating the heating is in progress.
4. Press twice, will be visible on the display.
5. Press or to adjust duration of cooking in hours. ( Hour should be within 0 - 10. )
6. Press , the minutes will flash.
7. Press or to adjust duration of cooking in minutes. (Minute should be within
0 - 59.)
8. Press to start the countdown. Current time and will be visible on the display.
9. If steps 4 - 8 are omitted, the default cooking time will be 10 hours. (This means the
oven will shutdown automatically after 10 hours.)
■Note:
• Press twice to see the countdown time.
• The buzzer will beep when the countdown reaches . will flash and the oven
will shut down automatically. Press any button to stop the buzzer and will go off.
• The oven lamp will light up for all the cooking functions.
• and functions are not for heating.
Using the Oven

12
Start/Cancel Function
1. For every function, press for approximate 3 seconds to start operating the
function.
2. To cancel the function, press and simultaneously for approximately
3 seconds.
Reminder Function
This function helps to remind about the cook time has completed for the next action.
In standby mode,
1. Press for approximate 3 seconds to start cooking. will be visible on the
display, indicating the heating is in progress.
(Be sure that cooking function and temperature setting knobs have been rotated as
desired requirements.)
2. Press once, will be visible flashing on the display.
3. Press or to adjust the hour setting. (Hour should be within 0 - 23.)
4. Press , the minutes will flash.
5. Press or to adjust the minutes setting. (Minute should be within 0 - 59.)
6. Press to finish the Reminder settings. Current time and will be visible on the
display.
■Note:
• Press once to see the countdown of the Reminder.
• The buzzer will beep when the Reminder reaches . will flash. Press any
button to stop the buzzer and will go off.
• The heating will continue until the operation is cancelled or the oven will enter standby
mode after a total of 10 hours.
Delay Function/End Function
Only when the current time has been set, Delay Function/End Function can be used
for either of 2 reasons below:
1To delay start of cooking function, by setting the end time of cooking. The cooking
duration time is also set, so that the cooking starts automatically to end at the time
pre-programmed.
2To start cooking immediately, but set the end cooking time to shut down the oven
automatically when the cooking is completed.
Using the Oven

13

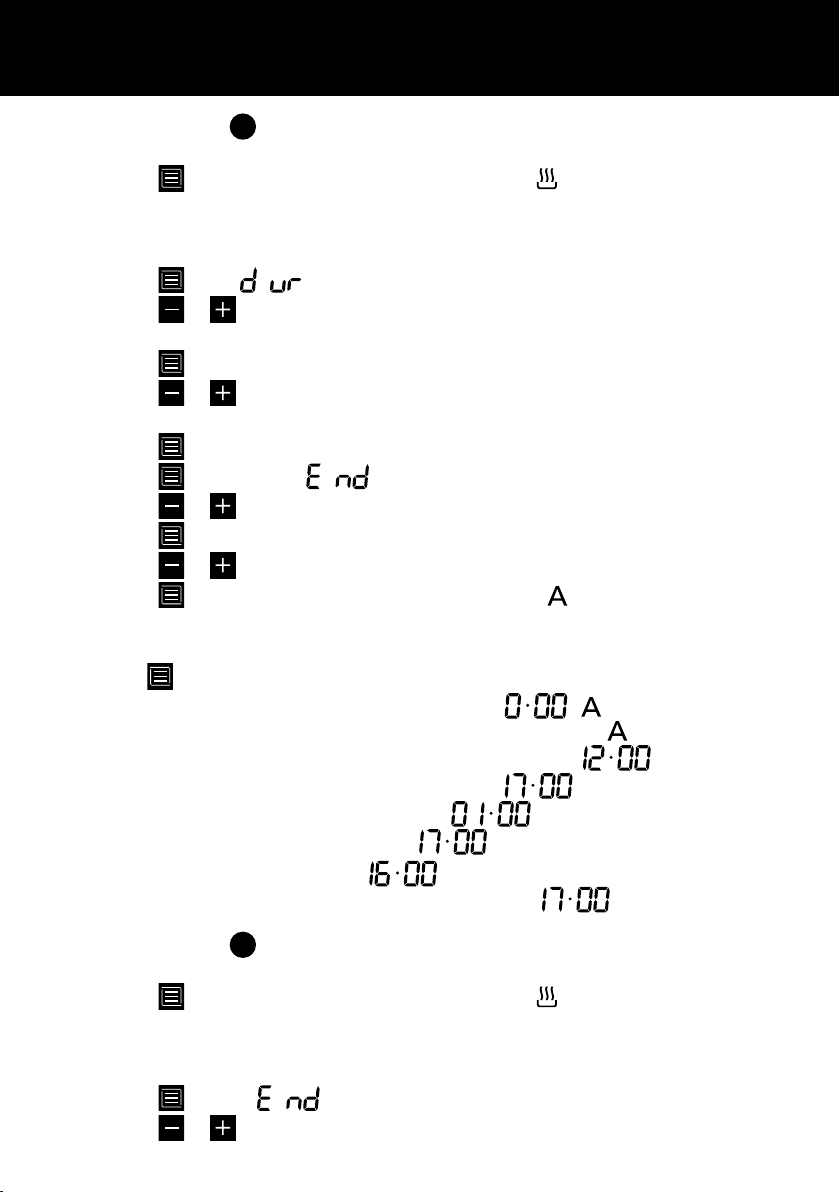

ڦFor Condition 1
In standby mode,
1. Press for approximate 3 seconds to start cooking. will be visible on the
display, indicating the heating is in progress.
(Be sure that cooking function and temperature setting knobs have been rotated as
desired requirements.)
2. Press twice, will be visible on the display.
3. Press or to adjust the duration (hours) of cooking. (Hour should be
within 0 - 10.)
4. Press , the minutes will flash.
5. Press or to adjust the duration (minutes) of cooking. (Minute should be
within 0 - 59.)
6. Press to set the duration time.
7. Press 3 times again, will be visible on the display.
8. Press or to adjust the end hour time.
9. Press , the minutes will flash.
10. Press or to adjust the end minutes time.
11. Press to start the Delay Function. Current time and will be visible on the
display.
■Note:
• Press twice to see the countdown of the Delay.
• The buzzer will beep when the countdown reaches . will flash and cooking
will finish automatically. Press any button to stop the buzzer and will go off.
Example: If the food is placed (uncooked) into oven at current time , and the user
want to cook for 1 hour and end the cooking at ,
• In steps 3 - 5 set the cooking time as ,
• In steps 7 - 9 set the end time as .
Result: The food will start cooking at . It will begin to countdown by delay timer.
Eventually, the oven will shutdown automatically at , with a beep sound.
ڦFor Condition 2
In standby mode,
1. Press for approximate 3 seconds to start cooking. will be visible on the
display, indicating the heating is in progress.
(Be sure that cooking function and temperature setting knobs have been rotated as
desired requirements.)
2. Press 3 times, will be visible on the display.
3. Press or to adjust the end hour time.
Using the Oven

14
4. Press , the minutes will flash.
5. Press or to adjust the end minutes time.
6. Press to start the End Function. Current time and will be visible on the display.
■Note:
• Press 3 times to see the end of cooking time.
• The buzzer will beep when the countdown reaches . will flash and cooking
will finish automatically. Press any button to stop the buzzer and will go off.
Example: If the food is placed (uncooked) into oven at current time , and the user
want the cooking to be competed at ,
• In steps 3 - 5 set end time as .
Result: The food will start cooking at . Eventually, the oven will shutdown
automatically at , with a beep sound.
Rack Placement Warning
To ensure the Wire Shelf or Enamel Baking Tray operates safely, correct insertion and
correct placement between the oven rack are necessary.
Alternatively, the level numbering which is embedded at front of the oven when the door is
opened can be referred. (There are total 5 levels.)
This will ensure that during careful removal of the Wire Shelf or Enamel Baking Tray, hot
food items should not slide out from the back.
CAUTION
Use oven gloves as the oven and accessories will be extremely hot.
Using the Oven

15
Cooking Advice and Instructions
General Advice
Preheating the oven before putting the food in is recommended. Do not place food inside
the oven until “°C” on the control panel lights up to confirm that the set temperature has
been reached.
For cooking on several levels, it is recommended to use a fan-assisted function to achieve
uniform cooking at all heights.
In general, it is not possible to shorten the cooking times by increasing the temperature (the
food could be well-done on the outside but underdone inside).
For best cooking results, we recommend placing suitable cookware in the centre of the Wire
Shelf or Enamel Baking Tray.
To prevent excessive amounts of condensation from forming on the internal glass, hot food
should not be left inside the oven for too long after cooking.
Advice for Cooking Meat
Cooking times, especially for meat, vary according to the thickness and quality of the food
and to consumer taste.
It is recommended to use a meat thermometer when roasting meat. (Thermometer is not
supplied with the oven.)
Advice for Cooking Cakes and Biscuits
Use dark metal moulds for cakes. They help to absorb the heat better.
The temperature and the cooking duration depend on the quality and consistency of the
mixture.
Check whether the cake is cooked right through. At the end of the cooking time, insert a
metal skewer into the highest point of the cake then take it out. If the batter does not stick to
the metal skewer, the cake is cooked.
If the cake collapses when it comes out of the oven, on the next occasion reduce the set
temperature by about 10 °C, selecting a longer cooking time if necessary.
Using the Oven

16
Advice for Defrosting
Positioning frozen food in a lid-less container is recommended.
The food must be defrosted without its wrapping.
Lay out the food in a single layer to be defrosted evenly, not overlapping.
When defrosting meat, it is recommended to use the Wire Shelf positioned on the level-2
of the rack with the food on it and Enamel Baking Tray positioned on the level-1. In this way,
the liquid from the defrosting food drains away from the food.
The most delicate parts can be covered with aluminium foil.
Advice for Cooking with the Grill and the
Fan-assisted Grill
Using the Grill function, meat can be grilled even when it is put into the cold oven;
preheating is recommended if the user wish to change the effect of the cooking.
With the Fan-assisted Grill function, however, it is recommended that the oven is preheated
before grilling.
Tips for Energy Saving
To save energy during use of the oven, the following instructions may be followed:
1. All cooking operations must be carried out with the oven door fully closed.
2. Do not open the oven door frequently during cooking in progress, as this will allow
heat to be dispersed from the oven.
3. When the oven is not in use, switch it off completely.
4. Use the “Energy-Saving Function” while cooking is in progress.
5. Keep the inside of the oven clean at all times.
Using the Oven

17
WARNING
Before performing cleaning and maintenance tasks, use isolation switch to disconnect the
power supply. Children should not clean the oven or perform maintenance tasks.
Cleaning the Oven Door
The glass door should always be kept throughly clean. Use absorbent kitchen roll;
remove stubborn dirt with a damp sponge and an ordinary detergent.
• Do not use a steam cleaner for cleaning the oven.
• Do not use abrasive or corrosive cleaner for cleaning the glass door.
• Do not use rough or abrasive material or sharp metal scrapers to clean the oven`s
glass door since they may scratch the surface.
Cleaning the Inside of the Oven
For the best oven maintenance, clean the oven regularly when it has cooled down
after each cooking period.
• Take out all removable parts.
• For easier cleaning, the oven door can be removed.
Removing the Door from Oven
Removable door allows full access to entire
interior of the oven for easier and quicker
maintenance.
• To remove the door, open the door to the
maximum angle. Then pull the buckle at the
door hinge backward. (Figure 1)
(Total 2 buckles at both side of the door.)
• Close the door to an angle approximately 15 °.
Lift up and slowly pull the door out from the
oven. (Figure 2)
• Place the door on a safety place to protect it
from damage.
■Note:
• The oven should be operated at the maximum
heat setting for 15 - 20 minutes after use
of specific cleaning detergents to burn off
the residues left inside the oven. During this
process, accessible part may get hotter than
usual and children should be kept away.
15 ˚
Figure 1
Figure 2
Cleaning and Maintenance

18
Replacing the Oven Door
Return the door to its original position after
cleaning is completed.
• Align the bottom of the door along the bottom
of the oven and push the door hinge into the
hinge slots. Slide the door in until the slots on
the hinges engage the Oven housing.
• Make sure the Oven door is able to open until
maximum angle (approximately 90 °).
• Push back the buckle at the door hinge forward.
(Figure 3)
• Gently open and close the door several times
to make sure it is correctly installed to avoid
any damage.
Figure 3
Removing the Rack from Oven
Removing the rack will make it easier to clean the
side wall of the oven.
• To remove the rack, unscrew 1 piece of screw at the
bottom side of wall using a ‘+’ screwdriver. (Figure 4)
• Then, lift up the rack to an angle approximately 90 °,
and slowly pull the rack out from the oven. (Figure 5)
• When cleaning is completed, reverse the above
procedures to return the rack to its original position.
90
Figure 4
Figure 5
Cleaning and Maintenance

19
Bulb Replacement
The bulb used in the oven is a special bulb that has
high temperature resistance (240 V 25 W). So,
buying a genuine bulb from an authorised dealer is
necessary.
For replacement, proceed as follows:
1. Before replacing the light bulb, make sure the oven
has been disconnected from the mains power via
the isolating switch, in order to prevent an electric
shock.
2. Unscrew the covering glass in anti-clockwise
direction. (Figure 6)
3. Pull out the bulb from its position and replace the
bulb with a new one of the same type. (Figure 7)
4. Screw the covering glass in clockwise direction
after bulb replacement is completed.
Figure 7
Figure 6
Model HL-FN645SJPQ
Voltage 220 - 240 V
Wattage 2744 - 3266 W
Frequency 50 - 60 Hz
Outside Dimensions (L × W × H) Approx. 595 mm × 575 mm × 595 mm
Oven Cavity Volume Approx. 70 Litres
Nett Weight Approx. 31.5 kg
Cleaning and Maintenance
Specifications

20
IMPORTANT
If the oven is to work properly, the kitchen housing must be suitable. The panels
of the kitchen unit that are next to the oven must be made of a heat resistant
material. Ensure that the glues of units that are made of veneered wood can
withstand temperatures of at least 120 °C. Plastics or glues that cannot withstand
such temperatures will melt and deform the unit. Once the oven has been lodged
inside the units, electrical parts must be completely insulated. This is a legal safety
requirement. All guards must be firmly fixed into place so that it is impossible to
remove them without using special tools. Remove the back of the kitchen unit to
ensure an adequate current of air circulates around the oven.The hob must have a
rear gap of at least 45 mm.
Electrical Connection
WARNING Electrical work must be performed by a
legally qualified electrician.
This appliance is not fitted with other means for disconnection from the supply
mains having a contact separation in all poles that provide full disconnection
in under overvoltage category III conditions. Means for disconnection must
be incorporated in the fixed wiring in accordance with the wiring rules and
regulations.
Check the local utilities for electrical codes applied in the area. Failure to
wire the appliance according to governing rules may result in a hazardous
condition.
After installation show the customer where the isolating switch for the
appliance is located. This must be easily accessible with the installed
appliance.
This appliance is necessary to allow disconnection from the supply after
installation. The disconnection may be achieved by having the plug accessible
or by incorporating a switch in the fixed wiring in accordance with the wiring
rules.
The identification Name Plate bearing the technical data, model number and brand name is
visibly positioned in the oven (refer to page 6).
Do not remove this Name Plate for any reason.
The oven must be connected to earth in compliance with electrical system safety
regulations.
A fixed connection is to be used, fitting the power line with an omni-polar circuit breaker with
a contact opening gap equal to or greater than 3 mm, in an easily accessible position close
to the appliance.
Installation Instructions For Installer
