Panasonic HL-FD615SJPQ User manual

Operating and Installation Instructions 2 - 19
Thank you for purchasing the Panasonic product.
• This appliance is intended for household use only.
• Please read these instructions carefully before attempting to install, operate or service this product.
• For optimum performance and safety, please read these instructions carefully and follow safety precautions when
using this product.
• Before using this product please pay extra attention to “Safety Precautions” (Page 3 - 5).
Keep this Operating and Installation Instructions for future use
Operating and Installation Instructions
Household Use
Built-in Oven
Model No. : HL-FD615SJPQ

Safety Precautions 3 - 5
Parts Identification 6 - 7
• Parts Identification 6
• Accessories
7
• Control Panel
7
Using the Oven 8 - 12
• Function Setting
8
• Before Using the Oven 9
• While Using the Oven 9
• Operations
10

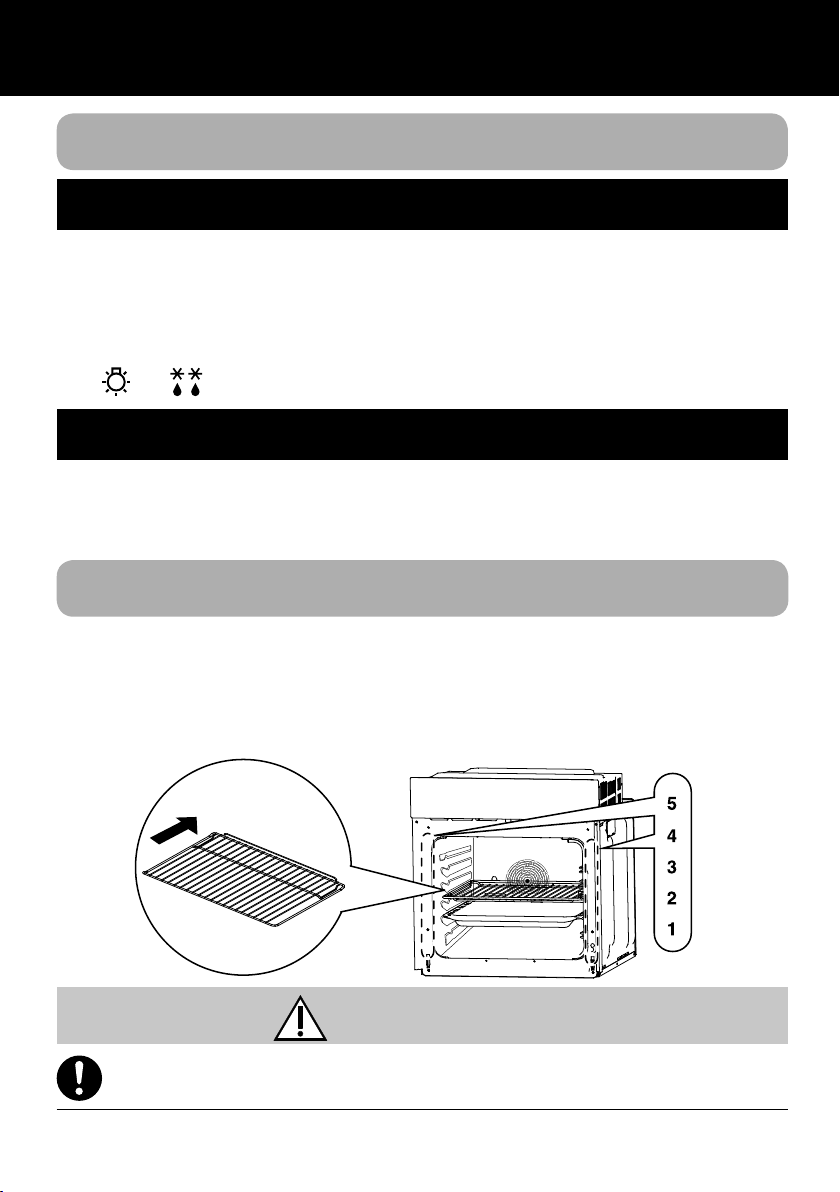

• Rack Placement Warning
10
• Cooking Advice and Instructions 11 - 12
• Tips for Energy Saving 12
Cleaning and Maintenance 13 - 14

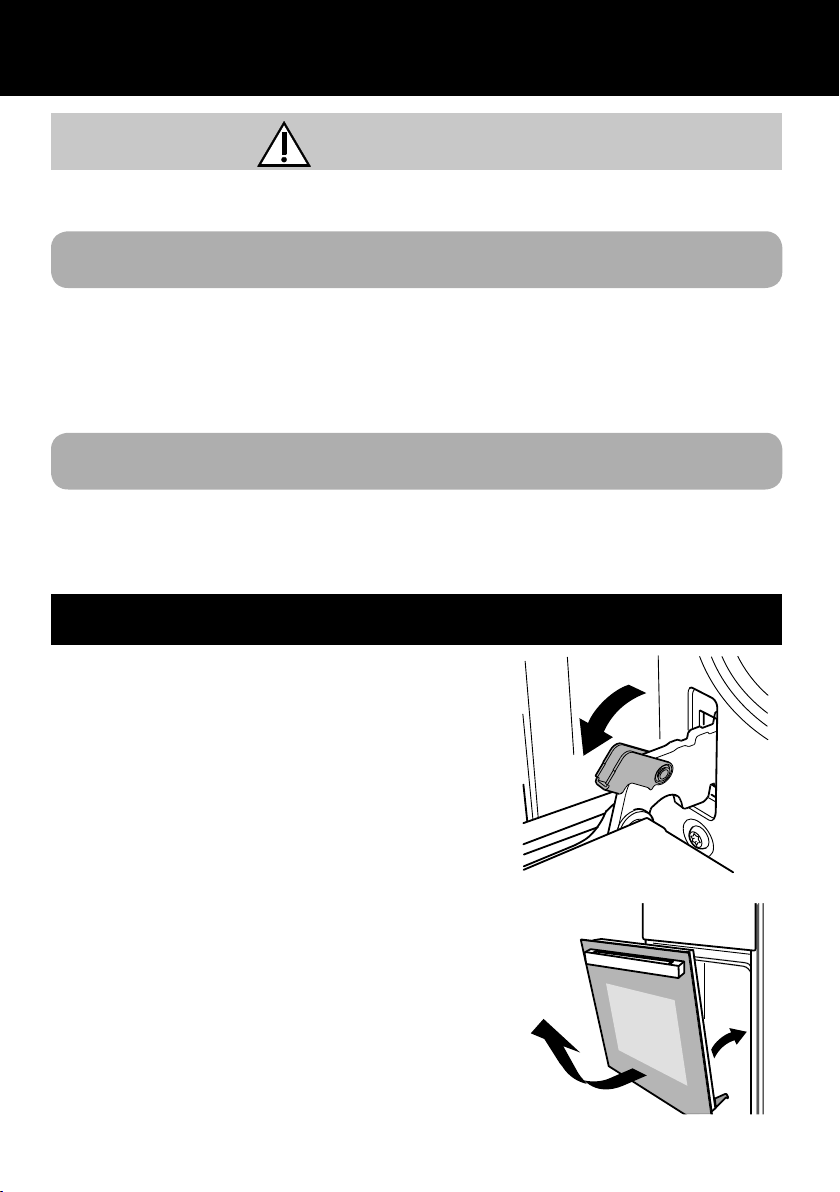

• Cleaning the Oven Door 13
• Cleaning the Inside of the Oven 13
• Bulb Replacement
14
Specifications 15
For Installer
Installation Instructions 16 - 19
• IMPORTANT
16

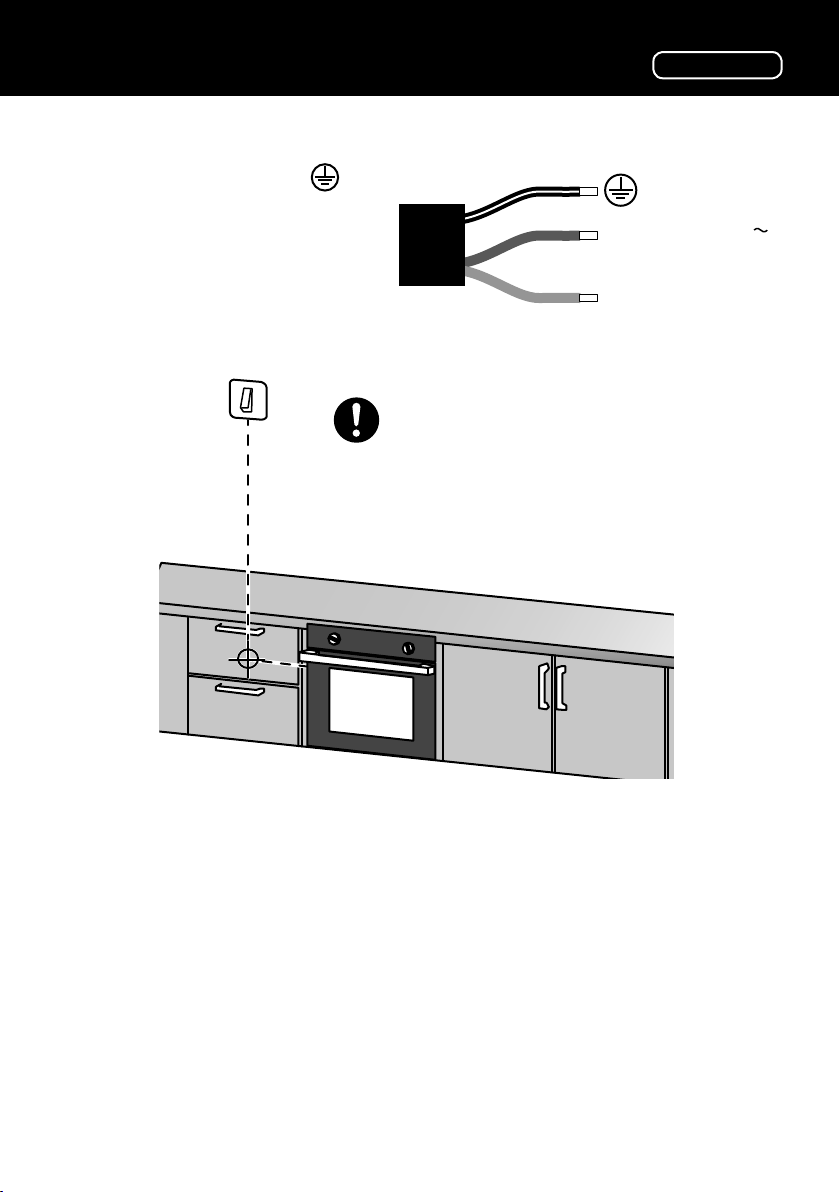

• Electrical Connection
16 - 17
• Positioning the Oven 18 - 19
• Securing the Oven to a Cabinet 19
2
Tables of Contents

3
In order to prevent accidents or injuries to the users, other people, and damage to
property, please follow the instructions below.
ڦThe following charts indicate the degree of damage caused by wrong operation.
ڦThe symbols are classified and explained as follows.
Safety Precautions
Make sure to follow these instruc tions
WARNING
Indicate
serious injury
or death.
CAUTION
Indicate risk of
injury or property
damage.
These symbols indicate
prohibition.
This symbol indicates requirement
that must be followed.
WARNING
Stop using the product when any
abnormality/failure occurs and
turn ‘OFF’ the isolating switch or
remove power plug if fitted.
(Risk of smoke/fire/electric shock)
Example of abnormality/failure:
• Abnormal noise or heat.
• Abnormal emission of smoke, fire.
• The product sometimes does not start
when turned on.
• The power is sometimes disconnected
when the cord is moved.
• Burnt odour or abnormal noise is
detected during operation.
• The body is deformed or abnormally
hot.
• The Oven door is cracked.
Contact a Panasonic Authorised
Service Centre immediately for
maintenance/repair.
The oven must be earthed. Plug
the power cord to socket outlet
with earthing continuity terminal.
Improper grounding could cause
electric shock.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
Ensure that the appliance is
switched OFF before replacing the
lamp to avoid the possibility of
electric shock.
When disconnecting the Power
Plug, hold the plug itself. Do not
pull the cord in anyway. The cord
may be damaged and may cause
fire or electric shock.
The means for disconnection must
be incorporated in the fixed wiring
in accordance with the wiring
rules.
This appliance is necessary to
allow disconnection from the
supply after installation. The
disconnection may be achieved
by having the plug accessible or
by incorporating a switch in the
fixed wiring in accordance with the
wiring rules.
Be sure to disconnect the Power
Plug from the wall outlet or switch
OFF the external switch before
maintenance, repair or service.
Also, do not handle the Power Plug
or external switch with wet hand.

4
Safety Precautions
Make sure to follow these instruc tions
Installation and servicing must be
carried out by competent persons
in accordance with the regulation
in force.
Never obstruct the openings and
slits provided for ventilation and
heat release.
Before the oven is operated, all
the protective film applied must
be removed (apart from the Name
Plate).
Take care that no objects are stuck
in the door of the oven.
Please use caution when
unpacking, installing or moving
this product, as some exposed
edges may be sharp to the touch
and may cause injury if not
handled with care.
Oven become very hot during use.
Suitable heat-proof gloves should
be worn when handling.
All cooking operations must take
place with the door closed.
CAUTION
WARNING
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance
by a person responsible for
their safety. Children should be
supervised to ensure that they do
not play with the appliance.
During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside
the oven.
Accessible parts may become hot
during use. Young children should
be kept away.
Make sure the Wire Shelf and
Enamel Baking Tray are fully
inserted and not in contact with
the glass door, it may cause
shattering of glass door.
Insert the Power Plug firmly,
otherwise it may cause fire or
electric shock.
Clean the Power Plug regularly
with dry cloth, otherwise, it may
cause insufficient insulation due
to moisture, and may cause fire.
Do not damage the power cord or
Power Plug.
Do not connect the power voltage
other than 220 - 240 V , may
cause fire or electric shock.
The oven must not be installed
behind a decorative door in order
to avoid overheating.
Do not disassemble the oven for
reconstruction.
Do not discard the packaging
or any part of it, or leave it
unattended. It can constitute a
suffocation hazard for children,
especially the plastic bags.

5
Safety Precautions
Make sure to follow these instruc tions
CAUTION
When the oven is first switched
on, it may emit an unpleasant
smell. This is due to the bonding
agent used for insulating panels
within the oven. Heat up the new
empty oven with the conventional
cooking function, 250 °C for
15 - 20 minutes in order to remove
any manufacturing residues. It is
normal that there will be a slight
smoke and odours.
Spray cleaner is not to be used for
cleaning.
Do not use harsh abrasive
cleaners or sharp metal scrapers
to clean the oven door glass, since
they can scratch the surface,
which may result in shattering of
the glass.
A steam cleaner is not to be used.
Do not use this oven for heating
rooms.
Do not rest any weight or sit on the
open door of the oven.
The Name Plate with the technical
data, serial number and brand
name has been visibly affixed to
the oven.
DO NOT REMOVE THE NAME
PLATE FOR ANY REASON.
Do not allow residues of sugary
food (such as jam) to set inside the
oven since they might damage the
enamel lining of the oven.
Do not use plastic kitchenware or
containers.The high temperatures
inside the oven could melt the
plastic and damage the oven.
Do not use sealed tins or
containers in the oven. Over
pressure may occur inside the
containers during cooking,
creating a danger of explosion.
Do not leave the oven unattended
during cooking process where fats
or oils could be released. Fats and
oils may catch fire.
Do not cover the bottom of the
oven with aluminium or tin foil
sheets during cooking and do not
place pans or trays on it to avoid
damage to the enamelled surface.
If the surfaces are still very hot
during cooking, do not pour water
directly onto the trays. The steam
could cause severe burns and
damage to the enamelled surfaces.
Do not insert pointed metal
objects into any aperture in the
oven.
Do not modify this oven.
Do not replace the parts of the
appliance with spare parts other
than authorised Panasonic parts.
Do not put inflammable material
inside the oven; if it is switched on
by accident, it may cause a fire.
■Note:
• Contact the Panasonic service centre or authorized dealer for maintenance and repair.

6
1. Control Panel
2. Oven Lamp
3. Moulded Rack
4. Removable Door
5. Name Plate
Parts Identification
Parts Identification

3
7

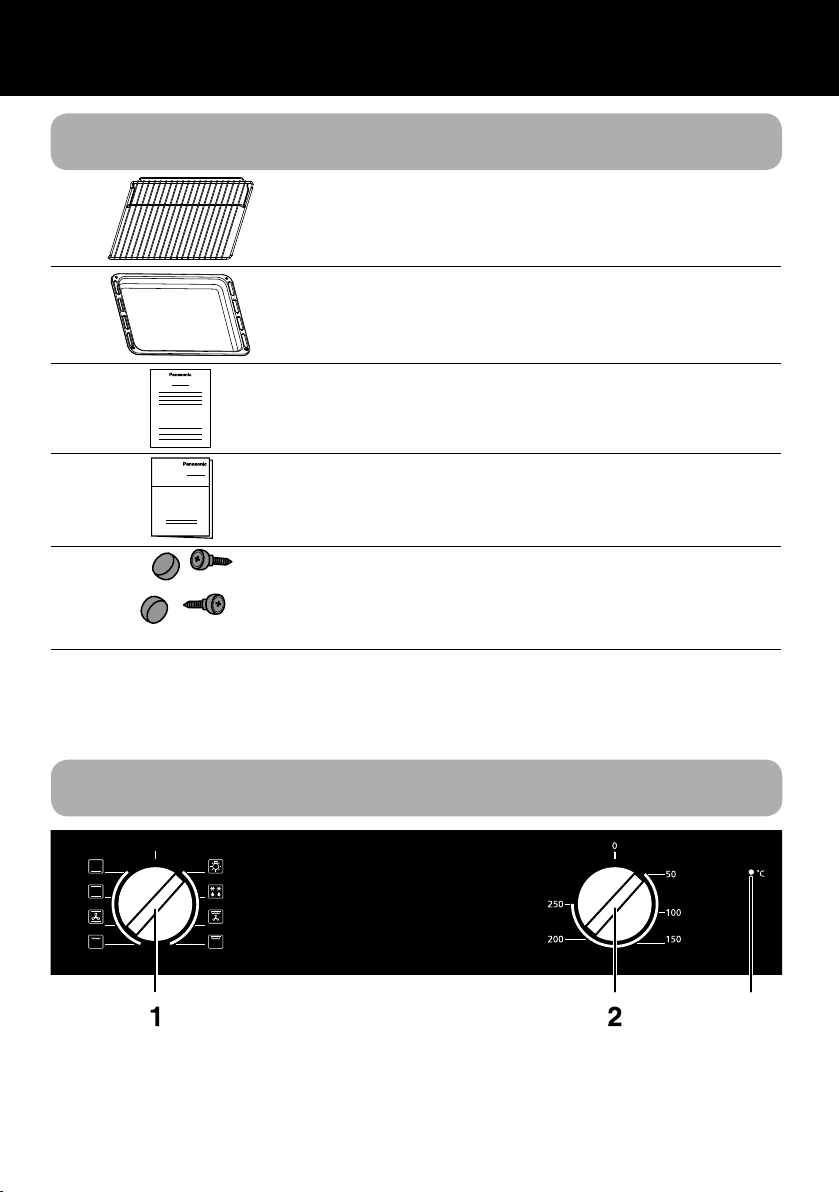

Control Panel
1. Function Setting Rotary Knob
2. Temperature Setting Rotary Knob
3. Indicator Light
• Will light off to confirm that the set temperature has been reached.
Parts Identification
Accessories
Wire Shelf
For roasting and grilling.
Enamel Baking Tray
For cooking large quantities of food such as moist cakes,
pastries and frozen food or for collecting fat/spillage and
meat juices.
Warranty Card
Operating and Installation Instructions
(a) (b)
Screw Pack
a. Screw Cap (2 pcs.)
a. Screw (2 pcs.)
■Note:
• Contact the Panasonic service centre or authorized dealer for maintenance and repair.
• Use original Panasonic accessories only.

8
Function Setting
To select the desired cooking function, turn the knob to the related symbol.
Symbol Function description
Oven Lamp
Enables the user to observe the progress of cooking without opening the door.
Defrost
The circulation of air at room temperature enables quicker thawing of frozen food,
(without the use of any heat). It’s a gentle but quick way to speed up the defrosting
time and thawing of ready-made dishes and cream filled product, etc.
Bottom Heat
A concealed element in the bottom of the oven provides a more concentrative heat
to the base of food without browning. This is ideal for slow cooking dishes such as
casseroles, stews, pastries and pizzas where a crispy base is desired.
Conventional Cooking
The top and bottom elements work together to provide conventional cooking.
Conventional Cooking with Fan
Combination of the fan and both heating elements provides more even heat
penetration, saving up to 30 - 40% of energy. Dishes are lightly browned on the
outside and still moist on the inside.
■Note:
• This function is suitable for grilling or roasting big pieces of meat at a higher
temperature.
Radiant Grilling
The inner grill element switches on and off to maintain the temperature.
Double Grilling
The inside radiant element and top element are working.
Double Grilling with Fan
The inside radiant element and top element are working with fan.
Using the Oven

9

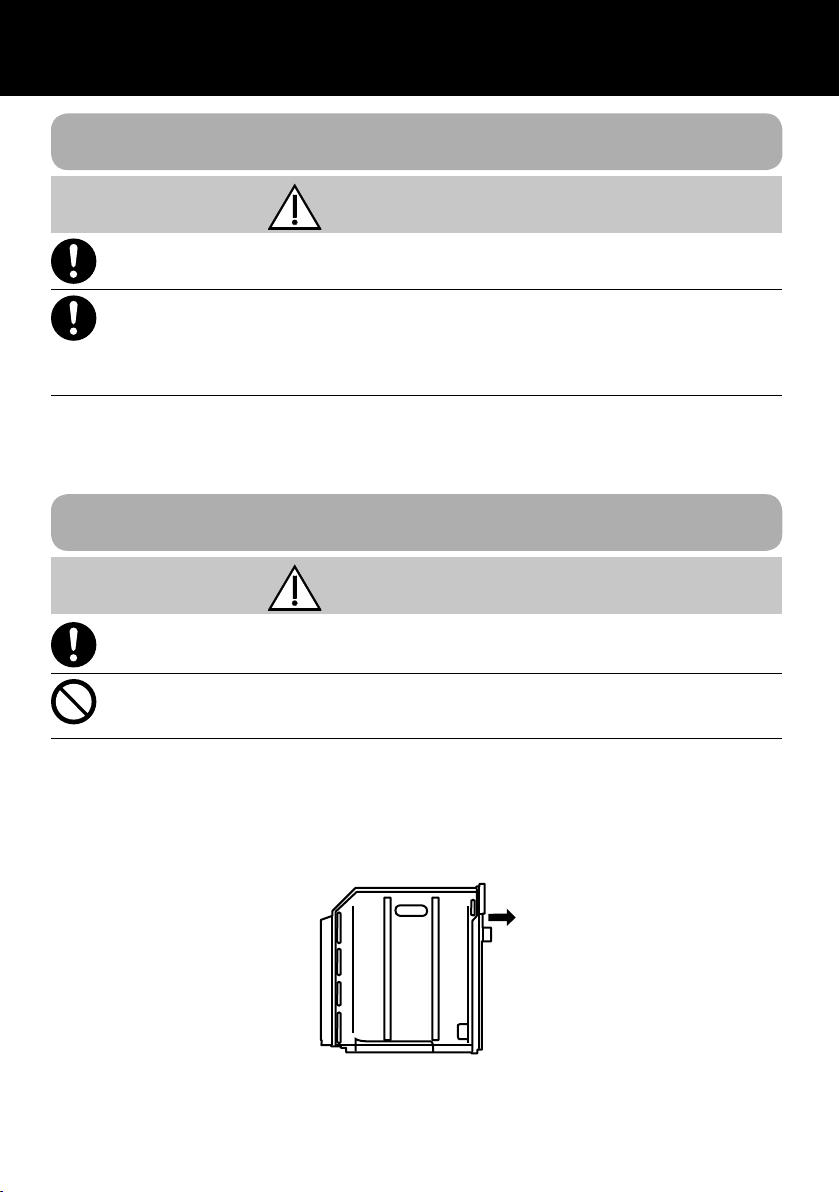

Before Using the Oven
CAUTION
Before the oven is operated, all the protective film applied must be removed
(apart from the Name Plate).
When the oven is first switched on, it may emit an unpleasant smell. This is
due to the bonding agent used for insulating panels within the oven. Heat up
the new empty oven with the conventional cooking function, 250 °C for
15 - 20 minutes in order to remove any manufacturing residues. It is normal
that there will be a slight smoke and odours.
■Note:
• Before the first operation, remove all accessories and clean with soft cloth and mild
detergent.
While Using the Oven
CAUTION
All cooking operations must be carried out with the door fully closed.
Do not cover the bottom of the oven with aluminium or tin foil sheets during
cooking and do not place pans or trays on it to avoid damage to the enamel
coating surface.
■Note:
• The oven is equipped with a cooling system which comes into operation when
temperature sensor detects 70 °C during cooking, the fan causes a steady outflow of
air from above the door. If the temperature drops to below 60 °C, the fan will stop its
operation.
Using the Oven

10
Operations
Function Setting
1. Rotate “Function Setting” knob to choose the cooking function as require.
2. Rotate “Temperature Setting” knob to choose the cooking temperature as require.
3. The heating will start immediately after step 2.
■Note:
• The oven lamp will light up for all the cooking functions.
• and functions are not for heating.
Start/Cancel Function
1. For every function, rotate “Temperature Setting” knob to a temperature to start
operating the function.
2. To cancel the function, rotate “Temperature Setting” knob back to 0 °C.
Rack Placement Warning
To ensure the Wire Shelf or Enamel Baking Tray operates safely, correct insertion and
correct placement between the oven rack are necessary.
Alternatively, the level numbering which is embedded at front of the oven when the door is
opened can be referred. (There are total 5 levels.)
This will ensure that during careful removal of the Wire Shelf or Enamel Baking Tray, hot
food items should not slide out from the back.
CAUTION
Use oven gloves as the oven and accessories will be extremely hot.
Using the Oven

11
Cooking Advice and Instructions
General Advice
Preheating the oven before putting the food in is recommended. Do not place food inside
the oven until “°C” on the control panel lights up to confirm that the set temperature has
been reached.
For cooking on several levels, it is recommended to use a fan-assisted function to achieve
uniform cooking at all heights.
In general, it is not possible to shorten the cooking times by increasing the temperature (the
food could be well-done on the outside but underdone inside).
For best cooking results, we recommend placing suitable cookware in the centre of the Wire
Shelf or Enamel Baking Tray.
To prevent excessive amounts of condensation from forming on the internal glass, hot food
should not be left inside the oven for too long after cooking.
Advice for Cooking Meat
Cooking times, especially for meat, vary according to the thickness and quality of the food
and to consumer taste.
It is recommended to use a meat thermometer when roasting meat. (Thermometer is not
supplied with the oven.)
Advice for Cooking Cakes and Biscuits
Use dark metal moulds for cakes. They help to absorb the heat better.
The temperature and the cooking duration depend on the quality and consistency of the
mixture.
Check whether the cake is cooked right through. At the end of the cooking time, insert a
metal skewer into the highest point of the cake then take it out. If the batter does not stick to
the metal skewer, the cake is cooked.
If the cake collapses when it comes out of the oven, on the next occasion reduce the set
temperature by about 10 °C, selecting a longer cooking time if necessary.
Using the Oven

12
Advice for Defrosting
Positioning frozen food in a lid-less container is recommended.
The food must be defrosted without its wrapping.
Lay out the food in a single layer to be defrosted evenly, not overlapping.
When defrosting meat, it is recommended to use the Wire Shelf positioned on the level-2
of the rack with the food on it and Enamel Baking Tray positioned on the level-1. In this way,
the liquid from the defrosting food drains away from the food.
The most delicate parts can be covered with aluminium foil.
Advice for Cooking with the Grill and the
Fan-assisted Grill
Using the Grill function, meat can be grilled even when it is put into the cold oven;
preheating is recommended if the user wish to change the effect of the cooking.
With the Fan-assisted Grill function, however, it is recommended that the oven is preheated
before grilling.
Tips for Energy Saving
To save energy during use of the oven, the following instructions may be followed:
1. All cooking operations must be carried out with the oven door fully closed.
2. Do not open the oven door frequently during cooking in progress, as this will allow
heat to be dispersed from the oven.
3. When the oven is not in use, switch it off completely.
4. Use the “Energy-Saving Function” while cooking is in progress.
5. Keep the inside of the oven clean at all times.
Using the Oven

13
WARNING
Before performing cleaning and maintenance tasks, use isolation switch to disconnect the
power supply. Children should not clean the oven or perform maintenance tasks.
Cleaning the Oven Door
The glass door should always be kept throughly clean. Use absorbent kitchen roll;
remove stubborn dirt with a damp sponge and an ordinary detergent.
• Do not use a steam cleaner for cleaning the oven.
• Do not use abrasive or corrosive cleaner for cleaning the glass door.
• Do not use rough or abrasive material or sharp metal scrapers to clean the oven`s
glass door since they may scratch the surface.
Cleaning the Inside of the Oven
For the best oven maintenance, clean the oven regularly when it has cooled down
after each cooking period.
• Take out all removable parts.
• For easier cleaning, the oven door can be removed.
Removing the Door from Oven
Removable door allows full access to entire
interior of the oven for easier and quicker
maintenance.
• To remove the door, open the door to the
maximum angle. Then pull the buckle at the
door hinge backward. (Figure 1)
(Total 2 buckles at both side of the door.)
• Close the door to an angle approximately 15 °.
Lift up and slowly pull the door out from the
oven. (Figure 2)
• Place the door on a safety place to protect it
from damage.
■Note:
• The oven should be operated at the maximum
heat setting for 15 - 20 minutes after use
of specific cleaning detergents to burn off
the residues left inside the oven. During this
process, accessible part may get hotter than
usual and children should be kept away.
15 ˚
Figure 1
Figure 2
Cleaning and Maintenance

14
Replacing the Oven Door
Return the door to its original position after
cleaning is completed.
• Align the bottom of the door along the bottom
of the oven and push the door hinge into the
hinge slots. Slide the door in until the slots on
the hinges engage the Oven housing.
• Make sure the Oven door is able to open until
maximum angle (approximately 90 °).
• Push back the buckle at the door hinge forward.
(Figure 3)
• Gently open and close the door several times
to make sure it is correctly installed to avoid
any damage.
Figure 3
Bulb Replacement
The bulb used in the oven is a special bulb that has
high temperature resistance (240 V 25 W). So,
buying a genuine bulb from an authorised dealer is
necessary.
For replacement, proceed as follows:
1. Before replacing the light bulb, make sure the oven
has been disconnected from the mains power via
the isolating switch, in order to prevent an electric
shock.
2. Unscrew the covering glass in anti-clockwise
direction. (Figure 4)
3. Pull out the bulb from its position and replace the
bulb with a new one of the same type. (Figure 5)
4. Screw the covering glass in clockwise direction
after bulb replacement is completed.
Figure 5
Figure 4
Cleaning and Maintenance

15
Model HL-FD615SJPQ
Voltage 220 - 240 V
Wattage 2744 - 3266 W
Frequency 50 - 60 Hz
Outside Dimensions (L × W × H) Approx. 595 mm × 575 mm × 595 mm
Oven Cavity Volume Approx. 65 Litres
Nett Weight Approx. 30.0 kg
Specifications

16
IMPORTANT
If the oven is to work properly, the kitchen housing must be suitable. The panels
of the kitchen unit that are next to the oven must be made of a heat resistant
material. Ensure that the glues of units that are made of veneered wood can
withstand temperatures of at least 120 °C. Plastics or glues that cannot withstand
such temperatures will melt and deform the unit. Once the oven has been lodged
inside the units, electrical parts must be completely insulated. This is a legal safety
requirement. All guards must be firmly fixed into place so that it is impossible to
remove them without using special tools. Remove the back of the kitchen unit to
ensure an adequate current of air circulates around the oven.The hob must have a
rear gap of at least 45 mm.
Electrical Connection
WARNING Electrical work must be performed by a
legally qualified electrician.
This appliance is not fitted with other means for disconnection from the supply
mains having a contact separation in all poles that provide full disconnection
in under overvoltage category III conditions. Means for disconnection must
be incorporated in the fixed wiring in accordance with the wiring rules and
regulations.
Check the local utilities for electrical codes applied in the area. Failure to
wire the appliance according to governing rules may result in a hazardous
condition.
After installation show the customer where the isolating switch for the
appliance is located. This must be easily accessible with the installed
appliance.
This appliance is necessary to allow disconnection from the supply after
installation. The disconnection may be achieved by having the plug accessible
or by incorporating a switch in the fixed wiring in accordance with the wiring
rules.
The identification Name Plate bearing the technical data, model number and brand name is
visibly positioned in the oven (refer to page 6).
Do not remove this Name Plate for any reason.
The oven must be connected to earth in compliance with electrical system safety
regulations.
A fixed connection is to be used, fitting the power line with an omni-polar circuit breaker with
a contact opening gap equal to or greater than 3 mm, in an easily accessible position close
to the appliance.
Installation Instructions For Installer

17
The wires in the mains lead fitted to this oven are coloured in accordance with the following
code:
• Green and Yellow - Earth ( )
• Blue - Neutral (N)
• Brown - Live (L)
Proper size of flexible cord and electric
wiring must be installed to avoid smoke
emission and fire hazards.
220 - 240 V
16 A
N
L
< To use 3 core flexible cord; 2.5 mm² >.
Installation of external switch is
necessary near to oven.
Oven wiring
Power supply
IMPORTANT:
Correct installation is the responsibility of the installer. Any malfunction or accident
resulting from the failure to follow the Installation Instructions is not covered by the
warranty.
Installation Instructions For Installer

18
Positioning the Oven
CAUTION
Installing the oven with the help of a second person is recommended.
The base on which the oven is resting must be completed as shown in below
illustration.
Never exert pressure on the handle during installation into the cabinet.
1. Take note of general dimensions required for the installation.
The figure below shows the general dimensions of the oven.
575
595
595
560
Unit: mm
2. Flush fit and Proud fit.
For the best integration within a kitchen, install this oven in a standard 600 mm wide
cabinet that gives a flush fit with the surrounding cabinet fronts. A recess of 25 mm is
ideal. It can also be installed using a proud fit with the surrounding cabinet.
Flush fit (top view) Proud fit (top view)
A
B
50
Unit: mm A
A: Infill panel recessed 25 mm from external
cabinet / door to accommodate for a
flush fit.
B: Cabinet door.
A: Cabinet door.
Installation Instructions For Installer

19
3. Before moving the oven for installation, check that the cabinet has following
inner space dimensions. To allow adequate ventilation, the measurements and
distances in below diagram must be applied when fixing the oven.
Flush fit Proud fit
570
min
560
600
587
600
80
100
2
5
250
37
Unit: mm
560
600
587
80
250
100
570
min
50
Unit: mm
■Note:
• The oven is designed for mounting into any kitchen cabinet as long as it is heat
resistant.
Securing the Oven to a Cabinet
Fix the oven to the cabinet with 2 pieces of provided screws as illustrated below. Attach 2
screw caps for finishing appearance.
574
436
Base of kitchen cabinet
Unit: mm
■Note:
• To locate the fixing holes, open the oven door and look at the side frame of the oven.
Installation Instructions For Installer

16171100A08387
G0317-0Printed in China
Website: http://www.panasonic.com
No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,
40200 Shah Alam, Selangor Darul Ehsan
