1.1GENERALGUIDELINES
TOP PREVIOUS NEXT
1.Forcontinuedsafety,no modification ofany circuit shouldbeattempted.
2.DisconnectACPlug beforedisassembling thisunit.
3.Itisadvisabletouseanisolation transformerintheACsupplybeforeservicing.
4.Whenservicing,observetheoriginalleaddress.Ifashortcircuit isfound,replace all parts
whichhavebeenoverheatedordamagedby theshortcircuit.
5.Afterservicing,seetoitthatalltheprotectivedevicessuchasinsulation barriers,insulation
papers,shield,and isolation R-Ccombinationsetc.areproperlyinstalled.
6.Afterservicing,besuretorestorethewires,leads,insulation barriers,shields,etc.
7.Afterservicing,maketheleakagecurrentcheckstopreventthecustomerfrombeing exposed
toshockhazards.
Caution:
UseaseparateIsolation Transformerforthisunit whenservicing.
TOP PREVIOUS NEXT

1.1GENERALGUIDELINES
TOP PREVIOUS NEXT
1.Forcontinuedsafety,no modification ofany circuit shouldbeattempted.
2.DisconnectACPlug beforedisassembling thisunit.
3.Itisadvisabletouseanisolation transformerintheACsupplybeforeservicing.
4.Whenservicing,observetheoriginalleaddress.Ifashortcircuit isfound,replace all parts
whichhavebeenoverheatedordamagedby theshortcircuit.
5.Afterservicing,seetoitthatalltheprotectivedevicessuchasinsulation barriers,insulation
papers,shield,and isolation R-Ccombinationsetc.areproperlyinstalled.
6.Afterservicing,besuretorestorethewires,leads,insulation barriers,shields,etc.
7.Afterservicing,maketheleakagecurrentcheckstopreventthecustomerfrombeing exposed
toshockhazards.
Caution:
UseaseparateIsolation Transformerforthisunit whenservicing.
TOP PREVIOUS NEXT

1.2LEAKAGE CURRENTCOLDCHECK
TOP PREVIOUS NEXT
1.Unplug theACcordand connectajumperbetweenthetwoprongson theplug.
2.Forphysicallyoperatedpowerswitches,turnpoweron.Otherwiseskipstep2.
3.Measuretheresistance value,withanohmmeter,betweenthejumperedACplug and each
exposedmetalliccabinetparton thereceiver,suchasscrewheads,connectors,etc.Whenthe
exposedmetallicparthasareturnpathtothechassis,thereadingshouldbebetween1M and
12 M .Whentheexposedmetaldoesnothaveareturnpathtothechassis, thereading must
beinfinity.
TOP PREVIOUS NEXT

1.3LEAKAGE CURRENTHOTCHECK
TOP PREVIOUS NEXT
1.Plug theACcorddirectlyintotheACoutlet.
Donotuseaisolation transformerforthischeck.
2.Connecta1.5k ,10 Wresistor,inparallelwitha0.15 μFcapacitor,betweeneachexposed
metallicparton thesetand agood earthground,asshowninFigure1.
3.UseanACvoltmeter,with1k /Vormoresensitivity,tomeasurethepotentialacrossthe
resistor.
4.Checkeachexposedmetallicpart,and measurethevoltageateachpoint.
5.ReversetheACplug intheACoutletand repeateachoftheabovemeasurements.
6.Thepotentialatany pointshouldnotexceed0.75 VRMS.
Aleakagecurrenttester(Simpson Model229 equivalent)maybeusedtomakethehotchecks.
Leakagecurrentmustnotexceed1/2mA.Incaseameasurementisoutsideofthelimits
specified,thereisapossibilityofshockhazard,and thereceivershouldberepairedand
recheckedbeforeit isreturnedtothecustomer.
Figure1
TOP PREVIOUS NEXT

1.4UV-PRECAUTION
TOP PREVIOUS NEXT
1.BesuretodisconnecttheACPlugwhenreplacing thelamp.
2.Sincethelampreachesaveryhigh temperatureduring itsoperation,wait untilit has
completelycooledoffwhenreplacing theLampUnit.
3.ThelampemitssmallamountsofUV-Radiation.
Avoiddirect-eyecontactby covering theLampand wearing theUV cutprotectiveglass.
4.Thehigh pressurelampinvolvesariskofexplosion.
Figure2
TOP PREVIOUS NEXT

2PREVENTIONOFELECTROSTATIC
DISCHARGE(ESD)TO
ELECTROSTATICALLYSENSITIVE(ES)
DEVICES
TOP PREVIOUS NEXT
Somesemiconductor(solidstate)devicescanbedamagedeasilyby staticelectricity.Such
componentscommonlyarecalledElectrostaticallySensitive(ES)Devices.ExamplesoftypicalES
devicesareintegratedcircuitsand somefield-effecttransistorsandsemiconductor"chip"components.
Thefollowing techniquesshouldbeusedtohelpreduce theincidence ofcomponentdamagecaused
by electrostaticdischarge(ESD).
1.Immediatelybeforehandling any semiconductorcomponentorsemiconductor-equipped
assembly,drainoffany ESDon yourbody by touching aknownearthground.Alternatively,
obtainand wearacommerciallyavailabledischarging ESDwriststrap,whichshouldbe
removedforpotentialshockreasonspriortoapplying powertotheunit undertest.
2.Afterremoving anelectricalassemblyequippedwithESdevices,place theassemblyon a
conductivesurfacesuchasaluminumfoil,topreventelectrostaticchargebuildup orexposure
oftheassembly.
3.Useonlyagrounded-tipsoldering iron tosolderorunsolderESdevices.
4.Useonlyanantistaticsolderremovaldevice.Somesolderremovaldevicesnotclassifiedas
"antistatic(ESDprotected)"cangenerateelectricalchargesufficienttodamageESdevices.
5.Donotusefreon-propelledchemicals.Thesecangenerateelectricalchargessufficientto
damageESdevices.
6.DonotremoveareplacementESdevice fromitsprotectivepackageuntilimmediatelybefore
you areready toinstall it.(MostreplacementESdevicesarepackagedwithleadselectrically
shortedtogetherby conductivefoam,aluminumfoil orcomparableconductivematerial).
7.Immediatelybeforeremoving theprotectivematerialfromtheleadsofareplacementES
device,touchtheprotectivematerialtothechassisorcircuit assemblyintowhichthedevice
willbeinstalled.
CAUTION :
Besureno powerisappliedtothechassisorcircuit,and observeall othersafetyprecautions.
8.Minimize bodilymotions whenhandling unpackagedreplacementESdevices.(Otherwise
harmlessmotion suchasthebrushing togetherofyourclothesfabricorthelifting ofyourfoot
fromacarpetedfloorcangeneratestaticelectricity(ESD)sufficienttodamageanESdevice).
TOP PREVIOUS NEXT

3ABOUTLEADFREE SOLDER(PbF)
TOP PREVIOUS NEXT
TOP PREVIOUS NEXT

4SERVICENOTES
TOP PREVIOUS NEXT
TOP PREVIOUS NEXT

5DISASSEMBLY/ ASSEMBLY
PROCEDURES
TOP PREVIOUS NEXT
5.1CABINETSECTION
TOP PREVIOUS NEXT

6ADJUSTMENTPROCEDURES1
TOP PREVIOUS NEXT
TOP PREVIOUS NEXT

7TROUBLESHOOTINGHINTSFOR
BLOCKLEVEL REPAIR
TOP PREVIOUS NEXT
TOP PREVIOUS NEXT

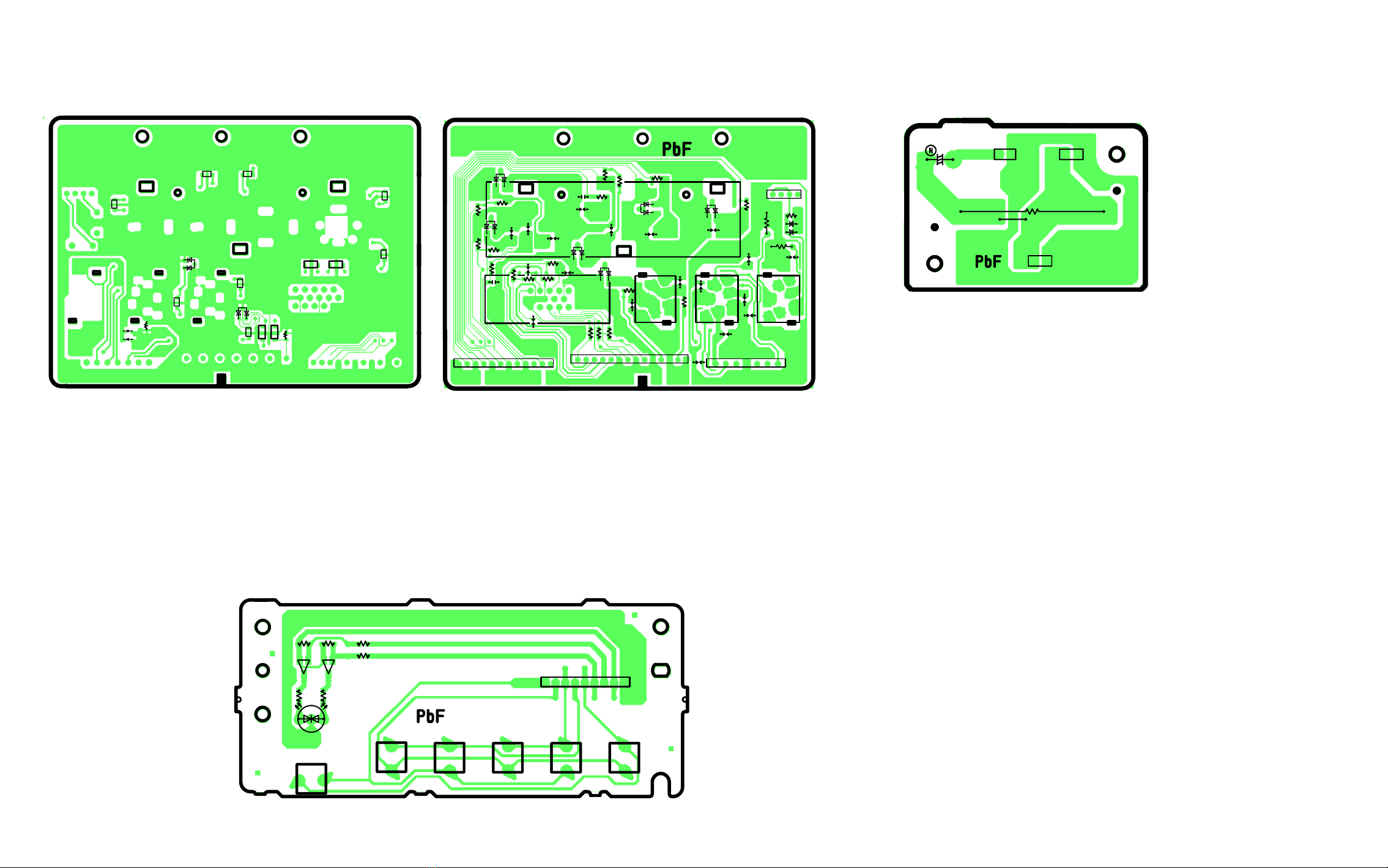

FRONT JACK C.B.A. LSEP3094A
OPERATION C.B.A. LSEP3149A
FRONT JACK C.B.A. LSEP3094A
OPERATION C.B.A. LSEP3149A
NETWORK C.B.A. LSEP3097A
PT-43LCX64/PT-50LCX64/PT-60LCX64
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT.
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT.
NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
NETWORK C.B.A. LSEP3097A
(FOIL SIDE)(COMPONENT SIDE)
B
C
EB
C
E
R6706 R6702 R6707
R6703
1
R6705
R6704
Q6701
LSJB3149
Q6702
P6701
D6701
POWER
SW6705
SW6703 SW6704 SW6701 SW6702 SW6706
INPUT
CH.
DOWN
CH.
UP
VOL.
DOWN
VOL.
UP
9
21
C4551
R4551
J4551
2211
P4551
P4553
LSJB3097
P4552
(DUAL PATTERNS) (DUAL PATTERNS)
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT.
FL4802
FL4801
FL4803
FL4804
R4595
D4592
D4593
FL3902 FL3901
FL3903
FL3912 FL3911
R3901
D3901
FL4803
D4803 FL3905 FL3904
LSJB3094
1
7P4591
JK3901
RGB-IN 2
D3912
D3911
D3913
D4804
R3905 R3904 R3906
D4801
R4804
R3911
R3912
R3914
R3902
R3913
R3917
R4802
R3915
R3916
R3907 R3903
R3908
C3562 R3918
R4801
LSJB3094
R4598
D4595
D4594
R4803
D4802
C3561
14
1
112 P3901
P3902
JK4591
SUB HEAD
PHONE
JK4590
HEAD
PHONE
JK4802
RGB AUDIO
IN 2
AUDIO IN3 (R)AUDIO IN3 (L)VIDEO IN3
S-VIDEO IN3
P4592
1
5
JK4801
R4597
R4596
(FOIL SIDE)
(DUAL PATTERNS)

THERMISTOR 1 C.B.A. LSEP3136A
AUDIO AMP C.B.A. LSEP3092A
THERMISTOR 1 C.B.A. LSEP3136A
THERMISTOR 2 C.B.A. LSEP3137A
COVER SWITCH C.B.A. LSEP3098A
PT-43LCX64/PT-50LCX64/PT-60LCX64
NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
IMPORTANT SAFETY NOTICE:
COMPONENTS IDENTIFIED BY THE SIGN HAVE
SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
WHEN REPLACING ANY OF THESE COMPONENTS,
USE ONLY THE SPECIFIED PARTS.
AUDIO AMP C.B.A. LSEP3092A
COVER SWITCH C.B.A. LSEP3098A
B
CEB
CE
B
CE
B
C
E
B
CE
B
CE
6
51
7
R4521
R4541
R4540
R4539
R4535
R4534
Q4506
IC4502 IC4501
Q4507 Q4508
P4505
IC4503
P4501
LSJB3092
P4503
P4502
C4521
C4534
C4535
R4537 R4538
R4542
R4517
R4518
C4533
C4529
C4536
J4502
R4524 R4503
R4502
C4503
D4504
C4510
C4523
C4511
R4533
R4532
R4543
C4528
C4516
C4514
J4501
R4516 R4544
R4525
R4501
R4547R4548
C4513
C4526
C4527
C4502
D4501
C4512
C4501
R4545
R4546
R4526
R4527
R4529
R4528
R4505
R4504
J4504 C4504
C4505
R4530
J4505
R4531
RL4501
C4530
C4532
C4519
C4518
R4519
R4536 Q4501
Q4505 Q4504
C4508 C4506
R4508 R4506
C4507
R4511
R4513
R4509
R4520
C4520
C4531
C4522
R4507
R4512
C4509
R4510
10
10
11
2
1
61
1
1
3
3
1
14
J2911
P2912
LSJB3098
SW2911 2
1
LAMP
COVER
2
1
P2811
LSJB3136
R2811
THERMISTOR 2 C.B.A. LSEP3137A
LSJB3137
P2821
R2821 1
2
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT.
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT.
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT.
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT.
IMPORTANT SAFETY NOTICE:
COMPONENTS IDENTIFIED BY THE SIGN HAVE
SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
WHEN REPLACING ANY OF THESE COMPONENTS,
USE ONLY THE SPECIFIED PARTS.

1. Important safety notice
Components identified by the sign have special
characteristics important for safety. When replacing any
of these components. Use only the specified parts.
2. Do not use the part number shown on this drawing for
ordering.
The correct part number and part value is shown in the
parts list, and may be slightly different or amended since
this drawing was prepared.
3. Use only original replacement parts:
To maintain original function and reliability of repaired
units, use only original replacement parts which are listed
with their part numbers in the parts list section of the
service manual.
4. Parts different in shape or size may be used.
However, only interchangeable parts will be supplied as
service replacement parts.
5. Test point information
: Test point with a jumper wire across a hole in P.C.B.
: Test point with no test pin.
Schematic Diagram Notes
1. Indication for Zener Voltage of Zener Diodes
The Zener Voltage of Zener Diodes are indicated as such
on Schematic Diagrams.
Example:
(6.2V)......Zener Voltage
2. How to identify Connectors
Each connector is labeled with a Connector No. and Pin
No. Indicating what it is connected to,
in other words, its counter part.
Use the interconnection schematic diagram to find the
connection between associated connectors.
Example:
The connections between C.B.A.s are shown below.
POWER SUPPLY
C.B.A.
MAIN C.B.A.
The Number of pins of the Connector.
Connector No.
on Main C.B.A.
P1503 P3004
(10 Pins)
Ref. No. of the connection parts such as lead cable,
flexible cable which is supplied as a replacement parts.
244
3. Parts marked "PT" are not used in any models included
in this service model.
Example:
100P
PT
C6011 R6097
PT
PT
C6011
4. Jumper wires are used for WA10, WA5 etc and these are
not supplied as replacement parts.
Circuit Board Layout Note
Circuit Board Layout shows components installed for
various models.
For proper parts content for the model you are servicing,
please refer to the schematic diagram and parts list.
NOTE:
Circuit Board Layout includes components which are not
used.
SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES
PT-43LCX64/PT-50LCX64/PT-60LCX64

NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
NOTE: For placing a purchase order of the parts,
be sure to use the part number listed in the parts list.
Do not use the part number on this diagram.
NOTE:
PARTS MARKED "PT" ARE NOT USED.
INTERCONNECTION SCHEMATIC DIAGRAM
IMPORTANT SAFETY NOTICE:
COMPONENTS IDENTIFIED BY THE SIGN HAVE
SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
WHEN REPLACING ANY OF THESE COMPONENTS,
USE ONLY THE SPECIFIED PARTS.
NOTE:
LCD POWER C.B.A.IS SUPPLIED AS A UNIT ONLY.
PLEASE NOTETHAT INDIVIDUAL PARTS ON IT ARE NOT SUPPLIED.
HOWEVER,THE PARTS WITH REF. No. ARE AVAILABLE SEPARATELY
AS REPLACEMENT PARTS.
THERMAL FUSE UNIT REPLACEMENT NOTE:
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE NUMBER LSJA0464 (115 ).
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES
D’ INCENDIE N’ UTILISERQUE DES FUSIBLE DE MÉME
TYPE NUMÉRO LSJA0464 (115 )
NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
INTERCONNECTION SCHEMATIC DIAGRAM
PT-43LCX64/PT-50LCX64/PT-60LCX64
P1203 (5 Pins)
MAIN C.B.A.
REAR JACK C.B.A.
POWER C.B.A.
LCD DRIVE C.B.A.
LCD PANEL (RED)
LCD / PRISM UNIT
LCD PANEL (GREEN)
LCD PANEL (BLUE)
(6 Pins)
P6001
P6305P6701
P1203
OPERATION C.B.A.
(3 Pins)
FAN 4
P1006
P1008
P1008 (8 Pins)
P2901
(3 Pins)
(36 Pins)
(36 Pins)
(36 Pins)
FAN 1
P2902
P2001
(3 Pins)
FAN 2
P2903
P6701
(9 Pins)
P2501P5302 (20 Pins)
P3602
P3404
P3601
P3403
(18 Pins) (18 Pins)
AUDIO OUT R-CH AUDIO OUT L-CH VIDEO OUT S-VIDEO OUT AUDIO IN 2 R-CH AUDIO IN 2 L-CH VIDEO IN 2 S-VIDEO IN 2 AUDIO IN 1 R-CH AUDIO IN 1 L-CH VIDEO IN 1 S-VIDEO IN 1 COMPONENT AUDIO IN 1 L-CH COMPONENT AUDIO IN 1 R-CH COMPONENT AUDIO IN 2 L-CH COMPONENT AUDIO IN 2 R-CH
COMPONENT IN 1
Y PB PR
COMPONENT IN 2
Y PB PR
THERMISTOR 1 C.B.A.
P2303 P2811
(2 Pins)
P2002
P2003
14
(8 Pins)
P2302
P2302 USED FOR
ADJUSTMENT OF
LCD DRIVE C.B.A.
P6001 USED FOR
ADJUSTMENT AT
FACTORY ONLY
THERMISTOR 2 C.B.A.
P2304 P2821
(2 Pins)
COVER SWITCH C.B.A.
P2306 P2912P2912
(2 Pins)
(3 Pins)
FAN 3
P2904
UHF/VHF SUB TUNER
PIN
PIN
(25 Pins)
(3 Pins)
TUNER C.B.A.
DTVTUNER UNIT
P7005
P7008
P3604
P7005 (10 Pins)
P7003 P6003
P7003
(13 Pins)
P7004
(14 Pins)
P5601
P7004
FRONT JACK C.B.A.
AUDIO IN 3 R-CH
AUDIO IN 3 L-CH
VIDEO IN 3
S-VIDEO IN 3
RGB IN 2
P3901 P5501P3901
(14 Pins)
P3902
P3502
P3902
(12 Pins)
COMPONENT AUDIO IN 3 L-CH COMPONENT AUDIO IN 3 R-CH
COMPONENT IN 3
Y PB PR
RGB IN 1
P4503 P4553
(4 Pins)
NETWORK C.B.A.
P4552 (2 Pins) SPEAKER
(R-CH)
WOOFER
P4551 (2 Pins) SPEAKER
(R-CH)
TWEETER
P4553
NETWORK C.B.A.
P4552 (2 Pins) SPEAKER
(L-CH)
WOOFER
P4551 (2 Pins) SPEAKER
(L-CH)
TWEETER
P3603 P4505P4505
(6 Pins)
AUDIO AMP C.B.A.
BALLAST C.B.A.
P1305
P6002 P1305 (4 Pins)
P805
P807
P808
P1302
P1303 P1301
P1001
P804
73
AC CORD
P1007
P3401 P1007 (14 Pins)
P1009
P1010
P1011
P4501
LAMP
UNIT
P1306 THERMAL
FUSE
UNIT
RGB AUDIO IN 2
RGB AUDIO IN 1
HDMI IN
HDMI AUDIO IN R-CH
HDMI AUDIO IN L-CH
(4 Pins)
P6006
P6006 USED FOR
ADJUSTMENT AT
FACTORY ONLY
(4 Pins)
P6007
P6007 USED FOR
ADJUSTMENT AT
FACTORY ONLY
(8 Pins)
P6301
P6301 USED FOR
ADJUSTMENT AT
FACTORY ONLY
P1302
(2 Pins)
P1009 (3 Pins)
P1301
(5 Pins)
762
F001
115
(239 F)
PROJECTION UNIT
TV/TUNER UNIT
FAN CASE UNIT
DIGITAL TUNER POWER C.B.A.
P1201
P807 (2 Pins)
P7002
P7007
ANT-A
ANT-B
(65 Pins)
(1 Pins)
FAN 5
P7006 P3503
P7006 (11 Pins)
758
66

NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
NOTE: For placing a purchase order of the parts,
be sure to use the part number listed in the parts list.
Do not use the part number on this diagram.
NOTE:
PARTS MARKED "PT" ARE NOT USED.
FRONT JACK SCHEMATIC DIAGRAM
PT
D4593
PT
D4592
0
R3907
0
R3906
PT[3216]
FL3905 1
23
75[F]
R3902
PT[3216]
FL3903 1
23
0
R3908 JK3901
K1FB115A0015
PT[3216]
FL3904 1
23
PT[2012]
FL3902
1
23
75[F]
R3903
PT[3216]
FL3901
1
23
75[F]
R3901
P3901
14
GND 13
RGB2_R_AUDIO 12
GND 11
RGB2_L_AUDIO 10
GND 9
RGB2_V 8
GND 7
RGB2_H 6
GND 5
RGB2_B 4
GND 3
RGB2_G 2
GND 1
RGB2_R
B0BD6R200002
D3901
0
R3904
0
R3905
100
R4803
100
R4804
PT[2012]
FL4803
1
23
PT[2012]
FL4804
1
23
PT
D4803 PT
D4804
PT[2012]
FL4802
1
23
0
R4802
PT[2012]
FL4801
1
23
0
R4801
100
R3918
PT
D3913
PT
C3561
100
R3914
PT
C3562
75
R3913
PT
D3912
PT
D3911
PT
D4801 PT
D4802
PT[2012]
FL3913
1
23
PT[2012]
FL3912
1
23
0
R3916
0
R3917
0
R3915
PT[2012]
FL3911
1
23
75
R3911
75
R3912
P3902
12
GND 11
LINE3_R_AUDIO 10
GND 9
LINE3_L_AUDIO 8
GND 7
LINE3_V 6
GND 5
LINE3_C 4
GND 3
LINE3_Y 2
L3_S_IN_L 1
L3_CPS_NOSIG_L
PT
R4595
PT
R4596
PT
R4598
PT
D4595
PT
R4597
PT
D4594
P4592
PT
4
SUB_H/P_GND 3
SUB_H/P_OUT_L 2
SUB_H/P_GND 1
SUB_H/P_OUT_R
P4591
PT
7
SW_IN_L 6
SW_OUT_L 5
H/P_IN_L 4
AMP_GND 3
H/P_IN_R 2
SW_IN_R 1
SW_OUT_R
JK4802
K2HC103A0017
2
1
3
4
5
7
6
JK4590
2
1
3
4
5
7
6
JK4591
PT
2
1
3
4
5
7
6
HEAD PHONE
CSYNC(MAC2)
2
12
GREEN
BLUE
GND
I2C SCK
NC
VSYNC
6
BLUE RETURN
5
10
8
I2C DATA
RED RETURN
HSYNC13
15
NC
4
11
14
RED
9
GREEN RETURN
3
7
GND
1
Y
C
SUB HEAD PHONE
JK4801
K1U412A00008
TO REAR JACK
C.B.A. P3502
RGB IN 2
AUDIO IN3(R)
AUDIO IN3(L)
VIDEO IN3
S-VIDEO IN3
RGB AUDIO IN2
TO MAIN C.B.A.
P5501
SUB VIDEO SIGNALVIDEO SIGNAL(MAIN/SUB) AUDIO SIGNAL
(6.2V)
PT
LSJB3094
FRONT JACK SCHEMATIC DIAGRAM
PT-43LCX64/PT-50LCX64/PT-60LCX64

NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
NOTE: For placing a purchase order of the parts,
be sure to use the part number listed in the parts list.
Do not use the part number on this diagram.
NOTE:
PARTS MARKED "PT" ARE NOT USED.
NETWORK SCHEMATIC DIAGRAM
C4551
3R3/63V
R4551
PT
P4551
1
AMP_GND 2
SP_OUT_L_TW
P4552
1
AMP_GND 2
SP_OUT_L_WF P4553
1AMP_GND
2SP_OUT_L
J4551
WA5
TO L-CH SPEAKER
(TWEETER)
TO L-CH SPEAKER
(WOOFER) TO AUDIO AMP C.B.A. P4503 P4503-3
P4503-4
AUDIO SIGNAL
NETWORK SCHEMATIC DIAGRAM
C4551
3R3/63V
R4551
PT
P4551
1
AMP_GND 2
SP_OUT_R_TW
P4552
1
AMP_GND 2
SP_OUT_R_WF P4553
1AMP_GND
2SP_OUT_R
J4551
WA5
TO R-CH SPEAKER
(TWEETER)
TO R-CH SPEAKER
(WOOFER) TO AUDIO AMP C.B.A. P4503 P4503-1
P4503-2
AUDIO SIGNAL
THERMISTOR 1 SCHEMATIC DIAGRAM
THERMISTOR 2 SCHEMATIC DIAGRAM
IMPORTANT SAFETY NOTICE:
COMPONENTS IDENTIFIED BY THE SIGN HAVE
SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
WHEN REPLACING ANY OF THESE COMPONENTS,
USE ONLY THE SPECIFIED PARTS.
COVER SWITCH SCHEMATIC DIAGRAM
SW2911
K0L1BA000070
2
1
3
4
P2912
1
2
J2911
PT
COVER SW
GND
TO LCD DRIVE
C.B.A. P2502
LAMP COVER SW
OPERATION SCHEMATIC DIAGRAM
(FOR L-CH SPEAKER)
(FOR R-CH SPEAKER)
P2811
2
1
R2811
D4CA35030002 THERMO_3
THERMO_4
TO LCD DRIVE
C.B.A. P2303
P2821
2
1
R2821
D4CE31330001 THERMO_2
THERMO_1
TO LCD DRIVE
C.B.A. P2304
SW6703
EVQ11G05R
10K
R6706
2SB1218A0L
Q6701
SW6702
EVQ11G05R
10K
R6707
R6704
390
SW6704
EVQ11G05R
D6701
B3AGA0000072
13
2
10K
R6702
10K
R6703
SW6705
EVQ11G05R
SW6701
EVQ11G05R
Q6702
2SB1218AOL
P6701
9
GND 8
STBY5V 7
P_LED_G 6
P_LED_R 5
SCAN2 4
SCAN1 3
SCAN0 2
KEY_IN1 1
KEY_IN0
R6705
220
SW6706
EVQ11G05R
VOL_DOWN
G
CH_UP
R
POWER
VOL_UP
CH_DOWN
INPUT
(LED DRIVE) (LED DRIVE)
TO MAIN C.B.A.
P6305
POWER LED
NETWORK SCHEMATIC DIAGRAM
THERMISTOR 1 SCHEMATIC DIAGRAM
THERMISTOR 2 SCHEMATIC DIAGRAM
OPERATION SCHEMATIC DIAGRAM
COVER SWITCH SCHEMATIC DIAGRAM
PT-43LCX64/PT-50LCX64/PT-60LCX64
LSJB3137
LSJB3097
LSJB3097
LSJB3136
LSJB3098
LSJB3149

NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
NOTE: For placing a purchase order of the parts,
be sure to use the part number listed in the parts list.
Do not use the part number on this diagram.
NOTE:
PARTS MARKED "PT" ARE NOT USED.
AUDIO AMP SCHEMATIC DIAGRAM
R4506
15K
R4510
470
R4511
470
R4507
15K
C4501
1000/35V
C4502
1000/35V D4501
MAZ40510MF
R4502
15K
R4501
4700
Q4501
2SD0601AHL
R4503
10K
C4503
10/16V
P4501
1
+Vs 2
GND 3
-Vs
C4504
0.1
C4505
0.1
R4508
33K
R4509
33K
C4506
0.047[KB]
C4507
0.047[KB]
R4512
470
R4513
470
C4509
0.068[KB]
C4508
0.068[KB]
C4512
0.1
C4513
0.1
R4505
4R7/1W
R4504
4R7/1W
PT
C4520
C4511
1/50V[N]
C4510
1/50V[N]
R4517
PT
PT C4521
R4521
PT
C4523
PT
R4520
PT
R4516
PT
C4522 PT
C4514
10/50V
C4516
10/16V
R4524
PT
R4525
0
C4526
10/16V[N]
Q4504
2SD0601AHL Q4505
2SD0601AHL
R4526
820
R4527
4700
D4504
MA2C16700E
IC4503
C0CAAKE00013
13
2
C4528
4R7/25V
P4503
4
SP_OUT_L 3
AMP_GND 2
SP_OUT_R 1
AMP_GND
P4502
PT
7
SW_IN_L 6
SW_OUT_L 5
H/P_IN_L 4
AMP_GND 3
H/P_IN_R 2
SW_IN_R 1
SW_OUT_R
P4505
1AMP_L_AUDIO
2AUDIO_G
3AMP_R_AUDIO
4AUDIO_G
5AMP_MUTE_L
6+5V
IC4502
PT
12345
8910 67
C4518
PT
C4519
PT
R4519
PT
R4518
PT
R4528
1K
R4529
1200 R4530
1K
R4531
1200
R4532
PT
R4533
PT
Q4506
PT
Q4507
PT
R4534
PT
R4535
PT
R4536
PT
R4537
PT
R4538
PT
R4539
PT
R4540
PT
R4541
PT
Q4508
PT
C4529
PT
R4542
PT
R4544
0R4543
0
C4530
PT
C4531
PT
C4532
PT
C4533
PT
C4535
PT
C4534
PT
C4536
PT
C4527
10/16V[N]
R4545 0
R4546 0
J4504
WA5
J4505
WA5
J4502
PT
J4501
WA7.5
RL4501
K6B2AGA00038
12
6
3
45
IC4501 C1AA00000660
GND-Vs-Vs +Vs
VCCPOWER_G
3.3V
PRE_G
POWER
ON_H
MUTE_L
2SD601A
1K
10K
2SD601A
330
47K
22
2SB710ARS
10/16V
10/16V
47K
47K
22/6.3V
1/50V[N] 1/50V[N]
0 0
100/6.3V
100/6.3V
0
10K2700
0.1[KB] 0.1[KB]
2R7 2R7
1234567891011
(AUDIO AMP)
AUDIO SIGNAL
TO REAR JACK
C.B.A. P3603
TO POWER C.B.A.
TO NETWORK C.B.A.P4553
SWITCHING
AUDIO MUTE-ON
SWITCHING
AUDIO MUTE-ON
SWITCHING
AUDIO MUTE-ON
P1011
P1010
P1009
(+12V REG.)
+- -+
(5.1V)
+12V
REG.
( )
TO FRONT JACK
C.B.A. P4591
PT
(FOR L-CH SPEAKER)
(FOR R-CH SPEAKER)
TO NETWORK C.B.A.P4553
AUDIO AMP
LSJB3092
AUDIO AMP SCHEMATIC DIAGRAM
PT-43LCX64/PT-50LCX64/PT-60LCX64

9.2. INTERCONNECTION SCHEMATIC DIAGRAM
NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
NOTE: For placing a purchase order of the parts,
be sure to use the part number listed in the parts list.
Do not use the part number on this diagram.
NOTE:
PARTS MARKED "PT" ARE NOT USED.
INTERCONNECTION SCHEMATIC DIAGRAM
IMPORTANT SAFETY NOTICE:
COMPONENTS IDENTIFIED BY THE SIGN HAVE
SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
WHEN REPLACING ANY OF THESE COMPONENTS,
USE ONLY THE SPECIFIED PARTS.
NOTE:
LCD POWER C.B.A.IS SUPPLIED AS A UNIT ONLY.
PLEASE NOTETHAT INDIVIDUAL PARTS ON IT ARE NOT SUPPLIED.
HOWEVER,THE PARTS WITH REF. No.ARE AVAILABLE SEPARATELY
AS REPLACEMENT PARTS.
THERMAL FUSE UNIT REPLACEMENT NOTE:
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE NUMBER LSJA0464 (115 ).
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES
D’ INCENDIE N’ UTILISERQUE DES FUSIBLE DE MÉME
TYPE NUMÉRO LSJA0464 (115 )
NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
INTERCONNECTION SCHEMATIC DIAGRAM
PT-43LCX64/PT-50LCX64/PT-60LCX64
P1203 (5 Pins)
MAIN C.B.A.
REAR JACK C.B.A.
POWER C.B.A.
LCD DRIVE C.B.A.
LCD PANEL (RED)
LCD / PRISM UNIT
LCD PANEL (GREEN)
LCD PANEL (BLUE)
(6 Pins)
P6001
P6305P6701
P1203
OPERATION C.B.A.
(3 Pins)
FAN 4
P1006
P1008
P1008 (8 Pins)
P2901
(3 Pins)
(36 Pins)
(36 Pins)
(36 Pins)
FAN 1
P2902
P2001
(3 Pins)
FAN 2
P2903
P6701
(9 Pins)
P2501P5302 (20 Pins)
P3602
P3404
P3601
P3403
(18 Pins) (18 Pins)
AUDIO OUT R-CH AUDIO OUT L-CH VIDEO OUT S-VIDEO OUT AUDIO IN 2 R-CH AUDIO IN 2 L-CH VIDEO IN 2 S-VIDEO IN 2 AUDIO IN 1 R-CH AUDIO IN 1 L-CH VIDEO IN 1 S-VIDEO IN 1 COMPONENT AUDIO IN 1 L-CH COMPONENT AUDIO IN 1 R-CH COMPONENT AUDIO IN 2 L-CH COMPONENT AUDIO IN 2 R-CH
COMPONENT IN 1
Y PB PR
COMPONENT IN 2
Y PB PR
THERMISTOR 1 C.B.A.
P2303 P2811
(2 Pins)
P2002
P2003
14
(8 Pins)
P2302
P2302 USED FOR
ADJUSTMENT OF
LCD DRIVE C.B.A.
P6001 USED FOR
ADJUSTMENT AT
FACTORY ONLY
THERMISTOR 2 C.B.A.
P2304 P2821
(2 Pins)
COVER SWITCH C.B.A.
P2306 P2912P2912
(2 Pins)
(3 Pins)
FAN 3
P2904
UHF/VHF SUB TUNER
PIN
PIN
(25 Pins)
(3 Pins)
TUNER C.B.A.
DTVTUNER UNIT
P7005
P7008
P3604
P7005 (10 Pins)
P7003 P6003
P7003
(13 Pins)
P7004
(14 Pins)
P5601
P7004
FRONT JACK C.B.A.
AUDIO IN 3 R-CH
AUDIO IN 3 L-CH
VIDEO IN 3
S-VIDEO IN 3
RGB IN 2
P3901 P5501P3901
(14 Pins)
P3902
P3502
P3902
(12 Pins)
COMPONENT AUDIO IN 3 L-CH COMPONENT AUDIO IN 3 R-CH
COMPONENT IN 3
Y PB PR
RGB IN 1
P4503 P4553
(4 Pins)
NETWORK C.B.A.
P4552 (2 Pins) SPEAKER
(R-CH)
WOOFER
P4551 (2 Pins) SPEAKER
(R-CH)
TWEETER
P4553
NETWORK C.B.A.
P4552 (2 Pins) SPEAKER
(L-CH)
WOOFER
P4551 (2 Pins) SPEAKER
(L-CH)
TWEETER
P3603 P4505P4505
(6 Pins)
AUDIO AMP C.B.A.
BALLAST C.B.A.
P1305
P6002 P1305 (4 Pins)
P805
P807
P808
P1302
P1303 P1301
P1001
P804
73
AC CORD
P1007
P3401 P1007 (14 Pins)
P1009
P1010
P1011
P4501
LAMP
UNIT
P1306 THERMAL
FUSE
UNIT
RGB AUDIO IN 2
RGB AUDIO IN 1
HDMI IN
HDMI AUDIO IN R-CH
HDMI AUDIO IN L-CH
(4 Pins)
P6006
P6006 USED FOR
ADJUSTMENT AT
FACTORY ONLY
(4 Pins)
P6007
P6007 USED FOR
ADJUSTMENT AT
FACTORY ONLY
(8 Pins)
P6301
P6301 USED FOR
ADJUSTMENT AT
FACTORY ONLY
P1302
(2 Pins)
P1009 (3 Pins)
P1301
(5 Pins)
762
F001
115
(239 F)
PROJECTION UNIT
TV/TUNER UNIT
FAN CASE UNIT
DIGITAL TUNER POWER C.B.A.
P1201
P807 (2 Pins)
P7002
P7007
ANT-A
ANT-B
(65 Pins)
(1 Pins)
FAN 5
P7006 P3503
P7006 (11 Pins)
758
66
PT-43LCX64 / PT-50LCX64 / PT-60LCX64
70
