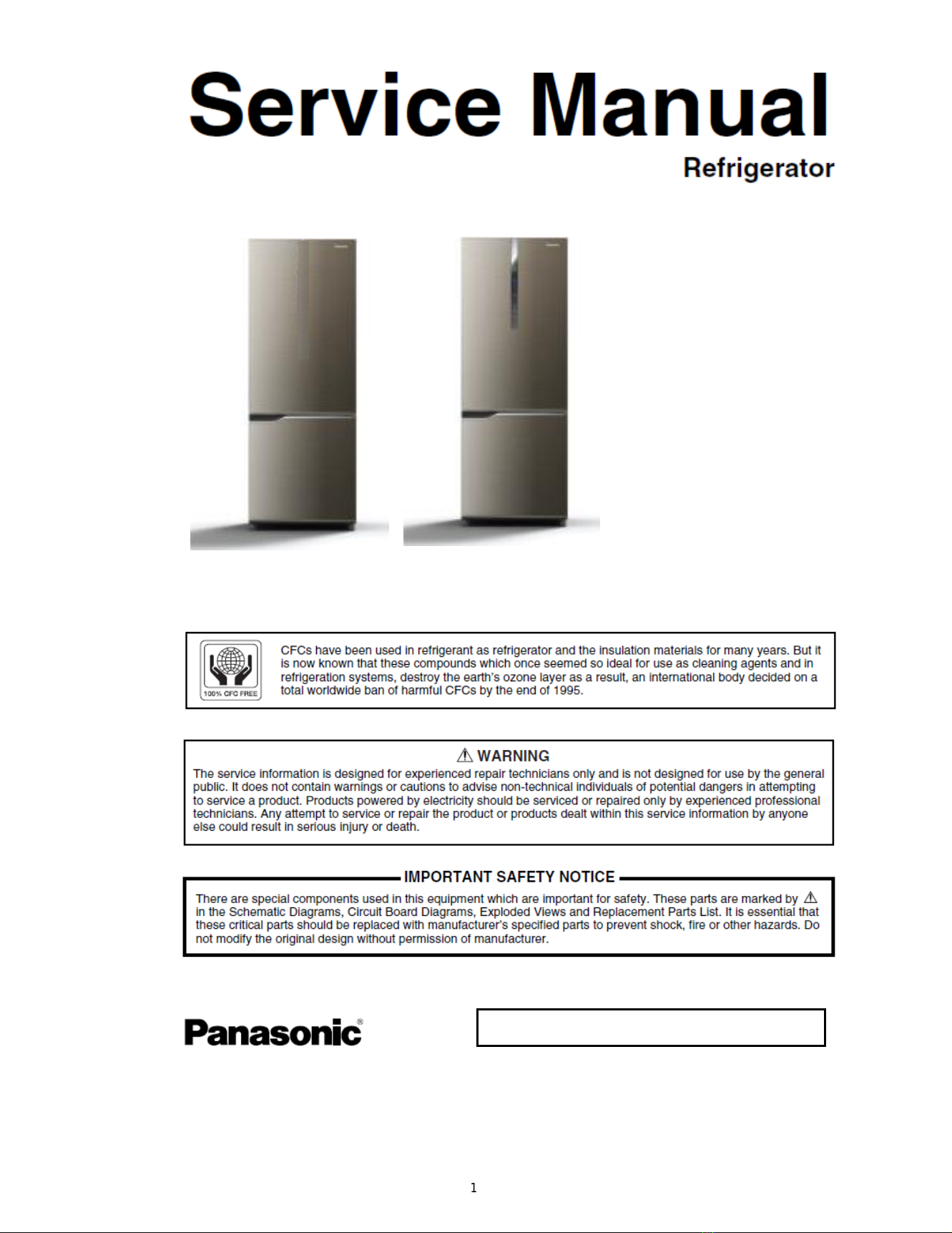

Panasonic A Series User manual

NR-BV288
NR-BV328
NR-BV368
Order No.PAPVN160520CE
Product Color
Destination
Singapore, Malaysia,
Philippines,
Indonesia
A SERIES X SERIES
© Panasonic Appliances Vietnam Co., Ltd 2015.
Unauthorized copying and distribution is a violation of law.
Stainless color
1

Page
1. Safety caution for repairing 3
1.1 Warning
1.2 Caution
2. Specification and components 4

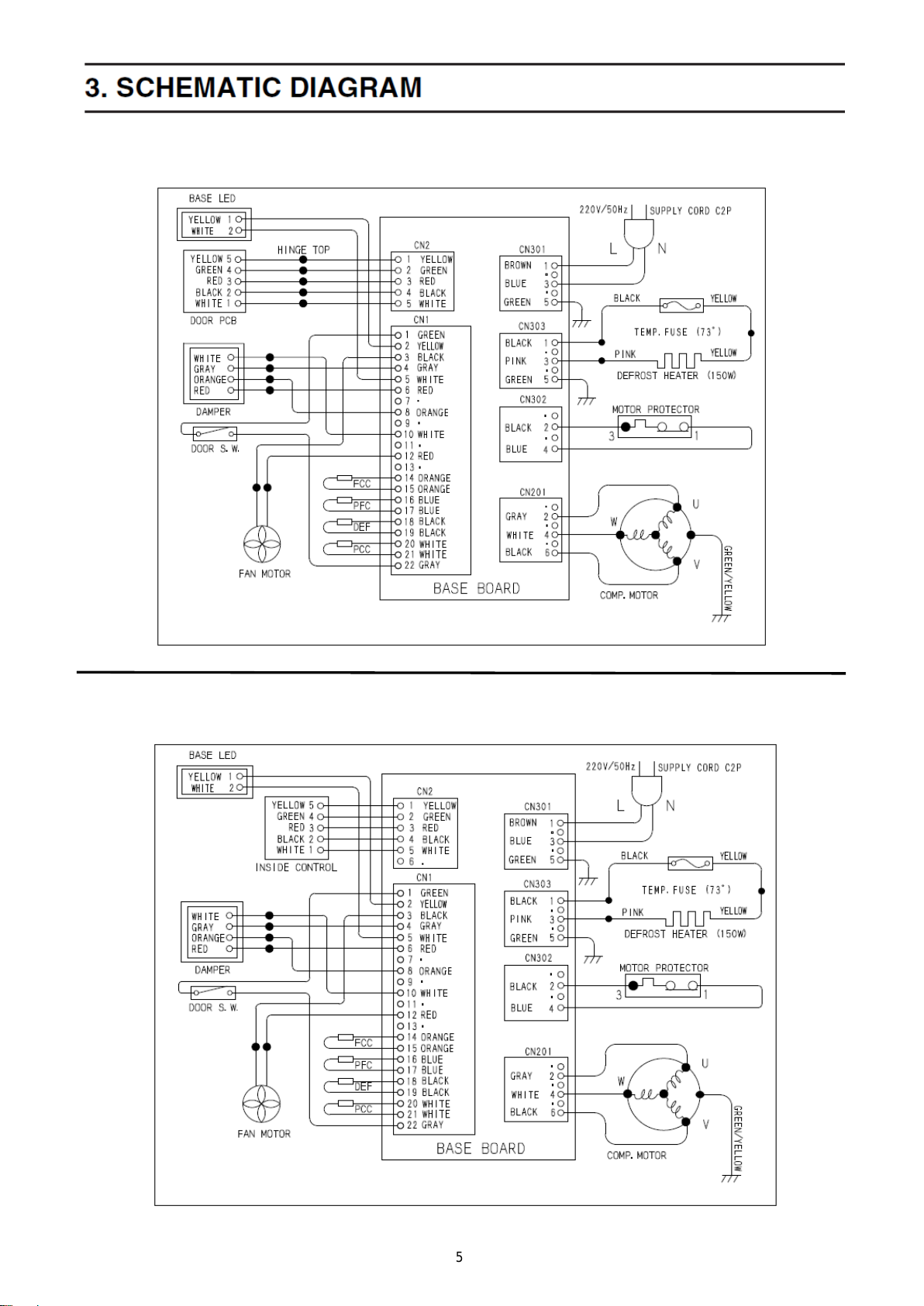

3. Schematic diagram 5
4. Performance data 6
5. Troubleshooting guide 7
6. Disassembly instruction 8-13
7. Parts exploded view and replacement parts list. 14-18
7.1 Parts exploded view: Body
7.2 Parts exploded view: Machine room & Door
7.3 Packing view
7.4 Replacement part list & packing list
CONTENT
2

1. SAFETY CAUTION FOR REPAIRING
When you repair the refrigerator, please kindly take care for the following cautions
1.1 arning
Before repairing unit, unplug supply cord
•
Before you repair the refrigerator, please unplug the supply cord
Use authentic parts when replacing
•
When you replace the parts, please use authentic parts to replace defecti e parts.
Caution during brazing
•
When you use touch for brazing, please ensure entilation.
Otherwise, you will be poisoned by carbon monoxide.
Pay attention to using refrigerant
•
If refrigerant touches fire, the gas becomes poisonous gas.
Pay attention to getting electricity shock
•
When you check the oltage of terminal, please do not touch the electricity part terminal.
•
When you replace the parts, please wait for 3 minutes at least for discharging capacitor.
Check safety after repairing
•
Check the screws, parts, lead wires to take in place.
• Check the repairing portion whether circumferential parts are damaged or not.
•
Check insulation resistance between supply plug and earth.
•
When install refrigerator, check condition of supply cord and plug.
•
Wipe off the dust on plug.
•
Cutting and seal the electric de ice carefully.
1.2 Caution
atch the hot parts
•
During operation and after operation, compressor and pipes are hot.
•
Also, under these condition, heater are hot.
•
Do not burn your fingers when you touch it.
Pay attention to refrigerant
•
Do not touch liquid refrigerant. Otherwise your hands may be burnt.
Pay attention to edge of parts
•
Otherwise, your fingers may be cut.
Pay attention to fins of evaporator and condenser
•
Otherwise, your fingers may be cut.
Before transportation, adjust the bolt
•
Otherwise, the floor may be damaged.
Do not touch the pipe after brazing
•
Otherwise, your hands may be burnt.
3

NR-BV288 NR-BV328 NR-BV368
S3P (for Singapore) A2P (for Philippine) S3P (for Malaysia)
Total Volume 255 290 322
FC 85 85 85
PC 170 205 237
Internal Dimension FC 465 x 380 x 506.5 465 x 380 x 506.5 465 x 380 x 506.5
[ W x D x H ] (mm) PC 500 x 500 x 740 500 x 500 x 880 500 x 500 x 1020
Temperature FC
Control PC
Type
Rating
54 57 60
Type
Charging Amt.
Type
Charging Amt.
Door Switch Type
Rating
Fan Motor Type
Rating
Type
Rating
Type
Rating
Type
Rating
Type
Rating
Type
Rating
Type
Rating
Type
Rating
LED Lamp PCB / 12V, 60 mA
Motor protector
Light Irradiantion Device (PC)
MM3-20DCW, Open temp. :105±5°C
Close temp. : 61±8°C, Trip current : 2.0A
250V / 10A / 73°C
Defrost Thermal Fuse Micro Temp.
Color Model
System Spec.
HFC-134a
120 ± 5g
MM6-4400
(4) Power on 4h (Rated time)
Cyclo-Pentane / Cabinet and door
Vacuum formed HI-PS or ABS/ Cabinet and door
(1) Ambient temp. over 33°C, 8.5h
(2) Ambient temp. 25°C ~ 33°C, 8.5h
(3) Ambient temp. under 16°C, 13h
220V / 150W/ 323Ω±5%
Fin tube eva
Single wall steel tube (Zinc coat)
Inverter
PS= VCM
Model
Destination
Code Attached Model
Power Source
Plug
Singapore, Philippine, Malaysia, Indonesia
SG, PH, MY
220 ~ 240V
PS
Material Spec.
Defrosting Control Defrost Cycle
Radiant Heater
Net capacity (L)
(TCVN 7829)
External Dimension (mm)
Installation Space
Compressor
(601 x 656 x 1505)
Side : 50 mm min. / Back : 100 mm min. / Top : 300 mm min.
Inner Liner
Insulation
Net Weight (Kg)
Evaporator
Condenser EEI57C13DFH-C0ECS
PAS-CONTROL PCB (INV)
PAS-CONTROL PCB (INV)
Compressor winding resistance (at 20°C) 8.10Ω
Compressor Motor
PC Sensor (PCC)
Defrost Sensor (DFC)
DC9 / 0.1A / 0.9W / 1920 rpm
Brushless D.C.Motor
NTC
71W at 27rps/ 185W at 52rps
FC Sensor (FCC) NTC
B=3850K / -20/0°C, R-20=18.9KΏ ± 1.8 %
B=3808K / -20/0°C, Rₒ=6.409KΏ ± 1 %
NTC
B=3819K ± 2%, R10=3.899KΏ ± 3%
Ambient Temp. Sensor
(ATC)
Lubricating Oil
Refrigerant
α -10
215 ± 5 cm³
S.P. - S.T. / D3D - 121
250V / 0.5A
NTC
11338JE09KBA, Φ110 PROP FAN (BOX TYPE)
B = 3435K ± 1%, R25 = 10.0KΏ ± 3%
PF SENSOR(PFC) B=3808K / -20/0°C, Rₒ=6.409KΏ ± 1 %
NTC
Specification
Main parts for cooling system
Electric devices and parts
4
(601 x 656 x 1645)(601 x 656 x 1785)
4

XS SERIES (X SERIES)
QS SERIES (A SERIES)
5

①
Cooling performance at ambient temperature 32°C ± 1°C
Control setting FC/ PC/PF MIN MED
(ECO-OFF) MED (ECO-ON) MAX
Mean fresh food compartment (°C) 6.0±2.5 3.5±2.5 4.0±2.5 1.0±2.5
Mean freezer compartment (°C) -15.0±2.5 -20.0±2.5 -20.0±2.5 -22.0±2.5
Vegetable case (°C) - 3.0±2.5 - -
PC door shelf top (°C) - 4.5±2.5 - -
Tray egg (°C) - - - -
PC door shelf bottom (°C) - 3.0±2.5 - -
PF case (°C) - -3.0±1.5 - -
Running ratio % 60±15 60±15 60±15 75±15
①Cooling performance at ambient temperature 32°C ± 1°C
Control setting FC/ PC/PF MIN MED
(ECO-OFF) MED (ECO-ON) MAX
Mean fresh food compartment (°C) 5.0±2.5 3.5±2.5 3.5±2.5 1.0±2.5
Mean freezer compartment (°C) -15.0±2.5 -20.0±2.5 -20.0±2.5 -22.0±2.5
Vegetable case (°C) - 3.5±2.5 - -
PC door shelf top (°C) - 3.0±2.5 - -
Tray egg (°C) - 5.5±2.5 - -
PC door shelf bottom (°C) - 3.0±2.5 - -
PF case (°C) - -3.0±2.5 - -
Running ratio % 60±15 65±15 60±15 75±15
①
Cooling performance at ambient temperature 32°C ± 1°C
Control setting FC/ PC/PF MIN MED
(ECO-OFF)
MED
(ECO-ON)
MAX
Mean fresh food compartment (°C) 5.0±2.5 3.5±2.5 4.0±2.5 1.0±2.5
Mean freezer compartment (°C) -15.0±2.5 -20.0±2.5 -20.0±2.5 -22.0±2.5
Vegetable case (°C) - 3.5±2.5 - -
PC door shelf top (°C) - 3.0±2.5 - -
Tray egg (°C) - 4.5±2.5 - -
PC door shelf bottom (°C) - 3.5±2.5 - -
PF case (°C) - -3.0±2.5 - -
Running ratio % 60±15 65±15 60±15 75±15
4.1 NR- BV288
4.2 NR- BV328
4.3 NR- BV368
6

Cause: Not cool or insufficent cooling
5. TROUBLESHOOTING GUIDE
Does the compressor
operating? Check the start control circuit
No
Yes
Replace the defect of electric
parts (Control circuit, Motor
protector)
No
YES
Check resistance of the
motor compressor by
ohmmeter
Compressor's rotor lock
Check oil color of the
compressor
(Clean the pipe)
Replace the compressor
Rip/burn coil
No
Does the fan motor
operating?
Check the fan motor circuit,
the door switch
Check frost on the
evaporator Clog caused by moisture
Occasionally frosting
Check the resistance of Sensor
defrost, Temp. Fuse, Defrost
heater
Replace the faulty electric
parts.
Frosting too much
Does any oil leak out?
No frosting or frosting at the inlet only
Cut cap tube out of the dryer
side then check gas smell
Có
Cannot repair
Plug out to stop the
compressor and check gas
spout out by cutting cap
tube around 5mm from
dryer
Defect compressorGas spout out at both side
Gas spout out at dryer side
only
Gas spout out at evaporator
side only
Clogged caused by solid
substance
(near outlet of dryer)
Clogged caused by solid
substance
(near inlet of evaporator)
Yes
No good
Yes
Good
Gas leakage
Bad smell
No smell
Yes
No
Check oil color of the
compressor
(Clean the pipe)
Replace the compressor.
khí.Kiểm tra dầu máy nén=>
làm sạch ống => thay thếMáy nén khí.
7

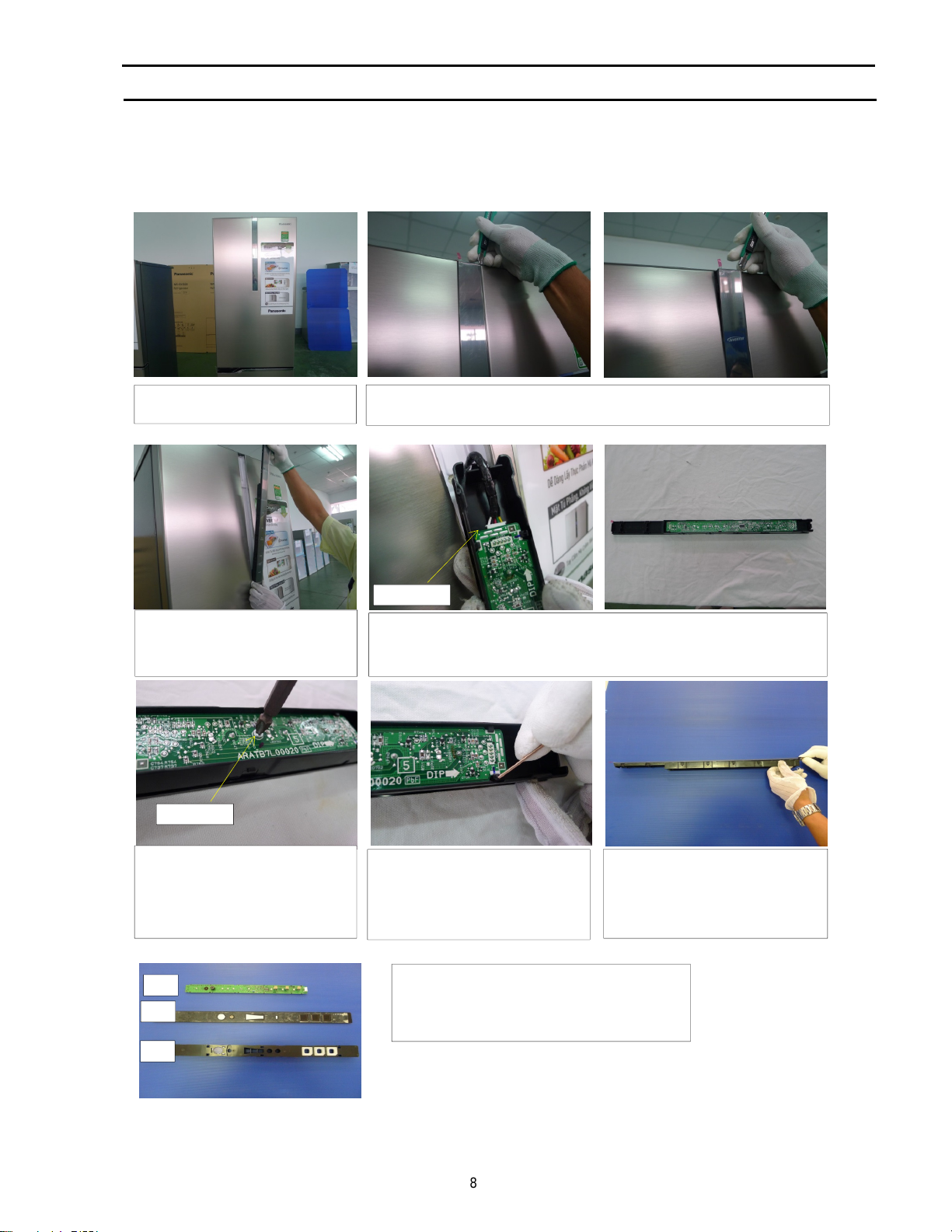

6.1. Disassemble DOOR CONTROL AS.- X series
①DOOR CONTROL AS. on ②Use small knife, take out from the upper right side of DOOR
CONTROL AS.
④Take out 1 connector then disassemble DOOR CONTROL AS.
③Take the hook along on
DOOR CONTROL AS. by
shaking well on both sides.
⑤Take out 1 screw on circuit
board
⑥Push on the open hook and
keep the circuit to take PAS-
OPERATION PCB(DOOR) out
Connector
screw
⑦Use small knife to separate
HOLDER BOARD and
ESCUTCHEON
1. PAS-OPERATION PCB(DOOR)
2. ESCUTCHEON CONTROL
3. HOLDER BOARD
1
2
3
6. DISASSEMBLY INSTRUCTION
8

6.2 Disassemble PC DOOR
6.3 Disassemble LED light
6.4 Disassemble COVER DUCT PC AS.
①
COVER HINGE TOP
hook
②Use flat head rod to pull
COVER HINGE TOP
out
③
Disassemble connector
④Remove 3 screws, take out
the HINGE TOP and then
disassemble the PC DOOR
screw
Notice: Apply grease to the areas
of circles of hinge center
①Use flat head rod to loosen
at 3 hook position to take
COVER LED out
②Undo connector and remove
PAS-
LED PCB at the position of
hook
3 hook
Connector
hook
①Position of COVER DUCT
PC AS.
screw cover
② Use flat head rod to open
screw cover
③Take out 3 screw then
remove COVER DUCT PC AS.
9

Notice in operation:
6.5 Disassemble BARRIER PF AS.
6.6 Disassemble COVER DUMPER PC AS.
front side back side Air
guide installation
SEAL DUCT
SEAL DUCT layer on the back side of COVER DUCT PC As. has 1 sticky side. Avoid
deforming SEAL DUCT in operation. Air guide installation will be stucked if SEAL DUCT is
①Take out all the upper and
bottom tray of BARRIER PF
AS.
②Take out 4 screw above and
at the bottom as in the picture.
③Pull out BARRIER PF AS by
two hands at once as show in the
fingure. .
screw position
BARRIER PF AS. front side and back side
①Position of COVER
DUMPER PC AS.
screw position
② Remove 2 screws
③Undo 2 connectors of
SENSOR PFC and PCC then
take COVER DUMPER PC AS.
10

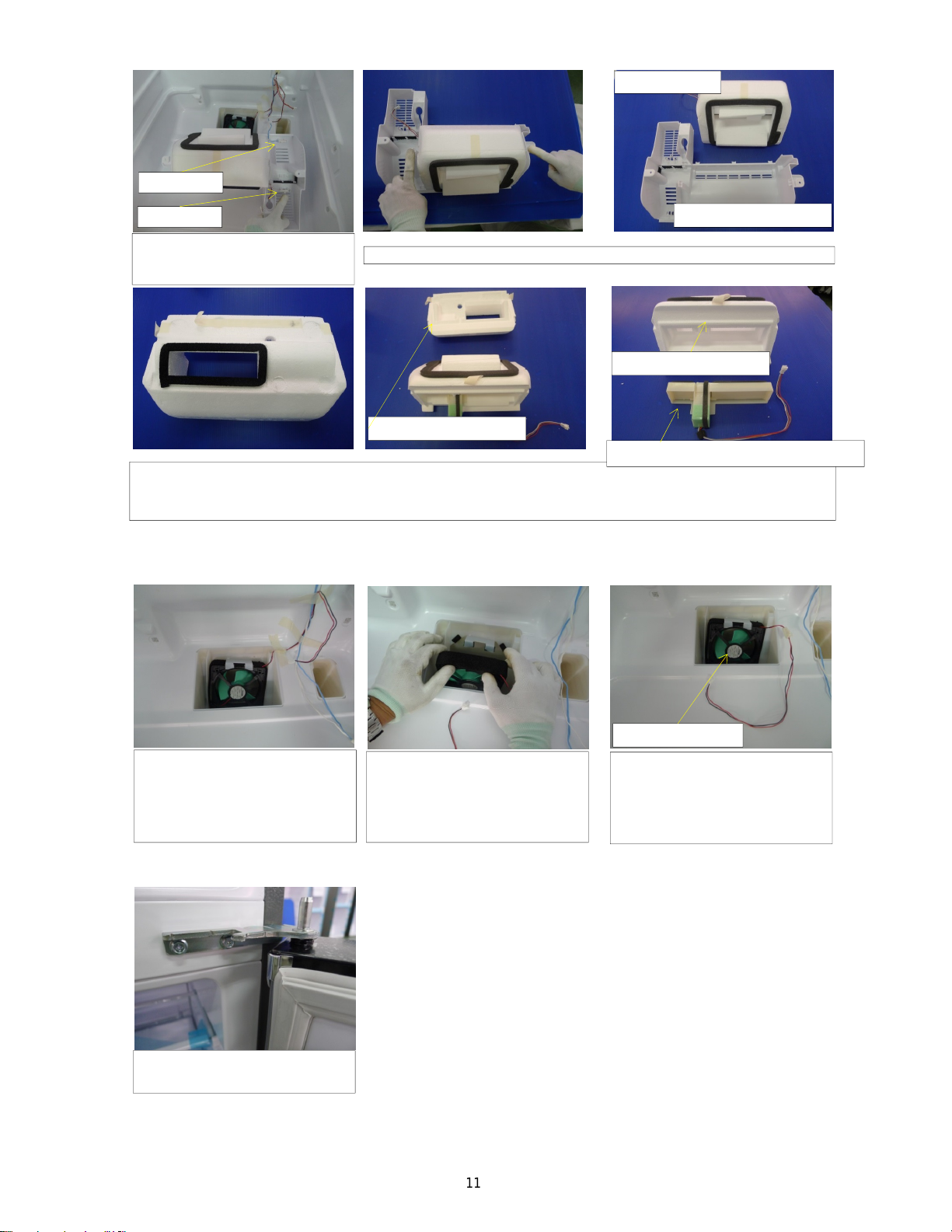

6.7 Disassemble FAN MOTOR AS.
6.8 Disassemble FC
④Take SENSOR PFC and
PCC out of the hook.
⑤
Open 2 hook at 2 sides, take INS DAMPER out
PCC
sensor
PFC
sensor
INS
DAMPER
COVER DAMPER
⑥Remove the tape, separate INS DAMPER PCT/ PCB & TWIN ELECTRIC DAMPER AS.
INS
DAMPER PCT
INS DAMPER PCB
TWIN
ELECTRIC DAMPER AS
①Remove the tape of
connector of FAN MOTOR
②Taking out FAN MOTOR by
using two hands push into the
hook as show in fingure.
Fan may be installed in wrong
side.
Be noted that stamping side has
to be upside.
stamped side
①Remove 2 screw of HINGE
CENTER then take FC out
11

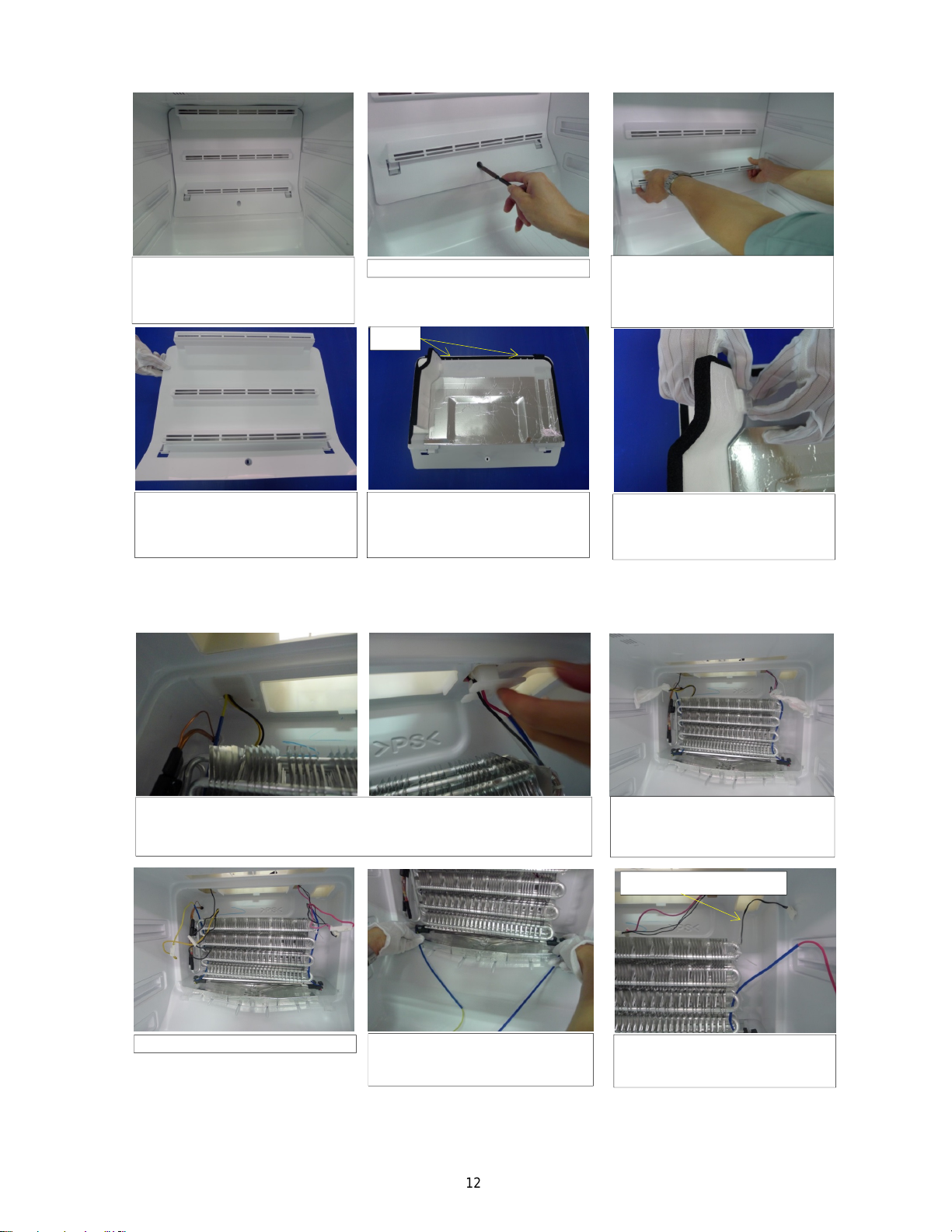

6.9 Disassemble COVER COIL AS.
6.10 Disassemble DEFROST HEATER, SENSOR DEFROST, TEMP. FUSE
①Position of COVER COIL
AS. in FC
②
Remove screw
④COVER COIL FRONT
③
Use two hands to push on the
under hook to take COVER
COIL AS out.
⑤Press on the above hook to
separate COVER COIL BACK
⑥Press on the hook as in the
picture to separate INS COVER
COIL
hook
①On the top of FC take out 2 plastic cover on the right and left. ②Pull the electric wire out, and
cut the tube bending.
③
Take 4 connectors out.
④ Split 2 wire of DEFROST
HEATER then take DEFROST
⑤Cut the tube bending of
SENSOR DEFROST then take
SENSOR
DEFROST
12

6.11 Tháo COVER BOARD, PAS-CONTROL PCB (INV)
, SUPPLY CORD và CASE BOARD
6.12 Take out MOTOR PROTECTOR
⑥Cut the tube bending of
TEMP. FUSE then take TEMP.
FUSE out.
TEMP. FUSE
①Unscrew 02 screws
star screw
②Take COVER BOARD out
③Remove 3 screws and undo
connector to take out SUPPLY
CORD AS. as in picture
screw
Connector
④Take 5 remained connector on
the circuit, press to the 2 hooks
to take the circuit out.
PAS
-
CONTROL PCB (INV)
⑤Remove 4 screws and split electric wire apart to take out CASE
BOARD
screw
①Take out PAN WATER
EVA
② Take COVER PROTECTOR
out
③Pull MOTOR PROTECTOR
out
MOTOR
PROCTECTOR
13

14
NR-BV368 SERIES
NR-BV328 SERIES
7. Part exploded view and replacement parts list
7.1 Part exploded view: body
NR-BV288 SERIES
31
35
36
37
27
32
33
23
29
30
28
24
26
25
15
16 17
18
22
23
34
11
13
14
20
19
21
1
6
5
4
3
2
8
7 9
10
12
14

7.2 Part exploded view: Machine room and Door
MACHINE ROOM ASSEMBLY
NR-BV368 SERIES
NR-BV328 SERIES
DOOR ASSEMBLY
NR-BV288 SERIES
66
39
40
42
44
45
46
48
49
50
51
52
55
53
62
63
64
65
64
65
67
69
70
69
70
66
57
62
54
68
AA
69
70
XS-MODEL QS-MODEL
41
55
56
QSVN-MODEL
71
74
75
43
58 59
72 73
60
38
47
61
15

QS1D
7.3 Packing view
QS1D
16

PH 1D WA
XS,QS QS XS, QS
1CNRAE-143350 COVER HINGE TOP BV 1 1 1
S 2 CNRAE-143250 HINGE TOP BV 111
3CNRAG-153290 DOOR SWITCH 1 1 1
4ARBPL2A00030 PAS-LED PCB BV 1 1 1
5CNRAH-326620 COVER LAMP LED BV 1 1 1
6CNRBH-162640 COVER DUCT PC AS. BV288 1 1 1
7CNRAH-326300 INS DAMPER PCT BV 111
8CNRAH-326310 INS DAMPER PCB BV 111
9CNRAH-326290 COVER DAMPER PC BV 1 1 1
10 CNRAG-245521 AG BIO FILTER 111
11 CNRBG-202130 TWIN ELECTRIC DAMPER AS BV 1 1 1
12 CNRBH-162590 COVER DAMPER PC AS. BV 1 1 1
13 CNRAF-196720 COIL BV 111
14 CNRAG-175220 SENSOR DEFROST BV 111
S 15 CNRBG-181440 TEMP. FUSE AS 1 1 1
16 CNRAG-170410 COVER RADIANT 111
S17 CNRAG-175520 HEATER DEFROST BV 111
18 CNRBG-201930 FAN MOTOR AS. BV 111
19 CNRAF-196700 COVER COIL BACK BV 1 1 1
20 CNRAF-196710 INS COVER COIL BV 1 1 1
21 CNRAF-196690 COVER COIL FRONT BV 1 1 1
22 CNRBH-162560 GLASS TRAY FC AS. BV 111
23 CNRBH-162660 GLASS TRAY FC HALF AS. BV 2 2 2
24 CNRAH-333070 HOLDER ICE TRAY BV8 - EX 111
25 CNRBH-162890 ICE CUBE TRAY BV8 - EX 1 1 1
26 CNRAH-333040 BOX ICE TRAY BV8 - EX 111
27 CNRBH-162570 CASE FCB AS. BV 1 1 1
S28 CNRAE-143260 HINGE CENTER BV 1 1 1
S29 CNRAE-143280 HINGE BOTTOM BV 1 1 1
30 CNRAC-251810 FRAME ADJUSTER BOLT 111
31 CNRAC-251820 ADJUSTER BOLT R 1 1 1
32 CNRAC-252950 ADJUSTER BOLT L 1 1 1
33 CNRBH-162490 GLASS TRAY PC AS. BV 111
34 CNRBH-162500 GLASS TRAY CRISPER AS. BV 1 1 1
35 CNRBH-162510 CASE CRISPER AS. BV 1 1 1
36 CNRBH-162620 BARRIER PF AS. BV 1 1 1
37 CNRBH-162540 CASE PF AS. BV 1 1 1
39 CNRAC-251720 CASE BOARD BV 1 1 1
ARBPC1A01970 PAS-CONTROL PCB (INV) BV-A 1 1 1 QS SERIES
ARBPC1A01960 PAS-CONTROL PCB (INV) BV-X 1 - 1 XS SERIES
CNRBG-201870 SUPPLY CORD AS. BV C2P - - 1
For WA models
41 CNRAG-175660 SUPPLY CORD AS. BV A2P 1 - -
For PH models
CNRAG-175680 SUPPLY CORD AS. BV (C2P) –INDO - 1 -
For Indo models
42 CNRAC-251730 COVER BOARD BV 1 1 1
CNRBG-202150 BOX PCB AS. (C2P) BV-A - - 1
For WA models
CNRBG-202180 BOX PCB AS. (C2P) BV-X - - 1
For WA models
ARBGBA200292 BOX PCB AS. BV-QS (INDO) - 1 -
For Indo models
ARBGBA200332 BOX PCB AS. BV-QSPH 1 - -
For PH models
ARBGBA200342 BOX PCB AS. BV-XSPH 1 - -
For PH models
44 CNRBF-164430 PAN WATER EVA BV 1 1 1
45 CNRAJ-162500 U-RING WASHER 4 4 4
46 CNR91-116470 COMPRESSOR EEI57C13DFH-C0ECS 111
S47 CNR06-598070 MOTOR PROTECTOR 1 1 1
48 CNRAG-170460 COVER PROTETOR 111
49 CNR39-341080 5 DRYER W 1 1 1
50 CNR39-163082 CLAMPER DRYER 111
51 CNR01-249530 RUBBER GROMMET 4 4 4
52 CNRBF-164330 CROSSRAIL REAR AS. BV 1 1 1
Part Name
43
NR-BV288
Safety
Ref.
no. Part No.
Model/Q’ty
Remarks
S40
Part List
7.4 Replacement Part List
17

PH 1D WA
XS,QS QS XS, QS
Part Name NR-BV288
Safety
Ref.
no. Part No.
Model/Q’ty
Remarks
53 CNRAD-385260 GASKET DOOR PC BV288 111
54 CNRBD-402320 DOOR AS. PC BV288 XS 1 - 1 XS SERIES
55 CNRAD-379980 EMBLEM PANASONIC 1 1 1
56 CNRAD-379380 EMBLEM ECONAVI 111QSSERIES
57 ARBP0DA00720 PAS-OPERATION PCB(DOOR) BV 1 - 1 XS SERIES
58 CNRAD-385160 HOLDER BOARD BV 1 - 1 XS SERIES
59 CNRAD-385140 ESCUTCHEON CONTROL BV 1 - 1 XS SERIES
60 CNRBD-402240 DOOR CONTROL AS. BV-X 1 - 1 XS SERIES
61 CNRBD-402300 DOOR AS. PC BV288 QS 1 1 1 QS SERIES
62 CNRAD-385900 TRAY EGG BV 111
63 CNRAD-385920 SHELF EGG BV ---
BV288 don’t have
64 CNRBD-402550 UTILITY BOX AS. BV 111
65 CNRAD-385860 SHELF BOTTLE BV 111
66 CNRAD-385870 SHELF FC BV 111
67 CNRAD-385090 GASKET DOOR FC BV 1 1 1
68 CNRBD-402040 DOOR AS. FC BV 1 1 1
69 CNRAD-385120 STOPPER DOOR BV (T3.2) 222
70 CNRAD-385110 LATCH DOOR BV 222
71 ARBP01A00100 PAS-OPERATION PCB (INSIDE) BV 1 1 1 QS SERIES
72 CNRAH-326720 COVER CONTROL PC BV 1 1 1 QS SERIES
73 CNRAH-326710 ESCUTCHEON PC CONTROL BV 1 1 1 QS SERIES
74 CNRBH-162520 COVER CONTROL AS. BV 1 1 1 QS SERIES
PH 1D WA
XS,QS QS XS, QS
1 CNRAK-174600 CARTON TOP BV 1 1 1
2 CNRBK-141260 PAD TOP R&L BV 1 1 1
3 CNRBK-141280 BOTTOM TRAY AS. BV 1 1 1
4 CNRAJ-164000 PLASTIC COVER BL7 1 1 1
5 CNRAK-174660 PAD COMP. BV 1 1 1
CNRAK-175360 INSTRUCTION BOOK BV PH 1 - -
CNRAK-175340 INSTRUCTION BOOK BV 1D - 1 -
CNRAK-175350 INSTRUCTION BOOK BV WA - - 1
CNRBK-142950 CARTON BOX BV288QS EX 1 1 1 QS SERIES
CNRBK-142920 CARTON BOX BV288XS EX 1 - 1 XS SERIES
Safety
Ref.
no.
Model/Q’ty
Remarks
6
7
Part No. Part Name NR-BV288
Packing List
18

PH 1D WA SG MY
XS QS XS, QS XS XS
1 CNRAE-143350 COVER HINGE TOP BV 1 1 1 1 1
S 2 CNRAE-143250 HINGE TOP BV 1 1 1 1 1
3 CNRAG-153290 DOOR SWITCH 1 1 1 1 1
4ARBPL2A00030 PAS-LED PCB BV 1 1 1 1 1
5 CNRAH-326620 COVER LAMP LED BV 1 1 1 1 1
CNRBH-162630 COVER DUCT PC AS. BV328 11111
7 CNRAH-326300 INS DAMPER PCT BV 1 1 1 1 1
8 CNRAH-326310 INS DAMPER PCB BV 1 1 1 1 1
9 CNRAH-326290 COVER DAMPER PC BV 1 1 1 1 1
10 CNRAG-245521 AG BIO FILTER 1 1 1 1 1
11 CNRBG-202130 TWIN ELECTRIC DAMPER AS BV 1 1 1 1 1
12 CNRBH-162590 COVER DAMPER PC AS. BV 1 1 1 1 1
13 CNRAF-196720 COIL BV 1 1 1 1 1
14 CNRAG-175220 SENSOR DEFROST BV 1 1 1 1 1
S 15 CNRBG-181440 TEMP. FUSE AS 11111
16 CNRAG-170410 COVER RADIANT 1 1 1 1 1
S 17 CNRAG-175520 HEATER DEFROST BV 1 1 1 1 1
18 CNRBG-201930 FAN MOTOR AS. BV 1 1 1 1 1
19 CNRAF-196700 COVER COIL BACK BV 1 1 1 1 1
20 CNRAF-196710 INS COVER COIL BV 1 1 1 1 1
21 CNRAF-196690 COVER COIL FRONT BV 1 1 1 1 1
22 CNRBH-162560 GLASS TRAY FC AS. BV 1 1 1 1 1
23 CNRBH-162660 GLASS TRAY FC HALF AS. BV 2 2 2 2 2
24 CNRAH-333070 HOLDER ICE TRAY BV8 - EX 1 1 1 1 1
25 CNRBH-162890 ICE CUBE TRAY BV8 - EX 1 1 1 1 1
26 CNRAH-333040 BOX ICE TRAY BV8 - EX 1 1 1 1 1
27 CNRBH-162570 CASE FCB AS. BV 11111
S 28 CNRAE-143260 HINGE CENTER BV 1 1 1 1 1
S 29 CNRAE-143280 HINGE BOTTOM BV 1 1 1 1 1
30 CNRAC-251810 FRAME ADJUSTER BOLT 1 1 1 1 1
31 CNRAC-251820 ADJUSTER BOLT R 1 1 1 1 1
32 CNRAC-252950 ADJUSTER BOLT L 1 1 1 1 1
33 CNRBH-162490 GLASS TRAY PC AS. BV 2 2 2 2 2
34 CNRBH-162500 GLASS TRAY CRISPER AS. BV 1 1 1 1 1
35 CNRBH-162510 CASE CRISPER AS. BV 11111
36 CNRBH-162620 BARRIER PF AS. BV 11111
37 CNRBH-162540 CASE PF AS. BV 11111
39 CNRAC-251720 CASE BOARD BV 1 1 1 1 1
ARBPC1A01970 PAS-CONTROL PCB (INV) BV-A - 1 1 - - QS SERIES
ARBPC1A01960 PAS-CONTROL PCB (INV) BV-X 1 - 1 1 1 XS SERIES
CNRBG-201870 SUPPLY CORD AS. BV C2P - - 1 - -
For WA models
CNRAG-175660 SUPPLY CORD AS. BV A2P 1 - - - -
For PH models
CNRAG-175670 SUPPLY CORD AS. BV S3P - - - 1 1
For MY, SG models
CNRAG-175680
SUPPLY CORD AS. BV (C2P) –INDO
-1---
For Indo models
42 CNRAC-251730 COVER BOARD BV 1 1 1 1 1
CNRBG-202150 BOX PCB AS. (C2P) BV-A - - 1 - - VN, WA
CNRBG-202180 BOX PCB AS. (C2P) BV-X - - 1 - - VN, WA
ARBGBA200292 BOX PCB AS. BV-QS (INDO) - 1 - - - INDO
ARBGBA200342 BOX PCB AS. BV-XSPH 1 - - - - PH
ART001T26970 BOX PCB AS. BV-XS SG + MY - - - 1 1 SG, MY
44 CNRBF-164430 PAN WATER EVA BV 11111
45 CNRAJ-162500 U-RING WASHER 4 4 4 4 4
46 CNR91-116470
COMPRESSOR EEI57C13DFH-C0ECS
11111
S 47 CNR06-598070 MOTOR PROTECTOR 11111
48 CNRAG-170460 COVER PROTETOR 1 1 1 1 1
49 CNR39-341080 5 DRYER W 1 1 1 1 1
50 CNR39-163082 CLAMPER DRYER 1 1 1 1 1
51 CNR01-249530 RUBBER GROMMET 4 4 4 4 4
NR-BV328
S 40
41
S 43
Model/Q’ty
Remarks
6
Safety
Ref.
no. Part No. Part Name
Part List
19

PH 1D WA SG MY
XS QS XS, QS XS XS
NR-BV328
Model/Q’ty
Remarks
Safety
Ref.
no. Part No. Part Name
52 CNRBF-164330 CROSSRAIL REAR AS. BV 1 1 1 1 1
CNRAD-385040 GASKET DOOR PC BV328 11111
CNRBD-402280 DOOR AS. PC BV328 XS 1 - 1 1 1 XS SERIES
55 CNRAD-379980 EMBLEM PANASONIC 1 1 1 1 1
56 CNRAD-379380 EMBLEM ECONAVI - 1 1 - - QS SERIES
57 ARBP0DA00720 PAS-OPERATION PCB(DOOR) BV 1 - 1 1 1 XS SERIES
58 CNRAD-385160 HOLDER BOARD BV 1 - 1 1 1 XS SERIES
59 CNRAD-385140 ESCUTCHEON CONTROL BV 1 - 1 1 1 XS SERIES
60 CNRBD-402240 DOOR CONTROL AS. BV-X 1-111XSSERIES
CNRBD-402260 DOOR AS. PC BV328 QS - 1 1 - - QS SERIES
62 CNRAD-385900 TRAY EGG BV 11111
63 CNRAD-385920 SHELF EGG BV 11111
64 CNRBD-402550 UTILITY BOX AS. BV 11111
65 CNRAD-385860 SHELF BOTTLE BV 11111
66 CNRAD-385870 SHELF FC BV 11111
67 CNRAD-385090 GASKET DOOR FC BV 1 1 1 1 1
68 CNRBD-402040 DOOR AS. FC BV 1 1 1 1 1
69 CNRAD-385120 STOPPER DOOR BV (T3.2) 22222
70 CNRAD-385110 LATCH DOOR BV 22222
71 ARBP01A00100
PAS-OPERATION PCB (INSIDE) BV
- 1 1 - - QS SERIES
72 CNRAH-326720 COVER CONTROL PC BV - 1 1 - - QS SERIES
73 CNRAH-326710 ESCUTCHEON PC CONTROL BV - 1 1 - - QS SERIES
74 CNRBH-162520 COVER CONTROL AS. BV - 1 1 - - QS SERIES
PH 1D WA SG MY
XS QS XS, QS XS XS
1 CNRAK-174600 CARTON TOP BV 1 1 1 1 1
2 CNRBK-141260 PAD TOP R&L BV 1 1 1 1 1
3 CNRBK-141280 BOTTOM TRAY AS. BV 1 1 1 1 1
4 CNRAJ-164000 PLASTIC COVER BL7 1 1 1 1 1
5 CNRAK-174660 PAD COMP. BV 1 1 1 1 1
CNRAK-175360 INSTRUCTION BOOK BV PH 1 - - - -
CNRAK-175340 INSTRUCTION BOOK BV 1D - 1 - - -
CNRAK-175350 INSTRUCTION BOOK BV WA - - 1 - -
CNRAK-175330 INSTRUCTION BOOK BV SG - - - 1 -
CNRAK-175320 INSTRUCTION BOOK BV MY - - - - 1
CNRBK-142940 CARTON BOX BV328QS EX - 1 1 - - QS SERIES
CNRBK-142910 CARTON BOX BV328XS EX 1 - 1 1 1 XS SERIES
Remarks
7
NR-BV328
6
Part Name
Model/Q’ty
53
54
61
Safety
Ref.
no. Part No.
Packing List
20
