Panasonic NR-CY550 User manual

Operating Instructions
Refrigerator (For Household Use)
Model No. NR-CY550
Thank you for purchasing this Panasonic product.
● Before operating this unit, please read these instructions completely.
Before using this product, please pay particular attention to the
“Safety precautions” section (Pages 2 to 7) for safe use.
● Please ensure the date and name of store of purchase are stamped
in warranty card and keep it stored together with these operating
instructions in a safe place for future reference.
INDIA
ARAH1E202100
T0120-0
Printed in Thailand
01-2020
Contents
Introduction
Safety Precautions........................................2
Installation
Installation.....................................................8
Operation
Parts Identification ......................................10
To use all features.......................................11
11....................................lenaPlortnoC-
31.........................noitarepOIVANOCE-
31...................................+hserFemirP-
41.................................gnizeerFkciuQ-
51.....................................derotSdooF-
- Using Tips......................................... 16
71...............tnemtrapmoCrotaregirfeR-
71......................................hserFemirP-
81......................tnemtrapmoCrezeerF-
Appendix
Cleaning, removing and re-installing...........19
Troubleshooting ..........................................22
Specifications..............................................23
ARAH1E200680_EN.indd 1 8/29/19 11:32 AM

Introduction
Safety Precautions
WARNING
This expression presumes
possibility of a death or
serious injury.
CAUTION
This expression presumes
possibility of personal injury
or property damage.
This sign means prohibited action
iso-butane
This sign means required actions
This sign means do not
disassemble
Risk of fire / flammable materials
For power plug and cord...
● Periodically wipe the power plug with a dry cloth. (Dust
accumulated on the plug of a refrigerator that operates
continuously leads to reduced insulation due to moisture
and may cause fire.)
● Plug into a wall outlet of the rated voltage on its own with
the rated current and insert plug fully.
● Connect to an exclusive wall outlet for the refrigerator
only. Avoid connecting other appliances to the same wall
outlet. Unroll entire length of the cord before plugging in.
● Unplug the unit when cleaning the refrigerator.
● If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
● Please ensure minimum clearance of 10 cm for air
ventilation and prevent damage to the power cord.
WARNING
2
ARAH1E200680_EN.indd 2ARAH1E200680_EN.indd 2 8/14/19 10:03 AM8/14/19 10:03 AM

Introduction
For power plug and cord...
● Do not let the cord get damaged.
● Do not insert or disconnect the power plug into/from the
wall socket with wet hands.
● When positioning the appliance, ensure the supply cord
is not trapped or damaged.
● Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
When recycling the product...
● Before taking the refrigerator to be recycled, please
remove all the door gasket to prevent locking a child in it.
● The operating instructions should be handed over to
any person who would use or handle the refrigerator
whenever the refrigerator would be transferred to another
location and delivered to a recycling plant.
● Cyclo-Pentane is used for insulation of this refrigerator
and flammable gas is used for refrigerant. When
disposing of this unit, please discard it by the proper
method and do not dispose of the unit by burning.
● The warning labels mentioned above should be kept
throughout the life of the refrigerator.
In order to prevent fires,
electrical shocks, explosion,
injuries, etc.
In case of emergency...
iso-butane
● Maintenance work must only be carried out at
workshop by well-trained maintenance worker.
● Do not store explosive substances such as aerosol cans
with a flammable propellant and chemicals or scientific
specimens in the appliance.
3
ARAH1E200680_EN.indd 3ARAH1E200680_EN.indd 3 8/14/19 10:03 AM8/14/19 10:03 AM

Introduction
● Do not use electrical appliances such as a deodorizer in
the refrigerator. Leaked refrigerant may catch fire from
a spark of the electrical contacts and may cause an
explosion.
● Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
● Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
● Do not disassemble, repair or modify the refrigerator by
yourself. If you want to repair the refrigerator, please
consult your dealer or authorized service center.
On top of the refrigerator...
● Do not put anything on top of refrigerator. Otherwise,
it may fall due to vibration of the machine. You may be
injured.
When installing...
● Do not install the product in locations exposed to water.
● Provide a grounding connection or install a ground-fault
interrupter when the product is installed in a humid or
wet location.
(Contact your distributor.)
● Do not block the ventilation port of the refrigerator or
spaces around it.
Leaked refrigerant may cause a fire and explosion.
● Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
● For safety it should be checked that the ground
connection system in the house has been installed
correctly.
WARNING
Safety Precautions
4
ARAH1E200680_EN.indd 4ARAH1E200680_EN.indd 4 8/14/19 10:03 AM8/14/19 10:03 AM

Introduction
When using...
● Do not let any children hang or ride on the refrigerator
door, the unit may turn over and cause an accident.
● Do not apply water on the body or interior. Electrical
insulation could deteriorate and may cause shocks or fire.
● Do not damage the refrigerant circuit (piping on the
back). The flammable refrigerant may catch fire and lead
to an explosion.
● Do not touch the compressor or pipes because of high
temperature. There is a risk of burn injury.
● Do not spray combustible chemicals near the refrigerator.
● If you detect a burning smell, disconnect the power plug.
● If you detect a gas leak from the cooling range, ventilate
the kitchen.
● If you have damaged the refrigerant circuit (piping on
the back), then ventilate the kitchen and contact your
distributor.
● Refrigerator LED lamp.
The refrigerator LED lamp is designed specially for this
product, it does not function on individual replacing.
If replacement is required, please contact your dealer or
authorised service agent.
● This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
● Children should be supervised to ensure that they do not
play with the appliance.
5
ARAH1E200680_EN.indd 5ARAH1E200680_EN.indd 5 8/14/19 10:03 AM8/14/19 10:03 AM

Introduction
CAUTION
When storing food...
● Do not freeze glass bottles, that there is a risk of injury.
(If the liquid in a glass bottle is frozen and broken, you
may be injured.)
● Do not touch frozen foods or
containers (especially metallic)
with wet hands.
● Do not eat any smelling or
colour-changed food. Rotten food
may cause illness.
● Do not subject glass trays to high impact.
(Otherwise those glass trays may break and you may
be injured)
● Food containers must reach the bottom of the door
shelves.
● The foods must not protrude from the shelf.
When opening/closing the doors...
● Do not open the refrigerator doors when someone is in
the vicinity of the refrigerator.
● Mind the gap between the doors. They may nip your
hand while closing the door.
● Do not push drawers by holding them at the top.
● Be careful not to place your feet under the bottom drawer.
When cleaning...
● Do not place your hands or feet beneath the bottom of
the refrigerator.
● Do not slide hands on the metal rail.
● Be cautions of hot copper pipe inside pan water evap
when removing it.
● Do not clean the refrigerator with chemical substance or
liquid. It will cause damage and have corrosion on the
surface.
Safety Precautions
6
ARAH1E200680_EN.indd 6ARAH1E200680_EN.indd 6 8/14/19 10:03 AM8/14/19 10:03 AM

Introduction
This appliance is intended to be used in household and
similar applications such as
● staff kitchen areas in shops, offices and other working
environments;
● farm houses and by clients in hotels, motels and other
residential type environments;
● bed and breakfast type environments;
● catering and similar non-retail applications.
When moving or transporting the refrigerator...
● Do not transport the refrigerator in a horizontal position.
Laying the refrigerator horizontally may damage
the piping. If any damage is noticed, do not
touch the refrigerator. Avoid using fire and ventilate
the room and contact the service agent immediately.
● Apply protective covering, etc. to floors with
a fragile surface.
● Hold the carrying handles when
transporting the refrigerator.
When using...
● Do not place warm/hot foodstuffs in the refrigerator.
Store warm food and drinks after they have cooled.
● Do not open refrigerator frequently or leave it open for
long time in order to prevent water dripping inside and
waste energy.
When the refrigerator will not be used for a long period of
time...
● Unplug the refrigerator and take out all the food in the
refrigerator.
● Wipe off all the water and open the refrigerator to keep
it dry.
Caution for using
7
ARAH1E200680_EN.indd 7ARAH1E200680_EN.indd 7 8/14/19 10:03 AM8/14/19 10:03 AM

Installation
Installation
Is the refrigerator installed in the
following locations?
●Locations subject to heat
and direct sunlight
(The cooling power will be
reduced and electricity
wasted.)
●Poorly ventilated locations
with high humidity
(Rust will be caused.)
●Locations where the surface
is unstable and slanted
On carpet, mats, or vinyl floors, place a
plate underneath the refrigerator.
●Locations not allowing the power plug to be
cleaned easily
(Dust accumulated may cause a fire.)

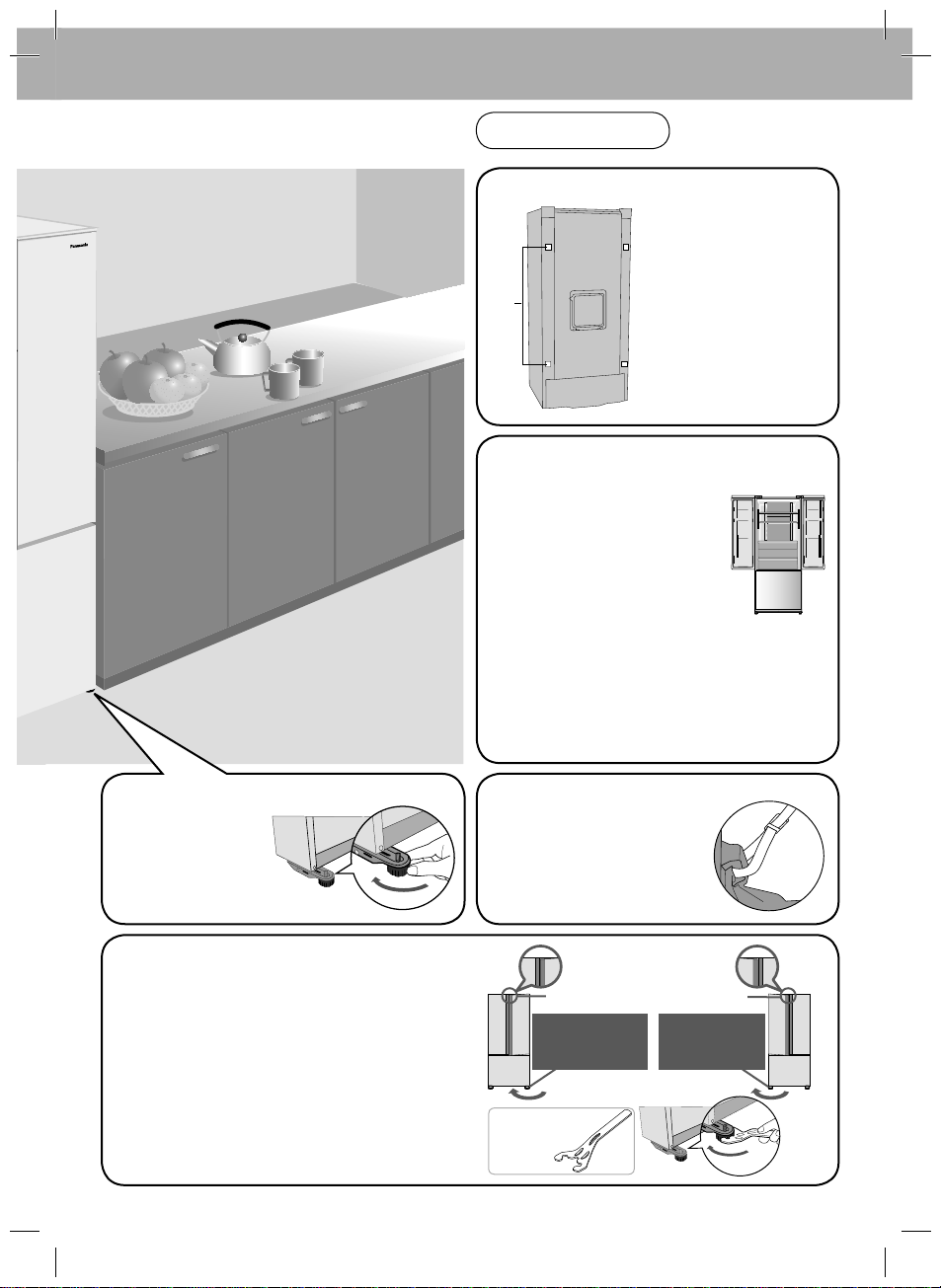

Has a heat radiating space been provided
around the refrigerator?
5 cm or more
both left and right
10 cm or more
at the back of
the refrigerator
30 cm or more
above the
refrigerator

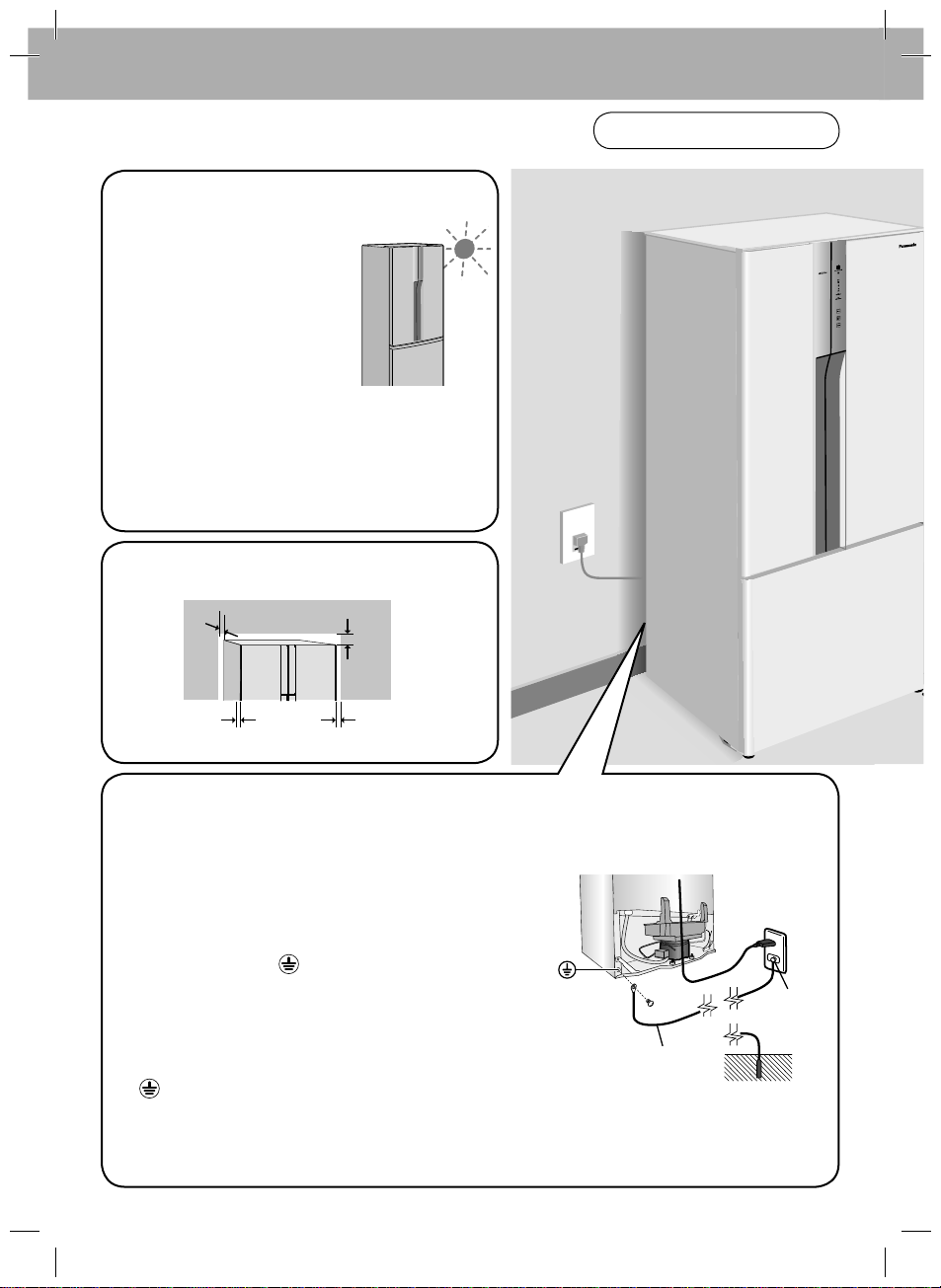

For safety, the grounding connection should be done
(For a refrigerator with plug (2-pin plug) without any grounding wire)
The grounding connection will allow prevention of danger resulted from electricity leakage.
The grounding connection can be performed in 2 ways as follows:
●In the case that the grounding receptacle has been
prepared for the socket (plug socket), connect the
grounding wire to the screw used for grounding
connection at the bottom rear of the refrigerator
(regarding the screw used for grounding connection,
please notice the symbol) as shown in the
illustration 1.
●In the case that the socket (plug socket) has not
been provided with any grounding receptacle,
connect the grounding wire to the screw at the
bottom of the refrigerator, (as regard to the screw
used for grounding connection, please notice the
symbol). And then connect the other end to the
grounding rod as shown in the illustration 2.
Prohibited spots for grounding connection
●Water supply pipes and gas pipes (dangers from electric shock or explosion).
●The grounding wires of telephone cords and lightning rods (dangers from lightning).
1
2
Grounding
receptacle
Grounding wire
Illustration for the
grounding connection
Before using for product.
8
ARAH1E200680_EN.indd 8ARAH1E200680_EN.indd 8 8/30/19 2:39 PM8/30/19 2:39 PM

Installation
Do not peel the seal on the back.
Otherwise, the cooling
performance may
deteriorate. If you have
peeled it, then cut a
cloth packing tape into
a square and paste it
onto the refrigerator.
Requests and notices
Refrigerator doors should not be opened
during the interior cooling process.
The doors should not be
opened until the interior
has been cooled down
sufficiently. (Warm air
flowing into the interior
will block the cooling
function.)
Please wait until the interior has cooled
down.
●It may take approximately four hours to
cool down the interior.
●It may take 24 hours or more to
cool down the interior and achieve
equilibrium in the summer, etc.
Have any measures taken
against tipping due to
earthquakes?
In order to prevent the
refrigerator from tipping,
permanently fix it by using
belts, etc.
Fix the refrigerator.
Turn the adjuster
bolts (right and left)
until they reach the
floor to stabilize the
refrigerator.
If the door is slanted downwards.
Turn the adjuster bolt on the lower side, as
shown in the diagram, in order to adjust the
level.
●The freezer/refrigerator doors may tilt
within four to five days after installation
due to the load of the food or adaptation
to the floor surface, turn the corresponding
adjuster bolt with the dedicated tool to
adjust and level the door again to restore.
Seal
When the door is lowered.
Lower the right
adjuster bolt for
the right door.
Lower the left
adjuster bolt for
the left door.
● Dedicated tool
(Accessories)
ICETWISTER
QuickIce Making
9
ARAH1E200680_EN.indd 9ARAH1E200680_EN.indd 9 8/30/19 2:39 PM8/30/19 2:39 PM

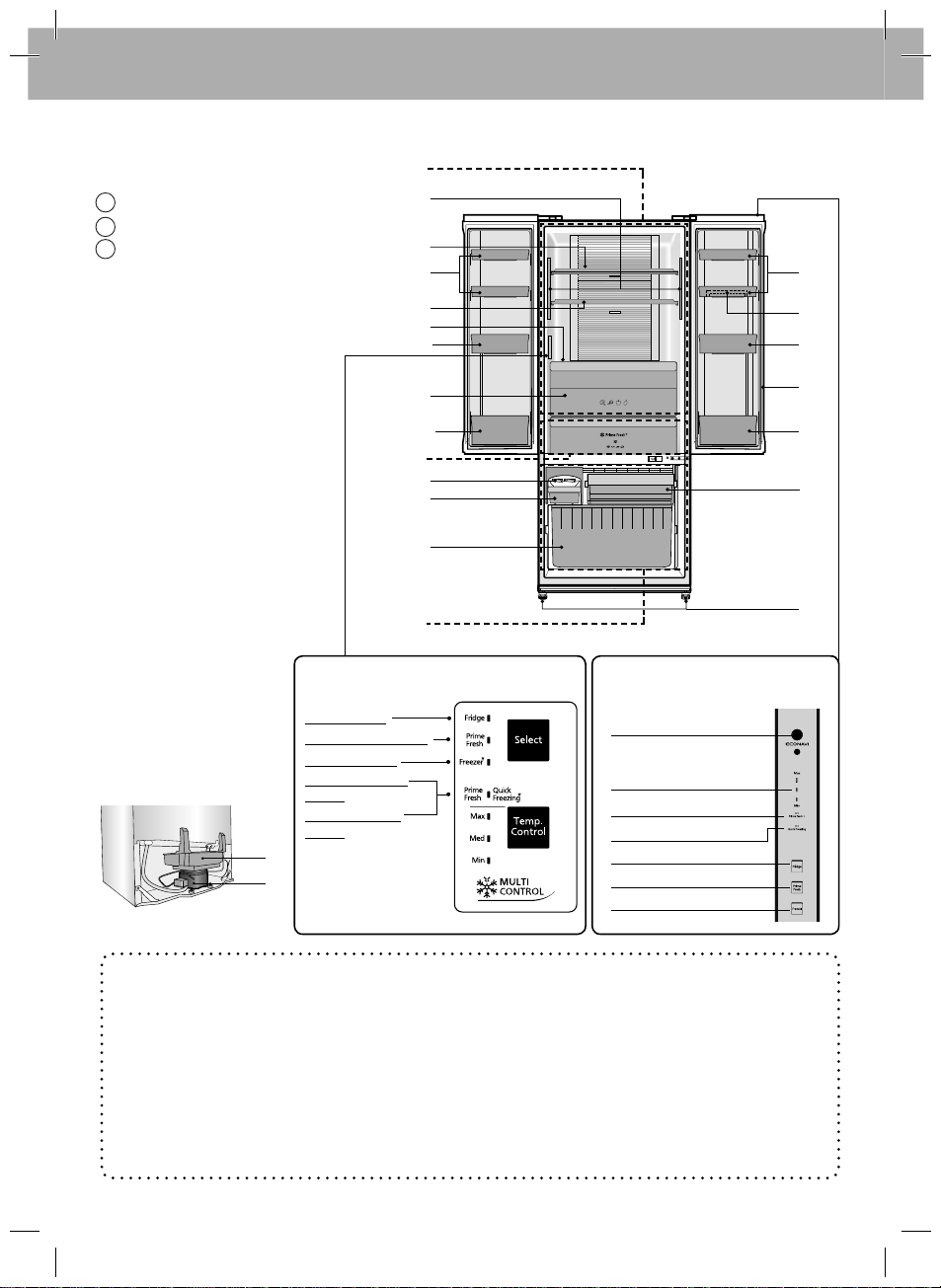

Operation
ICE TWISTER
1
2
11
10
11
12
13
14
15
6
7
8
99
3
4
13
5
Quick Ice Making
A
C
B
SPECIAL FEATURE
●NON-FLON
This unit uses totally NON-FLON MATERIALS both for refrigerant (iso-butane (R600a))
and for insulation (Cyclo-Pentane). These materials do not damage the earths ozone
layer and has almost no effect on global warming.
●INVERTER
In accordance with temperature change inside the compartment, the motor will run at
different speeds. When the temperature inside the refrigerator is stable, the motor will run
at a lower speed to save energy and lower noise.
When powerful cooling is required, the motor will run at a higher speed.
REFRIGERATOR COMPARTMENT
FREEZER COMPARTMENT
PRIME FRESH CASE
(with Blue AG lamp LED
NR-CY550(GKXZ))
1 LED lamp
2 Small tempered glass tray
3 Large tempered glass tray
4 Tempered glass tray crisper
5 Vegetable case
6 Ice twister
7 Ice box
8 Bottom freezer case
9 Egg shelf
10 Egg tray
11 Free rack PC
12 Door gasket
13 Bottle shelf
14 Freezing case
15 Adjuster bolt
16 Evap pan
17 Compressor
Control panel NR-CY550 (GKXZ)Control panel NR-CY550 (PKXZ)
Product view from behind
A
B
C
17
16
ECONAVI (P. 13)
LED display
Freezer (P. 11)
Prime Fresh (P. 11)
Fridge (P. 11)
Prime Fresh + (P. 13)
Quick Freezing (P. 14)
+
Fridge (P.11)
Freezer (P. 11)
Prime Fresh +
(P. 13)
Prime Fresh (P. 11)
Quick Freezing
(P. 14)
Parts Identification
10
ARAH1E200680_EN.indd 10ARAH1E200680_EN.indd 10 9/4/19 5:34 PM9/4/19 5:34 PM

Operation
To use all features
Control Panel
Temperature setting and a guide of temperature
Model : NR-CY550 (GKXZ)
The temperature can be adjusted for Min-Max levels.
Touch [Fridge] button to adjust temperature in refrigerator compartment and touch [Freezer]
button to adjust temperature in freezer compartment.
The setting of [Prime Fresh] can be set to either “Prime Fresh +”, “Min”, “Med” or “Max”
levels.
Model : NR-CY550 (PKXZ)
1P ress the [Select] button to select Refrigerator Compartment [Fridge], Prime Fresh Case
[Prime Fresh], or Freezer Compartment [Freezer].
2Press the [Temp. Control] button to select from Max, Med, or Min levels.
Button
Temperature
setting
Fridge Prime Fresh Freezer
Max
Lower than “Med”
by approx.
2 °C ~ 3 °C
Lower than “Med”
by approx.
2 °C ~ 3 °C
Lower than “Med”
by approx.
2 °C ~ 3 °C
Med Approximately
1 °C ~ 6 °C
Approximately
-5 °C ~ -1 °C
Approximately
-23 °C ~ -17 °C
Min
Higher than “Med”
by approx.
2 °C ~ 3 °C
Higher than “Med”
by approx.
2 °C ~ 3 °C
Higher than “Med”
by approx.
2 °C ~ 3 °C
Generally, use the refrigerator with the temperature set to “Med”.
(If the temperature control of the freezer compartment or refrigerator compartment is set to
other than “Med”, ECONAVI does not operate.)
How to operate the “9 levels” mode
This refrigerator is specially designed with 9 adjustable temperature levels.
To adjust the temperature for the Refrigerator Compartment
Model : NR-CY550 (GKXZ)
1Set the LED display to the “Min” position by touching the [Fridge] button.
2Touch and hold the [Fridge] button for 10 seconds until the LED display return to show at
the “Min” position.
3Use the [Fridge] button to set the required temperature mode, where one step is the
minimum cooling mode and 9 step is the maximum cooling mode.
To adjust the temperature for the Freezer Compartment
Follow steps 1~ 3above, but select freezer compartment [Freezer] instead of refrigerator
compartment [Fridge].
11
ARAH1E200680_EN.indd 11ARAH1E200680_EN.indd 11 8/14/19 10:03 AM8/14/19 10:03 AM

Operation
Model : NR-CY550 (PKXZ)
1Set the LED display to “Min” position by pressing the [Select] button to select [Fridge]
(refrigerator compartment) then press the [Temp. Control] button to select Min.
2Press and hold the [Temp. Control] button for approximately 10 seconds until the LED
display returns to the “Min” position.
3The temperature can be adjusted in 9 different levels as specified in the cooling level
table below. By pressing the [Temp. Control] button, the cooling level increases by an
increment of 1 level.
To adjust the temperature for the Freezer Compartment
Follow steps 1 ~ 3 above respectively while pressing the [Select] button and selecting
[Freezer] (freezer compartment) instead of [Fridge] (refrigerator compartment).
To reset the setting “9 levels” mode
Repeat steps 1and 2to return the unit to normal operation mode.
●LED Display table (Model : NR-CY550 (GKXZ)
Cooling
Level
Step
Minimum
Maximum
LED Display
123456789
Lighting Blinking Not lighting
●LED Display table (Model : NR-CY550 (PKXZ)
Cooling
Level
Step
Minimum
Maximum
LED Display
123456789
Lighting Blinking Not lighting
●The temperature control can vary depending on the environment and amount of food
stored in the refrigerator.
To use all features
12
ARAH1E200680_EN.indd 12ARAH1E200680_EN.indd 12 8/14/19 10:03 AM8/14/19 10:03 AM

Operation

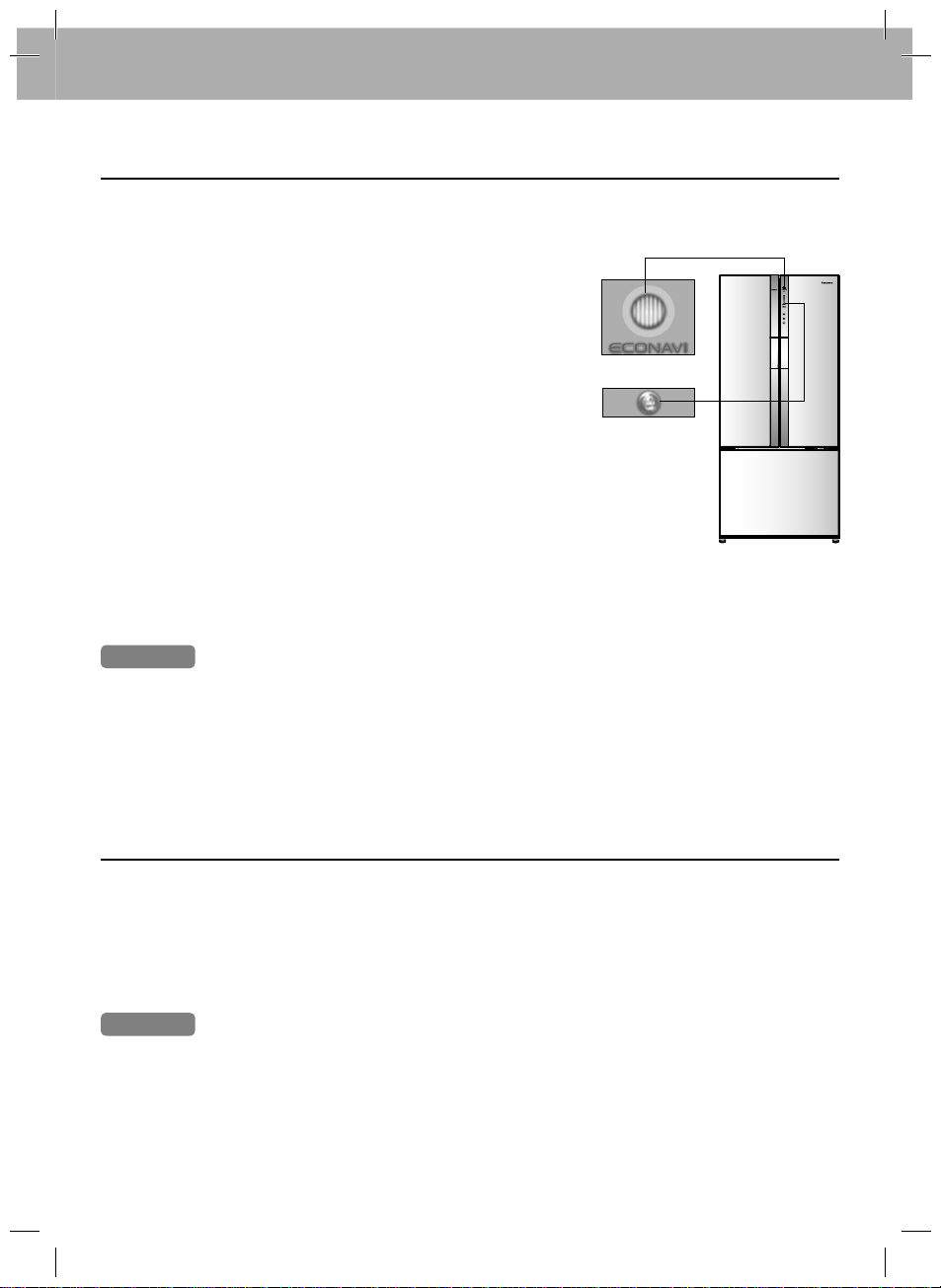

ECONAVI Operation
Model : NR-CY550 (GKXZ)
The refrigerator detects the opening and closing of the refrigerator door and the brightness
around the refrigerator to automatically control operation to ensure maximum energy saving.*1
ECONAVI operation
●The refrigerator learns the lifestyle patterns of
your family from door opening and time periods of
infrequent use to maximise energy efficiency.
●The refrigerator learns your lifestyle patterns from the
previous 3 weeks of use and uses that data from the
4th week onwards.
Therefore the ECONAVI lamp “ON/OFF” pattern may
change from the 4th week onwards.
●The refrigerator performs the ECONAVI energy
saving operation when it becomes dark*2around the
refrigerator such as overnight when you are asleep.
●The brightness of the ECONAVI lamp is lowered
approximately 5 minutes after it is lit.
Settings for enabling ECONAVI operation
●ECONAVI operation is automatically enabled when the temperature control for both the
freezer compartment and fridge compartment is set to “Med”.
●ECONAVI mode does not operate if the [Quick Freezing] mode is in operation.
●It is not possible to force to start of the ECONAVI mode.
Remark
*1The effectiveness of the ECONAVI mode is dependant on the ambient temperature,
ambient brightness and the number of times the refrigerator door is opened and closed and
the state in which food is stored.
*2Darkness is detected by the light intensity sensor at approximately 3 lx to 10 lx or less.
Model : NR-CY550 (PKXZ)
This model also has ECONAVI mode, but it does not feature ECONAVI lamp and light
intensity sensor.
Prime Fresh +
How to operate the “Prime Fresh +” mode
1Model : NR-CY550 (GKXZ)
Press the button “Prime Fresh” until the light LED “Prime Fresh +” turns on.
2Model : NR-CY550 (PKXZ)
Press the button “Select” until the light “Prime Fresh” turns on, then press button “Temp.
Control” until the light LED “Prime Fresh +” turns on.
Remark
●If you want to stop the operation immediately, please repeat step 1or step 2until the light
LED turns off.
●The system will stop the operation automatically when it runs for 105 mins (as ambient
temperature is below 18 °C) or 150 mins (as ambient temperature is above 18 °C) and
return to normal mode (the LED turns off)
●The LED flashing means that the defrosting system is now working. “Prime Fresh +” mode
will start right after the defrosting operation is finished.
ECONAVI lamp
Light intensity sensor
13
ARAH1E200680_EN.indd 13ARAH1E200680_EN.indd 13 8/30/19 2:39 PM8/30/19 2:39 PM

Operation
Quick Freezing
When [Quick Freezing] is set, the refrigerator will reduce the temperature
quickly for better performance of preserving food.
Model : NR-CY550 (GKXZ)
Lamp is on: Quick freezing
is operated
Lamp is off: Quick freezing
is not operated
●Touch the [Freezer] button until “Blue LED light at Quick Freezing”
turns on. (Quick Freezing mode starts after 10 seconds.)
●The Quick Freezing operation will automatically stop after 60 mins
(as ambient temperature is below 19 °C) or 150 mins (as ambient
temperature is above 19 °C) and return to normal mode.
(The Blue LED light at Quick Freezing turn off)
●To stop the Quick Freezing operation, touch the [Freezer] button until “Blue LED light at
Quick Freezing” turns off.
●A flashing “Blue LED light at Quick Freezing” indicates the defrosting system is active.
The Quick Freezing operation will start right after the defrosting operation is finished.
●The Freezer temperature control will not operate during Quick Freezing mode as the
compressor is already at maximum operating levels for the Quick Freezing mode.
Model : NR-CY550 (PKXZ)
Lamp is on: Quick freezing
is operated
Lamp is off: Quick freezing
is not operated
●Press the [Select] button and selecting [Freezer] then press [Temp.
Control] button until “Green LED light at Quick Freezing” turns on.
(Quick Freezing mode starts after 10 seconds.)
●The Quick Freezing operation will automatically stop after 60 mins
(as ambient temperature is below 19 °C) or 150 mins (as ambient
temperature is above 19 °C) and return to normal mode.
(The Green LED light at Quick Freezing turn off)
●To stop the Quick Freezing operation, press the [Temp. Control] button until “Green LED
light at Quick Freezing” turns off.
●A flashing “Green LED light at Quick Freezing” indicates the defrosting system is active.
The Quick Freezing operation will start right after the defrosting operation is finished.
●The Freezer temperature control will not operate during Quick Freezing mode as the
compressor is already at maximum operating levels for the Quick Freezing mode.
To use all features
14
ARAH1E200680_EN.indd 14ARAH1E200680_EN.indd 14 8/14/19 10:03 AM8/14/19 10:03 AM

Operation
Food Stored
In order to preserve food quality for long
time, please store it in the right place.
When storing food...
●Foodstuff such as vegetable, fruits and fresh
food should be wrapped or pack in box
before freezing and refrigerating.
●If you will put high moisture content into
refrigerator, should be sealed and wrapped
to prevent dew and frost.
●Drinking water, beverage bottles should be
sealed to prevent the odour.
●Store fruits and vegetables in vegetable
case, where trapped moisture helps
preserve food quality for longer time periods.
Where to store these different foodstuffs?
Approx.
1°C~6°C
Refrigerator
compartment
“Food and drinks readily served”
For regular storage of food and drinks or
temporary storage of these to be served
soon.
Approx.
3°C~8°C
Vegetable
case
“Fruits and vegetables”
A rather high humidity keep fruits and
vegetables fresh and juicy.
Approx.
-5°C~-1°C
Prime Fresh
case
“Partially-freezing”
For storage of meat, fish, processed foods
(such as hams and sausages).
Approx.
-23°C~-17°C
Freezer
compartment
“If storing food for an extended period”
For storage of frozen or dried foods.
●When set to “ Med ” , the temperature may vary slightly depending on the usage conditions.
15

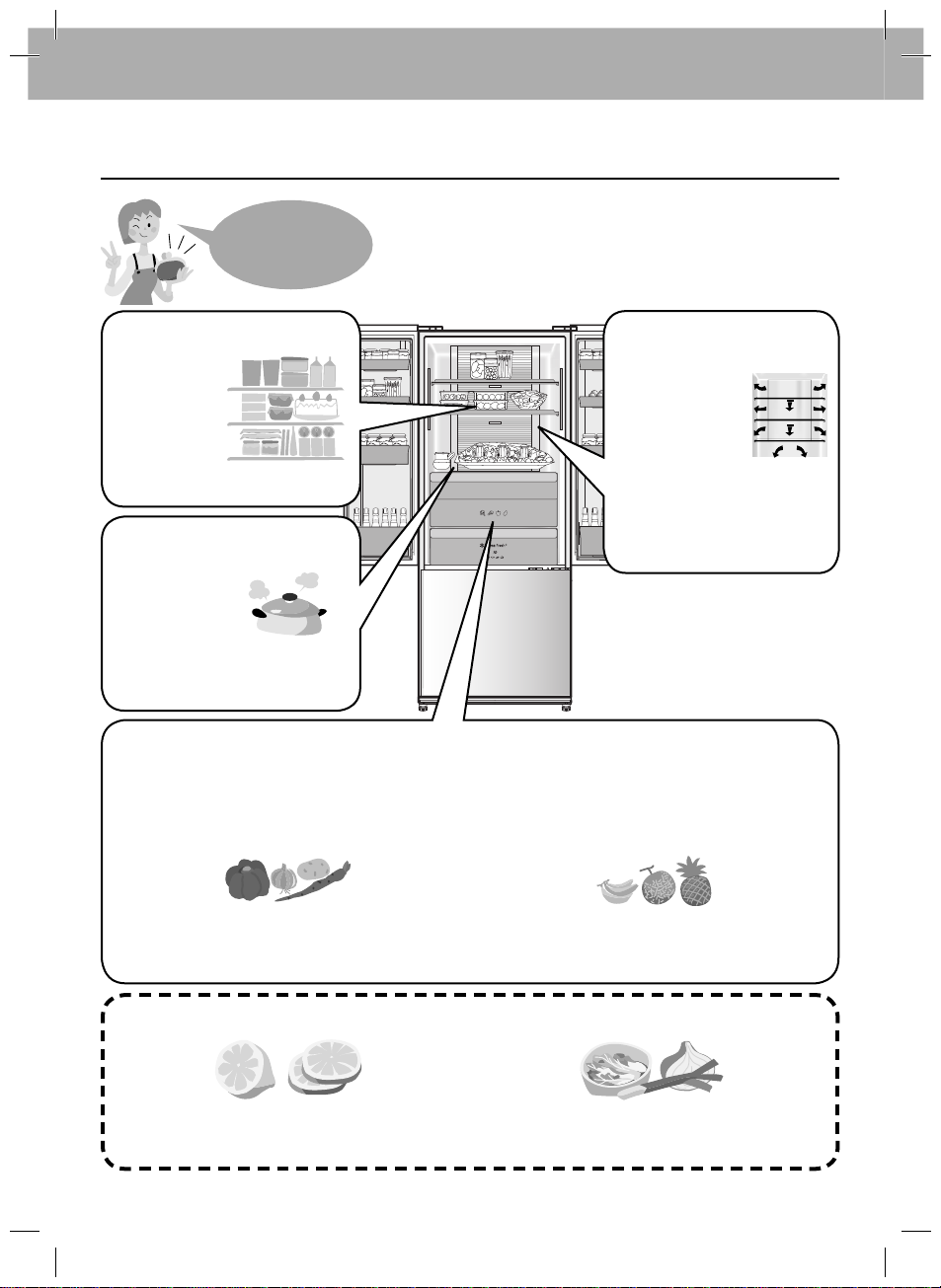

ICE TWISTER
Quick Ice Making
Freezer
compartment
Prime Fresh
case
Refrigerator
compartment
Vegetable
case
ARAH1E200680_EN.indd 15ARAH1E200680_EN.indd 15 9/4/19 5:34 PM9/4/19 5:34 PM

Operation
ICE TWISTER
Quick Ice Making
Using Tips
Do not stuff food into
the compartments.
That may
interfere
with the
cold air flow.
Provide
sufficient space
between foods.
Store warm food and
drinks after they have
cooled.
Otherwise,
they will not
only raise the
interior temperature,
but also affect the
freshness of other foods.
Do not block the cold
air outlet with food
items!
If cool air does
not spread into
every corner of
compartments,
then the interior
will not be
sufficiently cooled and
more electricity will be
consumed.
(Air outlet)
Basics of energy saving
Save cool air!
When condensation occurs.
The humidity in the vegetable case is high and condensation may occur.
Just wipe off the water drops.
Do not put food in the refrigerator when it is not necessary.
A cold dark place will suffice!
It is not necessary to store uncut onions,
potatoes, etc. in the refrigerator (except
during the summer).
Cool just before you eat!
If uncut tropical fruits are cooled down
excessively, they may be discolored or
their vitamin contents may decrease.
Storage using tightly sealed containers is recommended!
●Cut citrus fruits
(→The plastic will be discolored white.)
●Garlicky or other strong smelling vegetables
(→Odors will spread to other nearby food.)
To use all features
16
ARAH1E200680_EN.indd 16ARAH1E200680_EN.indd 16 9/4/19 5:34 PM9/4/19 5:34 PM

Operation
Refrigerator Compartment
The position of the second tray from the top can be changed
(1) Lift up the back of the tray and pull it
forward. Once the protrusions of the tray
are unhooked from rails, tilt the tray and
remove it.
Rail
Protrusion
(2) Insert the tray in the desired position by
reversing the steps.
●Glass shelves are heavy.
Please handle them with care so that
they do not fall and cause any damage
or injury.
Close the open door
There are beeps sound if the refrigerator
compartment or the freezer compartment
door is remained open as below table.
Please close the door.
(Model : NR-CY550 (GKXZ)
Time Alarm
1 minute later Double-beep
3 minutes later 2 double-beep
5 minutes later Continuous double-beep
Request
When the rotary partition is opened
forward, put it back into place.
(The doors can not be closed and it may
cause damage.)
Opened forward.
Rotary partition
Left door
Put it back into place.
Prime Fresh
The temperature in the Prime Fresh Case can be selected from “Prime Fresh +”, “Min”, “Med”,
or “Max”.
When using the refrigerator, temperature can be adjusted according to your personal usage.
*The temperature is set at “Med” as default from factory.
Using as the prime fresh Approx. -5 °C ~ -1 °C
When you want to preserve food longer by partially-freezing method.
●Suitable for fresh food such as meat or fish.
●Temperature can be selected from “Prime Fresh +”, “Min”, “Med”, or “Max” according to
kind and quantity of stored food. (P. 11)
●When food is too much frozen …...
Set the temperature at “Min” (less cool)
to reduce coldness and prevent food
from over frozen.
●When food is not partially-frozen …...
It could result from size of stored food
(such as too large meat or fish), storage
condition, or ambient temperature.
Try setting the temperature at “Max”
(more cool) to increase coldness and partially-frozen the food. 17
Easy-to-Cut.
Partially-frozen
food can be cut
or sliced easily.
Ready to cook.
ARAH1E200680_EN.indd 17ARAH1E200680_EN.indd 17 8/14/19 10:03 AM8/14/19 10:03 AM

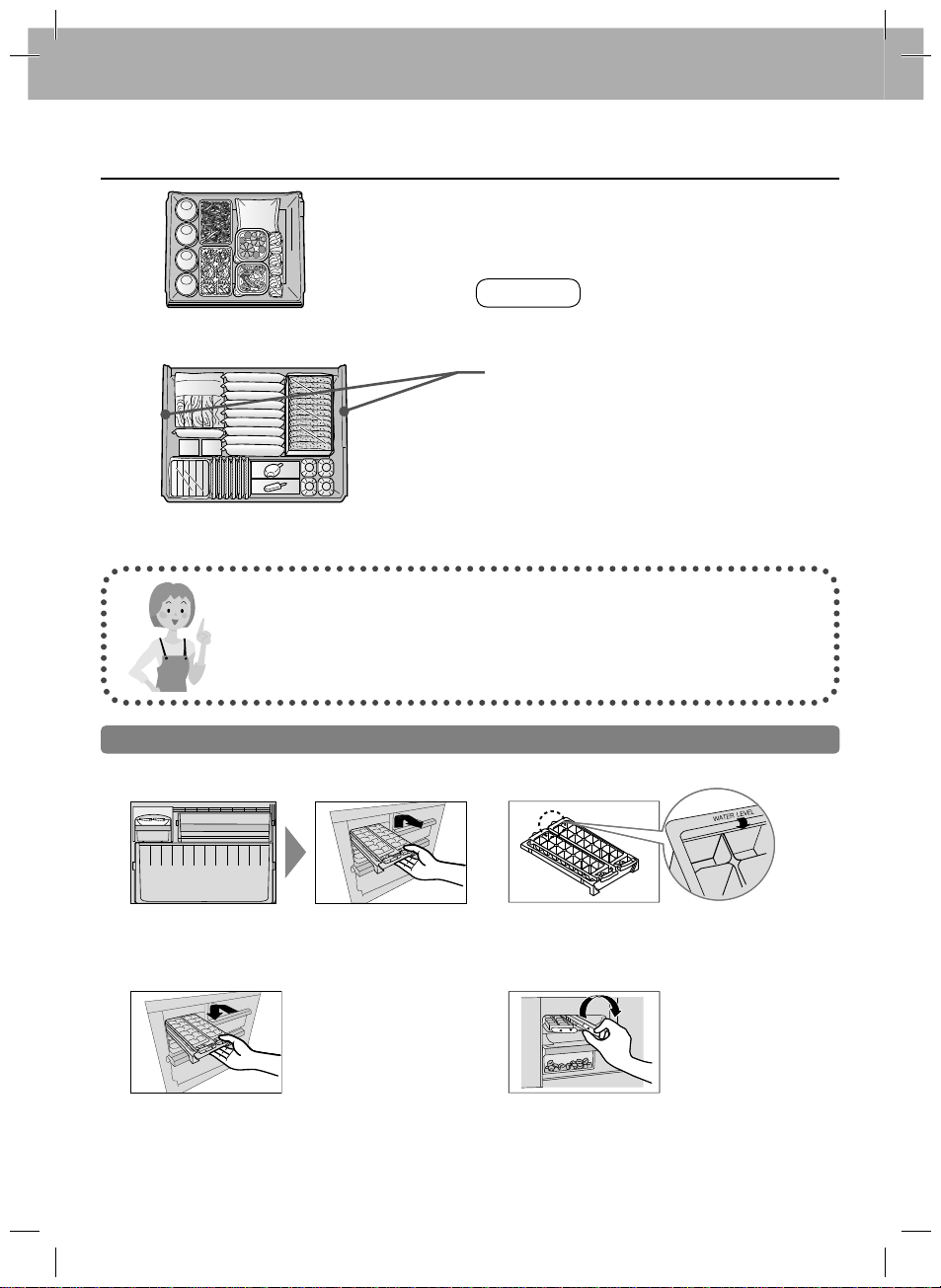

Operation
Ice cream
Ice cream
Ice cream
Ice cream
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
French fried
Frozen food
Bottom freezer case (Lower)
[This is a storage example]
Freezing case (Upper)
Freezer Compartment Approx. -23 °C ~ -17 °C
●A lot of frozen food and cooked meal can
be stored.
Requests
●For the upper case of the freezer, put your
food within the height of the case.
●For the lower case of the freezer, put your
food below the upper limit line inside the
case.
(Otherwise, the door may not close
completely and frost may occur.)
Three tips for freezing food and locking in the flavour...
1. Freeze thin and small items of food quickly!
2. Fully sealed
3. Do not refreeze
To make ice
1Take out the ice twister
ICE TWISTER
Quick Ice Making
Pull out the ice twister. (P.21)
2Fill with water
Fill water up to the “WATER LEVEL” line.
3Install the ice twister
Place tray back into the ice making
compartment.
4To move ice cubes
ICE TWISTER
Twist the ice twister clockwise.
(The ice cubes will drop into the ice box.)
To use all features
18
ARAH1E200680_EN.indd 18ARAH1E200680_EN.indd 18 8/14/19 10:03 AM8/14/19 10:03 AM

Appendix

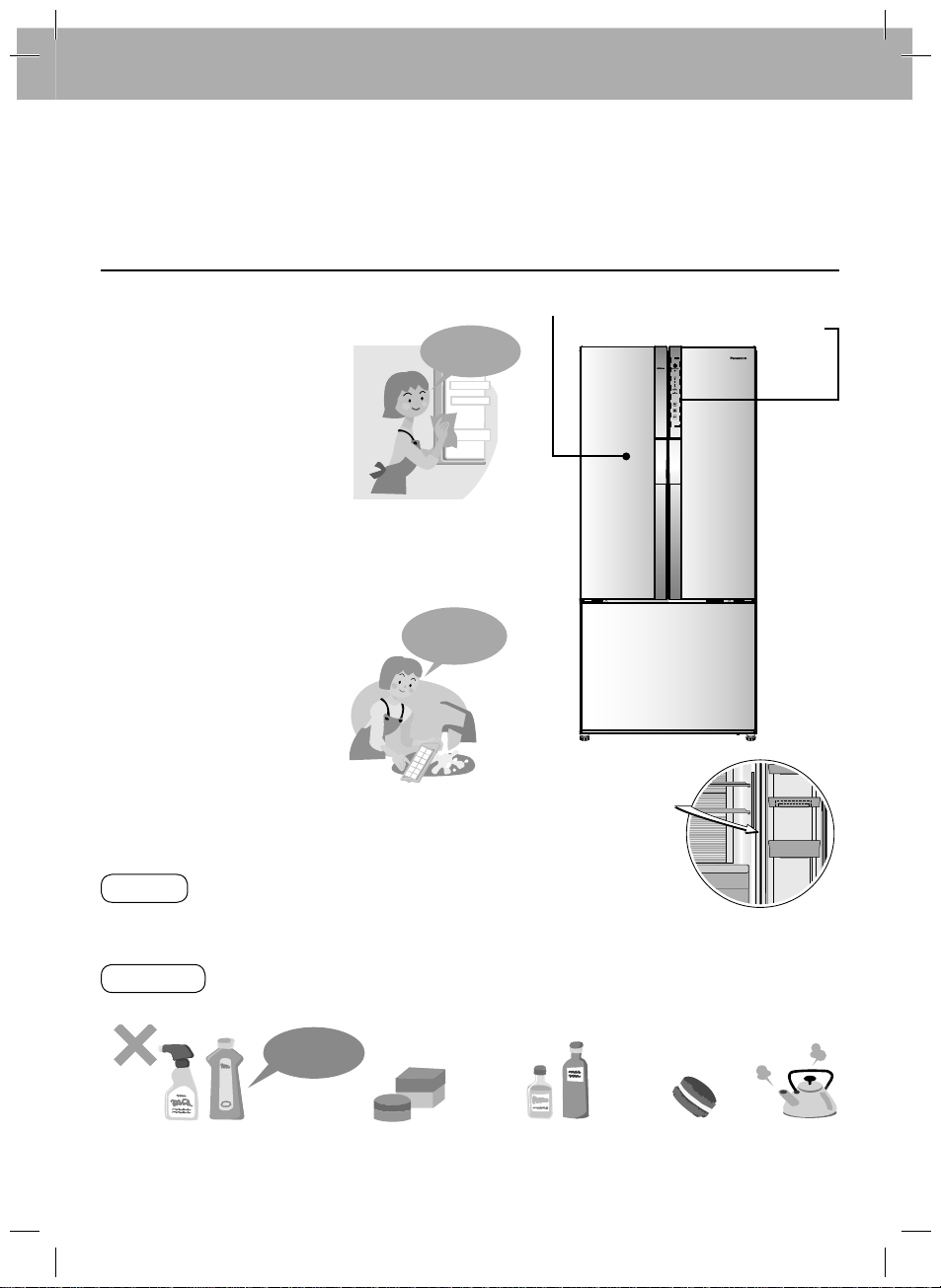

Cleaning, removing and re-installing
Before cleaning or conducting maintenance, be absolutely sure to disconnect the power
plug from the power outlet. Do not connect or disconnect the power plug with wet hands.
When the plug is disconnected, leave it for 10 minutes before plugging again. If not, the
compressor may not work.
Cleaning
Clean the refrigerator immediately after
it is stained!.
Wipe off stains on the
interior surfaces quickly
before they harden.
In particular, cooking oil
may cause plastic to crack
and citrus juice may cause
the refrigerator to become
discolored. When stains
cannot be removed easily,
wipe them with a cloth lightly soaked in neutral
kitchen detergent. Then, wipe with a cloth lightly
dipped in water.
Clean the detachable items occasionally...
Once a week for the
ice twister. As a guide,
remove the trays, door
shelves, etc. and wash
them by immersing them
in lukewarm water every
three months.
Clean the door gasket at
least once a month.
Clean by wiping with a soft damp cloth. Petroleum
gel has been applied to the door gasket on the hinge
side of the unit, be careful not to wipe this off.
Notices
The “door gasket” is replaceable by an authorised service agent.
If the door gasket comes off while cleaning, it can be pushed back into the groove.
Requests
Do not use the following items for cleaning. (Otherwise, the surface will be scratched.)
Alkaline or faintly
Alkaline
Kitchen detergents
(They crack plastic!)
Cleanser or soap powder Benzine, thinner, alcohol,
acid, petroleum
Scrubber Hot Water
19
Use lukewarm
water!
Remove and
rinse!
Point where petroleum
gel was applied.
Rub the control panels with a dry cloth.
Rub the door surface with a soft damp cloth.
ARAH1E200680_EN.indd 19ARAH1E200680_EN.indd 19 8/14/19 10:03 AM8/14/19 10:03 AM

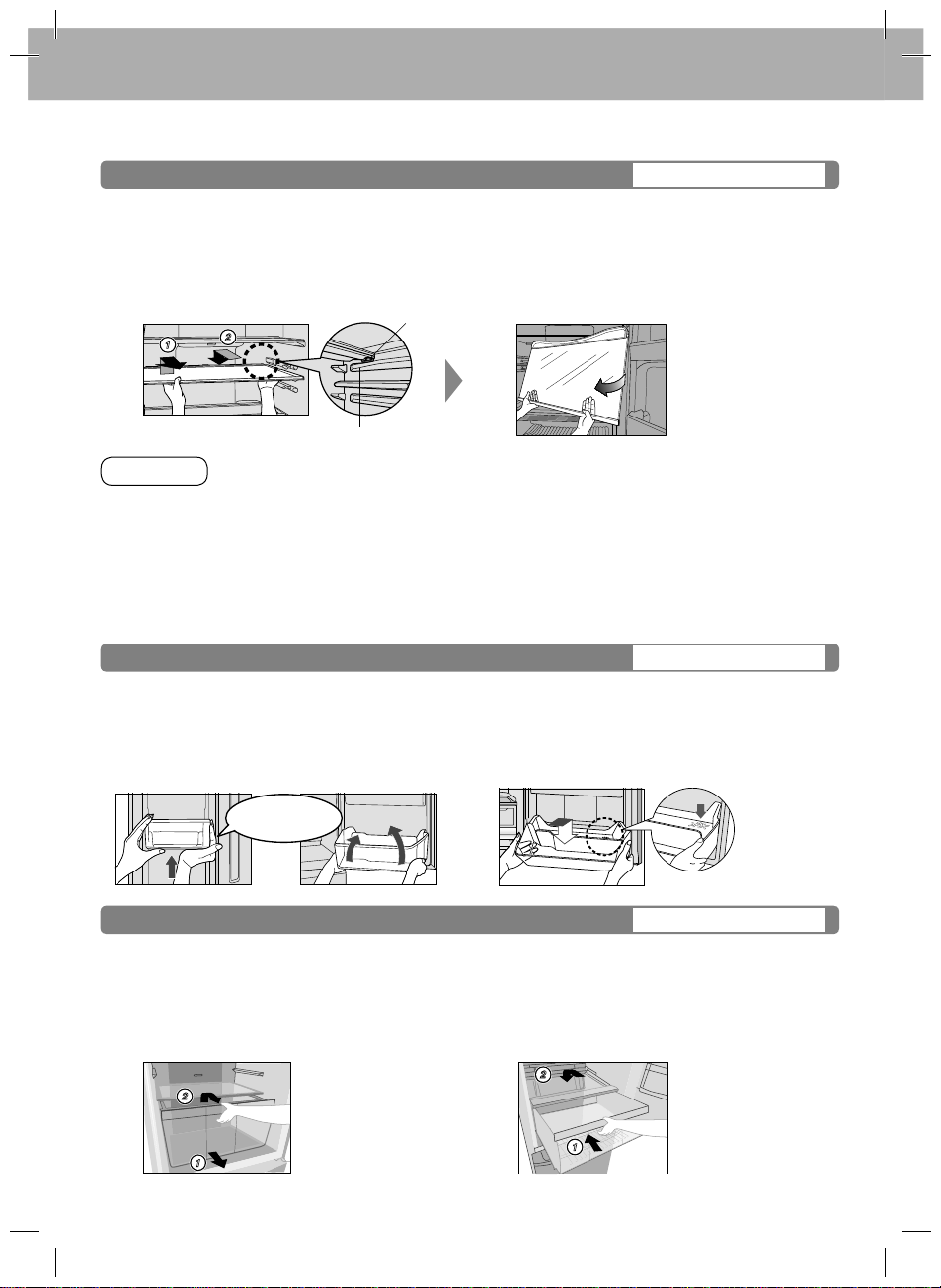

Introduction
Appendix
Once every 3 months
Trays
Removing
1 Lift up the back of the tray and pull it
forward.
Once the protrusions of the
tray are unhooked from the rails, tilt
the tray and remove it.
111
222
Protrusion
Rail
Attaching
2 Push the tray until it reached the end
lock.
Attention
●When removing the tray above the vegetable case, please pull out the vegetable case
first and then follow to removing the tray as above details.
●In case of attaching the tray and it does not lock, make sure that you did not attach it
the wrong tray.
●Trays are made of glass and heavy.
Please handle them with care so that they do not fall and cause any damage or injury.
For attaching trays, hold them with the protrusion side down and firmly insert.
Once every 3 months
Door shelf/Bottle shelf
Removing
Tap the bottom of the small shelves
upward or slide alternately the left and
right of the big shelves upward, and
raise them slowly. (Tightly attached)
Slide the shelves
upward.
Attaching
Set each shelf horizontally, with the
mark [>PS<] on the right, and push it
down to its proper position.
Once every 3 months
Vegetable case/Prime fresh case
Removing
1Pull the case unit forward until it
reaches the end of the stopper.
2 Lift the front of the case unit slightly
and remove completely.
111
222
Attaching
1 Insert the case unit into the supports.
2 Raise the case unit up slightly and
push forward until the end is reached.
111
222
Cleaning, removing and re-installing
20
ARAH1E200680_EN.indd 20ARAH1E200680_EN.indd 20 8/14/19 10:03 AM8/14/19 10:03 AM
