Panasonic ECONAVI NR-BZ600 User manual

Operating Instructions
Refrigerator (For Household Use)
Model No. NR-BZ600
Thank you for purchasing this Panasonic product.
 Before operating this unit, please read these instructions completely.
Before using this product, please pay particular attention to the
“Safety precautions” section (Pages 2 to 7) for safe use.
 Please ensure the date and name of store of purchase are stamped
in warranty card and keep it stored together with these operating
instructions in a safe place for future reference.
Contents
Introduction
Safety Precautions .....................................2
Installation
Installation ..................................................8
Operation
Parts Identification ...................................10
To use all features ....................................11
Control Panel ......................................... 11
ECONAVI Operation ..............................12
Quick Freezing ......................................12
Food Stored ...........................................13
Using Tips ..............................................14
Refrigerator Compartment .....................15
Freezer Compartment ...........................16
Appendix
Cleaning, removing and re-installing .....17
Cleaning ................................................17
Troubleshooting .......................................20
Specifications ...........................................21
GCC
ARAH0A106620
T0619-0
Printed in Thailand
06-2019
ARAH0A106620_EN.indd 1ARAH0A106620_EN.indd 1 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
Safety Precautions
WARNING
This expression presumes
possibility of a death or
serious injury.
CAUTION
This expression presumes
possibility of personal injury
or property damage.
This sign means prohibited action
iso-butane
This sign means required actions
This sign means do not
disassemble
Risk of fire / flammable materials
2
For power plug and cord...
● Periodically wipe the power plug with a dry cloth. (Dust
accumulated on the plug of a refrigerator that operates
continuously leads to reduced insulation due to moisture
and may cause fire.)
● Plug into a wall outlet of the rated voltage on its own with
the rated current and insert plug fully.
● Connect to an exclusive wall outlet for the refrigerator
only. Avoid connecting other appliances to the same wall
outlet. Unroll entire length of the cord before plugging in.
● Unplug the unit when cleaning the refrigerator.
● If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
● Please ensure minimum clearance of 10 cm for air
ventilation and prevent damage to the power cord.
WARNING
ARAH0A106620_EN.indd 2ARAH0A106620_EN.indd 2 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
3
For power plug and cord...
● Do not let the cord get damaged.
● Do not insert or disconnect the power plug into/from the
wall socket with wet hands.
● When positioning the appliance, ensure the supply cord
is not trapped or damaged.
● Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
When recycling the product...
● Before taking the refrigerator to be recycled, please
remove all the door gasket to prevent locking a child in it.
● The operating instructions should be handed over to
any person who would use or handle the refrigerator
whenever the refrigerator would be transferred to another
location and delivered to a recycling plant.
● Cyclo-Pentane is used for insulation of this refrigerator
and flammable gas is used for refrigerant. When
disposing of this unit, please discard it by the proper
method and do not dispose of the unit by burning.
● The warning labels mentioned above should be kept
throughout the life of the refrigerator.
In order to prevent fires,
electrical shocks, explosion,
injuries, etc.
In case of emergency...
iso-butane
● Maintenance work must only be carried out at
workshop by well-trained maintenance worker.
● Do not store explosive substances such as aerosol cans
with a flammable propellant and chemicals or scientific
specimens in the appliance.
ARAH0A106620_EN.indd 3ARAH0A106620_EN.indd 3 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
4
● Do not use electrical appliances such as a deodorizer in
the refrigerator. Leaked refrigerant may catch fire from
a spark of the electrical contacts and may cause an
explosion.
● Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
● Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
● Do not disassemble, repair or modify the refrigerator by
yourself. If you want to repair the refrigerator, please
consult your dealer or authorized service center.
On top of the refrigerator...
● Do not put anything on top of refrigerator. Otherwise,
it may fall due to vibration of the machine. You may be
injured.
When installing...
● Do not install the product in locations exposed to water.
● Provide a grounding connection or install a ground-fault
interrupter when the product is installed in a humid or
wet location.
(Contact your distributor.)
● Do not block the ventilation port of the refrigerator or
spaces around it.
Leaked refrigerant may cause a fire and explosion.
● Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
● For safety it should be checked that the ground
connection system in the house has been installed
correctly.
WARNING
ARAH0A106620_EN.indd 4ARAH0A106620_EN.indd 4 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
5
When using...
● Do not let any children hang or ride on the refrigerator
door, the unit may turn over and cause an accident.
● Do not apply water on the body or interior. Electrical
insulation could deteriorate and may cause shocks or fire.
● Do not damage the refrigerant circuit (piping on the
back). The flammable refrigerant may catch fire and lead
to an explosion.
● Do not touch the compressor or pipes because of high
temperature. There is a risk of burn injury.
● Do not spray combustible chemicals near the refrigerator.
● If you detect a burning smell, disconnect the power plug.
● If you detect a gas leak from the cooling range, ventilate
the kitchen.
● If you have damaged the refrigerant circuit (piping on
the back), then ventilate the kitchen and contact your
distributor.
● Refrigerator LED lamp.
The refrigerator LED lamp is designed specially for this
product, it does not function on individual replacing.
If replacement is required, please contact your dealer or
authorised service agent.
● This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
● Children should be supervised to ensure that they do not
play with the appliance.
ARAH0A106620_EN.indd 5ARAH0A106620_EN.indd 5 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
6
CAUTION
When storing food...
● Do not freeze glass bottles, that there is a risk of injury.
(If the liquid in a glass bottle is frozen and broken, you
may be injured.)
● Do not touch frozen foods or
containers (especially metallic)
with wet hands.
● Do not eat any smelling or
colour-changed food. Rotten food
may cause illness.
● Do not subject glass trays to high impact.
(Otherwise those glass trays may break and you may
be injured)
● Food containers must reach the bottom of the door
shelves.
● The foods must not protrude from the shelf.
When opening/closing the doors...
● Do not open the refrigerator doors when someone is in
the vicinity of the refrigerator.
● Mind the gap between the doors. They may nip your
hand while closing the door.
When cleaning...
● Do not place your hands or feet beneath the bottom of
the refrigerator.
ARAH0A106620_EN.indd 6ARAH0A106620_EN.indd 6 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
Caution for using
7
This appliance is intended to be used in household and
similar applications such as
● staff kitchen areas in shops, offices and other working
environments;
● farm houses and by clients in hotels, motels and other
residential type environments;
● bed and breakfast type environments;
● catering and similar non-retail applications.

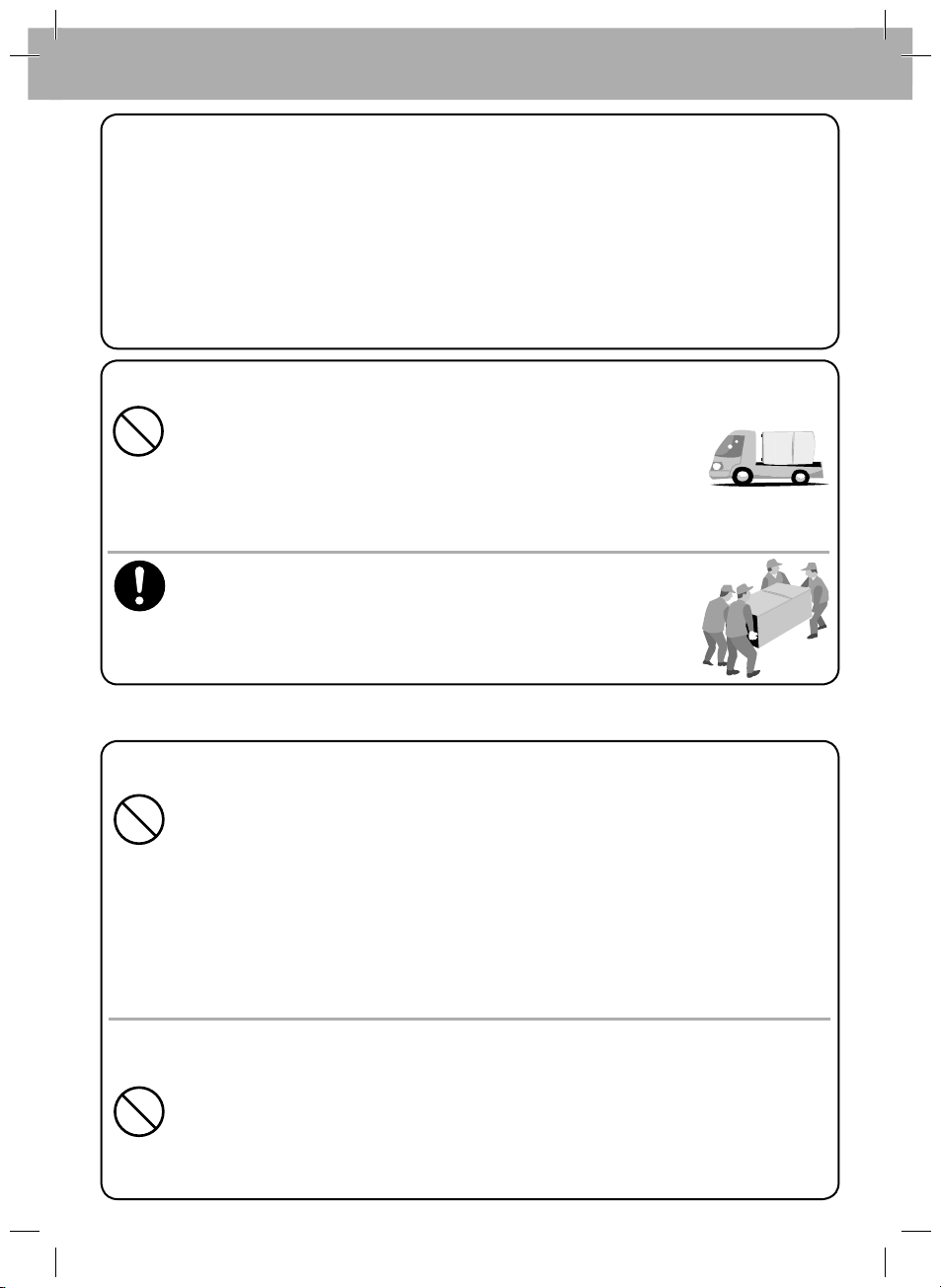

When moving or transporting the refrigerator...
● Do not transport refrigerators in a horizontal position.
Laying a refrigerator horizontally may damage
the piping. If any damage is noticed, do not
touch the refrigerator. Avoid using fire and ventilate
the room and contact the service agent immediately.
● Apply protective covering, etc. to floors with
a fragile surface.
● Hold the carrying handles when transporting
the refrigerator.
When using...
● Do not place warm/hot foodstuffs in the refrigerator.
Store warm food and drinks after they have cooled.
● Do not open refrigerator frequently or leave it open for
long time in order to prevent water dripping inside and
waste energy.
● Do not clean the refrigerator with chemical substance or
liquid. It will cause damage and have corrosion on the
surface.
When the refrigerator will not be used for a long period of
time...
● Unplug the refrigerator and take out all the food in the
refrigerator.
● Wipe off all the water and open the refrigerator to keep
it dry.
ARAH0A106620_EN.indd 7ARAH0A106620_EN.indd 7 5/22/2562 BE 14:115/22/2562 BE 14:11

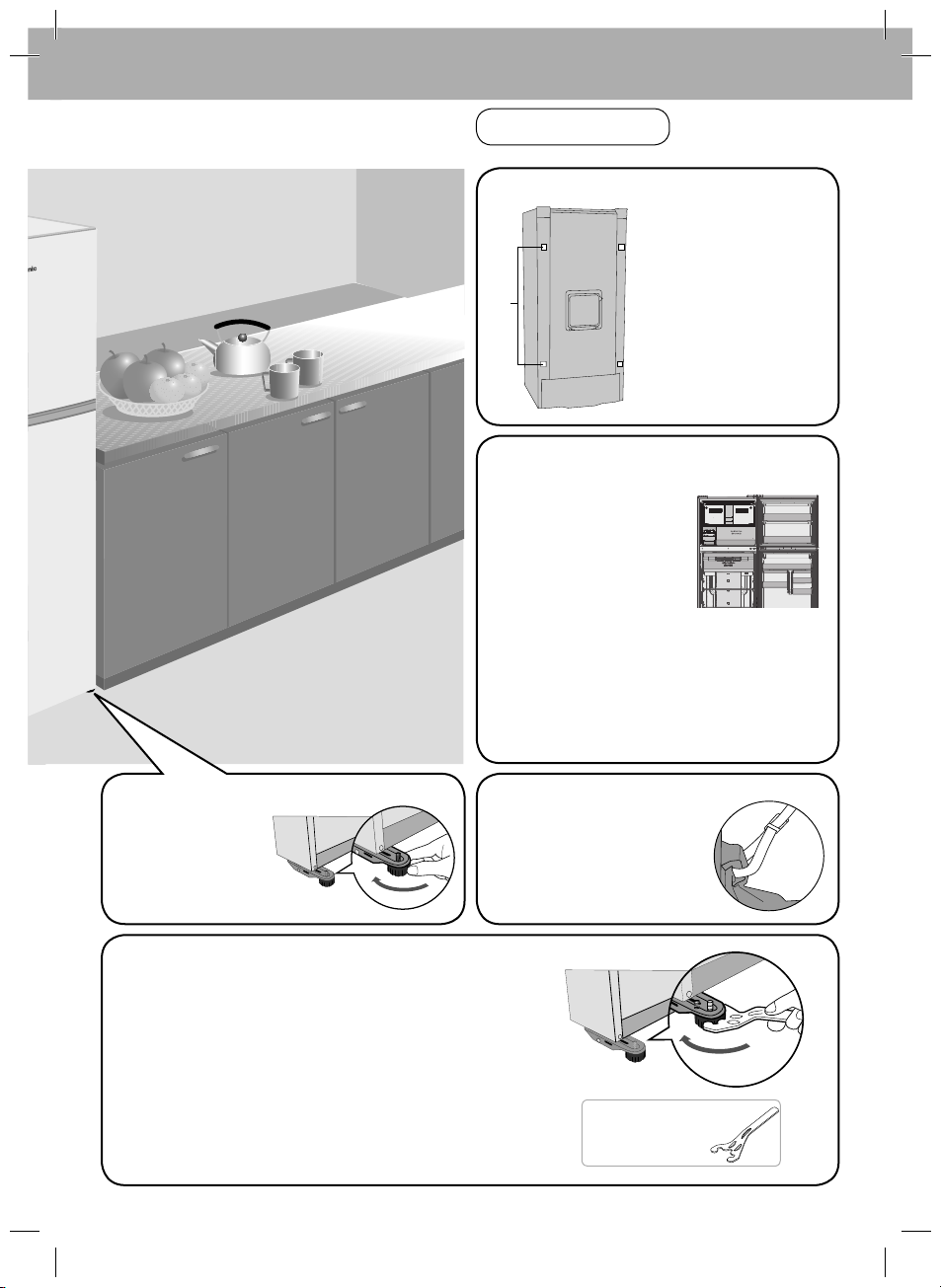

Installation
8
Installation
MIs the refrigerator installed in the
following locations?
●Locations subject to heat
and direct sunlight
(The cooling power will be
reduced and electricity
wasted.)
●Poorly ventilated locations
with high humidity
(Rust will be caused.)
●Locations where the surface
is unstable and slanted
On carpet, mats, or vinyl floors, place a
plate underneath the refrigerator.
●Locations not allowing the power plug to be
cleaned easily
(Dust accumulated may cause a fire.)
MHas a heat radiating space been provided
around the refrigerator?
10 cm or more
at the back of
the refrigerator
5 cm or more
both left and right
30 cm or more
above the
refrigerator
For safety, the grounding connection should be done
(For a refrigerator with plug (2-pin plug) without any grounding wire)
The grounding connection will allow prevention of danger resulted from electricity leakage.
The grounding connection can be performed in 2 ways as follows:
●In the case that the grounding receptacle has been
prepared for the socket (plug socket), connect the
grounding wire to the screw used for grounding
connection at the bottom rear of the refrigerator
(regarding the screw used for grounding connection,
please notice the symbol) as shown in the
illustration 1.
●In the case that the socket (plug socket) has not
been provided with any grounding receptacle,
connect the grounding wire to the screw at the
bottom of the refrigerator, (as regard to the screw
used for grounding connection, please notice the
symbol). And then connect the other end to the
grounding rod as shown in the illustration 2.
Prohibited spots for grounding connection
●Water supply pipes and gas pipes (dangers from electric shock or explosion).
●The grounding wires of telephone cords and lightning rods (dangers from lightning).
Before using for product.
2
1
Grounding wire
Illustration for the
grounding connection
Grounding
receptacle
ARAH0A106620_EN.indd 8ARAH0A106620_EN.indd 8 5/22/2562 BE 14:115/22/2562 BE 14:11

Installation
9
Do not peel the seal on the back.
Otherwise, the cooling
performance may
deteriorate. If you have
peeled it, then cut a
cloth packing tape into
a square and paste it
onto the refrigerator.
Requests and notices
Refrigerator doors should not be opened
during the interior cooling process.
The doors should not be
opened until the interior
has been cooled down
sufficiently. (Warm air
flowing into the interior
will block the cooling
function.)
Please wait until the interior has cooled
down.
●It may take approximately four hours to
cool down the interior.
●It may take 24 hours or more to
cool down the interior and achieve
equilibrium in the summer, etc.
M Have any measures taken
against tipping due to
earthquakes?
In order to prevent the
refrigerator from tipping,
permanently fix it by using
belts, etc.
Fix the refrigerator.
Turn the adjuster
bolts (right and left)
until they reach the
floor to stabilize the
refrigerator.
L If the door is slanted downwards.
Turn the adjuster bolt on the lower side, as shown
in the diagram, in order to adjust the level.
●The freezer/refrigerator doors may tilt within four
to five days after installation due to the load of the
food or adaptation to the floor surface, turn the
corresponding adjuster bolt with the dedicated
tool.
Seal
●Dedicated tool
(Accessories)
ARAH0A106620_EN.indd 9ARAH0A106620_EN.indd 9 5/22/2562 BE 14:115/22/2562 BE 14:11

Operation
SPECIAL FEATURE
●NON-FLON
This unit uses totally NON-FLON MATERIALS both for refrigerant (iso-butane (R600a))
and for insulation (Cyclo-Pentane). These materials do not damage the earths ozone
layer and has almost no effect on global warming.
●INVERTER
In accordance with temperature change inside the compartment, the motor will run at
different speeds. When the temperature inside the refrigerator is stable, the motor will run
at a lower speed to save energy and lower noise. When powerful cooling is required, the
motor will run at a higher speed.
NR-BZ600

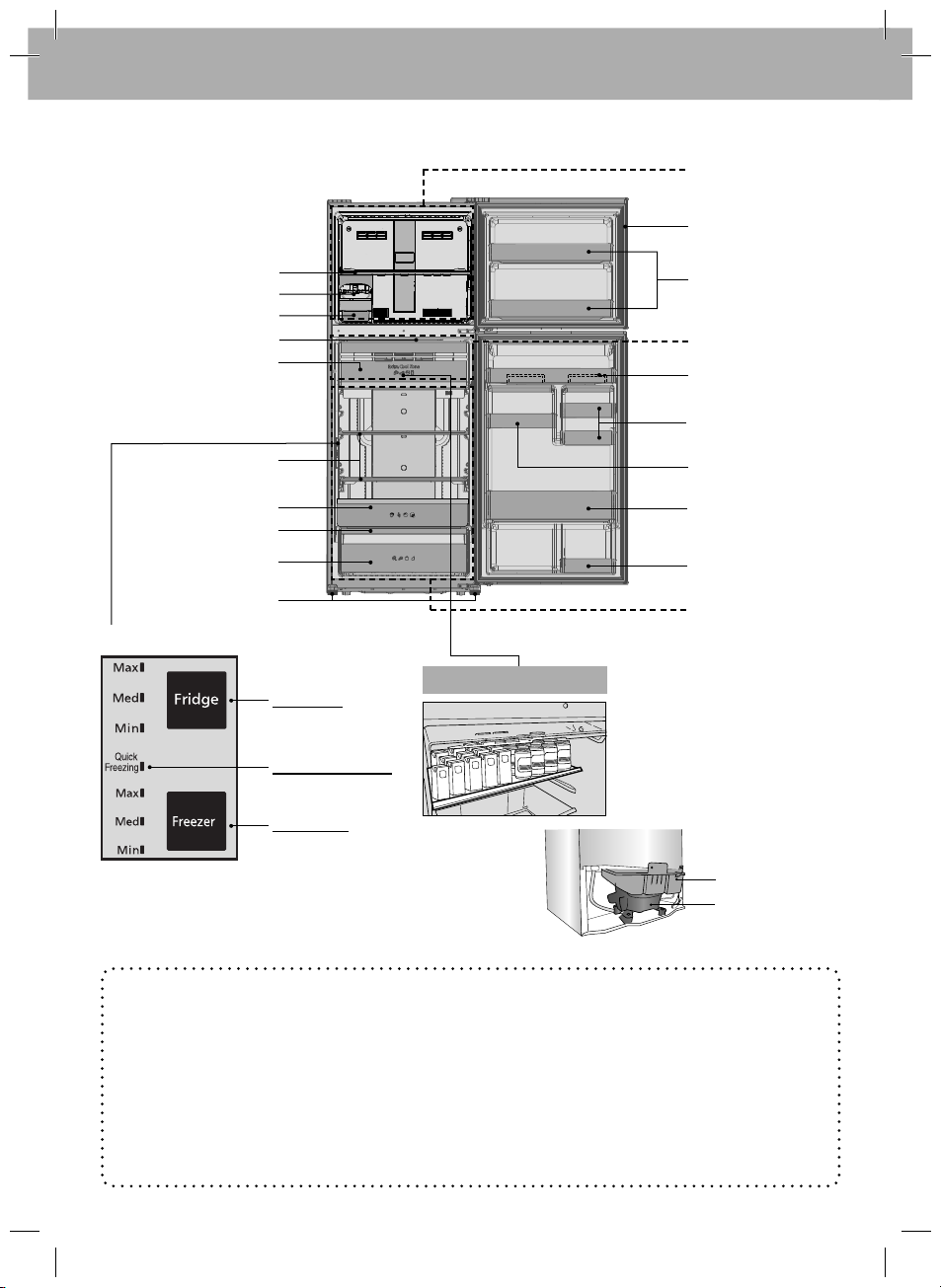

Parts Identification
Product view from behind
Evap pan
Compressor
Control panel (P.11)
Fridge (P.11)
Quick Freezing (P.12)
Freezer (P.11)
FREEZER
COMPARTMENT
Door gasket
LED lamp
FC Glass tray
Ice twister
Ice box
PC Cover cool zone
PC Glass tray
Fruit case
PC Glass tray and
Humidity control
Vegetable case
Adjustable bolt
Shelf FC
EXTRA COOL ZONE
REFRIGERATOR
COMPARTMENT
Egg shelf with Egg
tray
Free rack
Shelf PCR
Bottle shelf
Free rack
Extra Cool Zone (P.15)
10
ARAH0A106620_EN.indd 10ARAH0A106620_EN.indd 10 5/22/2562 BE 14:115/22/2562 BE 14:11

Operation
To use all features
Control Panel
Temperature setting and a guide of temperature
The temperature can be adjusted for Min-Max levels.
Press [Fridge] button to adjust temperature in refrigerator compartment and press
[Freezer] button to adjust temperature in freezer compartment.
Temperature
setting
Button
Max Med Min
Fridge
Lower than “Med”
by approx.
2°C ~ 3°C
Approximately
1°C ~ 6°C
Higher than “Med”
by approx.
2°C ~ 3°C
Freezer
Lower than “Med”
by approx.
2°C ~ 3°C
Approximately
-23°C ~ -17°C
Higher than “Med”
by approx.
2°C ~ 3°C
Normally, use the refrigerator with the temperature set to “Med”.
(If the temperature control of the freezer compartment or refrigerator compartment is
set to other than “Med”, ECONAVI does not operate.)

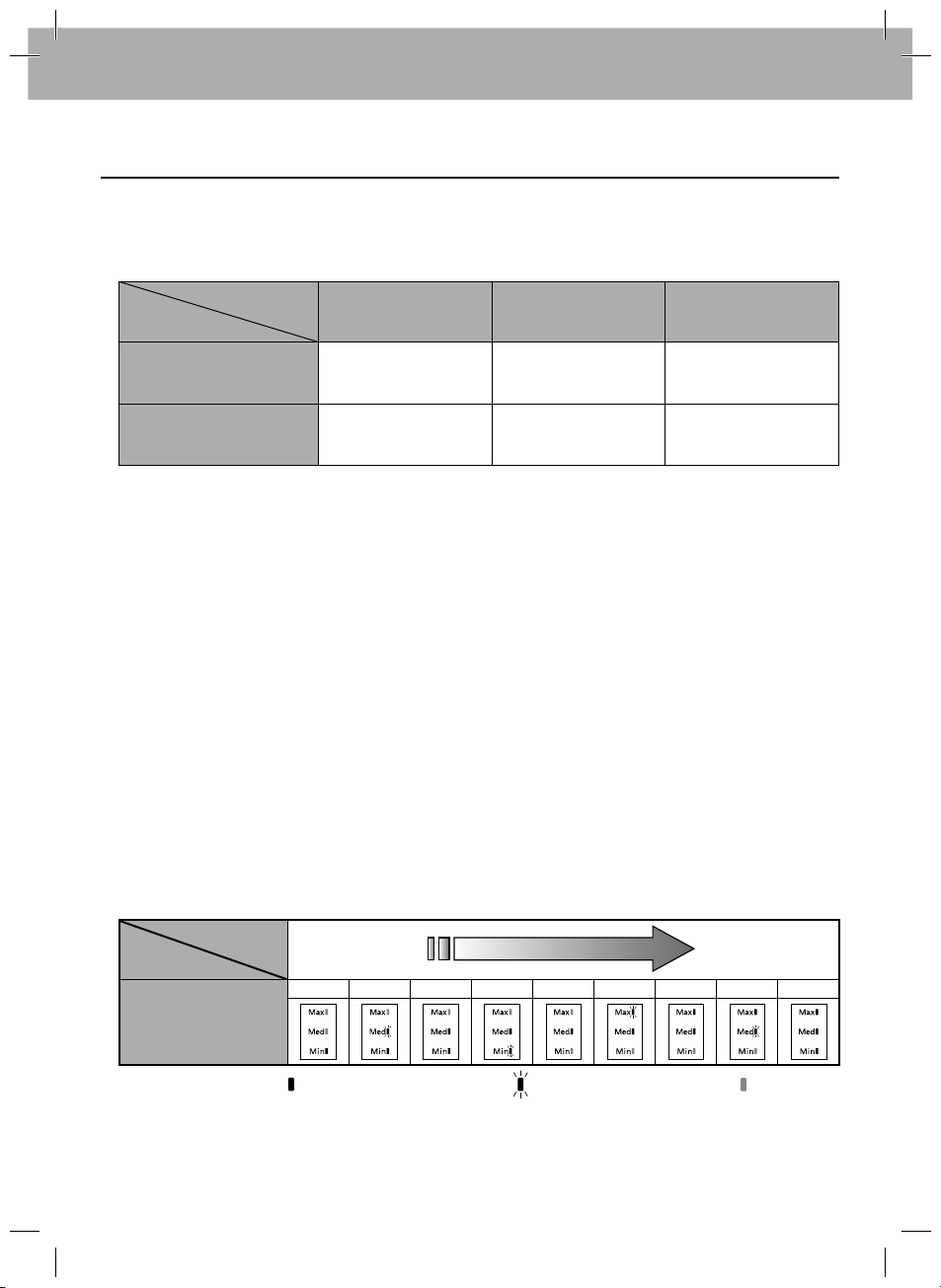

How to operate the “9 levels” mode
This refrigerator is specially designed with adjustable temperature levels using 9
different temperature levels as explained below:
For the Refrigerator Compartment
1Set the LED display to the “Min” position by pressing the [Fridge] button.
2Press and hold the [Fridge] button for 10 seconds until the LED display is at the
“Min” position.
3Use the [Fridge] button to set the required temperature mode, where one step is
the minimum cooling mode and 9 step is the maximum cooling mode.
For the Freezer Compartment
Operate above 1and 3steps with pressing [Freezer] button instead of [Fridge]
button.
To reset the setting “9 levels” mode
Repeat steps 1and 2to return the unit to normal operation mode.
Cooling
Level
Step
Minimum
Maximum
LED Display
123456789
Lighting Blinking Not lighting
●The temperature control can vary depending on the environment and amount of food
stored in the refrigerator.
11
ARAH0A106620_EN.indd 11ARAH0A106620_EN.indd 11 5/22/2562 BE 14:115/22/2562 BE 14:11

Operation
ECONAVI Operation
The refrigerator detects the opening and closing of the refrigerator door to automatically
control operation to ensure maximum energy saving.*1
ECONAVI operates only when the temperature setting is “Med” for both the freezer and
refrigerator compartments.
ECONAVI operation
●The refrigerator learns the lifestyle patterns of your family from door opening and
time periods of infrequent use to maximise energy efficiency.
●The refrigerator learns your lifestyle patterns from the previous 3 weeks of use and
uses that data from the 4th week onwards.
Settings for enabling ECONAVI operation
●ECONAVI operation is automatically enabled when the temperature control for both
the freezer and
refrigerator compartment is set to “Med”.
●ECONAVI mode does not operate if the [Quick Freezing] mode is in operation.
●It is not possible to force to start of the ECONAVI mode.
Remark
*1The effectiveness of the ECONAVI mode is dependant on the ambient temperature and
the number of times the refrigerator door is opened and closed and the state in which
food is stored.
Quick Freezing
When [Quick Freezing] is set, the refrigerator will reduce the temperature
quickly for better performance of preserving food.
●Press the [Freezer] button until “Green LED light at Quick
Freezing” turns on. (Quick Freezing mode starts after 10 seconds.)
●The Quick Freezing operation will automatically stop after 60 mins
(as ambient temperature is below 19 °C) or 150 mins (as ambient
temperature is above 19 °C) and return to normal mode.
(The Green LED light at Quick Freezing turn off)
●To stop the Quick Freezing operation, press the [Freezer] button until “Green LED light at
Quick Freezing” turns off.
●A flashing “Green LED light at Quick Freezing” indicates the defrosting system is active.
The Quick Freezing operation will start right after the defrosting operation is finished.
●The Freezer temperature control will not operate during Quick Freezing mode as the
compressor is already at maximum operating levels for the Quick Freezing mode.
To use all features
Lamp is on: Quick freezing
is on
Lamp is off: Quick freezing
not operate
12
ARAH0A106620_EN.indd 12ARAH0A106620_EN.indd 12 5/22/2562 BE 14:115/22/2562 BE 14:11

Operation
Food Stored
In order to preserve food quality for long
time, please store it in the right place.
When storing food...
●Foodstuff such as vegetable, fruits and fresh
food should be wrapped or pack in box
before freezing and refrigerating.
●If you will put high moisture content into
refrigerator, should be sealed and wrapped
to prevent dew and frost.
●Drinking water, beverage bottles should be
sealed to prevent the odour.
●Store fruits and vegetables in vegetable
case, where trapped moisture helps
preserve food quality for longer time periods.

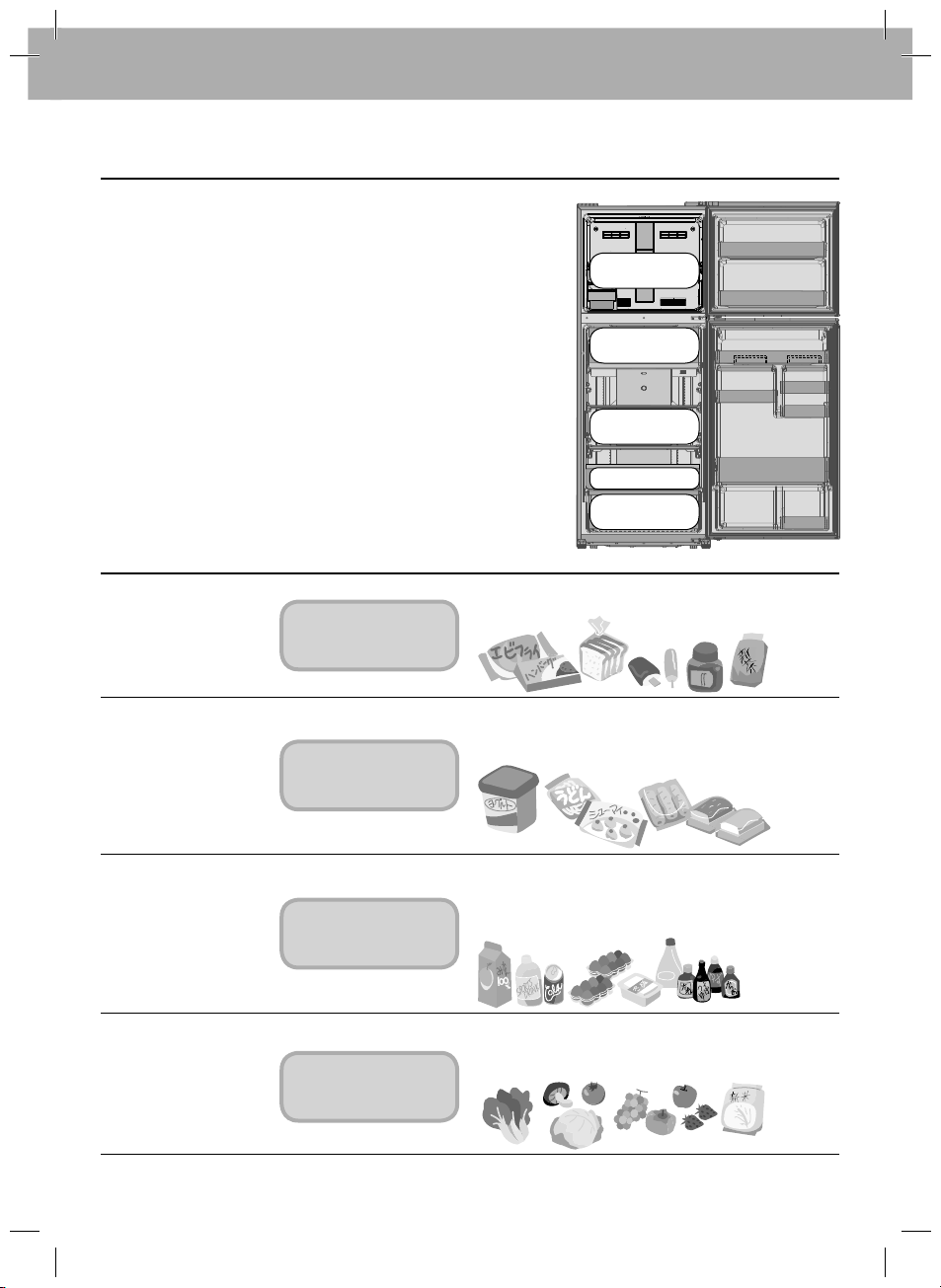

Where to store these different foodstuffs?
Approx.
-23°C ~ -17°C
Freezer
compartment
“If storing food for an extended period”
For storage of frozen or dried foods.
Approx.
-1°C ~ 3°C
Extra Cool
Zone
“Partially-freezing”
For dairy products, etc. that perish easily
but whose quality changes if frozen.
Approx.
1°C ~ 6°C
Refrigerator
compartment
“Food and drinks readily served”
For regular storage of food and drinks or
temporary storage of these to be served
soon.
Approx.
3°C ~ 8°C
Fruit case
Vegetable case
“Fruits and vegetables”
A rather high humidity keep fruits and
vegetables fresh and juicy.
●When set to “ Med ” , the temperature may vary slightly depending on the usage conditions.
13
Refrigerator
compartment
Freezer
compartment
Extra Cool
Zone
Vegetable
case
Fruit case
ARAH0A106620_EN.indd 13ARAH0A106620_EN.indd 13 5/22/2562 BE 14:115/22/2562 BE 14:11

Operation
To use all features
14
Using Tips
Do not stuff food into
the compartments.
That may
interfere
with the
cold air flow.
Provide
sufficient space
between foods.
Store warm food and
drinks after they have
cooled.
Otherwise,
they will not
only raise the
interior temperature,
but also affect the
freshness of other foods.
Do not block the cold
air outlet with food
items!
If cool air does
not spread into
every corner of
compartments,
then the interior
will not be
sufficiently cooled and
more electricity will be
consumed.
When condensation
occurs.
Open the ventilation hole
to allow the heat inside
the vegetable case to
be evaporated.
This can reduce
condensation.
(Air outlet)
Basics of energy saving
Save cool air!
Do not put food in the refrigerator when it is not necessary.
A cold dark place will suffice!
It is not necessary to store uncut onions,
potatoes, etc. in the refrigerator (except
during the summer).
Cool just before you eat!
If uncut tropical fruits are cooled down
excessively, they may be discolored or
their vitamin contents may decrease.
Storage using tightly sealed containers is recommended!
●Cut citrus fruits
(→The plastic will be discolored white.)
●Garlicky or other strong smelling vegetables
(→Odors will spread to other nearby food.)
ARAH0A106620_EN.indd 14ARAH0A106620_EN.indd 14 5/22/2562 BE 14:115/22/2562 BE 14:11

Operation
Refrigerator Compartment

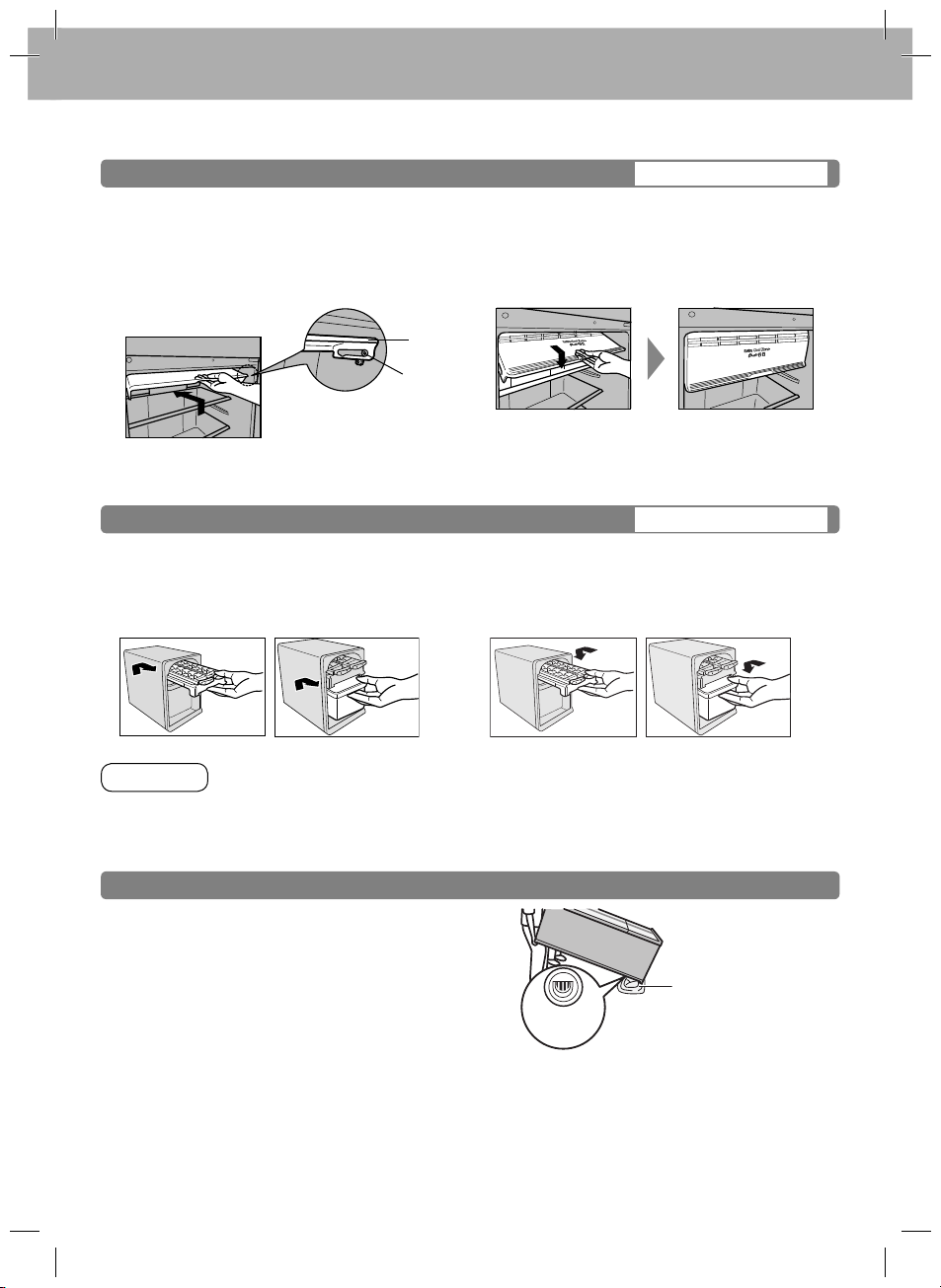

The position of the second tray from the top can be changed
(1) Lift up the back of the PC adjustable
glass tray and pull it forward. Once the
protrusions of the PC adjustable glass
tray are unhooked from rails, tilt the PC
adjustable glass tray and remove it.
Rail
Protrusion
(2) Insert the PC adjustable glass tray in lower
position, so big items can be stored on
upper shelf.
●Glass shelves are heavy.
Please handle them with care so that
they do not fall and cause any damage
or injury.
Close the open door
There are beeps sound if the refrigerator compartment or the freezer compartment
door is remained open as below table.
Please close the door.
Time Alarm
1 minute later Double-beep
3 minutes later 2 double-beep
5 minutes later Continuous double-beep
Using as the Extra Cool Zone
When you do not want to freeze food.
●This room is suitable for storing chilled food or dairy products.
[Example of food to store]
●Chilled food ●Boiled noodle
●Fresh cream ●Cheese
●Yogurt
●Depending on food, it may be frozen partly. Change the position of food or set the
temperature setting of the refrigerator compartment to “Min”.
PC Cover cool zone
PC glass tray
15
ARAH0A106620_EN.indd 15ARAH0A106620_EN.indd 15 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
AppendixOperation
Freezer Compartment Approx. -23 °C ~ -17 °C
●A lot of frozen food and cooked meal can
be stored.
Three tips for freezing food and locking in the flavour...
1. Freeze thin and small items of food quickly!
2. Fully sealed
3. Do not refreeze

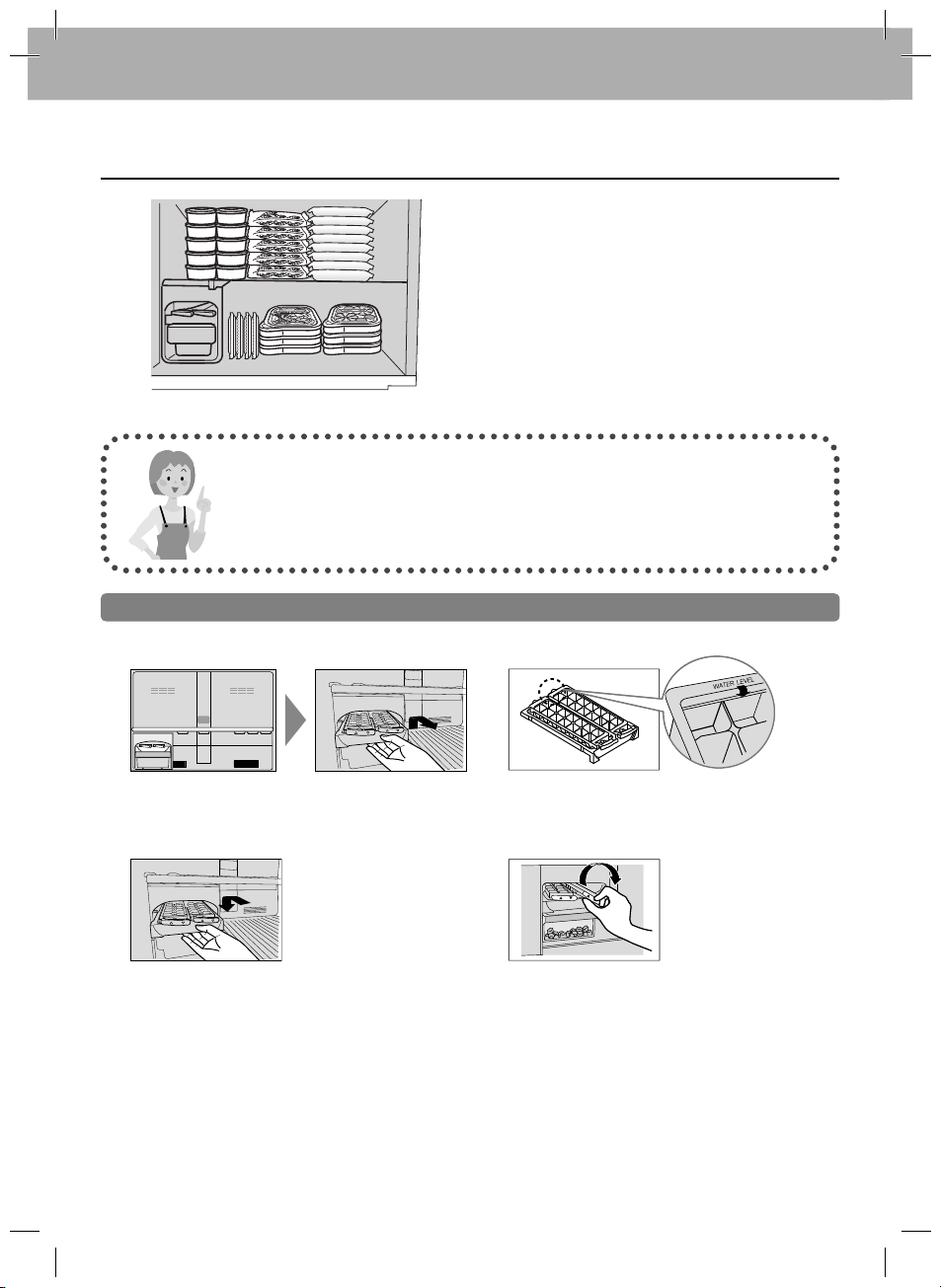

To make ice
1Take out the ice twister
ICE TWISTER
phlE
Pull out the ice twister. (P.19)
2Fill with water
Fill water up to the “WATER LEVEL” line.
3Install the ice twister
Place tray back into the ice making
compartment.
4To move ice cubes
ICE TWISTER
Twist the ice twister clockwise.
(The ice cubes will drop into the ice box.)
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
Frozen food
To use all features
16
ARAH0A106620_EN.indd 16ARAH0A106620_EN.indd 16 5/22/2562 BE 14:115/22/2562 BE 14:11

Appendix
Cleaning, removing and re-installing
Before cleaning or conducting maintenance, be absolutely sure to disconnect the power
plug from the power outlet. Do not connect or disconnect the power plug with wet hands.
When the plug is disconnected, leave it for 10 minutes before plugging again. If not, the
compressor may not work.
Cleaning
Clean the refrigerator immediately after
it is stained!.
Wipe off stains on the
interior surfaces quickly
before they harden.
In particular, cooking oil
may cause plastic to crack
and citrus juice may cause
the refrigerator to become
discolored. When stains
cannot be removed easily,
wipe them with a cloth lightly soaked in neutral
kitchen detergent. Then, wipe with a cloth lightly
dipped in water.
Clean the detachable items occasionally...
Once a week for the
ice twister. As a guide,
remove the trays, door
shelves, etc. and wash
them by immersing them
in lukewarm water every
three months.
Clean the door gasket at
least once a month.
Clean by wiping with a soft damp cloth. Petroleum
gel has been applied to the door gasket on the hinge
side of the unit, be careful not to wipe this off.
Notices
The “door gasket” is replaceable by an authorised service agent.
If the door gasket comes off while cleaning, it can be pushed back into the groove.
Requests
Do not use the following items for cleaning. (Otherwise, the surface will be scratched.)
Alkaline or faintly
Alkaline
Kitchen detergents
(They crack plastic!)
Cleanser or soap
powder
Benzine, thinner, alcohol,
acid, petroleum
Scrubber Hot Water
17
Use lukewarm
water!
Remove and
rinse!
Point where petroleum
gel was applied.
Rub the door surface with a
soft damp cloth.
Rub the control panels with a dry cloth.
ARAH0A106620_EN.indd 17ARAH0A106620_EN.indd 17 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
Appendix
Once every 3 months
PC adjustable glass tray
Removing
1 Lift up the back of the tray until the
protrusions of the PC adjustable glass
tray are unhooked from the rails.
2Pull it forward.
3Tilt the tray and remove it.
Attaching
Push the tray until it reached the end
lock.
111
222
333
Protrusion
Rail
Attention
●When removing the tray above the vegetable case, please pull out the vegetable case
first and then follow to removing the tray as above details.
●Trays are made of glass and heavy.
Please handle them with care so that they do not fall and cause any damage or injury.
For attaching trays, hold them with the protrusion side down and firmly insert.
Once every 3 months
Door shelf/Bottle shelf
Removing
Tap the bottom of the small shelves
upward or slide alternately the left and
right of the big shelves upward, and
raise them slowly. (Tightly attached)
Slide the shelves
upward.
Attaching
Set each shelf horizontally, with the
mark [>PS<] on the right, and push it
down to its proper position.
Once every 3 months
Vegetable case
Removing
1Pull the case unit forward until it
reaches the end of the stopper.
2 Lift the front of the case unit slightly
and remove completely.
111
222
Attaching
1 Insert the case unit into the supports.
2 Raise the case unit up slightly and
push forward until the end is reached.
111
222
Cleaning, removing and re-installing
18
ARAH0A106620_EN.indd 18ARAH0A106620_EN.indd 18 5/22/2562 BE 14:115/22/2562 BE 14:11

Appendix
Once every 3 months
PC cover cool zone
Removing
Lift up the PC cover cool zone and slide it
into the above slot until it reaches the end
of the stopper. Then remove screws to
take off the cover.
PC cover
cool zone
Screws
Attaching
Insert the PC cover cool zone into its slot
and tightening screws. Then slide it out
and pull the cover down.
●Be sure to grab the cover with upturned hand. Otherwise, your hand may accidentally
hit the refrigerator.
Once every 3 months
Ice twister / Ice box
Removing
Unhook the protrusion by lifting it upward
and pulling the ice twister and ice box
forward until completely removed.
ICE BOXICE TWISTER
Attaching
Push the ice twister and ice box until it
reaches the end lock.
ICE BOXICE TWISTER
Attention
●You can disassemble the ice twister and ice box to increase space in the freezer.
When carry or When moving
Evap pan (Backside of the refrigerator)
Place a container (2 cm or less in height)
under the drainage at the bottom of the
back. Tilt the refrigerator backward and
drain water from the drainage. (Tilt slowly
so that water will not spill)
Use clothes etc.
(Water may spill)
Drainage
(Lower rear
part)
19
ARAH0A106620_EN.indd 19ARAH0A106620_EN.indd 19 5/22/2562 BE 14:115/22/2562 BE 14:11

Introduction
Appendix
Troubleshooting
In these cases? Check here.
The refrigerator does
not operate.
● Check that the plug and wall socket are in good condition.
● Check if there is any problem with the mains fuse or house wiring.
● Check by unplugging for 10 minutes and plugging back in.
The refrigerator does
not cool enough.
● Check to be sure that light in control panel is display at proper position (P.11)
● Check to ensure that the refrigerator is not overloaded with foodstuffs or that hot
food have been placed in the refrigerator.
● Is the refrigerator exposed to direct sunlight or a heat source?
● Is the refrigerator door completely closed?
● Is the refrigerator door opened frequently?
Vapor generated
inside and outside
the cabinet / surface
of door.
● Condensation may appear on the surface of the cabinet when humidity is high or
air circulation around the unit is poor.
● If there is condensation inside, check if the door is completely closed.
● Is the refrigerator frequently opened or left open for a long time?
● Have any hot foodstuffs been placed inside the refrigerator?
The refrigerator
generates noise.
● Check if the refrigerator is located on a stable, level floor and is installed correctly.
Use the adjustable bolt if required to level the refrigerator. (P.9)
● Check if there is any object in contact with the refrigerator.
● Cracking sound within caused by the parts adjusting temperature which is normal.
● After installation, the refrigerator may make loud noise.
The noise will be less when the refrigerator has been cooled.
● There may be a whistling sound inside the refrigerator when opening and closing
the door. This is caused by the air outside being drawn in through the pipe on the
backside of the refrigerator to better balance the air circulation inside the unit.
Food becomes
frozen
● Was the food placed near the cold air duct?
● If the temperature control has been set to “Max” try adjusting the temperature
control to the “Min” setting.
● Has the food been placed in the prime fresh case?
20
ARAH0A106620_EN.indd 20ARAH0A106620_EN.indd 20 5/22/2562 BE 14:115/22/2562 BE 14:11
