Panasonic NR-AH143S User manual

Order No. PHAT110101CE
Service Manual
Refrigerator
NR-AH143S
NR-AH183G
NR-AH183M
NR-AH183S
Product Colour
Champagne Gold (GN),Lavender (GV)
Cyan (MA), Magenta (MP)
Silver (MS), Sunny Blue (SA)
Green Mint (SG), Henry Gray (SH)
Destination
S SERIES G - M SERIES
Thailand
© Panasonic Home Appliances (Thailand) Co., Ltd. 2011.
All rights reserved. Unauthorized copying and distribution
is a violation of law.
There are special components used in this equipment which are important for safety. These parts are marked by
in the Schematic Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do
not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
WARNING
The service information is designed for experienced repair technicians only and is not designed for use by the general
public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting
to service a product. Products powered by electricity should be serviced or repaired only by experienced professional
technicians. Any attempt to service or repair the product or products dealt within this service information by anyone
else could result in serious injury or death.
CFCs have been used in refrigerant as refrigerator and the insulation materials for many years. But it
is now known that these compounds which once seemed so ideal for use as cleaning agents and in
refrigeration systems, destroy the earth’s ozone layer as a result, an international body decided on a
total worldwide ban of harmful CFCs by the end of 1995.
(Revision : Nov. 2011)

- 2 -
CONTENT
Page
3
4
5
6
7
8
9
10
11
12 - 13
14 - 15
1. Safety Cautions for Repairing
1.1 Warning
1.2 Caution
2. Specification and Components
3. Schematic Diagram
3.1 Wiring Diagram
3.2 Wiring Connection
4. Performance Data
4.1 NR-AH143
4.2 NR-AH183
5. Disassembly Instruction
5.1 Cover Hinge Top : NR-AH143S / NR-AH183S
5.2 Top Table : NR-AH183G / NR-AH183M
5.3 Hinge Top
6. Parts Exploded View and Replacement Parts List
6.1 Part Exploded View : Body
6.2 Part Exploded View : Door
6.3 Part Exploded View : Packing
6.4 Replacement Parts List : NR-AH143S
6.5 Replacement Parts List : NR-AH183G / NR-AH182M / NR-AH183S
NR-AH143S / AH183G / AH183M / AH183S

- 3 -
1. SAFETY CAUTIONS FOR REPAIRING
When you repair the refrigerator, please kindly take care for the following cautions.
1.1 Warning
Before repairing unit, unplug supply cord
• Before you repair the refrigerator, please unplug the supply cord.
Use authentic parts when repairing
• When you replace the parts, please use authentic parts to replace defective parts.
Caution during brazing
• When you use touch for brazing, please ensure ventilation.
Otherwise, you will be poisoned by carbon monoxide.
Pay attention to using refrigerant
• If refrigerant touches fire, the gas becomes poisonous gas.
Pay attention to getting electricity shock
• When you check the voltage of terminal, please do not touch the electricity part terminal.
• When you replace the parts, please wait for 3 minutes at least for discharging capacitor.
Check safety after repairing
• Check the screws, parts, lead wires to take in place.
• Check the repairing portion whether circumferential parts are damaged or not.
• Check insulation resistance between supply plug and earth.
• When install refrigerator, check condition of supply cord and plug.
• Wipe off the dust on plug.
• Cutting and seal the electric device carefully.
1.2 Caution
Watch the hot parts
• During operation and after operation, compressor and pipes are hot.
• Also, under these condition, heater are hot.
• Do not burn your fingers when you touch it.
Pay attention to refrigerant
• Do not touch liquid refrigerant. Otherwise your hands may be burnt.
Pay attention to edge of parts
• Otherwise, your fingers may be cut.
Pay attention to fins of evaporator and condenser
• Otherwise, your fingers may be cut.
Before transportatin, adjust the bolt
• Otherwise, the floor may be damaged.
Do not touch the pipe after brazing
• Otherwise, your hands may be burnt.
NR-AH143S / AH183G / AH183M / AH183S

- 4 -
2. SPECIFICATION AND COMPONENTS
Model
Destination
Code Attached Model
Colour Name
Material Spec.
Plug
Power Source
Specification
Sealed Unit
SA
Sunny
Blue
SH
Henry
Gray
NR-AH143S
SG
Green
Mint
GN GV
NR-AH183G
Lavender
MA
Side : 50 mm., min. / Back : 100 mm., min. / Top : 300 mm., min.
Level 5
Full automatic temp. Control equipment (Thermostat)
Thailand
PCM
C2P
220V, 50Hz
Cyan
MP
Magenta
MS
Silver
SA
NR-AH183SNR-AH183M
Sunny
Blue
SH
Henry
Gray
SG
Green
Mint
Cham-
pagne
Gold
Evaporator
Compressor
Condenser
Refrigrant Charge
Lubricating Oil
Roll - Bond type
Single wall steel tube (Zinc coat)
R600a, 35 ± 5g.
195 ml. (Freol ∞10)
Capacity Total Volume
Freezer FC
Fresh food PC
EVAP.
PC
Internal Dimension
External Dimension
Net Weight
Installation Space
Energy Level
Temperature Control
Semi automatic (Forcibly evaporated in the air)Defrosting
SPCC-SDExterior Finish (Cabinet)
Vacuum formed ABS resinInner Liner
Cyclopentane foam (shell and door)Insulation
138L 179L
31L 31L
107L 148L
412 x 308 x 220 (mm.) 412 x 308 x 220 (mm.)
Width x Depth x Height Width x Depth x Height
474 x 377 x 756 (mm.) 474 x 377 x 952 (mm.)
572 x 570 x 1007 (mm.) 572 x 570 x 1203 (mm.)572 x 570 x 1220 (mm.)
SF51E47GAW5 SF51E45GAW5
Electric Parts
Motor Compressor
Door Switch PC
Lamp Receptacle
Lamp
Ambient Temp.
PTC Relay
Motor Protector
* Specification subjects to change without notice.
Split-phase induction motor, ES-BR21, 220V / 50Hz / 75W 2 poles
D3D - 121 (Omron), 250V / 0.5A, Switch type S.P. - S.T.
E14 / 22, 250V / 1A
E14 / 22, 240V / 15W
32 ± 1°C
PTH7M330MC1
5TM117NHBYY
27 Kgs. 34 Kgs.
NR-AH143S / AH183G / AH183M / AH183S

- 5 -
3. SCHEMATIC DIAGRAM

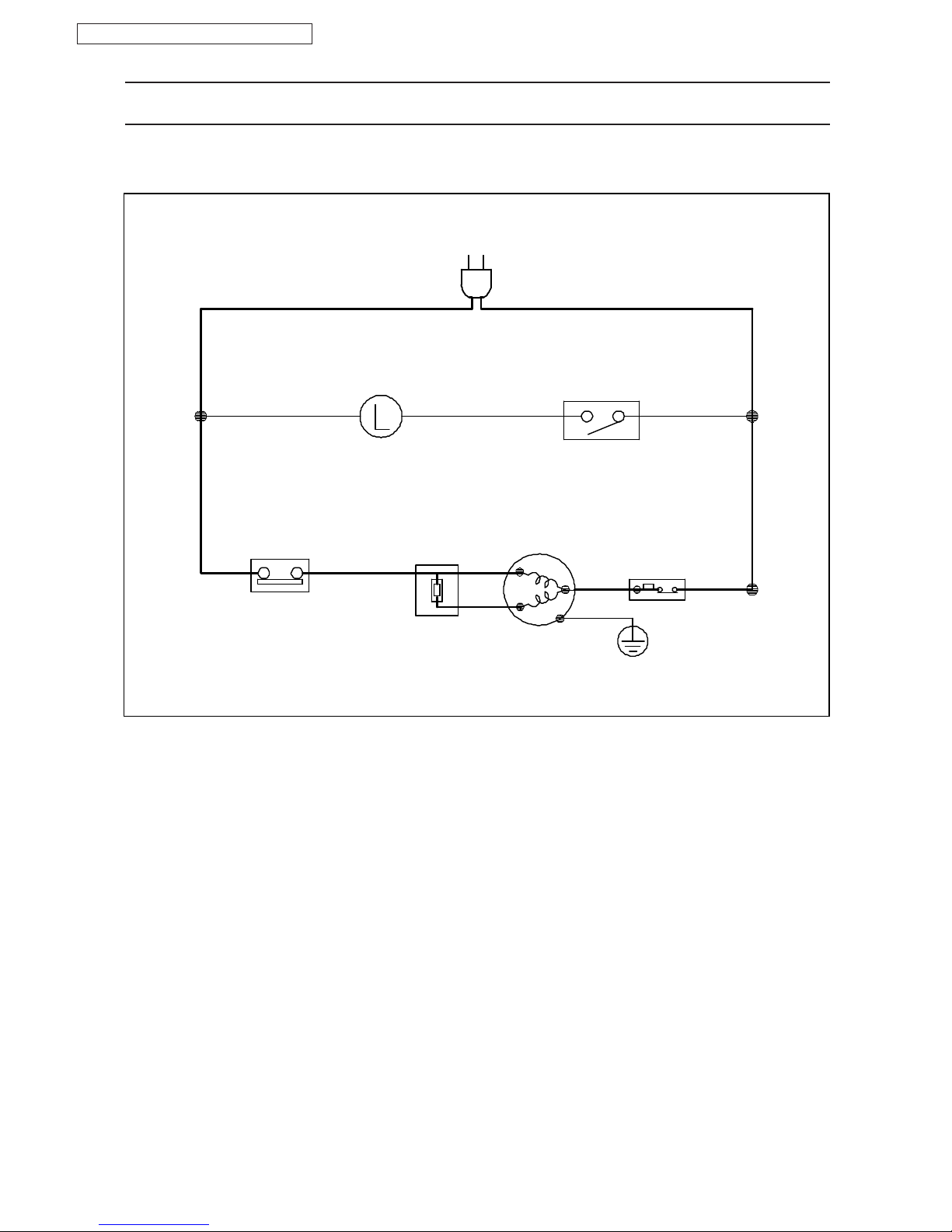

3.1 Wiring Diagram
LAMP
(240V - 15W)
THERMOSTAT
STARTING
RELAY
COMPRESSOR
MOTOR MOTOR
PROTECTOR25
6A
M
C3 1
DOOR
SWITCH
N.C C
brownblue
white
white
gray
black
black
blue
C2P 220V / 50Hz
NR-AH143S / AH183G / AH183M / AH183S

- 6 -
3.2 Wiring Connection
NR-AH143S / AH183G / AH183M / AH183S

- 7 -
4. PERFORMANCE DATA
4.1 NR-AH143S (AT 32 ± 1°C)
Thermostat Dial Setting
Freezer Temperature
Fresh Food Compartment Temperature
Running Ratio
Power Consumption
“ 5 ”
(°C)
(°C)
(%)
(kWh/Day)
“ 3 ” “ 1 ”
-12.5 ± 2.5 -6.5 ± 2.5 -0.5 ± 2.5
-6.0 ± 2.5 -1.0 ± 2.5 4.0 ± 2.5
55 ± 15 35 ± 15
0.9 or under
20 ± 15
4.2 NR-AH183G / NR-AH183M / NR-AH183S (AT 32 ± 1°C)
Thermostat Dial Setting
Freezer Temperature
Fresh Food Compartment Temperature
Running Ratio
Power Consumption
“ 5 ”
(°C)
(°C)
(%)
(kWh/Day)
“ 3 ” “ 1 ”
-14.0 ± 2.5 -6.5 ± 2.5 -0.5 ± 2.5
-5.0 ± 2.5 1.0 ± 2.5 6.5 ± 2.5
60 ± 15 40 ± 15
0.9 or under
25 ± 15
NR-AH143S / AH183G / AH183M / AH183S

- 8 -

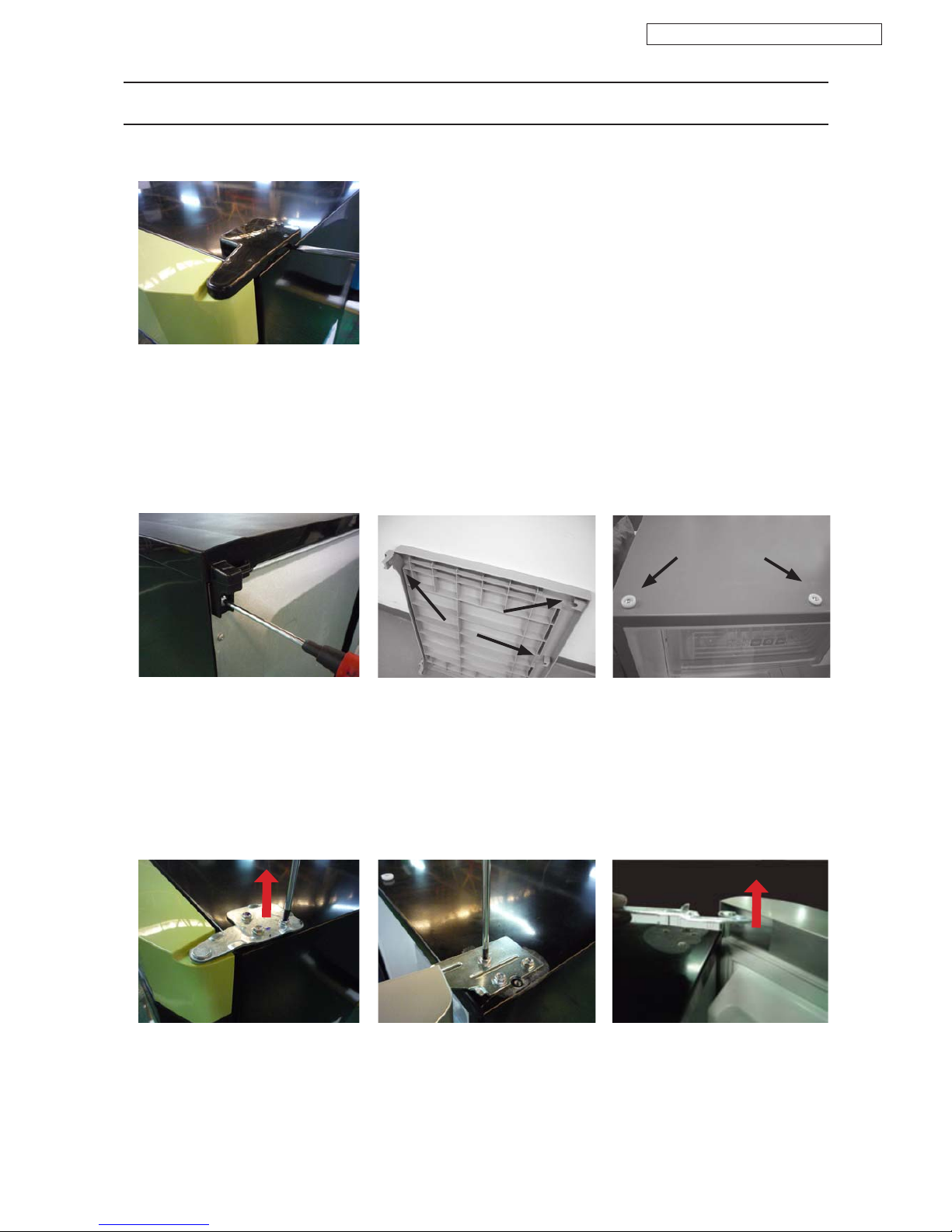

5. DISASSEMBLY INSTRUCTION
5.1 Cover Hinge Top : NR-AH143S / NR-AH183S
5.2 Top Table : NR-AH183G / NR-AH183M
5.3 Hinge Top
- Take out by use screwdriver put at small gap between the cover hinge top with body at arrow mark
and lift it up little.
- Then use hand pull it up slowly.
Fig. 1
- Take out the top panel by remove screws at hanger shells. (Fig. 2)
- Open the door.
- Lift the top panel by pull back a little for unlock from hook. (Fig. 3)
- Lift up the top panel and push it forward for unlock from grill button. (Fig. 4)
- Take out by use screwdriver remove the screws as Fig. 5 and Fig. 6.
- After that lift it up / as Fig. 7 have to lift it until hook loose from hole at Door As.
- When repair it finish / have to tighten screws by control torque 40 ~ 100 kgf.
Fig. 2 Fig. 3 Fig. 4
Fig. 5 (NR-AH143S/183S) Fig. 6 (NR-AH183G/183M) Fig. 7 (NR-AH183G/183M)
NR-AH143S / AH183G / AH183M / AH183S

- 9 -
6. PARTS EXPLODED VIEW AND REPLACEMENT PARTS LIST
6.1 Parts Exploded View : Body
(NR-AH143 x 1PC)
(FOR NR-AH143S/183S)
(FOR NR-AH183G/183M)
Tempered Glass
(FOR NR-AH183G)
(NR-AH183G/183M)
(FOR NR-AH183G)
(FOR NR-AH183)
(NR-AH183G/183M)
22
1 2
3
11
20
(FOR NR-AH143S/183S)
20
19
12
13
14
15
17
16
23
24
25 21
18
41
42
39
40
43
30
31
32
33
44
36
35
37 38
26 27
28
29
34
4
5
10
NR-AH143S / AH183G / AH183M / AH183S
- 9 -
6. PARTS EXPLODED VIEW AND REPLACEMENT PARTS LIST
NR-AH143S / AH183G / AH183M / AH183S
7
6
8
9

- 10 -
6.2 Parts Exploded View : Door
NR-AH143S / AH183G / AH183M / AH183S
NR-AH143 NR-AH183 NR-AH143 NR-AH183
46
49 49
50
50
51
45
51
48
47

Refrigerator
Refrigerator
- 11 -

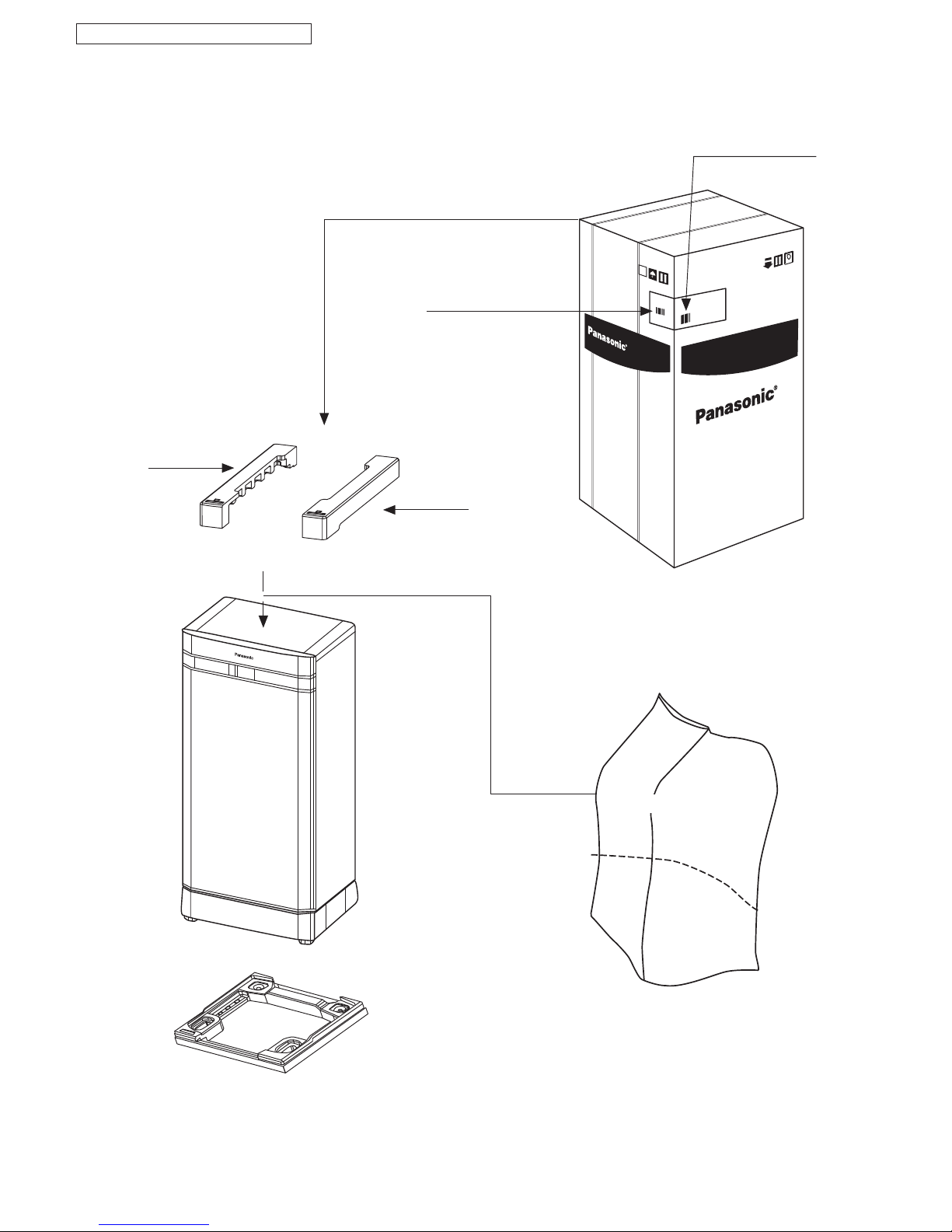

6.3 Parts Exploded View : Packing
PLASTIC COVER
BOTTOM TRAY AS.
NR-AH143S / AH183G / AH183M / AH183S
PACKING AS.
STICKER MODEL NAME
STICKER BAR CODE
TOP PAD R
TOP PAD L

- 12 -
6.4 Replacement Part List : NR-AH143S
Important safety notice :
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
143SA 143SH
MODEL / Q’TY
143SG
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
1
1
1
111
111
111
111
111
111
111
111
111
444
111
111
222
222
111
111
111
111
111
111
111
1
1
1
111
1
1
1
222
222
222
EVAPORATOR1 CNRAF-179933
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer’s specified part.
TRIM EVAP.2
DOOR SW.3
THERMOSTAT4
3.5 TUBE (PVC HT) 4505
THERMO BOX CONTROL AS.6
SOCKET ROOM LAMP AS.7
CNRAF-179911
CNRAG-153290
CNR39-610763
CNRAJ-162670
CNRBH-144140
CNRBG-182550
10-240 LAMP8
DIAL THERMO AS.9
DOOR EVAPORATOR10
TRAY ICE11
S
CNRAG-145270
CNRBH-140180
CNRAF-179921
CNRAH-140750
PLASTIC
PLASTIC
NO HOLE
LAMP SOCKET TYPE
LAMP SOCKET TYPE
COLOR : WHITE
MAKER : PRDT
NR-AH143SATH
NR-AH143SHTH
NR-AH143SGTH
COLOR : BLACK
COLOR : BLACK
NR-AH143SATH
NR-AH143SHTH
NR-AH143SGTH
TYPE : R600a
COLOR : BLACK
COLOR : BLACK
COLOR : BLACK
PLUG : C2P
COLOR : GREEN MINT
COLOR : HENRY GRAY
COLOR : SUNNY BLUE
MEAT TRAY12 CNRAH-272871
TRAY PC13
TRAY PC BOTTOM14
LABEL NAME AS.45
CNRAH-272040
CNRAH-270950
CRISPER15 CNRAH-270961
SCNRBH-142990
S
S
S
S
CNRBH-143000
CNRBH-143010
HINGE BOTTOM17 CNRAE-136091
SHELL & LINER AS. (FOAM)18 CNRBC-345050
COVER HINGE TOP - K19 CNRAE-138990
CNRAE-140580HINGE TOP20
WIRING DIAGRAM AS.25 CNRBH-143031
CNRBH-143051
CNRBH-143041
HEXAGON NUT 826 CNR38-8170A1
SP. WASHER 827 CNR38-4270A0
8 WASHER28 CNR38-4170A0
COMPRESSOR SF51E47GAW529 CNR91-105570
5 DRYER W30
MOTOR PROTECTOR 5TM117NHBYY31
S
S
S
CNR39-340920
SCNR06-598540
PTC RELAY PTH7M330MC132
PROTECTOR COVER33
CNR06-592680
CNRGD-036540
RUBBER GROMMET
34
PLATFORM F - K35
PLATFORM S - K36
PLATFORM B - K37
CNR01-219932
CNRAH-248001
CNRAH-248700
CNRAH-248251
HEXAGON 8 BOLT 4038
HARNESS AS. WIRE (MAIN)40
CNR38-9924A0
CNRBG-176960
BOX CAPACITOR AS.41 CNRBG-166090
BOX CAPACITOR42
COVER BOX CAPACITOR43
EARTH AS. COMP. 27044
LABEL HC BACK - THAI16
GASKET DOOR46
DOOR AS. (FOAM) - SG
47
EMBLEM48
CNRAG-158932
CNRAG-158942
CNRBG-163470
CNRAH-269300
CNRAD-300741
DOOR AS. (FOAM) - SA CNRBD-358890
DOOR AS. (FOAM) - SH CNRBD-358900
CNRBD-358910
CNRAD-339801
111
TRAY EGG 849 CNRAD-350530
NR-AH143S / AH183G / AH183M / AH183S

- 13 -
Parts List
Packing List
Screws
REF.
NO. PART NAME PART NO. SAFETY REMARK
143SA 143SH
MODEL / Q’TY
143SG
143SA 143SH 143SG
143SA 143SH 143SG
111
111
50
51
SHELF EGG
SHELF BOTTLE
CNRAD-338090
CNRAD-338100
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
444
111
333
666
222
TRUSS 4 TS 12 (SUS) CNR38-114351
CNR38-114351 FIX TRIM EVA.
FIX THERMO BOX CONTROL
FIX HINGE TOP
FIX PLATFORM
FIX HINGE BOTTOM
HEXAGON H. 5TS 12
HEXAGON H. 5TS 16
CNR38-191551
CNR38-191551
CNR38-191561
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
1
1
1
111
111
111
111
111
PACKING AS. NR-AH143SATH
NR-AH143SHTH
NR-AH143SGTH
THAI LANGUAGE
CNRBK-124880
BOTTOM TRAY AS.
PLASTIC COVER
TOP PAD L
TOP PAD R
CNRBK-124890
CNRBK-124900
CNRBK-124760
CNRAJ-162050
CNRAK-139181
CNRAK-139191
INSTRUCTION BOOK
S
S
S
CNRAK-152940
NR-AH143S / AH183G / AH183M / AH183S

- 14 -
6.5 Replacement Part List : NR-AH183S, NR-AH183M, NR-AH183G
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
183SA 183SH 183SG 183MA 183MP 183MS 183GN 183GV
11111111
MODEL / Q’TY
1
2
3
HAVE HOLE
PLASTIC
TEMPERED GLASS
COLOR : BLACK
COLOR : BLACK
COLOR : BLACK
NR-AH183SATH
NR-AH183SGTH
NR-AH183MATH
NR-AH183MPTH
NR-AH183MSTH
NR-AH183GNTH
NR-AH183GVTH
TYPE : R600a
COLOR : BLACK
COLOR : BLACK
NR-AH183SHTH
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
11111111
1S
S
S
S
S
S
S
1111111
11111111
11111111
11111111
11111111
11111111
11111111
11111111
111
11111111
11111
222222
2
11111111
11111111
11111111
111
11111
1111
1
1
1
11111
1
1
22222222
22222222
22222222
11111111
22222
11111111
11111111
11111111
11111111
11111111
22222222
44444444
1
1
1
1
1
1
1
1
2
26
27
28
29
30
31
32
33
34
EVAPORATOR
TRIM EVAP.
DOOR SW.
THERMOSTAT
3.5 TUBE (PVC HT) 450
THERMO BOX CONTROL AS.
SOCKET ROOM LAMP AS.
10-240 LAMP
DIAL THERMO AS.
DOOR EVAPORATOR
TRAY ICE
MEAT TRAY
TRAY PC
GLASS TRAY AS.
TRAY PC BOTTOM
CRISPER
HINGE BOTTOM
SHELL & LINER AS. (FOAM)
HINGE TOP
HINGE TOP AS.
BUTTON GRILL FRONT
HEXAGON NUT 8
SP. WASHER 8
8 WASHER
COMPRESSOR SF51E45GAW5
5 DRYER W
MOTOR PROTECTOR 5TM117NHBYY
PTC RELAY PTH7M330MC1
PROTECTOR COVER
RUBBER GROMMET
CNRAF-179933
CNRAF-179911
CNRAG-153290
CNR39-610763
CNRAJ-162670
CNRBH-144140
CNRBG-182550
CNRAG-145270
CNRBH-140180
CNRAF-179921
CNRAH-140750
CNRAH-272031
CNRAH-272040
CNRBH-140571
CNRAH-270950
CNRAH-270961
16 11111111
LABEL HC BACK - THAI CNRAH-269300
CNRAE-136091
CNRBC-345020
111
111
COVER HINGE TOP - K CNRAE-138990
CNRBC-344840
CNRAE-140580
CNRBE-108741
TOP TABLE - K CNRAH-289500
AG CLEAN CASE CNRAH-272170
AG BIO FILTER CNRAH-245521
CNRAJ-112920
CNRBH-142971
CNRBH-142981
CNRBH-142921
CNRBH-142911
CNRBH-142901
CNRBH-142881
CNRBH-142891
24
25 WIRING DIAGRAM AS. CNRBH-142961
CNR38-4270A0
CNR38-8170A1
CNR38-4170A0
CNR91-105580
CNR39-340920
CNR06-598540
CNR06-592680
CNRGD-036540
CNR01-219932
35 PLATFORM F - K CNRAH-248001
36 PLATFORM S - K CNRAH-248700
NR-AH143S / AH183G / AH183M / AH183S
LAMP SOCKET TYPE
LAMP SOCKET TYPE
MAKER : PRDT
111
PLUG : C2P
COLOR : BLACK37 11
S
11 1
22222222
111
111
111
11111
11111
11111
11111111
PLATFORM B - K
HEXAGON 8 BOLT 40 CNR38-9924A0
CNRAH-248251
38
PAN WATER EVA. CNRBF-15035039
HARNESS AS. WIRE (MAIN) CNRBG-17696040
BOX CAPACITOR AS. CNRBG-16609041
BOX CAPACITOR CNRAG-15993242
1111111143 COVER BOX CAPACITOR CNRAG-158942

- 15 -
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
183SA 183SH 183SG 183MA 183MP 183MS 183GN 183GV
183SA 183SH 183SG 183MA 183MP 183MS 183GN 183GV
183SA 183SH 183SG 183MA 183MP 183MS 183GN 183GV
MODEL / Q’TY
COLOR : SUNNY BLUE
COLOR : GREEN MINT
COLOR : CYAN
COLOR : MAGENTA
COLOR : SILVER
COLOR : CHAMPAGNE GOLD
COLOR : LAVENDER
COLOR : HENRY GRAY
11111111
11111111
11111111
11111111
11111111
1
1
1
1
1
1
1
1
22222222
44 EARTH AS. COMP. 270 CNRBG-163470
GASKET DOOR CNRAD-30071246
DOOR AS. (FOAM) - SA CNRBD-358800
48
47
EMBLEM CNRAD-339801
49 TRAY EGG 8 CNRAD-350530
50 SHELF EGG CNRAD-338090
51 SHELF BOTTLE CNRAD-338100
DOOR AS. (FOAM) - SH CNRBD-358810
DOOR AS. (FOAM) - SG CNRBD-358820
DOOR AS. (FOAM) - MA CNRBD-358580
DOOR AS. (FOAM) - MP CNRBD-358570
DOOR AS. (FOAM) - MS CNRBD-358560
DOOR AS. (FOAM) - GN CNRBD-358540
DOOR AS. (FOAM) - GV CNRBD-358550
NR-AH143S / AH183G / AH183M / AH183S
Screws
REF.
NO. PART NAME PART NO. SAFETY REMARK
44444444
MODEL / Q’TY
FIX TRIM EVA.
FIX THERMO BOX CONTROL
FIX AG CLEAN CASE
FIX BUTTON GRILL FRONT
FIX TOP TABLE
FIX PLATFORM
FIX HINGE BOTTOM
11
22222
22222
22222222
11111111
FIX HINGE TOP33333333
66666666
11111111
11111111
111
11111
111
11111
1111111
1
1
1
1
1
1
1
1
TRUSS 4 TS 12 (SUS) CNR38-114351
CNR38-114351
CNR38-114351
TRUSS 4 TS 10
TRUSS 5 TS 18
HEXAGON H. 5TS 12
CNR38-1156A1
CNR38-191551
HEXAGON H. 5TS 16 CNR38-191561
CNR38-191551
CNRAJ-160900
Packing List
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
NR-AH183SATH
NR-AH183SHTH
NR-AH183SGTH
NR-AH183MATH
NR-AH183MPTH
NR-AH183MSTH
NR-AH183GNTH
NR-AH183GVTH
THAI LANGUAGE
S
S
S
S
S
S
S
S
PACKING AS. CNRBK-124810
CNRBK-124820
CNRBK-124750
CNRBK-124730
BOTTOM TRAY AS.
PLASTIC COVER
CNRBK-124710
CNRBK-124720
CNRBK-124760
CNRAJ-162040
TOP PAD L CNRAK-139181
CNRAK-140592
TOP PAD R CNRAK-139191
CNRAK-140602
INSTRUCTION BOOK CNRAK-152940
CNRBK-124740
CNRBK-124830
NR-AH183SATH
NR-AH183SGTH
NR-AH183MATH
NR-AH183MPTH
NR-AH183MSTH
NR-AH183GNTH
NR-AH183GVTH
NR-AH183SHTH
45 S
S
S
S
S
S
S
S
1
1
1
1
1
1
1
1
LABEL NAME AS. CNRBH-142930
CNRBH-142940
CNRBH-142950
CNRBH-142870
CNRBH-142850
CNRBH-142860
CNRBH-142830
CNRBH-142840

- 16 -
NR-AH143S / AH183G / AH183M / AH183S
2 REVISE PARTS NO. & NAME AT REF. NO. 4,
6, 7, 8
FOR USE PARTS OF LAMP SOCKET TYPE12, 14
1 REVISE PICTURES OF THERMO BOX
CONTROL AS.
CHANGE LAMP SCREW TYPE TO LAMP
SOCKET TYPE
9NOV. 2011
REVISION REMARKDETAILPAGEITEM NO.
DETAIL CHANGE NOTICE
