Panasonic K-EF134L01E User manual

HD IR Vari-focal Dome Network Camera
Quick Start Guide
Model No. K-EF134L01E
Version 1.0.0

i
Welcome
Thank you for purchasing our Network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
Important Safeguards and Warnings
1
．
Electrical safety
All installation and operation here should conform to your local electrical safety codes.
Please check if the power supply is correct before operating the device.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC, DC5V or AC24V in the IEC60950-1. (Power supply requirement is
subject to the device label).
Please install easy-to-use device for power off before installing wiring, which is for emergent power off
when necessary.
Please prevent the line cord from being trampled or pressed, especially the plug, power socket and the
junction from the device.
Note: Do not connect these two power supplying sources to the device at the same time; it may
result in device damage!
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2
．
Environment
Please don’t aim the device at strong light (such as lighting, sunlight and so on) to focus; otherwise it
may cause overexposure (It is not the device malfunction), which will affect the longevity of CCD or
CMOS.
Please transport, use and store the device within the range of allowed humidity and temperature.
Please don’t keep the device in a place which is wet, dusty, extremely hot, and extremely cold and with
strong electromagnetic radiation or unstable lighting.
Please do not allow water and other liquid falling into the camera in case that the internal components
are damaged.
Please do not allow rain or damp to the indoor device in case fire or lightning may occur.
Please keep the sound ventilation in case of heat accumulation.
Please pack the device with standard factory packaging or material with same quality when transporting
the device.
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3. Operation and Daily Maintenance
Please do not touch the heat dissipation component of the device directly in order to avoid scald.

ii
Please do not dismantle the device; there is no component which can be fixed by users themselves in
the machine. It may cause water leakage or bad image for the device due to unprofessional dismantling.
It is recommended to use the device with thunder proof device in order to improve thunder proof effect.
The grounding holes of the product are recommended to be grounded to further enhance the reliability
of the camera.
Do not touch the CCD (CMOS) optic component directly. You can use the blower to clean the dust or
dirt on the lens surface. Please use a dry cloth wetted by alcohol to wipe away the dust gently if it is
necessary to clean.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device. Don’t use volatile solvent like alcohol, benzene, thinner and etc or strong detergent with
abrasiveness, otherwise it will damage the surface coating or reduce the working performance of the
device.
Dome cover is an optical device, please don’t touch or wipe cover surface directly during installation
and use, please refer to the following methods to deal with once dirt is found:
Stained with dirt
Use oil-free soft brush or hair dries to remove it gently.
Stained with grease or fingerprint
Use soft cloth to wipe the water drop or oil gently to make it dry, then use oil-free cotton cloth or paper
soaked with alcohol or detergent to wipe from the lens center to outward. It is ok to change the cloth
and wipe several times if it is not clean enough.
Warning
Please use the standard accessories provided by manufacturer and make sure the device is installed
and fixed by professional engineers.
Please prevent the device surface from the radiation of laser beam when using laser beam device.
Please do not provide two or more power supply modes for the device, otherwise it may cause damage
to the device.
Statement
Please refer to the actual product for more details; the manual is just for reference.
The manual will be regularly upgraded according to the product update; the upgraded content will be
added in the manual without prior announcement.
Please contact the supplier or customer service if there is any problem occurred when using the device.
Please contact the customer service for the latest procedure and supplementary documentation.
There may be deviation between the actual value of some data and the value provided in the manual
due to the reasons such as the real environment is not stable and so on. Please refer to the company’s
final explanation if there is any doubt or dispute.
The company is not liable for any loss caused by the operation which is not followed by the manual.

iii
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name Amount
Network Camera Unit 1
Quick Start Guide 1
Installation Accessories Bag 1
CD 1

iv
Table of Contents
1Structure ..................................................................................................................................... 1
1.1 Components.................................................................................................................. 1
1.2 Framework and Dimension......................................................................................... 2
2Device Installation ..................................................................................................................... 3
2.1 Installation Steps .......................................................................................................... 3
3Quick Configuration Tool ..............................................................................................5
3.1 Overview ...........................................................................................................5
3.2 Operation ..........................................................................................................5
4Web Operation .............................................................................................................7
4.1 Network Connection..........................................................................................7
4.2 Login and Main Interface...................................................................................7

1
1
Structure
1.1
Components
You can refer to the following figure for component structure. See Figure 1-1.
Figure 1-1 Component structure
Please refer to the following sheet for detailed information.
Component Component Name
Component 1 Dome body
Component 2 Dome enclosure
Port Port Name Note
Port 3 Internet access port Network data in/out and PoE.
Port 4 Power input port Connect to DC 12V power, input power.

2
1.2
Framework and Dimension
Please refer to the following two figures for dimension information. The unit is mm. See Figure 1-2
Figure 1-2 Dimension illustration

3
2
Device Installation
Important
• Make sure that the installation area is strong enough to hold the product, such as a
concrete ceiling.
• Install the camera in the foundation area of the architecture or where sufficient strength
is assured.
• If a wall or ceiling board such as plasterboard is too weak to support the total weight, the
area shall be sufficiently reinforced.
Please see Figure 3-1 and Figure 3-2.
2.1
Installation Steps
Figure 2-1
Please follow the steps listed below to install the device. Please refer to Figure 2-1 for reference.
Step 1
Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner hex
screws on enclosure.
Step 2
Please take the installation position map in the accessories bag, and then paste it on the ceiling or the
wall according to your monitor area requirements and use a pen to mark the positions of the screws
and cable mounting hole in the ceiling or wall.
Note:
If use pulls out cable from top of installation surface, you must dig an exit hole on installation
surface according to the installation position map.

4
If user pulls out cable from side of cable channel, it must go through the U-shape channel on
dome pedestal, and take out cable from the side exit hole on pedestal.
Step3
Adjust the device installation pedestal to the proper position and then pull cable through the exit hole
on Installation surface. Make direction of TOP sign same as it on installation position map. Remove
the installation template label and attach the camera with 3 screws (locally procured).
Fix dome body on installation surface.
Step 4
Hold rotating bracket on both sides with hand, horizontally rotate bracket, adjusting lens horizontal
direction to designated position. Loosen two hand screws on both sides of fixed rotating bracket.
(Loosen only, do not take it down), hold the camera module body with hand, making lens rotate
vertically. Adjust vertical direction of lens to appropriate angle, and fasten the M2 screw. Range of lens:
vertical (0°～+75°), horizontal (0°～+355°). See Figure 2-2.
Then, please adjust the viewing angle and focus.
Notes:
・Viewing angle and focus adjustments shall be performed together with camera angle adjustment.
・Refer to the operation manual (included in the CD-ROM) for how to perform the zoom and focus
settings from system menu.
Figure 2-2
Step 5
Take dome enclosure, put it back on the camera properly regarding to screw and hole, and fasten the
three inner hex screws with wrench.

5
3 Quick Configuration Tool
3.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
3.2 Operation
Step 1
Double click the “ConfigTools.exe” icon; you can see an interface is shown as in Figure 3-.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.
Step 2
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 3-1.
Select the “Open Device Web” item; you can go to the corresponding web login interface.

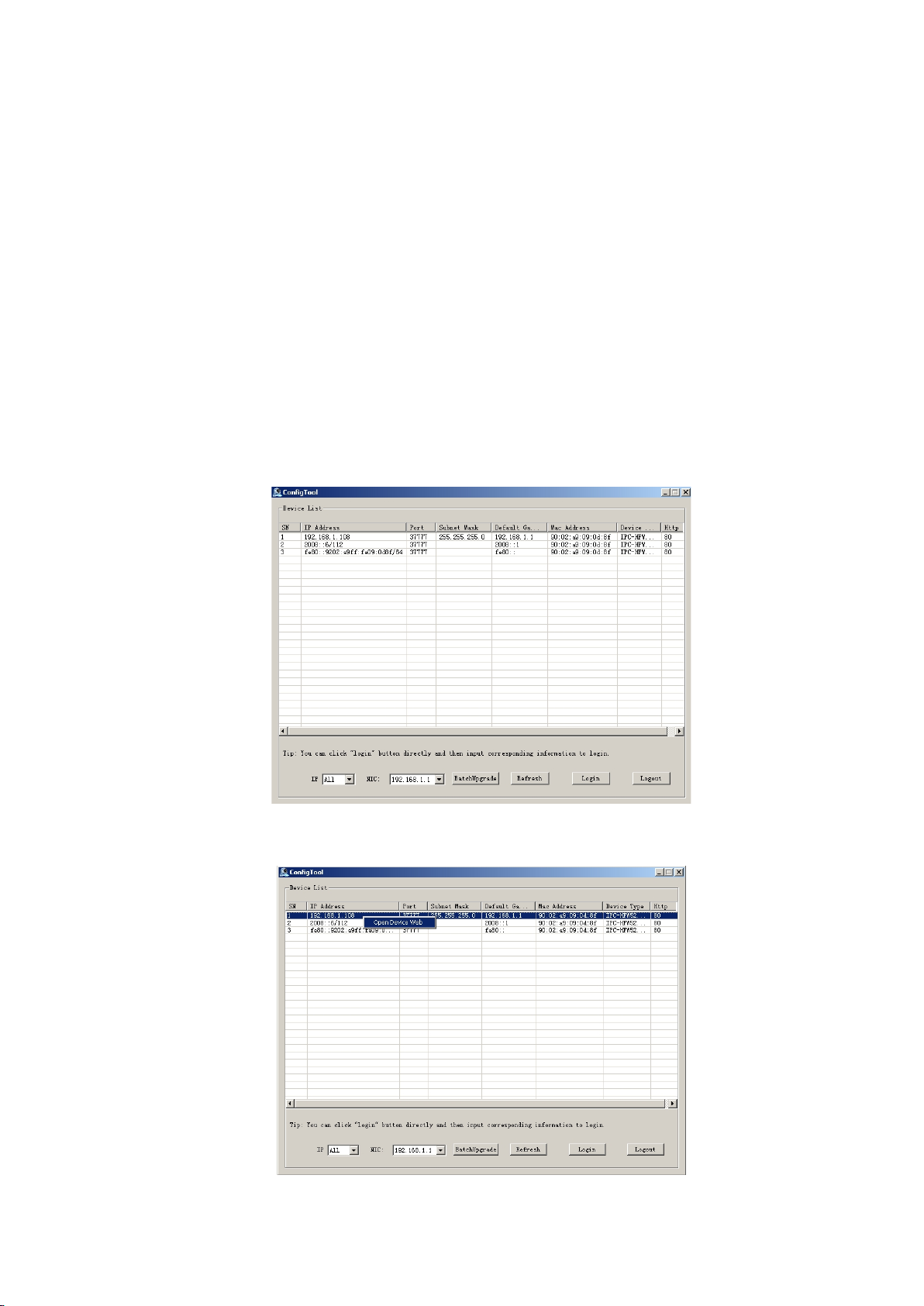

Figure 3-1 Search interface
Figure 3-1 Search interface 2

6
Step 3
If you want to modify the device IP address without logging in the device web interface, you can go to
the configuration tool main interface to set.
In the configuration tool search interface (Figure 3-), please select a device IP address and then
double click it to open the login interface. Or you can select an IP address and then click the Login
button to go to the login interface. See Figure 3-3.
In Figure 3-3, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in Web
Network interface. Otherwise, you cannot login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.
After you logged in, the configuration tool main interface is shown as below. See Figure 3-4.
Figure 3-3 Login prompt
Figure 3-4 Main interface
For detailed information and operation instruction of the quick configuration tool, please refer
to the Quick Configuration Tool User’s Manual included in the resources CD.

7
4 Web Operation
This series network camera products support the Web access and management via PC.
Web includes several modules: Monitor channel preview, system configuration, alarm and etc.
4.1 Network Connection
Please follow the steps listed below for network connection.
Make sure the network camera has connected to the network properly.
Please set the IP address, subnet mask and gateway of the PC and the network camera
respectively. Network camera default IP address is 192.168.0.10. Subnet mask is 255.255.255.0.
Gateway is 192.168.0.1
Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.
4.2 Login and Main Interface

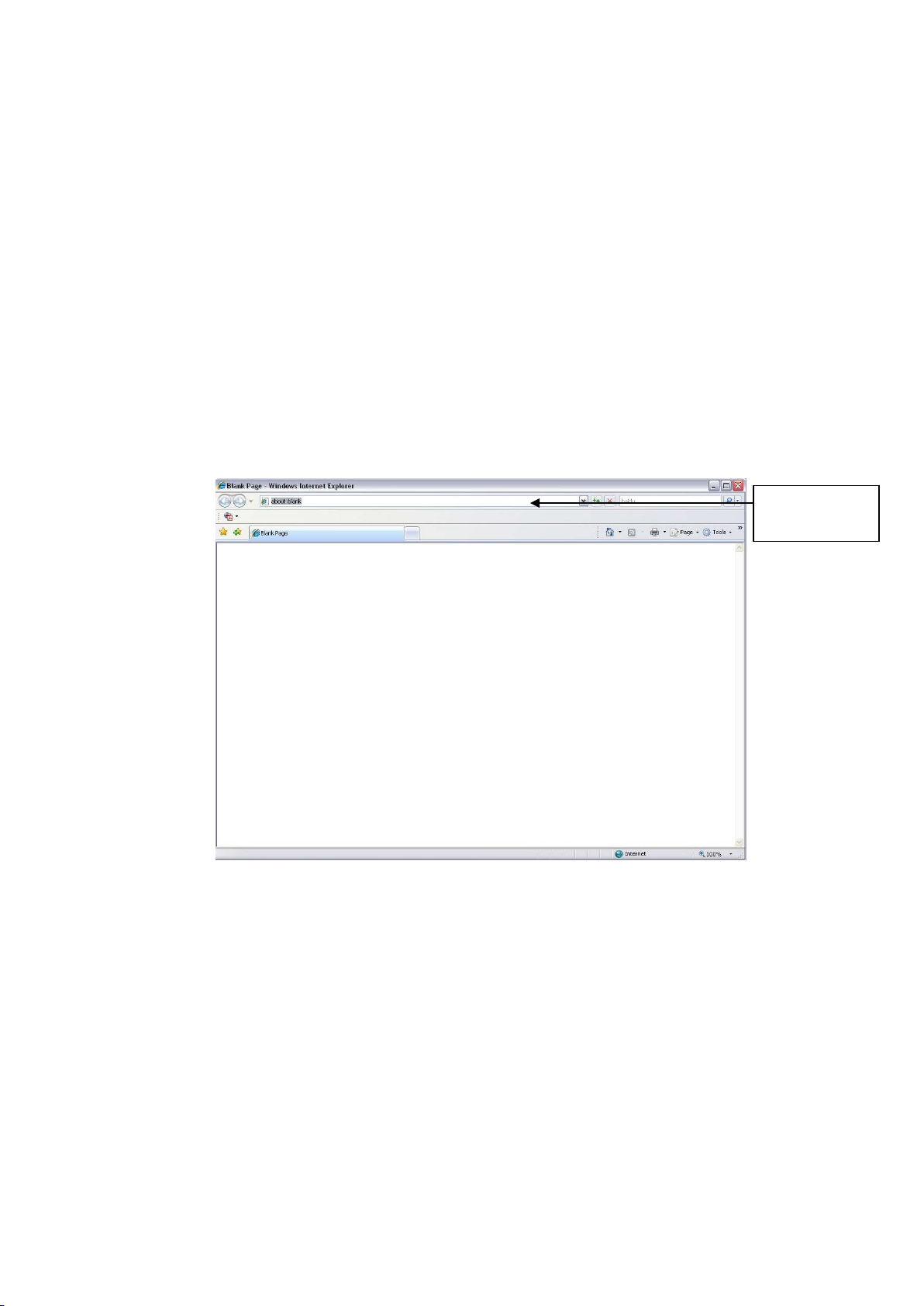

Open IE and input network camera address in the address bar. See Figure 4-1.
Figure 4-1 IP address
The login interface is shown as below. See Figure 4-2.
Please input your user name and password.
Default factory name(ID) is admin and password(PWD) is 12345.
Note: For security reasons, please modify your password after you first login.
Input your IP
address here

8
Figure 4-2 Web login
If it is your first time to log in, system pops up warning information to ask you whether install web plug-
in or not after you logged in for one minute. For detailed plug-in installation, please refer to the Web
Operation Manual included in the resource CD.
After you logged in, you can see the main window.
Please refer to the Web Operation Manual included in the resource CD for detailed operation
instruction.
Note
This quick start guide is for reference only. Slight difference may be found in user interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
