Panasonic WV-CW384E User manual

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Operating Instructions
Color CCTV Cameras
Model Nos. WV-CW384E
WV-CW380/G
WV-CW384
WV-CW384 is shown above.
FRANÇAIS DEUTSCH ENGLISHESPAÑOLITALIANOêìëëäàâ

2
ENGLISH VERSION
CAUTION:
An ALL-POLE MAINS SWITCH with a contact separation of at
least 3 mm in each pole shall be incorporated in the electrical
installation of the building.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to
persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
Before attempting to connect or operate this product, please
read the label on the bottom.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and mainte-
nance (servicing) instructions in the litera-
ture accompanying the appliance.
WARNING:
• This apparatus must be earthed.
• All work related to the installation of this product should be made
by qualified service personnel or system installers.
• The connections should comply with local electrical code.
We declare under our sole responsibility that the product to which this
declaration relates is in conformity with the standards or other normative
documents following the provisions of Directives 2006/95/EC and
2004/108/EC.
Wij verklaren als enige aansprakelijke, dat het product waarop deze
verklaring betrekking heeft, voldoet aan de volgende normen of andere
normatieve documenten, overeenkomstig de bepalingen van Richtlijnen
2006/95/EC en 2004/108/EC.
Vi erklærer os eneansvarlige for, at dette produkt, som denne
deklaration omhandler, er i overensstemmelse med standarder eller
andre normative dokumenter i følge bestemmelserne i direktivene
2006/95/EC og 2004/108/EC.
Vi deklarerar härmed värt fulla ansvar för att den produkt till vilken
denna deklaration hänvisar är i överensstämmelse med
standarddokument, eller andra normativa dokument som framställs i
direktiv nr. 2006/95/EC och 2004/108/EC.
Ilmoitamme yksinomaisella vastuullamme, että tuote, jota tämä ilmoitus
koskee, noudattaa seuraavia standardeja tai muita ohjeellisia asiakirjoja,
jotka noudattavat direktiivien 2006/95/EC ja 2004/108/EC säädöksiä.
Vi erklærer oss alene ansvarlige for at produktet som denne erklæringen
gjelder for, er i overensstemmelse med følgende normer eller andre
normgivende dokumenter som følger bestemmelsene i direktivene
2006/95/EC og 2004/108/EC.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CARE-
FULLY.
WARNING: This apparatus must be earthed.
IMPORTANT
The wires in this mains lead are coloured in accordance with the follow-
ing code.
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wire in the mains lead of this appliance may
not correspond with the coloured markings identifying the terminals in
your plug, proceed as follows.
The wire which is coloured green-and-yellow must be connected to
the terminal in the plug which is marked with the letter Eor by the earth
symbol Ior coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal
in the plug which is marked with the letter Nor coloured black.
The wire which is coloured brown must be connected to the termi-
nal in the plug which is marked with the letter Lor coloured red.
For U.K.
Turn the power off at the mains to disconnect the main power
for all unit.

3
Important Safety Instructions ...........................................................................................................................................................4
Limitation of Liability ........................................................................................................................................................................5
Disclaimer of Warranty ....................................................................................................................................................................5
Preface ............................................................................................................................................................................................6
Features ..........................................................................................................................................................................................6
Precautions ......................................................................................................................................................................................7

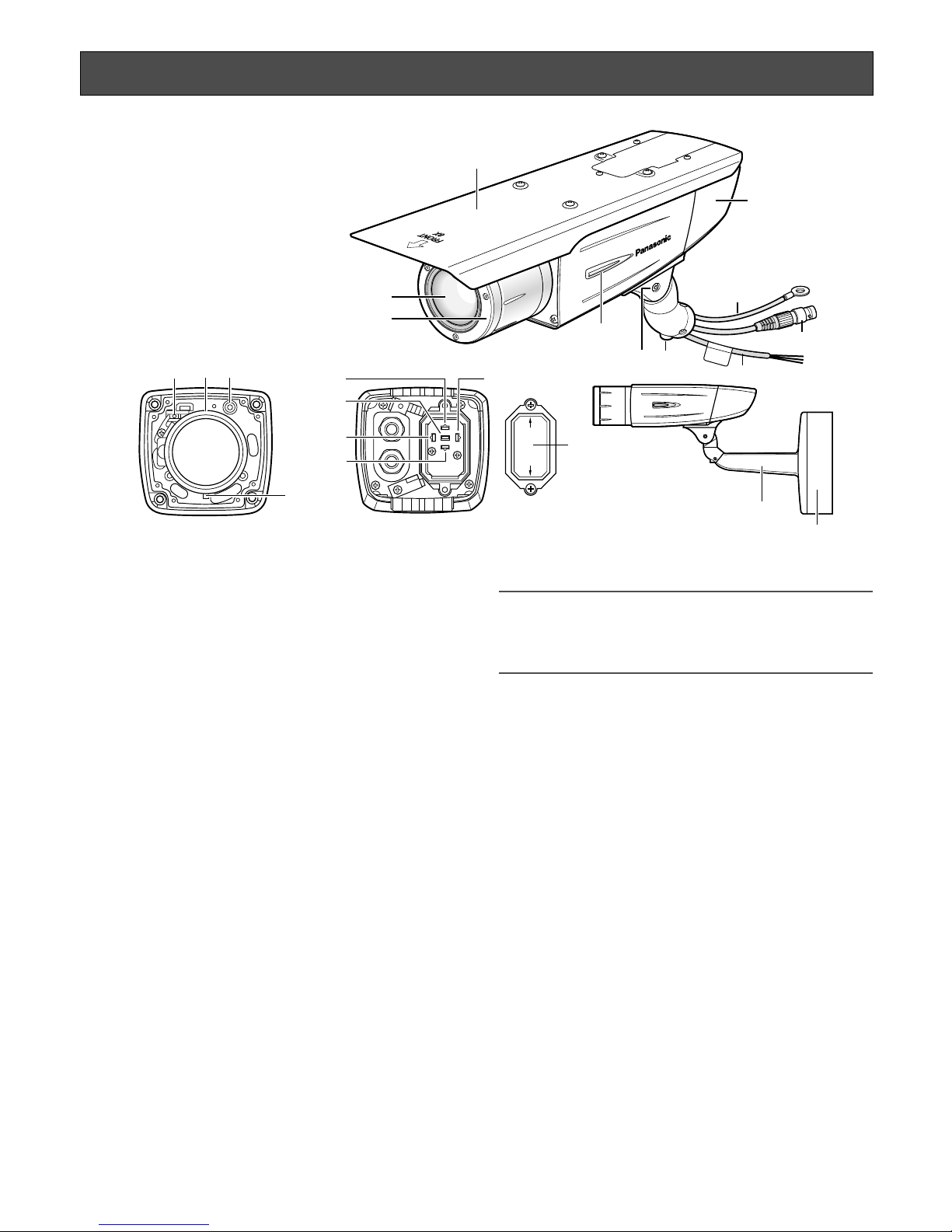

Major Operating Controls and Their Functions ................................................................................................................................8
Precautions for Installation ..............................................................................................................................................................9
Installations/Connections ...............................................................................................................................................................10
■Preparations .........................................................................................................................................................................10
■Camera installation ...............................................................................................................................................................10
About Setup Menus .......................................................................................................................................................................21
■Basic operation .....................................................................................................................................................................22
Setting Procedures ........................................................................................................................................................................23
Language Setup (LANGUAGE SETUP) ....................................................................................................................................23
1. Camera Identification Setting (CAMERA ID) .......................................................................................................................23
2. Light Control Mode Setting (ALC) ........................................................................................................................................24
3. Shutter Speed Setting (SHUTTER) ......................................................................................................................................25
4. Gain Control Setting (AGC) ..................................................................................................................................................26
5. Electronic Sensitivity Enhancement (SENS UP) ..................................................................................................................26
6. Synchronization Setting (SYNC) ..........................................................................................................................................26
7. White Balance Setting (WHITE BAL) ...................................................................................................................................27
8. Motion Detection Setting (MOTION DET) ............................................................................................................................27
9. Digital Noise Reduction Setting (DNR) .................................................................................................................................29
10. Resolution Setting (RESOLUTION) .....................................................................................................................................29
11. Black and White Mode Setting (BW MODE) ........................................................................................................................29
12. Privacy Zone Setting (PRIVACY ZONE) ..............................................................................................................................30
13. Electronic Zoom (EL-ZOOM) ................................................................................................................................................30
14. Auto Image Stabilizer (STABILIZER) ...................................................................................................................................31
15. LED Setting (LED) ................................................................................................................................................................31
16. Back-focus Setting (BACK-FOCUS SETUP) .......................................................................................................................31
17. Special Menu (SPECIAL SETUP) ........................................................................................................................................32
Troubleshooting .............................................................................................................................................................................34
Specifications ................................................................................................................................................................................35
Standard Accessories ....................................................................................................................................................................36
CONTENTS
ENGLISH

4
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Clean only with dry cloth.
6) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
8) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
9) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
10) Only use attachments/accessories specified by the manufacturer.
11) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
12) Unplug this apparatus during lightning storms or when unused for long periods of time.
S3125A

5
Limitation of Liability
THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WAR-
RANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WAR-
RANTIES OF MERCHANTABILITY, FITNESS FOR ANY PAR-
TICULAR PURPOSE, OR NON-INFRINGEMENT OF THE
THIRD PARTY'S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INAC-
CURACIES OR TYPOGRAPHICAL ERRORS.
CHANGES ARE ADDED TO THE INFORMATION HEREIN,
AT ANY TIME, FOR THE IMPROVEMENTS OF THIS PUBLI-
CATION AND/OR THE CORRESPONDING PRODUCT (S).
Disclaimer of Warranty
IN NO EVENT SHALL Panasonic Corporation BE LIABLE
TO ANY PARTY OR ANY PERSON, EXCEPT FOR
REPLACEMENT OR REASONABLE MAINTENANCE OF
THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT
LIMITED TO BELOW:
(1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIM-
ITATION, DIRECT OR INDIRECT, SPECIAL, CONSE-
QUENTIAL OR EXEMPLARY, ARISING OUT OF OR
RELATING TO THE PRODUCT;
(2) PERSONAL INJURY OR ANY DAMAGE CAUSED BY
INAPPROPRIATE USE OR NEGLIGENT OPERATION
OF THE USER;
(3) UNAUTHORIZED DISASSEMBLE, REPAIR OR MODIFI-
CATION OF THE PRODUCT BY THE USER;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN
IMAGES ARE NOT DISPLAYED, DUE TO ANY REASON
OR CAUSE INCLUDING ANY FAILURE OR PROBLEM
OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE,
OR LOSS OR DAMAGE, ARISING OUT OF THE SYS-
TEM COMBINED BY THE DEVICES OF THIRD PARTY;
(6) ANY CLAIM OR ACTION FOR DAMAGES, BROUGHT
BY ANY PERSON OR ORGANIZATION BEING A PHO-
TOGENIC SUBJECT, DUE TO VIOLATION OF PRIVACY
WITH THE RESULT OF THAT SURVEILLANCE-CAMER-
A'S PICTURE, INCLUDING SAVED DATA, FOR SOME
REASON, BECOMES PUBLIC OR IS USED FOR THE
PURPOSE OTHER THAN SURVEILLANCE.

6
Preface
Panasonic's WV-CW384 and WV-CW380 cameras introduce high picture quality by use of Super-Dynamic 1/3-inch type {1/3"}
CCD and digital signal processing LSIs. These cameras are designed for installation on the wall or the ceilling, using the sup-
plied camera mount bracket.
Features
Introduction of SUPER-D3 (super dynamic function)
Integration of SUPER-D3 into the CCD and signal processing circuit has achieved approximately 160 times higher dynamic
range as compared with conventional camera. Therefore, a photographic subject on which much illuminance difference exists
resulting from bright and dark areas can be naturally displayed in an image.
Auto back focus function (ABF) equipped
The back focus adjustment can be performed through the operation buttons on this unit and the setup menu.
The back focus can be remotely adjusted through the system controller (option) even after installation of this unit. The auto
back focus function also allows users to correct out of focus when changing between color and black-and-white images.
High sensitivity achieved thanks to noise reduction function
The introduction of low noise circuit design has achieved excellently high sensitivity resulting in the minimum illuminance of
0.65 lx in the color mode and 0.09 lx in the black-and-white mode.
Night monochrome image activation function equipped
No operation is required at night because the image automatically changes from the color mode to the black-and-white mode
at low illuminance.
Motion detector function equipped
If motion is observed in the monitor, the camera is covered with a cloth, a cap, or the like, or the camera direction is changed
during monitoring, an alarm signal is provided.

7
This product has no power switch.
Power is supplied from an external 12 V DC/24 V AC (WV-
CW384) or 220 V to 240 V AC (WV-CW380) power-supply
device. Refer to service personnel for how to turn on/off the
power.
To keep on using with stable performance
• Parts of this product may deteriorate and it may shorten
lifetime of the product when using in locations subject
to high temperatures and high humidity.
Do not expose the product to direct heat such from a
heater.
• Use this product at temperature within –30 °C to
+50 °C* and humidity below 90 %.
* –10 °C to +50 °C at 12 V DC
Do not drop metallic parts through slots.
This could permanently damage this product. Turn the
power off immediately and contact qualified service per-
sonnel for service.
Do not rub the edges of metal parts with your hand.
Failure to observe this may cause injury.
Do not attempt to disassemble this product.
To prevent electric shock, do not remove screws or covers.
There are no user-serviceable parts inside.
Ask qualified service personnel for servicing.
Handle this product with care.
Do not abuse this product. Avoid striking, shaking, etc.
The product could be damaged by improper handling or
storage.
Cleaning this product body
Turn the power off when cleaning the product. Use a dry
cloth to clean the product. Do not use strong abrasive
detergent when cleaning the product body. When the dirt is
hard to remove, use a mild detergent and wipe gently.
Then, wipe off the remaining detergent with a dry cloth.
Otherwise, it may cause discoloration. When using a chemi-
cal cloth for cleaning, read the caution provided with the
chemical cloth product.
Clean the lens with care.
Do not clean the lens with strong or abrasive detergents.
Use lens tissue or a cotton tipped applicator and ethanol.

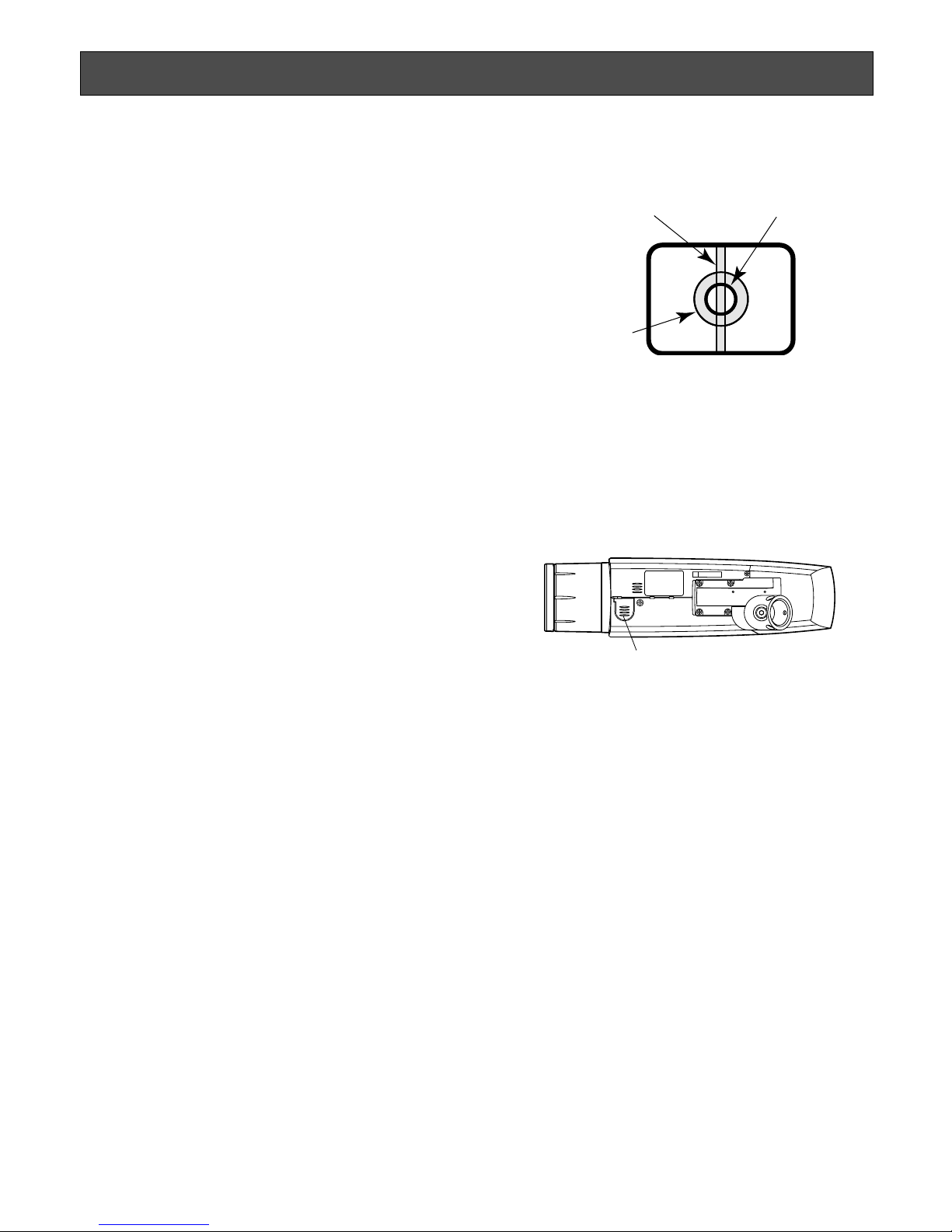

Discoloration on the CCD color filter
When continuously shooting a bright light source such as a
spotlight, the color filter of the CCD may have deteriorated
and it may cause discoloration.
Even when changing the fixed shooting direction after con-
tinuously shooting a spotlight for a certain period, the dis-
coloration may remain.
Precautions
Do not aim this product at strong light sources.
A light source such as a spot light causes a blooming (light
bleeding) or a smear (vertical lines).
About the dehumidifying device
• This product has dehumidifying device to keep the
inside at low moisture level, preventing condensation
and quickly dissipating dew if produced.
• Dew may be produced depending on the conditions of
temperature, humidity, winds, and rain, and it may take
time to dehumidify.
• Never seal the surfaces of the dehumidifying device.
Turn the circuit breaker off which supplies this product
with the power when abnormal conditions are encoun-
tered.
Do not operate this product beyond the specified tem-
perature, humidity or power source ratings.
Use this product at temperature within –30 °C to +50 °C*
and humidity below 90 %. The input power source is 12 V
DC/24 V AC (WV-CW384) or 220 V to 240 V AC (WV-
CW380).
* –10 °C to +50 °C at 12 V DC
Use at low temperatures
• To operate the camera at temperatures of –10 °C or
lower, it will take 30 minutes or more after turning on the
power to warm up the camera.
• Images may be disturbed because the built-in heater is
automatically toggled between ON and OFF resulting
from a change in usage environment.
What to do if OVER HEAT appears on the display.
This message indicates that the inside of this product has
become extremely hot. Immediately turn off the product
and contact your dealer.
Smear Bright subject
Blooming
Dehumidifying device

8
qMonitor output jack
(ø3.5 mm mini jack (monaural))
Connects to a monitor for adjustment to adjust the view
angle and focus.
wZoom adjustment ring
Adjusts the zoom position. (☞page 16)
eAuto back focus button
Activates the auto back focus function.
rFocus lock knob
Locks the focal point. (☞page 16)
tSunshield (accessory)
yFront glass
uLens cover
Protects the lens. The lens cover is removed at lens
adjustment. After lens adjustment, the fixing screws
shall be securely tightened. (☞page 15)
iLED
Lights, blinks, or goes off depending on settings. (☞
page 31)
oTilting lock screw
Locks the tilt position. (☞page 15)
!0 Panning lock screw
Locks the panning position. (☞page 15)
!1 Power cord
Caution:
• This cord supplies 12 V DC/24 V AC (WV-CW384) or
220 V to 240 V AC (WV-CW380) from an external power
source.
!2 Video output cable
!3 Safety wire
!4 Rear cover
!5 Switch cover
This cover is removed at operating the operation but-
tons. After the button operation, the fixing screws shall
be securely tightened. (☞page 17)
!6 - @0 Operation buttons
!6 Up button (UP)
!7 Right button (RIGHT)
!8 Down button (DOWN)
!9 Left button (LEFT)
@0 Set button (SET)
@1 Camera mount bracket (accessory)
@2 Adapter box (accessory)
Major Operating Controls and Their Functions
ewq !6
@0
!8
!9
!7
!5
t
y
ui
o!0
!2
!3
!4
r
@2
@1
!1

9
Installing place
Contact your dealer for assistance if you are unsure of an
appropriate place in your particular environment.
Make sure that the installation area is strong enough to hold
this product, such as a concrete ceiling. When the installa-
tion area is not strong enough, reinforce and strengthen it.
Avoid installing this product in the following locations.
• Locations where a chemical agent is used such as a
swimming pool
• Locations subject to steam and oil smoke such as a
kitchen
• Locations near flammable gas or vapor
• Locations where radiation or x-ray emissions are pro-
duced
• Locations subject to strong magnetic field or radio
waves
• Locations where corrosive gas is produced
• Locations where it may be damaged by briny air such
as seashores
• Locations where the temperature is not within –30 °C to
+50 °C*.
* –10 °C to +50 °C at 12 V DC
• Locations subject to vibrations (This product is not
designed for on-vehicle use.)
Be sure to remove this product if it is not in use.
White balance
White balance may be not adjusted appropriately in the fol-
lowing cases.
• When a subject is extremely less white or nearly single
colored
• When a subject is in the outdoors in the morning or
evening or in the low illuminance state
• When a subject is in the atmosphere of extremely differ-
ent color temperature (e.g. under color illumination)
Keep the video output cable away from the lighting
cable.
Failure to observe this may cause noise.
Radio interference
When this product is used near TV/radio antenna, strong
electric field or magnetic field (near a motor or a trans-
former), images may be distorted and noise sound may be
produced. In such a case, run the camera cable through
specialized conduit tubes.
Mounting screws
Only the fixing screws are provided to fix this product with
the provided mount bracket. It is necessary to procure
screws or bolts to mount the product. Prepare them
according to the material and strength of the area where
the product is to be installed.
The screws and bolts must be tightened with an appropri-
ate tightening torque according to the material and strength
of the installation area. After tightening the screws or bolts,
perform visual check to ensure tightening is enough and
there is no backlash.
Piping for cables
If this product is operated outdoors, be sure to install con-
necting tubes and run the cables through the tubes to pro-
tect the cables from being frozen or direct sunlight.
Precautions for Installation

10

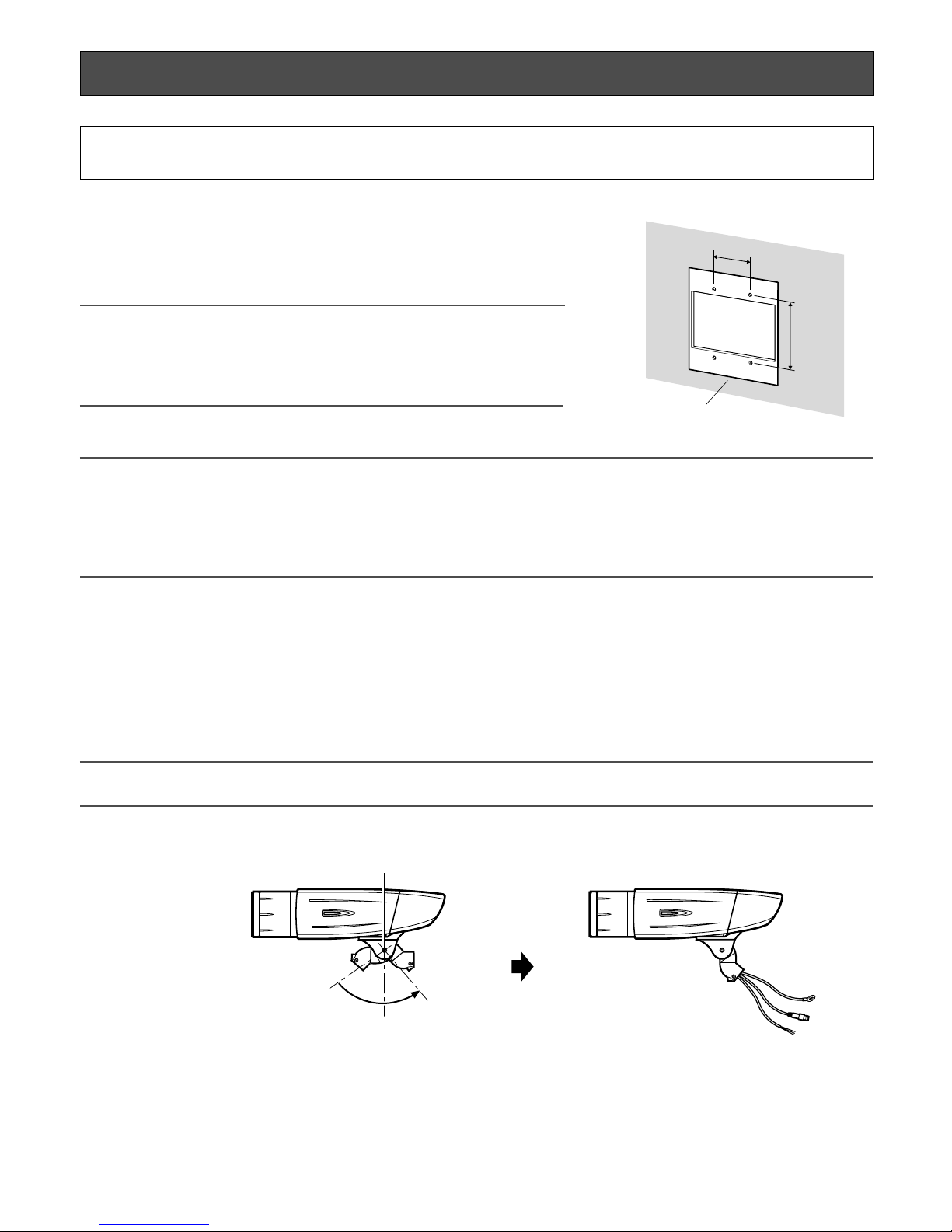

■Preparations
The camera can be mounted either of the following ways.
• To mount the camera directly on the wall
• To mount the camera on the wall using a adapter box
Note:
• The screws that secure the camera mount bracket on a wall are not sup-
plied. Prepare the screws according to the material, structure, strength
and other factors of the mounting area and the total weight of objects to
be mounted.
Important:
• Prepare the mounting screws according to the material of the area where the camera mount bracket is to be installed. In
this case, wood screws and nails should not be used. Recommended tightening torque M4: 1.6 N·m
• Required pull-out capacity of a single screw/bolt is 196 N or more.
• If a ceiling board such as plaster board is too weak to support the total weight, the area shall be sufficiently reinforced.
• When using the provided adapter box, make sure that the drain slits do not face upward.
■Camera installation
zSecure the camera to the camera mount bracket
The tilt angle is locked downward at shipment.
1. Loosen the tilting lock screw approx. 1 rotation and adjust the tilt angle of the camera to the horizontal position.
2. Tighten the tilting lock screw again after tilt angle adjustment.
Note:
• Use a hexagonal wrench with width across flats of 4 mm (locally procured) to loosen or tighten the tilting lock screw.
3. Pass the video output cable, power cord and safety wire through the camera mount bracket from the camera side to the
wall side and use the cable clamp to bundle the cables and wire.
Installations/Connections
Caution:
ONLY CONNECT THIS TO 24 V AC OR 12 V DC CLASS 2 POWER SUPPLY. (WV-CW384)
46 mm
83.5 mm
Junction box (locally procured)
[Mounting position on the wall]
Tilting lock screw
Camera main body
Approx. 90 °

11
4. Secure the camera to the camera mount bracket with the 3 camera fixing screws (accessories).
5. Remove the screw from the mounting boss for safety wire of the camera mount bracket and secure the safety wire with the
screw.
Important:
• Ensure that the safety wire is firmly secured. Recommended tightening torque: 0.59 N·m
Important:
<Waterproof treatment>
• To install this product outdoors, be sure to
waterproof the cables. The camera main
body is waterproof, but the mount bracket
and adapter box are not waterproof.
• To install this product outdoors, use water-
proof silicon rubber or the like to apply
waterproof treatment to the camera mount
bracket, adapter box, cable access hole,
screw holes, and screws.
• To install this product on a wall, face the drain slit of the camera mount bracket downward. Do not block the drain slit.
Do not waterproof the drain slit, either.
• Be sure to use the supplied waterproof tape at the connection parts of the power cord and video output cable to apply
waterproof treatment.
<How to wind the supplied waterproof tape>
• Stretch the tape by approx. twice (see the illustration at right) and
wind it around the cables. Insufficient tape stretch causes insuffi-
cient waterproofing.
• Wind the cable with tape in a half-overlapping manner.
Camera main body
Camera fixing screw x3 (M4 x 8) (accessories)
Camera mount bracket
Video output cable
Safety wire
Power cord
Cable clamp
Drain slit
Camera mount bracket
Mounting boss for safety wire
Power cord
Video output cable
Power cord
Video output cable
Stretch the tape to approx. twice.
Twice in length

12

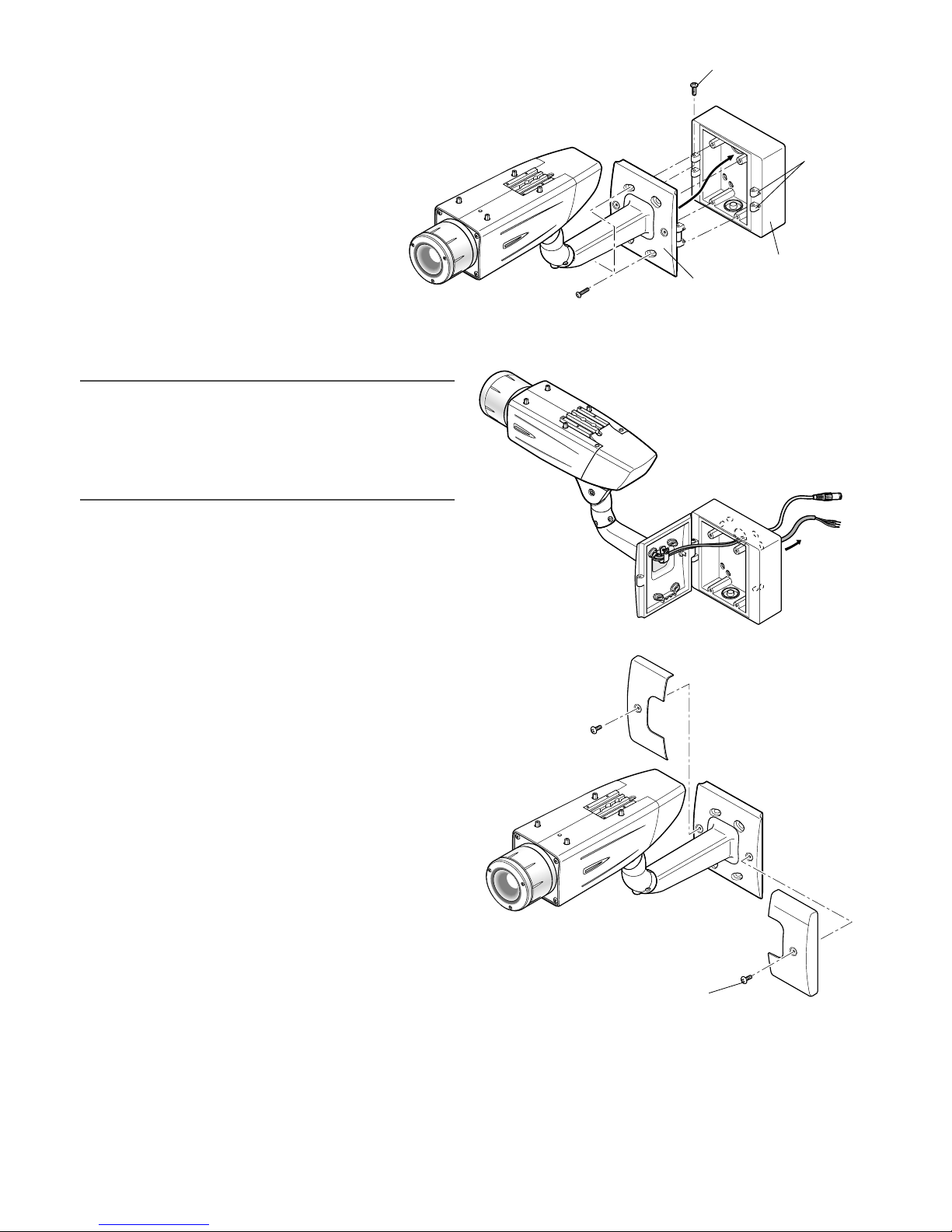

xSecure the camera mount bracket
• When the camera is directly installed on a wall
Use 4 screws (locally procured) to secure the camera
mount bracket to a wall or a junction box (locally pro-
cured).
Mounting screw x4 (locally procured)
Camera mount bracket
22 mm
46 mm
83.5 mm
Cable access hole
6 mm (W) x 10 mm (L)
(long hole)
Mounting screw x4 (locally procured)
Junction boxes
Camera mount bracket
46 mm
83.5 mm
6 mm (W) x 10 mm (L)
(long hole)
If a junction box is used, putting the boxes side by side
is recommended as shown in the illustration at right. (for
easy cable passing)
• When the camera is installed on a wall using the
adapter box
1. Use 4 screws (locally procured) to secure the adapter
box to a wall or a junction box (locally procured).
• If a junction box is used, putting the boxes side by side
is recommended as shown in the illustration at right.
(for easy cable passing)
46 mm
22 mm
83.5 mm
24.5 mm
Hole 6 mm (W) x 10 mm (H)
Cable access hole (used for wiring)
(G3/4" internal thread)
Mounting screw x4
(locally procured)
Center of
adapter box
Cable access hole
Adapter box
46 mm
83.5 mm
Mounting screw x4
(locally procured)
Junction boxes
Hole
6 mm (W) x 10 mm (H)

13
2. Attach the camera mount bracket to the left
or right hinges of adapter box.
Mount bracket
Adapter box
Hinges
Mounting screw for adapter box/
camera mount bracket x4 (M5 x 20)
Adaptor box mounting screw (M4 x 35)
cSecure the mount bracket covers to the
camera mount bracket with the 2 mount
bracket cover screws (accessories).
Mount bracket cover screw x2
(M3 x 6) (accessories)
Camera mount
bracket
Mount bracket cover x2
Note:
• The right or left hinges of the adapter box shall be
selected so as to prevent the motion of the camera
mount bracket from being interfered with by obstruc-
tions such as a wall when the camera mount bracket is
connected to the hinges of the adapter box.

<WV-CW380>
Wire Color
Brown 220 V to 240 V AC (L)
Blue 220 V to 240 V AC (N)
Green/Yellow To GND
14
Video output connection
The video output connector is connected to the monitor or
other system devices with a coaxial cable (locally pro-
cured).
The maximum extensible length is shown in the table.
* When using 12 V DC power supply,
the heater is unavailable.
•To 24 V AC or 12 V DC power
supply (WV-CW384)
•To 220 V to 240 V AC power
supply (WV-CW380)
Video output cable
(WV-CW384: Approx. 72 cm
WV-CW380: Approx. 72 cm)
Brown (Live)
Blue (Neutral)
Green/Yellow (GND) To GND
BNC connector
BNC connector
To VIDEO IN
Power cord (WV-CW384: Approx. 72 cm,
WV-CW380: Approx 165 cm)
BNC connector
vMake a connection
Recommended
maximum cable
length
RG-15/U
(10C-2V)
800
RG-11/U
(7C-2V)
RG-6/U
(5C-2V)
RG-59/U
(3C-2V)
Type of coaxial cable
m 600500250
Wire Color 24 V AC 12 V DC
Brown 24 V AC (L) Positive
Blue 24 V AC (N) Negative
Green/Yellow To GND To GND
• ONLY CONNECT THIS TO 24 V AC or 12 V DC CLASS
2 POWER SUPPLY.
• To prevent fire or electric shock hazard, the UL listed
wire VW-1 style 1007 should be used for the cord for
Input Terminals.
• Do not use a transformer larger than 10 VA.
Cord length and wire gauge
<WV-CW384>
24 V AC
The recommended cord length and copper wire size are
shown in the table for reference.
The voltage supplied to the camera should be between
19.5 V AC and 28 V AC.
Copper wire
size (AWG)
Wire length
(Approx.)
#24
(0.22 mm2)
20
#22
(0.33 mm2)
30
#20
(0.52 mm2)
45
#18
(0.83 mm2)
75
Recommended wire gauge for 24 V AC line.
m
12 V DC
The recommended resistance and copper wire size are
shown in the table for reference.
The voltage supplied to the camera should be between
10.5 V DC and 16 V DC.
Copper wire
size (AWG)
Resistance (Ω/m)
#24
(0.22 mm2)
0.078
#22
(0.33 mm2)
0.050
#20
(0.52 mm2)
0.03
#18
(0.83 mm2)
0.018
Resistance of copper wire [at 20 °C]
Power connection
Caution:
• The following connections should be made by qualified
service personnel or system installers in accordance
with NEC 725-51.
• Wire colors & functions
Camera power cord
<WV-CW384>
Cautions:
• Be sure to connect the GND (grounding) lead of the
camera and grounding terminal of the power supply
when using a 24 V AC (WV-CW384) or 220 V to 240 V
AC (WV-CW380) power source.
• Shrinking the cord-entry seal is a onetime procedure.
Do not shrink the cord-entry seal until it has been ascer-
tained that unit is functioning.
"L", "R", "VA", and "I" shall satisfy the inequality below.
10.5 V DC ≤VA- 2(R x I x L) ≤16 V DC
L : Cord length (m)
R : Resistance of copper wire (Ω/m)
VA: DC output voltage of power supply unit
I : DC current consumption (A). See the specification.
Important:
• When using 12 V DC power supply, the heater is
unavailable.

15

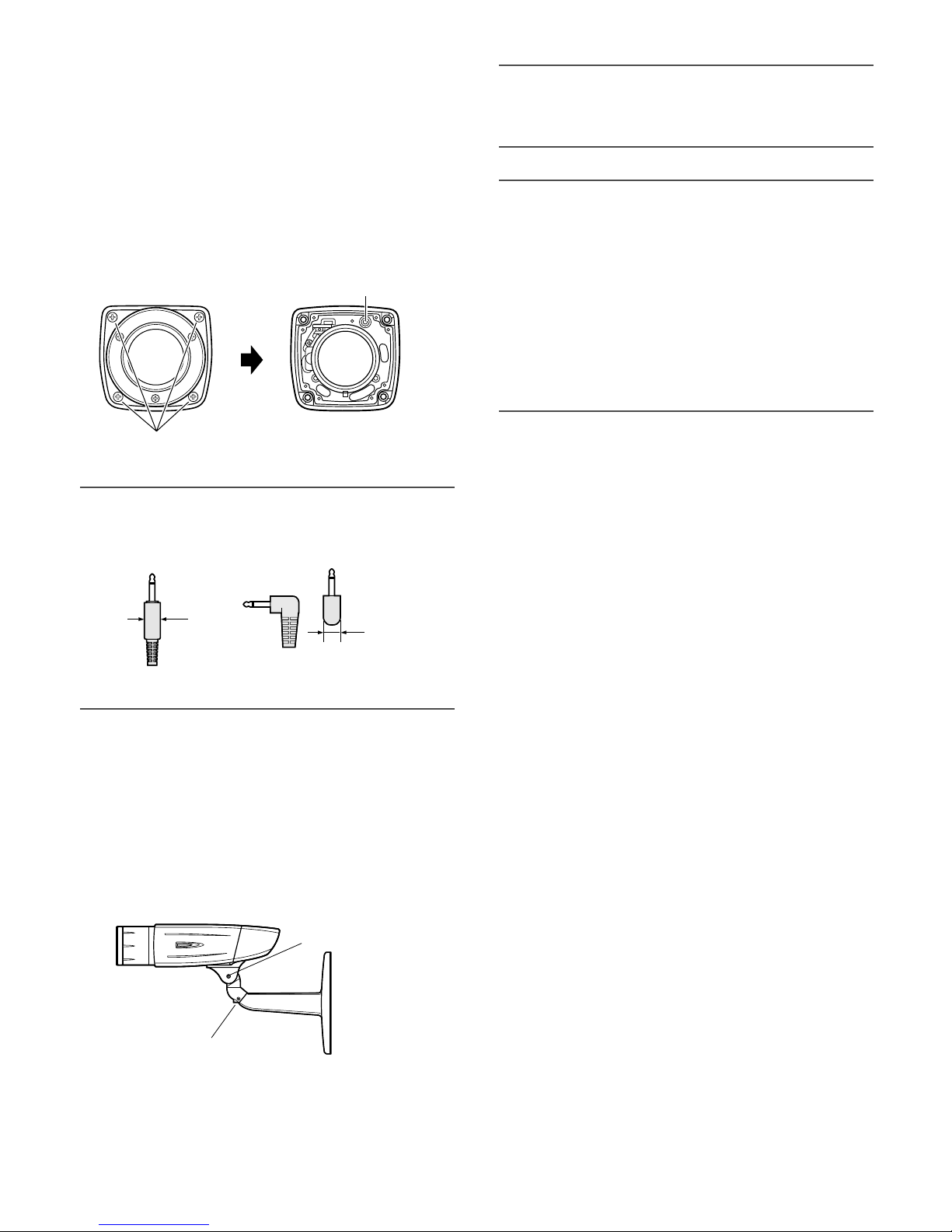

bBe sure to view the monitor for adjustment
when the camera angle is adjusted.
Supply power to this unit, connect the monitor for adjust-
ment (e.g. a small LCD) to the monitor output jack, and
adjust the camera angle (turn off the power after view angle
adjustment for safety).
1. Loosen the 4 fixing screws of the lens cover to remove
the lens cover.
2. Connect the monitor for adjustment to the monitor out-
put jack.
Note:
• The plug dimensions in the illustration below shall be
observed for the monitor for adjustment.
3. Repeat the steps (1) and (2) to adjust the camera
angle.
(1) Loosen the panning lock screw and rotate the cam-
era head horizontally to adjust panning.
(2) Loosen the tilting lock screw and rotate the camera
head vertically to adjust tilting.
(3) Tighten the panning lock screw and tilting lock
screw after camera angle adjustment.
Fixing screw x4
Lens cover Monitor output jack
(ø3.5 mm mini jack (monaural))
9 mm or less
9 mm or less
Straight type L-type
Tilting lock screw
Panning lock screw
Important:
• After camera angle adjustment, the panning lock screw
and tilting lock screw shall be securely tightened.
Recommended tightening torque: 2.45 N·m
Notes:
• Use a hexagonal wrench with width across flats of 4
mm (locally procured) to loosen or tighten the panning
lock screw and tilting lock screw.
• Approximately 1 rotation of loosening the panning lock
screw and tilting lock screw allows camera angle
adjustment. Do not loosen the screws beyond necessi-
ty.
• The camera body shall be held when the panning lock
screw or tilting lock screw is loosened.
• Focus adjustment (☞page 16) shall be performed
when panning and tilting adjustments are performed.

16
nAdjust the focus
Focus adjustment must be performed when camera angle
(☞page 15) adjustment are performed.
1. Repeat the steps (1) and (2) to adjust the view angle
and focus.
(1) Rotate the zoom adjustment ring to adjust the view
angle between TELE and WIDE.
(2) Loosen the focus lock knob, make coarse adjust-
ment of the focus, and then tighten the focus lock
knob.
2. Press the auto back focus button after adjusting the view angle while viewing the monitor
for adjustment.
→The focus position indicator is displayed in the lower part of the screen, and the back
focus is automatically adjusted.
3. To perform fine adjustment of the back focus after automatic back focus adjustment, use the operation buttons through the
setup menu. (☞page 31)
Notes:
• No operation for 10 seconds or more automatically clears the focus position indicator.
• To change the angle of view by moving the zoom adjustment ring, also move the focus lock knob to adjust the focus.
<How to adjust the focus>
• When an auto iris lens is used to shoot a photographic subject, the originally adjusted focus may be slightly off depending
on the iris state resulting from the focal depth of the lens. In such a case, open the aperture by darkening the subject as
much as possible in the same way of taking picture, and then adjust the focus. Defocus can be prevented.
Use of "ABF" of "BACK-FOCUS SETUP" in the setup menu (☞page 31) allows users to adjust the focus optimally in the
range of the capability to automatically follow the variation in illuminance. (Note: The adjusted focal point is not necessarily
the same as the optimal focal point at the illuminance.)
• The out-of-focus level in the near-infrared light region may be higher than that in the visible light region.
Setting "C/L ←→ B/W" of "BACK-FOCUS SETUP" to "AUTO" or "PRESET" in the setup menu allows users to adjust the focus
in both the near-infrared light and visible light regions. (The variation in illuminance is not followed after focus adjustment.)
<How to use varifocal lens>
• Reset the back focus position to restore the default position before the back focus adjustment. (Hold down the right and
left buttons among the operation buttons simultaneously for 2 seconds or more, or move the cursor to "MANUAL-ADJ" of
"BACK-FOCUS SETUP" in the setup menu and hold down the right and left buttons simultaneously for 2 seconds or more
after pressing the setting button.)
Focus lock knob
Zoom adjustment ring
Auto back focus button
NEAR FAR
··········I·········
INDICATOR 80 FOCUSING

17

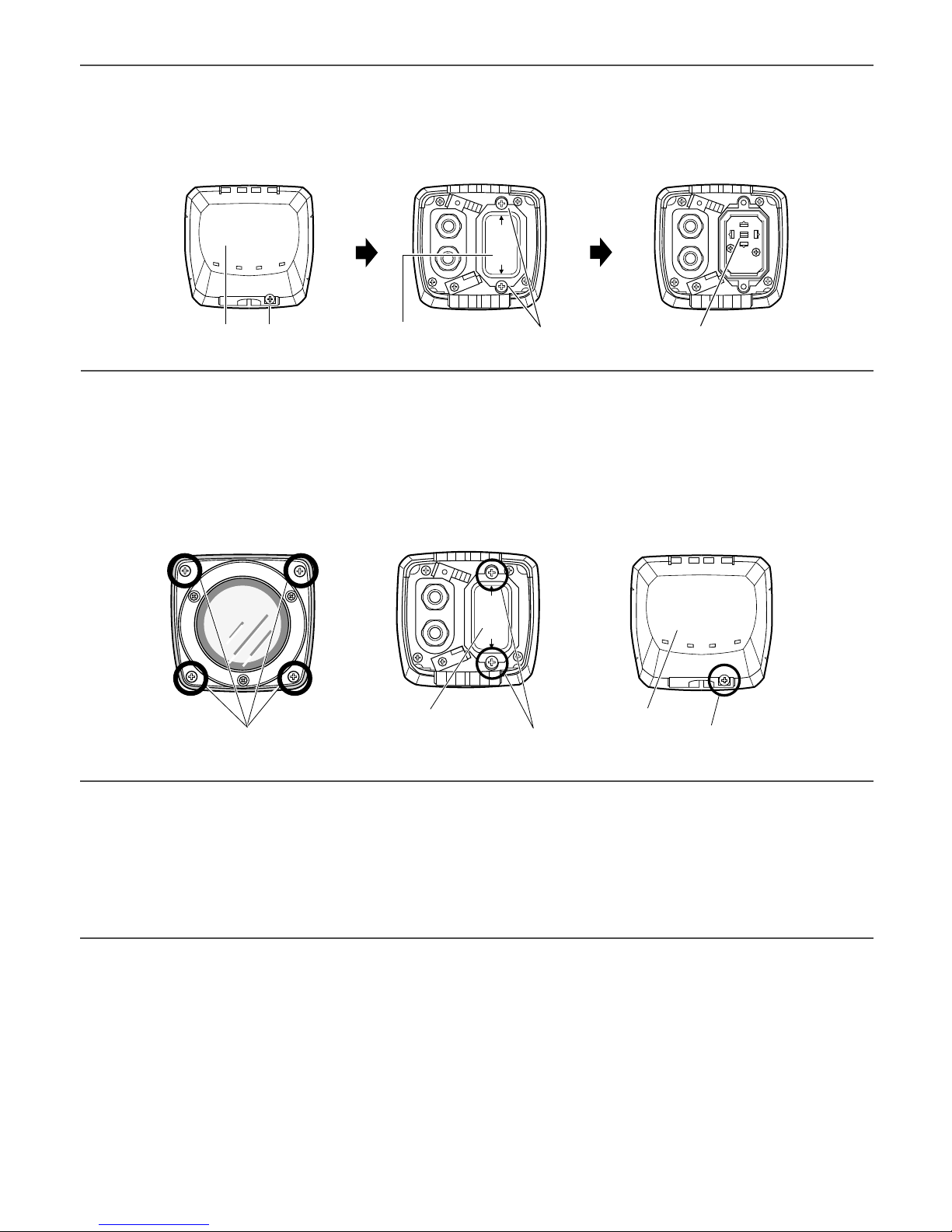

<Fine adjustment of the back focus through the setup menu>
1. Loosen the 1 fixing screw of the rear cover to remove the rear cover.
2. Loosen the 2 fixing screws of the switch cover to remove the switch cover.
3. Hold down the setting button for 2 seconds or more to call up the top screen of the setup menu. And then adjust the
back focus. For further information, refer to page 31.
mMount the cover
1. Attach the desiccant (accessory) to the inner bottom side of the lens cover.
2. Mount the lens cover, switch cover, and rear cover.
Important:
• The tightening torque described below shall be followed for the 2 fixing screws of switch cover and the 4 fixing screws of
lens cover.
Recommended tightening torque: 0.59 N·m
• Be sure to attach the desiccant (accessory). Refer to the instructions for the desiccant for how to attach it.
• The tightening sequence of the 4 fixing screws of the lens cover shall be observed and repeated twice as described in the
illustration above.
((1) →(2) →(3) →(4), twice)
Rear cover Fixing screw x1 Switch cover Fixing screw x2 Set button
Rear coverSwitch cover
Mouning lens cover
(1)(3)
(4)(2)
Mouning switch cover Mouning rear cover
Fixing screw x4 Fixing screw x2 Fixing screw x1

18
,Mount the sunshield
Mount the sunshield on the camera with the 4 sunshield mounting
screws (accessories).
Camera main body
Sunshield
Sunshield mounting screw x4 (M3 x 6) (accessories)
Align the arrow
to lens direction.
Notes:
• Be sure to use the 4 sunshield mounting screws (accessories). Recommended tightening torque: 0.59 N·m
• The "FRONT" side of the sunshield shall be on the lens side.
.When the mounting surface is changed to the top surface of the camera body
1. Remove the 4 tripod head fixing
screws from the camera body and
remove the tripod head.
2. Loosen the spacer fixing screw of the
tripod head and remove the spacer.
Spacer
Tripod head
Tripod head fixing
screw x4
Spacer fixing screw
Spacer
Fixing screw x1Rear cover Switch cover
Cable clamp
3. Loosen the fixing screw and remove the rear cover.
4. Position the cable clamp topside to pass the video out-
put cable and power cord upward. And then, mount the
rear cover.
5. Mount the tripod head on the top of the camera body with the 4 tripod head mounting screws that were removed in the
step 1.
Important:
• Caution shall be taken to prevent the video output cable and power cord from being caught between the camera body and
tripod head.

19
⁄0When the tripod socket (accessory) is used (when a different camera mount bracket is used)
1. Remove the 4 tripod head fixing screws from the camera body and remove the tripod head.
Disassemble the tripod head and pull out the video output cable and power cord.
2. Mount the tripod socket (accessory) with the 4 mounting
screws for tripod socket (accessories).
Sunshield mounting screw x4 (M3 x 6) (accessories)
Rear part of sunshield
2. Mount the tripod socket
(accessory).
Mounting screw
for tripod socket x4
(M3 x 8) (accessories)
Camera main body
1. Remove the tripod head.
7. Mount the sunshield on the camera body with the 4 sunshield mounting screws (accessories) after removing the sunshield
backside.
6. Secure the camera to the camera mount
bracket with the 3 camera fixing screws
(accessories).
Pass the video output cable, and power cord
and safety wire through the camera mount
bracket and secure the safety wire to the
camera mount bracket.
Important:
• Be sure to use the screws that were removed
from the tripod head.
Recommended tightening torque: 0.59 N·m
Camera fixing screw x3
(M4 x 8) (accessories)
Camera main body
Camera mount
bracket
Tripod head fixing
screw x4

20

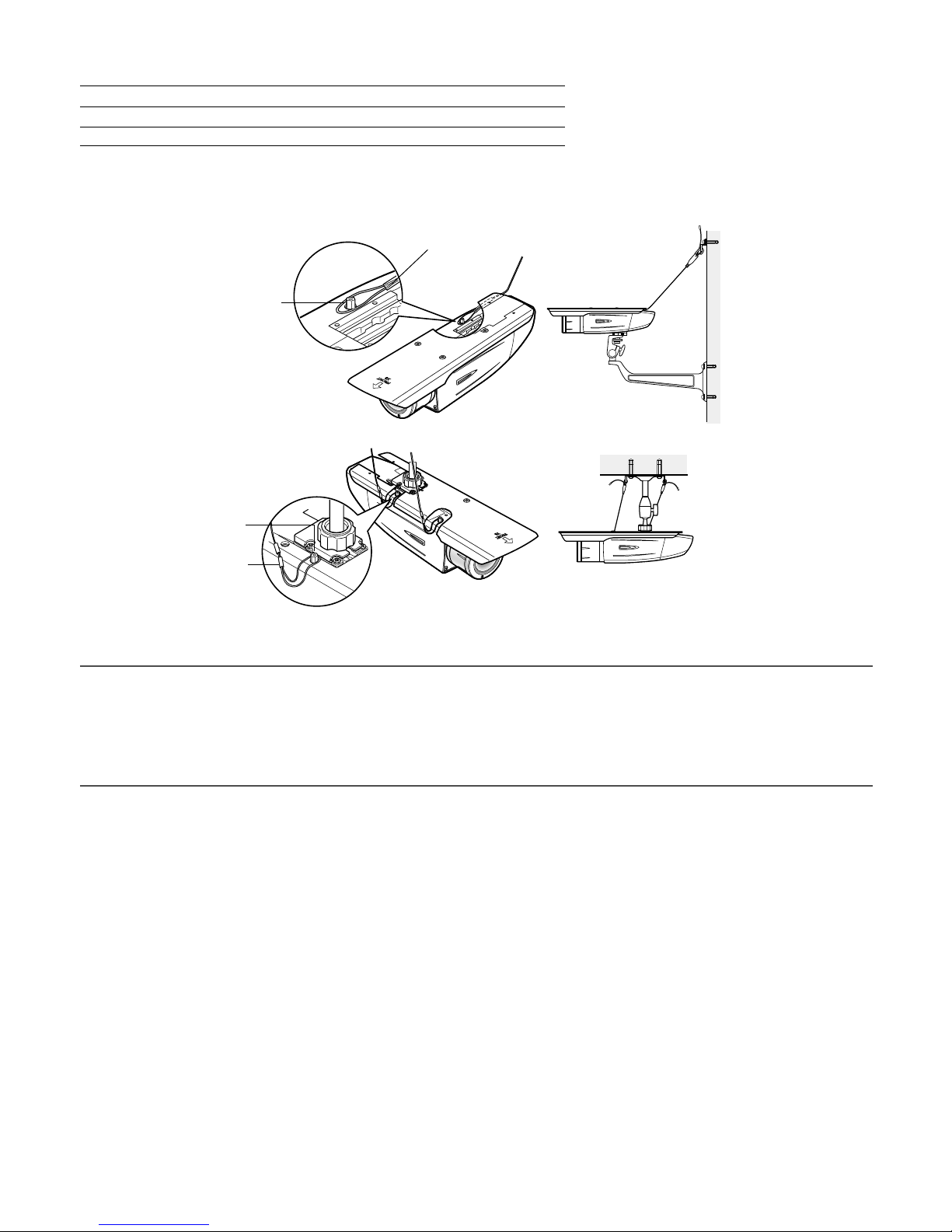

3. Use a safety wire (locally procured) to take measures against a fall of the camera according to the installation position.
Camera mount bracket Safety wire
For wall installation WV-831 WV-Q140
For ceiling installation WV-7010A WV-Q141
4. Hook the tip (ring portion) of the safety wire on the sunshield mounting stud and screw the sunshield to secure the safety
wire.
5. Refer to the instructions of the safety wire for the following steps.
Important:
• Be sure to use the 4 mounting screws for tripod socket (accessories).
Use of screws with inappropriate length may damage the unit.
• The 4 screws removed from the tripod head cannot be used.
• The camera mount brackets, WV-831 and WV-7010A, and the safety wires, WV-Q140 and WV-Q141, are designed to be
used indoors. For outdoor installation, use the camera mount bracket in the accessories.
Safety wire
Ceiling installation
Safety wire
Sunshield mounting
stud
Sunshield mounting
stud
Wall installation
