Panasonic WVBP330 - B/W CCTV CAMERA User manual

(Lens : option)
Before attempting to connect or operate this product,
please read these instructions completely.
CCTV Cameras
WV-BP330/WV-BP332/WV-BP334
FRANÇAIS ENGLISH

WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The serial number of this product may be found on the top
of the unit.
You should note the serial number of this unit in the space
provided and retain this book as a permanent record of your
purchase to aid identification in the event of theft.
Model No.
Serial No.
Warning:
This equipment generates and uses radio frequency energy
and if not installed and used properly, i.e., in strict accor-
dance with the instruction manual, may cause harmful
interference to radio communications. It has been tested
and found to comply with the limits for a Class A computing
device pursuant to Subpart J of Part 15 of FCC Rules,
which are designed to provide reasonable protection
against such interference when operated in a commercial
environment.
For U.S.A
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER SER-
VICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PER-
SONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead sym-
bol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated "dangerous voltage" within
the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilater-
al triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in
the literature accompa-nying the appli-
ance.
SA 1965
SA 1966

CONTENTS
PREFACE ........................................................................................................................................................................ 2
FEATURES ...................................................................................................................................................................... 2
PRECAUTIONS ............................................................................................................................................................... 3
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ......................................................................................... 4
CONNECTIONS .............................................................................................................................................................. 8
FOCUS OR FLANGE-BACK ADJUSTMENT .................................................................................................................. 13
INSTALLATION OF CAMERA ........................................................................................................................................ 14
PREVENTION OF BLOOMING AND SMEAR ................................................................................................................ 15
SPECIFICATIONS .......................................................................................................................................................... 16
STANDARD ACCESSORIES ......................................................................................................................................... 17
-1-
ENGLISH

-2-
1. The following functions are built-in.
(1) Auto Light Control (ALC)/Electronic Light
Control (ELC)
(2) Back Light Compensation (ON: Photometric
weight is given to the center of the
screen/OFF: Effective if the object is not in the
center of the screen)
(3) Various External Sync Functions, including
Gen-Lock
2. Signal-to-noise ratio of 50 dB
3. Minimum illumination of 0.08 lux (0.008 foot-can-
dle) with F1.4 lenses
4. Horizontal resolution of 570 lines
5. Shooting of shoot indoor scenes with fixed iris lens
by use of Electronic Light Control (ELC) function
ture elements), and digital signal processing LSI’s. This
model offers cutting-edge technology for advanced
video surveillance.
PREFACE
Panasonic’s WV-BP330 series digital cameras intro-
duce a new level of high picture quality and high reso-
lution through the use of a 1/3-inch interline transfer
CCD image sensor having 768 horizontal pixels (pic-
FEATURES
6. Selectable auto iris control signal for the lens from
a video signal or DC control signal

-3-
1. Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws
or covers.
There are no user serviceable parts inside. Ask a
qualified service person for servicing.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking,
etc. The camera could be damaged by improper
handling or storage.
3. Do not expose the camera to rain or moisture,
or try to operate it in wet areas.
Turn the power off immediately and ask a qualified
service person for servicing. Moisture can damage
the camera and also create the danger of electric
shock.
4. Do not use strong or abrasive detergents when
cleaning the camera body.
Use a dry cloth to clean the camera when dirty.
In case the dirt is hard to remove, use a mild
detergent and wipe gently.
5. Clean the CCD faceplate with care.
Do not clean the CCD with strong or abrasive
detergents. Use lens tissue or a cotton tipped
applicator and ethanol.
6. Never face the camera towards the sun.
Do not aim the camera at bright objects. Whether
the camera is in use or not, never aim it at the sun
or other extremely bright objects. Otherwise,
blooming or smear may be caused.
7. Do not operate the camera beyond the
specified temperature, humidity or power
source ratings.
Use the camera under conditions where tempera-
ture is between –10°C - +50°C (14°F - 122°F), and
humidity is below 90%. The input power source is
120V AC 60Hz for WV-BP330, 12V DC for WV-
BP332, and 24V AC 60Hz for WV-BP334.
Caution:
To prevent fire or electric shock hazard, a UL
listed wire (VW-1, style 1007) should be used for
DC 12V or AC 24V Input Terminals.
PRECAUTIONS

-4-

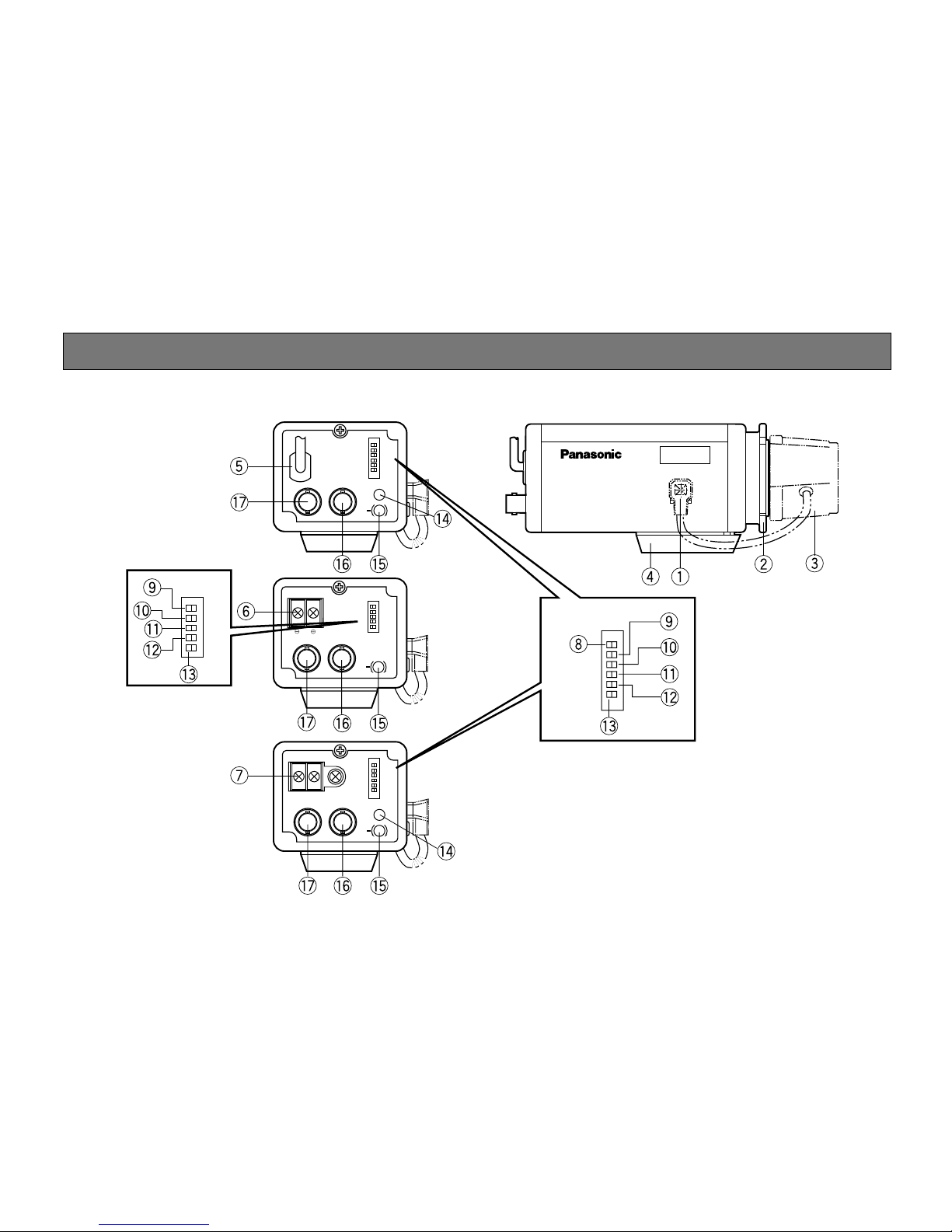

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
WV- BP330
BP330
VIDEO OUT
GEN-LOCK
L
INT
AGC ON
ALC
BLC ON
VIDEO
G/L 75
VIDEO
LEVEL
V. PHASE
H
Ω
LL
OFF
ELC
OFF
DC
Hi-Z
GND
AC 24V IN
12
VIDEO OUT
GEN-LOCK
L
INT
AGC ON
ALC
BLC ON
VIDEO
G/L 75
VIDEO
LEVEL
V. PHASE
H
Ω
LL
OFF
ELC
OFF
DC
Hi-Z
DC 12V IN
VIDEO OUT
GEN-LOCK
L
AGC ON
ALC
BLC ON
VIDEO
G/L 75
VIDEO
LEVEL H
Ω
OFF
ELC
OFF
DC
Hi-Z
<WV-BP330>
<WV-BP332>
<WV-BP334>

-5-

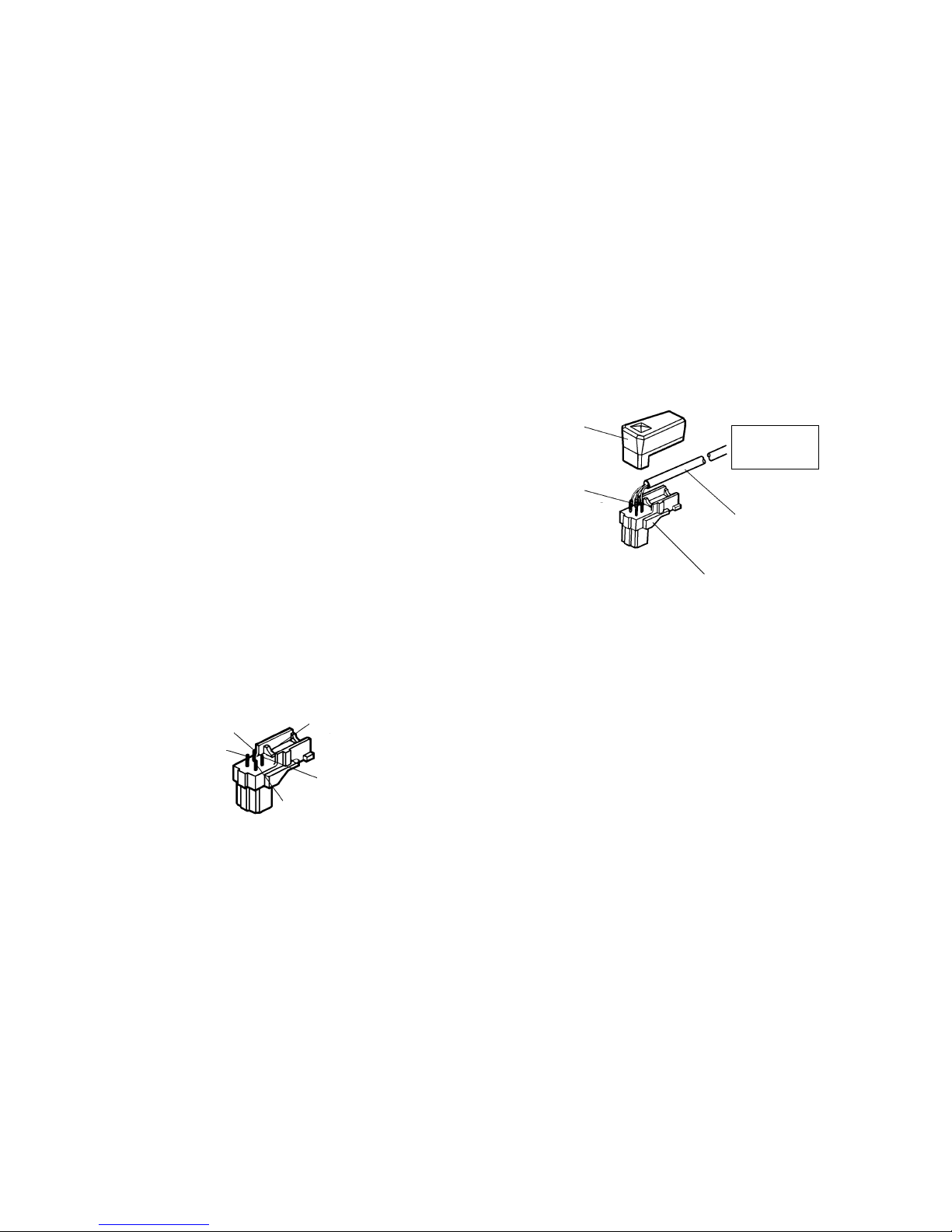

qAuto Iris lens Connector
This connector is for connecting the auto iris lens
by a 4-pin male connector supplied as a standard
accessory (Part No. YFE4191J100).

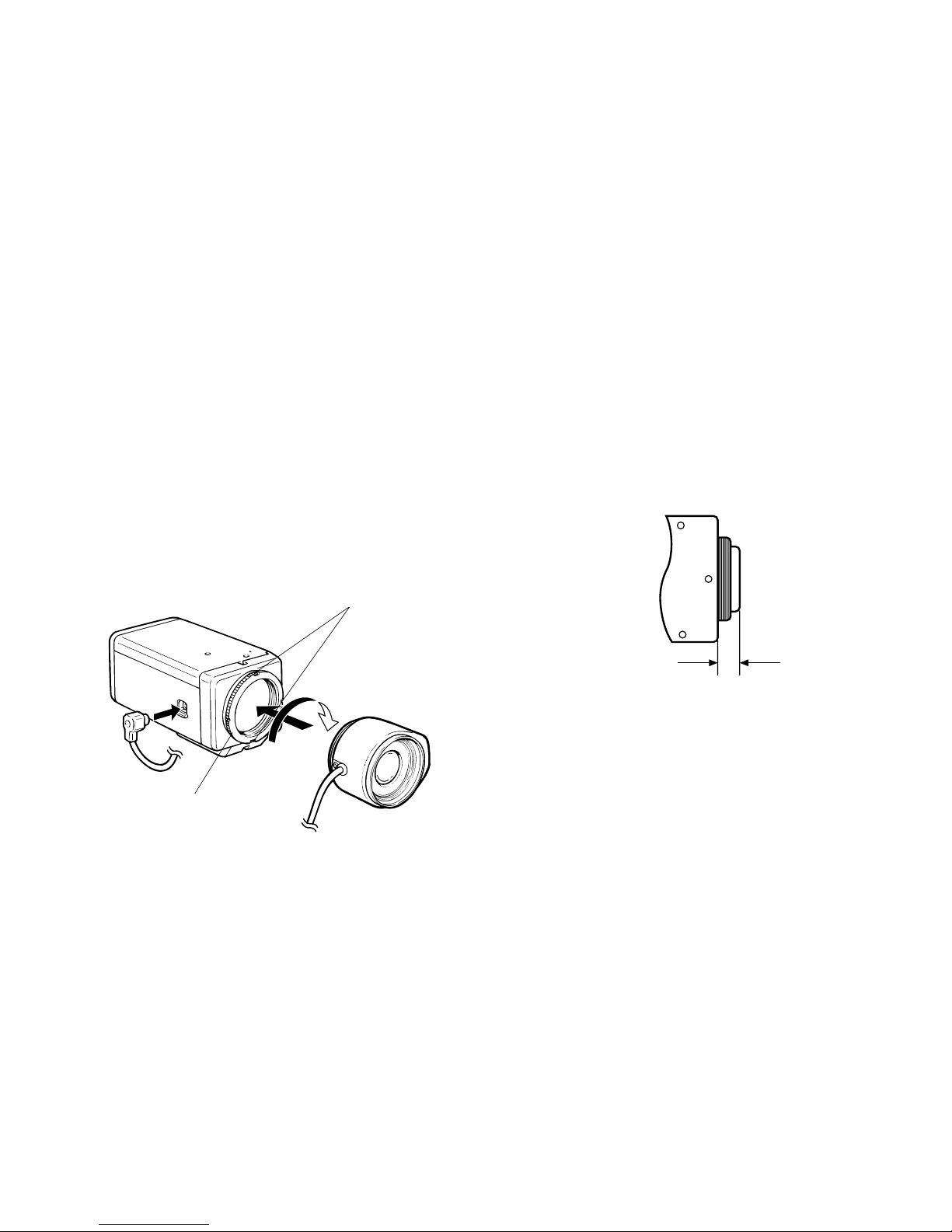

wFlange-back Adjusting Ring
This ring adjusts the back focal length or picture
focus. Rotate this ring clockwise for a C-mount
lens or counterclockwise for a CS-mount lens.
eLens (option)
rCamera Mounting Screw Hole
This hole for mounting the camera onto a mounting
bracket.
tPower Cord (only WV-BP330)
Connect this power cord to an electrical outlet of
120V AC 60Hz.
yDC 12 V Input Terminal
(DC 12V IN (only WV-BP332))
This terminal is for connecting the 12V DC power
supply cord.
uAC 24V Input Terminal
(AC 24V IN (only WV-BP334))
This terminal is for connecting the 24V AC 60Hz
power supply cord.
iSynchronization Mode Selector
(INT, LL (only WV-BP330 and WV-BP334))
Selects the camera synchronization mode from
internal sync mode (INT) or line-lock mode (LL).
INT: When no signal is supplied to the GEN-LOCK
connector, the camera synchronization mode
is set to internal 2:1 interlace. Whenever the
gen-lock video signal is supplied to the GEN-
LOCK connector, the camera synchronization
mode is automatically set to external synchro-
nization.
LL: The camera synchronization mode is set to
line-lock even if the gen-lock video signal is
supplied to the GEN-LOCK connector.
Note: Set this selector to INT for gen-lock opera-
tion.
oAGC ON/OFF Selector (AGC ON, OFF)
Selects the gain of the video amplifier as follows:
AGC ON: When the lens iris is fully open under
low light conditions, a clear picture is
obtained by automatic increase of the gain.
OFF: A natural and low-noise picture is obtained
under low light conditions.

-6-
!0 Automatic Light Control / Electronic Light
Control Selector (ALC , ELC)
Lets you select the mode according to the lens
type that is used with this camera.
ALC: Select this mode when an auto iris lens (ALC
lens) is used with this camera.
ELC: Select this mode when a fixed iris lens or
manual iris lens is used with this camera.
!1 Back Light Compensation Mode Selector (BLC
ON, OFF)
Lets you select the mode according to the position
of the object and light conditions on the screen.
BLC ON: More photometric weight is given to the
center of the screen than to the edge of the
screen. Select this mode if the background
light is strong such as a spotlight.
OFF: Select this mode if the main object is not
located in the center of the screen and a
source of bright light is located near the cen-
ter of the screen.
!2 Lens Drive Signal Selector (VIDEO, DC)
Lets you select the mode according to the type of
auto iris lens drive signal to be supplied to the lens
from the auto iris lens connector.
VIDEO: Select this mode if you are using the auto
iris lens that requires a video drive signal.
DC: Select this mode if you are using the auto iris
lens that requires a DC drive signal.
!3 Gen-lock Termination Selector (Hi-Z, G/L75Ω)
Set this selector to Hi-Z when a gen-lock video
input signal is looped through. In all other cases,
set this selector to 75Ω.
!4 Vertical Phase Control
(V. PHASE (only WV-BP330 and WV-BP334))
Allows you to adjust the vertical phase of the cam-
era signal to match the vertical phase of the line
powers.
!5 Video Level Control (VIDEO LEVEL, H(High)-
L(Low))
Allows you to adjust the video level when the Lens
Drive Signal Selector is set to DC and the auto iris
lens requiring the DC drive signal is mounted on
the camera.
Note: The video level should be adjusted by the
lens when the auto iris lens requiring the video
drive signal is mounted on the camera.
!6 Video Output Connector (VIDEO OUT)
This connector is for connecting with the VIDEO IN
connector of the monitor.

-7-
Cautions:
1. Connect to 12V DC (10.5V-16V) or 24V AC
(19.5V-28V) class 2 power supply only.
Make sure to connect the grounding lead
to the GND terminal when the power is
supplied from a 24V AC power source.
2. To prevent fire or electric shock hazard,
use a UL listed wire VW-1, style 1007 cable
for the Input Terminal.
!7 Gen-lock Input Connector (GEN-LOCK)
This connector is for connecting an external sys-
tem for synchronization.

-8-
CONNECTIONS
A. WV-BP330 (120V AC 60Hz)
Connect the power cord to an electrical outlet of
120V AC 60Hz.
B. WV-BP332 (12V DC)
Connect the power cord to the DC 12V IN terminal
on the rear panel of the WV-BP332.

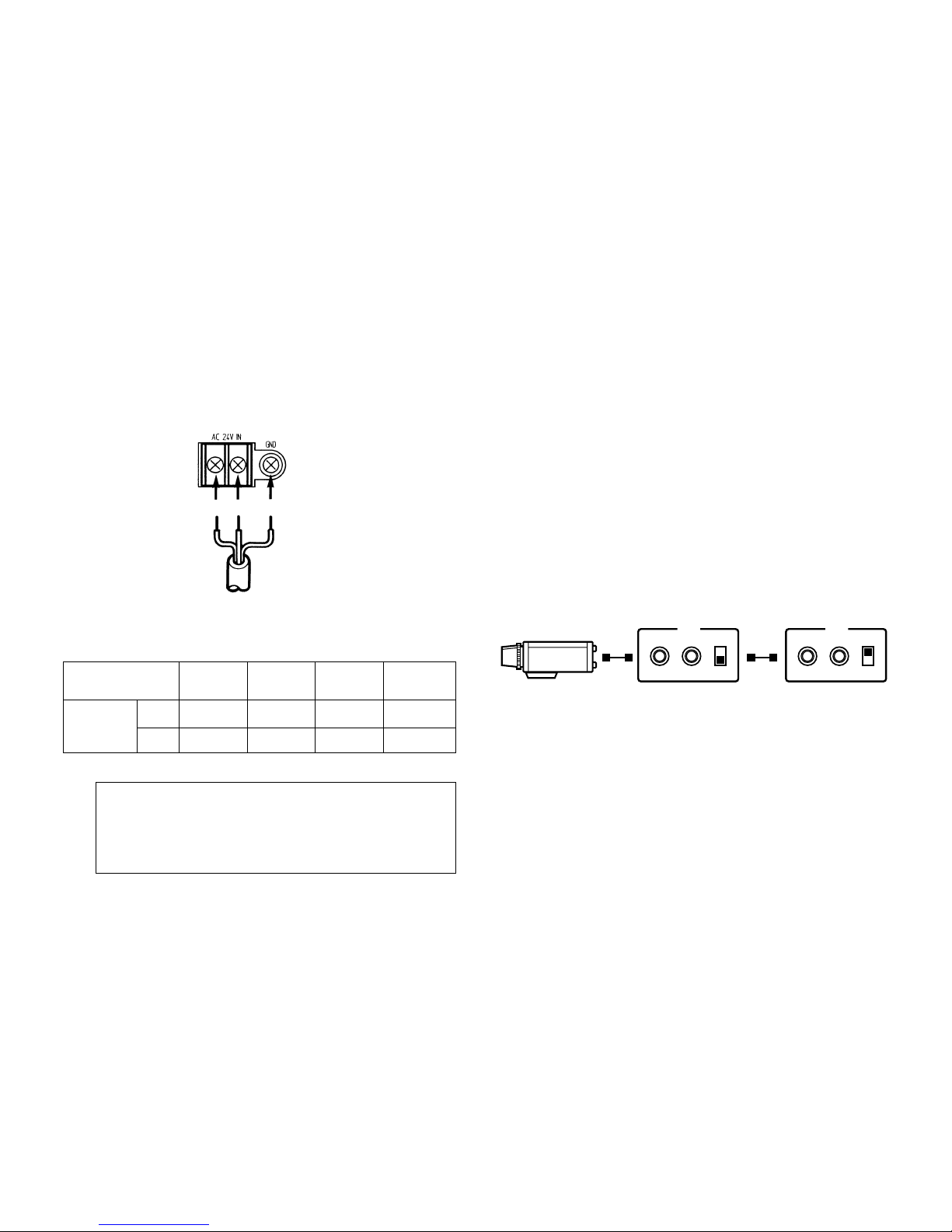

12 V DC
(10.5 V - 16 V)
Copper wire #24 #22 #20 #18
size (AWG) (0.22mm2) (0.33mm2) (0.52mm2) (0.83mm2)
Resistance 0.078 0.050 0.030 0.018
Ω/m
Resistance 0.026 0.017 0.010 0.006
Ω/ft
Resistance of copper wire [at 20°C (68°F)]
•Calculation of maximum cable length between
camera and power supply :
10.5V DC ≤VA−(R x 0.42 x L) ≤16V DC
L : Cable length (meters)
R : Resistance of copper wire (Ω/meters)
VA: DC output voltage of power supply unit
VA−12
L standard = (meters)
0.42 x R
VA−16
L minimum = (meters)
0.42 x R
VA−10.5
L maximum = (meters)
0.42 x R
@!

-9-
C. The maximum extensible coaxial cable
length between the camera and the monitor is
shown below.
Video Cable
1. It is recommended to use a monitor whose resolu-
tion is at least equal to that of the camera.
2. Set the termination switch to the 75Ωposition on
the last monitor.
A. Use a 75Ωcoaxial cable.
B. Set the termination switch to the 75Ωposi-
tion on the last monitor and to the Hi-Z posi-
tion on the other monitors. Do not change the
positions after setting.
OUTIN 75Ω
Hi-Z
VIDEO
OUTIN 75Ω
Hi-Z
VIDEO
Monitor Monitor
Caution:
To prevent fire or electric shock hazard, a
UL listed wire (VW-1, style 1007) should be
used for DC 12V or AC 24V Input Terminals.
24 V AC, 60 Hz
(19.5 V - 28 V)
12
C. WV-BP334 (24V AC 60Hz)
Connect the power cable to the AC24V IN terminal
on the rear panel of the WV-BP334.
Copper wire #24 #22 #20 #18
size (AWG) (0.22mm2) (0.33mm2) (0.52mm2) (0.83mm2)
Length (m) 95 150 255 425
of Cable
(Approx.) (ft) 314 495 842 1 403
Recommended wire gauge sizes for 24V AC line

3. Wiring precautions:
•Do not bend the coaxial cable into a curve whose
radius is smaller than 10 times the cable’s diame-
ter.
•Never staple the cable, not even with circular sta-
ples. Impedance mismatching will occur.
•Never crush or pinch the cable.
All of the above will change the impedance of the
cable and cause poor picture quality.
-10-
Type of RG-59/U RG-6/U RG-11/U RG-15/U
coaxial cable (3C-2V) (5C-2V) (7C-2V) (10C-2V)
Recommended (m) 250 500 600 800
maximum
cable length (ft) 825 1 650 1 980 2 640

-11-
Installation of Auto Iris Lens Connector
Install the lens connector (YFE4191J100) when using a
video drive ALC lens.
The installation should be made by qualified ser-
vice personnel or system installers.
(1) Cut the iris control cable at the edge of the lens
connector to remove the existing lens connector
and then remove the outer cable cover as shown
in the diagram below.
The pin assignment of the lens connector is as fol-
lows:
Pin 1: Power source; +9V DC, 50mA max.
Pin 2: Not used
Pin 3: Video signal; 1.3 V[p-p]/40 kΩ
Pin 4: Shield, ground
Pin 3
Pin 4
Pin 2
Rib
Pin 1
Note: When the iris control cable is too thick to
lock the connector cover with the connector
base, cut off the rib on the connector.
(Set the Lens Drive Signal Selector to the
VIDEO position.)
(2) After connection, assemble the lens connector as
follows.
Automatic
Iris Lens
Iris Control
Cable
Connector
Heat
Shrinkable
Tubes
Connector
Cover

-12-
Caution for Mounting the Lens
The lens mount should be a C-mount or CS-mount (1”-
32UN) and the lens weight should be less than 450g
(0.99 lbs). If the lens is heavier, both the lens and cam-
era should be secured by using the supporter.
The protrusion at the rear of the lens should be as
shown below:
C-mount: Less than 11.5 mm (7/16”)
CS-mount: Less than 7.2 mm (1/4”)
1
2
Screws
Flange-back
Adjusting Ring
Mounting the Lens
Caution:
Before you mount the lens, loosen the two screws
on the ring, and rotate this ring clockwise until it
stops. If the ring is not at the end, the inner lens or
CCD image sensor may be damaged.
1. Mount the lens by turning it clockwise on the lens
mount of the camera.
2. Connect the lens cable to the auto iris lens con-
nector on the side of the camera.

-13-
The following adjustment should be made by qualified
service personnel or system installers.
1. Loosen the screws on the flange-back adjusting
ring.
2. Turn the flange-back adjusting ring to the desired
position.
Caution: When the C-mount lens is mounted, do
not rotate the ring counterclockwise by force
after it stops. If the ring is rotated by force, the
inner lens or CCD image sensor may be dam-
aged.
3. Tighten the screws on the flange-back adjusting
ring.
Note: If the camera is connected to the Quad
System, glare may appear at the edge of the
camera picture on the monitor.
If this bothers you, adjust the lens focus to
reduce the glare.
Focus adjustment for
C-mount lens
Focus adjustment for
CS-mount lens
Screws
Flange-back
Adjusting Ring
FOCUS OR FLANGE-BACK ADJUSTMENT

-14-
• Mounting from the bottom
This camera is designed to be mounted from the
bottom, as shown below. The mounting hole is a
standard photographic pan-head screw size (1/4”
- 20).
•Mounting from the top
Remove the mount adapter from the bottom of the
camera by removing the two fixing screws. Attach
the mount adapter to the top as shown in the dia-
gram, then mount the camera on the mounting
bracket.
Make sure that the two original fixing screws are
used when mounting the mount adapter as longer
length screws may damage inner components.
Fixing Screws
Mount Adapter
<Mounting at top>
<Mounting at bottom>

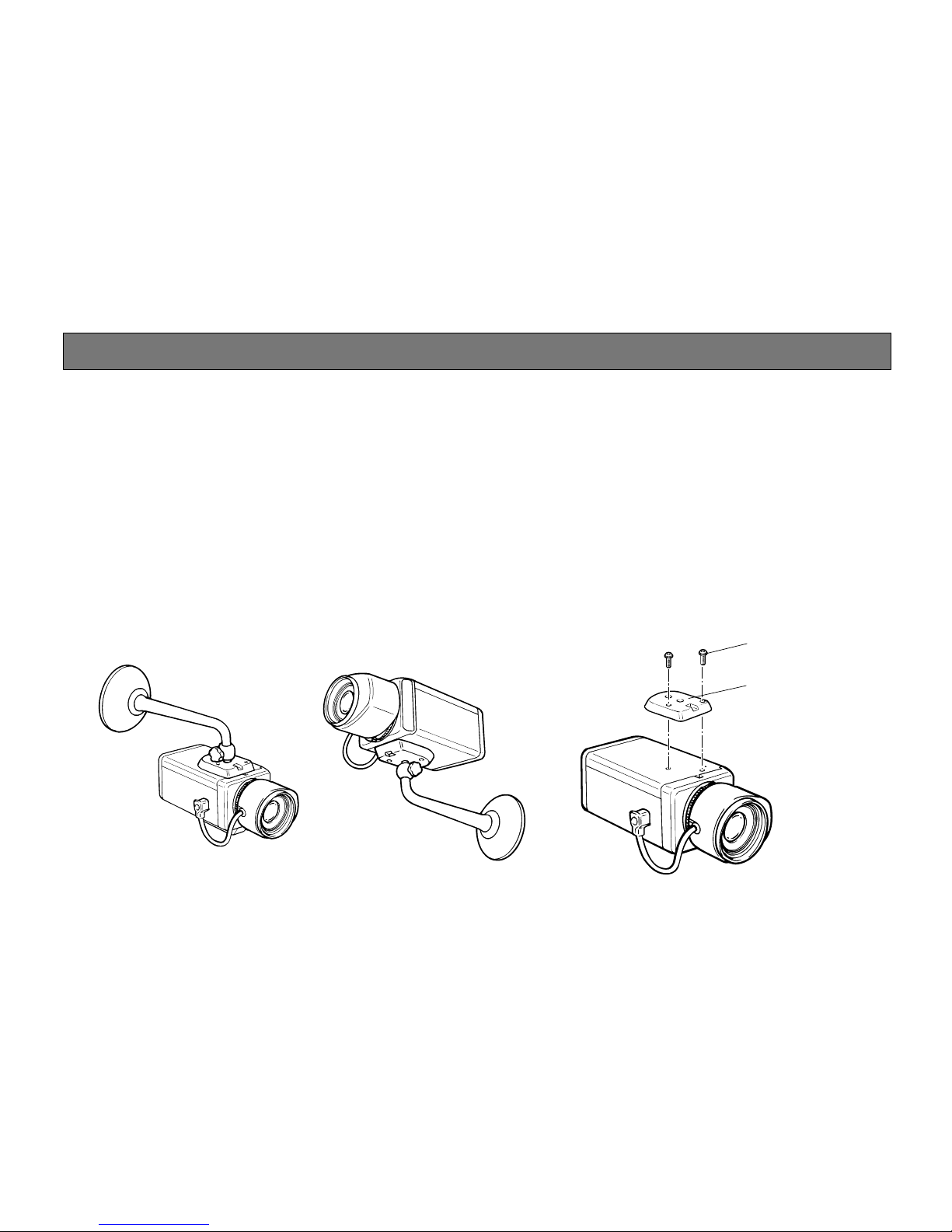

INSTALLATION OF CAMERA

-15-
When the camera is aimed at a bright light, such as a
spot light, or a surface that reflects bright light, smear
or blooming may appear. Therefore, the camera
should be operated carefully in the vicinity of extremely
bright objects to avoid smear or blooming.
;
;
;
;
;
;
Bright object
Smear

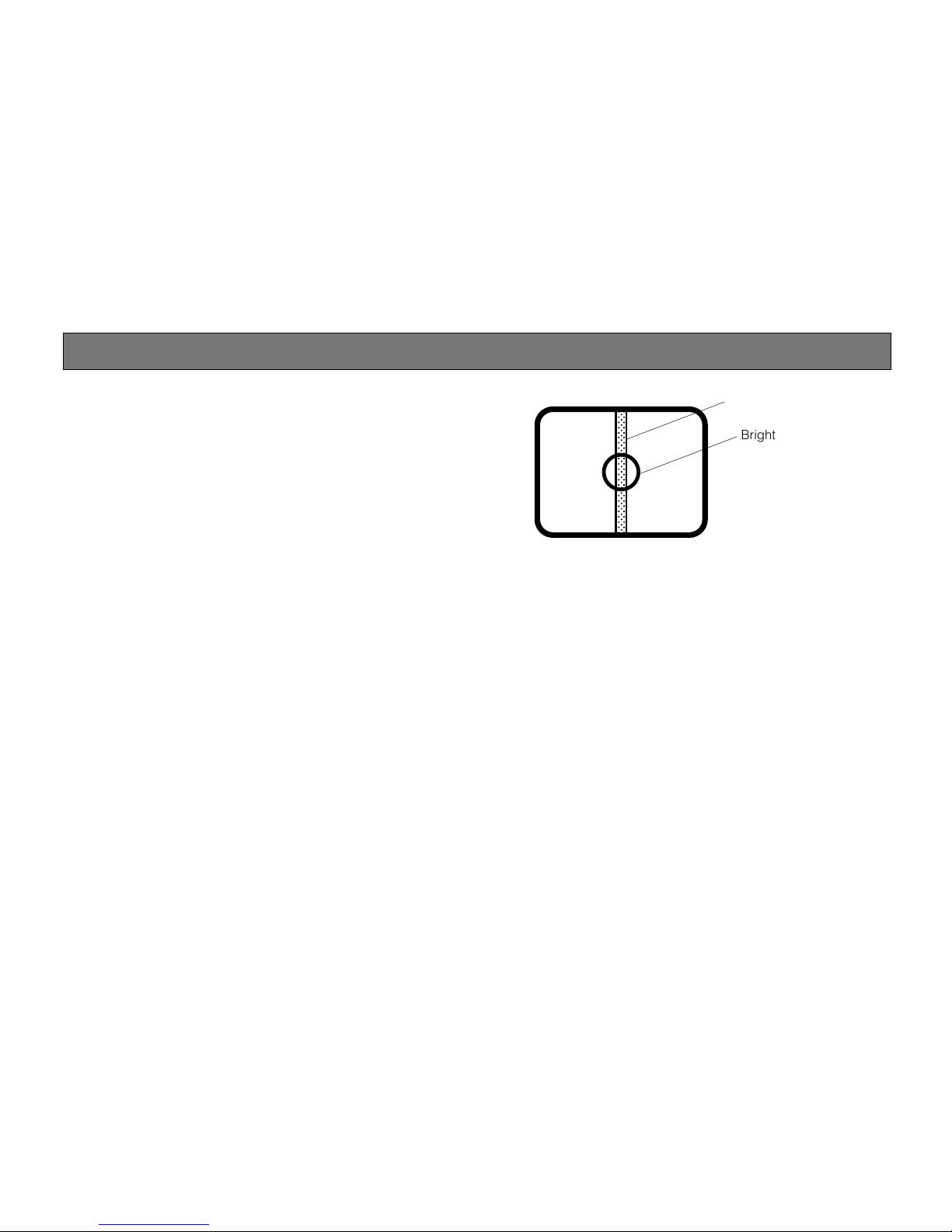

PREVENTION OF BLOOMING AND SMEAR

Pick-up Device: 768 (H) x 494 (V) pixels, Interline Transfer CCD
Scanning Area: 4.9 (H) x 3.7 (V) mm (Equivalent to scanning area of 1/3”pick-up tube)
Synchronization: Internal, External, Line-locked or Multiplexed vertical drive (VD2) selectable
Scanning System: 2 : 1 interlace
Scanning: 525 lines / 60 fields / 30 frames
Horizontal: 15.734 kHz
Vertical: 59.94 Hz
Horizontal Resolution: 570 lines
Video Output: 1.0 V[p-p] EIA composite 75 Ω/ BNC connector
Signal-to-Noise Ratio: 50 dB (AGC OFF)
Electronic Light Control: Equivalent to continuous variable shutter speed between 1/60 s
and 1/10 000 s
Minimum Illumination: 0.08 lx (0.008 footcandle) at F1.4, AGC ON
Gain Control: AGC ON (+18 dB) or OFF selectable
Lens Mount: C-mount or CS-mount selectable
Ambient Operating Temperature: −10°C - +50°C (14°F - 122°F)
Ambient Operating Humidity: Less than 90%
Power Source and WV-BP330: 120V AC, 60 Hz, 3.5W
Power Consumption: WV-BP332: 12V DC, 250 mA
WV-BP334: 24V AC, 60 Hz, 3.5W
-16-
SPECIFICATIONS

Dimensions (without lens): 67 (W) x 55 (H) x 123 (D) mm
[2-5/8”(W) x 2-3/16”(H) x 4-13/16”(D)]
Weights (without lens): WV-BP330: 0.62kg (1.40lbs)
WV-BP332: 0.445kg (0.98lbs)
WV-BP334: 0.470kg (1.04lbs)
Weights and dimensions indicated are approximate.
Specifications are subject to change without notice.
-17-
STANDARD ACCESSORIES
Body Cap .....................................................................................1 pc.
ALC Lens Connector (YFE4191J100) ..........................................1 pc.

VERSION FRANÇAISE
(FRENCH VERSION)
MISE EN GARDE:AFIN DE PRÉVENIR TOUT RISQUE D'INCENDIE OU DE CHOCS ÉLECTRIQUES, ÉVITER
D'EXPOSER CET APPAREIL À LA PLUIE OU À UNE HUMIDITÉ EXCESSIVE.
Le symbole de l'éclair dans un triangle
équilatéral indique la présence d'une ten-
sion suffisamment élevée pour engendrer
un risque de chocs électriques.
L'interférence radioélectrique générée par cet appareil
numérique de type A ne dépasse pas les limites
radioélectriques, section appareil numérique, du Ministère
des Communications.
Le point d'exclamation dans un triangle
équilatéral indique que le manuel d'in-
structions inclus avec l'appareil contient
d'importantes recommandations quant au
fonctionnement et à l'entretien de ce
dernier.
ATTENTION:
AFIN DE PRÉVENIR LE RISQUE DE CHOCS ÉLEC-
TRIQUES, NE PAS RETIRER LES VIS. TOUTE
RÉPARATION DEVRAIT ÊTRE CONFIÉE À UN
PERSONNEL QUALIFIÉ.
CAUTION ATTENTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
RISQUE DE CHOCS ELECTRIQUES NE PAS OUVRIR
SA 1965
SA 1966
-18-
Nous vous suggérons de noter, dans l'espace prévu ci-
dessous, Ie numéro de série inscrit sous Ie fond de l'appareil
et de conserver ce manuel comme mémo-randum de votre
achat afin d'en permettre l'identification en cas de vol.
Numéro de modèle
Numéro de série
