Panasonic WVCW474S - COLOR CCTV CAMERA User manual

Panning Table
Tilting Lock Screw
Pan Lock Screw
Focus Lock Lever
Zoom Lock Lever
Azimuth (Angle Adjuster)
LEFT Button
RIGHT Button
UP Button
DOWN Button
SET Button
BW Auto1 Level Switch
Day Night Select Switch
AP Gain Switch
Up Side Down Switch
Sync Switch
Monitor Output Jack
Camera Mounting Bracket (WV-CW474S)
Power Cable
Video Output BNC Connector
Dome Cover
LOW
HIGH
OFF
AUTO
SHARP
SOFT
OFF
ON
INT
LL

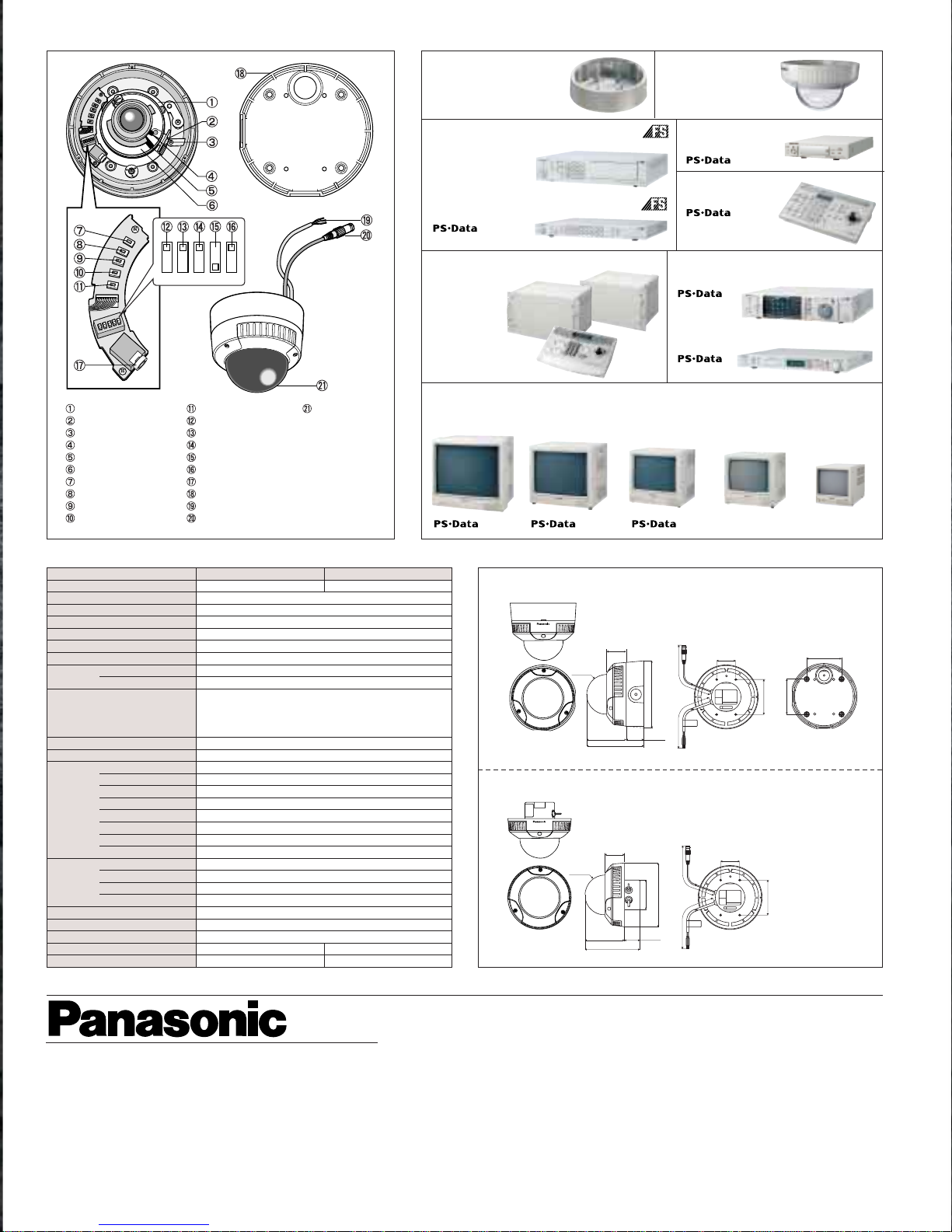

MAJOR OPERATING CONTROLS OPTIONAL COMPONENTS & ACCESSORIES
Mounting Base for WV-CW474F
WV-Q112 Clear Dome Cover WV-CW1C
Digital Disk Recorder with 16ch Multiplexer
WJ-HD500A
Digital Disk Recorder
WJ-HD100
SPECIFICATIONS APPEARANCE
WV-CW474S (Surface mount type)
Unit: mm (inches)
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
Printed in Japan
WV-JHCW474C(2P-492)
DISTRIBUTED BY:
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada [phone]
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 [phone]
Zone Office
Eastern : One Panasonic Way, Suite 3E-7, Secaucus, NJ 07094 [phone]
Central : 1707 N.Randal Road, 1C-2, Elgin, IL 60123 [phone]
Western : 6550 Katella Ave., Cypress, CA 90630 [phone]
http://cctv.panasonic.com/
Panasonic Security & Digital Imaging Company
A Division of Matsushita Electric Corporation of America
Security Systems Group
Executive Office : One Panasonic Way 3E-7, Secaucus, New Jersey 07094
R
Vandal Proof
Super Dynamic II Color Cameras
(with Low-Light B/W Mode)
WV-CW474 Series
Model No. WV-CW474S WV-CW474F
Type Surface mount type Flush mount type
Pick Up Device 768 (H) x 494 (V) pixels, interline transfer CCD
Scanning Area 4.8 (H) x 3.6 (V) mm, (Equivalent to 1/3" tube)
Scanning 525 lines / 60 fields / 30 frames
Scanning System 2 : 1 interlace
Synchronization Internal / Line-Lock / VD2
Video Output VBS 1.0V [p-p] / 75 Ω/ NTSC composite signal / BNC connector
Resolution Horizontal
480 lines at color imaging mode, 570 lines at B/W mode (at center)
Vertical more than 350 lines (at center)
Minimum Illumination (at F1.4 Wide) 2.4 lx (0.24 fc) at color imaging mode
0.3 lx (0.03 fc) at B/W mode
0.8 lx (0.08 fc) at color imaging mode, with optional dome cover; WV-CW1C
0.1 lx (0.01 fc) at B/W mode, with optional dome cover; WV-CW1C
Signal to Noise Ratio 50dB (at AGC Off, Weight On, AP On)
Dynamic Range 46dB (typical)
Functions Camera Title 16 character display (alphabet, numeric, symbols)
Light Control ALC mode
Super Dynamic II On / Off
Electronic Shutter
Off, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec.
AGC On (DNR-H) / On (DNR-L) / Off
Electronic Sensitivity Up Off, Auto (x2, x4, x6, x10), Fix (x2, x4, x6, x10, x16, x32)
White Balance ATW 1 / ATW 2 / AWC
Motion Detector On / Off
Lens Type 2x variable focal lens
Focal Length 3.8 ~ 8.0 mm
Aperture Ratio F1.4 (Wide) to F176, close / F1.8 (Tele) to F176, close
Min. Object Distance 1.2 m (3.9 ft) - ∞
Power Source 24V AC, 60Hz
Power Consumption 4.6W
Ambient Operating Temperature –10°C ~ +50°C (14°F ~ 122°F)
Dimensions (D) x (H) (mm) ø160 x 136.5 (ø6-5/16" x 5-3/8") ø152.5 x 133 (ø6 x 5-1/4")
Weight (approx.) 1.4 kg (3.1 lbs.) 1.0 kg (2.2 lbs.)
136.5(5-3/8")
R47.5
ø160(ø6-5/16")
85(3-3/8")
85(3-3/8")
95(3-3/4")
41.5 (1-5/8")
47.5(1-7/8") 46(1-13/16")
270(10-5/8")270(10-5/8")
83.5(3-5/16")
WV-CW474F (Flush mount type)
133(5-1/4")
95(3-3/4")
41.5 (1-5/8")
47.5(1-7/8")
R47.5
ø72(ø2-13/16")
ø152.5(ø6")
46(1-13/16")
270(10-5/8") 270(10-5/8")
83.5(3-5/16")
MATRIX SYSTEM 500
Digital Video Duplex Color Multiplexers
WJ-FS616C(16ch)
Matrix Switcher
WJ-SX550C
Card Cage
WJ-AD550
System Controller
WV-CU550C
WJ-FS409(9ch)
WJ-FS416(16ch)
Data Multiplex Unit
WJ-MP204C
System Controller
WV-CU360C
WV-CM1780
41cm (16")
Color Monitors
WV-CM2080
51cm (20")
WV-CM1020
22cm (9")
WV-CM1420
34cm (13")
WV-CM1480
36cm (14")
With a body made of die-
cast aluminum and a dome
made of 3.5mm thick
polycarbonate, these
cameras are tough enough
to resist severe shocks.
The camera lens unit has
a spring structure, so the
chassis can withstand
external shocks.
Meet IP66 international
standards. With excellent dust
and moisture resistant
capabilities these cameras can
be used outdoors, under
building eaves.
Die-cast aluminum body
Shock Resistant IP66 approved Rain and Wind Resistant
Heavy Duty Construction

Panning Table
Tilting Lock Screw
Pan Lock Screw
Focus Lock Lever
Zoom Lock Lever
Azimuth (Angle Adjuster)
LEFT Button
RIGHT Button
UP Button
DOWN Button
SET Button
BW Auto1 Level Switch
Day Night Select Switch
AP Gain Switch
Up Side Down Switch
Sync Switch
Monitor Output Jack
Camera Mounting Bracket (WV-CW474S)
Power Cable
Video Output BNC Connector
Dome Cover
LOW
HIGH
OFF
AUTO
SHARP
SOFT
OFF
ON
INT
LL
MAJOR OPERATING CONTROLS OPTIONAL COMPONENTS & ACCESSORIES
Mounting Base for WV-CW474F
WV-Q112 Clear Dome Cover WV-CW1C
Digital Disk Recorder with 16ch Multiplexer
WJ-HD500A
Digital Disk Recorder
WJ-HD100
SPECIFICATIONS APPEARANCE
WV-CW474S (Surface mount type)
Unit: mm (inches)
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
Printed in Japan
WV-JHCW474C(2P-492)
DISTRIBUTED BY:
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada [phone]
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 [phone]
Zone Office
Eastern : One Panasonic Way, Suite 3E-7, Secaucus, NJ 07094 [phone]
Central : 1707 N.Randal Road, 1C-2, Elgin, IL 60123 [phone]
Western : 6550 Katella Ave., Cypress, CA 90630 [phone]
http://cctv.panasonic.com/
Panasonic Security & Digital Imaging Company
A Division of Matsushita Electric Corporation of America
Security Systems Group
Executive Office : One Panasonic Way 3E-7, Secaucus, New Jersey 07094
R
Vandal Proof
Super Dynamic II Color Cameras
(with Low-Light B/W Mode)
WV-CW474 Series
Model No. WV-CW474S WV-CW474F
Type Surface mount type Flush mount type
Pick Up Device 768 (H) x 494 (V) pixels, interline transfer CCD
Scanning Area 4.8 (H) x 3.6 (V) mm, (Equivalent to 1/3" tube)
Scanning 525 lines / 60 fields / 30 frames
Scanning System 2 : 1 interlace
Synchronization Internal / Line-Lock / VD2
Video Output VBS 1.0V [p-p] / 75 Ω/ NTSC composite signal / BNC connector
Resolution Horizontal
480 lines at color imaging mode, 570 lines at B/W mode (at center)
Vertical more than 350 lines (at center)
Minimum Illumination (at F1.4 Wide) 2.4 lx (0.24 fc) at color imaging mode
0.3 lx (0.03 fc) at B/W mode
0.8 lx (0.08 fc) at color imaging mode, with optional dome cover; WV-CW1C
0.1 lx (0.01 fc) at B/W mode, with optional dome cover; WV-CW1C
Signal to Noise Ratio 50dB (at AGC Off, Weight On, AP On)
Dynamic Range 46dB (typical)
Functions Camera Title 16 character display (alphabet, numeric, symbols)
Light Control ALC mode
Super Dynamic II On / Off
Electronic Shutter
Off, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec.
AGC On (DNR-H) / On (DNR-L) / Off
Electronic Sensitivity Up Off, Auto (x2, x4, x6, x10), Fix (x2, x4, x6, x10, x16, x32)
White Balance ATW 1 / ATW 2 / AWC
Motion Detector On / Off
Lens Type 2x variable focal lens
Focal Length 3.8 ~ 8.0 mm
Aperture Ratio F1.4 (Wide) to F176, close / F1.8 (Tele) to F176, close
Min. Object Distance 1.2 m (3.9 ft) - ∞
Power Source 24V AC, 60Hz
Power Consumption 4.6W
Ambient Operating Temperature –10°C ~ +50°C (14°F ~ 122°F)
Dimensions (D) x (H) (mm) ø160 x 136.5 (ø6-5/16" x 5-3/8") ø152.5 x 133 (ø6 x 5-1/4")
Weight (approx.) 1.4 kg (3.1 lbs.) 1.0 kg (2.2 lbs.)
136.5(5-3/8")
R47.5
ø160(ø6-5/16")
85(3-3/8")
85(3-3/8")
95(3-3/4")
41.5 (1-5/8")
47.5(1-7/8") 46(1-13/16")
270(10-5/8")270(10-5/8")
83.5(3-5/16")
WV-CW474F (Flush mount type)
133(5-1/4")
95(3-3/4")
41.5 (1-5/8")
47.5(1-7/8")
R47.5
ø72(ø2-13/16")
ø152.5(ø6")
46(1-13/16")
270(10-5/8") 270(10-5/8")
83.5(3-5/16")
MATRIX SYSTEM 500
Digital Video Duplex Color Multiplexers
WJ-FS616C(16ch)
Matrix Switcher
WJ-SX550C
Card Cage
WJ-AD550
System Controller
WV-CU550C
WJ-FS409(9ch)
WJ-FS416(16ch)
Data Multiplex Unit
WJ-MP204C
System Controller
WV-CU360C
WV-CM1780
41cm (16")
Color Monitors
WV-CM2080
51cm (20")
WV-CM1020
22cm (9")
WV-CM1420
34cm (13")
WV-CM1480
36cm (14")
With a body made of die-
cast aluminum and a dome
made of 3.5mm thick
polycarbonate, these
cameras are tough enough
to resist severe shocks.
The camera lens unit has
a spring structure, so the
chassis can withstand
external shocks.
Meet IP66 international
standards. With excellent dust
and moisture resistant
capabilities these cameras can
be used outdoors, under
building eaves.
Die-cast aluminum body
Shock Resistant IP66 approved Rain and Wind Resistant
Heavy Duty Construction

Panasonic's new Vandal Proof Type Super Dynamic II Color Cameras. The WV-CW474 Series are not only
rugged and loaded with high-performance features, they are also easy to install. Highly resistant to dust,
moisture and shock these units satisfy international standards. The WV-CW474 Series include high image quality,
increased sensitivity, day/night switching for 24-hour surveillance and a multi-function motion detector.
Free from conventional limitations on placement, application and objective, these multipurpose color cameras
are ideal for numerous surveillance applications.
For single-camera
24-hour surveillance
Day/Night Switching
Senses motion
and sends alarm signal
Motion Detector
Unlimited attachment
with Unlimited Positioning
3-Dimensional Hinges
High Performance in a Rugged Body.
Surface Mount Type
WV-CW474S
Two New Types to Choose From
For direct attachment
to walls, ceilings,
eaves
For insertion in existing
junction box
Flush Mount Type
WV-CW474F
64 times dynamic range
Super Dynamic II
Feature Loaded & Simple to Install
Night
Day

Day (Color mode) Night (B/W mode) at low-light condition
*With optional clear dome cover; WV-CW1C
Single-camera 24-hour surveillance
Day/Night Switching
To allow 24-hour surveillance, these cameras (in high-
sensitivity mode) sense darkness and switch automatically from
daytime color to nighttime black-and-white with duration and
timer setting to meet exact installation requirement. They can
also be switched from color to black-and-white manually. With Super Dynamic II,
backlighting is no problem
With a 64 times dynamic range, Panasonic's proprietary Super
Dynamic II processing yields clear images even in high-
contrast or backlit lighting situations.
Current WV-CW474 Series at color imaging
Current WV-CW474 Series at B/W mode
Full-color images at 0.8lx* (0.08fc*)
Black-and-white images at 0.1lx* (0.01fc*)
These cameras support full-color surveillance in low-light
situations like this parking lot, switching to black-and-white
allows surveillance in light as low as 0.1lx (0.01fc) with optional
clear dome cover; WV-CW1C. IR response down to 0.00lx is
valid. 10x auto electronic sensitivity up is also supported (in
fixed mode 32x available).
Set the lens aperture to the bright section,
and the dark section is invisible.
Set the lens aperture to the dark section,
and the bright section is invisible. Digital signal technology allows images with
high contrast to be seen on screen.
Digital Motion Detector senses
movement and sends the alarm signal
When the Motion Detector
senses movement in the
monitored image,it automatically
sends alarm signal to the
system. When linked to a VCR,
it provides an efficient way to
avoid missed images.
Character displays title
The monitor can display title up
to 16 roman letters or numbers.
By allowing instant identification
of pre-set camera locations,
this feature can help prevent
errors during emergency
situations.
(Turns white only in demo mode)
Day/Night
switching
Feature Loaded
The above all photographs were taken for the purpose of this explanation; actual images may differ.
480-line horizontal resolution in color
mode, and 570-line in B/W mode
Equipped with a powerful 768(H) x 494(V) 1/3-type CCD, these
cameras deliver beautifully clear images with 480-line horizontal
resolution at color imaging and 570-line at B/W mode.
2x variable-focal lens is
standard equipment
Equipped with a 2x variable-focal lens plus an additional 2x
electronic zoom, these cameras can view their subjects in
greater details.

System Controller
System Controller
Spot
Multi
screen
*
*
WV-CF474 series x 8
WV-CS854A x 4 WV-CS854A x 4
WJ-MP204C WJ-MP204C
Digital Disk Recorder WJ-HD100
Color Monitor
WV-CM1780
Color Monitor
WV-CM2080
PS-Data Cable Kit
WV-CA48/10K
WV-CU360C
WV-CU360C
PS-Data Link
(up to 16 units)
Video Multiplexer WJ-FS416

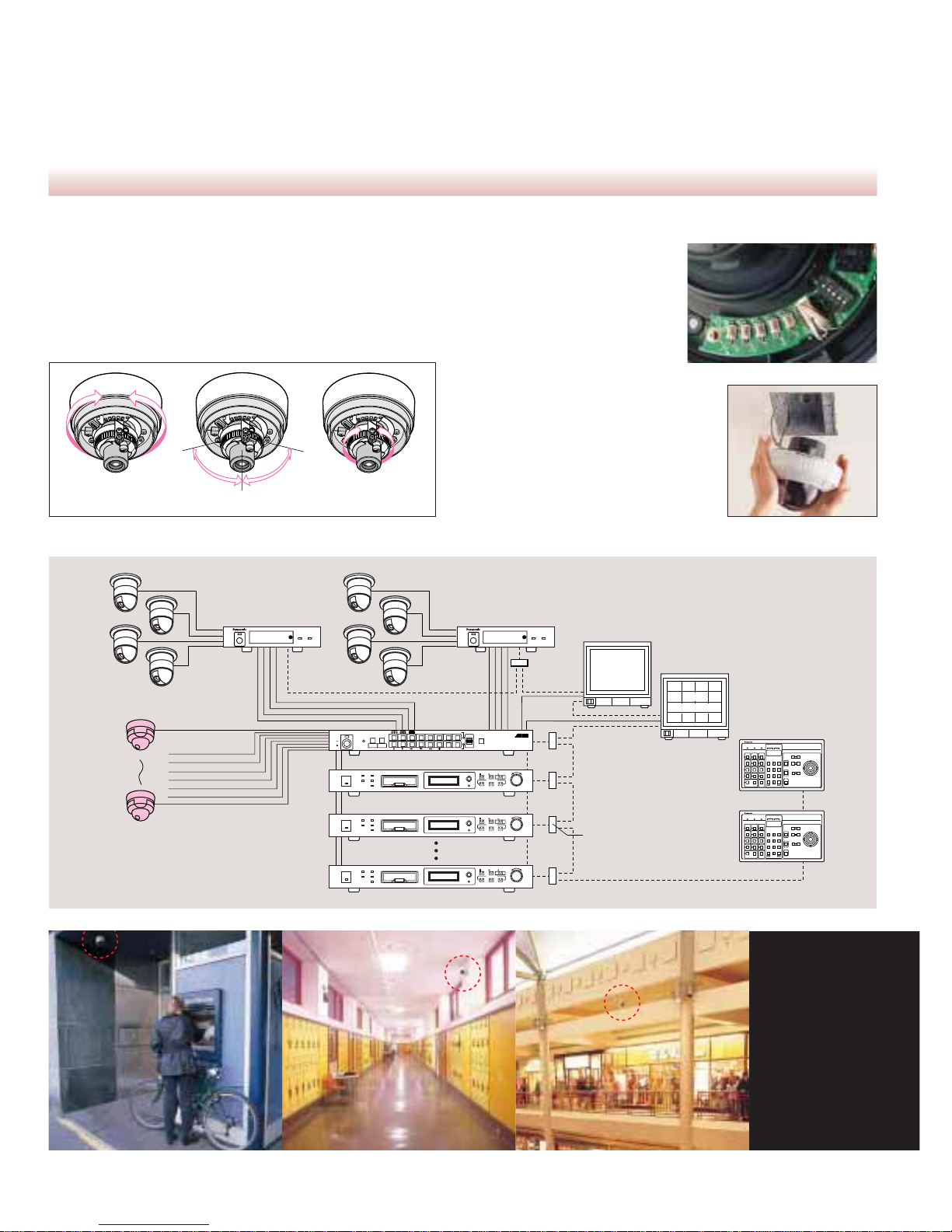

SYSTEM EXAMPLE
Proprietary 3-D hinge makes
adjustments easy
The 3-dimensional hinge (Pan, Tilt and Azimuth) allows the
camera to be rotated as well as moved horizontally and
vertically. Digital signal processing allows the image itself to be
shifted up, down, left, right, or inverted. Choose precisely the
camera angle you need; no camera makes it easier.
Basic settings couldn’t be simpler
Easily installs
in existing electronic
junction box
The Flush Mount Type WV-CW474F
can be installed in existing two gang
junction box.
Simple dipswitches control
Soft/Sharp, Day/Night:
Off/Auto and other basic
settings. A compact monitor-
out terminal with a small liquid
crystal display allows you to
check settings on the spot.
at Shopping mall/Building/Officeat ATMs/Banks/Jewelry Shops
•at Hospital/
Day Care Center
•at Low Court
•at Prison
•at Ware house
•
and more facilities
at Campus
Simple to Install
Pan 320 degrees Tilt 150 degrees Azimuth 320 degrees
75°75°
at ATMs/Banks/Jewelry Shops at Campus at Shopping mall/Building/Office

Panning Table
Tilting Lock Screw
Pan Lock Screw
Focus Lock Lever
Zoom Lock Lever
Azimuth (Angle Adjuster)
LEFT Button
RIGHT Button
UP Button
DOWN Button
SET Button
BW Auto1 Level Switch
Day Night Select Switch
AP Gain Switch
Up Side Down Switch
Sync Switch
Monitor Output Jack
Camera Mounting Bracket (WV-CW474S)
Power Cable
Video Output BNC Connector
Dome Cover
LOW
HIGH
OFF
AUTO
SHARP
SOFT
OFF
ON
INT
LL
MAJOR OPERATING CONTROLS OPTIONAL COMPONENTS & ACCESSORIES
Mounting Base for WV-CW474F
WV-Q112 Clear Dome Cover WV-CW1C
Digital Disk Recorder with 16ch Multiplexer
WJ-HD500A
Digital Disk Recorder
WJ-HD100
SPECIFICATIONS APPEARANCE
WV-CW474S (Surface mount type)
Unit: mm (inches)
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
Printed in Japan
WV-JHCW474C(2P-492)
DISTRIBUTED BY:
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada [phone]
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 [phone]
Zone Office
Eastern : One Panasonic Way, Suite 3E-7, Secaucus, NJ 07094 [phone]
Central : 1707 N.Randal Road, 1C-2, Elgin, IL 60123 [phone]
Western : 6550 Katella Ave., Cypress, CA 90630 [phone]
http://cctv.panasonic.com/
Panasonic Security & Digital Imaging Company
A Division of Matsushita Electric Corporation of America
Security Systems Group
Executive Office : One Panasonic Way 3E-7, Secaucus, New Jersey 07094
R
Vandal Proof
Super Dynamic II Color Cameras
(with Low-Light B/W Mode)
WV-CW474 Series
Model No. WV-CW474S WV-CW474F
Type Surface mount type Flush mount type
Pick Up Device 768 (H) x 494 (V) pixels, interline transfer CCD
Scanning Area 4.8 (H) x 3.6 (V) mm, (Equivalent to 1/3" tube)
Scanning 525 lines / 60 fields / 30 frames
Scanning System 2 : 1 interlace
Synchronization Internal / Line-Lock / VD2
Video Output VBS 1.0V [p-p] / 75 Ω/ NTSC composite signal / BNC connector
Resolution Horizontal
480 lines at color imaging mode, 570 lines at B/W mode (at center)
Vertical more than 350 lines (at center)
Minimum Illumination (at F1.4 Wide) 2.4 lx (0.24 fc) at color imaging mode
0.3 lx (0.03 fc) at B/W mode
0.8 lx (0.08 fc) at color imaging mode, with optional dome cover; WV-CW1C
0.1 lx (0.01 fc) at B/W mode, with optional dome cover; WV-CW1C
Signal to Noise Ratio 50dB (at AGC Off, Weight On, AP On)
Dynamic Range 46dB (typical)
Functions Camera Title 16 character display (alphabet, numeric, symbols)
Light Control ALC mode
Super Dynamic II On / Off
Electronic Shutter
Off, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec.
AGC On (DNR-H) / On (DNR-L) / Off
Electronic Sensitivity Up Off, Auto (x2, x4, x6, x10), Fix (x2, x4, x6, x10, x16, x32)
White Balance ATW 1 / ATW 2 / AWC
Motion Detector On / Off
Lens Type 2x variable focal lens
Focal Length 3.8 ~ 8.0 mm
Aperture Ratio F1.4 (Wide) to F176, close / F1.8 (Tele) to F176, close
Min. Object Distance 1.2 m (3.9 ft) - ∞
Power Source 24V AC, 60Hz
Power Consumption 4.6W
Ambient Operating Temperature –10°C ~ +50°C (14°F ~ 122°F)
Dimensions (D) x (H) (mm) ø160 x 136.5 (ø6-5/16" x 5-3/8") ø152.5 x 133 (ø6 x 5-1/4")
Weight (approx.) 1.4 kg (3.1 lbs.) 1.0 kg (2.2 lbs.)
136.5(5-3/8")
R47.5
ø160(ø6-5/16")
85(3-3/8")
85(3-3/8")
95(3-3/4")
41.5 (1-5/8")
47.5(1-7/8") 46(1-13/16")
270(10-5/8")270(10-5/8")
83.5(3-5/16")
WV-CW474F (Flush mount type)
133(5-1/4")
95(3-3/4")
41.5 (1-5/8")
47.5(1-7/8")
R47.5
ø72(ø2-13/16")
ø152.5(ø6")
46(1-13/16")
270(10-5/8") 270(10-5/8")
83.5(3-5/16")
MATRIX SYSTEM 500
Digital Video Duplex Color Multiplexers
WJ-FS616C(16ch)
Matrix Switcher
WJ-SX550C
Card Cage
WJ-AD550
System Controller
WV-CU550C
WJ-FS409(9ch)
WJ-FS416(16ch)
Data Multiplex Unit
WJ-MP204C
System Controller
WV-CU360C
WV-CM1780
41cm (16")
Color Monitors
WV-CM2080
51cm (20")
WV-CM1020
22cm (9")
WV-CM1420
34cm (13")
WV-CM1480
36cm (14")
With a body made of die-
cast aluminum and a dome
made of 3.5mm thick
polycarbonate, these
cameras are tough enough
to resist severe shocks.
The camera lens unit has
a spring structure, so the
chassis can withstand
external shocks.
Meet IP66 international
standards. With excellent dust
and moisture resistant
capabilities these cameras can
be used outdoors, under
building eaves.
Die-cast aluminum body
Shock Resistant IP66 approved Rain and Wind Resistant
Heavy Duty Construction
