Panasonic PT-F100NT Installation and maintenance instructions

Network Operation Manual
(Wireless Manager mobile edition 5.5)
TQBH0205 (E/U/EA)
Windows
ENGLISH
※The projectors illustrated as examples are PT-FW300NTE.

2
Contents
Connecting with Wired LAN ……………………… 28
Software Licensing Agreement …………………… 3
Notes on Using Wireless Connection …………… 4
Request Regarding Security ……………………… 6
What you can do with Wireless Manager mobile edition 5.5 … 7
Check your computer ……………………………… 10
Necessary environment for computers to be connected …… 10
Various projection methods ……………………… 33
Description of the launcher……………………………………… 33
Live Mode…………………………………………………………… 35
Multi Live Mode …………………………………………………… 36
Switching from one style to another …………………………… 36
4-screen multi style ……………………………………………… 37
4-screen index style……………………………………………… 38
16-screen index style …………………………………………… 40
Multiple Source Live Mode ……………………………………… 41
Multiple Source Multi Live Mode ……………………………… 43
Useful Functions …………………………………… 45
Selective Area Transmission …………………………………… 45
Secondary display transmission ……………………………… 46
Secondary Viewer ……………………………………………… 46
AV Mute function ………………………………………………… 47
Pointer function …………………………………………………… 47
List of connectable projectors/available functions in each
projection method ………………………………………………… 48
Setting options ……………………………………… 49
Setting options …………………………………………………… 49
Transmission……………………………………………………… 49
Key setting………………………………………………………… 50
Other ……………………………………………………………… 51
Version information ……………………………………………… 51
Software requirements ……………………………… 12
System requirements …………………………………………… 12
Installing and using software ……………………… 13
[1. Wireless Manager ME 5.5] ………………………………… 13
Installation free set up ……………………………… 14 [Installation free set up] ………………………………………… 14
Connecting with wireless LAN …………………… 15
Preparations ……………………………………………………… 15
Easy Wireless Set Up …………………………………………… 15
Parts name in search screen …………………………………… 15
“S-MAP” Connection …………………………………………… 18
“1-4/U” Connection ……………………………………………… 19
“PC Search” Connection………………………………………… 20
Connection error messages …………………………………… 22
Connecting through the access point ………………………… 24
When logging on without administrator authority ………… 25
Selection of adapters ……………………………… 29
Other operations for connection ………………… 30
Operations when password entry is required for connection … 30
Other search ……………………………………………………… 30
Automatic connection by “One-click connection” …………… 31
Exit Wireless Manager ………………………………………… 32
Network/Security setting of the projector ……… 52
Displaying the Network Menu…………………………………… 52
Wired LAN settings ……………………………………………… 53
Default wired LAN settings ……………………………………… 53
Setting network number (for wireless LAN) ………………… 54
[USER] settings …………………………………………………… 54
Setting IP ………………………………………………………… 54
Wireless settings ………………………………………………… 55
Default settings of [USER1] - [USER3]………………………… 56
Changing the projector name…………………………………… 57
Password setting ………………………………………………… 57
Network standby ………………………………………………… 58
Network control …………………………………………………… 58
Live mode cut-in…………………………………………………… 59
Computer search ………………………………………………… 59
Multi-live …………………………………………………………… 59
Verifying settings ………………………………………………… 60
Returning to the initial settings ………………………………… 60
Using WebBrowser ………………………………… 61
Before using the WebBrowser control ………………………… 61
Accessing from the WebBrowser ……………………………… 62
Monitor information window …………………………………… 63
Projector control window………………………………………… 64
Detailed settings window ……………………………………… 65
Switching Languages …………………………………………… 68
Using PJLink™ protocol …………………………… 69 Applicable commands …………………………………………… 69
Software Uninstall …………………………………… 70 Wireless Manager ME 5.5………………………………………… 70
Glossary ……………………………………………… 71 Frequently Asked Questions ……………………… 73

3
Please note the following.
• Panasonic cannot be held liable for any direct or indirect damages resulting from the use or malfunction of this projector.
• Panasonic cannot be held liable for damages arising from data corruption or loss as a result of using this projector.
Use of this Software is governed by the terms defined in this Software Licensing Agreement.
Article 1 License
The users obtain the license of the software (i.e. the information recorded or contained in CD-ROM, operation manual or
others), but the copyright or intellectual property right of the software does not transfer to the users.
Article 2 Use by a Third Party
Licensee may not transfer or allow any third party, to use or copy the Software, whether free of charge or not.
Article 3 Restrictions on Copying the Software
Licensee may make a single copy of the Software in whole or in part solely for backup purposes.
Article 4 Computer
Licensee may install and use the Software on more than one computer owned or managed by Licensee.
Article 5 Reverse Engineering, Decompiling or Disassembly
Licensee may not reverse engineer, decompile or disassemble the Software. Panasonic shall not be bound by warranty for
any defects in the Software caused by Licensee’s reverse engineering, decompiling or disassembly of the Software.
Furthermore, Panasonic or its distributors or dealers will not be responsible for any damage to the Licensee caused by
Licensee’s reverse engineering, decompiling or disassembly of the Software.
Article 6 After-sales Service
If you have a problem with the software, please contact the customer support center by telephone. Panasonic shall undertake
to notify Licensee of whether the problem is a known error in the program (“bug”), or whether the way in which the Software is
to be used should be modified.
Furthermore, the Software is subject to revision without prior notice.
Article 7 Indemnification
Panasonic’s liability with respect to this Software is limited to the conditions defined in Article 6 herein.
Panasonic or any of its distributors or dealers shall not be liable for any damage suffered by Licensee, either directly or
through claims from a third party, arising from or in connection with Licensee’s use of the Software.
Furthermore, Panasonic Corporation does not guarantee the successful operation of the software unless it is used with any of
Panasonic projectors.
Article 8 Export Control
Licensee agrees not to export or re-export the Software to any county other than the country of purchase of the projector in
any form without the appropriate export licenses under the regulations of the country where Licensee resides or of any other
country as may be required by such export or re-export.
Wireless Manager mobile edition 5.5 (hereinafter called “Wireless Manager ME 5.5”) uses the following software programs:
Portion of this software are based in part on the work of the Independent JPEG Group
Software Licensing Agreement

4
Wireless connection function of the projector uses radio waves in the 2.4 GHz band.
A radio station license is not required, but be sure to read and fully understand the following items before use.
Do not use near other wireless equipment.
The following equipment may use radio waves in the same band as the projector.
When the projector is used near these devices, radio wave interference may make communication impossible, or the
communication speed may become slower.
• Microwave ovens, etc.
• Industrial, chemical and medical equipment, etc.
• In-plant radio stations for identifying moving objects such as those used in factory manufacturing lines, etc.
• Designated low-power radio stations
If at all possible, avoid the use of cellular phones, TV sets or radios near the projector.
Cellular phones, TV sets, radios and similar devices use different radio bands from the projector, so there is no effect on
wireless communication or the transmission and reception of these devices. However, radio waves from the projector may produce
audio or video noise.
Wireless communication radio waves cannot penetrate steel reinforcements, metal, concrete,
etc.
Communication is possible through walls and floors made from materials such as wood and glass (except glass containing
wire mesh), but not through walls and floors made from steel reinforcements, metal, concrete, etc.
Avoid using the projector in locations prone to static electricity.
If the projector is used in a location prone to static electricity, such as on a carpet, the wireless LAN or wired LAN connection
may be lost.
If this happens, eliminate the source of static electricity or electromagnetic noise and reconnect to the wireless LAN or wired
LAN.
In rare cases static electricity or electromagnetic noise may make it impossible to establish a connection to the LAN.
If this happens, press the power button on the remote control or on the projector to power off the projector temporarily.
After the cooling fan stops operating (after the power monitor on the projector changes from orange to red), power on the
projector and reconnect to the LAN.
Using the projector outside the country
It is forbidden to take the projector outside the country or region where you purchased it, so use it only in the said country or
region. Also, note that depending on countries or regions there are restrictions on the channels and frequencies at which you
can use the wireless LAN.
Notes on Using Wireless Connection

5
Notes on Using Wireless Connection (cont.)
Channels that can be used
The channels (frequency range) that can be used differ according to the country or region. Refer to the table below.
Country or region Standard Channels used Frequency band
(Center frequency)
Japan ARIB STD-T66
1 - 13 2,412 MHz -
2,472 MHz
China SRRC
England, Germany, France, Spain,
Italy, Belgium, Austria, Sweden, Norway,
Denmark, Switzerland, Holland, Finland,
Portugal, Greece, Thailand, South Korea
ETSI 300.328
Singapore IDA
Australia,
New Zealand C-Tick
Malaysia SIRIM
United States FCC part 15
1 - 11 2,412 MHz -
2,462 MHz
Taiwan DGT
Wired LAN
Use straight or crossover LAN cable that is compatible with category 5 or above.
※1: Use category 5e or above when using 1000BASE-T.
※2: Whether straight cable, crossover cable or both can be used varies depending on the system configuration. For details,
consult your system administrator.

6
Request Regarding Security
When using this product, security breaches of the type described below are conceivable.
• Leakage of your private information via this product
• Illegal operation of this product by a malicious third-party
• Harm to or cessation of operation of this product by a malicious third-party
Be sure to implement sufficient security measures.
• Set passwords, and limit the users that are permitted login access.
• Make sure the password is as hard to guess as possible.
• Change the password periodically.
• Panasonic Corporation and its affiliated companies never directly ask customers for their password.
Do not give out your password even if directly asked by a third-party representing themselves as Panasonic Corporation.
• Always use on a network that has safety protection such as a firewall implemented.
About Wireless LANs
The advantage of a wireless LAN is that information can be exchanged between a PC or other such equipment and an
access point using radio waves as long as you are within range for radio transmissions.
On the other hand, because the radio waves can travel through obstacles (such as walls) and are available everywhere
within a given range, problems of the type listed below may occur if security-related settings are not made.
• A malicious third-part may intentionally intercept and monitor transmitted data including the content of e-mail and personal
information such as your ID, password, and/or credit card numbers.
• A malicious third-party may access your personal or corporate network without authorization and engage in the following
types of behavior.
Retrieve personal and/or secret information (information leak)
Spread false information by impersonating a particular person (spoofing)
Overwrite intercepted communications and issue false data (tampering)
Spread harmful software such as a computer virus and crash your data and/or system (system crash)
Since most wireless LAN cards or access points are equipped with security features to take care of these problems, you can
reduce the possibility of these problems occurring when using this product by making the appropriate security settings for the
wireless LAN device.
Some wireless LAN devices may not be set for security immediately after purchase. To decrease the possibility of occurrence
of security problems, before using any wireless LAN devices, be absolutely sure to make all security-related settings
according to the instructions given in the operation manuals supplied with them.
Depending on the specifications of the wireless LAN, a malicious third-party may be able to break security settings by special
means.
Please contact Panasonic if you need help taking care of security settings or other such.
If you cannot perform security settings for your wireless LAN by yourself, please contact the Panasonic Support Center.
Panasonic asks customers to thoroughly understand the risk of using this product without making security settings, and
recommends that the customer make security settings at their own discretion and responsibility.

7
What you can do with Wireless Manager mobile edition 5.5
Network Transmission
You can connect the projector to a computer via the wireless LAN or the wired LAN, and send moving and still images.
For information on the connection, refer to the description on page 15 for wireless LAN, and page 28 for wired LAN.
Project with various methods

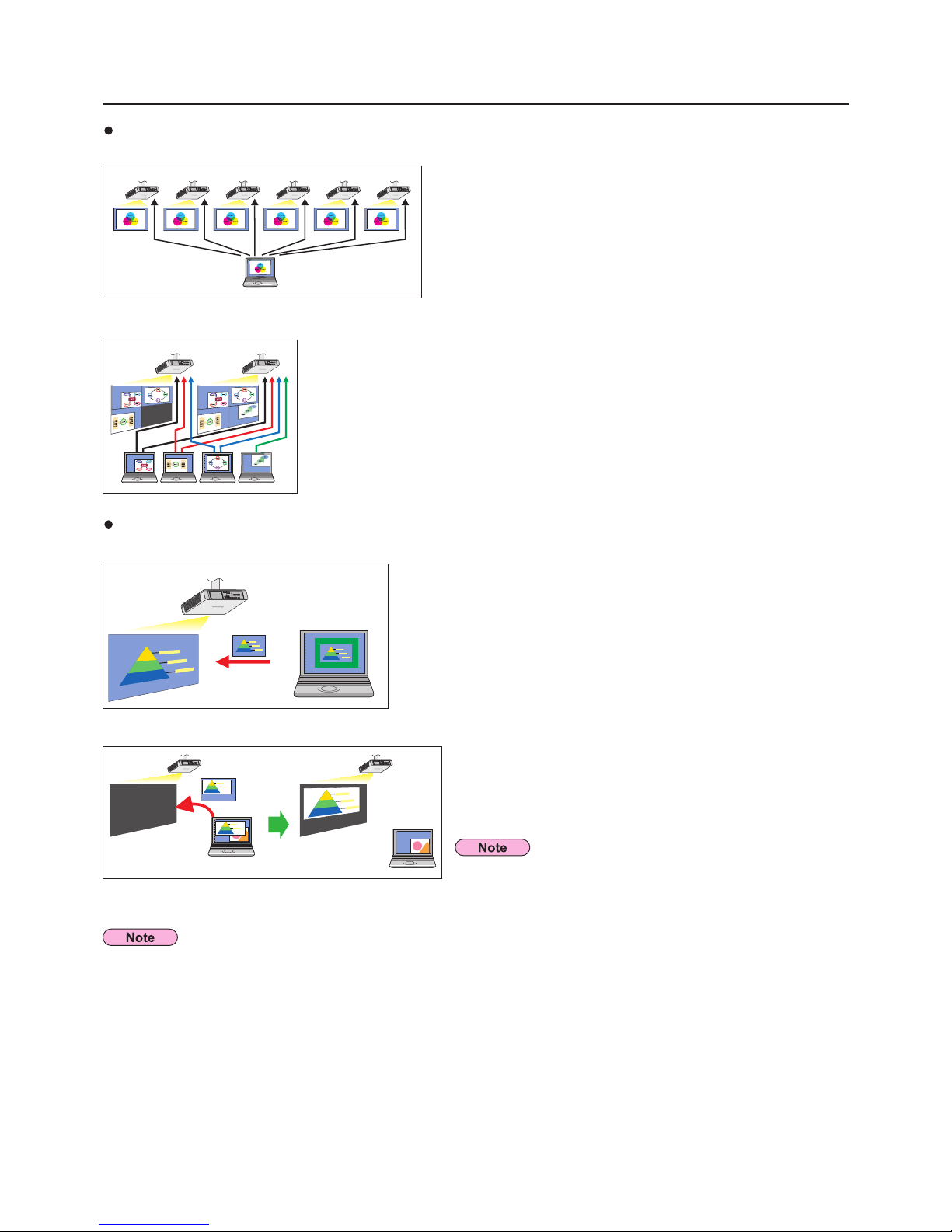

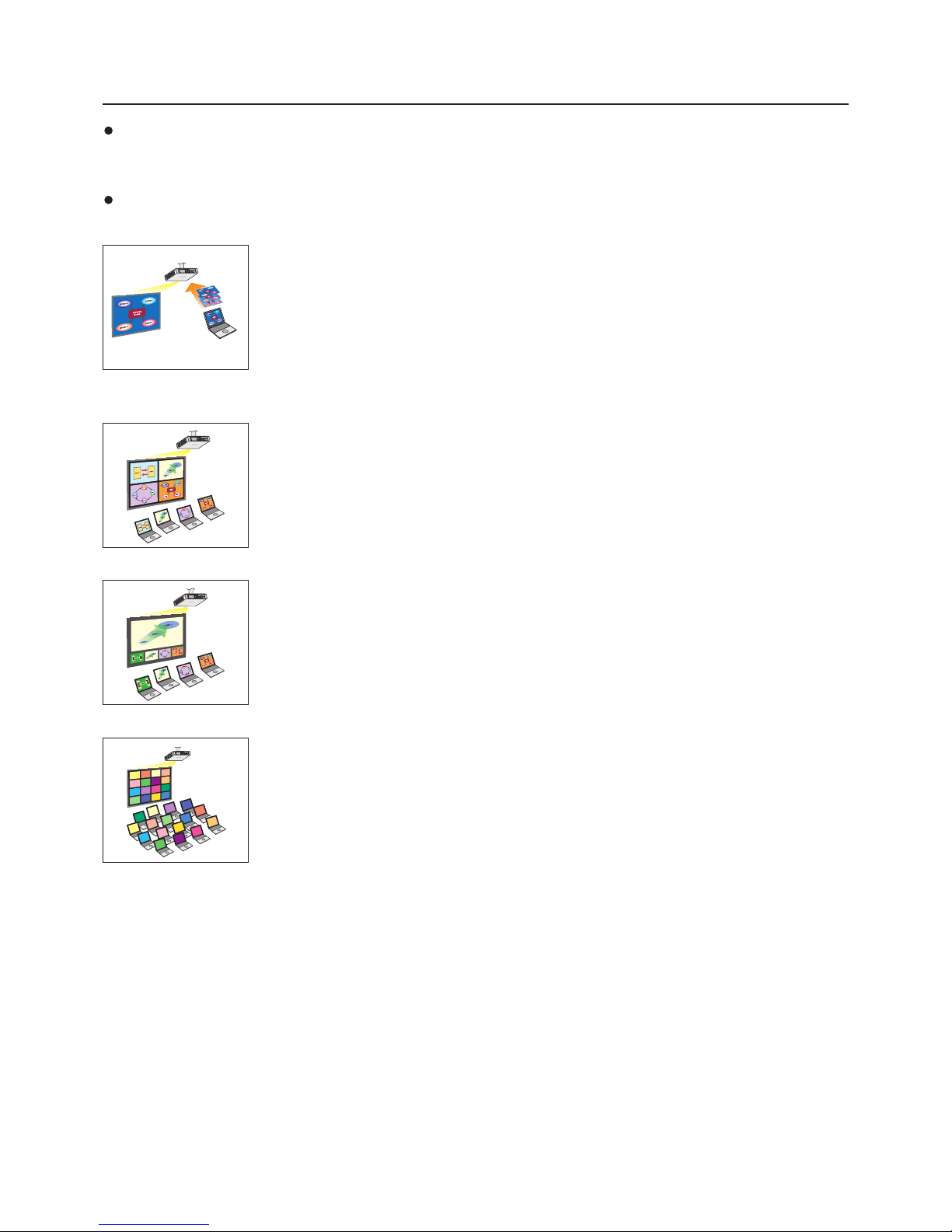

<Live mode> (See page 35)
<Multi live mode> (See page 36)
• 4-screen multi style (See page 37)
Used for normal presentations.
Used for presentations involving multiple computers.
• 4-screen index style (See page 38)
This style is convenient in cases where you wish to focus attention on one of four presentations
displayed simultaneously.
This style is convenient in cases where you wish to display a large number of presentations as a
list.
• 16-screen index style (See page 40)

8
What you can do with Wireless Manager mobile edition 5.5 (cont.)
Project with multiple projectors
<Multiple source live mode> (See page 41)
Useful functions
<Selective area transmission> (See page 45)
<Secondary display transmission> (See page 46)
<Multiple source multi live mode> (See page 43)
This arrangement can be used when you wish to simultaneously display multiple
presentations using multiple projectors.
Moving the cursor outside the computer screen with the mouse
By using the selective area window, you can specify the necessary
information alone from the computer screen, and display it on the projection
screen.
This arrangement can be used when a number of projectors are
installed in a large conference room, or when holding simultaneous
presentations in several conference rooms, for example.
You can set the computer screen and the projector screen to the
multi-monitor mode, and use the computer screen as the primary
monitor and the projector screen as the secondary monitor. This
is convenient for when holding a presentation using the projector
screen while displaying reference material on the computer screen.
For details on the secondary display transmission function, see the
application section for the secondary display transmission function
in the instruction manual.
For connectable projectors and functions available for Wireless Manager ME 5.5, see “List of connectable projectors/available
functions in each projection method” on page 48.

9
What you can do with Wireless Manager mobile edition 5.5 (cont.)
<WebBrowser control> (See page 61)
The following operations are possible when using WebBrowser.
• Setting and adjusting the projector
• Displaying the projector status
• Setting for message transmission
<PJLink™> (See page 69)
Compatible with PJLink™ Class 1. The following operations can be performed from a computer when PJLink™ protocol is used.
• Setting the projector
• Querying the projector status
<Command control> (Refer to “Serial terminals” in the operation manual for the projector.)
You can control the projector from a PC, using the control commands of the serial terminals.
<Virtual remote control function> (See page 34)
You can perform the following operation from a PC, using the virtual remote control in stead of the remote control.
• Changing the channels
• Turning the power on and off
<One-click Connection> (See page 31)
You can connect to the projector by double-clicking or using drag-and-drop.
<Live mode cut-in function> (See page 59)
During live mode or multi live mode, a different computer can interrupt and project images in live mode.
If you use “Web control,” “PJLink™” or “Command control,” turn on [NETWORK CONTROL] in the network menu for the
projector. (See page 58)

10
Check your computer
• First, check your computer to see whether or not it has a wired LAN※or a built-in wireless LAN function.
※LAN : “Glossary” (See page 71)
• Before connecting the projector to the computer, be sure to check the following settings.
• Operation is not guaranteed for all wireless LAN cards and built-in wireless LAN adapters.
Wireless LAN
Check 1 Wireless LAN settings
<Computer with a built-in wireless LAN function>
• Is your wireless LAN switched on?
<Computer without a built-in wireless LAN function>
• Is your wireless LAN card properly recognized?
• Is the wireless LAN card switched on?
• Install the wireless LAN card driver beforehand.
For details on how to install the driver, refer to the instructions accompanying the wireless card.
Check 2 Logon user’s settings
• Have you logged in as the Administrator?
Check 3 Computer’s settings
•
When security (firewall) software and utilities for network cards are installed, these may prevent connection of the projector.
<Windows XP/Windows Vista>
• Is Network Bridge enabled? (See page 74)
• Has your firewall been disabled? (See page 75)
Necessary environment for computers to be connected

11
Wired LAN
Check 1
<For wired LAN>
• Is the cable properly connected?
• The specifications for cables vary depending on the system configurations. Confirm the projector settings and the cable
specification.
Check 2 Wired LAN settings
<Computer with a built-in wired LAN function>
• Is your wired LAN switched on?
<Computer without a built-in wired LAN function>
• Is your wired LAN card properly recognized?
• Is your wired LAN card switched on?
• Install the wired LAN card driver beforehand.
For details on how to install the driver, refer to the instructions accompanying the wired LAN card.
Check your computer (cont.)

12
Software requirements
The computer must meet the following requirements in order to use the supplied software.
OS: Microsoft Windows 2000 Professional SP4/XP Home Edition/XP Professional/
XP Tablet PC Edition 2005/Microsoft Windows Vista™ Ultimate 32 bit/Vista™ Business 32 bit /
Microsoft Windows VistaTM Home Premium 32 bit/VistaTM Home Basic 32 bit
CPU: Intel®Pentium®III 800 MHz or faster, or compatible processor
(1 GHz or faster is recommended when using live mode)
RAM: 256 MB or more
Empty hard disk capacity:
60 MB or more
Hardware conditions:
CD or DVD drive (for installing software and viewing the operation manual)
LAN terminal (10BASE-T/100BASE-TX)
An IEEE802.11 b/g built-in wireless LAN system or an IEEE802.11 b/g wireless LAN adapter must be installed
and running properly.
However, some IEEE802.11 b/g wireless LAN may not allow connection to IEEE802.11 g projectors.
WebBrowser: Internet Explorer 6.0 or newer
Netscape Communicator 7.0 or newer
System requirements
Operation is not guaranteed for all computers that meet the above
conditions.
Note that operation is not guaranteed when used with system environments other than the above or on homemade computers.
Precautions when using Windows Vista
• The following limitation is applied to the projection of Launcher to the projector screen:
– Software installed: Launcher is displayed.
– Software not installed: When Windows Aero is engaged, the launcher is projected.
When Windows Aero is disengaged, the launcher is not projected.
The illustrations and screenshots in this manual may be different from those on your computer.

13
• Exit all the application software programs that are running on Windows. Otherwise, installation may not be possible.
• Administrator authority is required for installation.
•Iftheinstallerdoesnotstartupautomatically,double-click[EasyInstall]→[Easy_Inst.exe]intheCD-ROM.
• If Wireless Manager ME 1.0, 2.0, 3.0, 4.0, 4.5 or 5.0 has been installed, uninstall it by following the method below.
 Fromthedesktop,select[Start]→[AllPrograms]→[PanasonicWirelessDisplay]→[UninstallWirelessManagermobile
edition *.*]. (*.* in the menu is 1.0, 2.0, 3.0, 4.0, 4.5 or 5.0)
Follow the instructions appearing on the screen and uninstall the software.
• If Wireless Manager is used immediately after installation, some functions (secondary display transmission, etc.) may not work.
In such a case, restart the computer once and then use Wireless Manager.
Wireless Manager ME 5.5 is used to send a screen from a PC to the projector via wireless or wired LAN.

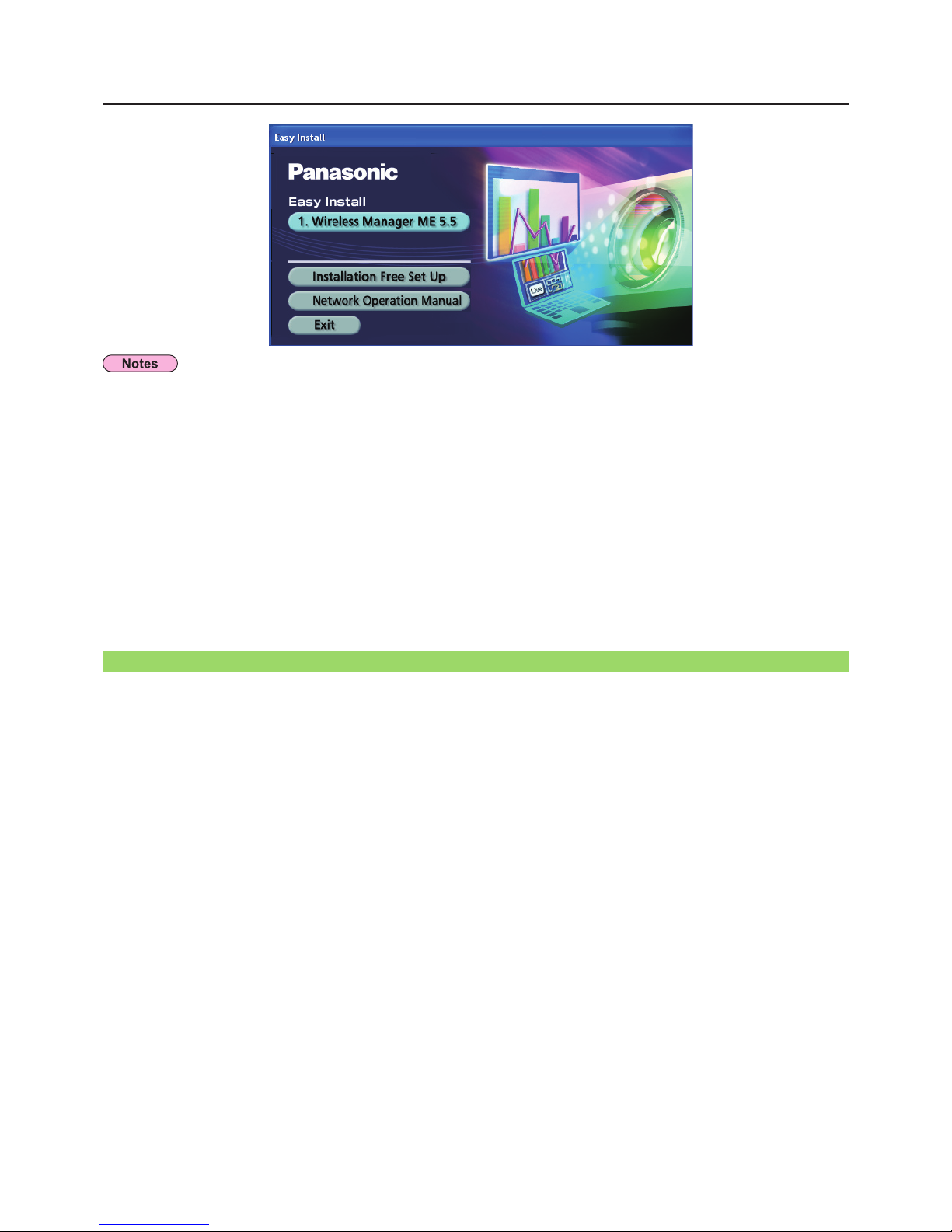

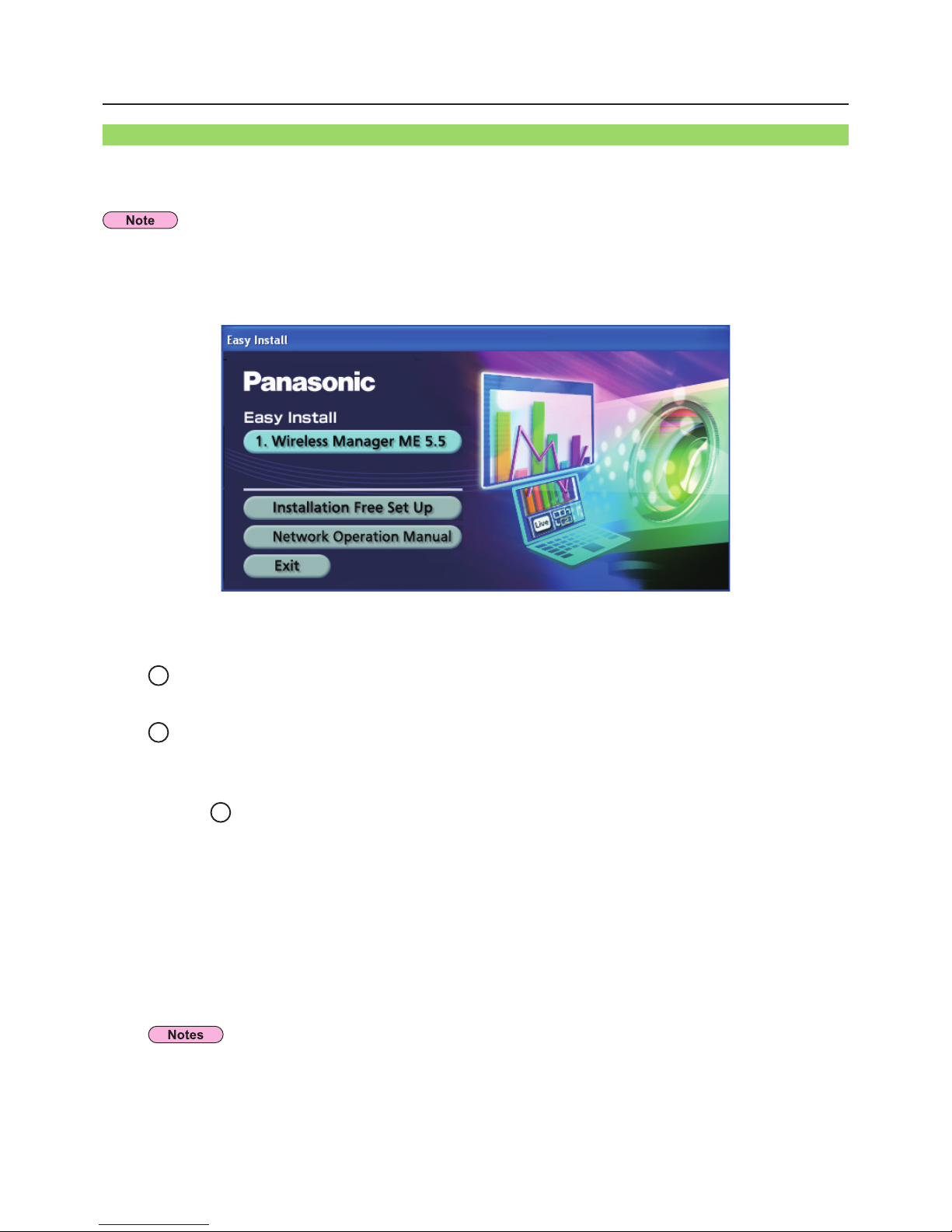

Click [1. Wireless Manager ME 5.5].
Follow the instructions on the screen and install the software.
1
[1. Wireless Manager ME 5.5]
Installing and using software

14
Installation free set up
You can use Wireless Manager ME 5.5 without installing it in the computer.
If your PC can access the removable media such as SD card on which Wireless Manager ME 5.5 is copied, you can use without
installing it.
Insert provided CD-ROM into the CD-ROM drive.
The install program starts.
1
Click [Installation Free Set Up].
[Direct CD-ROM Startup] and [Other Media Source Startup, Make Copy Here] appear on the window.
2
Select the destination to save, and click [OK].
CD-ROM data is copied to the destination.
Once Wireless Manager ME 5.5 has been copied, click [Close] in Easy Install dialog box.
4
Double-click the Wireless Manager ME 5.5 icon (WMStart.exe) for the destination
folder “WMme5.5” you selected in step 4.
Wireless Manager ME 5.5 starts up.
Operation is the same as when operating after installing CD-ROM.
If selecting removable medium as the destination to save, ensure that the removable medium is recognized by the
computer to which you wish to connect the projector.
5
• When using without installing, following functions are not available.
• Secondary display transmission (See page 46)
• Producing audio along with video at live mode (See page 49)
• Automatic connection by double-clicking (See page 51)
• Operation is slower compared to when the computer is used with Wireless Manager ME 5.5 installed.
• If you have logged in as a [GUEST] or other user that has no [Administrator] authority, use [U (user)] for the network
number.
AWhen using without copying the program: Click [Direct CD-ROM Startup].
Wireless Manager ME 5.5 starts.
Operation is the same as when operating after installing CD-ROM.
BWhen using after copying the program: Click [Other Media Source Startup, Make
Copy Here].
A window opens to select the destination to save.
3
<If you chose Bin step 3, follow steps 4 - 5.>
When copying Wireless Manager ME 5.5 to a removable medium, empty capacity of at least 32 MB is required.
[Installation free set up]

15
Connecting with wireless LAN
Easy Wireless Set Up
Weak
↑
↓
Strong
There are 3 different connection methods, “S-MAP” (Projector Signal Map) Connection, “1-4/U” Connection, and “PC Search”
Connection.
These connections enable easy search and connection to the projector.
(Refer to “1-4/U” connection on page 19 to establish an easy wireless connection with projectors that have no S-MAP function.)
• [S-MAP] Connection: Search and connect to the projectors set up using [Network Number] [S-MAP] (see page 54).
Connectable projectors are displayed in order of wireless reception strength. (see page 18).
Operation is performed in [S-MAP] or [S-MAP] (list display) view on the <Projector Search> window.
• [1-4/U] Connection: Search and connect to the projectors set up using [Network Number] [1]-[4] or [USER1]-[USER3].
Projectors that can be connected to are displayed in a list (see page 19).
Operation is performed in [1-4/U] view on the <Projector Search> window.
• [PC Search] Connection: Use the [Computer search] function on the projector to search and connect (see page 20).

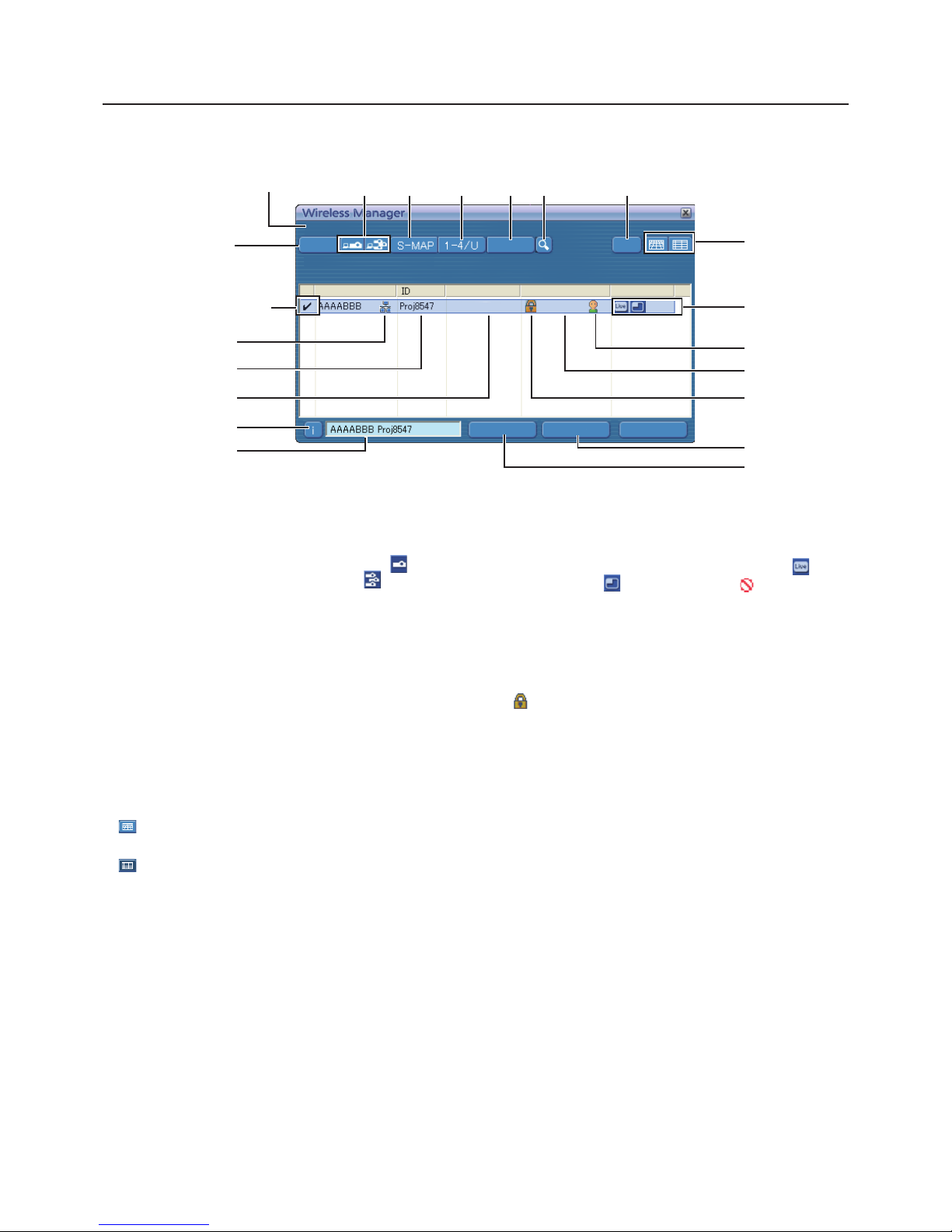

Parts name in search screen
0COG
2TQL
Current
H
B C D E F G
Current settings
Signal strength level
A
ASetting menu display
Choose to display or hide the B to Fbuttons
BAccess Devices (See page 35, 41, 43)
When only one projector is connected, select [ ]. When
multiple projectors are connected, select [ ].
※Multiple projectors [(Multiple projectors icon)] are
available when “1-4/U” is selected.
CS-MAP (See page 18)
Display <Projector Search> window – [S-MAP].
D1-4/U (See page 19)
Display <Projector Search> window – [1-4/U].
EPC Search (See page 20)
Display <PC Search> window.
F Other search (See page 30)
From the projectors that are currently switched on, search
for the projector of specified IP address, domain name,
and ID.
G Updates the list of found projectors.
H Switching Display Window
: <Projector Search> window – [S-MAP] is displayed.
(Upper figure)
: <Projector Search> window – [S-MAP] (list display)
is displayed. (See page 16)
I Found projectors
• Projector found on a wired LAN
• Projector found using [U (user)]
• Projectors searched by a network number of 1 to 4.
J Projectors searched and found by S-MAP.
The name and ID of projectors are displayed.
represents the projectors that were searched and
found through wired LAN.
represents the projectors that were searched and
found through wireless LAN.

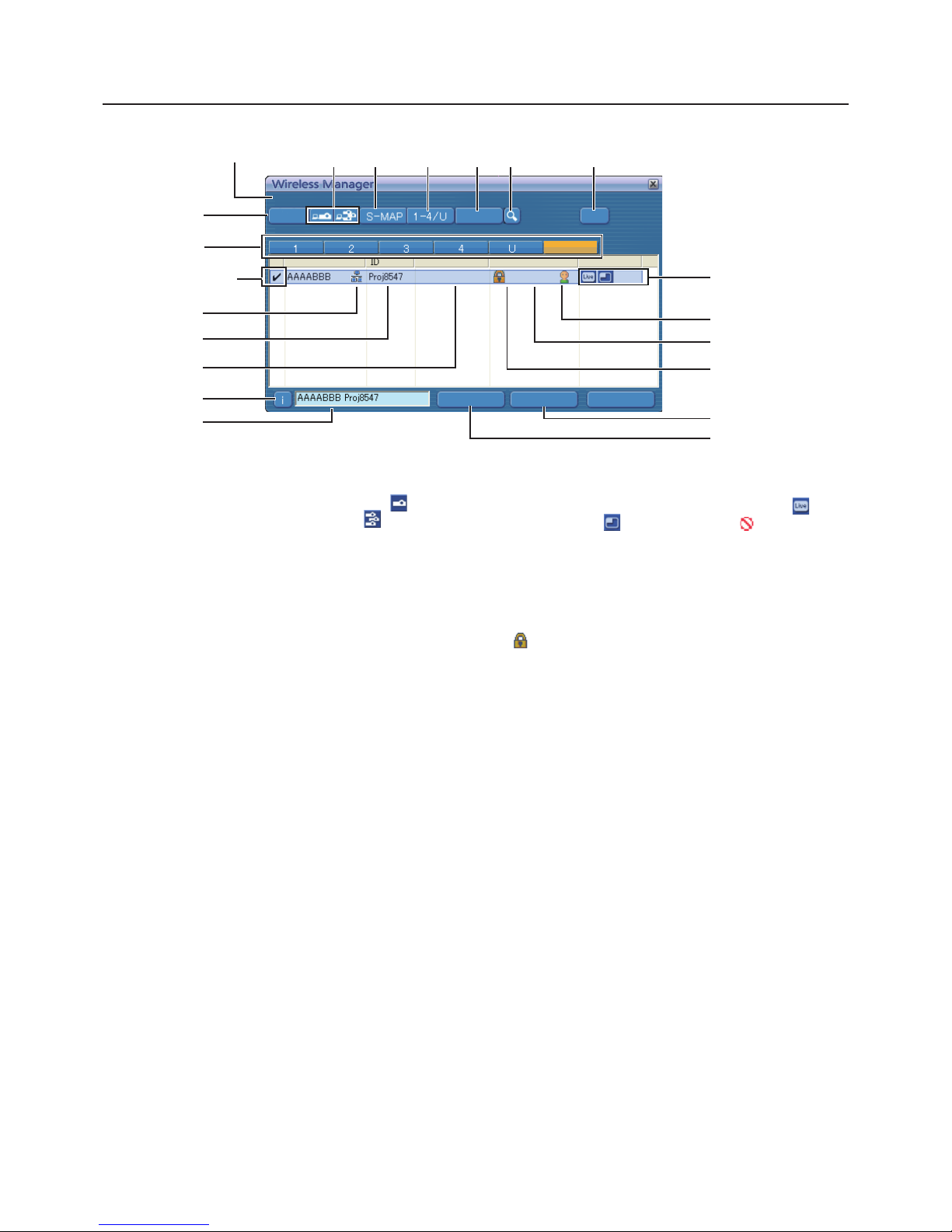

n <Projector Search> window – [S-MAP] (See page 18)
Scrollbar
I
Preparations
Make sure or prepare for the following items:
A The wireless LAN adapter is recognized. (See page 73)
• The wireless LAN adapter you want to use is enabled. (Otherwise, enable it.)
• Make sure the power supply for the wireless LAN adapter is turned on; the hardware switch or the software setting might
have turned it off.
B
When using it via the infrastructure connection: Make sure the network setting for the projector has been done by the
administrator. (For detailed information, refer to [USER] setting on page 54.)
C
If you log in with [User authority], select a projector network number from [USER1] to [USER3]. (For detailed information, refer
to [USER] setting on page 54.)
J

16
PCSearch
Setting
Current setting [Single] - [S-MAP]
Select access port
StandbyLive Mode
Update
CloseConnectConnectability
n<Projector Search> Window – [S-MAP] (List display) (See page 18)
ASetting menu display
Choose to display or hide the B to Fbuttons
BAccess Devices (See page 35, 41, 43)
When only one projector is connected, select [ ]. When
multiple projectors are connected, select [ ].
※Multiple projectors [(Multiple projectors icon)] are
available when “1-4/U” is selected.
CS-MAP (See page 18)
Display <Projector Search> window – [S-MAP].
D1-4/U (See page 19)
Display <Projector Search> window – [1-4/U].
EPC Search (See page 20)
Display <PC Search> window.
F Other search (See page 30)
From the projectors that are currently switched on, search
for the projector of specified IP address, domain name,
and ID. (From all network numbers except for [U (user)])
G Updates the list of found projectors.
H Switching Display Window
: <Projector Search> window – [S-MAP] is displayed.
(See page 15)
: <Projector Search> window – [S-MAP] (list display)
is displayed. (Upper figure)
IThis mark appears for the projectors that have been
searched and found through wired LAN.
JID (See page 30)
Display projector’s ID.
KMode (See page 35)
Display projector’s mode or style.
LAvailable modes and functions
Unavailable modes/functions among [Live mode ] and
[Multi live mode ] are displayed with [ ] overlaid on
them.
MThe number of people connected to this projector
Display the number of people that are connected to this
projector.
NThe status of this projector
Display the projector’s connection status.
O[ ] will be displayed when password is required for
the connection. (See page 30)
PConnection message
Blinks when connection is not possible. Click to display
information on resolving the issue. (See page 22)
Q The [Projector Name] of the selected projector and the
name given in the favorites are displayed (See page 51).
Guides for the operating status and connection method
etc are also displayed.
RConnectability
The name and ID of projectors are displayed on the upper
left of the selected projector’s projection screen.
Once it is confirmed as connectable, the message
“Projector is available.” will appear on the PC screen.
SConnection
Connect to the selected projector.
Connecting with wireless LAN (cont.)
M
N
L
O
S
K
J
Selected
projector
P
Q
R
H
B C D E F G
Current settings
A
I

17
PCSearch
Setting
Current setting [Single] - [1-4/U]
Select access port
StandbyLive Mode
Update
CloseConnectConnectability
All
n<Projector Search> Window – [1-4/U] (See page 19)
ASetting menu display
Choose to display or hide the B to Fbuttons
BAccess Devices (See page 35, 41, 43)
When only one projector is connected, select [ ]. When
multiple projectors are connected, select [ ].
※Multiple projectors [(Multiple projectors icon)] are
available when “1-4/U” is selected.
CS-MAP (See page 18)
Display <Projector Search> window – [S-MAP].
D1-4/U (See page 19)
Display <Projector Search> window – [1-4/U].
EPC Search (See page 20)
Display <PC Search> window.
F Other search (See page 30)
From the projectors that are currently switched on, search
for the projector of specified IP address, domain name,
and ID. (From all network numbers except for [U (user)])
G Update the connection status display
H “Network” number
If you specify [1], [2], [3], [4], [U (user)]※1or [Display all],
the projector(s) assigned with the corresponding network
number(s) will be displayed in [Projector name] field (See
page 54). The default value is [S-MAP]※2for both PC and
projector.
IThis mark appears for the projectors that have been
searched and found through wired LAN.
JID (See page 30)
Display projector’s ID.
KMode (See page 35)
Display projector’s mode or style.
LAvailable modes and functions
Unavailable modes/functions among [Live mode ] and
[Multi live mode ] are displayed with [ ] overlaid on
them.
MThe number of people connected to this projector
Display the number of people that are connected to this
projector.
NThe status of this projector
Display the projector’s connection status.
O[ ] will be displayed when password is required for
the connection. (See page 30)
PConnection message
Blinks when connection is not possible. Click to display
information on resolving the issue. (See page 22)
Q The [Projector Name] of the selected projector and the
name given in the favorites are displayed (see page 51).
Guides for the operating status and connection method
etc are also displayed.
RConnectability
The name and ID of projectors are displayed on the upper
left of the selected projector’s projection screen.
Once it is confirmed as connectable, the message
“Projector is available.” will appear on the PC screen.
SConnection
Connect to the selected projector.
Connecting with wireless LAN (cont.)
H
M
N
L
O
S
K
J
Selected
projector
P
Q
R
B C D E F G
Current settings
A
※1
• In the following situations, connections other than [U (user)] are not possible.
- Not logged in with Administrator authority
• Depending on the computer and wireless LAN card used, Easy Wireless Set Up may not be possible. If this is the case, the
[Network] number of <Projector Search> window automatically switches to [U (user)]. For details of the connection procedure,
first close Wireless Manager ME 5.5, and then refer to pages 25 - 27.
※2
• The network number is [S-MAP], when Wireless Manager ME 5.5 starts. These numbers must match for the connection. To
check the network number, refer to the network menu of the projector.
• When importance is placed on security, select the network number [2] - [4], because WEP (wireless communication
encryption)※ is set on these network numbers.
• If [U (user)] is used for the network number, important video/audio data is protected because AES※encryption processing
takes place in advance for all network numbers, even though [ENCRYPTION] is set to [NONE].
• Other network adapters may not be usable under Easy Wireless Set Up connections.
• Connections to other networks connected through the wireless LAN card are broken under Easy Wireless Set Up connections.
※“Glossary” (See page 72)
I

18
PCSearch
Setting
Current setting [Single] - [S-MAP]
Select access port
StandbyLive Mode
Update
CloseConnectConnectability
Name2345
Proj2345
Name2212
Proj2212
AAAABBB
PRJ02555
Name8833
Proj8833
Name6679
Proj6679
Name7771
Proj7771
Name1234
Proj1234
Name6789
Proj6789
PCSearch
Close
Setting
Current setting [Single] - [S-MAP]
Select access port
Connect
Connectability
Cancel
Update
• For details on how to connect, refer to page 29.
• Refer to the models on page 48 supporting the wired LAN that is compatible with this software.
• If you want to enable the network adapter after starting the Wireless Manager, you should do it
after exiting the Wireless Manager.
●Ifthe<ConfirmationDialog>boxisdisplayed
Click [Yes(Y)].
●Whenthe<NetworkAdapterSelection>windowappears
Select the adaptor and click [OK].
If the <Confirmation Dialog> box is displayed, click [YES (Y)].
3Select and click [Connect].
4Connection completed.
When the connection with the projector is established, the launcher
appears.(“Descriptionofthelauncher”→See page 33)
• The “Signal strength level” is just a guide. As differences occur due to conditions such as the communication
environment, this does not always display accurate values.
• Enter the user name in up to 8 alphanumerics.
• The launcher is not projected on the projector. However, if you are using Windows Vista, the installed launcher is
projected.
• If you cannot connect the projector and computer using Easy Wireless Setup (See page 73).
• If you do not find a projector you want to connect, press [Update] button.
• When a firewall is active, a window may open prompting to deactivate a network block. (See screen Aon page 76.)
• When a network connection is established by using the connection utility, a window may open prompting to halt the
connection utility. (See screen Bon page 77.)
“S-MAP” Connection

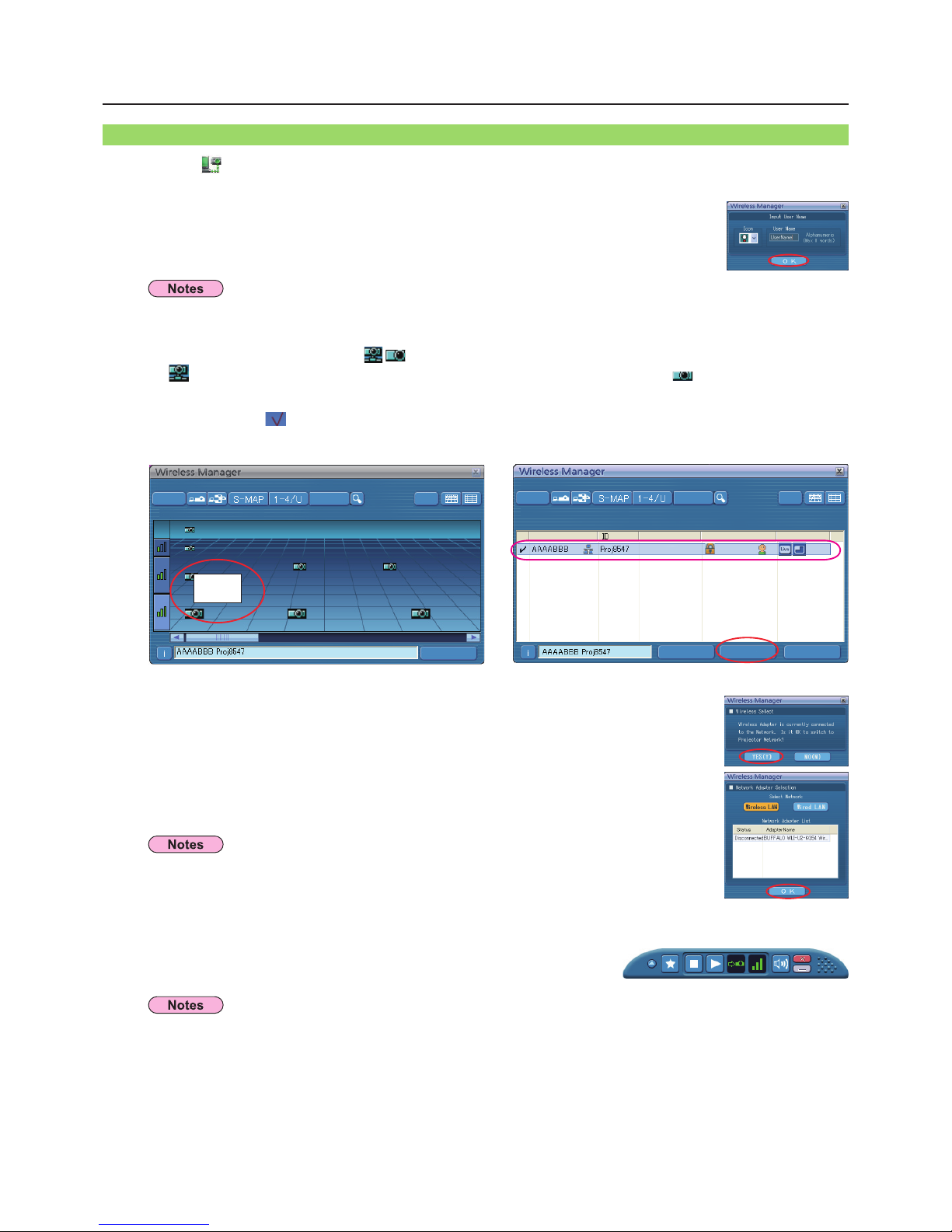

1Click [ ] on the desktop.
Alternatively,select[Start]→[AllPrograms]→[PanasonicWirelessDisplay]→
[Wireless Manager mobile edition 5.5].
<ProjectorSearch>window–[S-MAP]isdisplayed.(Partsname→See page 15)
●Whenthe<InputUserName>windowappears
Set the icon and user name, and click [OK].
2Select and click the icon [ ] of the projector you want to connect to.
( represents the projectors that were searched and found through wired LAN, while indicates those found
through wireless LAN.)
The Connect/Connectability menu is displayed.
For List Display, [ ] is displayed in the selected projector.
(In list view, select a projector you want to connect from the list and press [Connect].)
• The icon and user name are set when Wireless Manager mobile edition 5.5 is first launched.
• The icon and user name settings can be changed in the <Option> window. (See page 51)
Connecting with wireless LAN (cont.)
<Projector Search> Window – [S-MAP] (List display)<Projector Search> Window – [S-MAP]

19
Connecting with wireless LAN (cont.)
1Click [ ] on the desktop,
orselect[Start]→[AllPrograms]→[PanasonicWirelessDisplay]→
[Wireless Manager mobile edition 5.5].
<Projector Search> window – [S-MAP] is displayed.

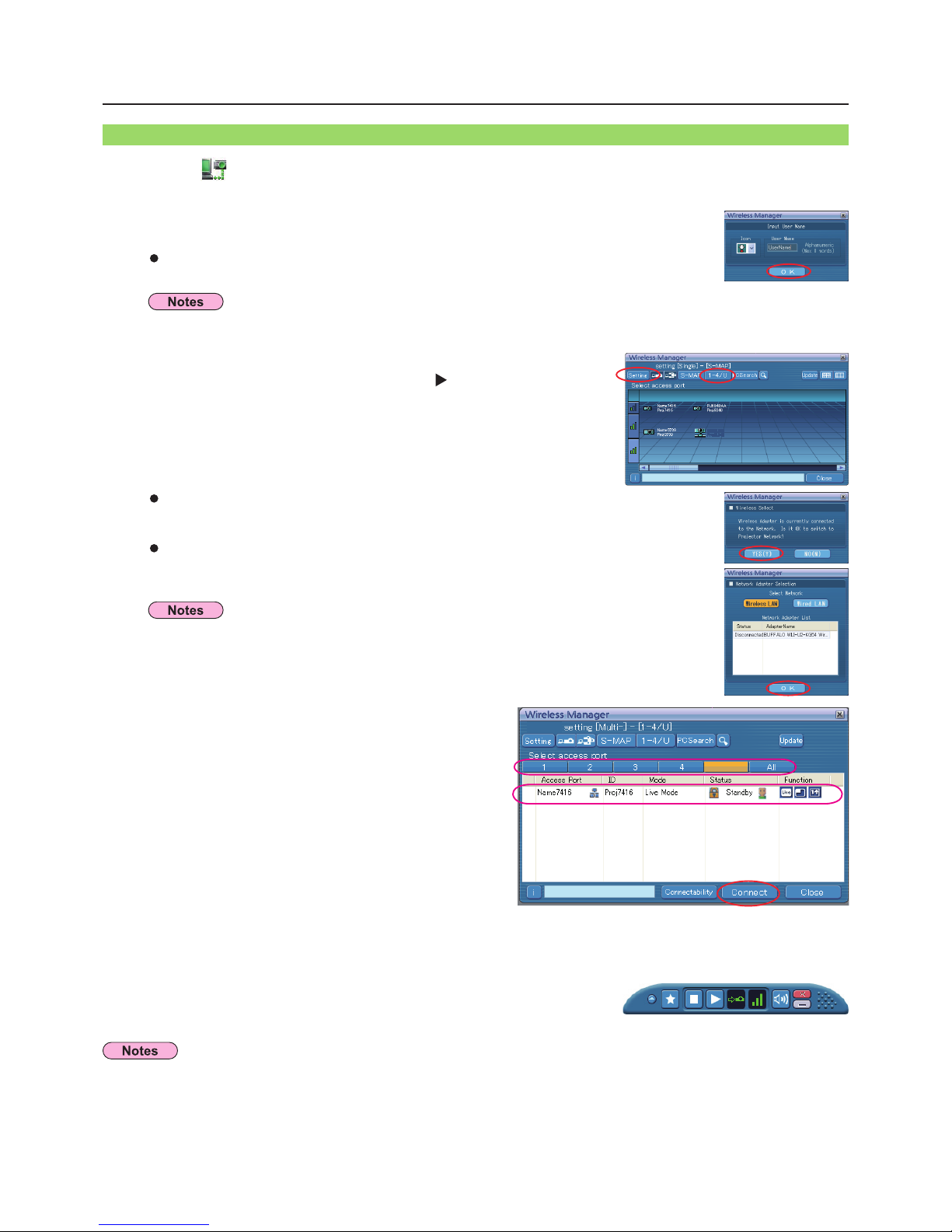

“1-4/U” Connection
• For details on how to connect, refer to page 29.
• Refer to the models on page 48 supporting the wired LAN that is compatible with this software.
• If you want to enable the network adapter after starting the Wireless Manager, you should do it
after exiting the Wireless Manager.
When the <Input User Name> window appears
Set the icon and user name, and click [OK].

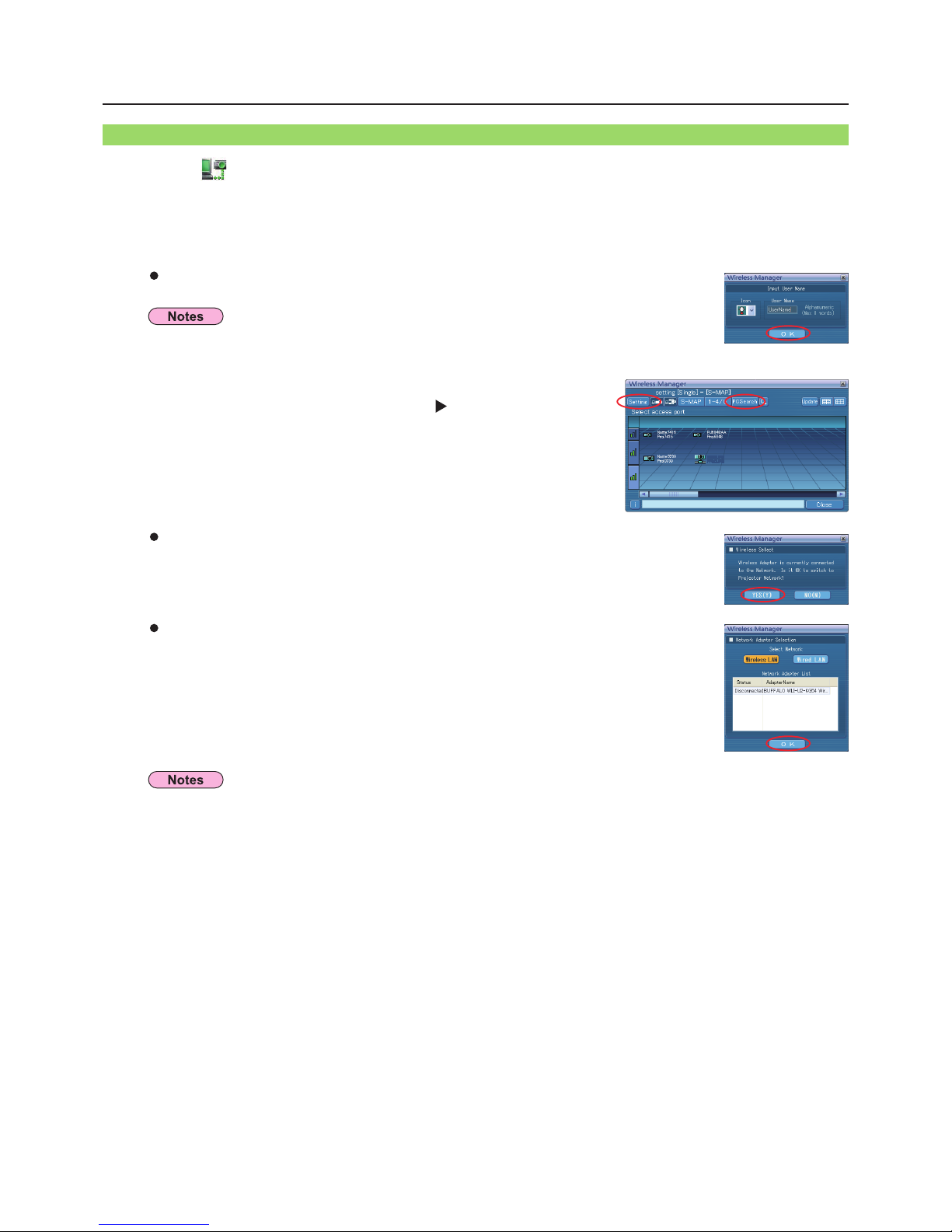

When the <Confirmation dialog> box appears
Click [YES (Y)].
When the <Network Adapter Selection> window appears
Select the adaptor that you want to connect to the projector from the list, and click [OK].
If the <Confirmation dialog> box appears, click [Yes].
0COG
2TQL
Current
2Click [1-4/U] from the setting menu.
If the setting menu is not displayed, click [Setting ].
• The icon and user name are set when Wireless Manager ME 5.5 is first launched.
• The icon and user name settings can be changed in the <Option> window. (See page 51)
3A list of projectors that can be connected
to are displayed in the <Projector Search>
window – [1-4/U].
4Select the same Network number as the [Network number] for the projector you
want to connect to (see page 54).
Projectors powered on in the chosen network group are listed.
5Select the desired projectors, and click [Connect].
The launcher appears and the connection with the projector is established.
(“Descriptionofthelauncher”→See page 33)
• Enter the user name in up to 8 alphanumerics.
• The launcher is not projected on the projector. However, if you are using Windows Vista, the installed launcher is projected.
• If you cannot connect the projector and the computer using Easy Wireless Setup (See page 73).
• If you do not find a projector you want to connect, press [Update] button.
• You can search through all the network numbers from 1 through 4, if you select [All].
• When a firewall is active, a window may open prompting to deactivate a network block. (See screen Aon page 76.)
• When a network connection is established by using the connection utility, a window may open prompting to halt the connection
utility. (See screen Bon page 77.)
Current
U

20
Connecting with wireless LAN (cont.)
1Click [ ] on the desktop,
orselect[Start]→[AllPrograms]→[PanasonicWirelessDisplay]→
[Wireless Manager mobile edition 5.5].
<Projector Search> window – [S-MAP] is displayed.
“PC Search” Connection
• For details on the confirmation screen when connecting, refer to page 29.
• Enter the user name in up to 8 alphanumerics.
• If you want to enable the network adapter after starting the Wireless Manager, you should do it after exiting Wireless
Manager.
• When a firewall is active, a window may open prompting to deactivate a network block. (See screen Aon page 76.)
• When a network connection is established by using the connection utility, a window may open prompting to halt the
connection utility. (See screen Bon page 77.)
When the <Input User Name> window appears
Set the icon and user name, and click [OK].
When the <Confirmation dialog> box appears
Click [YES (Y)].
When the <Network Adapter Selection> window appears
Select the adapter from the list and click [OK].
If the <Confirmation dialog> box appears, click [Yes].
2Click [PC Search] from the setting menu.
If the setting menu is not displayed, click [Setting ].
0COG
2TQL
Current
• The icon and user name are set when Wireless Manager ME 5.5 is first launched.
• The icon and user name settings can be changed in the <Option> window. (See page 51)
