Panasonic AJ-PCD20E User manual

Memory Card Drive/Lecteur de carte mémoire
驱动器 /メモリーカードドライブ
Operating Instructions/Mode d’emploi
操作手册 /取扱説明書
Before operating this product, please read the instructions carefully and save this manual for
future use.
Avant d’utiliser l’appareil, lire attentivement ce mode d’emploi, et le conserver a des fins de ref-
erence ulterieure.
在操作本机之前，请仔细阅读本说明书，并将说明书妥善保管，以备将来使用。
お買い上げいただき、まことにありがとうございました。
この取扱説明書をよくお読みのうえ、正しくお使いください。
特に「安全上のご注意」は、ご使用前に必ずお読みいただき、安全にお使いください。
お読みになったあとは、保証書と一緒に大切に保管し、必要なときにお読みください。
Model No. AJ-
P
E
MC
F0606T0 -F @
Printed in Japan VQT0X89
DEUTSCH
Fur Erlauterungen in Deutsch, konsultieren
Sie bitte die mitgelieferte CD-ROM.
ITALIANO Per le istruzioni in italiano, vedere il CD-
ROM in dotazione.
ESPAÑOL Para la explicación en español, consulte
el CD-ROM suministrado.
ENGLISHFRANÇAIS
中
文
日
本
語
P_AJ-PCD20.book 1 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-1
Read this first!
For AJ-PCD20P and AJ-PCD20E
indicates safety information.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE,
USE THE RECOMMENDED ACCESSORIES ONLY.
CAUTION:
THE AC RECEPTACLE (MAINS SOCKET OUTLET) SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT
THE POWER CORD PLUG FROM THE AC RECEPTACLE.
WARNING:
zTO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
zTO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, KEEP THIS EQUIPMENT AWAY
FROM ALL LIQUIDS. USE AND STORE ONLY IN LOCATIONS WHICH ARE NOT
EXPOSED TO THE RISK OF DRIPPING OR SPLASHING LIQUIDS, AND DO NOT PLACE
ANY LIQUID CONTAINERS ON TOP OF THE EQUIPMENT.
AC Adapter
Disconnect the AC mains plug from the AC mains socket when not in use.
This apparatus must be earthed.
To ensure safe operation the three-pin plug must be inserted only into a standard three-pin
power point which is effectively earthed through the normal house-hold wiring.
Extension cords used with the equipment must be three-core and be correctly wired to provide
connection to earth. Wrongly wired extension cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily does not imply that the power point is earthed
and that the installation is completely safe. For your safety, if in any doubt about the effective
earthing of the power point, consult a qualified electrician.
P_AJ-PCD20.book 1 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-2
ENGLISH
Read this first! (continue)
For AJ-PCD20P
indicates safety information.
CAUTION:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
The user may find the booklet “Something About Interference” available from FCC local regional
offices helpful.
FCC Warning: To assure continued FCC emission limit compliance, the user must use only
shielded interface cables when connecting to host computer or peripheral devices. Also, any
unauthorized changes or modifications to this equipment could void the user’s authority to
operate this device.
Declaration of Conformity
Model Number: AJ-PCD20P
Trade Name: PANASONIC
Responsible Party:Panasonic Corporation of North America One Panasonic Way, Secaucus,
NJ 07094
Support contact: Panasonic Broadcast & Television Systems Company 1-800-524-1448
This device complies with Part 15 of FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
To assure continued compliance, follow the attached installation instructions and do not make
any unauthorized modifications.
FCC NOTICE
P_AJ-PCD20.book 2 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-3
Read this first! (continue)
For AJ-PCD20E
indicates safety information.
Caution for AC Mains Lead
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc. and
the other one is only for U.K.
Appropriate mains cable must be used in each local area, since the other type of mains cable is
not suitable.
FOR CONTINENTAL EUROPE, ETC.
Not to be used in the U.K.
FOR U.K. ONLY
FOR U.K. ONLY
This appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
A 13 amp fuse is fitted in this plug.
Should the fuse need to be replaced
please ensure that the replacement fuse
has a rating of 13 amps and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI
mark on the body of the fuse.
If the plug contains a removable fuse cover
you must ensure that it is refitted when the
fuse is replaced.
If you lose the fuse cover the plug must not
be used until a replacement cover is
obtained.
A replacement fuse cover can be
purchased from your local Panasonic
Dealer.
How to replace the fuse
1. Open the fuse compartment with a
screwdriver.
2. Replace the fuse.
Fuse
P_AJ-PCD20.book 3 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-4
ENGLISH
Table of Contents
Read this first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Supplied Accessories (AJ-PCD20P/AJ-PCD20E) . . . . . . . . . . . . . . . . . . 5
Parts and their Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Inserting a P2 Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Write-protection of P2 Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

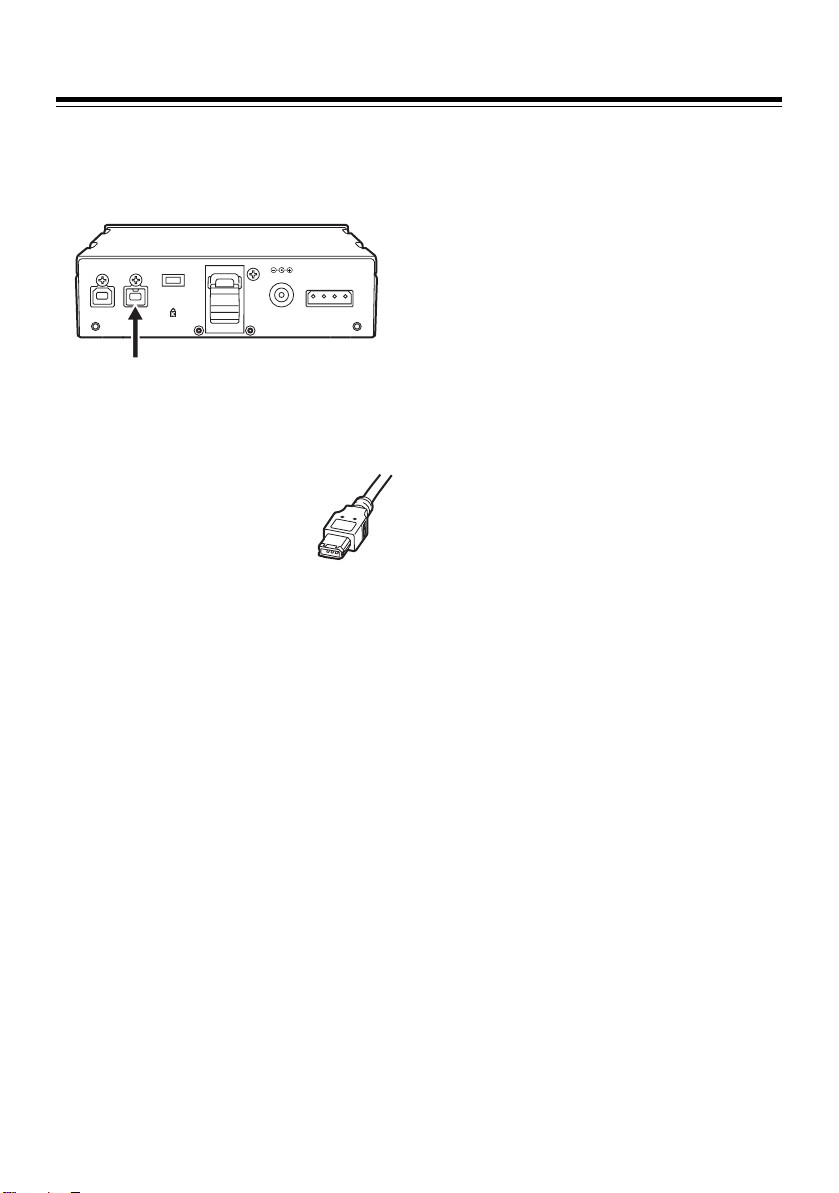

To Connect the P2 drive to a Personal Computer for External Use . . . 8
To Mount the P2 drive in a Personal Computer 5-inch Bay . . . . . . . . 10
IEEE1394b Driver for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1) Before installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2) Installation of the IEEE1394b driver . . . . . . . . . . . . . . . . . . . . . . . . 12
3) Confirmation of installation of the IEEE1394b driver . . . . . . . . . . . 13
IEEE1394b Driver for Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation of the IEEE1394b driver . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Windows, Windows 2000 and Windows XP are trademarks of Microsoft Corporation
of the United States.
Macnintosh and Mac OS X are trademarks of Apple Computer, Inc. of the United
States.
Other names of companies and products are trademarks or registered trademarks
of the respective companies.
zIn these instructions, Microsoft®Windows®, Windows®2000 and Windows®XP Professional are
given as “Windows,” “Windows 2000” and “Windows XP Professional,” respectively.
zSimilarly, in these instructions, Macintosh®and Mac OS®X are given as “Macintosh” and “Mac OS
X” respectively.
Software information for this product
Customer advisory: This product includes software licensed under the GNU General Public License
(GPL) and GNU Lesser General Public License (LGPL); customers have the right to download,
modify, and redistribute source code for this software.
Descriptions of the GPL and LGPL are stored on the installation CD included with this camera-
recorder. See the folder named \LDOC. (The description is the original (written in English)). To
download the relevant source code, visit
http://panasonic.biz/sav/.
Please note that we cannot answer any questions you may have about the content, etc. of any source
code you may obtain from the above Web site.
P_AJ-PCD20.book 4 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-5
Overview
The AJ-PCD20 (hereinafter referred to as “P2 drive”) is a data transfer device that uses a USB 2.0 or
IEEE1394b interface and is designed only for P2 cards.
The P2 drive is capable of making high-speed transfers of clip data shot with a memory card camera
recorder for P2 cards to a personal computer (Windows/Apple Macintosh).
This device supports not only the transferring and copying of clips recorded on P2 cards, but also direct
editing.
Features
zThe P2 drive features five card slots.
zIt enables high-speed data transfer using a USB 2.0 or IEEE1394b interface.
zIt can be used as either an external or an internal drive.

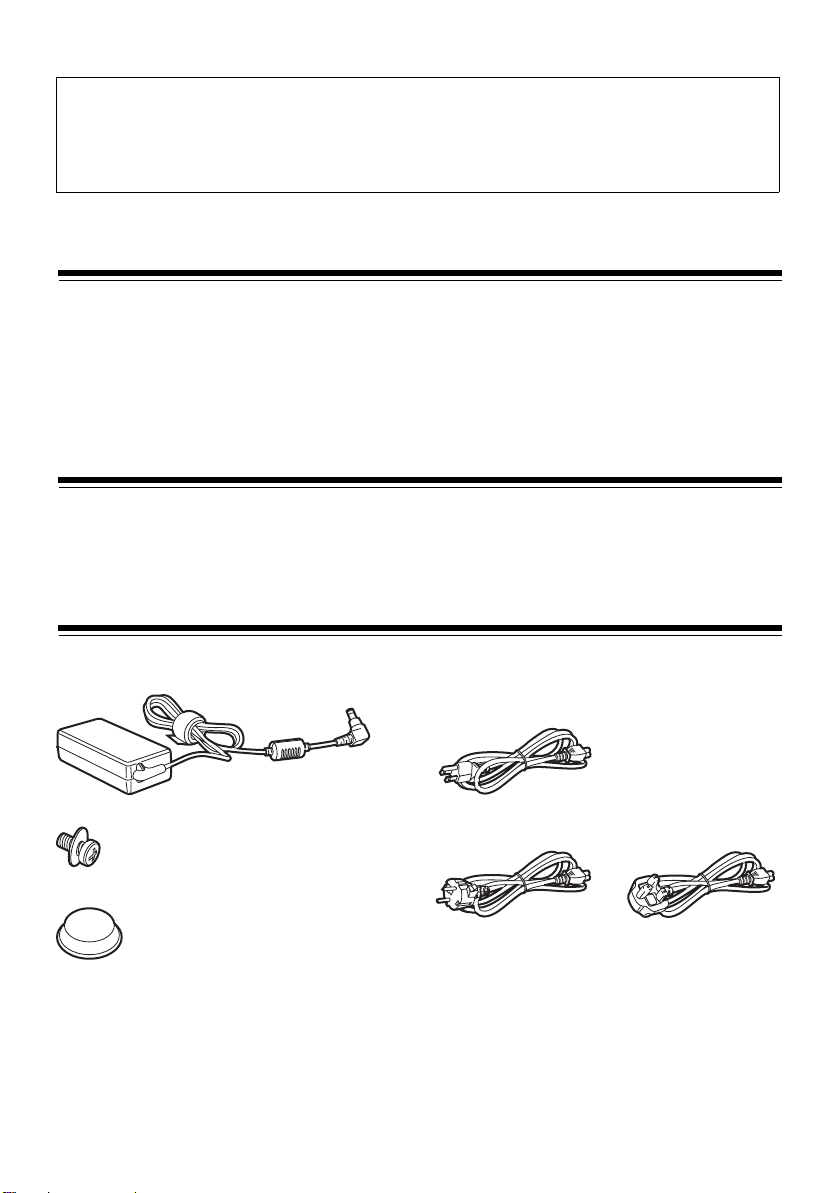

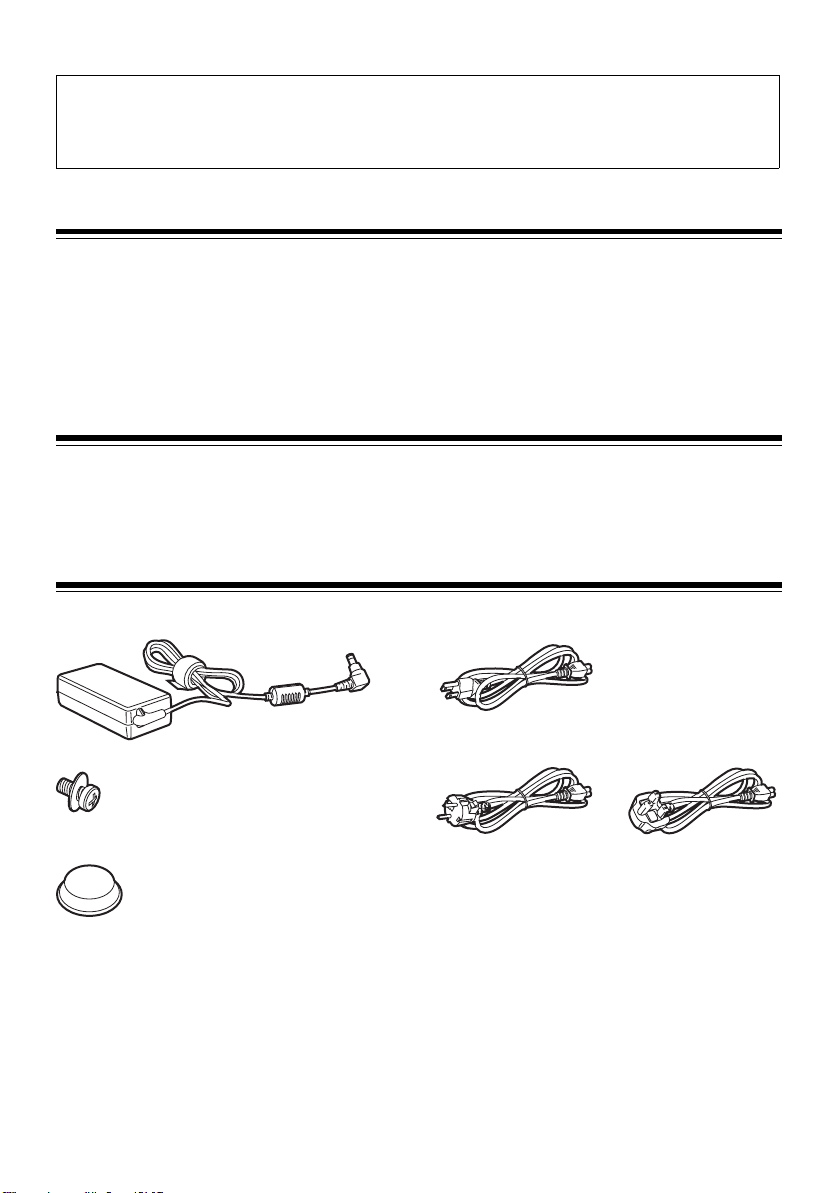

Supplied Accessories (AJ-PCD20P/AJ-PCD20E)
AC adapter
Mounting screws (8)
Rubber feet (4)
Power cable for AC adapter
CD-ROM
(Driver for P2, P2 card manager, dedicated software for the respective P2 devices, install manual
and operation manual)
Operation Manual (2)
(The Operating Instructions and the Installation Manual)
While AJ-PCD20 is connected to the personal computer, install the required drivers from
the CD-ROM.
For details, refer to the install manual and “IEEE1394b Driver for Windows” (page 12) or
“IEEE1394b Driver for Macintosh” (page 14) in this document.
For AJ-PCD20P
For AJ-PCD20E
(U.K.)
For AJ-PCD20E
(continental Europe,etc)
P_AJ-PCD20.book 5 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-6
ENGLISH
Parts and their Functions
Front Panel
(1)Power Indicator
This indicator lights up in green when the P2
drive is running.
(2)Status Indicator
This indicator lights up in green during access
to a P2 card.
<Note>
Do not remove the P2 card during access of
the card, otherwise files may be corrupted, or
the P2 card may fail.
(3)Card Slots
The P2 drive’s card slots are designed for P2
cards.
The P2 drive does not operate with cards
other than P2 cards.
(4)EJECT Button
To remove a P2 card, press this button so that
the button pops out, then press it in again.
<Notes>
zFor Windows 2000 only : Open “My
Computer” and use the right button of your
mouse to select the drive from which you
want to remove a card, then select
“EJECT” before operating the EJECT
button.
zFor Macintosh only: To remove a P2 card,
drag the icon of the P2 card to “Trash,” and
then press the EJECT button after
confirming that the P2 card icon
disappears.
Rear Panel
The picture shows the rear panel with its cover
removed.
(1)USB 2.0 connector (Type B)
This connects a USB cable. Use a USB cable
(shielded) compliant with USB 2.0.
<Note>
The P2 drive supports USB 2.0 only. It does
not support personal computers compliant
with USB 1.1. For Macintosh, USB 2.0
operations are not guaranteed.
(2)IEEE1394b connector
This connects an IEEE1394b cable.
<Note>
When cables are connected to both the USB
2.0 connector and IEEE1394b connector,
only the interface that was connected first
after turning on the power is available.
(3)DC IN 16V Socket
For external use of the P2 drive, connect an
AC adapter to this socket.
(4)DC IN 12V Socket
To use the P2 drive mounted in a personal
computer, connect one of the power supply
connectors inside the personal computer to
this socket. (See page 10)
<Note>
Do NOT supply power to both the DC IN 12V
socket and DC IN 16V socket at the same
time.
(5)Cable Clamp
Use this clamp to secure the AC adapter cable
when connecting the P2 drive to a personal
computer for external use of the Drive.
(6)Antitheft Lock
A commercially available antitheft cable can
be connected to this lock.
(1) (2) (3) (4)
(1) (2) (3) (4)(5)(6)
USB 2.0
DC IN 16V DC IN 12V
IEEE 1394b
P_AJ-PCD20.book 6 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-7
Inserting a P2 Card
When inserting a P2 card into the slot in the P2
drive, make sure you keep the card horizontal as
you ease it in.
Forcing the card in on an angle may cause a
problem.
Write-protection of P2 Card
A P2 card has a write-protect switch. Setting this
switch to “PROTECT” can prevent writing and
deleting of data.
Note: The write-protect switch is not effective
when the P2 card is inserted in the P2 drive.
Make sure you remove the P2 card from the P2
drive, set the switch, then re-insert the card, in
order to effect the switch setting.
Installation
There are two ways to connect the P2 drive to a personal computer (Windows/Apple Macintosh) :
1. Using the P2 drive as an external drive connected to a personal computer (Windows/Apple
Macintosh)
2. Mounting the P2 drive in a 5-inch bay of a desktop personal computer (Windows)
PROTECT
Setting the write-
protect switch to
“PROTECT” can
prevent writing and
deleting of data.
Setting the write-
protect switch to
this side allows
writing and
deleting of data.
P_AJ-PCD20.book 7 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-8
ENGLISH
Installation (continue)
To Connect the P2 drive to a Personal Computer for External Use
1Attach the rubber feet to the dimples on the
base of the P2 drive.
2Start the personal computer.
3Plug the AC adapter supplied with the P2
drive into the DC IN 16V socket on the P2
drive.
The P2 drive will start.
4(To be connected by USB 2.0)
Plug a USB 2.0 cable B connector into the
USB connector on the P2 drive. then plug the
other end (A connector) of the USB 2.0 cable
into the USB 2.0 port on the personal
computer.
<Note>
No USB 2.0 cable is supplied with the P2
drive in the package. Use a commercially
available USB 2.0 cable (shielded).
Take care to use a USB cable that is no
longer than 3 metres. The P2 drive may not
operate properly with a cable longer than 3
metres.
For Macintosh, USB 2.0 operations are not
guaranteed.
Dimples
USB 2.0
DC IN 16V DC IN 12V
IEEE 1394b
USB 2.0
DC IN 16V DC IN 12V
IEEE 1394b
USB 2.0 connector
P_AJ-PCD20.book 8 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-9
Installation (continue)
5(To be connected by IEEE1394b)
Connect the P2 drive to the personal
computer with a IEEE1394b cable.
<Notes>
zNo IEEE1394b cable is supplied with the
P2 drive in the package. Use a
commercially available IEEE1394b cable.
zBefore proceeding to
connect the unit which uses
a 6-pin type IEEE 1394
connector, carefully check
the shape of the
IEEE1394b cable and the
connectors on IEEE1394b
cable. Connecting a connector upside
down may damage the parts inside the
unit and cause malfunctioning.
zDo not apply force when connecting
IEEE1394b cable to IEEE1394b connector
as this may damage the connector.
6Verify that the personal computer recognises
the P2 drive.
<Notes>
zIn Windows XP, some card slots of the P2
drive may be assigned drive names that
have already been assigned to existing
networks. Reassign network drive names
if your personal computer does not display
all five card slots.
zIn Windows, to remove a USB cable or an
IEEE1394b cable, select “Safely Remove
Hardware” in the “Task Tray” and stop the
“Panasonic P2 Series USB/SBP2 Device”
before removing the cable.
zOn an Apple Macintosh, to remove an
IEEE1394b cable, drag the icon of the P2
card to “Trash” and then confirm that the
P2 card icon disappears before removing
the cable.
USB 2.0
DC IN 16V DC IN 12V
IEEE 1394b
IEEE1394b connector
6-pin type
P_AJ-PCD20.book 9 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-10
ENGLISH
Installation (continue)
To Mount the P2 drive in a Personal Computer 5-inch Bay
1Turn OFF the personal computer’s power.
2Undo the six screws and remove the cover.
3Mount the P2 drive in a 5-inch bay on the
personal computer. Use the screws supplied
with the P2 drive for mounting.
Please refer to your computer’s
instruction manual for guidance in
mounting to 5-inch bay drives.
<Notes>
zThe P2 drive may not be able to be
fastened securely in some types of
personal computers.
zIf all 5-inch bays are occupied, you will
need to remove one of the built-in drives to
make room for the P2 drive.
zThe P2 drive should be used in a personal
computer whose design allows the front
panel of the Drive to be manipulated.
4Plug a USB 2.0 cable B connector into the
USB connector on the P2 drive. then plug the
other end of the USB 2.0 cable into the USB
2.0 port on the personal computer.
<Note>
USB 2.0 connector pinouts vary according to
the type of motherboard type. Check your
computerís instruction manual before
purchasing a commercially available USB
2.0 cable (shielded).
5Connect the P2 drive to the internal power
cable (4 pins) of the personal computer.
USB 2.0
DC IN 16V DC IN 12V
IEEE 1394b
Holes for securing the screws
(the other side is the same.)
USB 2.0 connector
USB 2.0
DC IN 16V DC IN 12V
IEEE 1394b
USB 2.0
DC IN 16V DC IN 12V
IEEE 1394b
Power cable
P_AJ-PCD20.book 10 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-11
Installation (continue)
6Start the personal computer and verify that it
recognises the P2 drive.
<Note>
In Windows XP, some card slots of the P2
drive may be assigned drive names that have
already been assigned to existing networks.
Reassign network drive names if your
personal computer does not display all five
card slots.
P_AJ-PCD20.book 11 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-12
ENGLISH
IEEE1394b Driver for Windows
This driver is for the IEEE1394b interface for the
P2 card on this unit.
1) Before installation
System requirements for the IEEE1394b driver
are as follows.
zOS: Windows XP Professional SP2 or higher
zRAM: 512 MB or more (1 GB or more is
recommended)
zCPU: Pentium®4 1.5 GHz or higher is
recommended
<Note>
The IEEE1394b connection in Windows 2000 is
not supported.
2) Installation of the IEEE1394b
driver
Install the IEEE1394b driver in accordance with
the following procedures.
<Note>
The IEEE1394b driver is installed for each unit
connected to a personal computer. If you use
more than one unit on a single personal
computer, install the drivers for the respective
units separately. If the IEEE1394b driver are not
installed, a sufficient transfer rate may not be
obtained.
1In accordance with the descriptions in “4.
New Installation of the P2 Software” (from
pages 4 to 6 of the installation manual),
install the software up to Procedure No. 8.
2When the window shown in Fig. 7 of
Procedure No. 8 (page 6 in the installation
manual) is displayed, select “AJ-PCD20 (P2
drive) 1394 driver” and then click OK.
3When the message “Please connect AJ-
PCD20 (P2 drive) by 1394” is displayed,
connect this unit to the personal computer
using IEEE1394b. Confirm that all five drive
letters of this unit are displayed and then
press Install.
<Note>
When the unit is connected to a personal
computer through USB, remove the USB
cable and then connect using IEEE1394b.
4The warning box may be displayed; in such a
case, click “Continue Anyway”. The warning
box may be displayed two or more times.
5In accordance with the instructions on the
screen, complete the installation and restart
the personal computer.
Before installing the IEEE1394b driver, install
the update program provided by Microsoft in
accordance with the following procedures. If the
updates are not installed, a sufficient transfer
rate may not be obtained.
1Open the Web browser and navigate to the
Microsoft website.
2Enter “KB885222” in the search column on
the website, and then press the search
button.
3Click the link for “Performance of 1394
devices may decrease after you install
Windows XP Service Pack 2,” which is
indicated as a search result.
4Read the information on the displayed
page, then download and install the update
program on the personal computer.
P_AJ-PCD20.book 12 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-13
IEEE1394b Driver for Windows (continue)
3) Confirmation of installation of the
IEEE1394b driver
Confirm whether the IEEE1394b driver is
installed properly in accordance with the
following procedures.
1Connected this unit to a personal computer
using IEEE1394b.
2Open Control Panel from the Start menu,
and select System to display system
properties.
3Select the Hardware tab in the system
properties and then press the Device
Manager button.
4Open the tree for “Disk drive” using Device
Manager, and then press the right button for
“MATSHITA AJ-PCD20# IEEEE 1394 SBP2
Device” to open properties.
5Select the Driver tab in properties, and then
press the Driver’s details button.
6If the following files are included in the
displayed driver file list, the IEEE1394 driver
was installed properly.
“p2sbp2.sys”
“p2cmgr.dll”
“p2csvc.exe”
7For the following devices, confirm the
installation using the same procedures as
Nos. 4to 6.
“MATSUSHITA AJ-PCD20 #2 IEEE 1394
SBP2 Device”
“MATSUSHITA AJ-PCD20 #3 IEEE 1394
SBP2 Device”
“MATSUSHITA AJ-PCD20 #4 IEEE 1394
SBP2 Device”
“MATSUSHITA AJ-PCD20 #5 IEEE 1394
SBP2 Device”
<Note>
When using IEEE1394b, only one AJ-PCD20
can be connected to the personal computer. If
two or more AJ-PCD20 units are connected
simultaneously, operations cannot be
guaranteed.
P_AJ-PCD20.book 13 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-14
ENGLISH
IEEE1394b Driver for Macintosh
This driver is for the P2 card on this unit.
Installation of the IEEE1394b driver
1Insert the installation CD.
2Double-click the Macintosh folder on the
CD.
3Double-click the AJ-PCD20 folder.
4Double-click “P2Drive Install.dmg” in the
AJ-PCD20 folder.
5Double-click “P2Drive Install.pkg”.
6When driver installation starts, follow the
instructions on the installation screen.
<Notes>
zBy installing this driver, it is possible to connect
to this unit to the Macintosh using IEEE1394b
(Firewire 800) to transfer data at a higher rate.
zThe P2 card must be formatted using other P2
devices.
zWhen the P2 card is removed or the
IEEE1394b cable is disconnected, drag the
icon for the P2 card to Trash and confirm that
the P2 card icon disappears before executing
removal or disconnection.
zReinsert the P2 card if the P2 card icon is not
displayed.
P_AJ-PCD20.book 14 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-15
Specifications
indicates safety items.
External dimensions (W aH aD)
148.4 mm a 42.5 mm a 199.5 mm
(5-7/8 inches a 1-11/16 inches a 7-7/8 inches)
(excluding protruding parts)
Weight
1.2 kg (2.6 lb)
[Environmental conditions]
Operating temperature
0 °C to +40 °C (32 °F to +104 °F)
Operating humidity
0% to 90% (w/o condensation)
[Personal Computer System
Requirements]
OS (proper operation guaranteed)
Windows XP Professional (SP2 or later)
Windows 2000 (SP4 or later)
Mac OS X 10.3.9
Mac OS X 10.4.2
Mac OS X 10.4.6
Main Memory
512 MB or greater recommended
Interface
USB Ver. 2.0 compliant
IEEE1394b compliant
[Card slots]
PC card Type II a5 (CardBus compliant)
Please note that specifications and appearance are
subject to change, for improvement purpose,
without notice.
DC 16 V, 0.6 A
(when used with AC adapter)
DC 12 V, 0.8 A
(when mounted in a personal computer)
AC 100 V - 240 V, 0.9 A - 0.5 A, 50 - 60 Hz
(AC adapter input)
P_AJ-PCD20.book 15 ページ ２００６年６月２８日 水曜日 午前９時４９分

E-16
ENGLISH
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private
households)
This symbol on the products and/or accompanying documents means that used electrical
and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated
collection points,where they will be accepted on a free of charge basis. Alternatively, in
some countries you may be able to return your products to your local retailer upon the
purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling. Please contact your local authority for further
details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
P_AJ-PCD20.book 16 ページ ２００６年６月２８日 水曜日 午前９時４９分

F-1
Lire ces informations en premier !
Informations concernant la sécurité.
AVERTISSEMENT:
zPOUR RÉDUIRE LES RISQUES D’INCENDIE OU DE CHOC ÉLECTRI-
QUE, ÉVITEZ D’EXPOSER CET APPAREIL À LA PLUIE OU À L’HUMI-
DITÉ.
zPOUR RÉDUIRE TOUT RISQUE DE FEU OU DE CHOC ÉLECTRIQUE,
ÉLOIGNER L’APPAREIL DES LIQUIDES - UTILISER ET RANGER UNI-
QUEMENT DANS UN ENDROITNE RISQUANT PAS DE RECEVOIR
DES GOUTTES OU D’ÊTRE ASPERGÉ DE LIQUIDES, ET NE PAS
METTRE DE RÉCIPIENT RENFERMANT DES LIQUIDES SUR LE
DESSUS DE L’APPAREIL.
ATTENTION:
POUR ÉVITER TOUT RISQUE D’INCENDIE, DE CHOCS ÉLECTRIQUES
OU D’INTERFÉRENCES, N’UTILISER QUE LES ACCESSOIRES
RECOMMANDÉS.
PRECAUTION:
LA PRISE DE COURANT (PRISE SECTEUR) DOIT ÊTRE INSTALLÉE À
PROXIMITÉ DE L’APPAREIL ET FACILEMENT ACCESSIBLE.
POUR DÉCONNECTER COMPLÈTEMENT CET APPAREIL DU SEC-
TEUR, DÉBRANCHEZ LA FICHE DU CORDON D’ALIMENTATION DE LA
PRISE DE COURANT.
Adaptateur secteur
Débrancher la fiche secteur de la prise lorsqu’on ne se sert pas de l’appareil.
Cet appareil doit être mis à la terre.
Pour que l’appareil fonctionne avec une entière sécurité, la fiche à trois broches fournie avec
l’appareil doit être branchée dans une prise secteur standard à trois broches reliée à la terre
par l’installation électrique de l’immeuble.
Si l’on doit utiliser des rallonges, elles seront à 3 contacts avec conducteur de terre. Des rallon-
ges ne respectant pas ces exigences peuvent entraîner des accidents mortels.
Le fait que l’appareil fonctionne de façon satisfaisante ne veut pas dire que la mise à la terre a
été effectuée et que l’installation est sûre. Pour plus de sécurité, si l’on a quelque doute que ce
soit concernant la mise à la terre, consulter un électricien.
P_AJ-PCD20.book 1 ページ ２００６年６月２８日 水曜日 午前９時４９分

F-2
FRANÇAIS
Table des matières
Lire ces informations en premier ! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Présentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Fonctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Accessoires fournis (AJ-PCD20P/AJ-PCD20E). . . . . . . . . . . . . . . . . . . . . 3
Pièces et leurs fonctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Panneau avant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Panneau arrière . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Insertion d’une carte P2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Protection de la carte P2 contre l’écriture . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pour connecter un lecteur P2 à un ordinateur personnel
pour une utilisation externe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pour monter le lecteur P2 dans l’emplacement 5 pouces
d’un ordinateur personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pilote IEEE1394b pour Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1) Avant l’installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2) Installation du pilote IEEE1394b . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3) Confirmation d’installation du pilote IEEE1394b. . . . . . . . . . . . . . . 11
Pilote IEEE1394b pour Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation du pilote IEEE1394b . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Windows, Windows 2000 et Windows XP sont des marques commerciales de
Microsoft Corporation aux États-Unis.
Macintosh et Mac OS X sont des marques commerciales de Apple Computer, Inc.
aux États-Unis.
Les autres noms de sociétés et de produits sont des marques commerciales ou
marques déposées des sociétés respectives.
zDans le cadre de ce manuel d’installation, Microsoft®Windows®, Windows®2000 et
Windows®XP Professional sont appelés “Windows,” “Windows 2000” et “Windows XP
Professional,” respectivement.
zDe même, dans ce manuel d’installation, Macintosh®et Mac OS®X sont appelés “Macintosh” et
“Mac OS X” respectivement.
Informations logicielles pour ce produit
Informations destinées au client : Ce produit contient un logiciel associé à la licence publique
générale (GPL) et à la licence publique générale limitée (LGPL) GNU ; les clients ont donc le droit
de télécharger, modifier et redistribuer le code source de ce logiciel.
Les descriptions de licences GPL et LGPL sont disponibles dans le CD-ROM accompagnant ce
caméscope. Ouvrez le dossier nommé \LDOC. (La description est l’originale de la licence (rédigée
en anglais)). Pour télécharger le code source concerné, accédez aux sites Web
http://panasonic.biz/sav/.
À noter que nous ne pouvons pas répondre à toutes les questions que vous pouvez vous poser sur le
contenu, etc. d’un code source quelconque que vous auriez obtenu sur le site Web mentionné ci-dessus.
P_AJ-PCD20.book 2 ページ ２００６年６月２８日 水曜日 午前９時４９分

F-3
Présentation
L’AJ-PCD20 (appelé dorénavant “lecteur P2”) est un dispositif servant à transférer des données via une
interface USB 2.0 ou IEEE1394b et conçu pour les cartes P2 uniquement.
Le lecteur P2 est en mesure d’effectuer des transferts à haute vitesse de clip enregistrés sur la carte
mémoire d’un caméscope pour cartes P2 à un ordinateur personnel (Windows/Apple Macintosh).
Ce périphérique prend en charge non seulement le transfert et la copie de clips enregistrés sur des
cartes P2, mais permet également l’édition directe.
Fonctions
zLe lecteur P2 est doté de cinq emplacements de carte.
zIl permet le transfert de données à haute vitesse via une interface USB 2.0 ou IEEE1394b.
zIl peut être utilisé comme lecteur externe ou interne.
Accessoires fournis (AJ-PCD20P/AJ-PCD20E)
Adaptateur courant alternatif
Vis de montage (8)
Pieds en caoutchouc (4)
Câble d’alimentation pour l’adaptateur
courant alternatif
CD-ROM
(Lecteur de carte P2, gestionnaire de carte P2, logiciel pour les dispositifs P2 respectifs, manuel et
le manuel d’installation)
Manuel d’utilisation (2)
(le mode d’emploi et le manuel d’installation)
Une fois que l’AJ-PCD20 est connecté à l’ordinateur personnel, installez les pilotes requis
à partir du CD-ROM.
Pour de plus amples détails, reportez-vous au manuel d’installation et à la rubrique “Pilote
IEEE1394b pour Windows” (page 10) ou à celle “Pilote IEEE1394b pour Macintosh” (page
12) de ce mode d’emploi.
Pour l’AJ-PCD20P
Pour l’AJ-PCD20E
(R.U.)
Pour l’AJ-PCD20E
(Europe continentale, etc.)
P_AJ-PCD20.book 3 ページ ２００６年６月２８日 水曜日 午前９時４９分
