Panasonic CT 25G7 User manual

®
®
Color Television
Operating Instructions
CT-2017
CT-25G7
CT-25G7U
CT-G2132
CT-G2132L
CT-G2172
CT-G2172L
CT-G2972
CT-G2972L
CT-G3352
CT-G3352X
TQB2AA0370-2 20325
PRINTED IN USA
Televisor a color
Instrucciones de Operación
TQB2AA0370-2 20325
PRINTED IN USA
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [e-mail] (USA only)
Para asistencia llame al teléfono: 1-800-211-PANA (7262)
o envíe un correo electrónico a la dirección:
consumerproduct[email protected]m (Solo en Estados Unidos)
CT-2017
CT-25G7
CT-25G7U
CT-G2132
CT-G2132L
CT-G2172
CT-G2172L
CT-G2972
CT-G2972L
CT-G3352
CT-G3352X

WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
The double insulation symbol (a square within a square) is
intended to alert qualified service personnel to use only
identical replacement parts in this apparatus.
ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND
OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE
MATERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO
ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING
INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE
ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:

T ABLE OF C ONTENTS
1l
Table of Contents
Congratulations.........................................................2
Customer Record ......................................................................2
Care and Cleaning.....................................................................2
Specifications ............................................................................2
Installation..................................................................3
Television Location....................................................................3
Optional Cable Connections......................................................3
AC Power Supply Cord..............................................................3
Cable / Antenna Connection......................................................3
Feature Comparison Chart .......................................4
Auto Set Up Menu......................................................5
Optional Equipment Connections ...........................6
VCR .........................................................................................6
Amplifier (TO AUDIO AMP) ......................................................6
Front Control Panel...................................................7
Remote Control Operation ......................................8
Battery Installation ....................................................................9
Remote Control Operation (CT-G2972
CT-G2972L, CT-G3352 and CT-G3352X only) .................9
Battery Installation ....................................................................9
Mode Operational Key Chart ..................................................10
Programming the Remote .......................................................12
Programming Without a Code.................................................12
Component Codes...................................................................13
Icon Menu Navigation .............................................15
Main Menu Icons......................................................16
Icon Menus..............................................................................16
Icon Menus Operation.............................................17
Set Up......................................................................................17
Picture .....................................................................................18
Timer .......................................................................................19
Audio .......................................................................................20
Channels .................................................................................21
Lock.........................................................................................21
V-Chip Menu Operation...........................................22
FM Radio Operation (model CT-25G7 only).................27
Troubleshooting Chart............................................28
Limited Warranty .....................................................29
Customer Services Directory .................................31
Index .........................................................................33
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.

2l
C ONGRATULATIONS
Congratulations
Your new TV Monitor/Receiver features a solid state chassis that is designed to give you many years of enjoyment. It was
thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss. Product registration for U.S. customers is available at www.prodreg.com/panasonic.
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
• Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.
rDo not use benzene, thinner or other petroleum based products.
Specifications
Specifications are subject to change without notice or obligation.
Power Source
CT-2017 (1.4A)
CT-25G7 (1.8A)
CT-25G7U (1.8A) 120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jack 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm

I NSTALLATION
3l
Installation
Television Location
Follow these recommendations before deciding the location of your television.
rAvoid excessive sunlight or bright lights, including reflections.
rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
rFluorescent lighting may reduce remote control transmitting range.
rKeep away from magnetic equipment, including motors, fans and external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
rUse 75-ohm coaxial shielded cables.
rUse appropriate input and output connectors that match your component connectors.
rAvoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET
AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company.
Note: A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connection
• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.
Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under
Prog Chan.
VHF/UHF Antenna
A VHF/UHF antenna and transformer are supplied in some models. Attach to the TV, adjust the
antenna until the picture is clear.
Note: Refer to Feature Comparison Chart on next page for models with antenna included.
Polarized plug
75 Ohm VHF/UHF
on back of TV
Incoming Cable from
Cable Company
Incoming
C
able from
Home Antenna

4l
F EATURE C OMPARISON C HART
Feature Comparison Chart
MODELS
CT-2017
CT-25G7
Features
MENU LANGUAGE
ENG/SPAN/FR
r r
CLOSED CAPTIONING r r
V-CHIP CAPABILITY r r
75 OHM INPUT r r
VIDEO NORM r r
FM RADIO r
STEREO r r
AI SOUND r r
NUMBER OF SPEAKERS 2 2
A/V IN
(REAR/FRONT) 1
(1/1) 1 (1/1)
HEADPHONE
JACK
r r
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-
expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (internet) or repetitive computer style patterns should
be limited.
The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:
• Do not display the fixed image for extended periods of time.
• Turn the power off when not in use.
A/V
JACKS AUDIO SPECIAL
FEATURES

A UTO S ET U P M ENU
5l
Auto Set Up Menu
For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.
rIDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.
rMODE - To select TV (antenna) or CABLE mode depending on the signal source.
rAUTO PROGRAM - To automatically program all channels with a signal.
Press to select English, Spanish or French.
VOL
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
Press to select TV or CABLE.
VOL
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
Press to start Auto Programming.
VOL
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA

6l
O PTIONAL E QUIPMENT C ONNECTIONS
Optional Equipment Connections
VCR Connection
Connect equipment as shown to front or rear Audio/Video input jacks.
Note: Front and rear Audio/Video connections cannot be operated at the same time.
1. Select the Video mode by pressing TV/VIDEO button.
2. Operate optional equipment as instructed in equipment manual.
Note: VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the antenna input connection.
(See your equipment manual).
Amplifier Connection (TO AUDIO AMP)
To listen through a separate stereo system, connect an external audio amplifier TO AUDIO AMP inputs on back of
television.
Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.
Audio Adjustments
1. Select SPEAKERS ON located in the onscreen AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust television volume to desired level.
4. Adjust amplifier volume to match the television.
5. Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled through the television.
Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions through the external amplifier.
CONNECTIONS ON BACK OF TV
CABLES NOT SUPPLIED
Incoming Cable
L
R
AUDIO OUT
VIDEO OUT
ANT INPUT
OUTPUT
VCR
TO AUDIO
AMP
VIDEOAUDIO
RL
ANT S-VIDEO
Use either the
S-Video or Video
connection.
1
2
INPUT
Note: May vary depending on model.
S-VIDEO
OUT
External Amplifier
TO AUDIO
AMP
VIDEOAUDIO
RL
ANT
S-VIDEO 1
2
INPUT
Note: For models with TO AUDIO AMP audio jacks.
CONNECTIONS ON BACK OF TV

F RONT C ONTROL P ANEL
7l
Front Control Panel
Press to select VIDEO input mode.
Note: The front control panel can be used to access menus and switch video mode when the remote control is not available.
A second VCR, a video disc player, video game equipment and DSS equipment can also be connected to the video inputs.
See the optional equipment manual for details.
Procedure
1. Connect equipment to front or rear Audio/Video input jacks.
2. Operate optional equipment as instructed in equipment manual.
Note: Front and rear Audio/Video connections cannot be operated at the same time.
TV/VIDEO
VIDEO L - AUDIO - R
HPJ
FRONT A/V JACKS
CAMCORDER
(some models)
Jack used for
1/8” earphone plug
(some models)
Jack used for
1/8” earphone plug
(some models)
Jack used for
1/8” headphone plug

8l

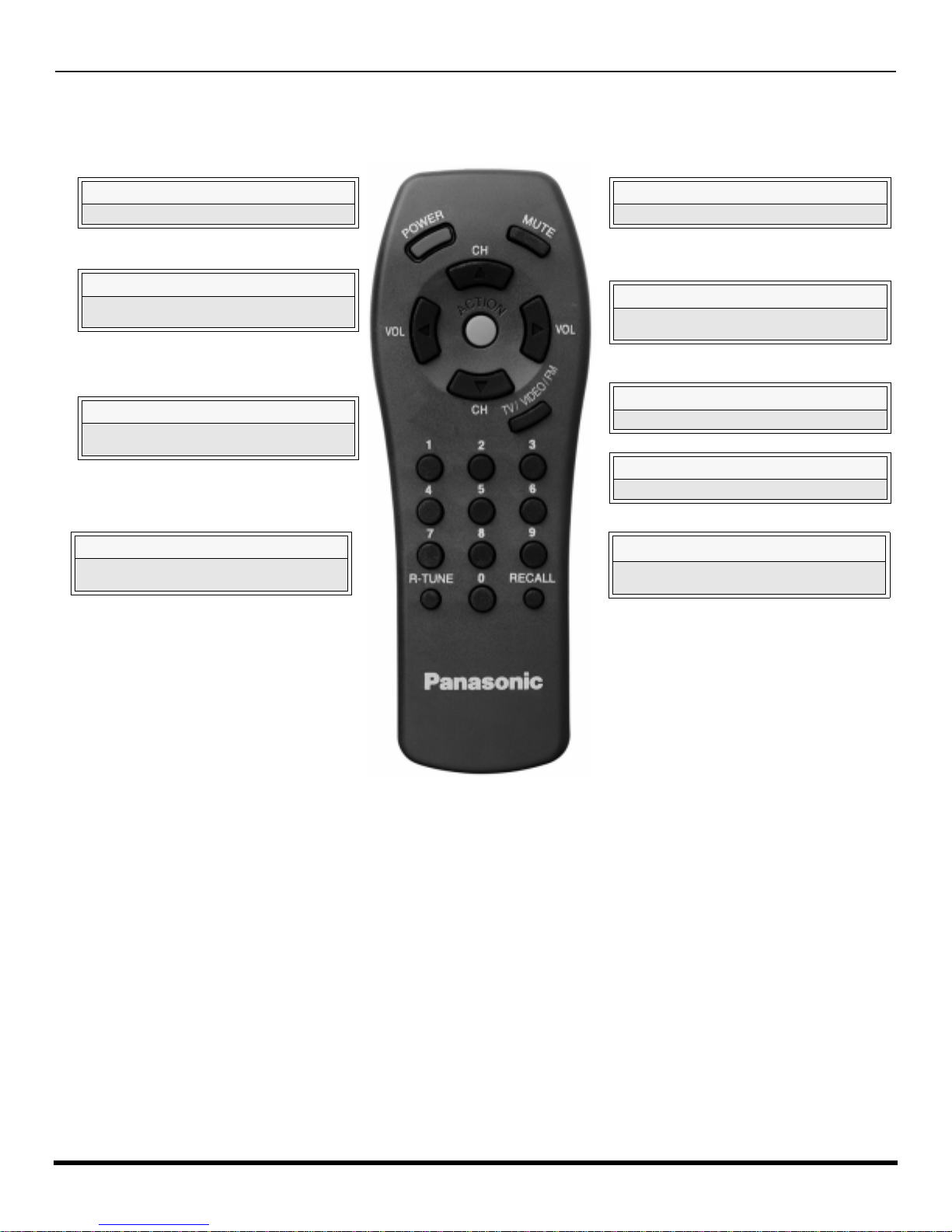

R EMOTE C ONTROL O PERATION
Remote Control Operation
(For models CT-2017 and CT-25G7 only.)
POWER
Press to turn ON and OFF.
VOL
Press to adjust TV sound and navigate in
menus.
R-TUNE
Press to switch to previously viewed
channel or video mode.
MUTE
Press to mute sound.
*TV/VIDEO/FM
Press to select TV, Video or FM mode.
RECALL
Press to display time, channel, sleep timer,
and other options.
CH
Press to select next channel and navigate in
menus.
ACTION
Press to access menus.
“0” ~ “9”
Press numeric keypad to select any channel
or preset FM stations.
EUR501450
EUR501455
Note: *The TV/VIDEO/FM button is only for remote EUR501455.
Remote EUR501450 has a TV/VIDEO button.
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon
with alkaline).
• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.

R EMOTE C ONTROL O PERATION
9l

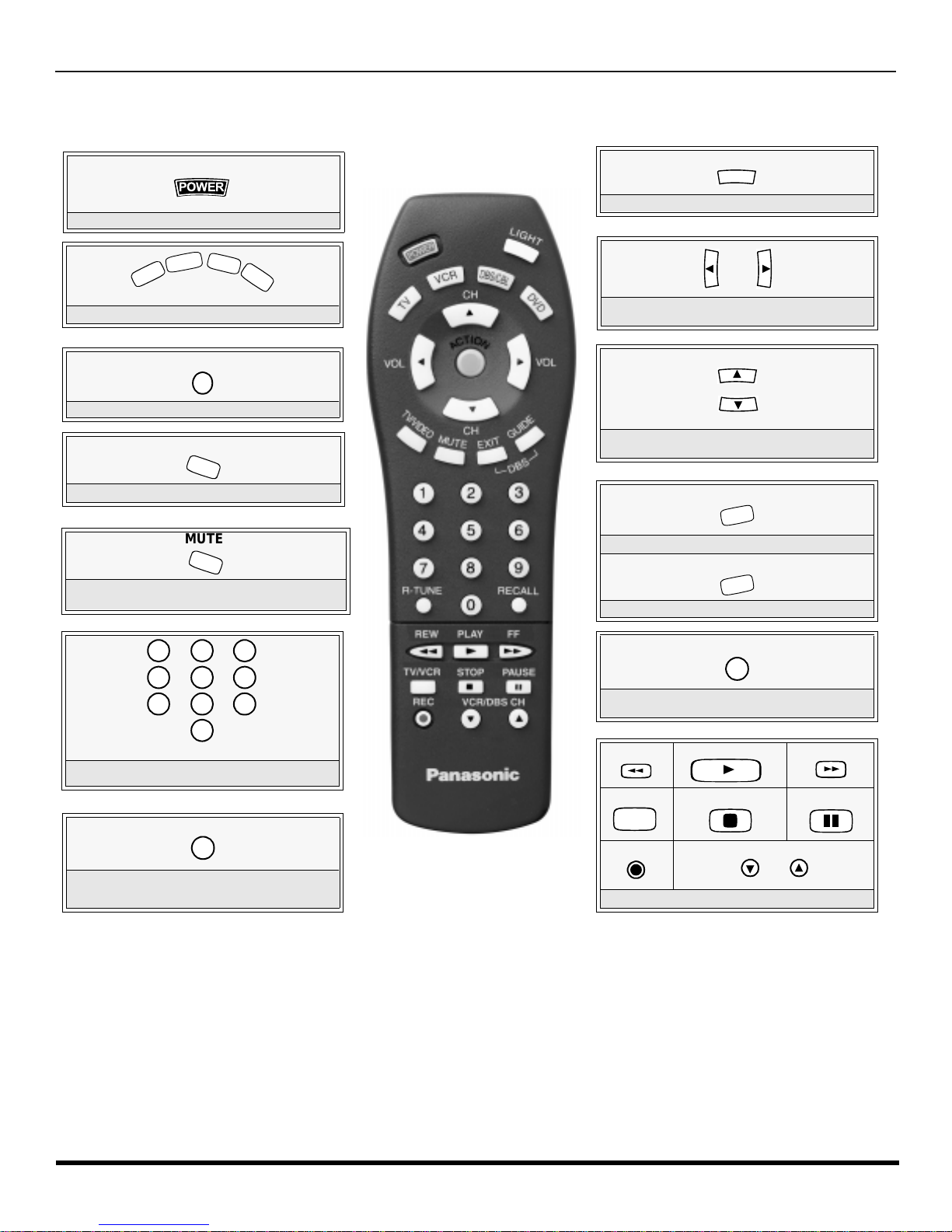

Remote Control Operation
(For models CT-G2972, CT-G2972L, CT-G3352 and CT-G3352X only.)
POWER
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
*LIGHT
Press to illuminate remote buttons.
TV/VIDEO
Press to select TV or Video mode.
Press to select remote operation.
TV
VCR
DBS/CBL
DVD
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOLVOL
RECALL
Press to display time, channel, sleep timer,
and other options.
EXIT
DBS functions button.
GUIDE
DBS functions button.
REW PLAY FF
TV/VCR STOP PAUSE
REC VCR/DBS CH
Component function buttons
u
Press numeric keypad to select any channel.
7
4
1 2
5
8
0
9
6
3
R-TUNE
Press to switch to previously viewed
channel or video mode.
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon
with alkaline).
• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
*To prolong the life for the batteries, turn the light
off and on by pressing R-TUNE and RECALL
buttons, simultaneously.
EUR511502

10 l
R EMOTE C ONTROL O PERATION
Mode Operational Key Chart
This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAME TV MODE CABLE MODE DBS MODE
POWER POWER POWER POWER
MUTE MUTE CBL MUTE TV MUTE
TV/VIDEO INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
CHAN UP CHANNEL UP CABLE CHANNEL UP DBS NAVIGATION UP
CHAN DOWN CHANNEL DOWN CABLE CHANNEL DOWN DBS NAVIGATION DOWN
VOL RIGHT VOL + TV VOL + DBS NAVIGATION RIGHT
VOL LEFT VOL - TV VOL - DBS NAVIGATION LEFT
ACTION ACTION ENTER DBS MENU
RECALL DISPLAY TV DISPLAY DBS PROG. INFO
EXIT - - DBS EXIT
GUIDE - - DBS GUIDE
1DIGIT 1 DIGIT 1 DIGIT 1
2DIGIT 2 DIGIT 2 DIGIT 2
3DIGIT 3 DIGIT 3 DIGIT 3
4DIGIT 4 DIGIT 4 DIGIT 4
5DIGIT 5 DIGIT 5 DIGIT 5
6DIGIT 6 DIGIT 6 DIGIT 6
7DIGIT 7 DIGIT 7 DIGIT 7
8DIGIT 8 DIGIT 8 DIGIT 8
9DIGIT 9 DIGIT 9 DIGIT 9
0DIGIT 0 DIGIT 0 DIGIT 0
R-TUNE PREVIOUS CHAN
OR VIDEO MODE CABLE PREVIOUS CHANNEL PREVIOUS DBS CHANNEL
<<REW VCR REWIND - -
PLAY VCR PLAY - -
>>FF VCR FAST FORWARD - -
PAUSE VCR PAUSE - -
STOP VCR STOP - -
RECORD VCR RECORD - -
TV/VCR TV/VCR SWITCH - -
VCR/DBSCHAN
VCR CHANNEL DOWN -DBS CHANNEL DOWN
VCR/DBS CHAN
VCR CHANNEL UP -DBS CHANNEL UP
LIGHT REMOTE BUTTONS

R EMOTE C ONTROL O PERATION
11 l
Mode Operational Key Chart (contd.)
KEY NAME VCR
MODE DVD MODE
POWER POWER POWER
MUTE TV MUTE TV MUTE
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH
ACTION -SELECT
CHAN UP -NEXT CHAPTER
CHAN DOWN - PREVIOUS CHAPTER
VOL RIGHT TV VOLUME + NAVIGATION RIGHT
VOL LEFT TV VOLUME - NAVIGATION LEFT
RECALL ONSCREEN VCR
DISPLAY DVD DISPLAY
EXIT - -
GUIDE - -
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
0- -
R-TUNE - -
<<REW VCR REWIND SKIP SEARCH <<
PLAY VCR PLAY DVD PLAY
>>FF VCR FF SKIP SEARCH
FF>>
PAUSE VCR PAUSE DVD PAUSE
STOP VCR STOP DVD STOP
RECORD VCR RECORD -
TV/VCR TV/VCR SWITCH OPEN/CLOSE
VCR/DBS
CHAN VCR CHANNEL
DOWN SLOW -
VCR/DBS
CHAN VCR CHANNEL UP SLOW +
LIGHT REMOTE BUTTONS

12 l
R EMOTE C ONTROL O PERATION
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
• Confirm that the external component is plugged in and operating.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.
• Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Programming Without A Code
This procedure searches all codes and is called the “sequence method.”
• Confirm that the external component is plugged in and on.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control.
• Press to move forward to the next code. Press to move backward.
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code
is found.
• After the code is found, press to store the code.
Default Modes For Remote Control
Device Operates Default
TV TV (Panasonic Only) Panasonic TV Codes
VCR VCR (Preset) Panasonic VCR Codes
DBS DBS (Preset) Panasonic DBS Codes
CABLE CABLE (Preset) Panasonic DBS Codes
DVD DVD, CD (Preset) Panasonic DVD Codes
Helpful Hints: Unsuccessful Code
If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.
ACTION
POWER
POWER
ACTION
POWER
VOL VOL
POWER
ACTION

R EMOTE C ONTROL O PERATION
13 l
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCR
DVD DBS CABLE
Codes For VCR
Brand Code
Admiral 135
Aiwa 127, 132
Akai 114, 115, 116, 129
Audio Dynamic 111, 139
Bell & Howell 105, 113
Broksonic 120, 126
Canon 123, 125
Citizen 106
Craig 105, 106, 129
Curtis Mathes 124, 127, 145
Daewoo 175, 124, 143
DBX 110, 111, 139
Dimensia 145
Emerson 103, 119, 120, 125, 126, 143
Fisher 105, 107, 108, 109, 113
Funai 120, 126, 134
GE 124, 133,145
Goldstar 106
Gradiente 134
Hitachi 100, 123, 145
Instant Replay 123, 124
Jensen 139
JVC 110, 111, 134,139
Kenwood 306, 310, 311, 339
LXI 100, 105, 106,107, 108, 109
Magnavox 123, 124, 131
Marantz 110, 111, 139
Marta 106
Memorex 109, 124
MGA 138, 140, 141, 147,148
Minolta 100,145
Mitsubishi 138, 140, 141, 147, 148
Multitech 104, 147
NEC 110,111, 134, 139
Olympic 123, 124
Optimus 106, 121, 128, 135
Brand Code
Orion 120, 126
Panasonic 121,122, 123, 124
J.C. Penney 100,105, 110, 111, 124, 139, 145
Pentax 100,111, 145
Philco 120, 123, 124, 126, 131, 143
Philips 123, 124, 131
Pioneer 123
Proscan 100, 101, 102, 123, 124, 131, 133,
145, 146
Quasar 121, 122, 123, 124
Radio Shack 105, 109, 124, 133, 136, 140
RCA 100, 101,102, 123, 124, 131, 133,
145, 146
Realistic 105, 109, 124, 136, 140
Samsung 102, 104, 133
Sansui 120, 126, 139, 152
Sanyo 105, 109, 113
Scott 101, 102, 104, 109, 120, 126, 138,
140, 147, 148
Sears 100, 105, 106, 107, 108
Sharp 135, 136
Shintom 117
Signature 2000 135
Singer 117
Sony 128, 129, 130
Sylvania 123, 124, 131
Tashiro 106
Tatung 110, 111, 139
Teac 110, 111, 139
Technics 121, 122, 123, 124
Teknika 124
Toshiba 101, 146
Vector Research 111
Wards 106, 109, 135, 136, 144
Yamaha 105, 110, 111, 139
Zenith 106,144

14 l
R EMOTE C ONTROL O PERATION
Brand Code
ABC 224
Archer 225, 232
Cableview 205, 232
Citizen 205, 222
Curtis 212, 213
Diamond 224, 225, 232
Eagle 229
Eastern 234
GC Brand 205,232
Gemini 222
General
Instrument/
Jerrold 211, 219, 220, 221, 222, 224, 225,
226, 227
Hamlin 212, 218, 240, 241, 242, 245
Hitachi 203, 224
Macom 203, 204, 205
Memorex 230
Movietime 205, 232
Oak 202, 237,239
Panasonic 209, 210, 214
Philips 206, 207, 228, 229, 230
Pioneer 201, 216
Pulsar 205, 232
Brand Code
Denon 100
Ferguson 101
JVC 109
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101
Brand Code
Puser 232
RCA 215
Realistic 232
Regal 212, 218, 240, 241, 242, 245, 249
Regency 234
Rembrandt 205, 232, 237
Samsung 205
Scientific Atlanta 211, 212, 213
Slmark 201, 205
Sprucer 205, 210
Stargate 205, 232
Teleview 201, 205
Texscan 244
Tocom 235, 236, 247
Toshiba 204
Unika 225, 232
Universal 222, 232
Videoway 206
Viewstar 229, 230
Zenith 200, 227
Zenith / Drake
Satellite 200
Brand Code
Saba 101
Samsung 110
Sharp 108
Sony 104
Thomson 101
Toshiba 103
Yamaha 100
Zenith 107
Component Codes (contd.)
Codes for Cable Box
Codes for DVD
Codes for DBS
Brand Code
Panasonic 104
Philips 101, 102
Primestar 108
RCA 106, 109, 110, 113
Sony 107
Toshiba 100
Uniden 101, 102
Brand Code
Dish Network
(Echostar) 105, 115, 116
Echo Star 105
G.E. 106
Gradiente 114
Hitachi 103, 111, 112
HNS (Hughes) 103

I CON M ENU N AVIGATION
15 l
Icon Menu Navigation
Press to display the Icons.
Press to select desired icon.
Press to display selected
Icon features.
Press to select feature.
Press
VIDEO ADJ
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL NO
u
-- -- -- I -- -- --
-- -- -- -- ---- -- -- -- -- -- I
-- -- -- I -- -- --
-- -- -- I -- -- --
-- -- -- I -- -- --
VIDEO ADJ
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL NO
u
-- -- -- I -- -- --
-- -- -- -- ---- -- -- -- -- -- I
-- -- -- I -- -- --
-- -- -- I -- -- --
-- -- -- I -- -- --
to adjust or activate feature.
BRIGHTNESS 32 -- -- -- I -- -- --
Press repeatedly to exit menus.
NORMAL PICTURE

16 l
M AIN M ENU I CONS

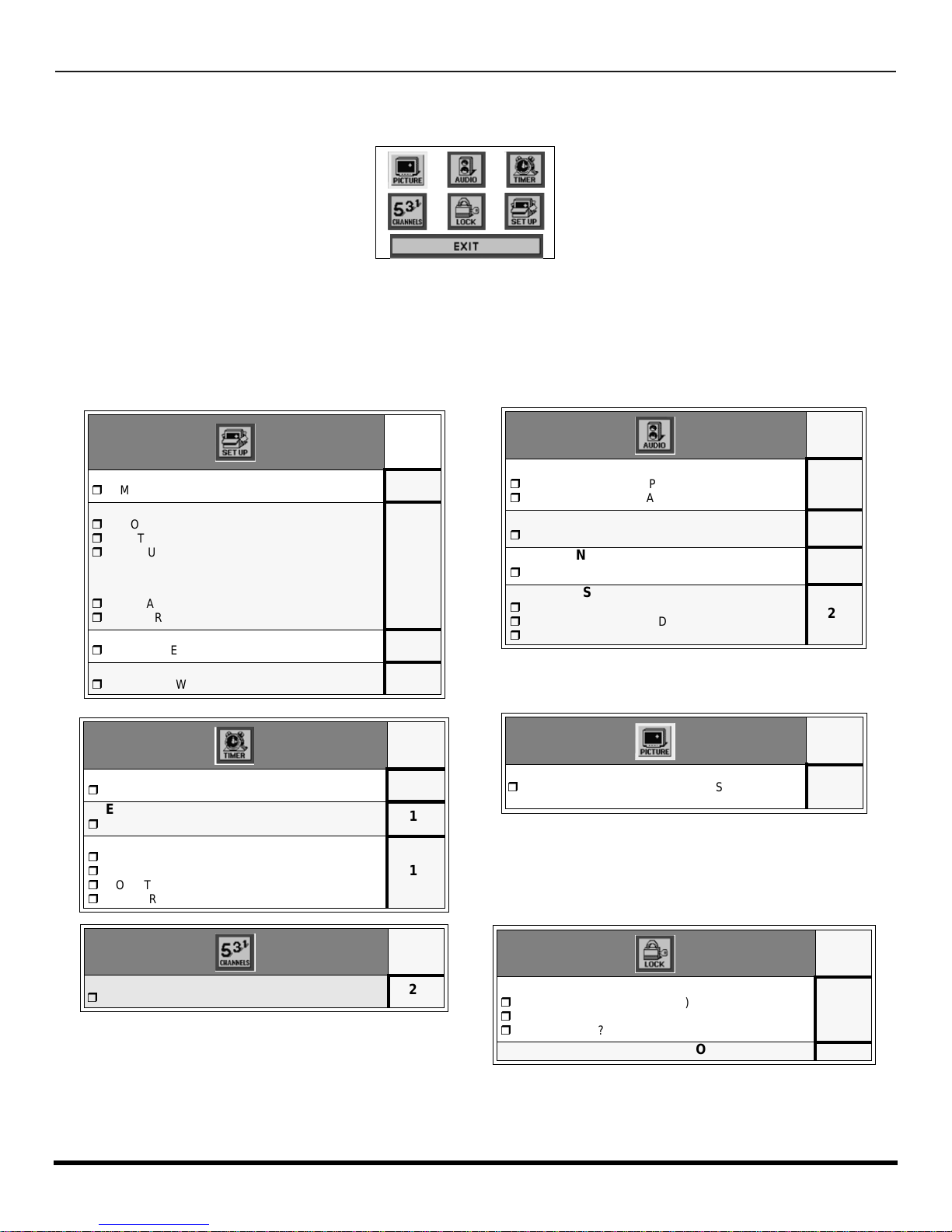

Icon Menus
These charts list all menus under each Icon and which pages to refer to for menus description.
Note: *Menus may vary depending on model.
REFER
TO
PAGE
IDIOMA/LANGUE
r MODE - (ENGLISH, FRANÇAIS, ESPAÑOL) 17
PROG CHAN
r MODE - (TV or CABLE)
r AUTO PROGRAM
r MANUAL PROGRAM
Note: The following features will appear for
models with FM radio when in FM mode.
r *FM ANTENNA
r *FM PROGRAM
17
27
CC (CLOSED CAPTIONED)
r CC MODE 18
OTHER ADJ.
r AUTO POWER 18
REFER
TO
PAGE
CLOCK SET
r TIME 19
SLEEP
r HOW LONG? 19
TIMER
r DAY
r ON TIME
r OFF TIME
r ENTER CHANNEL
19
REFER
TO
PAGE
CAPTION
r MANUAL CAPTION 21
REFER
TO
PAGE
AUDIO ADJ.
r MODE (STERO, SAP or MONO)
r *BASS, TREBLE, BALANCE or NORMAL 20
OTHER ADJ.
r AI SOUND 20
*SURROUND
r SURROUND 20
*SPEAKERS
r ON
r OFF & VARIABLE AUDIO OUT
r OFF & FIXED AUDIO OUT
20
REFER
TO
PAGE
VIDEO ADJ
r COLOR, TINT, BRIGHTNESS, PICTURE,
SHARPNESS OR NORMAL 18
REFER
TO
PAGE
MODE
r LOCK SET - (OFF or GAME)
r BLOCK PROGRAM
r HOW LONG?
23
V-CHIP OPERATION 24
Main Menu Icons

I CON M ENU O PERATION
17 l
Icon Menu Operation
SET UP
Note: Refer to page 15 for Icon Menu Navigation procedures.
IDIOMA/LANGUE (Menu Languages)
In SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish) or FRANÇAIS
(French).
Prog Chan (Program Channels)
In SET UP menu under PROG CHAN select:
rMODE - To select TV (antenna) or CABLE mode depending on the signal source.
rAUTO PROGRAM - To automatically program all channels with a signal.
rMANUAL PROGRAM - To manually add or delete channels.
Press to select English, Spanish or French.
VOL
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE ENGLISH u
Press to select TV or CABLE.
VOL
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
Press to start AUTO PROGRAM.
VOL
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
Press
to display next menu.
VOL
Note: Use Remote numeric keypad to enter channel
numbers.
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
CHANNELS
MANUAL CAPTION
t TO SELECT CHANNEL u
p TO MOVE CURSOR q
- - - -
ENTER CHANNEL
ENTER CAPTION 3

18 l
I CON M ENU O PERATION
(Closed Captioning)
This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored
letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.
Mode
Activates the onscreen Closed Caption feature by selecting one of the following modes.
rOFF - When Closed Caption is not desired.
rC1 - For video related information to be displayed, up to 4 lines onscreen at a time. (It does not block relevant parts of the picture).
Text may be in any language.
rC2 - For other modes of video related information.
Other Adjustments
In SETUP Menu under OTHER ADJ. select:
rAUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components or select OFF.
Note: Refer to page 15 for Icon Menu Navigation procedures.
Video Adj.
In Picture menu under VIDEO ADJ. select:
rCOLOR - Adjusts desired color intensity.
rTINT - Adjusts natural flesh tones.
rBRIGHTNESS - Adjusts dark areas of picture.
rPICTURE - Adjusts white areas of picture.
rSHARPNESS - Adjusts clarity of outline detail.
rNORMAL - Reset all picture adjustments to factory default settings.
CC
CC
CC
Press to select C1, C2, or OFF.
Note: C1 mode is recommended for viewing Closed Caption.
VOL
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC CC MODE OFF
Press to select OFF or SET.
VOL
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC AUTO POWER ON OFF
rPress to select desired picture adjustment.
rPress or to adjust.
CH
VOL VOL
VIDEO ADJ
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL NO
u
-- -- -- I -- -- --
-- -- -- -- ---- -- -- -- -- -- I
-- -- -- I -- -- --
-- -- -- I -- -- --
-- -- -- I -- -- --
