Panasonic CT-27G21 User manual

Color Television
Operating Instructions
00000 O0 (_
®
CT-27G21
Read these instructions completely before operating this set.
Contents subject to change without notice or obligation.
Copyright 1996 by Matsushita Electric Corporation of America.
All rights reserved. Unauthorized copying and distribution is a violation of law.
PRINTED IN MEXICO
TQB2AA0040-1

Safety Instructions
WARNING
WARNING: Toreducethe risk ofelectric shock do not removecover or back. No
user-serviceable parts inside. Refer servicingto qualified service personnel.
i
The lightning flash with ar-
_ row-head within a triangle _
is intended to tell the user
that partsinside the product
are a risk ofelectric shock to
persons.
The exclamation point within
atriangle is intended to tell
the user that important oper-
ating and servicing instruc-
tions are in the papers with
the appliance.
Note To CATV System Installer: This reminder is provided to call the CATV system installer's attention to Article
820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
Safety Instructions For Television Receivers
1. Read and apply the operating instructions provided with your television receiver.
2. Read all of the instructions given here and retain them for later use.
3. Unplug this television receiver from the wall outlet before cleaning. Do not use liquid or aerosol cleaners• Use a damp
cloth for cleaning.
4. Do not use attachments not recommended by the television receiver manufacturer as they may cause hazards.
5. Do not use this television receiver near water. For example: Avoid placing it near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool, etc.
6. Do not place this television receiver on an unstable cart, stand, or table. The television receiver may fall, causing serious
injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television receiver. Wall or shelf mounting should follow the manufacturer's instructions,
and should use a mounting kit approved by the manufacturer.
6Ao An appliance and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart combination to overturn.
7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure
reliable operation of the television receiver and to protect it from overheating. These openings must not be blocked or
covered. The openings should never be blocked by placing the television receiver on a bed, sofa, rug or other similar
surface. This television receiver should never be placed near or over a radiator or heat register. This television receiver
should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
8. Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power
supplied to your home consult your television dealer or local power company. For television receivers designed to
operate from battery power, refer to the operating instructions.
9. This television receiver is equipped with a polarized alternating--current line plug (a plug having one blade widerthan the
other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If N_G AS'_
the plug should still fail to fit, contact your
electrician toreplace yourobsolete outlet. Do EXAMPLE OF ANTENNA GROUNDI ANTENNALEAD-IN
not defeat the safety purpose ofthe polarized PER(NEC)NATIONALELECTRICALCODE _ _ W_RE
plug.
10. Do not allow anything to rest on the power
cord. Do not locate this television receiver GROUND// U_ IX\
where the cord will be abused by persons CLAMP'>/--K/ D_J J__
walking on it.
11. Follow all warnings and instructions marked ANTENNA
DISCHARGE UNIT
on the television receiver, (NEC SECTION810-20)
12. Do not overload wall outlets and extension
cords as this can result in fire or electric
shock.
13. Never push objects of any kind into this L......_ %_V_CENT__-..-J_ /',i_..L -_ /_T-J /_._ GROUNDINGCONDUCTORS(NECSECTION 610-21)
television receiver through cabinet slots as
they may touch dangerous voltage points or GROUNDCLAMPS
short out parts that could result in a fire or POWERSERVICEGROUNDING
• ELECTRODE SYSTEM
electric shock. Never spill liquid ofany kind on (NEC ART250,PARTH)
the television receiver.
-2-

14. if an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built up static charges. In the U.S. Section 810 of the National Electrical
Code and in Canada Part I of the Canadian Electrical Code provides information with respect to proper grounding of the
mast and supporting structure, grounding ofthe lead-in wire to an antenna discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
See Figure.
15. For added protection for this television receiver during alightning storm, or when it is left unattended and unused for long
periods oftime, unplug itfrom the wall outlet and disconnect the antenna. This will prevent damage to the receiver due to
lightning and power-line surges.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. Unplug this television receiver from the wall outlet, and refer servicing to qualified service personnel under the following
conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the television receiver.
c. If the television receiver has been exposed to rain or water.
d. Ifthe television receiver does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions as improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the television receiver to normal operation.
e. If the television receiver has been dropped or the cabinet has been damaged.
f. When the television receiver exhibits a distinct change in performance - this indicates a need for service.
18. Do not attempt to service this television receiver yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
19. When replacement parts are required, be sure the service technician has used replacement parts specified by the
manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
20. Upon completion of any service or repairs to this television receiver, ask the service technician to perform routine safety
checks to determine that the television is in safe operating condition.
21. WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
22. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
NOTE: This equipment isdesigned tooperate inthe U.S.A., Canada and othercountries where the broadcasting system and
AC house current is exactly the same as in the U.S.A. and Canada.
Important Information Regarding Use of Video Games, Computers, Teletext or Other Fixed Image Displays.
The extended use of fixed image program material can cause a permanent "shadow image" on the picture tube. This
background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible picture
tube deterioration can be limited by observing the following steps:
A. Reduce the brightness/contrast setting to a minimum viewing level.
B. Do not display the fixed image for extended periods of time.
C. Turn the power off when not in actual use.
NOTE: The marking or retained image on the picture tube resulting from fixed image use is not an operating defect and as
such is not covered by Warranty. This product isnot designed to display fixed image patterns for extended periods of
time.
Power Source:
Channel Capability:
Video Input Jack:
Audio input Jacks:
To Audio AMP Jacks:
Stereo Sound
Closed Caption Display
Picture in Picture:
Specifications
120V, 60Hz, AC
181 channels (See chart)
VHF 2-13, UHF 14-69, Cable 125 channels
lV p-p, 75 ohm, phono jack type
High impedance - 10K ohm, 500mY rms
O-4.0V rms 1OK ohm
1 Tuner
Channel Capability Chart
BAND
VHF
UHF
CABLE (.Mid-Band)
CABLE (Super Band)
CABLE (Nyper Bandy
CABLE (,Ultra Band)
TOTAL CHANNELS
USA/CAN
12
56
15
14
28
56
181
Specifications are subject to change without notice or obligation.
m3_

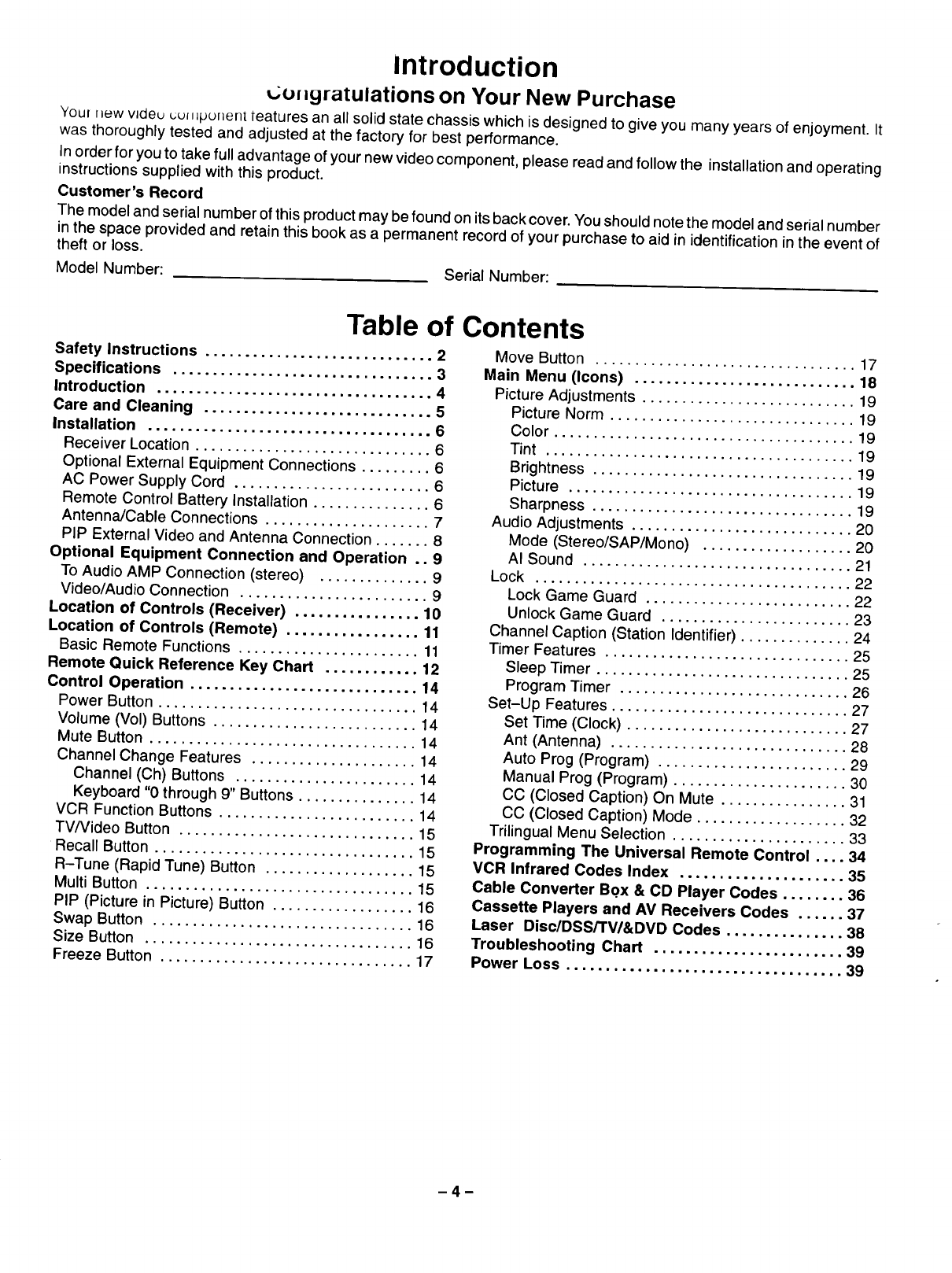

introduction
;uf gratulations on Your New Purchase
Your t_ewvJcleuuu+_punent teatures an all solid state chassis which is designed to give you many years of enjoyment. It
was thoroughly tested and adjusted at the factory for best performance.
Inorder for you to take full advantage of your new video component, please read and follow the installation and operating
instructions supplied with this product.
Customer's Record
The model and serial number of this product may be found on its back cover. You should note the model and serial number
in the space provided and retain this book as a permanent record of your purchase to aid in identification in the event of
theft or loss.
Model Number: Serial Number:
Table of Contents
Safety Instructions ............................. 2
Specifications ................................. 3
Introduction ................................... 4
Care and Cleaning ............................. 5
Installation .................................... 6
Receiver Location .............................. 6
Optional External Equipment Connections ......... 6
AC Power Supply Cord ......................... 6
Remote Control Battery Installation ............... 6
Antenna/Cable Connections ..................... 7
PIP External Video and Antenna Connection ....... 8
Optional Equipment Connection and Operation .. 9
To Audio AMP Connection (stereo) .............. 9
Video/Audio Connection ........................ 9
Location of Controls (Receiver) ................ 10
Location of Controls (Remote) ................. 11
Basic Remote Functions ....................... 11
Remote Quick Reference Key Chart ............ 12
Control Operation ............................. 14
Power Button ................................. 14
Volume (Vol) Buttons .......................... 14
Mute Button .................................. 14
Channel Change Features ..................... 14
Channel (Ch) Buttons ....................... 14
Keyboard "0 through 9" Buttons ............... 14
VCR Function Buttons ......................... 14
TV/Video Button .............................. 15
Recall Button ................................. 15
R-Tune (Rapid Tune) Button ................... 15
Multi Button .................................. 15
PiP (Picture in Picture) Button .................. 16
Swap Button ................................. 16
Size Button .................................. 16
Freeze Button ................................ 17
Move Button ................................. 17
Main Menu (Icons) ............................ 18
Picture Adjustments ........................... 19
Picture Norm ............................... 19
Color ...................................... 19
Tint ....................................... 19
Brightness ................................. 19
Picture .................................... 19
Sharpness ................................. 19
Audio Adjustments ............................ 20
Mode (Stereo/SAP/Mono) ................... 20
AI Sound .................................. 21
Lock ........................................ 22
Lock Game Guard .......................... 22
Unlock Game Guard ........................ 23
Channel Caption (Station Identifier) .............. 24
Timer Features ............................... 25
Sleep Timer ................................ 25
Program Timer ............................. 26
Set-Up Features .............................. 27
Set Time (Clock) ............................ 27
Ant (Antenna) .............................. 28
Auto Prog (Program) ........................ 29
Manual Prog (Program) ...................... 30
CC (Closed Caption) On Mute ................ 31
CC (Closed Caption) Mode ................... 32
Trilingual Menu Selection ...................... 33
Programming The Universal Remote Control .... 34
VCR Infrared Codes Index ..................... 35
Cable Converter Box & CD Player Codes ........ 36
Cassette Players and AM Receivers Codes ...... 37
Laser Disc/DSS/TV/&DVD Codes ............... 38
Troubleshooting Chart ........................ 39
Power Loss ................................... 39
-4-

Care and Cleaning
Picture lube (,]urn set off)
Use a mild soap solution or window cleaner and a clean cloth. DO NOT USE ABRASIVE CLEANERS. Avoid excessive
moisture and wipe dry.
Plastic Cabinets
Wipe the cabinet with a soft cloth dampened with water or a mild detergent solution and wipe dry with a soft clean cloth.
Avoid excessive moisture. Do not use benzene, thinners or other petroleum based cleaners.
Wood Cabinets
When dusting or polishing the cabinet, use a clean soft cloth and stroke straight with the grain. An occasional coat of
furniture polishwilt help preserve the finish. Do not use benzene, thinners or other petroleum based cleaners. Do not
place objects made ofplastic or rubberdirectly on top ofthe cabinet. Achemical reaction could resultcausing permanent
marring of the finish.
Remote Control Transmitter
Do notuse benzene, thinners orother petroleum based cleaners toclean the Remote Control Transmitter. Toclean, wipe
with a soft cloth slightly moistened with amilddetergent and then wipe dry with a soft clean cloth.
-5-

Installation
Receiver Locatiol=
This unit is intended to be used with aL,opuonat stand or entertainment center. C;uf_sultyour dealer for available options.
Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the
screen.
Use of some types of fluorescent lighting can reduce remote control transmitter range.
Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or
moisture.
To insure optimum color purity do not position magnetic equipment (motors, fans, other speakers, etc.) nearby.
Optional External Equipment Connections
The Video/Audio connections between components can be made with shielded video and audio cables. For best perfor-
mance, video cables should utilize 75 ohm coaxial shielded wire. Cables are available from your dealer or electronic
supply house.
Before you purchase any cables, be sure you know what type of output and input connectors your various components
require. Also determine the length of cable you'll need.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE THIS (POLARIZED)
PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
Remote Control Battery Installation
Batteries: Use two "AA" batteries.
1. Turn the Transmitter face down. To remove top cover, press down on
marking and slide cover off in the direction indicated.
2. Install the batteries as shown inthe battery compartment. (Polarity (+) or
(-) must be correct.)
3. Replace the cover and slide in reverse until the lock snaps.
Precaution on Battery Use
Incorrect installation can cause battery leakage and corrosion that will
damage the Remote Control Transmitter.
Observe the Following Precautions:
1. Batteries should be replaced as a pair. Always use new batteries when
replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (Example: "Zinc Carbon" with "Alkaline").
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used
batteries.
5. Battery replacement is necessary when Remote Control reacts
sporadically or stops operating the Receiver.
Helpful Hint:
Polarized Plug
mm
Press Down Here
And Slide Cover
Back
..
°.
\
-6-

Antenna/Cable Connections
Antenna Connection - For proper reception of VHF/UHF channels an external
antenna is required. For best reception an outdoor antenna is recommended.
Antenna Mode must be set to TV. (Refer to Antenna MOde section.)
Incoming Cable From Home Antenna (75 Ohm)
VHF/UHF
on Back of Set
Indoor Outdoor
Typical VHF/UHF Antenna
Incoming Cable From Home Antenna (300 Ohm)
VHF/UHF
onBackofSet
300 to 75 ohm Matching
Transformer(Not Included)
Cable Connection - For reception of cable channels (01 ~125) connect the cable supplied by your local Cable company.
Antenna Mode must be set to CABLE. (Refer to Antenna Mode section.)
Incoming 75 Ohm Cable (From Cable Company)
VHFIUHF
on Back of Set
NOTE: Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A
Cable Converter box is required for proper reception. Check with your local Cable company for its compatibility
requirements.
Other Video Equipment
VCRs, Video Disc Players, Computers, TV games and Teletext equipment can also be connected to the antenna input
connection.

Picture in Picture External Video and Antenna Connection
This Receiver has the "PICTURE IN PICTURE" feature. For the proper operation of this feature a second video source is
required (such as a VCR). We recommend that you make your antenna and External Video connection as shown below
when a second video source is available.
ANT
TERMINALS ON BACK OF RECEIVER
_'_ __-- TO AUDIO
TV SPEAKERS AMP
I1= ON
JL OFF
UDI
VCR or VIDEO
DISC PLAYER
TERMINALS ON BACK OF VCR
To ANT Terminal
ToVCR
Ant Input
Signal Splitter
(not Included)
Incoming Cable
From Antenna Or
Cable TV System
A_
\
T------
HelpfulHints:
piP/ Nillo erate using AudioNideo input terminals. Use the TVNIDEO button
q'he .... _P .... {=,4 nlaved_ to select Video mode. l
__ (.when the t-it -,=,,,= ,-, _ls_. ,.

Optional Equipment Connection and Operation
To Audio AMP Connection (Stereo)
To Auxiliary Input
\
TV SPEAKERS
ON
OFF
R,uo,o _ _ 11
TERMINALS ON BACK OF RECEIVER
•To Audio AMP
Connect to an external audio amp auxiliary input for monitoring sound through a stereo system.
NOTE: "TO AUDIO AMP" terminals cannot be used for external speakers.
Adjustment - When an audio amp is connected to "TO AUDIO AMP" terminals as shown:
1. Press the TV SPEAKERS button (located on back of Receiver) to turn INT. SPEAKERS "ON" (,,,).
2. Set volume of audio amp to near minimum.
3. Adjust volume of TV to desired listening level.
4. Adjust volume of audio amp to match the level of TV.
5. Press the TV SPEAKERS button (located on back of Receiver) to turn INT. SPEAKERS "OFF" (JL).
6. Volume and mute can now be controlled by the TV Remote Control.
Video/Audio Connection
TERMINALS ON BACK OF RECEIVER
TVSPEAKERS R_ L_ TO AUDIO
II OFF
R AUDIO L
VCR or VIDEO DISC
_) VIDEO OUT
L
) AUDIO OUT
i"t"F_.R_RINIALS ON
BACK OF VCR
Operation
1. Connect optional equipment as shown to INPUT.
2. Select the Video mode by pressingthe TV/VIDEO button.
3. Operate optional equipment (VCR-VDP) as instructed in Optional Equipment manual
--9--

Location of Controls (Receiver)
0oooo oo CZ_
RFront Control Panel __
•VOLUMEIb •CNANNEL& ACTION TV/VIDEO
\(_ ? ? _ _ RemotsControl
Sensor
®
®
®
®
Quick Reference Control Operation (Receiver)
Powul Button - Press to turn ON or OFF. (,pg. 14)
Volume Buttons - Press to adjust Sound Level. Pressto adjust Audio Menus, Video Menus and select operating
features when menus are displayed. (pg. 14)
Channel Buttons - Press to select programmed channels. Press to highlight desired features when menus are
displayed. (pg. 14)
_ct_on Button -Press to d_sp_ayMa_n Menu and access or exit On Screen _eature and /kdiustment Menus.
(pg._8)
3"V/Video Button - Press to select TV or Video input, for the Main Picture or the PIP frame (when PIP trame is
displayed). (Pg. 15) -10-

Location of Controls for the Remote Unit
Home lheater
Remote Control
Basic Remote Control Functions
The following is a basic oVerview of the remote control unit for
®
@
@
@
Power Button - Press to turn the TV ON or OFF. (pg.14)
Volume Buttons - Press toadjust TV sound level. Use
with Channel buttons to navigate in menus. (pg.14)
Channel Buttons - Press to select channels. Use with
Volume buttons to navigate in menus. (pg.14)
Action Button - Press to display Main Menu and ac-
cess or exit On Screen feature and Adjustment Menus.
(pg.18)
TV/Video Button - Press to select TV or one of two (2)
Video Inputs, for the Main Picture or the PIP frame
(when the PIP frame is displayed). (pg.15)
Mute Button Press to mute sound. A second press
returns sound. (pg.14)
"0 9" Buttons Press desired
Keyboard through
channel number to access any channel. (pg.14)
®
®
®
®
R-Tune (Rapid Tune) Button - Press to switch to the
previous channel. (pg.15)
Recall Button - Press to display Time, status of Sleep
Timer, Channel, Video Mode, Channel Caption (Station
Identifier) and Audio Mode. (pg.15)
PIP Size Button - Press to select size of PIP frame
(when the PIP frame is displayed). (pg.16)
PIP Move Button - Press to position PIP frame to any
corner of the Main Picture (when PIP frame is
displayed). (pg.17)
PIP Freeze Button - Press to action in the Main
stop
Picture or PIP frame (when the PIP frame is displayed).
(pg.17)
@
®
PIP (Picture In Picture) Button - Press to display the
PIP frame, press again to remove PIP frame. (pg.16)
PIP Swap Button - Press to interchange PIPframe with
Main Picture (when the PIP frame isdisplayed). (pg.16)
@
®
@
®
Multi Button - Programmable to operate up to six
Remote Function buttons simultaneously. (pg.15)
VCR Function Buttons - Programmable to operate
many brands o_VCR's. (pg.14)
Mode Selection Buttons- Selects the ope ration mode
for the remote control. (pg.39)
VCPJDSS Channel Buttons- These buttons are used
to _e\ect _/C,F_ or E)SS Up/E)o',Nn c_a_nets. (.pg- 137
NOTE.: For more information on the Remote Control, please
reier to the Remote Control Quick Reference
Functional Key Chart (,pages 12 and 13).
-11 -

Remote Control
Quick Reference Functional Key Chart
®®®
®®®
®®®
TV Selects L;ha_=f=el
VCR Selects Channel
CABLE, DSS Selects Channel
RECEIVER/AMPLIFIER (_ Selects TV Video 1
Selects TV Video 2
(_) Selects TV Video 3
(_) Selects Tuner
(_) Selects CD Player
(_) Selects Tape Cassette Player
Q VCR 1
_) VCR 2
(_) VCR 3
®
@
O
%
%
CD PLAYER
LD PLAYER
ALL COM PONENTS
TV
ALL COMPONENTS
TV, DSS, VCR, LDP
CABLE
RECEIVER/AMPLIFIER
TV
Selects Track Number
Selects Track Number
Programmable Button That Can Operate Up To Six Remote
Functions At Once
Selects the TV Input Mode
Turns On and Off Selected Components
Mutes TV Audio
Mutes Audio
Mutes Audio
TV Mode Selection for Remote Control
CABLE Cable Mode Selection for Remote Control
DSS (DIGITAL SATELLITE DSS Mode Selection for Remote Control
SYSTEM)
VCR VCR Mode Selection for Remote Control
RECEIVER/AMPLIFIER Receiver/Amplifier Mode Selection for Remote Control
COMPACT DISC CD Mode Selection for Remote Control
CASSETTE PLAYER, DVD AUX Mode Selection for Remote Control
Enables User to Operate a Tape Cassette Player,
or Digital Video Disc
LASER DISC PLAYER LD Mode Selection for Remote Control
TV
CABLE
DSS
LDP
CD
RECEIVER/AMPLIFIER
DVD
W
RECEIVER/AMPLIFIER
tvcB
Channel Up/Down, Menu Navigation
Channel Up/Down
DSS Guides and Menu Navigation
Skip
FF, REW
Preset or Tuning Frequency
Skip FWD /Skip REW
_/o\ume ',Jpltbo'wn, Menu _avicjatior_
_qo\ume Lh_lOo'wr_
DSS Gu'tdes and Menu _av_gat_on
Volume UplDown
TV Volume Up/Down
-12-

Remote Control
Quick Reference Functional Key Chart
REW
MOVE
PLAY
SIZE
FF
PIP
REC
STOP
PAUSE
SWAP
"T'_/'# C.,R
FREEZE
0
VCR/DSS CH
LDP
TV
CABLE
VCR
DSS
RECEIVEPJAMPLiFIER
CD
TAPE CASSETTE PLAYER
TV
DSS
TV
DSS
VCR
LDP
TV
DSS
VCR
LDP
TAPE
CD
DVD
TV
DSS
VCR
LDP
TAPE
CD
DVD
TV
DSS
VCR
LDP
TAPE
CD
DVD
DSS
VCR
TAPE
CABLE
DVD
VCR
LDP
TAPE
CD
CABLE
DVD
TV
VCR
LDP
TAPE
CD
CABLE
VCR
DSS
CABLE
TV
VCR
DSS
CABLE
Side A/B
Selects Previously I urLedChannel
Selects Previously Tuned Channel
Selects Previously Tuned Channel
Selects Previously Tuned Channel
Switches between AM and FM
Selects Next Disc
Selects Tape Cassette Player A or B
Activates TV Menus
Acts as Menu Button for DSS
Displays Channel, Time, and Audio Mode
Displays Current DSS Settings
Displays Current VCR Settings
Displays Current LDP Settings
PIP Move
DSS Guide
Rewind
Rewind
Rewind
Selects Previous Track
Rewind
PIP Size
Enter/Select
Play
Play
Play (in Normal Direction)
Play
Play
PIP On/Off
Exit/Clear
Fast Forward
Fast Forward
Fast Forward
Selects Next Track
Fast Forward
One Touch Record in DSS Mode
Record
Record
VCR Record
Stop
Stop
Stop
Stop
Stop
VC R Stop
Pause
PIP Swap
Pause
Pause
Pause
Pause
VCR Pause
Selects-fV NCP, l',Aode
Selects TV/DSS Mode
Selects TVNCR Mode
PIP Channel Up/Down (2 Tuner PiP Models Only)
Channel Up/Down
Channel Up/Down
VCR Up/Down
-13-

Control Operation
Power Button -Press the POWER button after
selecting a mode to turn ON. Press again to turn OFF.
Volume Button - Press the VOLUME (VOL)
LEFT or RIGHT button for desired listening level (when
On Screen menus are not displayed).
Channel Chai=yu- (iwu upt=o/,s)
Option 1.
Press the CHANNEL (CH) UP or DOWN buttolb L_
sequentially scan through programmed channels
(when On Screen menus are not displayed).
NOTE: Press the TV Mode button to operate TV
Remote functions, if necessary.
Located On Remote Control
Selects Next
_...._ Higher Channel
Selects Next J_)
Lower Channel
Located On Remote Control
Decreases
Volume Level
Increases
Volume Level
Mute Button -Press the MUTE button to quickly
reduce sound level (Mute will appear on screen). Press
again to restore sound.
Helpful Hints:
•Helptut information will display On Screen momen-
tarily when Receiver is first turned on and when the
channel is changed.
• When using keyboard entry for channels 10,11 and
12 in the CABLE mode there is a slight delay before
channel change because of the capability of tuning
cable channels 100 to 125.
NOTE: If "SPEAKER OFF" is displayed On Screen
a_ter 13Tessingthe VOLUME button, refer to
Audio Menu to turn Speakers "ON".
Keyboard "0 through 9" Buttons
Option 2.
Press two digits on keyboard (Example press 0, thul_
5 for channel 05). For channels over 99, press three
digits on keyboard. 1
@®®1
®1
VCR Function Buttons - TheVCRFUNC-
TIONbuttons have been designed to operate numerous
brands of VCRs. The infrared code must be obtained
prior to use. (Please refer to Programming the Universal
Remote for programming instructions.)
NOTE: Press the VCR Mode Selection button to
operate VCR Remote functions.
r REN PLAY FF I
/.ore s_zE P_P I
J REC STOP p^usEI
I I
i wtvcR vmJoss_ I
FREEZE
iJ
-14-

Helpful Hints:
Press the TV M0de S_l_dti6_ b_6_ _6 _af_ _ I
/Rem0t_: fun_ti0ns; ff necb_ry. :: I
i ii !
TV/Video Button -Press the TV/VIDEO button
to select desired input for Main Picture or PIP frame
(when the PIP is displayed).
Signal connected to: "_
REAR VIDEO/AUDIO _'!
INPUT JACKS
TV or CABLE
VIDEO
CH2 I_
Signal connected to:
REAR VIDEO/AUDIO _1
INPUT JACKS
TV or CABLE
PiP VIDEO I
PIP CHr_2 _
L___ PIP Frame
Recall Button - Pressthe RECALL button to
review:
• Audio Mode status
• CH number or Video Input selected
• Sleep Timer status
• Clock time
• Channel Caption (Station Identifier)
CH 3
KXYZ
29 1:00
R-Tune (Rapid Tune) Button - Pressthe
R-TUNE (RAPID TUNE) button to instantly switch
between the last two channels selected (without any On
Screen disDlay being activated).
CHANNEL NOW
BEING VIEWED Press Button ,,..
-- w"
P[ess Butto_ Aga'in
CHANNEL TUNED
IMMEDIATELY BEFORE
Multi Button
The MULTI button can be progran, iJed to opulate up
to 6 Remote function buttons at the same time.
For Example: TV Power/On, VCR Power/On and
Cable box Power/On (selected brands) can be operated
at the same time with one press of the MULTI button.
Procedure
1. First program the Remote for the selected device
Infrared access code. Confirm that the Remote
Control is compatible with the equipment.
2. Face the Remote Control transmitter away from all
equipment remote sensors.
3. Press and hold the Remote POWER button, then
press and hold the ACTION button down at the
same time for three seconds. (All previous
commands are erased.) (_
PRESS ATTHE SAME TIME
FOR THREE SECONDS
4. After three seconds, let go of the POWER and
ACTION buttons.
5. Press the MULTI button.(Waiting more than 30
seconds without pressing another button will exit the
programming mode.)
6. Press a maximum of 6 Function buttons on the
Remote.
Each button you press is equal to one function. If six
Remote button functions are entered, all will register
in the MULTI button memory in the sequence
entered. When finished, press the MULTI button to
end the program mode.
The following is an example flow chart of Remote
functions that can be programmed into the MULTI
button (The VCR Mode button should be
programmed before starting procedure see pg. 37).
PRESS AT THE SAME TIME PRESS PRESS
FOR THREE SECONDS
PRESS PRESS PRESS TO END
PROGRAM MODE
Now you can turn the TV and VCR ON/OFF at the
same time with one press of the MULTI button.
To delete entered functions - Press and hold the
Remote POWER button then press and hold the
ACTION button down at the same time for three
seconds. Now you can enter from one to six different
Remote functions.
NOTE:
You can also program the MULTI button to perform
most individual Remote Control button functions.
Buttons which continuously perform a function as
long as pressed (Volume Up/Down, Channel
Up/Down, etc.) cannot be programmed. Only those
buttons which perform a function when initially
pressed (,Power OniOn, llqlute, O_rect Chant, el E.nt13/,
etc.') can be progl-ammed.
-15-

Swap Button- Press the SWAP button (when the
PIP frame is displayed) to interchange what is being
viewed on the Main Picture with that of the PIP frame.
PIP (Picture in Picture) Button -This
feature allows monitoring one channel while watching
another when a second video source with a tuner is
connected (such as a VCR) to the television.
NOTE: When the Main Picture is in Video mode with no
signal, the PIP will not operate properly.
S_AP
PIP VIDEO
VIDEO
PIP CH 2
PIP
PIP Operation
1. Turn VCR ON and select a desired channel.
2. Press the TV Mode Selection button to operate the
Remote function, if necessary.
3. Press the PIP button (television must be ON). The
PIP frame will appear at the position it was last
displayed. The Main Picture Video Source and PIP
Video Source will display on screen momentarily.
Audio will be that of Main Picture.
Main
with
Sound
Main Picture
CH 2' _ Channel
PIP VIDEO" _ Picture in
Video Mode
[_, Picture in
_---- Picture
Frame
4. Press the PIP button again to cancel PICTURE IN
PICTURE feature.
NOTE: For PIP Video source connection, refer to PIP
Antenna and External Video connection section.
• Audio will be that of the Main Picture.
Size Button - Press the SIZE button (when the
PIP frame is displayed) to choose either the large or
small PIP frame.
Large PIP Frame Small PiP Frame
-16-

Move Button --The PIP frame may be located at
any corner of the Main Picture by pressing the PIP
MOVE button (when the PIP frame is displayed).
Freeze Button - Press the FREEZE button to
stop action in the PIP frame.
FREEZE
MOVE
NOTE: Each time MOVE button is pressed (when the
PIP frame is displayed), the PIP frame will move
(counterclockwise) as illustrated.
Main
._ reezeFrame
NOTE:
•Pressing the FREEZE button when the PIP frame is
not displayed will stop action in the Main Picture and
display it on the PIP frame.
•Pressing the FREEZE button when PIP frame is
displayed will stop action in the PIP frame, press the
FREEZE button again to continue action.
• Press the PIP button to delete PIP frame.
I-I-- I1
f-] - f-I
-17-

Main IVle,u (icons)
[,4ote: Refer toTrilingual Menu Selection (page 33) to change sub menus
to a different language (English, Spanish or French).
Located On Remote Control
>elects or Adjusts
Features When
Menu is Displayed
Selects Desired
When
Menu is Displayed
Displays and Exits Menus
i. ;_'r_ Ll=e,_GI ION but[on to display the Main Menu with Icons.
2. Press the CH UP or DOWN and the VOL LEFT or RIGHT buttons to select the desired Icon wher_the Main Menu
is displayed (selected Icon will be indicated in Red).
3. Press the VOL buttons for left and right movement and the CH buttons for up or down movement.
4. To exit the Main Menu first select the EXIT Icon, then press the ACTION button.
-18-

Picture Adjustments
•Picture Norm
• Color
• Tint
•Brightness
•Picture
• Sharpness
Located On Remote Cont_ul
__ selects ueslred
Feature When
Menu is Displayed
Selects or Adjusts
Features When
Menu is Displayed
Displays and Exits Menus
lPicture Norm -i his feature is used to reset
Color, Tint, Brightness, Picture and Sharpness
adjustments back to a factory preset level.
1. Press the ACTION button to display the Main Menu.
2. Press the CH UP/DOWN and VOL LEFT/RIGHT
buttons to select the Picture Icon.
3. Press the ACTION button to display the Picture
Adjustment Menu.
4. Press the CH UP or DOWN button to highlight
PICTURE NORM (if necessary).
5. Press the VOL LEFT or RIGHT button to select
"SET" to Normalize Color, Tint, Brightness, Picture
and Sharpness.
6. Press the ACTION button twice to exit the Picture
Adjustment Menu.
Color, Tint, Brightness, Picture &
SharpnessAdjustments
1. Press the ACTION button to display the Main Menu.
2. Press the CH UP/DOWN and VOL LEFT/RIGHT
buttons to select the Picture Icon.
3. Press the ACTION button to display the Picture
Adjustment Menu.
Helpful Hints:
Picture Adjustments:
COLOR - adjust for desired color intensity.
TINT - adjust for natural flesh tones.
BRIGHTNESS - adjust so dark areas of picture just
become black tot a crisp detail.
PICTURE - adjust so the white areas of the picture are
to your liking.
SHARPNESS - adjust for best clarity ot outline detail.
- fg-
4. Press the CH UP or DOWN button to highlight the
desired Picture Adjustment (Color, Tint, Brightness,
Picture or Sharpness).
5. Press the VOL LEFT or RIGHT button to adjust your
selection. (The selected Picture Adjustment will be
displayed).
6. Repeat steps 4 and 5 for the remaining Picture
Adjustments.
7. Press the ACTION button twice to exit the Picture
Adiustment Menu.

Audio Adjustments
•Audio Mode
•AI Sound
Located On Remote Control
__ selects Oeslred
Feature When
Menu is Displayed
Selects or Adjusts
Features When
Menu is Displayed
Displays and Exits Menus
Mode- Stereo/SAP/Mono
When Audio is broadcast in Stereo or SAP an ON
Screen display will appear on initial "Turn On" and
"Channel Change", The available choices will be
indicated in red.
1. Press the ACTION button todisplay the Main Menu.
2. Press the CH UP/DOWN and VOL LEFT/RIGHT
buttons to select the Audio Icon.
3. Press the ACTION button to display the Audio
Adjustment Menu.
4. Press the CH UP or DOWN button to select MODE.
5. Press the VOL LEFT or RIGHT button to select
Stereo, SAP (Second Audio Programming) or
Mono.
6. Press the ACTION button twice to exit the Audio
Adjustment Menu.
Helpful Hints:
STEREO -Two channel Audio reception. _or
SAP - Second/_ud\oprogramming (typicallyused
b\\\ugu_\aud'to_.
_MONO when stereosigna\_sweak.
Use
