Panasonic PT-50LC13 - 50" Rear Projection TV User manual

Service Manual
TOP NEXT
ORDER NO. MKE0307850C1
B2
Multi Media Display
 PT-50LC13
©
2003 Matsushita Kotobuki Electronics Industries LTD. All rights reserved. Unauthorized copying and
distribution is a violation of law.
TOP
NEXT
Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s0000000000.html

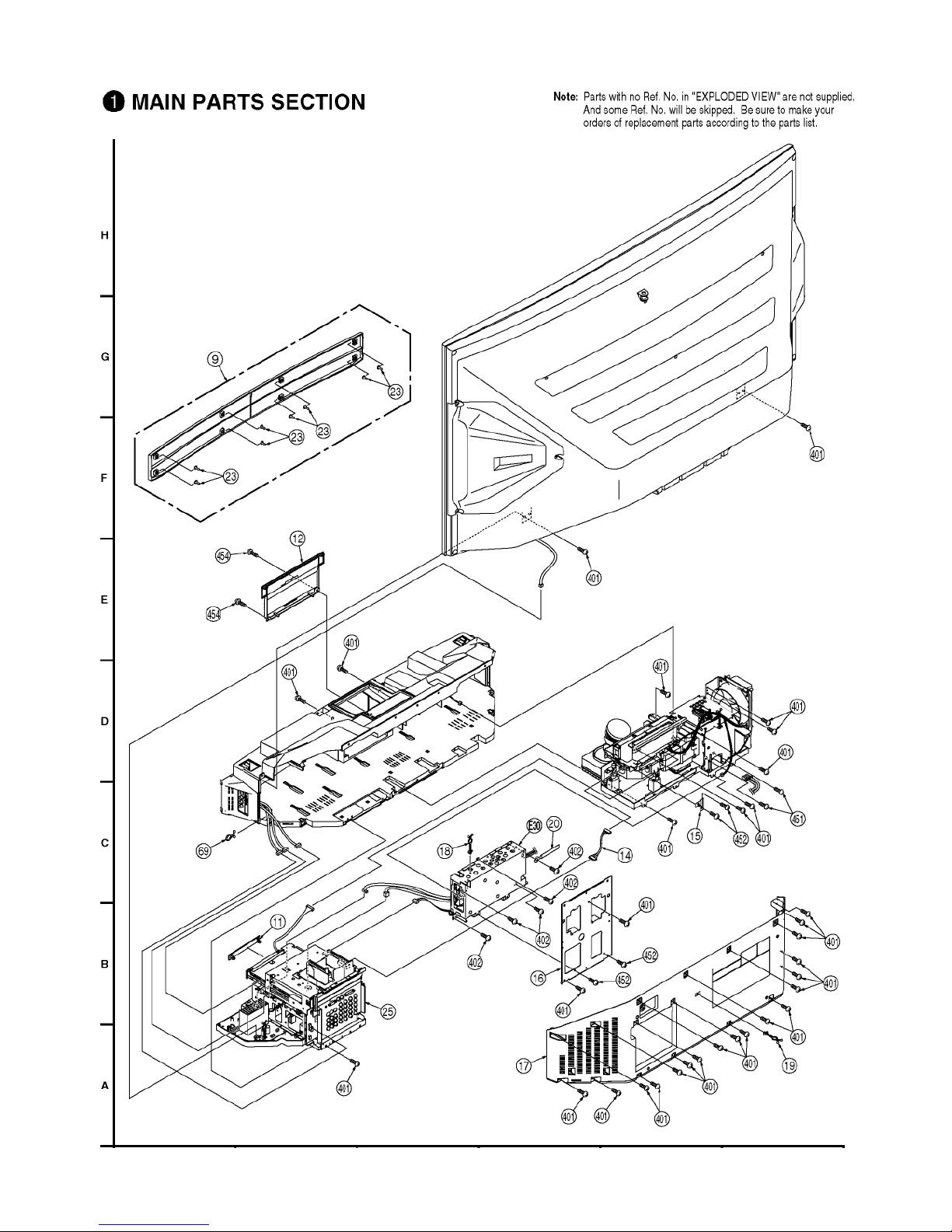

Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/ex1.gif

Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/ex2.gif

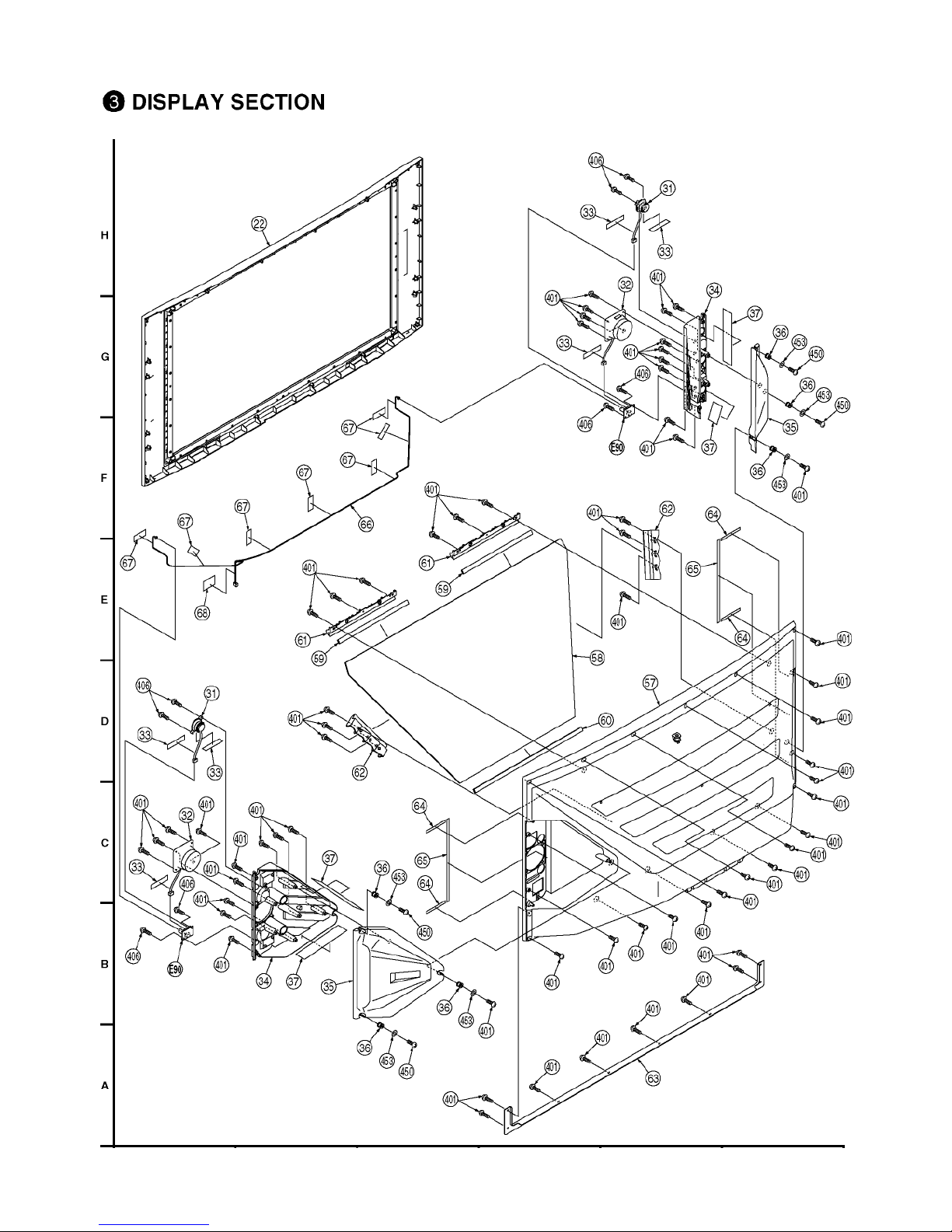

Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/ex3.gif

Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/ex4.gif

Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/ex5.gif

Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/ex6.gif

12.2 MECHANICAL REPLACEMENT PARTS
LIST
TOP PREVIOUS NEXT
Definition of Parts supplier:
1. Parts with mark "MKA" in the Remarks column are supplied from MKA.
2. Parts without mark in the Remarks column are supplied from MKE.
MECHANICAL REPLACEMENT PARTS
Ref. No. Part No. Part Name & Description Remarks
1LSYK1216 BASE BODY UNIT 2 MKA
2LSXY0507 FAN 3 UNIT 5 MKA
3LSXA0531 TOP DUCT 3 UNIT 5 MKA

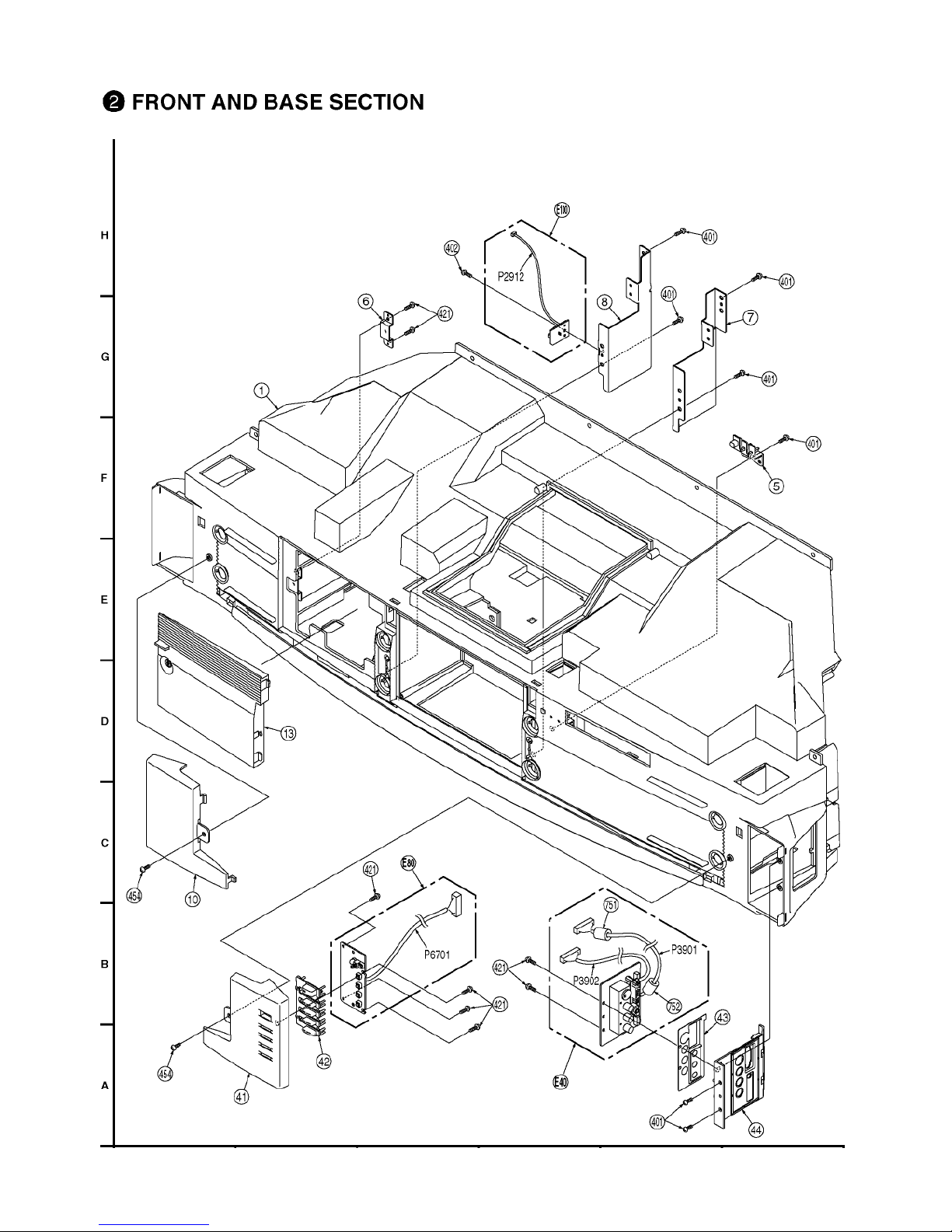

5LSGL0390 INFRARED PIECE 2 MKA
6LSMA0688 LAMP COVER FIX PLATE,STEEL 2 MKA
7LSMA0697 DISPLAY SUPPORT PLATE R,STEEL 2 MKA
8LSMA0696 DISPLAY SUPPORT PLATE L,STEEL 2 MKA
9LSYK1210 FRONT COVER UNIT 1 MKA
10 LSKG0036 FRONT SIDE COVER L 2 MKA
11 LSYY0031 SD DOOR UNIT 1 MKA
12 LSKF0528 OPTICAL COVER 1 MKA
13 LSYK1220 LAMP COVER UNIT 2 MKA
14 LSJA0467 CONNECTOR CABLE W/PLUG 1 MKA
15 LSSC0648 GROUNDING PLATE A,STEEL 1 MKA
16 LSMA0686 REAR SUPPORT PLATE,STEEL 1 MKA
17 LSGV0057 REAR COVER 1 MKA
18 STL450-3-1BK CLAMPER 1 MKA
19 SLCSE2-500-3 CLAMPER 1 MKA
20 LSXA0478 CLAMPER UNIT 1 MKA
21 LSXA0528-HBS PROJECTION UNIT 5 RTL

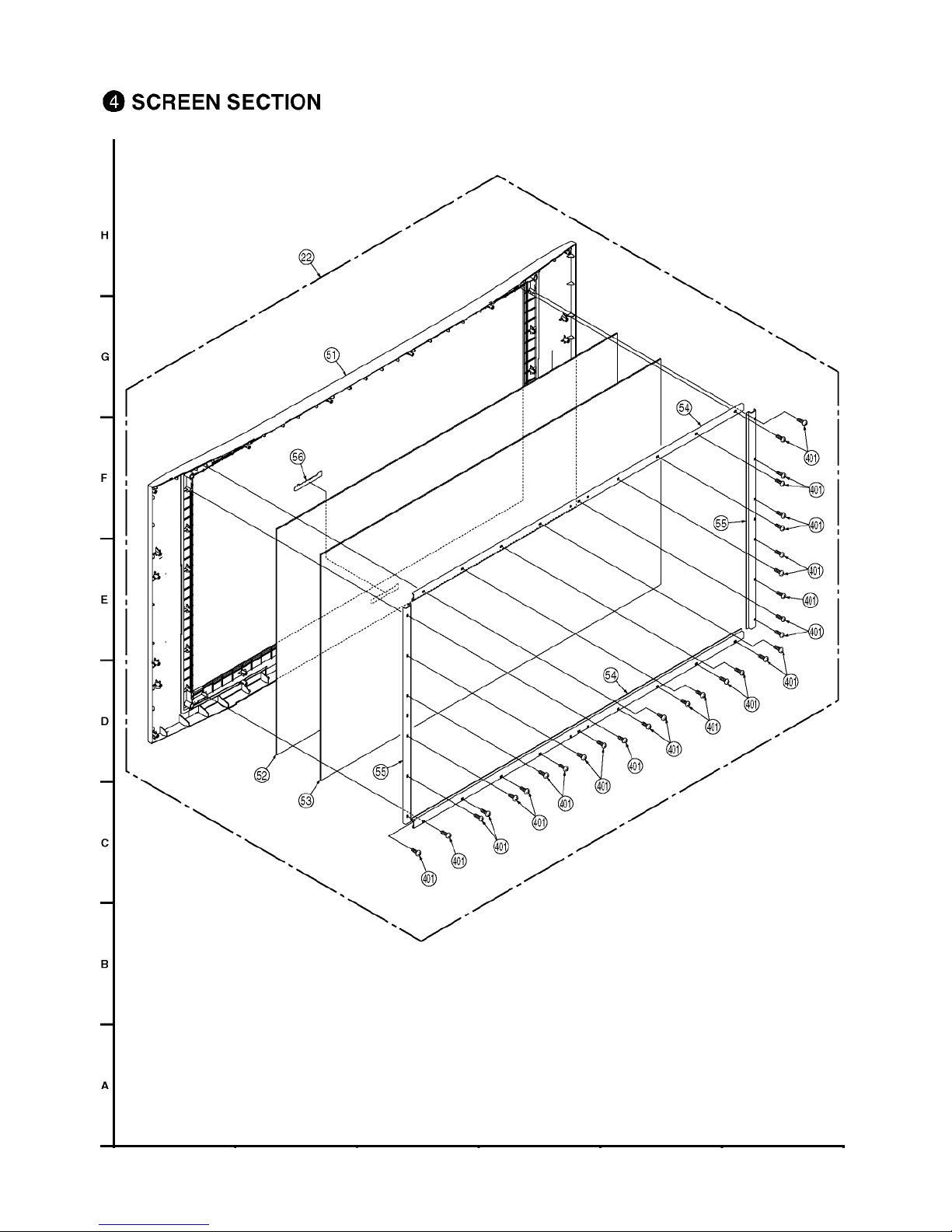

22 LSYK1214 SCREEN UNIT 3,4 MKA
23 TMM14414 STRIKE 1 MKA
24 FBL12G12L2CS FAN 3 5 MKA
25 LSXY0503 TV/TUNER UNIT 1,6 RTL MKA
31 EASG5PH519A2 TWEETER 3 MKA
32 EASG10P579A2 WOOFER 3 MKA
33 LSMF0290 SPACER 3 MKA
34 LSGQ0088 SPEAKER BOX FRONT 3 MKA
35 LSGQ0089 SPEAKER BOX REAR 3 MKA
36 TMMJ058 SPEAKER RUBBER 3 MKA
37 LSMF0278 ACOUSTIC CUSHION 3 MKA
41 LSKG0037 FRONT SIDE COVER R 2 MKA
Page
1
of
3
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1202000000.html

42 LSXU0012 OPERATION BUTTON UNIT 2 MKA
43 LSSC0645 FRONT JACK GROUNDING PLATE,STEEL 2
44 LSJH0066 SIDE JACK HOLDER 2
51 LSGY0165 ESCUTCHEON 4 MKA
52 LSGP0365 LENTICULAR SCREEN 4 MKA
53 LSGP0366 FRESNEL LENS 4 MKA
54 LSXA0548 SCREEN PLATE H UNIT,STEEL 4 MKA
55 LSXA0549 SCREEN PLATE V UNIT,STEEL 4 MKA
56 TBM2AA0071 PANASONIC BADGE 4 MKA
57 LSGV0056 BACK COVER 3 MKA
58 LSDL0243 MIRROR 3 MKA
59 LSMF0280 SPACER 3 MKA
60 LSMF0281 SPACER 3 MKA
61 LSGQ0092 MIRROR HOLDER H 3 MKA
62 LSYF0541 MIRROR HOLDER V UNIT 3 MKA
63 LSMA0700 BACK COVER PLATE,STEEL 3 MKA
64 LSMF0288 SPACER 3 MKA
65 LSMF0289 SPACER 3 MKA
66 LSJA0474 CONENCTOR CABLE W/PLUG, 3 MKA
67 LSMF0291 SPACER 3 MKA
68 LSMF0292 SPACER 3 MKA
69 TMM77409 CLAMPER 1 MKA

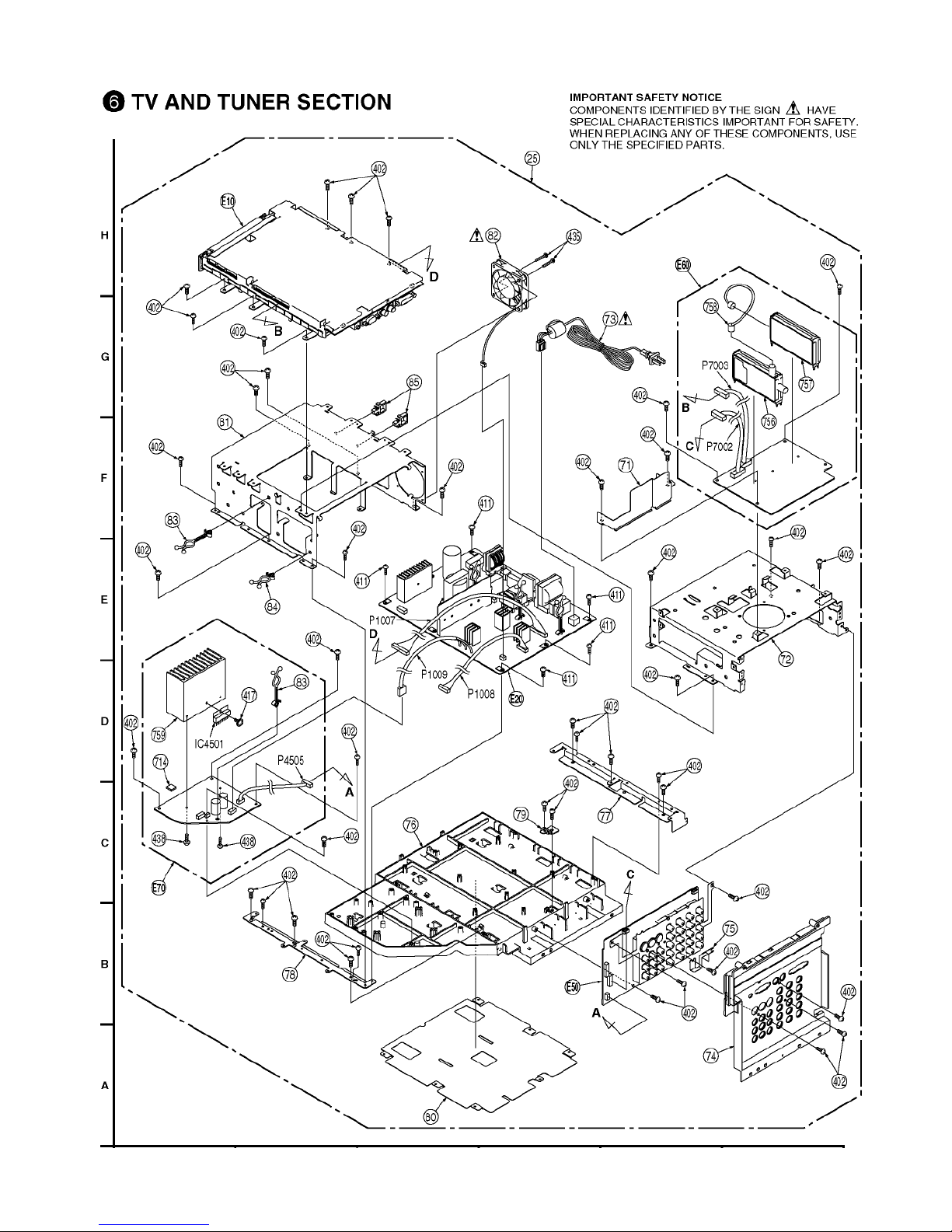

71 LSSC0669 TUNER SHIELD PLATE,STEEL 6 MKA
72 LSMA0691 TUNER PCB FRAME 6
73 LSJA0456-FE AC CORD W/PLUG 6
74 LSJH0065 REAR JACK HOLDER 6
75 LSSC0672 GROUNDING PLATE C,STEEL 6
76 LSMP0440 PCB FRAME 6
77 LSMA0693 PCB FRAME PLATE LEFT,STEEL 6
78 LSMA0694 PCB FRAME PLATE RIGHT,STEEL 6
79 LSMA0695 PCB FRAME PLATE CENTER,STEEL 6
80 LSSC0646 BOTTOM SHIELD PLATE 6
81 LSMA0690 MAIN PCB FRAME 6
82 L6FAKCDH0007 FAN 4 6
83 TMM5439-1 CLAMPER 6
84 TMM7464-1 CLAMPER 6
85 LSGP0369 CLAMPER 6
101 LSPG1547 CARTON BOX 7 MKA
102 LSPG1548 CARTON BOX BOTTOM 7 MKA
103 LSPN0339 CUSHION TOP L,STYROFOAM 7 MKA
104 LSPN0340 CUSHION TOP R,STYROFOAM 7 MKA
105 LSPN0341 CUSHION BOTTOM L,STYROFOAM 7 MKA
106 LSPN0342 CUSHION BOTTOM R,STYROFOAM 7 MKA
107 LSPG1549 INSIDE CARTON 7 MKA
108 LSPF0111 BAG,POLYETHYLENE 7 MKA
109 EUR7603ZB0 INFRARED REMOTE CONTROL UNIT 7 MKA
Page
2
of
3
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1202000000.html

TOP
PREVIOUS
NEXT
110 LSJA0239 RGB CABLE W/PLUG 7 MKA
111 LSQF0738 FAN BAG 7 MKA
111 LSQF0747 FAN BAG 7 MKA
112 K1HA24DA0003 DVI CABLE W/PLUG 7 MKA
113 LSPN0430 FRONT CUSHION 7 MKA
252 LSJA0464-FE THERMAL FUSE UNIT 5
253 LSMP0420 SENSOR HOLDER 5
401 XTV4+16A TAPPING SCREW,STEEL 1,2,3,4 MKA
402 XTV3+8J TAPPING SCREW,STEEL 1,2,5,6 MKA
406 XTV3+10J TAPPING SCREW,STEEL 3 MKA
411 XYE3+FF8 SCREW W/WASHER,STEEL 6
417 XYN3+K10 SCREW W/WASHER,STEEL 6
421 XTV3+8G TAPPING SCREW,STEEL 2,5 MKA
435 XTV3+20J TAPPING SCREW,STEEL 6
438 XTW3+10J TAPPING SCREW,STEEL 6
450 XTV4+30A TAPPING SCREW,STEEL 3 MKA
451 XTW3+8Q TAPPING SCREW,STEEL 1 MKA
452 XTV3+8F TAPPING SCREW,STEEL 1 MKA
453 XWG5F16 WASHER,STEEL 3 MKA
454 XTV4+16AFZ TAPPING SCREW,STEEL 1,2 MKA
455 XTV3+12J SCREW,STEEL 5 MKA
456 XTV3+6F TAPPING SCREW,STEEL 5
714 VMTS0035 CUSHION,RUBBER 6
751 J0KA00000044 FERRITE CORE 2
752 LSLQ0307 FERRITE CORE 2
756 ENG36714GF MAIN TUNER,UHF/VHF NR 6
757 ENG36712GF SUB TUNER,UHF/VHF NR 6
758 LSJA0468 CONNECTOR CABLE W/PLUG,5V 6
759 LSSC0634 HEAT SINK 6
762 LSJA0478 CONNECTOR CABLE W/PLUG 5
E10 LSXY0508 MAIN C.B.A. 6 RTL
E20 LSEP3088A POWER C.B.A. 6 RTL
E30 LSEB3087A BALLAST C.B.A. NR 1
E40 LSEP3094A FRONT JACK C.B.A. 2 RTL
E50 LSXY0509 REAR JACK C.B.A. 6 RTL
E60 LSEP3095A TUNER C.B.A. 6 RTL
E70 LSEP3092A AUDIO AMP C.B.A. 6 RTL
E80 LSEP3096A OPERATION C.B.A. 2 RTL
E90 LSEP3097A NETWORK C.B.A. 3 RTL
E100 LSEP3098A COVER SWITCH C.B.A. 2 RTL
E120 LSEP3099A1 THERMISTOR 1 C.B.A. 5 RTL
E130 LSEP3100A THERMISTOR 2 C.B.A. 5 RTL
Page
3
of
3
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1202000000.html

12.3.1 TV STAND (TY
-
50LC13C)
TOP PREVIOUS NEXT
TOP
PREVIOUS
NEXT
Ref. No. Part No. Part Name & Description Remarks
301 LSYP0096 SHELF PANEL UNIT 9 MKA
302 LSYC0252 PARTS UNIT 9 MKA
303 LSPF0054 BAG,POLYETHYLENE 9 MKA
304 LSYY0033 TOP PAD 9 MKA
305 LSYY0034 BOTTOM PAD 9 MKA
306 LSPG1573 PACKING CASE,PAPER 9 MKA
307 LSYP0095 TOP PANEL UNIT 8 MKA
308 LSYP0092 REAR POLE UNIT 8 MKA
309 LSYP0093 SIDE POLE L UNIT 8 MKA
310 LSYP0094 SIDE POLE R UNIT 8 MKA
311 LSKU0019 BASE PANEL 8 MKA
312 LSGP0370 SIDE PANEL L 8 MKA
313 LSGP0371 SIDE PANEL R 8 MKA
314 LSQL1525 CAUTION LABEL 8 MKA
460 XTV4+25AK TAPPING SCREW,STEEL 8 MKA
461 XTV4+45AK SCREW,STEEL 8 MKA
462 XWE4K WASHER,STEEL 8 MKA
Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1203010000.html

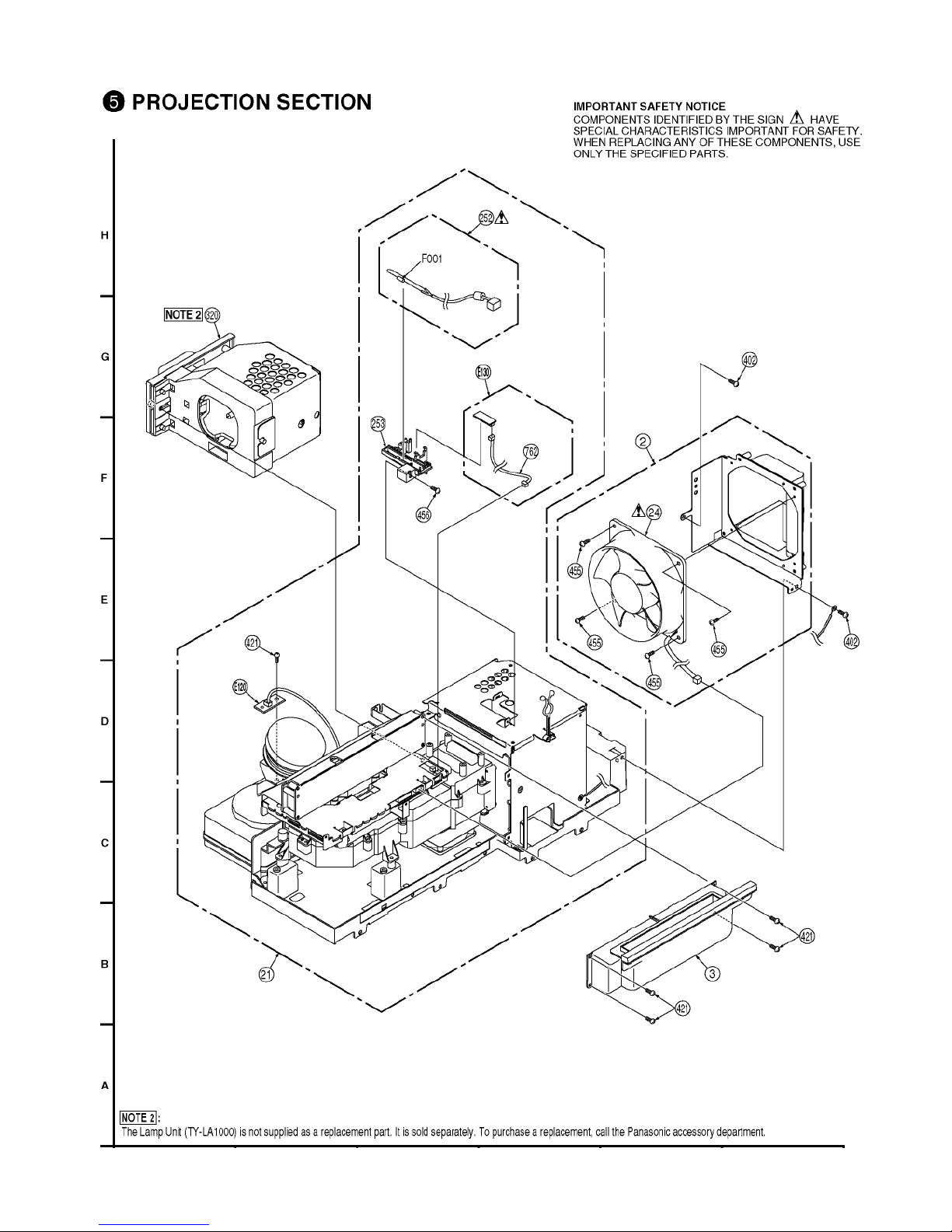

12.3.2 LAMP UNIT
TOP PREVIOUS NEXT
NOTE:
The Lamp Unit (TY-LA1000) is not supplied as a replacement part. It is sold separately. To purchase a
replacement, call the Panasonic accessory department.
TOP
PREVIOUS
NEXT
Ref. No.2 Part No. Part Name & Description Remarks
320 TY-LA1000 LAMP UNIT 5 NOTE
Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1203020000.html

12.4 ELECTRICAL REPLACEMENT PARTS
LIST
TOP PREVIOUS NEXT
Definition of Parts supplier:
1. All parts are supplied from MKE.
12.4.1 FRONT JACK C.B.A.
12.4.2 TUNER C.B.A.
12.4.3 AUDIO AMP C.B.A.
12.4.4 OPERATION C.B.A.
12.4.5 NETWORK C.B.A.
12.4.6 COVER SWITCH C.B.A.
12.4.7 THERMISTOR 1 C.B.A.
12.4.8 THERMISTOR 2 C.B.A.
TOP
PREVIOUS
NEXT
PRINTED CIRCUIT BOARD
ASSEMBLY
Ref. No. Part No. Part Name & Description Remarks
E10 LSXY0508 MAIN C.B.A. E.S.D. RTL
E20 LSEP3088A POWER C.B.A. RTL
E30 LSEB3087A BALLAST C.B.A. NR
E40 LSEP3094A FRONT JACK C.B.A. RTL
E50 LSXY0509 REAR JACK C.B.A. RTL
E60 LSEP3095A TUNER C.B.A. E.S.D. RTL
E70 LSEP3092A AUDIO AMP C.B.A. RTL
E80 LSEP3096A OPERATION C.B.A. RTL
E90 LSEP3097A NETWORK C.B.A. RTL
E100 LSEP3098A COVER SWITCH C.B.A. RTL
E120 LSEP3099A1 THERMISTOR 1 C.B.A. RTL
E130 LSEP3100A THERMISTOR 2 C.B.A. RTL
Page
1
of
1
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1204000000.html

12.4.1 FRONT JACK C.B.A.
TOP PREVIOUS NEXT
DIODES
Ref. No. Part No. Part Name & Description Remarks
D3901 B0BD6R200002 DIODE ZENER 6.2V
RESISTORS
Ref. No. Part No. Part Name & Description Remarks
R3901 ERJ6ENF75R0V MGF CHIP 1/10W 75
R3902 ERJ6ENF75R0V MGF CHIP 1/10W 75
R3903 ERJ6ENF75R0V MGF CHIP 1/10W 75
R3904 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3905 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3906 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3907 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3908 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3911 ERJ6GEYJ750V MGF CHIP 1/10W 75
R3912 ERJ6GEYJ750V MGF CHIP 1/10W 75
R3913 ERJ6GEYJ750V MGF CHIP 1/10W 75
R3914 ERJ6GEYJ101V MGF CHIP 1/10W 100
R3915 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3916 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3917 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3918 ERJ6GEYJ101V MGF CHIP 1/10W 100
R4801 ERJ6GEY0R00V MGF CHIP 1/10W 0
R4802 ERJ6GEY0R00V MGF CHIP 1/10W 0
R4803 ERJ6GEYJ101V MGF CHIP 1/10W 100
R4804 ERJ6GEYJ101V MGF CHIP 1/10W 100
PIN HEADERS
Ref. No. Part No. Part Name & Description Remarks
P3901 LSJA0469 CONNECTOR CABLE W/PLUG,5V
P3902 LSJA0470 CONNECTOR CABLE W/PLUG,5V
JACKS
Ref. No. Part No. Part Name & Description Remarks
JK3901 K1FB115A0015 D-SUB MINI JACK SOCKET
JK4801 K1U412A00008 S-JACK SOCKET
JK4802 K2HC103A0017 EARPHONE JACK SOCKET
MISCELLANEOUS
Ref. No. Part No. Part Name & Description Remarks
Page
1
of
2
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1204010000.html

TOP
PREVIOUS
NEXT
751 J0KA00000044 FERRITE CORE
752 LSLQ0307 FERRITE CORE
Page
2
of
2
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1204010000.html

12.4.2 TUNER C.B.A.
TOP PREVIOUS NEXT
INTEGRATED CIRCUITS
Ref. No. Part No. Part Name & Description Remarks
IC6501 D750066-330 IC, CMOS STANDARD LOGIC E.S.D.
IC7501 AN5832SA-E1V IC, LINEAR
TRANSISTORS
Ref. No. Part No. Part Name & Description Remarks
Q7002 2SB1218A0L TRANSISTOR SI PNP CHIP
Q7002 B1ADCF000063 TRANSISTOR SI PNP CHIP
Q7002 B1ADCF000075 TRANSISTOR SI PNP CHIP
Q7101 2SB1218A0L TRANSISTOR SI PNP CHIP
Q7101 B1ADCF000063 TRANSISTOR SI PNP CHIP
Q7101 B1ADCF000075 TRANSISTOR SI PNP CHIP
Q7501 2SB1218A0L TRANSISTOR SI PNP CHIP
Q7501 B1ADCF000063 TRANSISTOR SI PNP CHIP
Q7501 B1ADCF000075 TRANSISTOR SI PNP CHIP
Q7502 2SB1218A0L TRANSISTOR SI PNP CHIP
Q7502 B1ADCF000063 TRANSISTOR SI PNP CHIP
Q7502 B1ADCF000075 TRANSISTOR SI PNP CHIP
RESISTORS
Ref. No. Part No. Part Name & Description Remarks
R6502 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R6507 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R6511 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6516 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6518 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6519 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6520 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6521 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6522 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6523 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6524 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6525 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6526 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6527 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6528 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6529 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6530 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6531 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6532 ERJ6GEYJ102V MGF CHIP 1/10W 1K
Page
1
of
4
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1204020000.html

R6534 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6536 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7001 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7002 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7003 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7004 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7007 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7008 ERJ6GEY0R00V MGF CHIP 1/10W 0
R7009 ERJ6GEYJ331V MGF CHIP 1/10W 330
R7010 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7011 EVMEGSA00B23 VARIABLE 2K
R7012 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7101 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7102 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7103 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7104 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7105 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7106 ERJ6GEYJ271V MGF CHIP 1/10W 270
R7107 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R7501 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R7502 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R7503 ERJ6GEYJ273V MGF CHIP 1/10W 27K
R7504 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R7505 ERJ6GEYJ273V MGF CHIP 1/10W 27K
R7506 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R7508 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7509 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R7510 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7511 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R7512 ERJ6GEY0R00V MGF CHIP 1/10W 0
R7513 ERJ6GEYJ332V MGF CHIP 1/10W 3.3K
R7514 EVNCYAA03B14 VARIABLE 10K
R7516 ERJ6GEYJ563V MGF CHIP 1/10W 56K
R7517 ERJ6GEYJ182V MGF CHIP 1/10W 1.8K
CAPACITORS
Ref. No. Part No. Part Name & Description Remarks
C6501 ECJ2VF1H103Z C CHIP 50V 0.01UF
C6502 ECJ2VC1H101J C CHIP 50V 100PF
C6503 ECEA0JKA101I ELECTROLYTIC 6.3V 100UF
C6504 ECJ2VF1H104Z C CHIP 50V 0.1UF
C6505 ECJ2VC1H101J C CHIP 50V 100PF
C7001 ECJ2VB1H222K C CHIP 50V 0.0022UF
C7002 ECA0JM102B ELECTROLYTIC 6.3V 1000UF
C7003 ECJ2VB1H222K C CHIP 50V 0.0022UF
C7004 ECJ2VC1H330J C CHIP 50V 33PF
C7007 ECJ2VB1H102K C CHIP 50V 1000PF
Page
2
of
4
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1204020000.html

C7008 ECJ2VF1H103Z C CHIP 50V 0.01UF
C7009 ECEA1CKA100I ELECTROLYTIC 16V 10UF
C7101 ECJ2VB1H222K C CHIP 50V 0.0022UF
C7102 ECA0JM102B ELECTROLYTIC 6.3V 1000UF
C7103 ECJ2VB1H222K C CHIP 50V 0.0022UF
C7107 ECJ2VB1H102K C CHIP 50V 1000PF
C7501 ECJ2VF1H103Z C CHIP 50V 0.01UF
C7502 ECEA1HKA2R2I ELECTROLYTIC 50V 2.2UF
C7503 ECEA1CKA100I ELECTROLYTIC 16V 10UF
C7504 ECEA1HKAR33I ELECTROLYTIC 50V 0.33UF
C7505 ECEA1HKA3R3I ELECTROLYTIC 50V 3.3UF
C7507 ECJ2VB1C104K C CHIP 16V 0.1UF
C7508 ECJ2VB1E223K C CHIP 25V 0.022UF
C7509 ECEA0JKA101I ELECTROLYTIC 6.3V 100UF
C7510 ECEA1HKA2R2I ELECTROLYTIC 50V 2.2UF
C7513 ECEA1CKA100I ELECTROLYTIC 16V 10UF
C7514 ECJ2VB1E104K C CHIP 25V 0.1UF
C7515 ECJ2VF1H103Z C CHIP 50V 0.01UF
C7516 ECJ2VB1H333K C CHIP 50V 0.033UF
C7517 ECJ2VB1C224K C CHIP 16V 0.22UF
C7518 ECEA1HKA2R2I ELECTROLYTIC 50V 2.2UF
C7519 ECJ2VB1E104K C CHIP 25V 0.1UF
C7520 ECEA1HKAR33I ELECTROLYTIC 50V 0.33UF
COILS
Ref. No. Part No. Part Name & Description Remarks
L7001 VLQSAB7D100K COIL 10UH
L7101 VLQSAB7D100K COIL 10UH
L7501 ELESN101KA COIL 100UH
CRYSTAL OSCILLATOR
Ref. No. Part No. Part Name & Description Remarks
X6501 EFOEC4004T4 CRYSTAL OSCILLATOR
PIN HEADERS
Ref. No. Part No. Part Name & Description Remarks
P7002 LSJA0465 CONNECTOR CABLE W/PLUG,
P7003 LSJA0466 CONNECTOR CABLE W/PLUG,33V
MISCELLANEOUS
Ref. No. Part No. Part Name & Description Remarks
756 ENG36714GF MAIN TUNER,UHF/VHF NR
757 ENG36712GF SUB TUNER,UHF/VHF NR
758 LSJA0468 CONNECTOR CABLE W/PLUG,5V
Page
3
of
4
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1204020000.html

TOP
PREVIOUS
NEXT
Page
4
of
4
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1204020000.html

12.4.3 AUDIO AMP C.B.A.
TOP PREVIOUS NEXT
INTEGRATED CIRCUITS
Ref. No. Part No. Part Name & Description Remarks
IC4501 C1AA00000660 IC, LINEAR
IC4503 C0CAAKE00013 IC, LINEAR
TRANSISTORS
Ref. No. Part No. Part Name & Description Remarks
Q4501 2SD0601AHL TRANSISTOR SI NPN CHIP
Q4501 B1ABCF000011 TRANSISTOR SI NPN CHIP
Q4501 B1ABCF000106 TRANSISTOR SI NPN CHIP
Q4504 2SD0601AHL TRANSISTOR SI NPN CHIP
Q4504 B1ABCF000011 TRANSISTOR SI NPN CHIP
Q4504 B1ABCF000106 TRANSISTOR SI NPN CHIP
Q4505 2SD0601AHL TRANSISTOR SI NPN CHIP
Q4505 B1ABCF000011 TRANSISTOR SI NPN CHIP
Q4505 B1ABCF000106 TRANSISTOR SI NPN CHIP
DIODES
Ref. No. Part No. Part Name & Description Remarks
D4501 MAZ40510MF DIODE ZENER 5.1V
D4501 HZS5C2TD DIODE ZENER 5.1V
D4501 HZS5C3TD DIODE ZENER 5.1V
D4504 MA2C16700E DIODE SI
D4504 B0AAEL000001 DIODE SI
RESISTORS
Ref. No. Part No. Part Name & Description Remarks
R4501 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R4502 ERJ6GEYJ153V MGF CHIP 1/10W 15K
R4503 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R4504 ERX1SJ4R7P METAL FILM 1W 4.7
R4505 ERX1SJ4R7P METAL FILM 1W 4.7
R4506 ERJ6GEYJ153V MGF CHIP 1/10W 15K
R4507 ERJ6GEYJ153V MGF CHIP 1/10W 15K
R4508 ERJ6GEYJ333V MGF CHIP 1/10W 33K
R4509 ERJ6GEYJ333V MGF CHIP 1/10W 33K
R4510 ERJ6GEYJ471V MGF CHIP 1/10W 470
R4511 ERJ6GEYJ471V MGF CHIP 1/10W 470
R4512 ERJ6GEYJ471V MGF CHIP 1/10W 470
R4513 ERJ6GEYJ471V MGF CHIP 1/10W 470
R4525 ERJ6GEY0R00V MGF CHIP 1/10W 0
Page
1
of
3
6/24/2008
http://tsn.pstc.panasonic.com/viewing/NA/PT
-
50LC13/SVC/s1204030000.html
