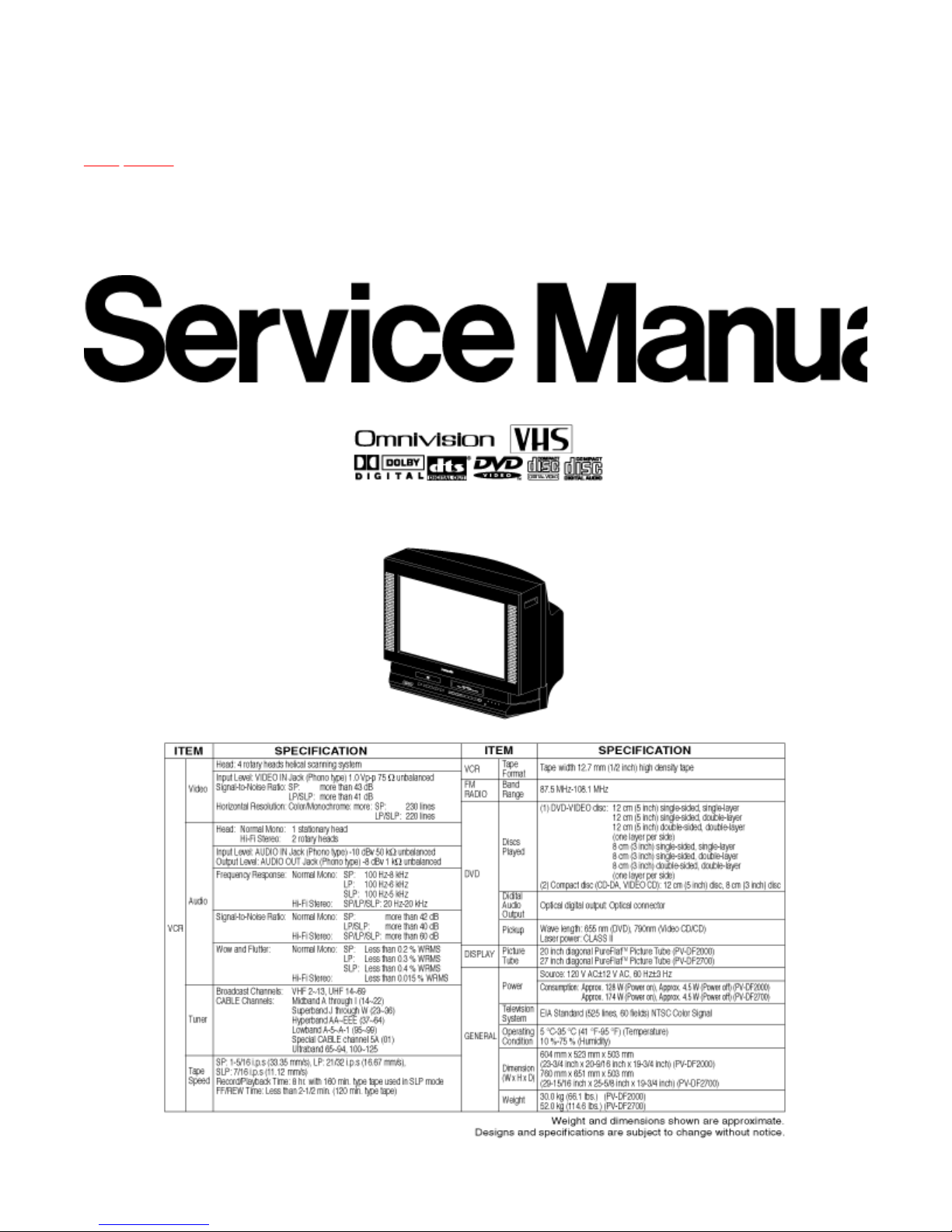

Panasonic PVDF2000 - MONITOR/DVD COMBO User manual

Service Manual
TOP NEXT
ORDER NO. MKE0009600C1
B3, B6
TV/DVD/VCR Combination
 PV-DF2000/PV-DF2700
Page
1
of
2
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s0000000000.html

©
2000 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
TOP
NEXT
Page
2
of
2
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s0000000000.html

12.2.1 MECHANICAL REPLACEMENT
PARTS
TOP PREVIOUS NEXT
MECHANICAL REPLACEMENT PARTS
Ref. No. Part No. Part Name & Description Remarks
1VBSS0033 FULL ERASE HEAD 1
2VXKS0890 MOTOR BLOCK UNIT 1
3LSDB0045 TENSION ARM BOSS 1
4VXDS0212 CAPSTAN HOLDER UNIT 1
5LSMD0209 OPENER PIECE 1
8VVGS0009 MAIN CAM GEAR KIT 2
9LSDR0004 S REEL TABLE 1
10 LSDR0005 T REEL TABLE 1
11 VEGS0429 CYLINDER UNIT 1
OR VEGS0451
12 VEHS0583 AUDIO CONTROL/ERASE HEAD UNIT 1
14 LSDG0112 LIFT GEAR 1
16 VXDS0213 LOADING POST BASE-S UNIT 1
17 VXDS0214 LOADING POST BASE-T UNIT 1
18 VXLS1094 PINCH ARM UNIT 1
19 LSDG0110 INTERMEDIATE GEAR A 1
20 VXLS1101 P5 ARM UNIT 1
21 LSML0131 DRIVE RACK ARM 1
22 VXLS1103 TENSION CONTROL ARM UNIT 1
23 LSMX0129 OIL SEAL 1
27 VXLS1100 T BRAKE UNIT 1
29 VXLS1102 TENSION ARM UNIT 1
38 LSMB0221 CASSETTE DOOR SPRING 4 MKA
41 VXPS0389 CENTER CLUTCH UNIT 2
42 VMBS1151 CHANGING GEAR SPRING 2
43 LSDG0114 CHANGING GEAR 2
44 VXLS1091 IDLER ARM UNIT 2
45 VXPS0391 CAPSTAN ROTOR UNIT 2
46 LSMA0387 STOPPER ANGLE 2
47 LSMM0002 MAIN ROD 2
48 PICTURE TUBE UNIT
LXQVB01200F ( A ) 4 MKA
LXQVB01270F ( B ) 4 MKA
49 VXLS1099 S LOADING ARM UNIT 2
50 VXLS1098 T LOADING ARM UNIT 2
51 LSDG0116 REEL GEAR 2
52 LSDG0111 INTERMEDIATE GEAR B 2
53 LSMA0423 SUPPORT ANGLE 2
Page
1
of
5
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1202010000.html

54 LSDV0007 CAPSTAN BELT SQUARE,RUBBER 2MM 2
57 LSSA0003 GROUNDING PLATE UNIT 1
60 VMFS0311 CUSHION 5
61 VXYS1347 CASSETTE UP ASS´Y 3,5
62 LSMA0352 TOP PLATE 3
64 LSMD0174 SIDE PLATE L 3
65 LSMD0173 SIDE PLATE R 3
66 LSMB0218 SUPPORT SPRING 3
67 LSML0096 OPENER LEVER 3
68 VXLS1111 DRIVE RACK UNIT 3
69 VXAS4423 HOLDER UNIT 3
70 VXLS1110 WIPER ARM UNIT 3
71 FRONT CABINET ASS´Y
LXQKY01200F ( A ) 4 MKA
LXQKY01270F ( B ) 4 MKA
72 LXQKF01270F VHS CASSETTE DOOR-LID UNIT 4 MKA
73 REAR COVER UNIT
LXQKV01200F ( A ) 4 MKA
LXQKV01270F ( B ) 4 MKA
84 LSGU0162 OPERATION BUTTON A 4 MKA
90 BADGE,ABS RESIN
TBM153022 ( A ) 4 MKA
TBM173052 ( B ) 4
91 TOP SHIELD PLATE ASS´Y
LXQUS01200FK ( A ) 5 MKA
LXQUS01270FK ( B ) 5 MKA
92 SPEAKER UNIT R
LXQAS01200F ( A ) 4 MKA
LXQAS01270F ( B ) 4 MKA
93 SPEAKER UNIT L
LXQAS02200F ( A ) 4 MKA
LXQAS02270F ( B ) 4 MKA
96 TMM7464-1 CLAMPER 5,6,7
100 VKFS2235 BATTERY COVER 8
102 LSMP0249 FRAME 5 MKA
104 LML69002A CLAMPER 5 MKA
106 HANDLE
LSKH0053 ( B ) 4 MKA
118 LPE64005A BAG,POLYETHYLENE 8 MKA
121 PACKING CASE,PAPER
LSPG0903 ( A ) 8 MKA
LSPG0902 ( B ) 8 MKA
122 LSQF0281 FAN BAG 8 MKA
123 INFRARED REMOTE CONTROL UNIT
LSSQ0246 ( A ) 8 MKA
LSSQ0245 ( B ) 8 MKA
125 TOP CUSHION RIGHT,STYROFOAM
Page
2
of
5
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1202010000.html

LSPN0181 ( A ) 8 MKA
LSPN0177 ( B ) 8 MKA
126 TOP CUSHION LEFT,STYROFOAM
LSPN0180 ( A ) 8 MKA
LSPN0176 ( B ) 8 MKA
127 TMM6463-1 PURSE LOCK CLAMPER 4 MKA
131 BOTTOM CUSHION FRONT,STYROFOAM
LSPN0178 ( A ) 8 MKA
LSPN0174 ( B ) 8 MKA
132 BOTTOM CUSHION REAR,STYROFOAM
LSPN0179 ( A ) 8 MKA
LSPN0175 ( B ) 8 MKA
154 TMM5439-1 CLAMPER 5,7
168 VZFS0006 INSULATOR TIE,NYLON 5
200 LSGL0341 PANEL LIGHT 4 MKA
201 LSGU0163 OPERATION BUTTON B 4 MKA
202 LXQKF02270F DVD CASSETTE DOOR-LID UNIT 4 MKA
203 LSMB0170 DVD CASSETTE DOOR SPRING 4 MKA
204 LSMA0438 MOUNT PLATE,STEEL 5 MKA
208 TMK77708 CUSHION,RUBBER 4 MKA
209 VMFS0213 SHEET,NYLON-RAYON 4 MKA
215 LSQL0837 DOLBY DIGITAL CAUTION LABEL 4 MKA
230 LSKF0325 TRAY COVER 5 MKA
242 VXYS1403 DVD UNIT 5 MKA
244 TUX77809 CLAMPER 7 MKA
247 LSQL0840 CAUTION LABEL 5
261 VEKS5764 CONNECTOR CABLE W/PLUG,DC12V 5 MKA
262 VEKS5765 CONNECTOR CABLE W/PLUG,DC12V 5 MKA
263 VEKS5799 CONNECTOR CABLE W/PLUG,DC12V 5 MKA
264 VEKS5768 CONNECTOR CABLE W/PLUG,DC14V 5 MKA
265 VEKS5797 CONNECTOR CABLE W/PLUG,0V 5 MKA
266 VEKS5811 GROUNDING WIRE 5 MKA
268 LSMT0062 CUSHION,PLASTIC (early product) 5 MKA
401 VHDS0475 SCREW,STEEL 1
405 VHDS0496 SCREW W/WASHER,STEEL 5
410 VHDS0498 SCREW W/WASHER,STEEL 1
414 VHNS0070 MAIN CAM PUSH NUT,STEEL 2
422 XWGV2D5G WASHER,NYLON 2
424 XYC26+SF6J SCREW W/WASHER,STEEL 1
430 XTV26+6FFZJ TAPPING SCREW,STEEL 1
432 XTV3+8JR TAPPING SCREW,STEEL 5,7
443 XTV4+12A TAPPING SCREW,STEEL 4,7
445 SCREW W/WASHER,STEEL
LHT60002Y ( A ) 4 MKA
LHT60001Y ( B ) 4 MKA
446 XTV4+16A TAPPING SCREW,STEEL 4 MKA
449 VHDS0493 TAPPING SCREW,STEEL 5
Page
3
of
5
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1202010000.html

450 VHDS0309 SCREW,STEEL 5
460 XTN4+12A TAPPING SCREW,STEEL 5
469 XSN3+6 SCREW,STEEL 5
470 XTV3+10G TAPPING SCREW,STEEL 4
471 XSN26+5 SCREW,STEEL 1
472 XTN26+5FJ TAPPING SCREW,STEEL 2
473 XYN26+C6 SCREW W/WASHER,STEEL 2
474 LSHD0056 TAPPING SCREW,STEEL 1
475 XTV26+5FJ TAPPING SCREW,STEEL 2
481 XTW4+Z15D TAPPING SCREW,STEEL 4 MKA
482 XNG3 NUT,STEEL 6
483 XYN3+F10S SCREW W/WASHER,STEEL 6,7
484 XTW3+10J TAPPING SCREW,STEEL 7
485 XYE3+EJ10 SCREW W/WASHER,STEEL 7
486 XYN3+F12S SCREW W/WASHER,STEEL 7
487 XYN3+J8 SCREW W/WASHER,STEEL 7
488 XYN3+F6S SCREW W/WASHER,STEEL 7
489 XYN3+F8S SCREW W/WASHER,STEEL 7
490 XQN2+B35 SCREW,STEEL 2
491 XYN2+J7 SCREW W/WASHER,STEEL 2
492 VHDS0274 TAPPING SCREW,STEEL 5
711 PNA4611M00HC INFRARED RECEIVER UNIT 6 MKA
712 VMTS0035 CUSHION,RUBBER 6
713 VMAS1912 P.C.B. SUPPORT ANGLE 6,7
731(IC2505) EZMPS300F12 MR HEAD 2
732(P2502) LSJS0097 CONNECOR 12P 2
733 LSMA0384 BACK PLATE,STEEL 2
741 LSJA0349-FE AC CORD W/PLUG,125V 6 MKA
742 TJC6319 FUSE HOLDER 6
743 TUNER,UHF/VHF NR
ENG36701G ( A ) 6 MKA
TUNER 1,UHF/VHF NR
ENG36707G ( B ) 6 MKA
744 TUNER 2,UHF/VHF NR
ENG36708G ( B ) 6 MKA
745 CONNECTOR CABLE W/PLUG,DC 5V
VEKS5774 ( B ) 6 MKA
751 LML69001A ANODE LEAD CLAMPER 7 MKA
752 LSMA0444 HEAT SINK 7 MKA
753 LSSC0256 HEAT SINK 7 MKA
754 LSSC0438 HEAT SINK 7 MKA
755 TMM16480-1 CLAMPER 7
757 HEAT SINK
LSSC0409 ( A ) 7 MKA
LSSC0410 ( B ) 7 MKA
761 TUC15717 HEAT SINK 7 MKA
Page
4
of
5
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1202010000.html

TOP
PREVIOUS
NEXT
762 TUC76649-4 HEAT SINK 7
763 CONNECTOR CABLE W/PLUG,DC10KV
LXPJS01F2700 ( B ) 7 MKA
764 CONNECTOR CABLE W/PLUG,DC1.2KV
LXPJS02F2700 ( B ) 7 MKA
771 EYF52BC FUSE HOLDER 6
772 LSSC0408 HEAT SINK 6 MKA
773 VSCS1072 HEAT SINK 6 MKA
791 VEKS5773 CONNECTOR CABLE W/PLUG,DC 5V 5
792 VEKS5812 CONNECTOR CABLE W/PLUG,0V 5
E10 VEPS3091B MAIN C.B.A. 5,6 RTL MKA
E10 VEPS3091A MAIN C.B.A. 5,6 RTL MKA
E11 VEPS3090B TV PROCESS C.B.A. 6 RTL MKA
E11 VEPS3090A TV PROCESS C.B.A. 6 RTL MKA
E12 VEPS4036B AUDIO C.B.A. 6 RTL MKA
E12 VEPS4036A AUDIO C.B.A. 6 RTL MKA
E20 VEPS5035Z Hi-Fi AUDIO/VIDEO HEAD AMP C.B.A. 1 RTL MKA
E30 VEMS0331 CAPSTAN STATOR C.B.A. NR 2
E40 VEPS9005B TUNER MAIN C.B.A. 5,6 RTL MKA
E40 VEPS9005A TUNER MAIN C.B.A. 5,6 RTL MKA
E50 LRP61013B TV MAIN C.B.A. 5,7 RTL MKA
E50 LRP61013A TV MAIN C.B.A. 5,7 RTL MKA
E51 LRP63020A DEFLECTION C.B.A. 7 RTL MKA
E60 LRP63021B CRT C.B.A. 5,7 RTL MKA
E60 LRP63021A CRT C.B.A. 5,7 RTL MKA
E70 VEPS1020A POWER SUPPLY C.B.A. 5,6 RTL MKA
E80 VEPS8060A OPERATION C.B.A. 5 RTL MKA
E90 LSEP3025A DVD DECODER C.B.A. 5
Page
5
of
5
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1202010000.html

12.3.1 PRINTED CIRCUIT BOARD
ASSEMBLY
TOP PREVIOUS NEXT
TOP
PREVIOUS
NEXT
Ref. No. Part No. Part Name & Description Remarks
E10 VEPS3091B MAIN C.B.A. E.S.D. RTL MKA
( A )
E10 VEPS3091A MAIN C.B.A. E.S.D. RTL MKA
( B )
E11 VEPS3090B TV PROCESS C.B.A. E.S.D. RTL MKA
( A )
E11 VEPS3090A TV PROCESS C.B.A. E.S.D. RTL MKA
( B )
E12 VEPS4036B AUDIO C.B.A. E.S.D. RTL MKA
( A )
E12 VEPS4036A AUDIO C.B.A. E.S.D. RTL MKA
( B )
E20 VEPS5035Z Hi-Fi AUDIO/VIDEO HEAD AMP C.B.A. RTL MKA
E30 VEMS0331 CAPSTAN STATOR C.B.A. NR
E40 VEPS9005B TUNER MAIN C.B.A. RTL MKA
( A )
E40 VEPS9005A TUNER MAIN C.B.A. RTL MKA
( B )
E50 LRP61013B TV MAIN C.B.A. E.S.D. RTL MKA
( A )
E50 LRP61013A TV MAIN C.B.A. E.S.D. RTL MKA
( B )
E51 LRP63020A DEFLECTION C.B.A. RTL MKA
( B )
E60 LRP63021B CRT C.B.A. RTL MKA
( A )
E60 LRP63021A CRT C.B.A. RTL MKA
( B )
E70 VEPS1020A POWER SUPPLY C.B.A. E.S.D. RTL MKA
E80 VEPS8060A OPERATION C.B.A. RTL MKA
E90 LSEP3025A DVD DECODER C.B.A. E.S.D.
Page
1
of
1
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203010000.html

12.3.2 MAIN C.B.A.
TOP PREVIOUS NEXT
INTEGRATED CIRCUITS
Ref. No. Part No. Part Name & Description Remarks
IC1201 BA09T IC, LINEAR MKA
IC2601 AN3808K IC, LINEAR
IC3001 AN3479FBP-A IC, LINEAR
IC3101 NJM2235M-TE1 IC, LINEAR
IC3201 MN3885S IC, CCD E.S.D.
IC3202 TA8898AN IC, LINEAR
IC3301 LC8632165S53 IC, 8BIT MICROCONTROLLER E.S.D. MKA
IC6001 MN101D02HDC IC, 8BIT MICROCONTROLLER E.S.D. MKA
( A )
MN101D02HDB IC, 8BIT MICROCONTROLLER E.S.D. MKA
( B )
IC6002 SG-PK01 REEL SENSOR
IC6003 SG-PK01 REEL SENSOR
IC6004 AT24C02A10PI IC, 2K EEP ROM E.S.D. MKA
OR KS24C021I IC, 2K EEP ROM E.S.D. MKA
OR M24C02-BN6 IC, 2K EEP ROM E.S.D. MKA
IC6005 M51957AL IC, LINEAR MKA
IC6501 D750066-330 IC, CMOS STANDARD LOGIC E.S.D.
IC6601 TC74VHCT126F IC, CMOS STANDARD LOGIC E.S.D. MKA
IC7201 NJM2235M-TE1 IC, LINEAR
IC7211 NJM2235M-TE1 IC, LINEAR
IC7221 NJM2235M-TE1 IC, LINEAR
IC7231 NJM2234M-TE1 IC, LINEAR MKA
IC7241 NJM2235M-TE1 IC, LINEAR
( B )
IC7251 NJM2235M-TE1 IC, LINEAR
( B )
IC7261 NJM2235M-TE1 IC, LINEAR
( B )
TRANSISTORS
Ref. No. Part No. Part Name & Description Remarks
Q3001 2SA1037K146R CHIP
OR 2SB709A CHIP
Q3002 2SC2412K1 CHIP
OR 2SD601A CHIP
Q3071 2SC2412K1 CHIP
OR 2SD601A CHIP
Q3202 DTC114EK CHIP
Page
1
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

OR UN2211 CHIP
Q3203 DTC114EK CHIP
OR UN2211 CHIP
Q3310 2SC2412K1 CHIP
OR 2SD601A CHIP
Q3311 2SA1037K146R CHIP
OR 2SB709A CHIP
Q3316 2SC2412K1 CHIP
OR 2SD601A CHIP
Q3601 2SC2412K1 CHIP
OR 2SD601A CHIP
( B )
Q3602 2SC2412K1 CHIP
OR 2SD601A CHIP
( B )
Q3603 2SC2412K1 CHIP
OR 2SD601A CHIP
( B )
Q3604 2SC2412K1 CHIP
OR 2SD601A CHIP
( B )
Q4001 2SA1037K146R CHIP
OR 2SB709A CHIP
Q4002 2SD601(R,S) CHIP
Q4003 2SD601(R,S) CHIP
Q4101 2SC2412K1 CHIP
OR 2SD601A CHIP
Q4171 2SC2412K1 CHIP
OR 2SD601A CHIP
Q4173 DTC144EK CHIP
OR UN2213 CHIP
Q6001 2SA1037K146R CHIP
OR 2SB709A CHIP
Q6002 2SC2412K1 CHIP
OR 2SD601A CHIP
Q6003 2SC2412K1 CHIP
OR 2SD601A CHIP
Q6004 2SA1037K146R CHIP
OR 2SB709A CHIP
Q6005 2SA1037K146R CHIP
OR 2SB709A CHIP
Q6006 2SC2412K1 CHIP
OR 2SD601A CHIP
Q6009 VEKS5707 PHOTO SENSOR UNIT
Q6010 VEKS5707 PHOTO SENSOR UNIT
Q7231 2SC2412K1 CHIP
OR 2SD601A CHIP
Page
2
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

DIODES
Ref. No. Part No. Part Name & Description Remarks
D3201 MA165
OR 1SS119
OR 1SS133T
D3202 MA165
OR 1SS119
OR 1SS133T
D4171 MA165
OR 1SS119
OR 1SS133T
D6001 VEKS5708 SENSOR LED UNIT
D6003 MA165
OR 1SS119
OR 1SS133T
D6011 MA165
OR 1SS119
OR 1SS133T
D6301 SLP913C81HAB LED RED
D6302 SLP913C81HAB LED RED
D6303 SLP313C81HAB LED GREEN
D6304 SLP413C81HAB LED ORANGE MKA
RESISTORS
Ref. No. Part No. Part Name & Description Remarks
R1201 ERX2SJ6R8P METAL OXIDE 2W 6.8 MKA
R2601 ERJ6GEYJ330V MGF CHIP 1/10W 33
R2602 ERJ6GEYJ330V MGF CHIP 1/10W 33
R2603 ERJ6GEYJ330V MGF CHIP 1/10W 33
R2604 ERDS2TJ1R0 1
R2605 ERDS2TJ1R2 1.2
R2606 ERJ6GEYJ561V MGF CHIP 1/10W 560
R3001 ERDS2TJ101 100
R3006 ERDS2TJ101 100
R3010 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R3016 ERJ6GEYJ121V MGF CHIP 1/10W 120
R3024 ERJ6GEYJ391V MGF CHIP 1/10W 390
R3025 ERJ6GEYJ125V MGF CHIP 1/10W 1.2M
R3026 ERJ6GEYJ474V MGF CHIP 1/10W 470K
R3028 ERJ6GEYJ272V MGF CHIP 1/10W 2.7K
R3029 ERJ6GEYJ151V MGF CHIP 1/10W 150
R3032 ERJ6GEYJ122V MGF CHIP 1/10W 1.2K
R3035 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R3036 ERJ6GEYG102V MGF CHIP 1/10W 1K
R3037 ERJ6GEYG102V MGF CHIP 1/10W 1K
R3038 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
Page
3
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

R3048 ERJ6GEYJ101V MGF CHIP 1/10W 100
R3071 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3072 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R3073 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R3077 ERJ6GEYJ101V MGF CHIP 1/10W 100
R3081 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R3082 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R3083 ERJ6GEYJ271V MGF CHIP 1/10W 270
R3084 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R3085 ERJ6GEYJ181V MGF CHIP 1/10W 180
R3101 ERJ6GEYJ181V MGF CHIP 1/10W 180
R3102 ERJ6GEYJ101V MGF CHIP 1/10W 100
R3204 ERJ6GEYJ101V MGF CHIP 1/10W 100
R3205 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
R3207 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R3208 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R3209 ERJ6GEYJ101V MGF CHIP 1/10W 100
R3210 ERJ6GEYJ101V MGF CHIP 1/10W 100
R3212 ERJ6GEYJ821V MGF CHIP 1/10W 820
R3301 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R3306 ERJ6GEYJ394V MGF CHIP 1/10W 390K
R3309 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R3310 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R3311 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R3312 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R3313 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R3319 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3322 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R3329 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R3332 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3338 ERJ6GEYJ471V MGF CHIP 1/10W 470
R3339 ERJ6GEYJ471V MGF CHIP 1/10W 470
R3340 ERJ6GEYJ471V MGF CHIP 1/10W 470
R3341 ERJ6GEYJ471V MGF CHIP 1/10W 470
R3343 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R3344 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R3345 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R3352 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
R3361 ERJ6GEYJ563V MGF CHIP 1/10W 56K
R3362 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
( A )
ERJ6GEYJ153V MGF CHIP 1/10W 15K
( B )
R3363 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
R3365 ERJ6GEYJ221V MGF CHIP 1/10W 220
R3366 ERJ6GEYJ182V MGF CHIP 1/10W 1.8K
R3367 ERJ6GEYJ560V MGF CHIP 1/10W 56
Page
4
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

R3369 ERJ6GEYJ105V MGF CHIP 1/10W 1M
R3370 ERJ6GEYJ331V MGF CHIP 1/10W 330
R3375 ERJ6GEY0R00V MGF CHIP 1/10W 0
R3391 ERJ6GEYJ122V MGF CHIP 1/10W 1.2K
R3392 ERJ6GEYJ122V MGF CHIP 1/10W 1.2K
R3393 ERJ6GEYJ122V MGF CHIP 1/10W 1.2K
R3394 ERJ6GEYJ181V MGF CHIP 1/10W 180
R3395 ERJ6GEYJ181V MGF CHIP 1/10W 180
R3396 ERJ6GEYJ181V MGF CHIP 1/10W 180
R3397 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R3398 ERJ6GEYJ331V MGF CHIP 1/10W 330
R3601 ERJ6GEYJ473V MGF CHIP 1/10W 47K
( B )
R3602 ERJ6GEYJ473V MGF CHIP 1/10W 47K
( B )
R3603 ERJ6GEYJ102V MGF CHIP 1/10W 1K
( B )
R3604 ERJ6GEYG271V MGF CHIP 1/10W 270
( B )
R3605 ERJ6GEYJ473V MGF CHIP 1/10W 47K
( B )
R3606 ERJ6GEYJ473V MGF CHIP 1/10W 47K
( B )
R3607 ERJ6GEYJ102V MGF CHIP 1/10W 1K
( B )
R3608 ERJ6GEYG271V MGF CHIP 1/10W 270
( B )
R3609 ERJ6GEYJ822V MGF CHIP 1/10W 8.2K
( B )
R3610 ERJ6GEYJ392V MGF CHIP 1/10W 3.9K
( B )
R3611 ERJ6GEYG331V MGF CHIP 1/10W 330
( B )
R3612 ERJ6GEYJ471V MGF CHIP 1/10W 470
( B )
R3613 ERJ6GEYG101V MGF CHIP 1/10W 100 MKA
( B )
R3614 ERJ6GEYG562V MGF CHIP 1/10W 5.6K
( B )
R3615 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
( B )
R4001 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R4002 ERJ6GEYJ334V MGF CHIP 1/10W 330K
R4003 ERJ6GEYJ221V MGF CHIP 1/10W 220
R4004 ERJ6GEYJ333V MGF CHIP 1/10W 33K
R4005 ERJ6GEYJ225V MGF CHIP 1/10W 2.2M
R4006 ERJ6GEYJ681V MGF CHIP 1/10W 680
Page
5
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

R4007 ERJ6GEYJ821V MGF CHIP 1/10W 820
R4008 ERJ6GEYJ273V MGF CHIP 1/10W 27K
R4009 ERJ6GEYJ473V MGF CHIP 1/10W 47K
R4010 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R4011 ERJ6GEYJ682V MGF CHIP 1/10W 6.8K
R4012 ERJ6GEYJ682V MGF CHIP 1/10W 6.8K
R4014 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R4015 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R4031 ERJ6GEYJ333V MGF CHIP 1/10W 33K
R4032 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R4051 ERJ6GEYJ393V MGF CHIP 1/10W 39K
R4052 ERJ6GEYJ561V MGF CHIP 1/10W 560
R4101 ERDS2TJ563 56K
R4102 ERJ6GEYJ184V MGF CHIP 1/10W 180K
R4103 ERJ6GEYJ153V MGF CHIP 1/10W 15K
R4171 ERJ6GEYJ153V MGF CHIP 1/10W 15K
R4172 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R4173 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R4174 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R4175 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6001 ERJ6GEYJ473V MGF CHIP 1/10W 47K
R6002 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6003 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6004 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6005 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6006 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6008 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6009 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6010 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6011 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6012 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6013 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6014 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6015 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6016 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6017 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6018 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6020 ERJ6GEYJ272V MGF CHIP 1/10W 2.7K
R6021 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6022 ERJ6GEYJ221V MGF CHIP 1/10W 220
R6023 ERJ6GEYJ221V MGF CHIP 1/10W 220
R6024 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6025 ERJ6GEYJ272V MGF CHIP 1/10W 2.7K
R6027 ERJ6GEYJ221V MGF CHIP 1/10W 220
R6028 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R6029 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6030 ERJ6GEYJ103V MGF CHIP 1/10W 10K
Page
6
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

R6031 ERJ6GEYJ682V MGF CHIP 1/10W 6.8K
R6032 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6035 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6040 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6042 ERJ6GEYJ184V MGF CHIP 1/10W 180K
R6043 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6044 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6046 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6047 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6048 ERJ6GEYJ274V MGF CHIP 1/10W 270K
R6049 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6050 ERJ6GEYJ221V MGF CHIP 1/10W 220
R6052 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6053 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6054 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6055 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6056 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6057 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6058 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6059 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6060 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6061 ERJ6GEYJ221V MGF CHIP 1/10W 220
R6062 ERJ6GEYJ221V MGF CHIP 1/10W 220
R6064 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6066 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6077 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6078 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6079 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6084 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6085 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6089 ERDS2TJ103 10K
R6090 ERDS2TJ103 10K
R6091 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6092 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6093 ERDS2TJ221 220
R6094 ERDS2TJ221 220
R6098 ERJ6GEYJ153V MGF CHIP 1/10W 15K
R6099 ERJ6GEYJ153V MGF CHIP 1/10W 15K
R6100 ERJ6GEYJ224V MGF CHIP 1/10W 220K
R6101 ERDS2TJ121 120
R6102 ERDS2TJ151 150
R6103 ERJ6GEYJ104V MGF CHIP 1/10W 100K
R6104 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R6105 ERJ6GEYJ104V MGF CHIP 1/10W 100K
R6106 ERJ6GEYJ473V MGF CHIP 1/10W 47K
R6107 ERDS2TJ681 680
R6108 ERJ6GEYJ473V MGF CHIP 1/10W 47K
Page
7
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

R6110 ERJ6GEYJ333V MGF CHIP 1/10W 33K
R6111 ERJ6GEYJ243V MGF CHIP 1/10W 24K
R6112 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R6113 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R6114 ERDS2TJ221 220
R6115 ERDS2TJ221 220
R6116 ERJ6GEYF433V MGF CHIP 1/10W 43K MKA
R6117 ERJ6GEYF153V MGF CHIP 1/10W 15K
R6118 ERJ6GEYJ392V MGF CHIP 1/10W 3.9K
R6119 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6120 ERJ6GEYJ104V MGF CHIP 1/10W 100K
R6121 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R6122 ERJ6GEYJ183V MGF CHIP 1/10W 18K
R6123 ERJ6GEYJ391V MGF CHIP 1/10W 390
R6124 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6125 ERDS2TJ560 56
R6126 ERJ6GEYJ475V MGF CHIP 1/10W 4.7M
R6127 ERJ6GEYJ332V MGF CHIP 1/10W 3.3K
R6128 ERJ6GEYJ182V MGF CHIP 1/10W 1.8K
R6129 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R6130 ERJ6GEYJ272V MGF CHIP 1/10W 2.7K
R6131 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6135 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6136 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6139 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6142 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6143 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6146 ERJ6GEYF125V MGF CHIP 1/10W 1.2M MKA
R6151 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
R6152 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
R6153 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
R6154 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
R6155 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K
R6162 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R6163 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R6164 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R6168 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R6201 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6202 ERJ6GEYJ473V MGF CHIP 1/10W 47K
R6203 ERJ6GEYJ274V MGF CHIP 1/10W 270K
R6204 ERJ6GEYJ184V MGF CHIP 1/10W 180K
R6205 ERJ6GEYJ225V MGF CHIP 1/10W 2.2M
R6206 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R6208 ERJ6GEYJ152V MGF CHIP 1/10W 1.5K
R6209 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R6210 ERDS2TJ272 2.7K
R6301 ERJ6GEYJ182V MGF CHIP 1/10W 1.8K
Page
8
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

R6302 ERJ6GEYJ392V MGF CHIP 1/10W 3.9K
R6303 ERJ6GEYJ182V MGF CHIP 1/10W 1.8K
R6304 ERJ6GEYJ392V MGF CHIP 1/10W 3.9K
R6305 ERJ6GEYJ182V MGF CHIP 1/10W 1.8K
R6306 ERJ6GEYJ392V MGF CHIP 1/10W 3.9K
R6307 ERJ6GEYJ182V MGF CHIP 1/10W 1.8K
R6308 ERJ6GEYJ392V MGF CHIP 1/10W 3.9K
R6309 ERJ6GEYJ123V MGF CHIP 1/10W 12K
R6314 ERDS2T0 0
R6503 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6506 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6507 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6508 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6509 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6511 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6512 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6513 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6514 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6515 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6516 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6517 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6518 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6522 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6523 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6524 ERJ6GEYJ102V MGF CHIP 1/10W 1K
( B )
R6525 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6526 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6527 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6528 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6529 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6530 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6531 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6532 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6533 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6534 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6535 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6536 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6537 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6538 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6539 ERJ6GEYJ101V MGF CHIP 1/10W 100
R6540 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6541 ERJ6GEYJ102V MGF CHIP 1/10W 1K
( B )
R6550 ERJ6GEYJ223V MGF CHIP 1/10W 22K
( B )
R6552 ERJ6GEYJ223V MGF CHIP 1/10W 22K
Page
9
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

R6553 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R6554 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R6555 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R6556 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K
R6557 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R6559 ERJ6GEYJ473V MGF CHIP 1/10W 47K
R6560 ERJ6GEYJ473V MGF CHIP 1/10W 47K
R6591 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6592 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6593 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6594 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6595 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6601 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6602 ERJ6GEYJ102V MGF CHIP 1/10W 1K
R6603 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6605 ERJ6GEYJ103V MGF CHIP 1/10W 10K
R6607 ERJ6GEY0R00V MGF CHIP 1/10W 0
R6608 ERJ6GEY0R00V MGF CHIP 1/10W 0
R7202 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7204 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7205 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R7206 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R7208 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7209 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7212 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7213 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
( B )
R7214 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7216 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R7217 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7219 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7222 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7223 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R7224 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7226 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R7227 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7231 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7232 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R7233 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7234 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
R7235 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7236 ERJ6GEYJ101V MGF CHIP 1/10W 100
R7237 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R7238 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R7239 ERJ6GEYJ223V MGF CHIP 1/10W 22K
R7242 ERJ6GEYJ101V MGF CHIP 1/10W 100
Page
10
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

( B )
R7243 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
( B )
R7244 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7246 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
( B )
R7247 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7249 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7252 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7254 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7255 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
( B )
R7256 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
( B )
R7258 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7259 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7262 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7263 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K
( B )
R7264 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
R7266 ERJ6GEYJ101V MGF CHIP 1/10W 100
( B )
CAPACITORS
Ref. No. Part No. Part Name & Description Remarks
C1201 ECEA1CKA101 ELECTROLYTIC 16V 100
C1202 ECUV1E104KBN C CHIP 25V 0.1
C1203 ECEA1CKA101 ELECTROLYTIC 16V 100
C2601 ECEA1EKA4R7 ELECTROLYTIC 25V 4.7
C2602 ECEA1EKA4R7 ELECTROLYTIC 25V 4.7
C2603 ECEA1EKA4R7 ELECTROLYTIC 25V 4.7
C2604 ECUV1E104KBN C CHIP 25V 0.1
C2605 ECUV1E104KBN C CHIP 25V 0.1
C2606 ECUV1E104KBN C CHIP 25V 0.1
C2607 ECUV1E104KBN C CHIP 25V 0.1
C2608 ECUV1H104ZFN C CHIP 50V 0.1
C2609 ECUV1H104ZFN C CHIP 50V 0.1
C2610 ECUV1H333KBN C CHIP 50V 0.033
Page
11
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html

C2611 ECUV1H103KBN C CHIP 50V 0.01
C2612 ECUV1H104ZFN C CHIP 50V 0.1
C3001 ECUV1H102KBN C CHIP 50V 1000P
C3003 ECUV1E104ZFN C CHIP 25V 0.1
C3004 ECUV1H103ZFN C CHIP 50V 0.01
C3006 ECUV1E104ZFN C CHIP 25V 0.1
C3007 ECEA0JKA221 ELECTROLYTIC 6.3V 220
C3008 ECUV1H181JCN C CHIP 50V 180P
C3009 ECEA1EKA4R7 ELECTROLYTIC 25V 4.7
C3010 ECUV1H103ZFN C CHIP 50V 0.01
C3013 ECUV1C224ZFN C CHIP 16V 0.22
C3015 ECEA0JKA470 ELECTROLYTIC 6.3V 47
C3016 ECEA1CKS100 ELECTROLYTIC 16V 10
C3018 ECEA0JKA101 ELECTROLYTIC 6.3V 100
C3019 ECEA1HKA2R2 ELECTROLYTIC 50V 2.2
C3020 ECEA1CKA220 ELECTROLYTIC 16V 22
C3021 ECEA1HKA2R2 ELECTROLYTIC 50V 2.2
C3022 ECUV1C224ZFN C CHIP 16V 0.22
C3023 ECUV1H680JCN C CHIP 50V 68P
C3024 ECUV1E104ZFN C CHIP 25V 0.1
C3025 ECUV1C104KBN C CHIP 16V 0.1
C3026 ECUV1H822KBN C CHIP 50V 8200P
C3027 ECUV1H103ZFN C CHIP 50V 0.01
C3030 ECUV1H103ZFN C CHIP 50V 0.01
C3031 ECUV1E104ZFN C CHIP 25V 0.1
C3032 ECUV1C474ZFN C CHIP 16V 0.47
C3034 ECUV1H181JCN C CHIP 50V 180P
C3035 ECUV1H330JCN C CHIP 50V 33P
C3036 ECUV1E104ZFN C CHIP 25V 0.1
C3037 ECEA0JKA101 ELECTROLYTIC 6.3V 100
C3038 ECEA1CKA100 ELECTROLYTIC 16V 10
C3041 ECUV1H103ZFN C CHIP 50V 0.01
C3043 ECUV1H392KBN C CHIP 50V 3900P
C3044 ECUV1H103ZFN C CHIP 50V 0.01
C3045 ECEA1HKAR47 ELECTROLYTIC 50V 0.47
C3046 ECEA1HKA2R2 ELECTROLYTIC 50V 2.2
C3047 ECEA0JKA221 ELECTROLYTIC 6.3V 220
C3048 ECUV1E104ZFN C CHIP 25V 0.1
C3049 ECEA1HKA2R2 ELECTROLYTIC 50V 2.2
C3050 ECEA1HKA2R2 ELECTROLYTIC 50V 2.2
C3055 ECUV1E104ZFN C CHIP 25V 0.1
C3056 ECUV1E104ZFN C CHIP 25V 0.1
C3057 ECUV1E104ZFN C CHIP 25V 0.1
C3058 ECUV1H103ZFN C CHIP 50V 0.01
C3081 ECUV1H103ZFN C CHIP 50V 0.01
C3082 ECUV1H332KBN C CHIP 50V 3300P
C3101 ECEA0JKA101 ELECTROLYTIC 6.3V 100
Page
12
of
18
10/20/2008
http://tsn.pstc.panasonic.com/viewing/NA/PV
-
DF2000/SVC/s1203020000.html
