Panasonic TC-14Z88AQ User manual

ORDERNO. MTV0401272C3
Colour Television
TC-14Z88AQ
GP3Chassis
SPECIFICATIONS
Specifications
Power Source : ACAUTO 110-240V, 50 / 60 Hz
Power Consumption : 61W
Aerial Impedance : 75 unbalanced
Coaxial type
Receiving System : 17 Systems
Receiving Channels:
VHF 1-11 PAL B(Australia&N.Zealand)
1-12 PAL / SECAMD
1-12 NTSCMJAPAN
2-12 PAL / SECAMB, G
2-13 NTSCMU.S.A.
UHF 21-69 PAL G I / SECAMB, G, K1
28-69 PAL G (Australia)
13-56 PAL D
13-52 NTSCMJAPAN
14-69 NTSCNTSCMU.S.A.
CATV S1-S41 (Hyper)
IntermediateFrequency:
Video 38.0MHz
Sound 31.5MHz(D, K, K1)
32 MHz(I)
32.5MHz(B, G)

33.5MHz(M)
Colour 33.57 MHz(PAL)
33.6MHz(SECAM)
33.75 MHz(SECAM)
34.42 MHz(NTSC)
Video / Audio Terminals:
RAVIn Video In 1Vp-p 75
Audio In Approx. 400mVrms
MonitorOut Video Out1Vp-p 75
Audio OutApprox. 400mVrms
High Voltage: 24.5kV± -1.5
atzero beam current
Picture Tube: A34KQW42X
34cm (14 inches)
Measured diagonally,
90 ° deflection
Audio Output: 5.0W
Dimensions: Height:356.0mm
Width :459.0mm
Depth :379.5mm
Mass : 10.1kg (NetWt.)
Specificationsare subjectto changewithoutnotice. / Mass
and dimensionsshown are approximate.
2004 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorizedcopying and distribution isaviolation oflaw.
1. SafetyPrecautions
1.1. General GuideLines
1. Itisadvisabletoinsertanisolation transformerintheACsupply
beforeservicing thishotchassis.
2. Whenservicing, observetheoriginal leaddress, especiallythe
leaddress inthehigh voltagecircuits. Ifashortcircuitisfound,
replace all parts whichhavebeenoverheatedor damagedbythe
shortcircuit.

3. Afterservicing, see toitthat all theprotectivedevices suchas
insulation barriers, insulation papers, shieldsand isolation R-C
combinations, areproperlyinstalled.
4. Whenthereceiverisnottobeusedfor along period oftime,
unplug thepowercord from theACcord outlet.
5. Potential, as high as 26.0kV ispresentwhenthisreceiverisin
operation. Operation ofthereceiverwithouttherearcover
involves thedangerofashock hazard from thereceiverpower
supply. Servicing shouldnotbeattemptedbyanyonewho isnot
thoroughlyfamiliarwiththeprecautionsnecessarywhenworking
on high voltageequipment. Alwaysdischargetheanodeofthe
picturetubetothereceiverchassisbeforehandling thetube.
Afterservicing make thefollowing leakagecurrentchecks to
preventthecustomerfrom being exposedtoshock hazards.
1.2. LeakageCurrentColdCheck
1. Unplug theACcord and connect ajumperbetweenthetwo
prongson theplug.
2. Turn on thereceiver’spowerswitch. / Measuretheresistance
value, withanohmmeter, betweenthejumperACplug and each
exposedmetalliccabinet parton thereceiver, suchas screw
heads, aerials, connectors, control shafts, etc.Whentheexposed
metallicparthas areturn pathtothechassis, thereading should
bebetween4M and 20 M . Whentheexposedmetal does not
haveareturn pathtothechassis, thereading must beinfinite.

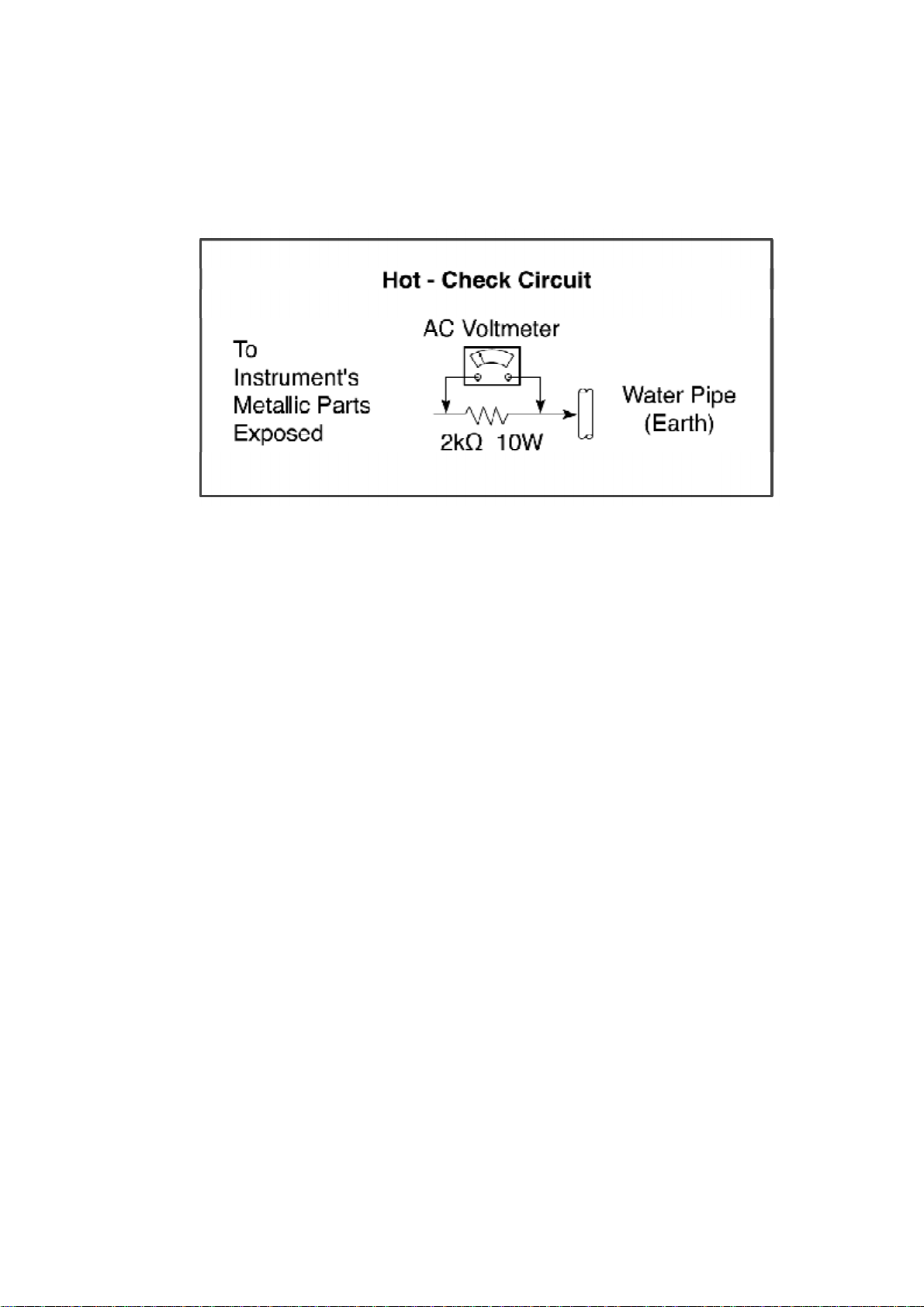

1.3. LeakageCurrentHotCheck (Fig. 1)
1. Plug theACcord directlyintotheACoutlet. Donotuse an
isolation transformerfor thischeck.
2. Check a2k non-inductiveresistor and anAC/DC currentmeter,
inseries witheachexposedmetallicparton thereceiverinturn
and anearthsuchas awaterpipe.
Thecurrentfrom anypointshouldnotexceed0.7mApeak ACor
2mADC. Inthecase ofameasurementbeing outsideofthese
limits specified, thereisapossibilityofashock hazard and the

receivershouldberepairedand recheckedbeforeitisreturnedto
thecustomer.
Fig. 1
,
1.4. X-Radiation
Warning:
The potential sources of X-Radiation inTVsetare the EHTsection and the picture tube. When
using a picture tube testjigforservice, ensure thatjigis capable of handling 26.0kVwithout
causing X-Radiation.
Note:Itis important to use anaccurate periodicallycalibratedhigh voltage meter.
1. Set thebrightness tominimum.
2. Use theremocon toget intoService Mode.
3. MeasuretheEHT. Themeterreading shouldindicate 24.5±-1.5kV.
Ifthemeterindication isoutoftolerance, immediate service and
correction isrequiredtopreventthepossibilityofpremature
componentfailure.
4. TopreventthepossibilityX-Radiation, itisessential touse the
specifiedpicturetube, ifservice replacementbecomes necessary.
1.5. GP3ChassisBlock Diagram
2. Service Hints
2.1. Service Position for E-Board
1. Removetheback cover.
2. Stand theTV set as showninFig. 2.
3. RemovetheA-Board from theTV set bypulling themainboard

outas showninFigure2.
Fig. 2
2.2. FactoryModeAdjustment
Howtoset :
Toset theFactorymode, press Volume0dac on theTV and Timer
Setting 30 min. on theremote control and press Volume(-) Down
button on theTV togetherpress recall on theremote control. /
CHK shouldappearon rightofTV screen. / Tomovefrom CHK1to
CHK2mode, etc. please followbelowrotation :
ToSet Self-Check :
Press theVolumeDownbutton on TV thenpress theOff Timer
button on remote control.
2.3. Adjustmentfor White Balance
Preparation:
1. Receivethewhite balance pattern and aging shouldhavebeen
performedover30 minutes.
2. Set thepicturemenu toDYNAMICNORMAL.
3. Degauss theCRTface.
4. FixtheCRTcolour analyzerreceiverunittoCRTface.
Adjustment of LowLight.
1. AdjustmentSub Bright, sothat Y =7.0±1.0nit.

2. AdjustmentR-CUTOFF, sothat X =0.238 ±0.010 nit.
3. AdjustmentG-CUTOFF, sothat Y =0.229 ±0.010 nit.
Adjustment of High Light
1. AdjustmentSub Bright, sothat Y =155 nit.
2. AdjustmentR-Drive, sothat X =0.263 ±0.010 nit.
3. AdjustmentB-Drive, sothat Y =0.273 ±0.010 nit.
2.4. Adjustmentfor CRTCUTOFF
Preparation:
1. Connect theoscilloscopeprobetoTPL5.
2. ScreenVRmin.
3. Set thedata Sub Bright, Bright.
4. Inservice Modeat “Bright”dac press [5] infactorymodetoenter
vertical lineand adjust byvolumedownor up button.
5. Adjust “ScreenVR”until 1-HLineappears.
2.5. AdjustmentProcedure

Item/ Preparation Adjustment Procedure

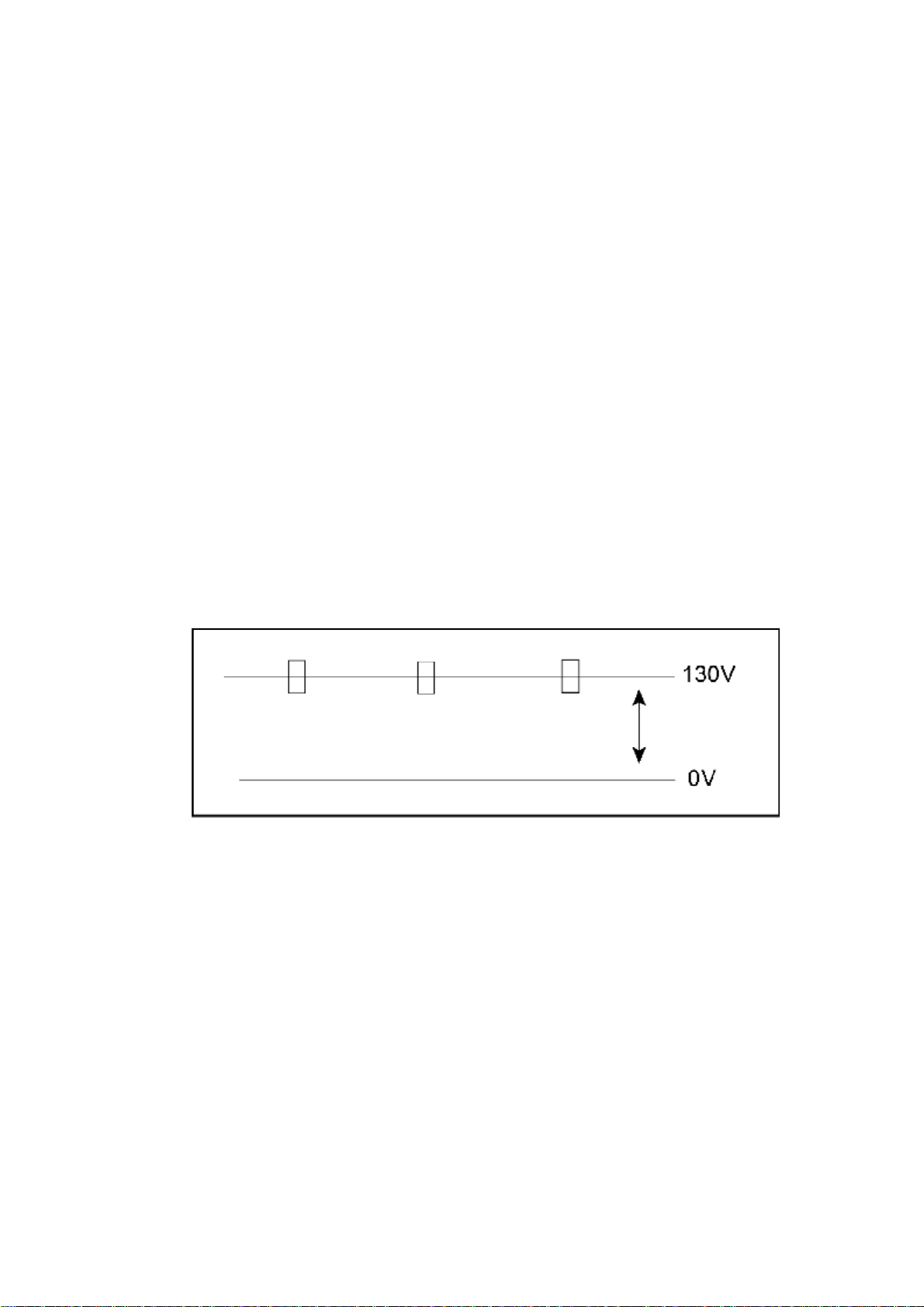

+B Voltage Confirmthe DC voltage atthe indicatedtestpoints,
as
:
1. Operate the TVset. TPA10 :141.0 ±2.0V
2. Setcontrol as follows : TPA8 :8 ±1V
Brightness ........... minimum TPA9 :5 ±1V
Contrast.............. minimum TPA21 :175 ±15
RFAGC
1. Receive a colourbarsignal atanRF
level of 69 +1-2 dBU with 75
loaded.
1. Select“RFAGC”indication inCHK2, on Screen
by
control atfactorymode.
2. Connectdigital multimeterto RF
AGC atTuner. 2. SetRFAGC byusing remote control Volume (+)
or
(-) button until voltage AGC atTunerreaches 2.6 ±
0.1V
TPA15 (Tunerpoint).
3. Increase RFsignal strength by2dB, confirmAGC
at
voltage drop.
High Voltage
1. Receive the crosshatchpattern. 1. Connecta DC voltage meterto TPA12 and
confirm
voltage is 141.0 ±2.0V.
2. Setto 0 Beam.
ScreenVR .......... minimum 2. Connecta high frequencyvoltmeterto heaterand
confirm
thatvoltage reads 6.0 ±0.24 (VRMS).
Contrast.............. minimum
3. Normalize the brightness and contrast.
Item/ Preparation Adjustment Procedure
NTSC TINTCOLOUR
Connecta shortjumperbetweenTPA
10 and TPA20.
Press MainMenu and setsystemto
use AV-NTSC (3.58 MHz).
DYNAMIC ................. Normal
ChannelCLR Set..... STD

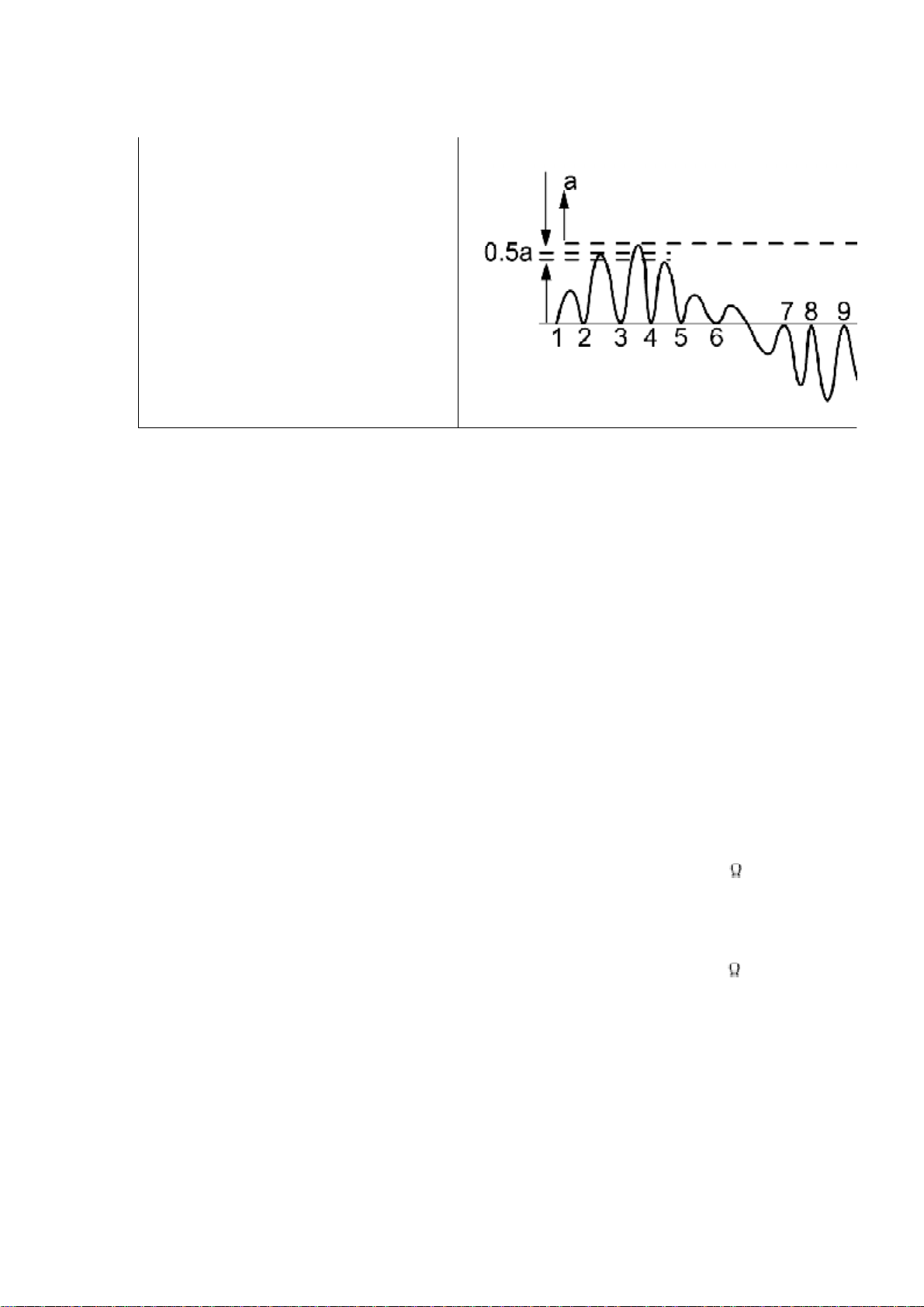

1. AdjustSub-Tint sothatNo. 2, 3 and 4 becomes
level
waveformis similarto Fig. 3.
2. Confirmphase atTint is changes more than±30
by
control.
3. Confirmthatcolourlevel is maximum when
colour
adjustedto maximum position.
Note:Use remote control onlywhenadjusting
user
Sub-Tint.

Fig. 3
2.6. PALColour
1. ReceivethePALB/G studiocolour barpattern and adjust local
frequencyat thebest tunedposition.
2. PicMenu:DynamicNormal, Confirm Contrast -63, Sub Contrast -
21.
3. Channel colour set --------- STD
4. “CHK2”and press digitkey“5”(AKB OFF)alsoconfirm OSD
becomebluecolour.
5. Connect TPA10 toTPA20.
6. Set (A)to1.9±0.1V byBRT(CHK2) at measurementpointTPL2
Fig. 4.
2.7. Adjustment
1. Connect oscilloscopeprobetoTPL2(G OUT)with10k series
resistor and adjust Contrast sothat (B) as inFig. 4is2.60 ±0.05V.
2. Adjust “Sub Colour” sothat waveform as inFig. 4(1) 2.3±0.2V.
3. Connect oscilloscopeprobetoTPL1(R OUT)with10k series
resistor and confirm waveform as inFig. 5is(2) 2.3±0.2V.
4. Take outjumperTPA10 and TPA20.
5. Press digitkey“5”(AKB ON) and confirm theOSDbecomewhite
colour.

Before ColourPurity, Convergence and White Balance
adjustment are attempted,
V. Height, H. Centre and Focus adjustments mustbe completed.
ColourPurity
1. Set theBrightness and Contrast controlstotheirmaximum
positions.
2. Operate theTV set for 60 minutes.
3. Fullydegauss thepicturetubebyusing anexternal degaussing
coil.
4. Applyacrosshatchpattern signal and adjust thestatic
convergence magnets totheapproximatelycorrect position.
5. Receiveablack and white signal.
6. Set thecontrol as follows:/ Red................minimum /
Green.............minimum / Blue...............minimum / Press the
Shipping button on theremote control twice toselect CRT
AdjustmentModetoselect lowlight.
7. Loosentheclamp screwfor theDeflection Yoke AinFig. 10 and
movetheDeflection Yoke as close tothepuritymagnet as
possible.
8. Adjust thepuritymagneticringssothat avertical greenfieldis
obtainedat thecentreofthescreen.
Fig. 6

9. SlowlypushtheDeflection Yoke and set itwhereauniform green
fieldisobtained. Fig. 21
10. Re-adjust theLowLightcontrolstotheircorrect settingsand
make surethat auniform white fieldisobtained.
11. Tightentheclamp screwAinFig. 10.
Convergence
1. Applyacrosshatchpattern signal and NormalizeContrast control
tothemaximum positions.
2. Adjust Brightness until thegreyposition ofthecrosshatch
pattern just becomes black.
3. Adjust theRedand Bluelineat thecentreofthescreenby
rotating theR-B static. Fig. 8

4. Adjust Redand BluewithGreenlineat centreofthescreenby
rotating (RB)-G staticconvergence magneticrings.
5. Lock convergence magnets withsiliconesealer.
6. RemovetheDY wedges and slightlytilttheDeflection Yoke
verticallyand horizontallytoobtainthegood overall convergence.
Fig. 9
7. FixtheDeflection Yoke byreinserting theDY wedges. Referto
Fig. 10.
8. Ifpurityerror isfound, repeat “Colour Purity”adjustment.
Fig. 10

Fig. 11
Notes:

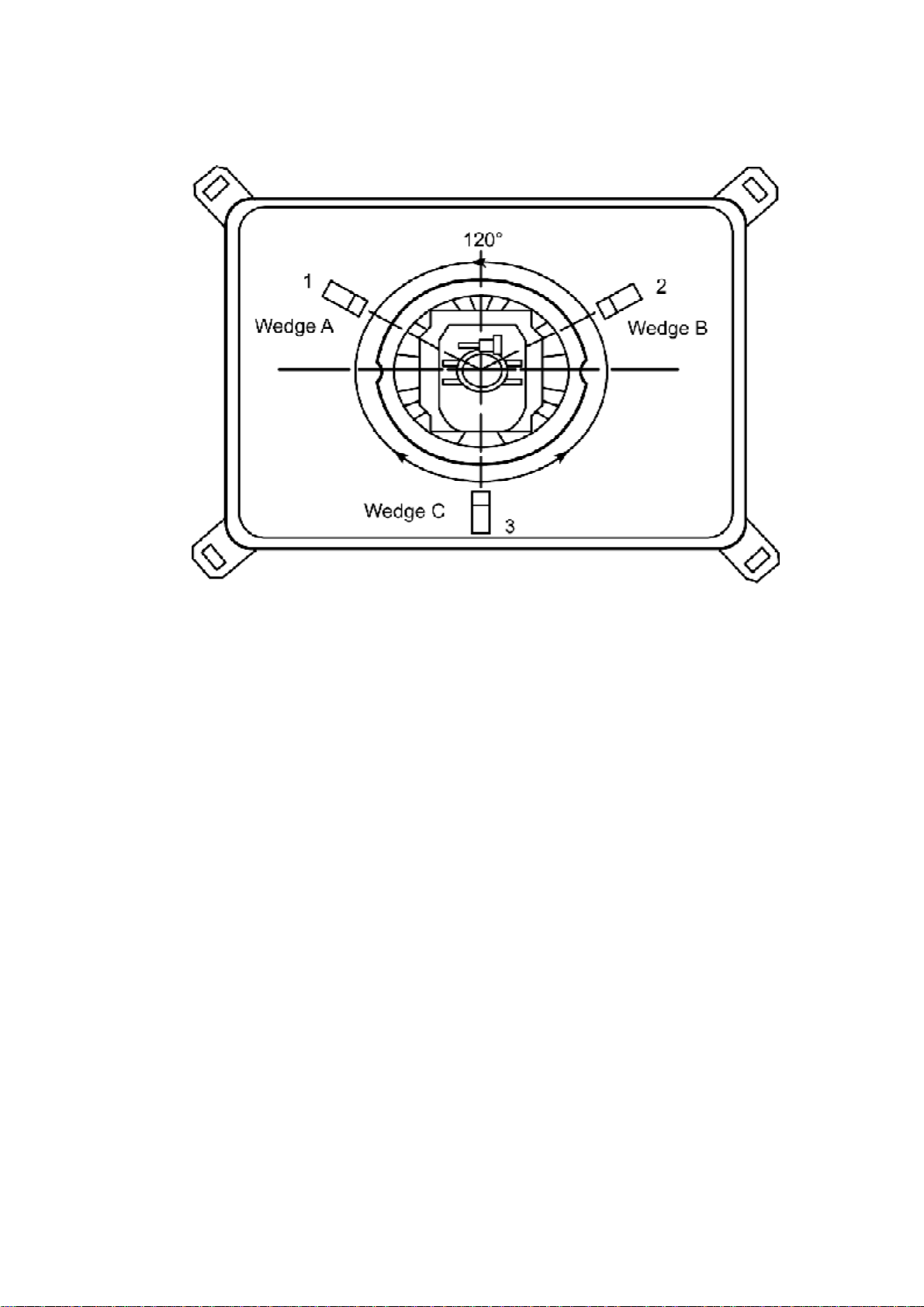

1. WedgeA, Band Cshouldbeinsertedfollowing thesequence of1,
2and 3showninFig. 11.
2. Thewedges shouldbeset 120° apartfrom eachother.
3. Becertainthat three wedges arefirmlyfixedand theDeflection
Yoke istightlyclampedinplace. / Otherwise theDeflection Yoke
mayshift its position and cause aloss ofconvergence and purity.
3. Conductor Views
4. SchematicDiagram

4.1. ABOARD
4.1.1. ABOARD (1 / 5)
4.1.2. ABOARD (2 / 5)
4.1.3. ABOARD (3 / 5)
4.1.4. ABOARD (4 / 5)
4.1.5. ABOARD (5 / 5)
4.2. LBOARD
4.2.1. LBOARD (1 / 2)
4.2.2. LBOARD (2 / 2)

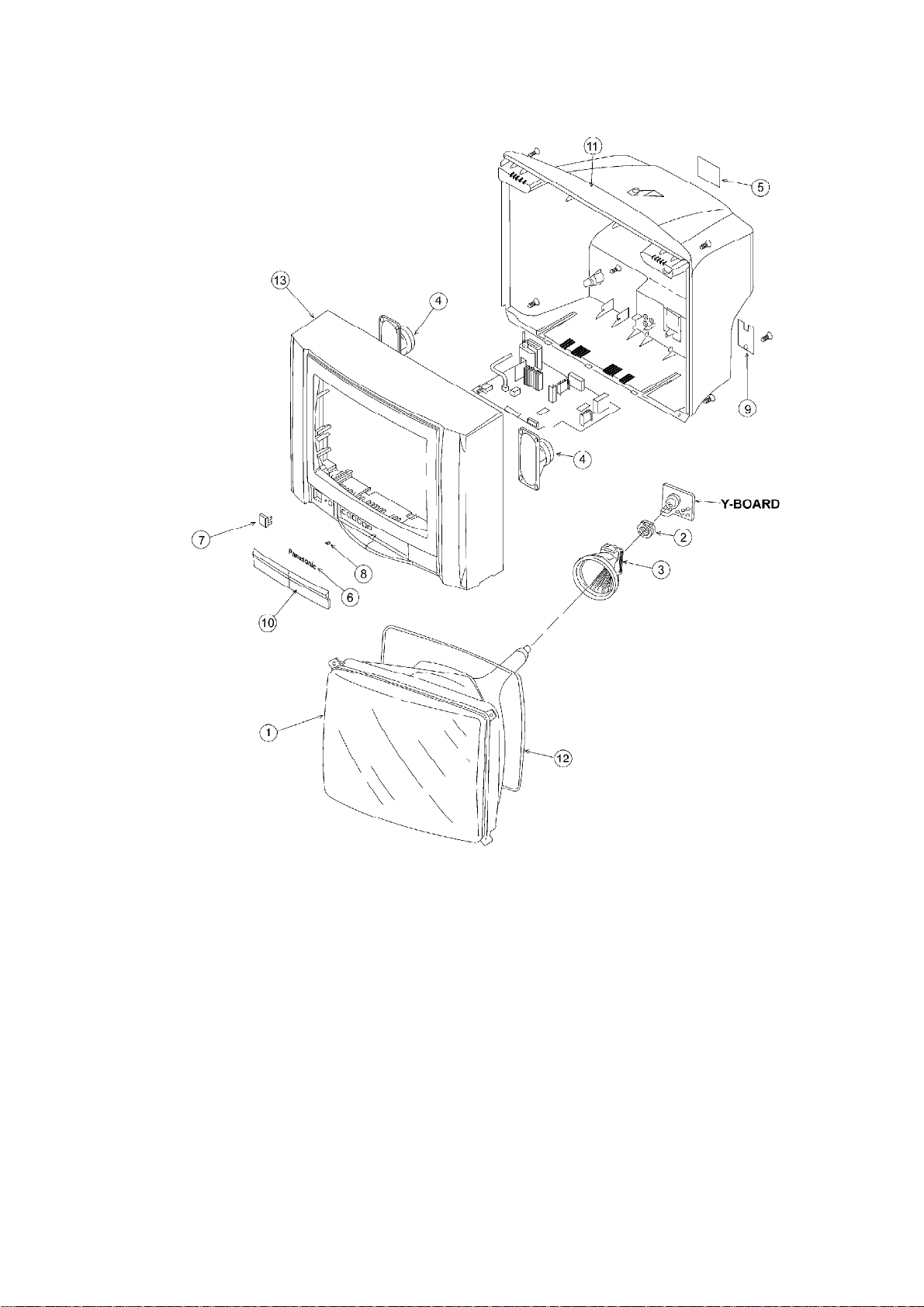

5. PartLocation

6. ReplacementPartsList

6.1. ReplacementParts List
Ref. No. PartNo. PartName& Description Remarks
1A34KQW42X PICTURETUBE
EUR7717030 REMOTECONTROL
2JH225U-012 CONVERGENCEYOKE
3KDY3GCE47F2 DEFLECTION YOKE
4TASA0003 SPEAKER
5TBM4G1017 MODELNAMEPLATE
6TBM4G3008 PANASONIC BADGE
7TBX4G89402 POWER BUTTON
8TEK6935 DOOR SWITCH
TES4G206 COILSPRING
THT4G1004R CRTSCREW
TJB1725100 75-300OHMADAPTOR
9TKP4G11744 AC CORD BRACKET
10 TKP4G13174 DOOR
11 TKU4G9530-1 BACK COVER
12 TLK4G9078X DEGAUSSING COIL
TMM4G502 RUBBER WASHER
TMM4G503 RUBBER WEDGE
NLA TNP4G269AN A BOARD
NLA TNP4G276AB LBOARD
TPD4G1109 CUSHION (TOP)
TPE4G14007 SETCOVER

Ref. No. PartNo. PartName& Description Remarks
TPE4G14026 SETCOVER
TQB4G3618 FAN BAG
TSM10032-4 PURITYMAGNET
TSN63115-4 PURITYMAGNET
TSX4G113L1 AC POWER CORD
13 TXFKY02BG28 CABINETASSY
TXFPC01BA03 CARTON
TXFPD02AS04 CUSHION (BOTTOM)
TXFSA01AA2S DIPOLEANTENNA
CAPACITORS
C001 ECEA1CKA220 E22UF, 16V
C002 ECJ2VF1H103Z C 0.01UF, Z, 50V
C003 ECJ2VF1H103Z C 0.01UF, Z, 50V
C005 ECJ2VF1H104Z C 0.1UF, Z, 50V
C006 ECA1AM331B E330UF, 10V
C008 ECEA1HKA010 E1UF, 50V
C109 ECJ2VF1H103Z C 0.01UF, Z, 50V
C1101 ECJ2VF1H103Z C 0.01UF, Z, 50V
C1103 ECJ2VC1H331J C 330PF, J, 50V
C1104 ECA1CM101B E100UF, 16V
C1105 ECJ2VF1H103Z C 0.01UF, Z, 50V
C1125 ECEA1CKA100 E10UF, 16V
C1130 ECJ2VC1H560J C 56PF, J, 50V
C1131 ECA0JM221B E220UF, 6.3V
C1132 ECJ2VC1H560J C 56PF, J, 50V
C1140 ECEA1CKA101 E100UF, 16V
C1141 ECJ2VF1H104Z C 0.1UF, Z, 50V
C1142 ECJ2VF1H104Z C 0.1UF, Z, 50V
C116 ECJ2VF1H103Z C 0.01UF, Z, 50V
C117 ECJ2VB1H103J C 0.01UF, 50V
C120 F1B1H103A013 C 0.01UF, 50V
C121 ECJ2VF1H103Z C 0.01UF, Z, 50V
C122 ECJ2VF1H103Z C 0.01UF, Z, 50V
C136 ECJ2VF1H103Z C 0.01UF, Z, 50V
C191 ECUX1H104KBX C 0.1UF, K, 50V
C193 ECA1CM100B E10UF, 16V
C2302 ECA1EM471B E470UF, 25V
C2303 ECA1CM100B E10UF, 16V
C2304 ECEA1HKN010 E1UF, 50V
C2305 ECEA1HKN010 E1UF, 50V
C2306 ECA1HM220B E22UF, 50V
C2380 ECA1CM101B E100UF, 16V
C2381 ECA1CM100B E10UF, 16V
C3020 ECJ2VC1H561K C 560PF, K, 50V
C614 ECQV1H104JL P0.1UF, J, 50V
C615 ECQV1H224JL P0.22UF, J, 50V
C618 F1B1H681A130 C 680PF, 50V
C619 ECQV1H104JL P0.1UF, J, 50V
C620 ECJ2VC1H470J C 47PF, J, 50V
C621 ECJ2VB1H471K C 470PF, K, 50V
C622 ECJ2VF1H104Z C 0.1UF, Z, 50V
C623 ECJ2VC1H470J C 47PF, J, 50V
C625 ECEA0JN221U E220UF, 6.3V
C628 ECJ2YB1H473K C 0.047UF, K, 50V

C628
ECJ2YB1H473K
C
0.047UF,
K,
50V
Ref. No. PartNo. PartName& Description Remarks
C631 ECJ2VB1H222K C 2200PF, K, 50V
C632 ECJ2VB1H392K C 3900PF, K, 50V
C633 ECJ2ZF1C105Z C 1UF, Z, 16V
C636 ECA1CM101B E100UF, 16V
C640 ECA1CM100B E10UF, 16V
C641 ECJ2VC1H100C C 10PF, C, 50V
C670 ECA1CM100B E10UF, 16V
C680 ECJ2YB1H473K C 0.047UF, K, 50V
C685 ECJ2VC1H101K C 100PF, K, 50V
C686 ECJ2YB1H473K C 0.047UF, K, 50V
C687 ECJ2VF1H104Z C 0.1UF, Z, 50V
C689 ECJ2VF1H104Z C 0.1UF, Z, 50V
C801 ECQU2A224BN9 P0.22UF, 250V
C802 ECQU2A224BN9 P0.22UF, 250V
C806 ECKWAE472ZED C 4700PF, Z,500V
C807 ECKWAE472ZED C 4700PF, Z,500V
C808 ECKWAE472ZED C 4700PF, Z,500V
C809 ECKWAE472ZED C 4700PF, Z,500V
C810 EETHC2G221H E220UF, 400V
C811 ECQM4473JZ P0.047UF, J,400V
C814 ECQE2A473JF P0.047UF, J,250V
C816 F2A1H330A115 E33UF, 30V
C819 ECA1HM010B E1UF, 50V
C821 ECKW3D471KBR C 470PF, K, 2KV
C822 ECKW3D331JBR C 330PF, J, 2KV
C825 ECQB1H471JF P470PF, J, 50V
C826 F0A1H103A039 C 0.01PF, 50V
C827 ECQV1H184JM P0.18UF, J, 50V
C830 ECQB1H561JF P560PF, J, 50V
C840 ECKCNA152ME7 C 1500PF, M,
C841 ECKCNA471MB7 C 470PF, M,
C842 ECKCNA471MB7 C 470PF, M,
C844 ECKCNA102MB7 C 1000PF, M,
C846 ECKCNA102MB7 C 1000PF, M,
C850 ECJ2VF1H224Z C 0.22UF, Z, 50V
C853 F1B2H561A025 C 560PF, 500V
C854 ECKW3D122KBP C 1200PF, K, 2KV
C855 F1B2H331A025 C 330PF, 500V
C862 ECA1CHG332E E3300UF, 16V
C863 F2A2C221A021 E220UF, 160V
C864 EEUFC1C102SB E 1000UF, 16V
C875 ECA1EM101B E100UF, 25V
C876 ECA1CM101B E100UF, 16V
C877 ECA1CM101B E100UF, 16V
C879 ECQV1H104JL P0.1UF, J, 50V
C880 ECA1CM102B E1000UF, 16V
C881 ECA1CM101B E100UF, 16V
C882 ECJ2VF1H104Z C 0.1UF, Z, 50V
C883 ECJ2VF1H104Z C 0.1UF, Z, 50V
C971 ECJ2VF1H103Z C 0.01UF, Z, 50V
DIODES
D002 MTZJ18B ZENER DIODE
D003 MTZJ16A ZENER DIODE

Ref. No. PartNo. PartName& Description Remarks
D011 MA152KTX DIODE
D1105 MTZJ7.5C ZENER DIODE
D1120 MA152KTX DIODE
D1130 MTZJ5.6C ZENER DIODE
IC451 AN5522 IC
IC601 TDA9590N48AX IC
IC801 C5HABZZ00116 IC, POWER SUPPLY
IC802 C0EAS0000026 IC
IC851 C0DAAHF00005 IC, POWER SUPPLY
IC880 AN77L05 LINEAR IC
COILS
L001 G0C100K00008 COIL
L002 EXC3BB221H CHIPBEAD CORE
L1051 EXCELSA35T BEAD CORE
L1101 TALV35VB331K PEAKING COIL
L1110 EXCELSA35T BEAD CORE
L120 TLTACTR56K PEAKING COIL
L125 TALV35VB8R2K PEAKING COIL
L181 G0C100K00008 COIL
L182 TALV35VB6R8K PEAKING COIL
L183 TALV35VB5R6K PEAKING COIL
L184 TALV35VB6R8K PEAKING COIL
L3016 EXCELSA39V BEAD CORE
L3137 EXCELSA39V BEAD CORE
L352 EXCELSA24T BEAD CORE
L401 EXCELSA35T BEAD CORE
L502 EXCELSA35T BEAD CORE
L510 EXCELSA35T BEAD CORE
L511 EXCELSA35T BEAD CORE
L550 J0JKB0000038 COIL
L602 EXCELSA39V BEAD CORE
L603 EXCELSA39V BEAD CORE
L605 EXCELSA35T BEAD CORE
L606 EXCELSA35T BEAD CORE
L607 EXCELDR35V CORE
L620 TSK1045 BEAD CORE
L801 ELF21V012S LINEFILTER
L820 EXCELSA39E BEAD CHOKE
L821 EXCELSA35T BEAD CORE
L852 EXCELSA35B BEAD CORE
L853 EXCELSA39E BEAD CHOKE
L854 EXCELSA35B BEAD CORE
L862 TLTACT1R5K PEAKING COIL
L871 TLTACT1R5K PEAKING COIL
L872 TLTACT1R5K PEAKING COIL
L873 EXCELSA39V BEAD CORE
TRANSISTORS
Q001 B1ABCE000005 TRANSISTOR
Q101 B1ABCE000005 TRANSISTOR
Q102 2SC2480TX TRANSISTOR
Q103 2SD2114KT TRANSISTOR
Q105 B1ABCE000005 TRANSISTOR
Q1052 B1ABCE000005 TRANSISTOR

Ref. No. PartNo. PartName& Description Remarks
Q1053 B1ABCE000005 TRANSISTOR
Q1110 2SB709ATX TRANSISTOR
Q180 2SB709ATX TRANSISTOR
Q2120 B1ABCE000005 TRANSISTOR
Q2380 B1ABCE000005 TRANSISTOR
Q2381 2SB709ATX TRANSISTOR
Q3030 B1ABCE000005 TRANSISTOR
Q3031 B1ABCE000005 TRANSISTOR
Q3150 B1ABCE000005 TRANSISTOR
Q3151 2SB709ATX TRANSISTOR
Q369 2SB709ATX TRANSISTOR
Q501 2SC4212H TRANSISTOR
Q520 2SB792ATX TRANSISTOR
Q551 2SC5902000LK TRANSISTOR
Q580 B1ABCE000005 TRANSISTOR
Q581 2SB709ATX TRANSISTOR
Q601 2SB709ATX TRANSISTOR
Q602 B1ABCE000005 TRANSISTOR
R190 ERJ6GEYJ391 M390OHM,J,1/10W
R2120 ERJ6GEYJ103 M10KOHM,J,1/10W
R2121 ERJ6GEYJ683 M68KOHM,J,1/10W
R2122 ERJ6GEYJ683 M68KOHM,J,1/10W
R2302 ERJ6GEYJ153 M15KOHM,J,1/10W
R2303 ERJ6GEYJ472 M4.7KOHM,J,1/10W
R2380 ERJ6GEYJ151 M150OHM,J,1/10W
R2381 ERJ6GEYJ102 M1KOHM,J,1/10W
R2382 ERJ6GEYJ102 M1KOHM,J,1/10W
R2383 ERJ6GEYJ103 M10KOHM,J,1/10W
R2384 ERJ6GEYJ100 M10OHM,J,1/10W
R3015 ERJ6GEYJ101 M100OHM,J,1/10W
R3022 ERJ6GEYJ101 M100OHM,J,1/10W
R3034 ERJ6GEYJ181 M180OHM,J,1/10W
R3035 ERJ6GEYJ560 M56OHM,J,1/10W
R3036 ERJ6GEYJ330 M33OHM,J,1/10W
R3037 ERJ6GEYJ331 M330OHM,J,1/10W
R3048 ERJ6GEYJ184 M180KOHM,J,1/10W
R3132 ERJ6GEYJ331 M330OHM,J,1/10W
R3133 ERJ6GEYJ331 M330OHM,J,1/10W
R3142 ERJ6GEYJ184 M180KOHM,J,1/10W
R3145 ERJ6GEYJ101 M100OHM,J,1/10W
R3150 ERJ6GEYJ273 M27KOHM,J,1/10W
R3151 ERJ6GEYJ152 M1.5KOHM,J,1/10W
R3152 ERJ6GEYJ681 M680OHM,J,1/10W
R3153 ERJ6GEYJ561 M560OHM,J,1/10W
R3154 ERJ6GEYJ102 M1KOHM,J,1/10W
R351 ERJ6ENF1001 M1KOHM, 1/10W
R352 ERJ6ENF1001 M1KOHM, 1/10W
R353 ERJ6ENF1001 M1KOHM, 1/10W
R354 ERJ6ENF7870 M787OHM, 1/10W
R355 ERJ6ENF7870 M787OHM, 1/10W
R356 ERJ6ENF7870 M787OHM, 1/10W
R363 ERC12GK222 S2.2KOHM,K, 1/2W
R364 ERC12GK222 S2.2KOHM,K, 1/2W
R365 ERC12GK222 S2.2KOHM,K, 1/2W
