Panasonic TC-60PUT54 User manual

UT54 series
M0212-0

Watching TV
Cable / Satellite / Fiber with a box
Antenna / Cable service without a box
Blu-ray, DVD, Game Console, etc.
For best picture
For best audio
3D
Initial setting 11
Initial setting 12
Select channels 13
Favorite channels (Set) 14
Favorite channels (Display) 15
Closed caption 16
SAP 17
Other 18
Connecting and viewing (1) 19
Connecting and viewing (2) 20
HDMI connection notice 21
HDMI connection caution 22
Input signal 23
Picture mode 24
Auto brightness (ECO) 25
Aspect 26
Aspect info. 27
Basic adjustments 28
Advanced audio 29
2

Internet services "VIERA Connect"
Connect to network
Network settings
How to use
Notice 30
Viewing 3D 31
Change 3D
⇔
2D 32
Adjust 3D images 33
3D settings (1) 34
3D settings (2) 35
Network connections (1) 36
Network connections (2) 37
Network connections (3) 38
Network connections (4) 39
Setting menu 40
Connection test 41
Network connection 42
Wireless network settings 43
IP address/DNS settings 44
Proxy settings 45
Network link (1) 46
Network link (2) 47
Software update 48
New software notice 49
Network status 50
Operate 51
3

Home network "DLNA"
Get started
Connect to network
Network settings
Photos
Videos
Information 52
Network connections (1) 53
Network connections (2) 54
Network connections (3) 55
Network connections (4) 56
Setting menu 57
Connection test 58
Network connection 59
Wireless network settings 60
IP address/DNS settings 61
Proxy settings 62
Network link (1) 63
Network link (2) 64
Software update 65
New software notice 66
Network status 67
Viewing Photos 68
Photo view 69
Options menu 70
Using slideshow 71
Slideshow settings 72
4

Music
Data information
Media player
Get started
Photos
Videos
Viewing Videos 73
Video view 74
Options menu 75
Playing Music 76
Music view 77
Options menu 78
Compatible Data format (1) 79
Compatible Data format (2) 80
Compatible Data format (3) 81
Notice 82
Information 83
Media warning messages 84
SD card handling cautions 85
Viewing Photos 86
Photo view 87
Sort the photos 88
Options menu 89
Multi shot 3D / Thumbnails size 90
Using slideshow 91
Slideshow settings 92
Soundtrack settings 93
5

Music
Data information
Convenience features
Using VIERA TOOLS
Timer
Lock (parental control)
Viewing Videos 94
Video view 95
Options menu 96
Playing Music 97
Music view 98
Options menu 99
Compatible Data format (1) 100
Compatible Data format (2) 101
Compatible Data format (3) 102
Notice 103
Using VIERA TOOLS 104
Setting menu 105
Sleep (Off timer) 106
Timer (On/Off timer) 107
Setting menu 108
Lock (1) 109
Lock (2) 110
Password setting 111
Parental control ratings (1) 112
Parental control ratings (2) 113
Parental control ratings (3) 114
6

Closed caption
VIERA Link ™ "HDAVI Control ™"
Control by smartphone, etc.
Using USB Keyboard / Gamepad
All settings
Setting menu 115
Closed caption (1) 116
Closed caption (2) 117
Closed caption notice 118
Basic feature 119
Connecting note (1) 120
Connecting note (2) 121
VIERA Link connections (1) 122
VIERA Link connections (2) 123
VIERA Link connections (3) 124
VIERA Link settings 125
VIERA Link settings feature (1) 126
VIERA Link settings feature (2) 127
VIERA Link settings feature (3) 128
VIERA Link 129
VIERA Link menu (1) 130
VIERA Link menu (2) 131
Smartphone remote 132
Keyboard 133
Gamepad 134
Setting menu 135
7

Audio
Network
Timer
Lock (parental control)
Basic settings (1) 136
Basic settings (2) 137
Aspect adjustments 138
HDMI settings 139
Advanced picture (1) 140
Advanced picture (2) 141
Setting menu 142
Basic settings 143
Advanced audio 144
DTV language and SAP settings 145
DIGITAL AUDIO OUT terminal 146
Network settings (1) 147
Network settings (2) 148
Network settings (3) 149
Network settings (4) 150
Network settings (5) 151
Setting menu 152
Sleep (Off timer) 153
Timer (On/Off timer) 154
Setting menu 155
Lock (1) 156
Lock (2) 157
Password setting 158
8

Setup
Support / FAQ
FAQ
Parental control ratings (1) 159
Parental control ratings (2) 160
Parental control ratings (3) 161
Setting menu 162
3D settings (1) 163
3D settings (2) 164
ANT/Cable setup (1) 165
ANT/Cable setup (2) 166
Anti Image retention 167
Closed caption (1) 168
Closed caption (2) 169
Closed caption notice 170
VIERA Link settings (1) 171
VIERA Link settings (2) 172
ECO/energy saving (1) 173
ECO/energy saving (2) 174
Advanced setup 175
Other settings (1) 176
Other settings (2) 177
Picture - Viewing 178
Picture - Snowy / none 179
Picture - Distortion 180
Picture - Continue 181
9

Care and Cleaning
Sound - none 182
Sound - Unusual 183
Networking 184
Software update 185
3D - Viewing 186
3D - Format 187
Other 188
Menu - Gray-out 189
Reset to default 190
Display panel 191
Cabinet 192
Pedestal / Power cord 193
Meaning of signs :
Press the Remote control button
INFO Letters in box : Remote control button
MENU Letters in Cyan : Menus on screen display
10

Watching TV
Cable / Satellite / Fiber with a box
Initial setting
1. Connecting
Select the wiring method connecting your box to the TV, AV IN or
Antenna/Cable in.
Tip: HDMI will provide the best HD picture
2. Change INPUT
INPUT
Press the INPUT button to select the proper connection. Wait 2 seconds.
3. Power on your Cable , Satellite or Fiber box
Use the box's remote control to change channels.
*If the box is connected to the TV using a COAX cable (Antenna/Cable in), then
set the TV channel to CH3 or CH4. Note that the picture will not be in HD.
*CC/SAP is not available when watching TV with a Cable or Satellite box
connected via HDMI.
*If your box is a high definition, then check that it is outputting 720p or 1080i
signal.
Tip: press the TV's INFO button to verify.
*Check your box "aspect" or "format" settings. It should be set to 16:9,
Widescreen or FULL.
*If the audio volume is too low, check the box's audio settings.
*Contact your Cable or Satellite provider for instructions on any box settings.
11

Watching TV
Antenna / Cable service without a box
Initial setting
1. Connect coax
Connect a COAX wire from either an antenna or Basic Cable service to the TV's
"ANTENNA/CABLE IN" screw terminal.
TV
ANTENNA/
CABLE IN Antenna
2. Scan the channel
MENU Setup > ANT/Cable setup > ANT in, Auto program
1. Select Programming source Cable or Antenna in Ant in.
2. Select Auto program and select scan mode
(All channels / Analog only / Digital only).
3. Start scanning.
*If at the end of the scanning no channels are found, then check:
Antenna's position - or Availability of Cable service.
Cable, Satellite or Fiber services with a box are typically connected to the TV's
A/V inputs, preferably HDMI, for best HD picture. In such a case, the channel
scanning is not needed (set ANT IN to Not used).
12

Watching TV
Antenna / Cable service without a box
Select channels
Select desired channel
or
CH buttons are also available on the TV.
Select desired digital channel
To directly enter a digital channel number use
When turning to a digital channel, press the button to enter the minor number in a
compound channel number.
(e.g. CH15-1 )
13

Watching TV
Antenna / Cable service without a box
Favorite channels (Set)
Channel numbers registered in Favorite are displayed on the favorite tune screen.
Select the desired broadcast station with the cursor or use the number buttons.
Favorite channels cannot be set when using Cable or Satellite box
Set the Favorite channel
OPTION Options menu > Set favorite
Select the list number using /and or directly to save the
displayed channel.
Delete a Favorite channel
OPTION Options menu > Set favorite
Select the list number using /and (press and hold) to delete.
* To change the page in Set favorite
FAVORITE or /repeatedly
14

Watching TV
Antenna / Cable service without a box
Favorite channels (Display)
Channel numbers registered in Favorite are displayed on the favorite tune screen.
Select the desired broadcast station with the cursor or use the number buttons.
Favorite channels cannot be set when using Cable or Satellite box.
To display a Favorite channel
FAVORITE Favorite channels
Select the list number using /and or directly to displayed
on favorite screen.
* To change the page in Favorite channels
FAVORITE or /repeatedly
15

Watching TV
Antenna / Cable service without a box
Closed caption
Viewing with Closed caption
CC
Switches the Closed caption mode.
( Closed caption Off / Closed caption On / Closed caption On mute )
*CC is not available when watching TV with a Cable or Satellite box connected
via HDMI.
*Contact your Cable or Satellite operator for instructions on enabling CC with
their box.
*The TV's CC button does not operate the Satellite or Cable box's CC function.
*For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing
with H-FILL, JUST, ZOOM or 4:3; characters might be cut off).
*If the CC is set to On on both the receiver and TV when the signal is 480i
(except for the HDMI connection), the CC may overlap on the TV.
*If a digital program is being output in analog format, the CC data will also be
output in analog format.
*If the recorder or output monitor is connected to the TV, the CC needs to be set
up on the recorder or output monitor.
16

Watching TV
Antenna / Cable service without a box
SAP
Listen with SAP (Secondary Audio Programming)
SAP is not available when watching TV with a Cable or Satellite box connected
via HDMI.
Contact your Cable or Satellite operator for instructions on enabling SAP with
their box.
The TV's SAP button does not operate the Satellite or Cable box's SAP
function.
Select the Audio mode for watching TV.
SAP
Digital mode: Select available audio service when receiving a digital channel.
Audio track is automatically selected as DTV language and SAP settings in
Audio menu.
Menu > Audio > DTV language and SAP settings
*If you change the audio settings with the SAP button, the DTV language and
SAP settings will not change.
Audio track 1 of 7 Track number / Number of tracks
English (Main
Audio) Current audio track information (language, audio
type)
English audio Audio service information
(example)
Analog mode: Select the desired Audio mode. ( Stereo / SAP / Mono )
17

Watching TV
Antenna / Cable service without a box
Other
1. Information banner
Displays TV status information. Also, when watching programs via the
Antenna/Cable input, INFO will include the channel banner.
INFO
Channel / Station identifier / Program title / Closed caption / SAP /
Rating level / Signal resolution / Picture mode / Aspect ratio /
Sleep timer remaining time / Clock
2. Options menu
This menu consists of shortcuts to convenient functions.
OPTION
Channel surf mode: Specify favorites or type of channels to view when
pressing the channel up/down button.
Set favorite: Set favorite channel
Edit CH caption: Edit the channel identifier
Signal meter: Check the antenna's signal strength
*Options menu is only available when the TV is using the Antenna/Cable input,
not when using Cable or Satellite box.
18

Watching TV
Blu-ray, DVD, Game Console, etc.
Connecting and viewing (1)
1. Connect device
Verify that the device is connected to the TV properly and connect to desired
terminal. Note which terminal the device is connected to (HDMI 1, HDMI 2,...
Component or Video)
Component and Composite (Video) in terminals are shared.
Please be careful not to confuse the connection when you use Component or
Video.
19

Watching TV
Blu-ray, DVD, Game Console, etc.
Connecting and viewing (2)

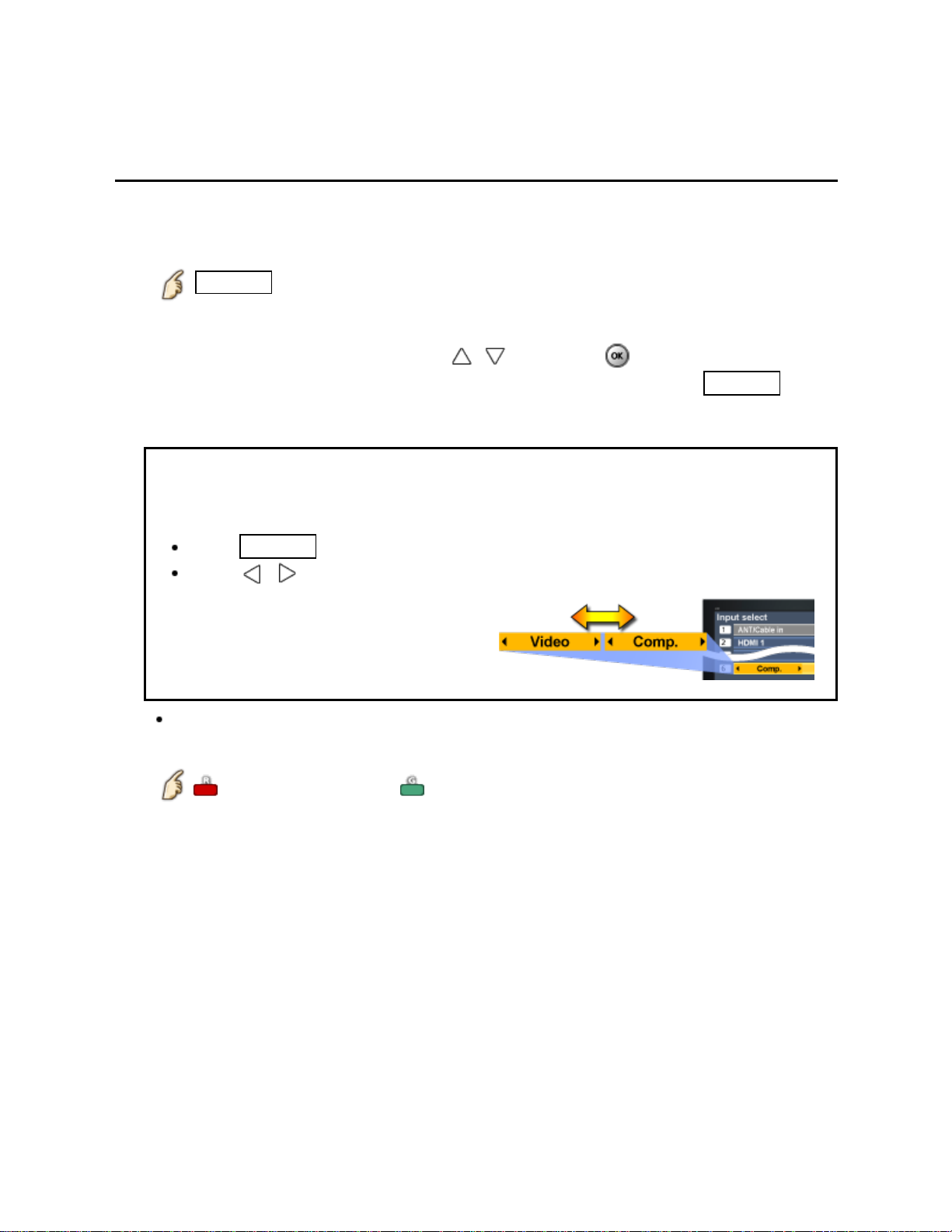

2. Select Input
1. Display Input select menu (With the connected equipment turned ON)
INPUT
2. Select the input used in step 1
Select correct input source, using /and press
You can also press the corresponding NUMBER button or press INPUT
repeatedly to cycle through the available inputs. If you are unsure which input to
select, wait 2 seconds between each selection.
Component and Composite (Video) IN terminals are shared.
You need to select Video or Component.
(Default: Video)
Press INPUT and select Video <-> Comp.
Press / to choose Video or Component.
For your convenience, you can edit the inputs with labels that are easy to
remember.
Edit Labels Set ANT/Cable in
3. Operate using your device's remote control.
20
