Panasonic CT-13R4 User manual

anasoni
just slightly ahead of our time”
Les!
20 135
CT-20G24. CT-Z1417X eoo
CT-20G34 CT-21G14X CT-Z2147L
CT-20R16 CT-G2167L

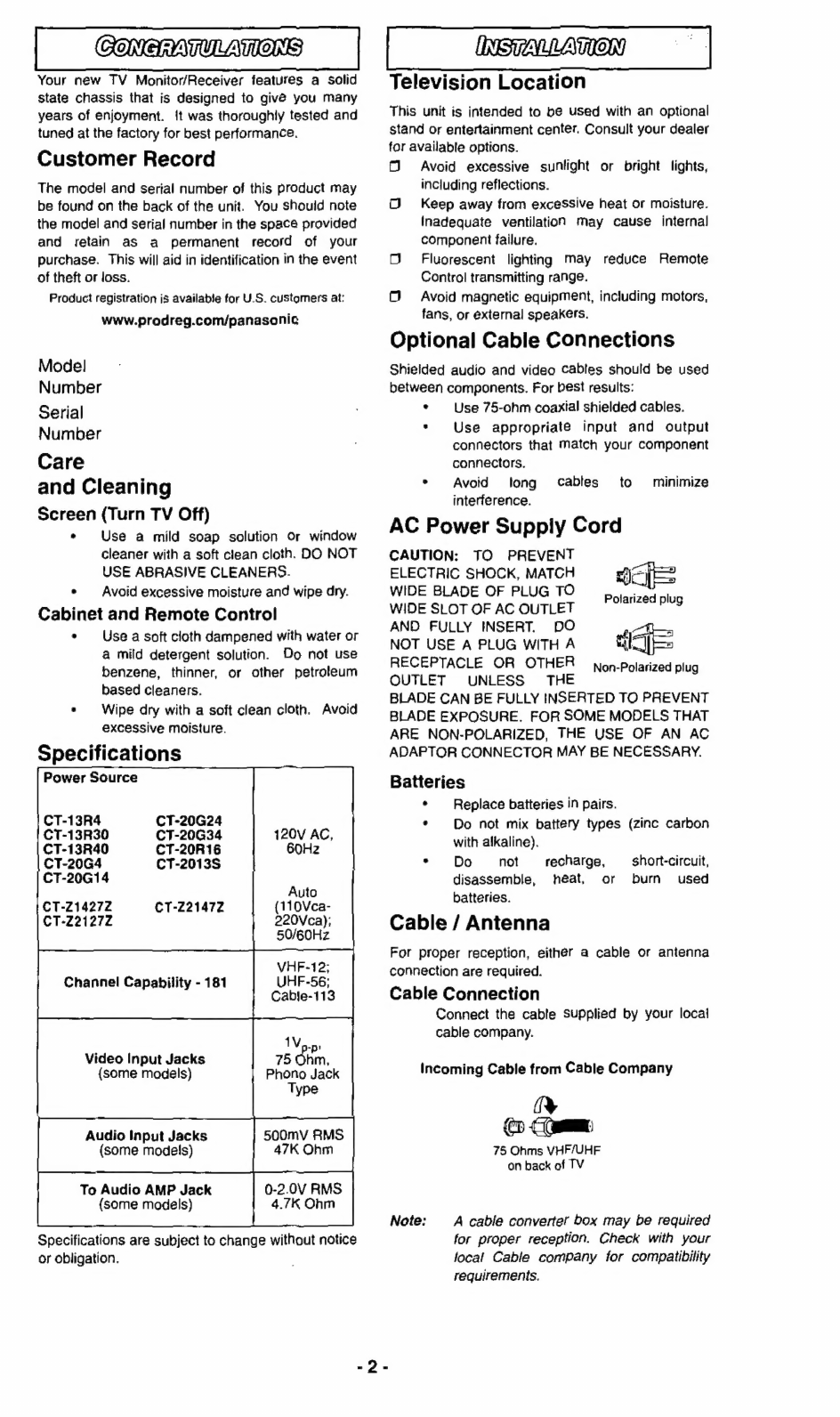

CONAMRLATIONS IBTVLATION |
Your new TV Monitor/Receiver features a solid
state chassis that is designed to givé you many
years of enjoyment. it was thoroughly tested and
tuned at the factory for best performance.
Customer Record
The model and serial number of this product may
be found on the back of the unit. You should note
the model and serial number in the space provided
and retain as a permanent record of your
purchase. This will aid in identification in the event
of theft or loss.
Product registration is available for U.S. customers at:
www.prodreg.com/panasonic
Model
Number
Serial
Number
Care
and Cleaning
Screen (Turn TV Off)
+ Use a mild soap solution Or window
cleaner with a soft clean cloth. DO NOT
USE ABRASIVE CLEANERS.
e Avoid excessive moisture and wipe dry.
Cabinet and Remote Control
* Use a soft cloth dampened with water or
a mild detergent solution. Do not use
benzene, thinner, or other petroleum
based cleaners.
* Wipe dry with a soft clean cloth. Avoid
excessive moisture.
Specifications
Power Source
CT-13R4 CT-20G24
CT-13R30 CT-20G34 120V AC,
CT-13R40 CT-20R16 60H2
CT-20G4 CT-2013S
CT-20G14
Auto
€T-Z14272 CT-221472 (110Vca-
CT-Z21272Z 220Vca);
50/60Hz
VHF-12;
UHF-56;
Cable-113
Channel Capability - 181
IVi
Video Input Jacks 75 Ohm,
{some models) Phono Jack
Type
Audio Input Jacks 500mV RMS
(some models) 47K Ohm
To Audio AMP Jack 0-2.0Y RMS
(some models) 4.7K Ohm
Specifications are subject to change without notice
or obligation.
Television Location
This unit is intended to be used with an optional
stand or entertainment center. Consult your dealer
for available options.
O Avoid excessive suntight or bright lights,
including reflections.
O Keep away from excessive heat or moisture.
Inadequate ventilation may cause internal
component failure.
O Fluorescent lighting May reduce Remote
Control transmitting range.
O Avoid magnetic equipment, including motors,
fans, or external speakers.
Optional Cable Connections
Shielded audio and video cables should be used
between components. For best results:
* Use 75-ohm coaxial shielded cables.
* Use appropriate input and output
connectors that Match your component
connectors.
+ Avoid long
interference.
AC Power Supply Cord
CAUTION: TO PREVENT
dae
ELECTRIC SHOCK, MATCH
Polarized plug
WIDE BLADE OF PLUG TO
dE
WIDE SLOT OF AC OUTLET
Non-Polarized plug
cables to minimize
AND FULLY INSERT. DO
NOT USE A PLUG WITH A
RECEPTACLE OR OTHER
OUTLET UNLESS THE
BLADE CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE. FOR SOME MODELS THAT
ARE NON-POLARIZED, THE USE OF AN AC
ADAPTOR CONNECTOR MAY BE NECESSARY.
Batteries
* Replace batteries in pairs.
+ Do not mix battery types (zinc carbon
with alkaline).
+ Do not recharge, short-circuit,
disassemble, heat, or burn used
batteries.
Cable / Antenna
For proper reception, either a cable or antenna
connection are required.
Cable Connection
Connect the cable Supplied by your local
cable company.
Incoming Cable from Cable Company
[>
@ CIBER:
75 Ohms VHF/UHF
on back of TV
Note: A cable converter box may be required
for proper reception. Check with your
local Cable company for compatibility
requirements.

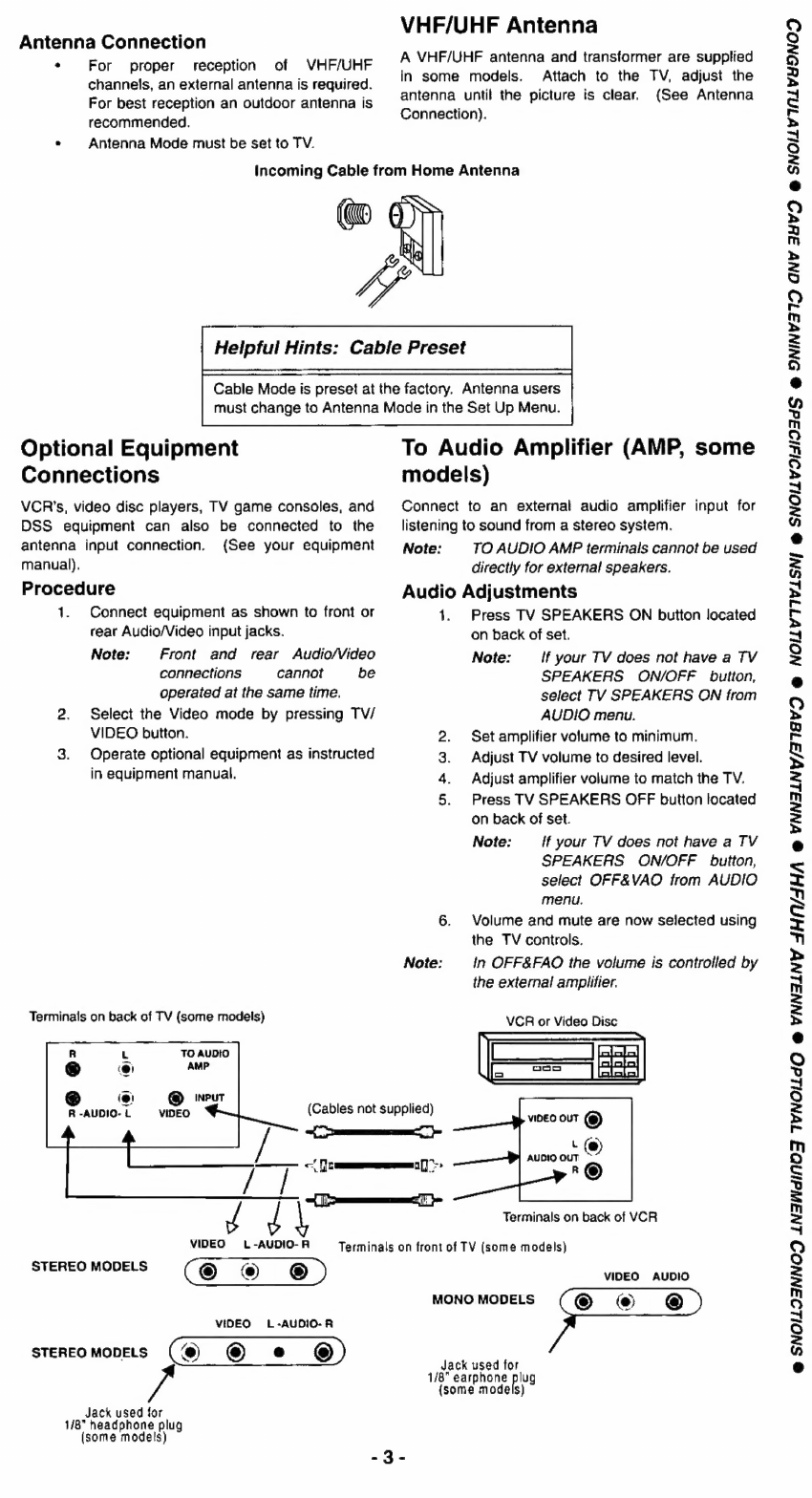

Antenna Connection
* For proper reception of VHF/UHF
channels, an external antenna is required.
For best reception an outdoor antenna is
recommended.
. Antenna Mode must be set to TV.
VHF/UHF Antenna
A VHF/UHF antenna and transformer are supplied
in some models. Attach to the TV, adjust the
antenna until the picture is clear. (See Antenna
Connection).
Incoming Cable from Home Antenna
@
4
Helpful Hints: Cable Preset
Cable Mode is preset at the factory, Antenna users
must change to Antenna Mode in the Set Up Menu,
Optional Equipment
Connections
VCR's, video disc players, TV game consoles, and
DSS equipment can also be connected to the
antenna input connection. (See your equipment
manual).
Procedure
1. Connect equipment as shown to front or
rear Audio/Video input jacks.
Note: Front and rear Audio/Video
connections cannot be
operated at the same time.
2. Select the Video mode by pressing TV/
VIDEO button.
3. Operate optional equipment as instructed
in equipment manual.
Terminals on back of TV (some models)
To Audio Amplifier (AMP, some
models)
Connect to an external audio amplifier input for
listening to sound from a stereo system.
Note: TO AUDIO AMP terminals cannot be used
directly for external speakers.
Audio Adjustments
1. Press TV SPEAKERS ON button located
on back of set.
Note: if your TV does not have a TV
SPEAKERS ON/OFF button,
select TV SPEAKERS ON from
AUDIO menu.
Set amplifier volume to minimum.
Adjust TV volume to desired level.
Adjust amplifier volume to match the TV.
Press TV SPEAKERS OFF button located
on back of set.
Note: if your TV does not have a TV
SPEAKERS ON/OFF button,
select OFF&VAO from AUDIO
menu.
6. Volume and mute are now selected using
the TV controls.
in OFF&FAO the volume is controlled by
the external amplifier.
wp on
Note:
VCR or Video Disc
R L TO AUDIO
® ei AMP
© © Ow |
R -AUDIO- L VIDEO (Cables not supplied) een aie ©
ee T
\@
AUDIO OUT
—
i
u)
E
R
Do
L -AUDIO- A
VIDEO
STEREO MODELS O) (8) ©
VIDEO L-AUDIO-R
Jack used for
1/8” headphone plug
(some models)
Terminals on back of VCR
Terminals on front of TV (some models)
VIDEO AUDIO
MONO MODELS
Jack used for
1/8" earphone plug
(some models)
O SNOLLOANNOD IN3AWdINOFZ TYNOILJO O VANILNY JHIVIHA O VNNILNY/118VD O NOLLVTIVASN] O SNOLLVOIHIDIAS @ DNINVITO ONY JEVI O SNOILVTINLVYONOD

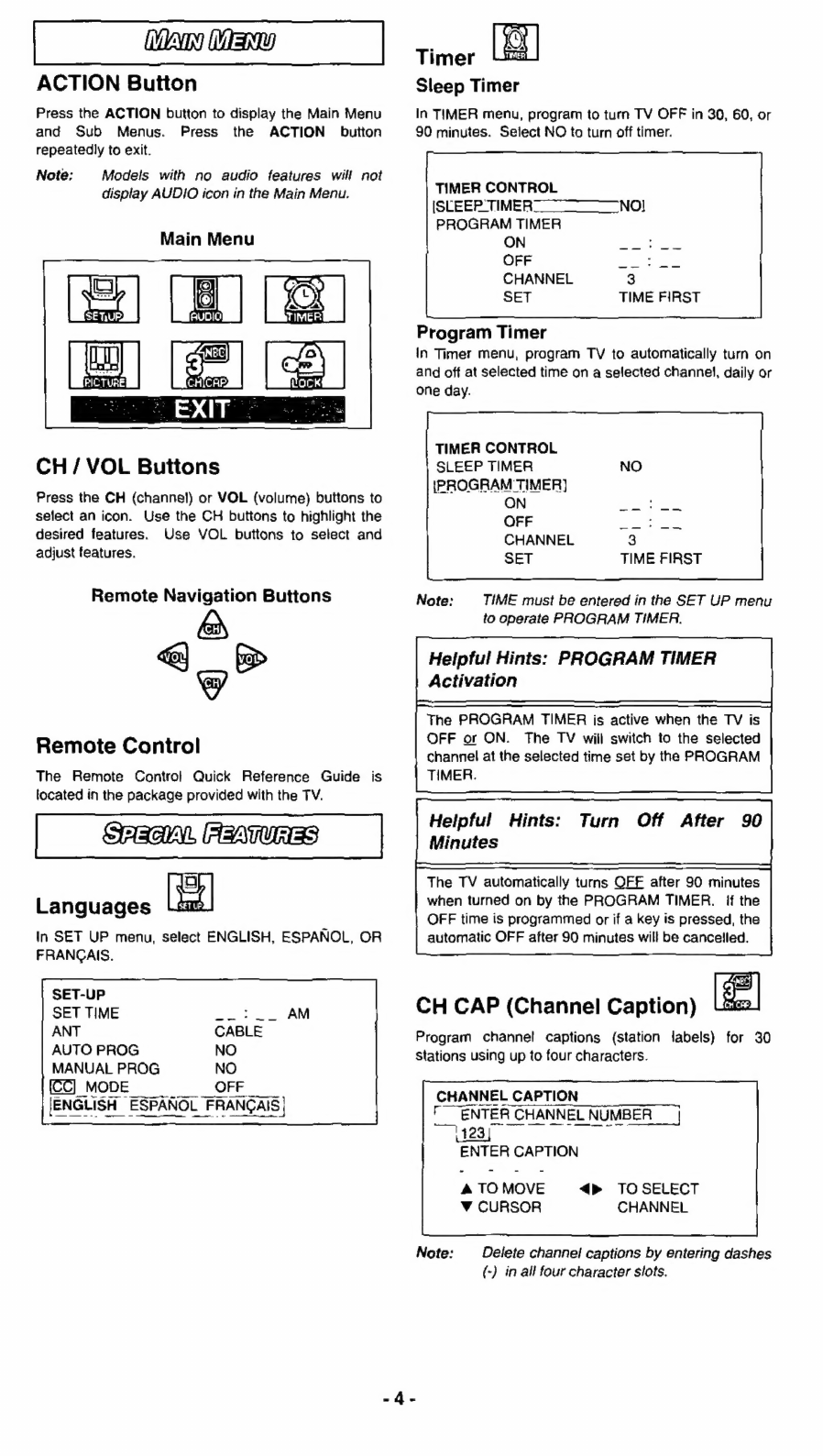

ACTION Button
Press the ACTION button to display the Main Menu
and Sub Menus. Press the ACTION button
repeatedly to exit.
Note: Models with no audio features will not
display AUDIO icon in the Main Menu.
Main Menu
A © A
SETUP. AUDIO TIMER
E
CH/VOL Buttons
Press the CH (channel) or VOL (volume) buttons to
select an icon. Use the CH buttons to highlight the
desired features. Use VOL buttons to select and
adjust features.
Remote Navigation Buttons
Q A b>
Y
Remote Control
The Remote Control Quick Reference Guide is
tocated in the package provided with the TV.
FEAL ARTUR
Languages
bed
In SET UP menu, select ENGLISH, ESPANOL, OR
FRANCAIS.
SET-UP
SET TIME
ANT
AUTO PROG
MANUAL PROG
Timer it
Sleep Timer
In TIMER menu, program to turn TV OFF in 30, 60, or
90 minutes. Select NO to turn off timer.
TIMER CONTROL
[SLEEP TIMER]
PROGRAM TIMER
ON
OFF sue
CHANNEL 3
SET TIME FIRST
Program Timer
In Timer menu, program TV to automatically turn on
and off at selected time on a selected channel, daily or
one day.
TIMER CONTROL
SLEEP TIMER
[PROGRAM TIMER]
ON
OFF a
CHANNEL 3
SET TIME FIRST
TIME must be entered in the SET UP menu
to operate PROGRAM TIMER.
Note:
Helpful Hints: PROGRAM TIMER
Activation
The PROGRAM TIMER is active when the TV is
OFF or ON. The TV will switch to the selected
channel at the selected time set by the PROGRAM
TIMER.
Helpful Hints: Turn Off After 90
Minutes
The TV automatically turns OFF after 90 minutes
when turned on by the PROGRAM TIMER. if the
OFF time is programmed or if a key is pressed, the
automatic OFF after 90 minutes will be cancelled.
vee}
CH CAP (Channel Caption)
Program channel captions (station labels) for 30
Stations using up to four characters.
CHANNEL CAPTION
(ENTER CHANNEL NUMBER |
~ 1423 sl
ENTER CAPTION
A TO MOVE
Y CURSOR
dp TO SELECT
CHANNEL
Note: Delete channel captions by entering dashes
(-) in all four character slots.

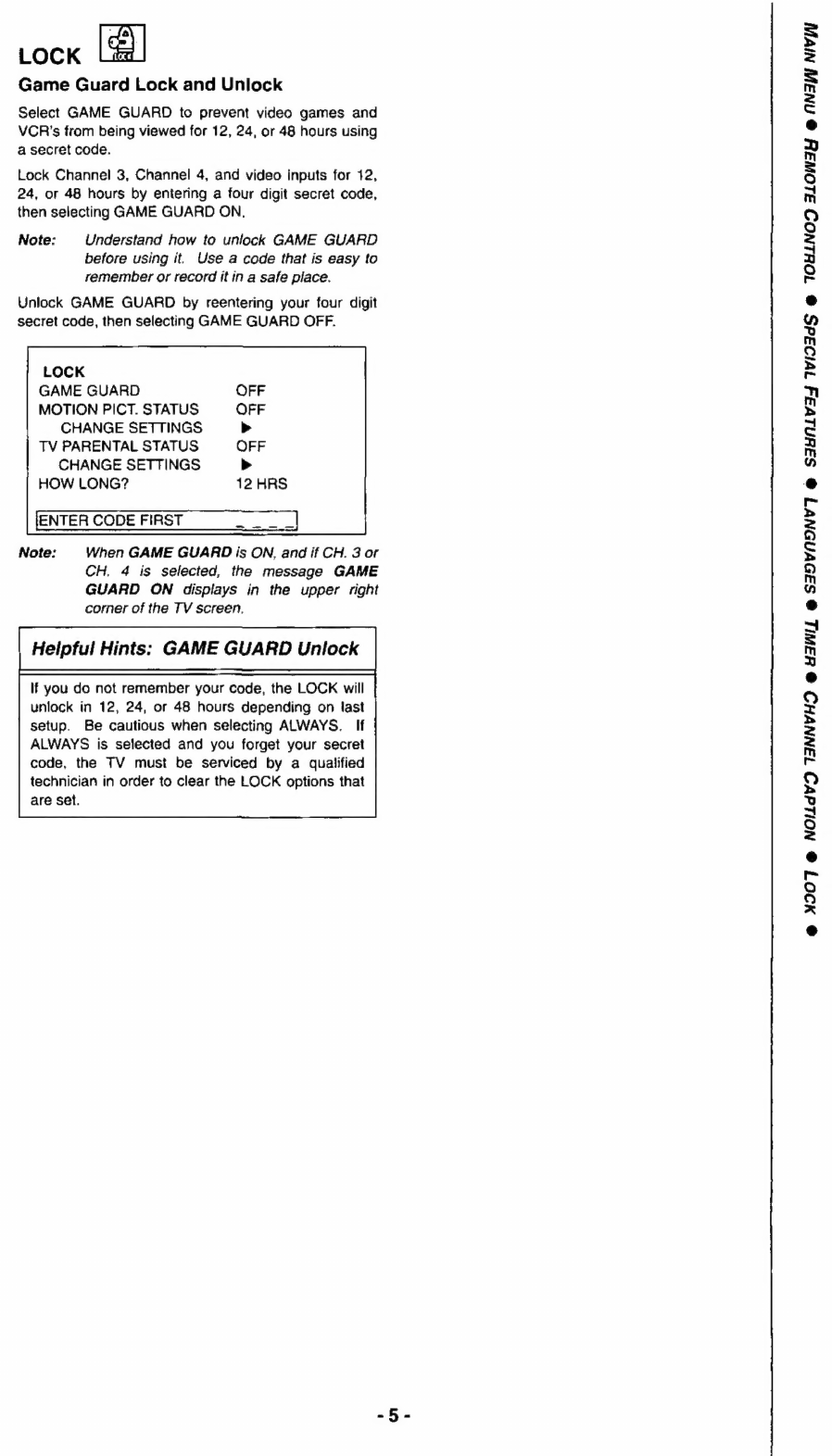

LOCK Faj
Game Guard Lock and Unlock
Select GAME GUARD to prevent video games and
VCR's from being viewed for 12, 24, or 48 hours using
a secret code.
Lock Channel 3, Channel 4, and video inputs for 12,
24, or 48 hours by entering a four digit secret code,
then selecting GAME GUARD ON.
Note: Understand how to unlock GAME GUARD
before using it. Use a code that is easy to
remember or record it in a safe place.
Unlock GAME GUARD by reentering your four digit
secret code, then selecting GAME GUARD OFF.
LOCK
GAME GUARD
MOTION PICT. STATUS
CHANGE SETTINGS
TV PARENTAL STATUS
CHANGE SETTINGS
HOW LONG?
ENTER CODE FIRST
Note: When GAME GUARD is ON, and if CH. 3 or
CH. 4 is selected, the message GAME
GUARD ON displays in the upper right
corner of the TV screen,
Helpful Hints: GAME GUARD Unlock
If you do not remember your code, the LOCK will
unlock in 12, 24, or 48 hours depending on last
setup. Be cautious when selecting ALWAYS. If
ALWAYS is selected and you forget your secret
code, the TV must be serviced by a qualified
technician in order to clear the LOCK options that
are set.
@ 907 O NOILAVI TANNVHD @ 43WIL O SIDVNADNVT O SIHNIVIFH TVIDIAS O TOULNOD JLOWIHY @ ANNIN NIYIN
