my Home Screen
my Home Screen
Information
“my Home Screen” is a gateway to the TV, applications, and more.
It provides easy access to special features such as Media Player, videos,
games, communication tools, etc. as shown below (example).
HOME
OK
OK HOME
Home Screen
Selected content screen (TV, application, etc.)
Home Screen Selection
– Your preferred Home Screen can be selected.

- 12 -
How to use
Home Screen provides access to special features such as Media Player, TV,
internet content, data services, communication tools, etc.
1. Display Home Screen with HOME.
(Example)
●The last viewed Home Screen is displayed when the TV is turned on.
●Press again to select or add your preferred Home Screen layout.
my Home Screen > my Home Screen > Settings
2. Select a feature with / / / and press OK to access.
●To watch full-screen TV
1) Select the TV viewer with / / / .
(Example)
2) Press OK to watch.
(Example)
●Also refer to Tutorial from the tool guide.

- 13 -
Settings
Select the setup menu from the tool guide on the top of the screen.
(Example)
■Home Screen Selection
1. Display Home Screen Selection with HOME.
(Example)
2. Select the screen with / and press OK to set.
Full Screen TV:
Displays full-screen TV.
TV Home Screen:
To make your TV experience more convenient and comfortable
Lifestyle Screen:
Displays the TV with useful information and services for everyday life.
Info Screen:
Enjoy internet content while watching TV.
■Face Recognition / Voice Print Recognition
By using the Communication Camera and Voice Control function, this TV
recognises your face / voice and displays the registered Home Screen.
●Say “my Home Screen” into the microphone of the Touch Pad Controller to
use this function.
●To use this function, you need to set up a user profile and register face /
voice data, preferred Home Screen, etc.
Functions > User profile > Settings

- 14 -
●Communication Camera is not included. Please purchase as necessary.
Support > Optional accessories
●For details of Voice Control function
Functions > Voice Control
■Settings
You can customise any Home Screen. (For example, changing the wallpaper,
renaming freely, editing applications, setting the screen launched when the
TV is turned on, etc.)
1. Select Settings from the tool guide.
2. Follow the on-screen instructions.
■Search
You can search the content from various features.
1. Select Search from the tool guide.
2. Follow the on-screen instructions.
= Note =
●To change the colour type of on-screen displays, set OSD Colour.
my Home Screen > my Home Screen > OSD Colour
●To use this function fully, you need a broadband network environment.
Ensure the network connections and network settings are completed.
Network > Network connections
Network > Network settings
●Be sure to update the software when a software update notice is displayed
on the TV screen. If the software is not updated, you may not be able to
use my Home Screen. You can update the software later manually.
Network > Network settings > Software Update

- 15 -
OSD Colour
1. Display the menu with MENU.
2. Select Setup > Display Settings > OSD Colour with / and press OK
to access.
3. Set with / and press OK to store.
OSD Colour
(Jet black / Pale grey / Organic brown / Sand beige)
Selects the preferred colour type of on-screen displays.
●This function is available for the information banner, menu screen, Home
Screen, etc.

- 16 -
APPS List
Information
Various applications (internet contents, network contents, Media Player, etc.)
can be accessed easily from APPS List.
■APPS List
(Example)
= Note =
●APPS List is subject to change without notice.
How to use
You can access special features such as internet contents, network contents,
Media Player, etc. from APPS List.
1. Display APPS List with APPS.
(Example)
●To exit APPS List
EXIT
2. Select an icon of the features with / / / and press OK to access.
Internet contents
Network > Internet content
my Stream
●Provides recommended contents (TV programme, internet content,
etc.).
●You need a broadband network environment to use this function fully.
●Follow the on-screen instructions to operate the application.
Functions > User profile > my Stream

- 17 -
Media Player
Media Player > Using Media Player > Selecting device / mode
Recorded TV
Media Player > Recorded TV mode
Media Server
Network > DLNA > Using DLNA
VIERA Link
Functions > VIERA Link “HDAVI Control™”
Settings
You can customise APPS List (screen settings, etc.).
1. Display APPS List with APPS.
2. Select the icon for settings on APPS List with / / / and press OK
to access.
3. Follow the on-screen instructions.
= Note =
●Setup menu items may be changed without notice.

- 18 -
Watching
Basic
Basic connection
Please ensure that the unit is disconnected from the mains socket before
attaching or disconnecting any cables.

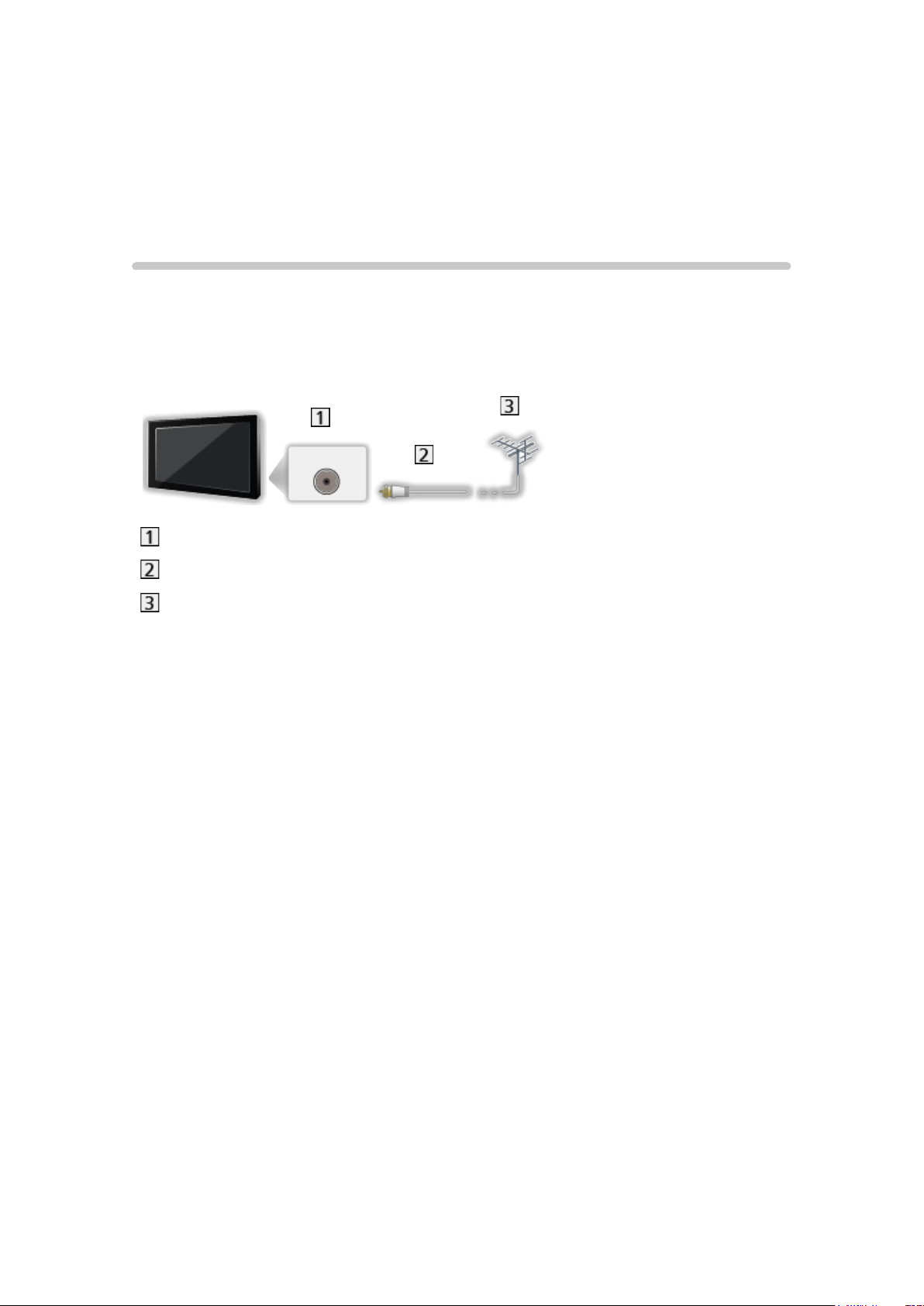

■Aerial
Aerial terminal
RF cable
Aerial
●Keep RF (antenna) cable away from the mains lead to avoid and minimise
mains interference pickup.
●Do not place the RF cable under the TV.
●Anaerial,correctcable(75Ωcoaxial)andcorrectterminatingplugare
required to obtain optimum quality picture and sound.
●If a communal aerial system is used, you may require the correct
connection cable and plug between the wall aerial socket and the TV.
●Your local Television Service Centre or dealer may be able to assist you
in obtaining the correct aerial system for your particular area and the
accessories required.
●Any matters regarding aerial installation, upgrading of existing systems or
accessories required, and the costs incurred, are the responsibility of you,
the Customer.

- 19 -
■DVD Recorder / VCR
Aerial terminal
RF cable
DVD Recorder / VCR
Aerial
HDMI terminal
HDMI cable
■Set top box
HDMI terminal
HDMI cable
Set top box
Satellite dish
= Note =
●For VIERA Link connections
Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link
●External equipment and cables shown are not supplied with this TV.
●Please also read the manual of the equipment being connected.
●Keep the TV away from electronic equipment (video equipment, etc.) or
equipment with an infrared sensor, otherwise distortion of image / sound
may occur or operation of other equipment may be affected.
●Use a fully wired HDMI compliant cable.
●Check the terminal type and cable plugs are correct when connecting.

- 20 -
Selecting channel
1. Select Digital TV or Analogue TV with TV.
●The selected mode is displayed on the top left of the screen.
2. Select a channel with Channel Up / Down or Numeric buttons.
●Press Numeric buttons to select a channel position with 2 or more-digit
(e.g. 399, press ).
■To select a channel from the channel list
1. Display the channel list with OK.
2. Select a channel from the list with / and press OK to watch.
■To select a channel using information banner
1. Display information banner with INFO if it is not displayed.
2. Select a channel with / and press OK to watch while the banner is
displayed.
Watching > Basic > Information banner
■To select a channel using TV Guide
●For Digital TV
1. Display TV Guide with GUIDE.
2. Select the current programme with / / / and press OK to
access.
3. Select View with / and press OK to watch.
Watching > TV Guide > Using TV Guide
