Panasonic MC-CJ919-R249 User manual

© Panasonic Corporation 2017 Unauthorized copy-
ing and distribution is a violation of law.
Order Number VCB1702003CE
Vacuum Cleaner
Model No. MC-CJ919-R249
Model No. MC-CJ917-K249
Model No. MC-CJ917-W249
Model No. MC-CJ915-R249
Model No. MC-CJ915-W249
Model No. MC-CJ913-K249
Model No. MC-CJ913-Y249
Model No. MC-CJ911-R249
Product Color : (R) Red (K) Black (W) White (Y) Yellow
Destination : Iran

2

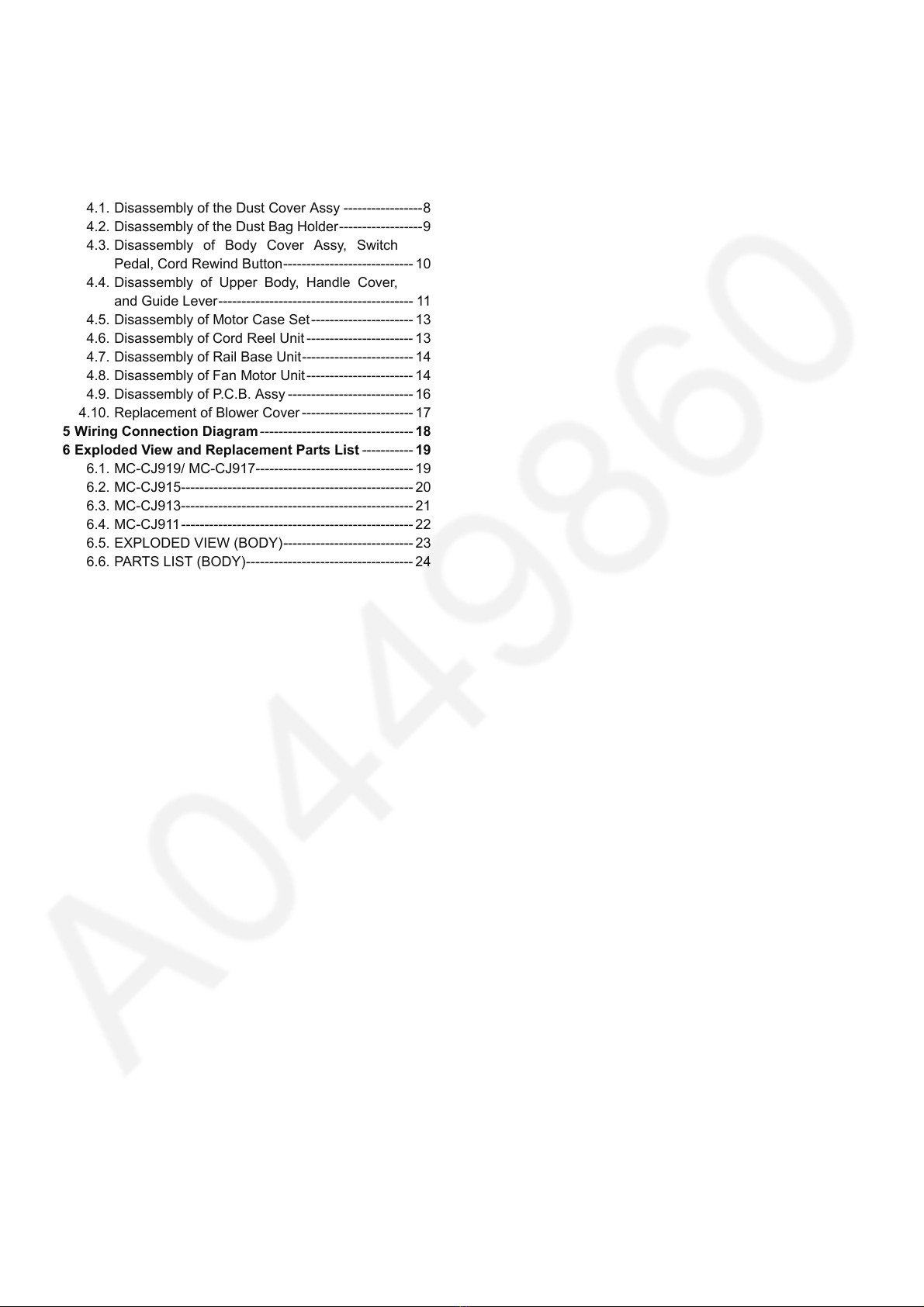

TABLE OF CONTENTS
PAGE PAGE
1 Specifications ------------------------------------------------------3
2 Location of Controls and Components--------------------4
3 Troubleshooting Guide------------------------------------------5
4 Disassembly and Assembly Instructions -----------------8
4.1. Disassembly of the Dust Cover Assy -----------------8
4.2. Disassembly of the Dust Bag Holder------------------9
4.3. Disassembly of Body Cover Assy, Switch
Pedal, Cord Rewind Button---------------------------- 10
4.4. Disassembly of Upper Body, Handle Cover,
and Guide Lever------------------------------------------ 11
4.5. Disassembly of Motor Case Set---------------------- 13
4.6. Disassembly of Cord Reel Unit ----------------------- 13
4.7. Disassembly of Rail Base Unit------------------------ 14
4.8. Disassembly of Fan Motor Unit----------------------- 14
4.9. Disassembly of P.C.B. Assy --------------------------- 16
4.10. Replacement of Blower Cover ------------------------ 17
5 Wiring Connection Diagram --------------------------------- 18
6 Exploded View and Replacement Parts List ----------- 19
6.1. MC-CJ919/ MC-CJ917---------------------------------- 19
6.2. MC-CJ915-------------------------------------------------- 20
6.3. MC-CJ913-------------------------------------------------- 21
6.4. MC-CJ911-------------------------------------------------- 22
6.5. EXPLODED VIEW (BODY)---------------------------- 23
6.6. PARTS LIST (BODY)------------------------------------ 24

3
1 Specifications

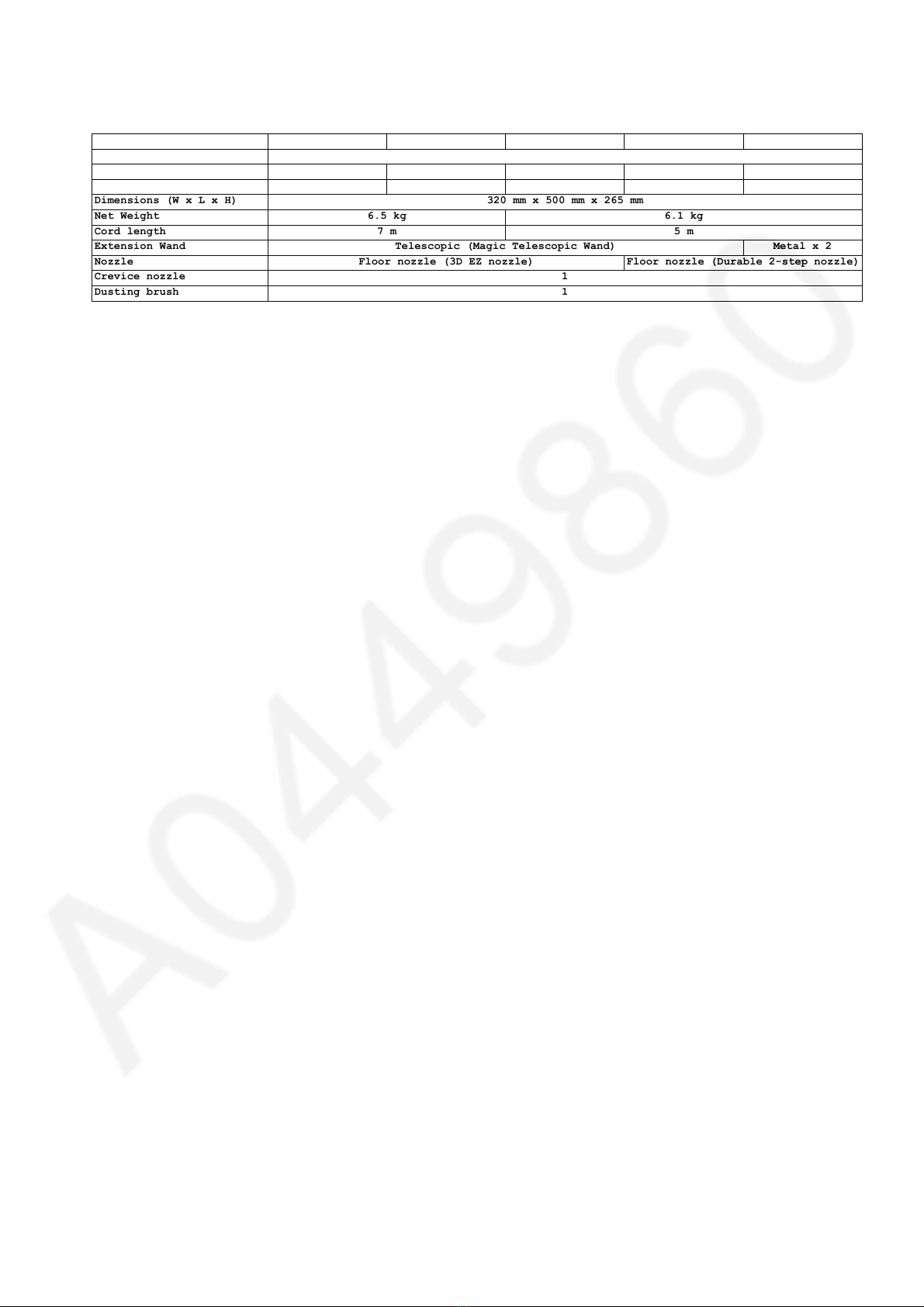

Model No. MC-CJ919 MC-CJ917 MC-CJ915 MC-CJ913 MC-CJ911
Power source 220V -240V 50/60 Hz
Max. input 2500 W 2300 W 2100 W 2000 W 1900 W
Nominal input 1700 -2100 W 1600 -2000 W 1550 -1900 W 1500 -1800 W 1450 -1700 W
Dimensions (W x L x H) 320 mm x 500 mm x 265 mm
Net Weight 6.5 kg 6.1 kg
Cord length 7 m 5 m
Extension Wand Telescopic (Magic Telescopic Wand) Metal x 2
Nozzle Floor nozzle (3D EZ nozzle) Floor nozzle (Durable 2-step nozzle)
Crevice nozzle 1
Dusting brush 1

4

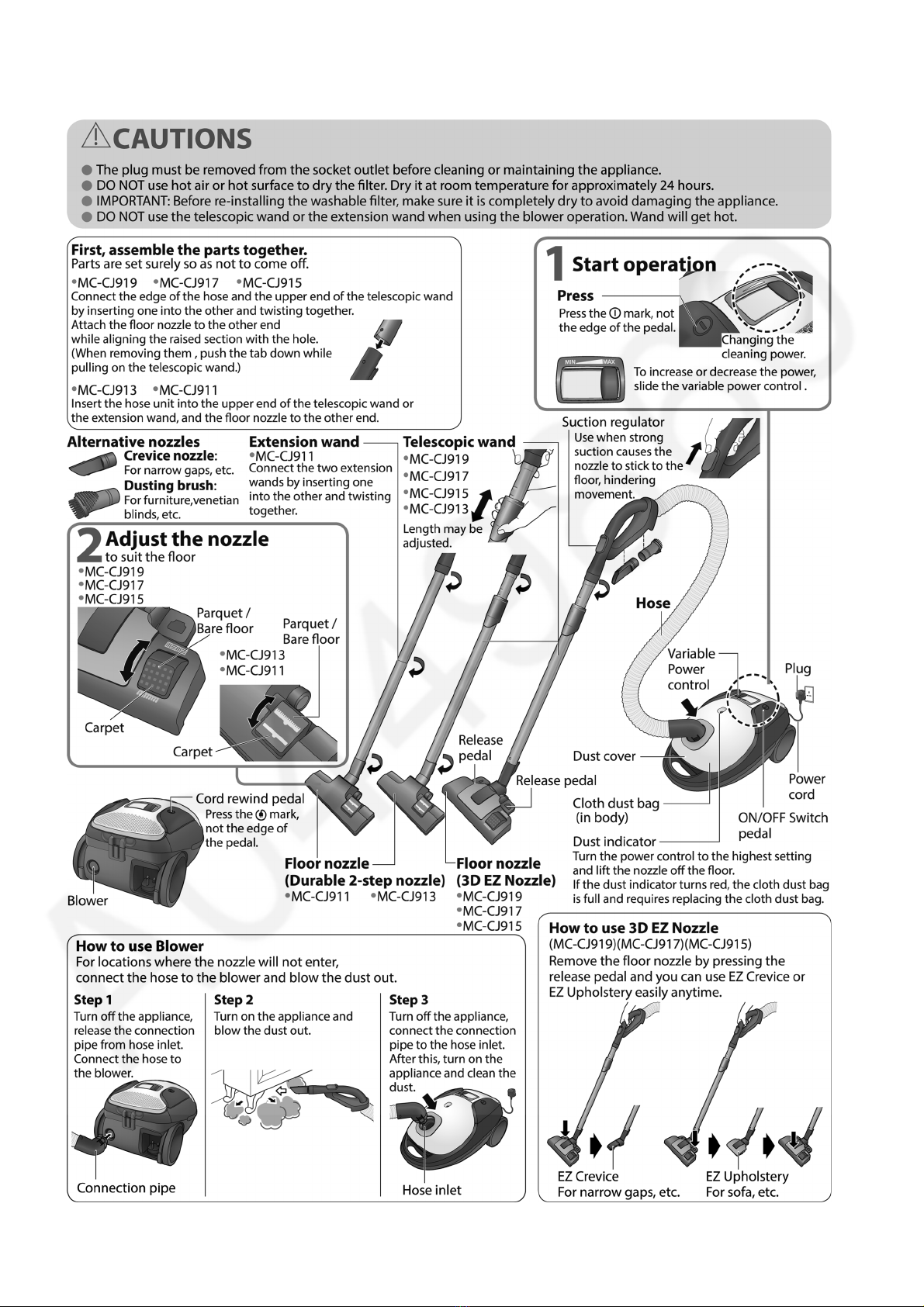

2 Location of Controls and Components

5
3 Troubleshooting Guide

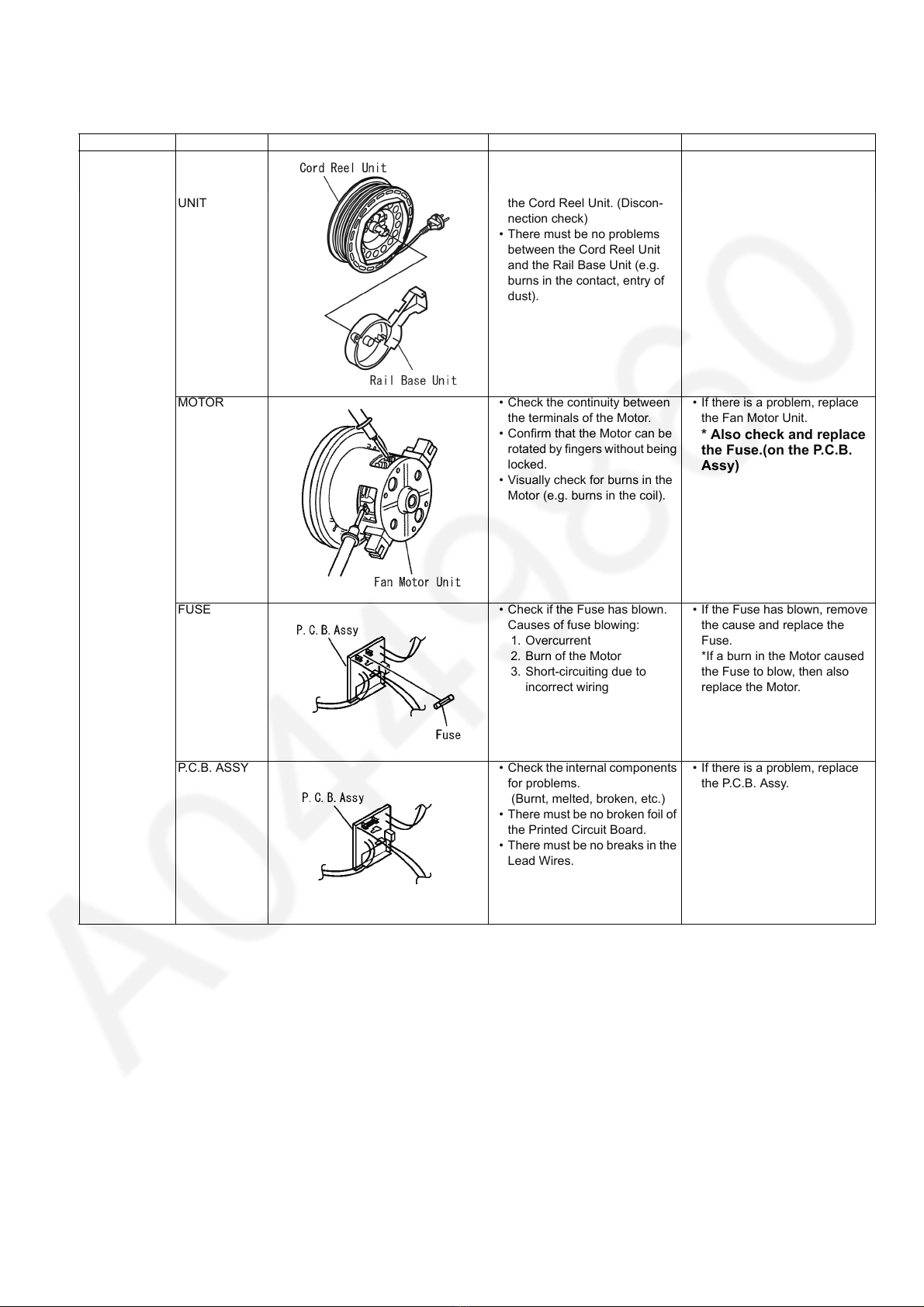

CONDITION CHECKPOINT FIGURE CHECK METHOD REMEDY
The Motor
doesn’t rotate.
CORD REEL
UNIT
RAIL BASE
UNIT
• Check the continuity at both
ends of the Plug and both ends
of the Lead Wire Terminal of
the Cord Reel Unit. (Discon-
nection check)
• There must be no problems
between the Cord Reel Unit
and the Rail Base Unit (e.g.
burns in the contact, entry of
dust).
• If there is no continuity, replace
the Cord Reel Unit, or the Rail
Base Unit.
MOTOR • Check the continuity between
the terminals of the Motor.
• Confirm that the Motor can be
rotated by fingers without being
locked.
• Visually check for burns in the
Motor (e.g. burns in the coil).
• If there is a problem, replace
the Fan Motor Unit.
* Also check and replace
the Fuse.(on the P.C.B.
Assy)
FUSE • Check if the Fuse has blown.
Causes of fuse blowing:
1. Overcurrent
2. Burn of the Motor
3. Short-circuiting due to
incorrect wiring
• If the Fuse has blown, remove
the cause and replace the
Fuse.
*If a burn in the Motor caused
the Fuse to blow, then also
replace the Motor.
P.C.B. ASSY • Check the internal components
for problems.
(Burnt, melted, broken, etc.)
• There must be no broken foil of
the Printed Circuit Board.
• There must be no breaks in the
Lead Wires.
• If there is a problem, replace
the P.C.B. Assy.

6
TRIAC (on the
P.C.B. Assy)
• Check the Triac by conducting
the following inspection.
• If there is a problem, replace
the P.C.B. Assy.
ON/OFF
SWITCH
(in the P.C.B.
Assy)
• Check the continuity by press-
ing the On/Off Switch.
• If there is a problem, replace
the P.C.B. Assy.
1. The Motor
doesn’t rotate.
2. The Power
Control doesn't
function.
TRIAC (on the
P.C.B. Assy)
• Check that the Triac has not
been short-circuited.
If there is continuity between
T1 and T2, then there is a
problem in the components.
• If there is a problem, replace
the P.C.B. Assy.
POWER CON-
TROL VOL-
UME (in the
P.C.B. Assy)
• The resistance between A and
B must be switchable.
0~470
• If there is a problem, replace
the P.C.B. Assy.
The Cord cannot
be pulled out.
CORD REEL
UNIT
MOTOR CASE
UNIT
• If the Cord cannot be pulled
out, press the Brake Lever and
confirm that the Cord can be
rewound.
Repeat operations to rewind
and pull out the Cord two or
three times and confirm that it
can be normally rewound.
• If it is impossible to resolve the
problem due to an abnormal
condition of the Cord, separate
the Body, untwist the Cord, and
rewind it. Or, replace the Cord
Reel Unit and rewind the Cord.
1. The Cord can-
not be rewound.
2. The pulled out
Cord cannot be
locked.
Separate the Body and;
• Confirm that a sufficient num-
ber of spare turns have been
made.
• Confirm that the Cord Reel
Spring is working.
• Confirm that the Brake Lever
Unit is working correctly to stop
the Cord from rewinding.
• Make spare turns according to
the engraved number of turns,
or;
Replace the Cord Reel Unit.
Replace the Motor Case Unit.
CONDITION CHECKPOINT FIGURE CHECK METHOD REMEDY

7
1. The suction
power is low.
2. The Motor
stops during
vacuuming.
(The Thermo
Protector in the
Fan Motor Unit
works.)

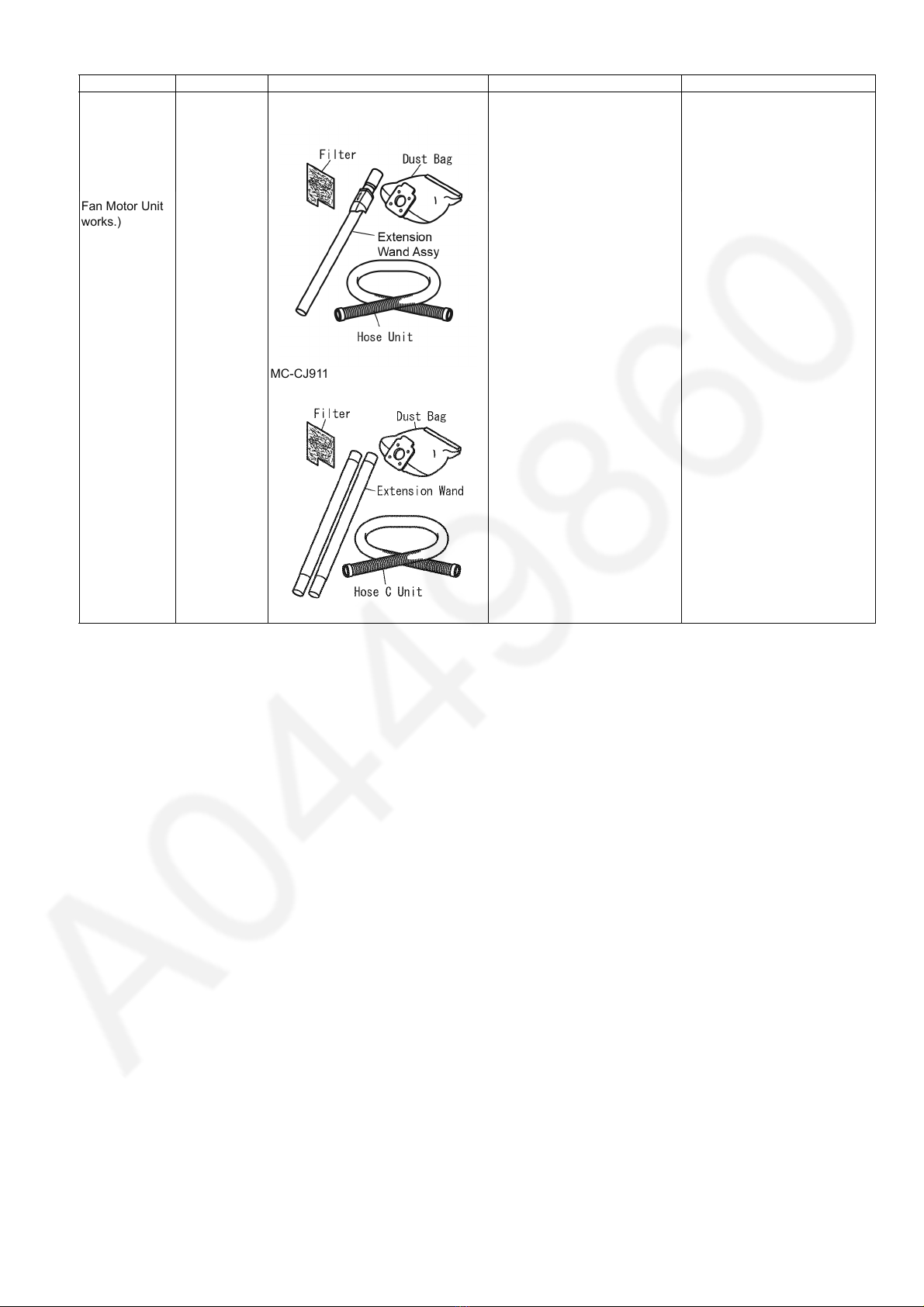

DUST BAG
FILTER
EXTENSION
WAND (ASSY)
HOSE UNIT
MC-CJ919/ MC-CJ917/ MC-CJ915/
MC-CJ913
MC-CJ911
Check for clogging with dust.
•DustBag
• Filter (in the Dust Box)
• Hose Unit
• Extension Wand (Assy)
Remove dust.
• Replace any broken Dust Bag,
Filter, and/or Hose Unit.
CONDITION CHECKPOINT FIGURE CHECK METHOD REMEDY

8
4Disassembly and Assembly Instructions
Important: Always turn the vacuum cleaner is power off before replacing components.
Remove the power cord and plug from the mains.
* Attention
(1) When disassembling the vacuum cleaner, check the connections and wiring (pulling) of each component, and ensure that everything
is restored correctly once repairs are complete.
(2) Handle all disassembled components and packing with care, and be sure to replace any components that may be accidentally dam-
aged.
(3) Once repair operations are complete, always inspect the area around the repairs for any degradation, and ensure that all compo-
nents that were removed for repair have been replaced in the correct wiring configurations. It is also necessary to test the operation of
the vacuum cleaner and ensure that it is safe for subsequent use.
･ Insulation resistance:
Must be at least 5M when a direct current of 500V is applied between the power plug terminals and the exterior of the motor.
･ Dielectric strength:
Must be able to withstand 1250V of alternating current applied between the power plug terminals and the exterior of the motor for
one minute.
(4) Do not make changes to models, components, or materials during repairs and services.
(5) If a wiring unit has been supplied as a spare part, the wiring unit must be simply replaced as it is, without any additional repairs or
connections made to even part of the wiring.
(6) Insert/remove the fast-on terminals by pushing/pulling them straight out without jiggling them or applying unnecessary force.

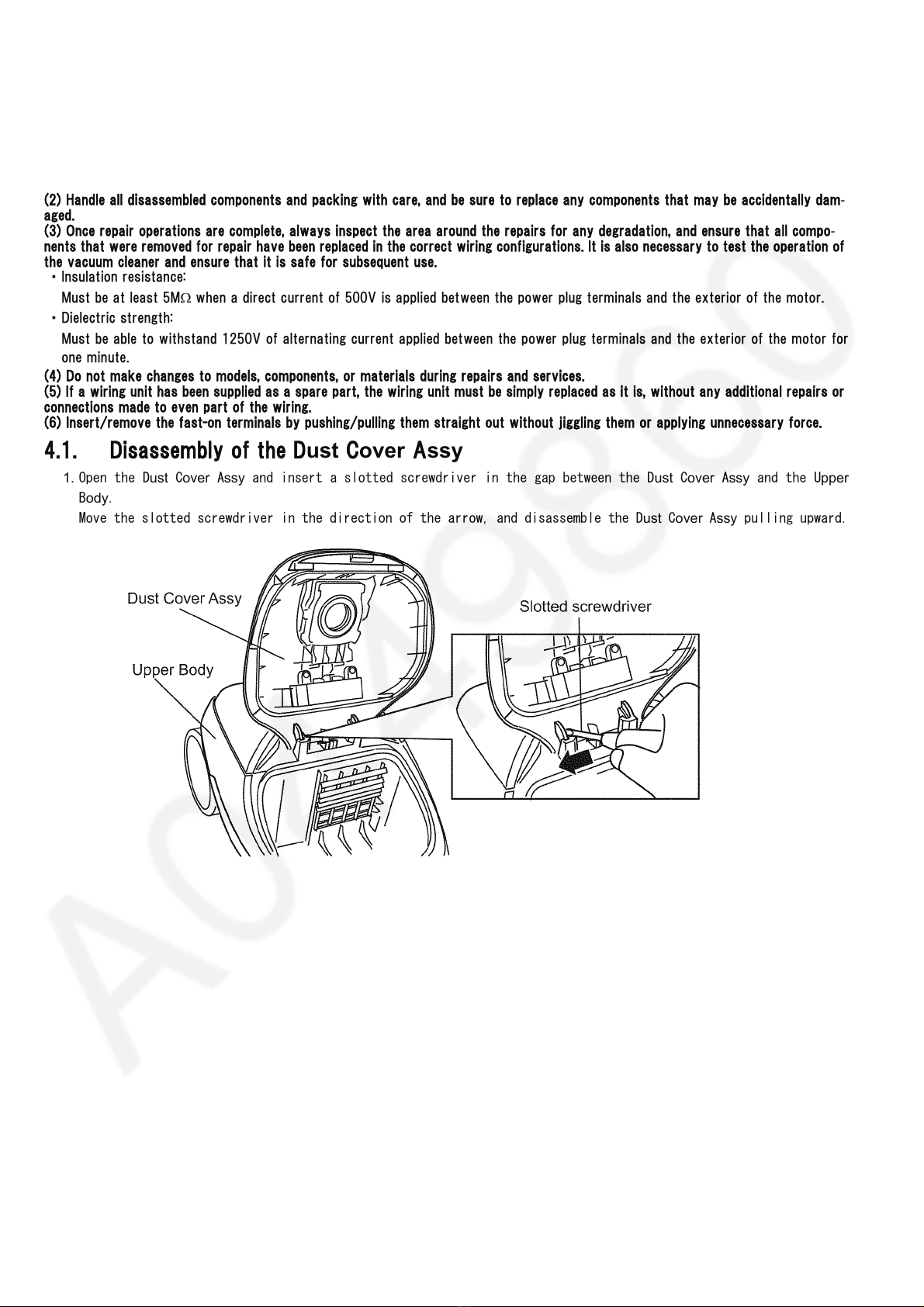

4.1. Disassembly of the Dust Cover Assy
1. Open the Dust Cover Assy and insert a slotted screwdriver in the gap between the Dust Cover Assy and the Upper
Body.
Move the slotted screwdriver in the direction of the arrow, and disassemble the Dust Cover Assy pulling upward.

9
4.2. Disassembly of the Dust Bag
Holder
1. Remove the Dust Bag Holder by inserting a slotted
screwdriver into the mount of the Dust Bag Holder on
the Lower Body Unit.
Caution (There is a Spring inside)
* When replacing the Dust Bag Holder, disassemble
and replace the Spring mounted inside.

10
4.3. Disassembly of Body Cover Assy, Switch Pedal, Cord Rewind Button
1. Remove the Filter Case
2. Remove 3 screws and disassemble the Body Cover Assy

11

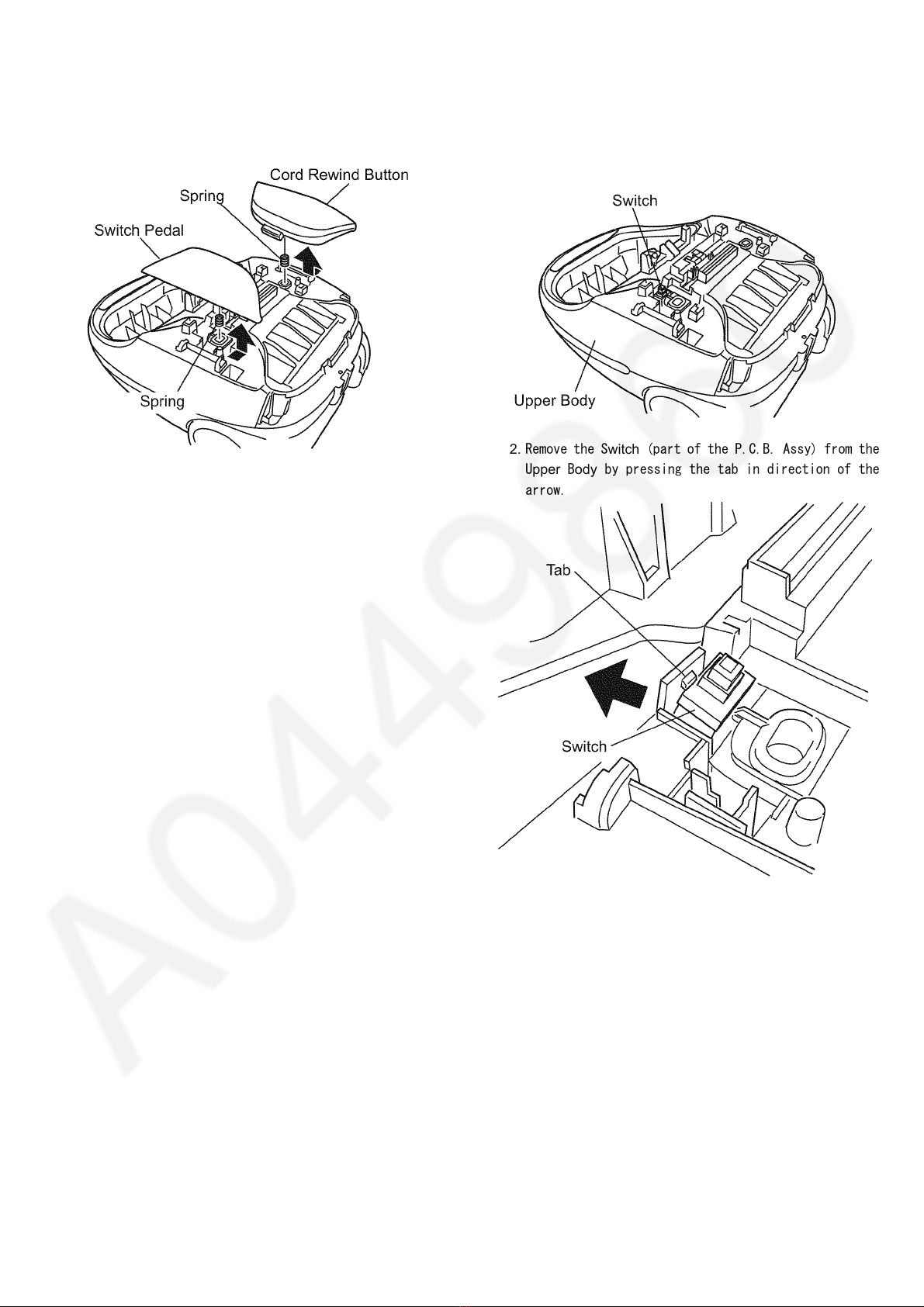

3. Disassemble the Switch Pedal/Cord Rewind Button
toward the direction of the arrow
Caution: (Spring is placed inside.)
*Be careful not to lose the Spring.
4.4. Disassembly of Upper Body,
Handle Cover, and Guide Lever
1. Disassemble the Body Cover Assy and Switch Pedal as
described in (4.3).
2. Remove the Switch (part of the P.C.B. Assy) from the
Upper Body by pressing the tab in direction of the
arrow.

12
3. Slide the Switch, and push it inward at the position
shown in the figure.
4. Remove 7 screws and disassemble the Upper Body
slowly pulling it upwards.
5. Disassembly of Handle Cover
Disassemble the Handle Cover from the Upper Body.
6. Disassembly of Guide Lever
Slide and disassemble the Guide Lever to the direc-
tion of the arrow.

13
4.5. Disassembly of Motor Case Set
1. Disassemble the Rear Cover to the direction of the
arrow, and disassemble the Motor Case Set pulling
upward.
4.6. Disassembly of Cord Reel Unit
1. Release the pretension of the Cord Reel Unit slowly
by holding on the Power Plug and pressing on the
Brake Lever.
2. Remove the Cord Reel Unit from the Motor Case Set by
inserting a slotted screwdriver into the shaft of
the Cord Reel Unit and turning it 90 degrees counter-
clockwise.
To assemble
a. Assemble in reverse order of the disassembly
b. Pretension the Cord Reel Unit
<How to pretension the Cord Reel Unit>
a. Turn the Cord Reel Unit holding on the Plug
b. Number of turns for pretension of the Cord is
engraved on the steel plate at the side of the
Cord Reel Unit

14
4.7. Disassembly of Rail Base Unit
1. Remove screw and disassemble the Rail Base Unit from
the Motor Case Set.
2. Remove the faston terminals on the Rail Base Unit.
* Apply the included furoyl when replacing the Rail
Base Unit or the Cord Reel Unit. (Refer to the
included instruction sheet for detail)
4.8. Disassembly of Fan Motor Unit
1. Disassemble the Swivel Cap and remove 3 screws.
2. Remove the tabs (4 positions) of the Motor Case Unit
and Motor Cover, and disassemble the Motor Case Unit
and the Motor Cover.

15

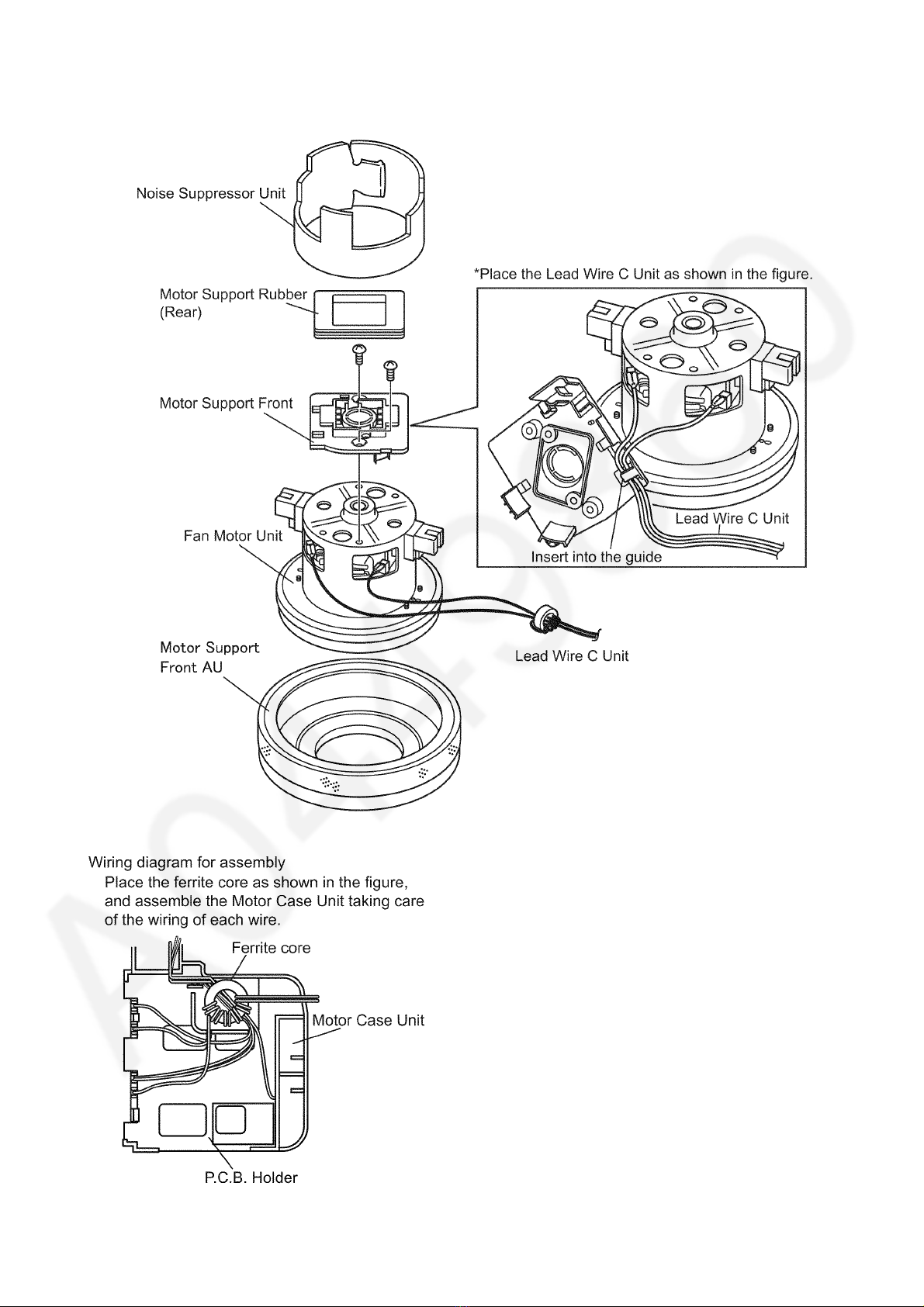

3. Disassemble the Noise Suppressor Unit
4. Disassemble the Motor Support Rubber (Rear)
5. Remove 2 screws and disassemble the Motor Support
Front
6. Remove the Motor Support Rubber (Front)

16
4.9. Disassembly of P.C.B. Assy
1. Disassembly of Volume (a part of P.C.B. Assy)
Disassemble the Volume by widening the tab of the Motor Case Unit using a slotted screwdriver.
2. Disassemble the P.C.B. Holder by pressing on the
tabs (2 positions) on the Motor Case Unit with your
finger.
3. Remove the faston terminals and disassemble the
P.C.B. Assy.

17
4.10. Replacement of Blower Cover
1. Assemble the Spring (for Blower Cover) onto the Blower Cover
2. Assemble by inserting the shaft of the Blower Cover into the boss hole.

18

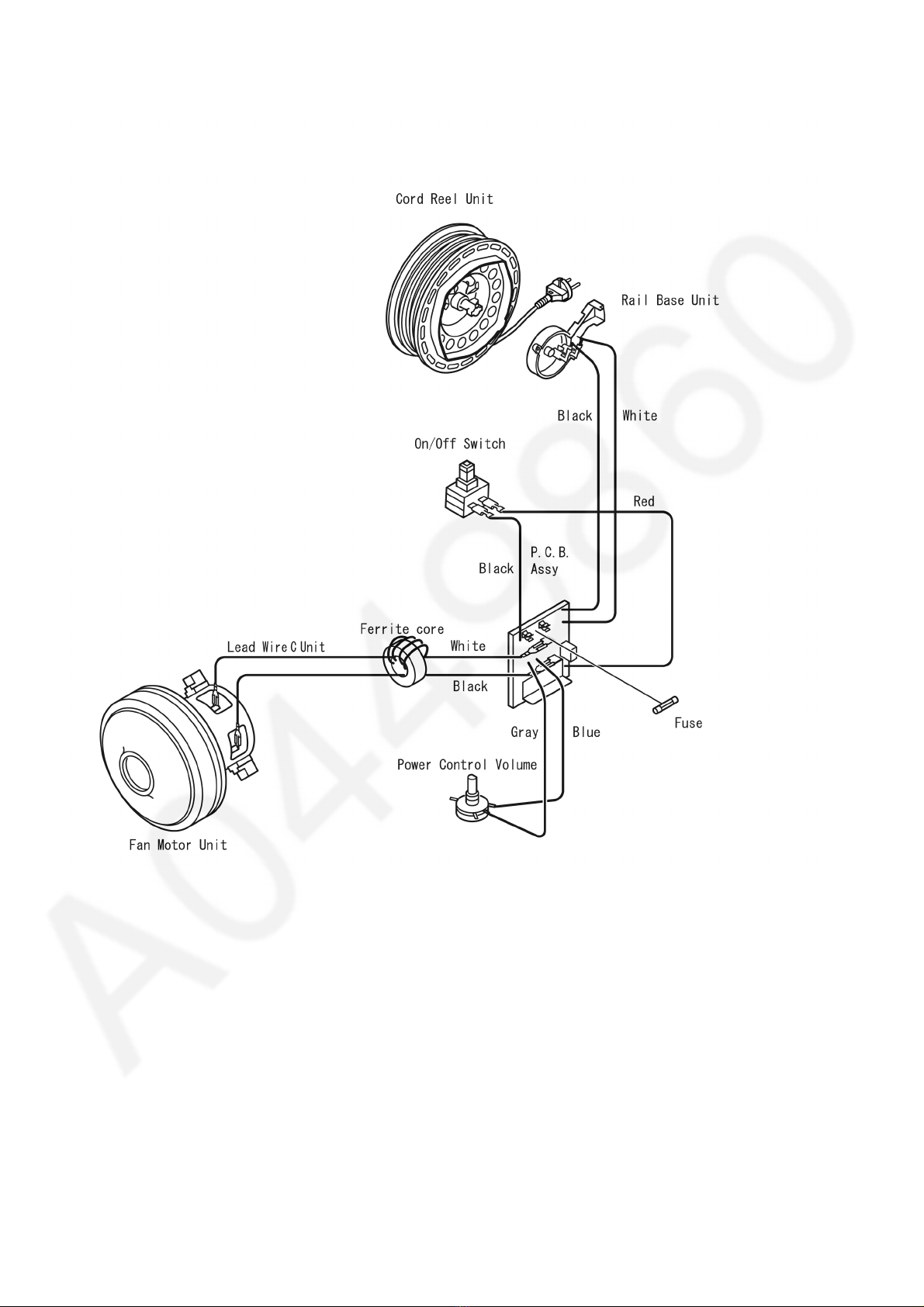

5 Wiring Connection Diagram

19
6 Exploded View and Replacement Parts List
6.1. MC-CJ919/ MC-CJ917
6.1.1. EXPLODED VIEW (ATTACHMENTS)
6.1.2. PARTS LIST (ATTACHMENTS)
Safety Ref. No. Part No. Part Name & Description Pcs/Set Remarks
A1 AMV84PB80S0J HOSE UNIT 1 (HOSE) MC-CJ919/ MC-CJ917
A2 AMC24P-0R0V HOSE SUPPORTER 2
A3 AMV92PB80V0J CONNECTION PIPE 1
A4 AMV98PB80V0J CURVED WAND 1 (SUCTION REGULATOR)
A5 AMV99PB8000J EXTENSION WAND ASSY 1 (TELESCOPIC WAND)
MC-CJ919/ MC-CJ917
A6 AMC60RMV060J CREVICE TOOL 1 (CREVICE NOZZLE)
A7 AMV88RB6000J DUSTING BRUSH UNIT 1 (DUSTING BRUSH)
A8 AMV99RB80V0J FLOOR NOZZLE ASSY 1 (FLOOR NOZZLE)
MC-CJ919/ MC-CJ917/ MC-CJ915
A9 AMV96QB80V0J FLOOR NOZZLE UNIT 1 MC-CJ919/ MC-CJ917/ MC-CJ915
A10 AMV88RB8000J DUSTING BRUSH UNIT 1 (EZ UPHOLSTERY)
MC-CJ919/ MC-CJ917/ MC-CJ915
A11 AMV97QB80V0J CREVISE TOOL UNIT 1 (EZ CREVICE)
MC-CJ919/ MC-CJ917/ MC-CJ915

20
6.2. MC-CJ915
6.2.1. EXPLODED VIEW (ATTACHMENTS)
6.2.2. PARTS LIST (ATTACHMENTS)
Safety Ref. No. Part No. Part Name & Description Pcs/Set Remarks
A1 AMV75PB60V0J HOSE C UNIT 1 (HOSE)
MC-CJ915/ MC-CJ913/ MC-CJ911
A2 AMC24P-0R0V HOSE SUPPORTER 2
A3 AMV92PB80V0J CONNECTION PIPE 1
A4 AMV98PB80V0J CURVED WAND 1 (SUCTION REGULATOR)
A5 AMV99P9U000J EXTENSION WAND ASSY 1 (TELESCOPIC WAND)
MC-CJ915
A6 AMC60RMV060J CREVICE TOOL 1 (CREVICE NOZZLE)
A7 AMV88RB6000J DUSTING BRUSH UNIT 1 (DUSTING BRUSH)
A8 AMV99RB80V0J FLOOR NOZZLE ASSY 1 (FLOOR NOZZLE)
MC-CJ919/ MC-CJ917/ MC-CJ915
A9 AMV96QB80V0J FLOOR NOZZLE UNIT 1 MC-CJ919/ MC-CJ917/ MC-CJ915
A10 AMV88RB8000J DUSTING BRUSH UNIT 1 (EZ UPHOLSTERY)
MC-CJ919/ MC-CJ917/ MC-CJ915
A11 AMV97QB80V0J CREVISE TOOL UNIT 1 (EZ CREVICE)
MC-CJ919/ MC-CJ917/ MC-CJ915
