MC-V5504-00
Vacuum Cleaner
Specifications are subject to change without notice for further improvement.
Order Number MAC0404002C1
E4

1 WIRING DIAGRAM AND DRAWING 3
1.1. Wiring Diagram 3
1.2. PICTORIAL DIAGRAM 4
2 EXPLODED VIEW AND PARTS LIST 5
2.1. Body 5
2.2. Motor Fan 7
2.3. Nozzle Housing 8
2.4. Packing Material 10
3 REPLACEMENT INSTRUCTIONS 11
3.1. Lower Plate 11
3.2. Belt Replacement 11
3.3. Agitator Assembly 11
3.4. Nozzle Housing Replacement 12

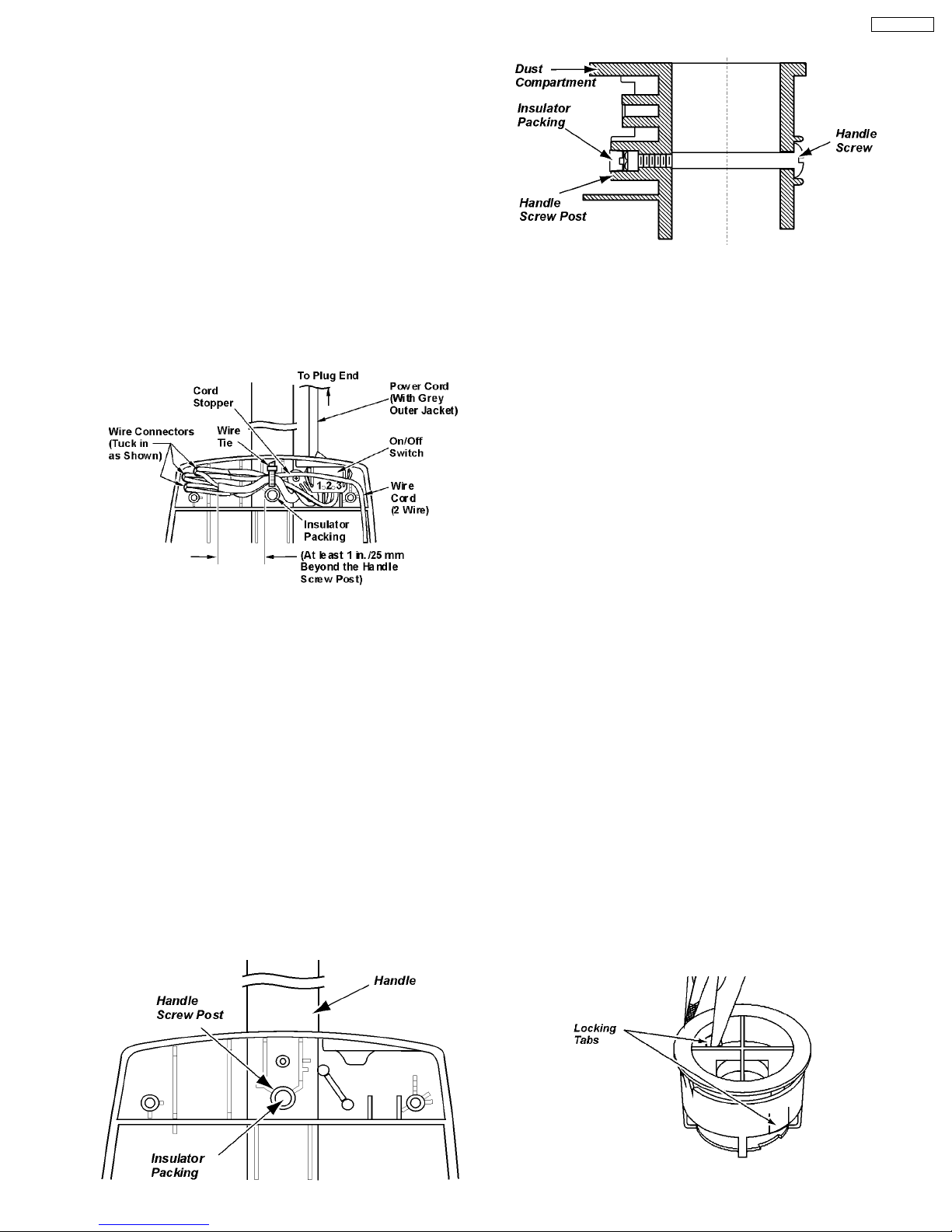

3.5. Power Cord / On-Off Switch Replacement 13
3.6. Hose Replacement 13
3.7. Motor Replacement 13
3.8. Motor Replacement 14
3.9. Carbon Brush Replacement 14
3.10. Motor Fan 15
CONTENTS
Page Page
2
MC-V5504-00

1 WIRING DIAGRAM AND DRAWING
1.1. Wiring Diagram
3
MC-V5504-00

1.2. PICTORIAL DIAGRAM
NOTE:
For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical
component or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage.
4
MC-V5504-00

2 EXPLODED VIEW AND PARTS LIST
2.1. Body
2.1.1. Exploded View
5
MC-V5504-00

2.1.2. Parts List (Body)
Ref. No. Part No. Part Name & Description Quantity Remarks
1AC88KARFZV07 Dust Compartment 1Includes items 38,44,45 and 46
2AC98EARFZ0U ON/OFF Switch 1Includes items 38 and 46
3AC94EAPNZY02 Power Cord 1Includes items 38,44,45 and 46
4AMC-1CTCE23 Wire Connector 4Shipped 10 per package
5AC66KV01V06 Packing, Dust Container 2
6AC03EARFZV06 Switch Cover 1Includes item 46
7AC73KV0ZV06 Packing (Switch Cover) 1
8AXTN4+16BFY Screw (Switch Cover) 2Shipped 10 per package
9AMC73B-V00 Handle Screw 1
10 AMP21B-170 Nut (Handle Screw) 1
11 AMC32K-V00 Filter Supporter 1
12 AMC37K-V00 Secondary Filter 1
13 AC01CV0ZVUB Wheel 2
14 AC16CUSZ00 Shaft, Roller 1Shipped 10 per package
15 AC74SUSZ00 Stopper (Wheel) 2
16 AXWG6E115FY Washer (Wheel) 2Shipped 10 per package
17 AC16KJYZ00 Dust Bag (Type U6) 1
18 AC60HF74VU6 Suction Inlet 1
19 AMC02H-F70E Cover (Suction Inlet) 1
20 AXTN4+16BFY Screw (Suction Inlet) 2Shipped 10 per package
21 AC09FAECZV07 Motor Case 1
22 AMC02L-V00 Packing (Rear Cover) 1
23 AC19FJPZV06 Packinig (Motor Case) 1
24 AXTN4+20BFY Screw (Motor Case) 4Shipped 10 per package
25 AC92FTEZ0U Motor, Fan 1
26 AC38HAPNZ0U Cover Cap 1
27 AXYN4+E10FFY Screw, Ground 1
28 AC99GAMMZ000 Noise Suppressor 1
29 AMC03F-V00 Motor Support (Rear) 1
30 AMC02F-E00 Motor Support Rubber (Front) 1
31 AC37GTEZ0U Wire Cord 1
32 AMC-1CTCE23 Wire Connector 3Shipped 10 per package
33 AC95BTEZVU7 Handle 1Include cord storage hook
34 AC99WARGZ00 Lead Wire Assembly 1
35 AC60KCMYZU03 Dust Cover 1
36 AC34PV02V06 Hose 1
37 AMC24P-2V0 Hose Supporter 4
38 AMC596-702 Wire Tie 1Shipped 10 per package
39 AC69KJMZV06 Protector 1
40 AC70KAECZY00 Protector Spring - Yellow 1
41 AC18MJMZV06 Protector Spring 1
42 AC68KJMZV06 Protector Case 1
43 AC51E4GZU01 Rubber Protector 1
44 AXWE10J223FE Washer 1
45 AC06WAPNZ00 Cord Retainer 1
46 AC61LAGMZ00 Packing (Insulator) 1
47 AC93FTEZ0U Plastic Cover (Motor) 1
6
MC-V5504-00

2.2. Motor Fan
2.2.1. Exploded View
2.2.2. Parts List (Motor Fan Assembly)
Ref. No. Part No. Part Name & Description Quantity Remarks
1AMC53F-AV00U Fan Case 1
2AMC33F-AC00U Nut 1
3AMC62F-AV00U Washer 1
4AC98FRFZ00 Fan 1
5AMC60F-AV00U Spacer 1
6AC27FRFZ00 Brush Assembly 1 (set)
7AC02DV3Z0U Bracket 2
8AC40DV3Z0U Screw 4
7
MC-V5504-00

2.3. Nozzle Housing
2.3.1. Exploded View
8
MC-V5504-00

2.3.2. Parts List (Nozzle Housing)
Ref. No. Part No. Part Name & Description Quantity Remarks
1AC01ACMYZU03 Nozzle Housing 1Includes Item 4
2AC21H2XZU03 Window 1
3AMC25S-V00 Shaft (Plastic) 1
4AC10A2VZV07 Furniture Guard 1
5AMC81A-V00 Packing (Nozzle) 1
6AMC43A-2V0 Frame 1
7AMC58A-2V0 Spring (Pedal) 1Shipped 10 per package
8AMC47A-2V0U Pedal 1
9AXTN4+16BFY Screw (Frame) 3Shipped 10 per package
10 AC28SJPZ00 Belt 1
11 AC91AARFZ00 Lower Plate Assembly 1
12 AC27AARFZ00 Lower Plate 1
13 AC07ZADFZ00 Warning Label 1
14 AMC11S-2V0W Belt Cover (Rear) 1
15 AC70NYUZ00 Stop Latch Spring 2
16 AMC68N-V30K Latch 2
17 AMC51A-2V0 Pedal Shaft 1
18 AMC74S-Z100G Spacer 1
19 AC74AAAEZ00 Packing (Lower Plate Front) 1
20 AXTN4+28BFY Screw (Spacer) 1Shipped 10 per package
21 AMC68A-V30 Screw (Nozzle) 2Shipped 10 per package
22 AMC82A-2V0 Agitator Holder 1
23 AMC39A-2V0 Packing (Lower Plate Sides) 2
24 AMC74A-2V0 Packing (Lower Plate Back) 1
25 AC84RBZDZ000 Agitator Unit 1
9
MC-V5504-00

2.4. Packing Material
2.4.1. Exploded View
2.4.2. Parts List
Ref. No. Part No. Part Name & Description Quantity Remarks
1AC61ZCCAZOOO Packaging Assembly 1Includes 1 and items a-g
2ACO1ZCMYZOOO Operating Instructions 1
10
