Panini BioCred User manual

Panini S.p.A.
Via Varallo 24b –Torino, Italia
www.panini.com
BioCred User Guide
Version 1.2 (Oct, 2023)
No part of this document may be reproduced or transmitted in any form or by any means, electronic or physical, for any purpose
without the express written permission of Panini.

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 2 of 55
DATE
Version Reference
DESCRIPTION
02/10/2023
System ver: 00010000
BioCredApp ver: 1.0.0
DisplayApp ver. 1.0.0
Web app ver: 1.0.0
User guide for BioCred product version 1.0 that includes:
•Fingerprint credential process (enrollment, verification, restore)
•ID card scanning
•Electronic Signature
•QRCode/Barcode scanning
•NFC reader
•Fingerprint scan feature

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 3 of 55
Contents
BioCred User Guide.............................................................................................................................................................................................................................................1
1. Introduction..............................................................................................................................................................................................................................4
2. Safety Precautions...................................................................................................................................................................................................................4
3. Trademark Acknowledgements...............................................................................................................................................................................................5
4. Proper Disposal of WEEE........................................................................................................................................................................................................6
5. Unpack BioCred.......................................................................................................................................................................................................................7
6. External Part Description.........................................................................................................................................................................................................8
7. Setup procedure ......................................................................................................................................................................................................................9
8. Operator role..........................................................................................................................................................................................................................12
8.1 Fingerprint Credential...............................................................................................................................................................................................................................12
8.1.1 Enrollment............................................................................................................................................................................................................................................12
8.1.2 Fingerprint Verification.........................................................................................................................................................................................................................17
8.1.3 Restore NFC credential .......................................................................................................................................................................................................................21
8.2 Card Acquisition .......................................................................................................................................................................................................................................25
8.3 Electronic Signature .................................................................................................................................................................................................................................30
8.4 Data Reader.............................................................................................................................................................................................................................................33
8.5 Fingerprint Acquisition..............................................................................................................................................................................................................................37
8.6 Fingerprint Watermarking.........................................................................................................................................................................................................................40
9. Customer role ........................................................................................................................................................................................................................42
9.1 Fingerprint verification..............................................................................................................................................................................................................................42
9.2 Card Scanner ...........................................................................................................................................................................................................................................45
9.3 Electronic Signature .................................................................................................................................................................................................................................48
9.4 NFC reader...............................................................................................................................................................................................................................................50
9.5 QRcode reader.........................................................................................................................................................................................................................................52
9.6 Barcode reader.........................................................................................................................................................................................................................................54

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 4 of 55
1. Introduction
BioCred is an assisted customer operated product.
The device will be installed customer facing but overseen by an operator that will control the device via a Business Application (es example in
banking environment the Operator will be the operator and the Business Application will be the Operator Application).
Most functions can be activated by both the customer and the operator, while few only by the operator for security reason.
When a functionality is started by the Business Application (in this guide Web Application), BioCred follows the process as “slave” device; while if
the functionality is started directly from BioCred, the Web Application will not be involved in the process.
In field Web Application will be replaced by the Business Application, operating with the control logic.
The following guide describes:
•the instruction for a user simulating the Operator’s role –and therefore using the Web Application UI to drive the device
•the instruction for a final user –and therefore using BioCred Display UI to drive the device
2. Safety Precautions
Before you begin operating or servicing your Panini BioCred as instructed in the User Guide or Service Manual, please make sure you read and
understand these important safety instructions:
-For cleaning operations, refer to the BioCred Cleaning and Maintenance Guide.
-Do not attempt to service or repair the device, except as instructed elsewhere in the User guide.
-Do not attempt to service or repair the external power supply of the device that may expose you to dangerous voltage points or other risks.
-Refer all servicing to qualified service personnel.
-BioCred will comply to the standard IEC/EN 62368-1 and UL 62368-1 only using the Power Supply model provided with the device or PoE (Power
over Ethernet) 48VDC IEEE 802.3af compliant.
- OPERATING CONDITIONS:
•Temperature: +15°C ÷ +35°C (59°F to 95°F)
•Humidity: 20% ÷ 80% R.H. non-condensing

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 5 of 55
3. Trademark Acknowledgements
PANINI BioCred is a registered trademark of Panini SpA.
© 2020 PANINI S.p.A., ALL RIGHTS RESERVED
PANINI S.p.A patents:
ITA/EU N. 102019000001959
USA 16/786589 - 11308377
The mark affixed to the product certifies that the
product satisfies the basic quality requirements.
The Panini BioCred is also UL 62368 compliant (UL file number E172976).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by Panini could void the user's authority to operate the equipment.

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 6 of 55
4. Proper Disposal of WEEE
European Union (EU) only
The symbol of the crossed-out bin on the product means that
used electrical and electronic equipment should not be
mixed with general communal waste, in accordance with the
European Directive (WEEE) and your national legislation.
To dispose of our devices please inform yourself and contact
the Local Authorities or local distributor who will give you
the practical information you need about the local separate
collection system for electrical and electronic products.
For other countries (not in EU)
The treatment, collection, recycling and disposal of electric
and electronic devices will be carried out in accordance with
the laws in force in the country in question.

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 7 of 55
5. Unpack BioCred
Before unpacking the carton box, examine its condition for any damage received during shipping.
Make sure that all parts are included:
•Panini BioCred
•Quick Guide
•Wall Mount power adapter
•CAT5e F/UTP Ethernet cable 1m
•USB Wi-Fi dongle (optional, not shown in the picture)
If the device, or any component, appears damaged do not use it.
File a claim with the shipping company and contact your reseller.

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 8 of 55

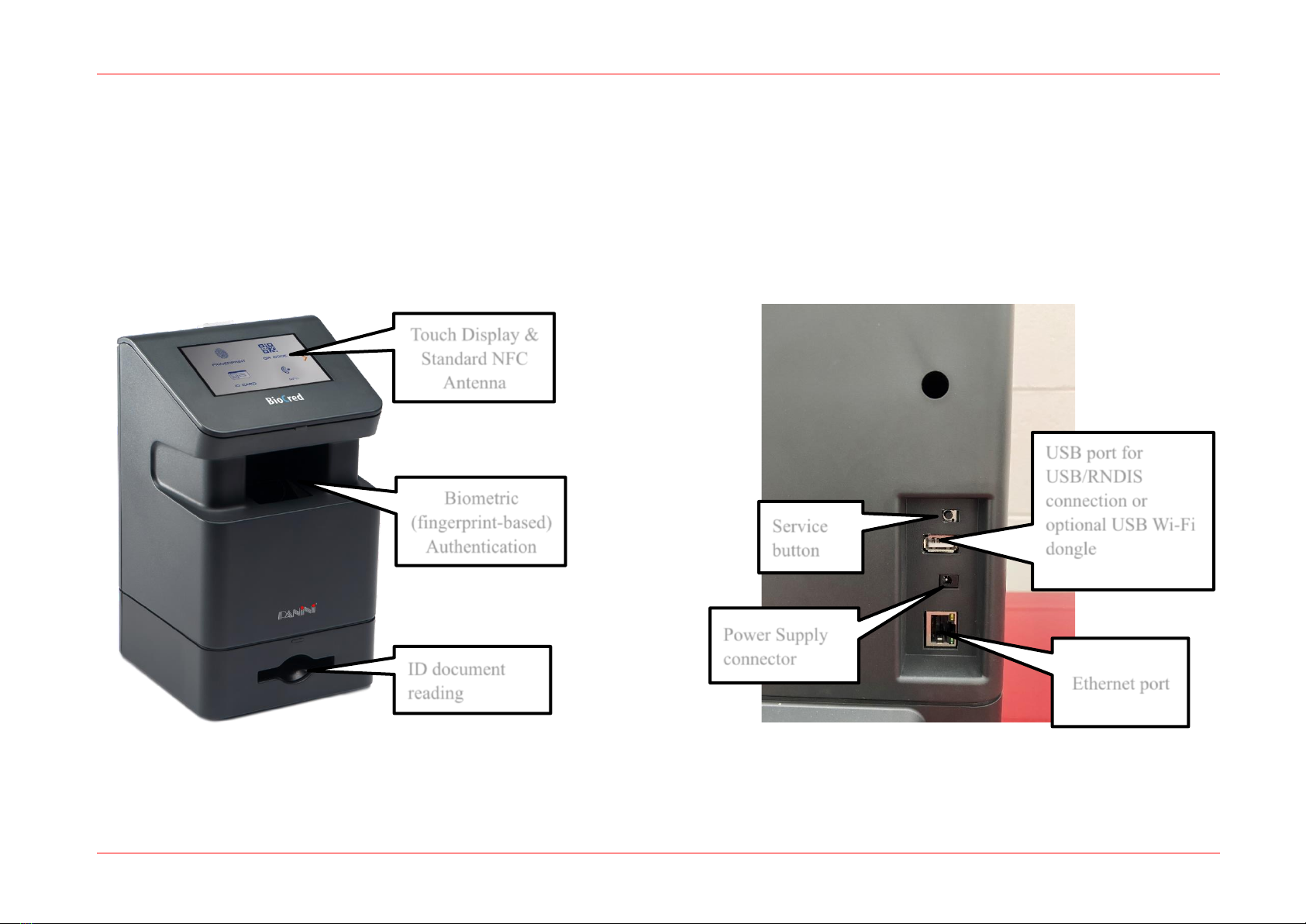

6. External Part Description
This section describes the major components of the Panini BioCred.
Front view: Rear view:
Biometric
(fingerprint-based)
Authentication
Touch Display &
Standard NFC
Antenna
ID document
reading
Ethernet port
Service
button
USB port for
USB/RNDIS
connection or
optional USB Wi-Fi
dongle
Power Supply
connector

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 9 of 55
7. Setup procedure
The device can be connected via LAN, USB/RNDIS, WI-FI.
The product is provided with an Ethernet cable.
Compatible WI-FI dongle is a product option. WI-FI connectivity requires an appropriate working mode setting in the device configuration.
For more information, contact your technical reference for the "BioCred Network Configuration Guide".
By default, BioCred is configured as following:
•ETH: DHCP mode
•RNDIS: Fixed IP (192.168.101.1)
For instructions about the BioCred first installation, please refer to the “BioCred 1.0 First Installation Guide”.
Important: the Enrollment phase, explained later, requires BioCred to have a direct access to an external Panini server, for the creation of the user's
encrypted biometric credentials. This function is therefore not accessible with a USB/RNDIS connection or with a peer-to-peer Ethernet connection.

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 10 of 55
Once removed from the box:
ID
Action/Event
Result
Web app1
BioCred display2
a
Connect the BioCred reader
via LAN to the router or via
USB cable to the PC
NOTE: use type A- type A
USB cable. Cable not
provided with the device
“boot” information will appear
Na
“boot” information
b
Wait until the BioCred is
ready
Greyed buttons will be
displayed, and 2 acoustic
signals will be performed.
If more than 4 features are
enabled a lateral arrow will be
available (as in the picture)
Na
c
Press on the “i” soft key
button to show the “About”
menu
Info page will be shown on the
display
Na
1
Web app = what the Operator sees (throughout) NOTE: Web app is intended only for internal tests or demo.
2
BioCred display = what the CUSTOMER or USER sees (throughout)

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 11 of 55
d
Open a browser page and
type the IP address shown
on the Info Page
Home page of the Panini
application will be reached

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 12 of 55
8. Operator role
This chapter describes the functions when activated by the operator.
These functions will then start from the Web Application, BioCred follows the process as “slave” device.
8.1Fingerprint Credential
8.1.1 Enrollment
This section describes the user’s biometric encrypted credential creation.
This process cannot be activated by the user (from Display interface), it must be always performed by the Operator for security reason.
The enrollment won’t be directly available on BioCred display (no icon).
ID
Action/Event
Result
Web App
BioCred display
A+
From Home page select
“Enrollment”
Customer Data section with
empty fields and “Start”
button disabled

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 13 of 55
b
Fill in the empty fields in the
form with required user data
(all fields must be filled).
NOTE: in this section
Operator can flag the
checkbox if wants the NFC
card.
NOTE: 2 fingers required to
start the enrollment
Customer Data section
completed and “Start”
button enabled
c
Press “Start” and wait until
BioCred is ready
You will be redirected to the
“Scan” section and a
fingerprint icon will be
shown.
“Stop” button is active and
“Rescan” button is disabled
When the device is ready to
scan, the fingerprint icon will
disappear and you will see the
scan area
Scan area is displayed.
“Stop” button is active and
“Rescan”button is disabled

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 14 of 55
d
Insert the fingers into the
BioCred reader slot and
follow the instructions shown
on its display and on the Web
App
Scan section shows fingers
acquisition
e
The enrollment procedure
will be repeated 3 times.
Scan area informs that the
procedure must be repeated.
“Stop” button is disabled
and “Rescan” button is
active
f
Repeat point “e” till the end
of the enrollment procedure
(3 times)
Scan section informs that
the enrollment is concluded

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 15 of 55
“QRcode” only selected (NO
flag into “NFC” checkbox
into the Customer Data
section)
QR code automatically
generated/updated

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 16 of 55
Writing NFC card (flag into
“NFC” checkbox into the
Customer Data section) : this
implies QRCode creation and
NFC tag creation
Writing “NFC” card and QR
code sent

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 17 of 55
8.1.2 Fingerprint Verification
This section describes user’s fingerprint verification (customer authentication). This operation enables customer authentication via QR code or
NFC card credentials created in 4.1.1
This process can be also activated directly by the user on BioCred Display (see §5.1).
ID
Action/Event
Result
Web App
BioCred display
a
Select “Verification”
Identification section where
the user can start the
Verification process
activates
NOTE: Pressing “QR
code/NFC” button both the
NFC antenna and the
camera are activated
b
Press “QR code/NFC ”
Login into BioCred mobile
app and expose the QR code
to the beam behind the
display OR tap the NFC card
on the right side of the
BioCred device
BioCred will be ready to
read the code from the
smartphone display or from
the NFC tag.
“Stop” button is enabled and
“Start” button is disabled

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 18 of 55
QR code/NFC successfully
read
All the fields will be filled
and a message will be
shown on the BioCred
display
QR code/NFC NOT
successfully read
The field are empty, and an
error message is displayed.

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 19 of 55
c
Only if QRCode/NFC has
been properly read, press
“start” to activate the
fingerprint verification
process and follow the
instructions
You will be redirected to the
“Scan” section and a
fingerprint icon will be
shown.
“Stop” button is active
“Rescan” button is disabled
When the device is ready to
scan, the fingerprint icon will
disappear, and you will see
the scan area
Scan area is displayed.
“Stop” button is active.
“Rescan” button is disabled
d
Insert the fingers into the
BioCred reader slot and
follow the instructions shown
on display and on the Web
App.
Scan section shows fingers
acquisition

BioCred User Guide Version 1.2 (Oct. 2023)
Copyright ©Panini 2020 Page 20 of 55
e
Depending on the match
result, a proper feedback
message will be shown on the
Web App and on the BioCred
display.
Fingerprint successfully
matched
Fingerprint match NOT
successful.
In this case “Rescan” button
is active.
NOTE: if the user press the
“Rescan” button within 15
seconds, the fingerprint
acquisition starts again; else
the “Identification” section
is displayed and the user has
to rescan the Qrcode or tap
the NFC card.
