Paradyne Hotwire ATM Line Cards 8335 User manual

Hotwire®ATM Line Cards
Models 8335, 8355, 8365, and 8385
User’s Guide
Document No. 8335-A2-GB20-70
February 2003

AFebruary 2003 8335-A2-GB20-70
Copyright © 2003 Paradyne Corporation.
All rights reserved.
Printed in U.S.A.
Notice
This publication is protected by federal copyright law. No part of this publication may be copied or distributed,
transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form
or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the
express written permission of Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773.
Paradyne Corporation makes no representation or warranties with respect to the contents hereof and specifically
disclaims any implied warranties of merchantability or fitness for a particular purpose. Further, Paradyne Corporation
reserves the right to revise this publication and to make changes from time to time in the contents hereof without
obligation of Paradyne Corporation to notify any person of such revision or changes.
Changes and enhancements to the product and to the information herein will be documented and issued as a new
release to this manual.
Warranty, Sales, Service, and Training Information
Contact your local sales representative, service representative, or distributor directly for any help needed. For
additional information concerning warranty, sales, service, repair, installation, documentation, training, distributor
locations, or Paradyne worldwide office locations, use one of the following methods:
 Internet: Visit the Paradyne World Wide Web site at www.paradyne.com. (Be sure to register your warranty at
www.paradyne.com/warranty.)
 Telephone: Call our automated system to receive current information by fax or to speak with a company
representative.
— Within the U.S.A., call 1-800-870-2221
— Outside the U.S.A., call 1-727-530-2340
Document Feedback
We welcome your comments and suggestions about this document. Please mail them to Technical Publications,
Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773, or send e-mail to [e-mail]. Include
the number and title of this document in your correspondence. Please include your name and phone number if you
are willing to provide additional clarification.
Trademarks
ACCULINK, COMSPHERE, FrameSaver, Hotwire, MVL, NextEDGE, OpenLane, and Performance Wizard are
registered trademarks of Paradyne Corporation. GranDSLAM, GrandVIEW, Hotwire Connected, ReachDSL, and
TruePut are trademarks of Paradyne Corporation. All other products and services mentioned herein are the
trademarks, service marks, registered trademarks, or registered service marks of their respective owners.
Regulatory and Safety Information
Refer to the appropriate Digital Subscriber Line Access Multiplexer (DSLAM) installation guide for all regulatory notices
and safety information.

8335-A2-GB20-70 February 2003 i
Contents
About This Guide
 Document Purpose and Intended Audience . . . . . . . . . . . . . . . . . . . . v
 New Features for This Document Release . . . . . . . . . . . . . . . . . . . . . v
 Document Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
 Product-Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
1 About the Hotwire ATM Line Cards
 Hotwire ATM Line Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
 Hotwire ATM Line Card Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
DSL Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
ATM Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Endpoint Support Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

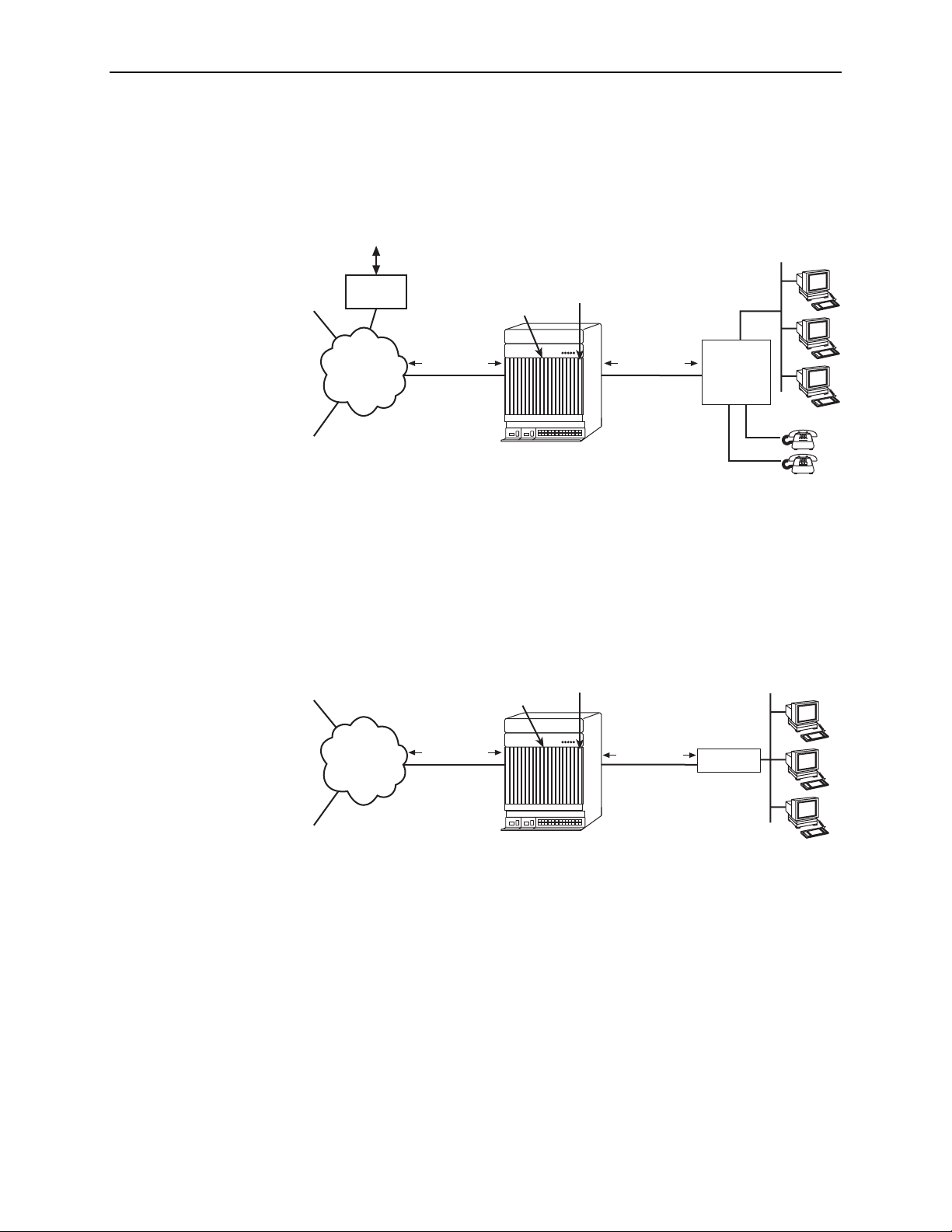

 Network Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
 SNMP Management Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Management Information Base (MIB) Support . . . . . . . . . . . . . . . 1-5
SNMP Trap Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
2 Menus and Screens
 Menu and Screen Formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Contents
ii February 2003 8335-A2-GB20-70
3 Configuration
 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
 Saving and Restoring Configuration Options . . . . . . . . . . . . . . . . . . . . 3-1
 Entering Card Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
 Entering the Time and Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
 Setting Spectrum Management (Models 8355 and 8385) . . . . . . . . . . 3-4
 Other Functions of the Card Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
 Configuring the DSL Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
DSL Port Configuration – Model 8335 . . . . . . . . . . . . . . . . . . . . . . 3-8
DSL Port Configuration – Model 8355 . . . . . . . . . . . . . . . . . . . . . . 3-11
DSL Port Configuration – Model 8365 . . . . . . . . . . . . . . . . . . . . . . 3-16
DSL Port Configuration – Model 8385 . . . . . . . . . . . . . . . . . . . . . . 3-19
 Configuring the ATM Physical Layer (Models 8335, 8365, and 8385). 3-24
 Configuring ATM Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
 Configuring ATM Cross Connections. . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
 Configuring ATM Traffic Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32
 Clearing Cross Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
 Configuring Rate Shaping (Models 8335, 8365, 8385) . . . . . . . . . . . . 3-38
 Entering Service Node Configuration Information
(Models 8335, 8365, and 8385) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39
 Entering Service Node Management Configuration Information
(Models 8335 and 8385) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
4 Monitoring
 What to Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
 Viewing Card Status and Information. . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
 Viewing Physical Ports Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
 Monitoring ATM Activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
 Monitoring SN Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
 Front Panel LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
5Diagnostics
 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
 Self-Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
 ATM Ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
 ATM Ping Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
 Loopback Test (Model 8385 Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

Contents
8335-A2-GB20-70 February 2003 iii
6 Maintenance Procedures
 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
 Clearing NVRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
 Uploading and Downloading a Configuration. . . . . . . . . . . . . . . . . . . . 6-3
Uploading a Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Downloading a Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Configuration Loader Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
 Resetting the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
 Downloading Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
A Menus
 Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
 Monitoring Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
 Applications Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
 Diagnostics Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
BSNMPTraps
 Trap Managers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
 SNMP Traps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
C Connector Pin Assignments
 Model 8820 GranDSLAM Telco Connector Pinouts. . . . . . . . . . . . . . . C-1
 Model 8620 GranDSLAM Telco Connector Pinouts. . . . . . . . . . . . . . . C-2
D Technical Specifications
Index

Contents
iv February 2003 8335-A2-GB20-70

8335-A2-GB20-70 February 2003 v
About This Guide
Document Purpose and Intended Audience
This guide contains information needed to set up, configure, and operate the
Hotwire ATM Line Cards, Models 8335, 8355, 8365, and 8385, and is intended for
installers and operators.
New Features for This Document Release
This version of the Hotwire ATM Line Cards, Models 8335, 8355, 8365, and 8385,
User’s Guide
removes an appendix containing information about the Hotwire 6390
ReachDSL Modem. This information is now in the
Hotwire ReachDSL Modem,
Model 6390 with Inline Phone Filter, Installation and Operation Supplement
,
Document Number 6390-A2-GK40.
Document Summary
Section Description
Chapter 1, About the Hotwire
ATM Line Cards
Describes the card’s features and capabilities.
Chapter 2, Menus and Screens Provides instructions for accessing the user interface
and navigating the screens.
Chapter 3, Configuration Provides instructions for configuring the unit.
Chapter 4,
Monitoring Describes how to use the LEDs, status messages, and
statistics to monitor the unit.
Chapter 5, Diagnostics Provides instructions for viewing self-test results and
alarms, and for running an ATM Ping and line loopback
test.
Chapter 6, Maintenance
Procedures
Provides instructions for clearing NVRAM, uploading or
downloading a configuration, downloading firmware,
and resetting the card.
Appendix A,
Menus Shows the paths to configuration, monitoring, and
diagnostics screens.

About This Guide
vi February 2003 8335-A2-GB20-70
A master glossary of terms and acronyms used in Paradyne documents is
available on the World Wide Web at www.paradyne.com. Select
Support →
Technical Manuals
→ Technical Glossary.
Product-Related Documents
Complete documentation for this product is available online at
www.paradyne.com. Select
Support → Technical Manuals .
To order a paper copy of a Paradyne document, or to speak with a sales
representative, please call 1-727-530-2000.
Appendix B, SNMP Traps Contains SNMP trap compliance information.
Appendix C, Connector Pin
Assignments
Lists the pin assignments for the GranDSLAM Telco
connectors.
Appendix D, Technical
Specifications
Contains physical and regulatory specifications, and
power consumption values.
Index Lists key terms, acronyms, concepts, and sections in
alphabetical order.
Section Description
Document Number Document Title
6390-A2-GK40 Hotwire ReachDSL Modem, Model 6390 with Inline Phone Filter,
Installation and Operation Supplement
6390-A2-GN10 Hotwire ReachDSL Modem, Model 6390 with Inline Phone Filter,
Installation Instructions
8000-A2-GB22 Hotwire Management Communications Controller (MCC) Card,
IP Conservative, User’s Guide
8021-A2-GB20 Hotwire Shelf Concentration Module (SCM) Card User’s Guide
8335-A2-GZ40 Hotwire ATM Line Cards, Models 8335, 8355, 8365, and 8385,
Installation Instructions
8620-A2-GN20 Hotwire 8620 GranDSLAM Installation Guide
8820-A2-GN20 Hotwire 8820 GranDSLAM Installation Guide
9700-A2-GB20 FrameSaver DSL 9783 and 9788 User’s Guide

8335-A2-GB20-70 February 2003 1-1
1
About the Hotwire ATM Line Cards
Hotwire ATM Line Cards
The Hotwire®8335, 8355, 8365, and 8385 Asynchronous Transfer Mode (ATM)
Line Cards are circuit boards mounted in a Hotwire 8620 or 8820 GranDSLAM
(Digital Subscriber Line Access Multiplexer) and used to transport ATM cells at
high speeds over a single twisted-pair connection.
 Model 8335 supports Symmetric Digital Subscriber Line (SDSL). It can be set
to AutoBaud to the highest rate the loop can support, or to use a fixed line rate
from 144 to 2320 kbps.
 Model 8355 supports ReachDSL. It automatically adjusts to the highest rate
the loop can support, from 32 to 2176 kbps.
 Model 8365 supports Asymmetric Digital Subscriber Line (ADSL). It can be
set to adapt to the line conditions at startup, or set to the following fixed rates
depending on line code:
— G.dmt and ANSI T1.413: 32 to 8000 kbps downstream and 32 to 832 kbps
upstream.
— G.lite: 64 to 3008 kbps downstream and 32 to 512 kbps upstream.
 Model 8385 supports Single-pair High-speed Digital Subscriber Line
(SHDSL). It can be set to adapt to the line conditions at startup, or set to a
fixed line rate from 200 to 2312 kbps.
Part of Paradyne’s Hotwire Connected™ program, the cards interoperate with
third-party DSL endpoints providing end users with the ability to select the best
equipment to fit their application. The new line cards also integrate support for
multiple DSL services on a single card.

1. About the Hotwire ATM Line Cards
1-2 February 2003 8335-A2-GB20-70
Hotwire ATM Line Card Features
The Hotwire ATM Line Cards have these standard features:
 Asynchronous Terminal Interface (ATI). Provides a menu-driven
VT100-compatible terminal interface for configuring and managing the unit
locally or remotely by Telnet session.
 Alarm indication. Activates front panel LEDs.
 Diagnostics. Provides OAM F5 loopback (ATM Ping), self-test, and line
loopback.
 Device and test monitoring. Provides the capability of tracking and
evaluating the unit’s operation, including health and status, and error-rate
monitoring.
 Software upgrade. Supports software upgrades using TFTP.
DSL Features
The cards’ DSL features include:
 High speeds and multiple line codes:
— Model 8335 supports data rates up to 2320 kbps upstream and
downstream using 2B1Q line code.
— Model 8355 supports data rates up to 2176 kbps upstream or downstream
using ReachDSL line code.
— Model 8365 supports data rates up to 3008 kbps downstream and
512 kbps upstream using G.lite line code. It can also support data rates up
to 8000 kbps downstream and 832 kbps upstream using G.dmt or ANSI
line code.
— Model 8385 supports data rates up to 2312 kbps upstream and
downstream using Trellis-Coded Pulse Amplitude Modulation (TC PAM)
line code.
 High density:
— Model 8335 provides 16 subscriber line ports on each card.
— Model 8365 provides 12 subscriber line ports on each card.
— Models 8355 and 8385 provide 24 subscriber line ports on each card.

1. About the Hotwire ATM Line Cards
8335-A2-GB20-70 February 2003 1-3
ATM Features
The cards’ ATM features include:
 Classes of service. Supports traffic management service categories
necessary to support voice and data applications:
—CBR
—rt-VBR
—nrt-VBR
— UBR (only class of service supported for the Model 8355)
 Auto configuration. Two Virtual Channel Connections (VCCs) per port are
automatically configured, providing data and voice services.
 Multiple virtual circuits. Up to 250 additional VCCs can be configured by the
user and assigned among the DSL ports.
 ATM statistics. Maintains statistics for:
— Total cells received
— Total cells transmitted
— Total cells dropped
— Loss of cell delineation events
— Cells with corrected Header Error Control (HEC; Model 8335 only)
— Cells with uncorrectable HEC
Endpoint Support Features
The cards’ endpoint support features include:
 Third-party endpoint support. The Models 8335, 8365, and 8385 line cards
support third-party endpoints through the Hotwire Connected program,
including Integrated Access Devices (IADs) and data-only endpoints from
numerous industry-leading vendors. The Model 8385 card supports third-party
endpoints using the ITU SHDSL standard. A list of Paradyne’s SHDSL
partners is available on the World Wide Web at www.paradyne.com. Select
Partners → Hotwire Connected Interoperability Program.
 Model 6390 Modem support. The Model 8355 line card supports the Hotwire
Model 6390 Modem.
 Automatic rate adaptation. The card and the endpoint negotiate the best
rate, limited if desired by the user, through automatic rate adaptation. For
2B1Q (Model 8335) the Conexant AutoBaud algorithm is used.

1. About the Hotwire ATM Line Cards
1-4 February 2003 8335-A2-GB20-70
Network Configurations
Figure 1-1 shows the Hotwire ATM Line Card used to carry voice over DSL.
Figure 1-1. Endpoint with Voice Interfaces
Figure 1-2 shows a configuration in which the endpoints include a router to provide
data encapsulation.
Figure 1-2. Router Endpoint
00-16682
AT M
Network
ATM Cells
DSL
Integrated
Access
Device
(IAD)
SCM
Hotwire ATM
Line Card
GranDSLAM
Customer Premises
LAN
ISP
Corporate
Site
ATM Cells
Voice
Gateway
PSTN Voice
Traffic
00-16681-01
AT M
Network Router
ATM Cells
ATM Cells
DSL
SCM
Hotwire ATM
Line Card
GranDSLAM
Customer Premises
LAN
ISP
Corporate
Site

1. About the Hotwire ATM Line Cards
8335-A2-GB20-70 February 2003 1-5
SNMP Management Capabilities
The Hotwire ATM Line Cards support SNMP Version 1, and can be managed by
Paradyne’s OpenLane®or any industry-standard SNMP manager.
Management Information Base (MIB) Support
For a detailed description of supported MIBs, visit Paradyne’s Web site at
www.paradyne.com. The following MIBs are supported:
 ATM Forum SNMP M4 Network Element View (af-nm-0095.001)
 Definitions of Managed Objects for the ADSL Lines (RFC 2662)
 Definitions of Managed Objects for ATM Management (RFC 2515)
 Definitions of Managed Objects for HDSL2 and SHDSL Lines
(draft-ietf-adslmib-hdsl2-10.txt)
 Definitions of Textual Conventions and OBJECT-IDENTITIES for ATM
Management (RFC 2514)
 Evolution of MIB II Interfaces (RFC 2863)
 ADSL Extension MIB (Model 8365 only) (draft-ietf-adslmib-adslext.txt)
 SHDSL MIB (Model 8385 only) (draft-ietf-adslmib-hdsl2.txt)
 Entity MIB Using SMIv2 (RFC 2037)
 MIB II and the Interfaces Group MIB (RFC 1213, RFC 2233)
 Paradyne enterprise MIBs for:
— Hotwire xDSL Interface
— SLE Device Control
— SLE Device Health and Status
— MaxVciVpi-MIB Table
—IF-MIBTable
— ATM VPL Statistics Table
SNMP Trap Support
The Hotwire ATM Line Cards support SNMP traps as shown in Appendix B, SNMP
Traps
.

1. About the Hotwire ATM Line Cards
1-6 February 2003 8335-A2-GB20-70

8335-A2-GB20-70 February 2003 2-1
2
Menus and Screens
Menu and Screen Formats
The Hotwire DSLAM has an ASCII-based menu- and screen-driven user interface
system that enables the user to configure and monitor the Hotwire cards. This
section describes the components of a typical Hotwire menu and screen.
A typical Hotwire menu format is shown below:
1. Menu Title is the top line of the menu window that displays the title of the
menu or submenu.
2. Menu List is the portion of the menu window that displays the list of menu
options. When selected (by using the up and down arrow keys to move the
cursor position), a menu option displays a submenu window.
3. Letter Navigation Keys are provided within a menu list. These keys provide
an alternative method for selecting menu items.
For example, from the Hotwire – DSL menu illustrated above, you can press
the A key to select the Configuration menu item. The Configuration menu
appears. You can then press the A key to select the Card Status menu item,
and subsequently the Card Info menu item.
Some menu items not active for this product are displayed as placeholders in
the menu lists so that letter navigation keys are the same for all related
products.
1
2
3

2. Menus and Screens
2-2 February 2003 8335-A2-GB20-70

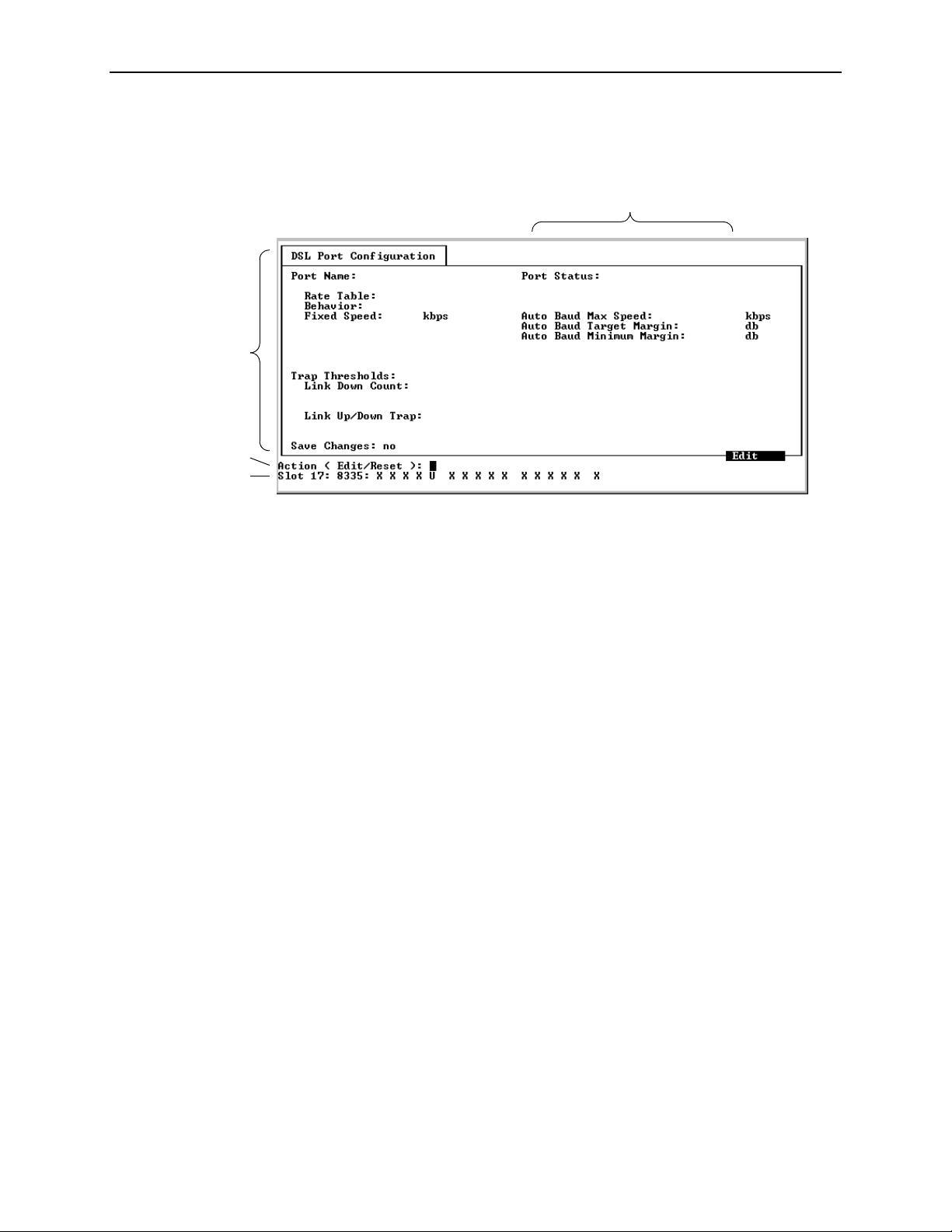

Components of a Hotwire Screen
A typical Hotwire screen looks like this:
1. System Header Line is the top right line of the screen. This line contains two
fields of system login information:
— The first field displays a user-defined chassis or individual card name. If
you have not defined the system name, <no name> appears.
— The second field displays the previous remote or local login depending on
what is currently displayed in the middle field (such as the current login). If
the current login is local, the last field displays the previous remote login.
If the current login is remote, the last field displays the previous local
login.
2. Display Area is the main body of the screen. This area contains the screen
name in a “tab” at the upper left, and fields displaying data and/or requiring
input. The input values themselves are entered in the Input Line at the bottom
of the screen.
3. Input Line is in the lower area of the screen. This area displays prompts after
which you enter values for the field highlighted in the Display Area.
If a field has predefined permitted values, you need only type enough of a
value to distinguish it from other permitted values. For example, if the
Behavior field has a value of Fixed or AutoBaud, you need only type for a,
respectively, and press Enter, to select a value.
1
2
3
4

2. Menus and Screens
8335-A2-GB20-70 February 2003 2-3
4. Status Line is the last line of the screen. It displays status about the selected
card and all interfaces. Each time the screen is refreshed, one of the following
lines is displayed in rotation:
Line 1: Slot 02: 8335: Card Status: _ _ _ Wan Status: U
Line 2: Slot 02: 8335: D D D D D D D D D D D D D D D D
Line 3: Slot 02: 8335: Press ? For Help
Naming Conventions for Ports and Interfaces
Special naming conventions exist for the Port Name and Interface Name fields.
 Port Name – Identifies a physical port. It consists of a family name (dsl for a
DSL card), and a port number. The port number can range from 1 to the
number of ports on the card. For example: dsl12.
 Interface Name – Identifies a logical connection. It consists of a family name
and a port number (same as the port name), followed by a number identifying
a logical interface on the port. Currently the interface number is limited to 1.
For example: dsl12:1.
Line 1 Text Description
Slot nn Slot number of the card
8335, 8355, 8365, or
8385
Model number of selected card
Card Status:
_ or T
_ or M
_ or R
Test mode. Card currently in test mode (T) or _ for no active
test.
Major alarm. Major alarm present on card (M) or _ for no
active mralar byuyu2.7(r).0034 Tc-0.0014 Tw[(2ct)14.8(412.4(mbeMi)(n)-11r)-.7( p12.1(TD0)-7.1 b)2m.1.16 TDMin7( p12)]TJ-7.(u7( p12.1(TD0)-7.1 b)2m.3(( p12r).6( -1.8.5(e)1.16 TD2.1c1.8.5a]TJ-7.d(( p1211.R5(am).2(o)11.82)-5.9( 78.5)]TJ-7.e )1-12.o12.7(52.8( m5(n7( p12)]TJ-7.(0035 Tc-0.0015 Tw[47ct)14.8(12.8(r)5)9.7()-8.12(r)-m)-1.(n)4)]TJ01.16()-.7 TD0.0033 Tc-0.0813 4.8(i93-4(rd)91)3( T)]TW.3(5a]T16 TD 0.2( )-1216(m))-1216(mu]T16 TDn)1467 :0034 Tc-0.0014 -d)9.3( c3)13.3(8T)]TD f)26-8.129.3(.16 TDUTD0.0039 Tc.0014 Tw[Ma)12.7(jo2.4(mbeUber)3(o)16 TDli.3(f)2nk3.3(d )sta)16 TDt)(t)s3.3(d :0034 Tc-0.0014 -d)9.14( c3)13.33(8T)]TD Tf07(=1.333Do)78.5wna)-1412..8.5 U=Up76 53.6145 TD0797 107.881 Tm0.0022 406 T2Tj9 0 0 9Line 1 Tex2 Description
Slot

2. Menus and Screens
2-4 February 2003 8335-A2-GB20-70
General Navigation Keys
Pop-Up Menu Navigation Keys
Table 2-1. General Navigation Keys
Keys Definition
Backspace, Del, Ctrl-d Erases the character to the left of the prompt.
Ctrl-e Returns to the card selection screen from any screen.
Ctrl-r Resets counters (on monitoring statistics displays).
Ctrl-u Clears the current input or prompt line.
Ctrl-v Displays pop-up menus.
Esc h, ? Displays the online Help screen.
Esc l, Ctrl-l Refreshes the screen.
Esc n Goes to the next window.
Esc p, Ctrl-z Goes back to the previous window.
Esc t, Ctrl-a, Ctrl-c,
Ctrl-t, or Ctrl-y
Goes back to the original, top-level window.
Left arrow, Ctrl-b Moves the cursor to the left.
Right arrow, Ctrl-f Moves the cursor to the right.
Up arrow, Ctrl-p Moves up to the previous menu selection or entry field.
Down arrow, Ctrl-n Moves down or to the next selection.
Enter Accepts entry.
Table 2-2. Pop-Up Menu Navigation Keys
Keys Definition
Ctrl-w Scrolls up one page.
Ctrl-x Scrolls down one page.
Up Arrow, Ctrl-p Moves cursor up one menu item.
Down Arrow, Ctrl-n Moves cursor down one menu item.
Ctrl-z Exits pop-up menu without accepting selected entry.
Enter Accepts selected entry and exits pop-up menu.

2. Menus and Screens
8335-A2-GB20-70 February 2003 2-5
User Login Screen (MCP)
You can log in to the Hotwire DSL system using either a local VT100-compatible
terminal or a remote Telnet connection. However, the Hotwire DSL system
accepts only one login session at a time.
The User Login screen appears if one or more users have been defined on the
Management Communications Processor (MCP).
Enter your login ID and password. The login ID and password are case-sensitive.
If you have RADIUS Authentication, this verification may take several minutes as
each RADIUS server is contacted one at a time.
If you are denied access during a Telnet session, the session stops and an error
is logged. If you are using a console, you are automatically returned to the User
Login screen.
NOTE:
If you forget your password, contact your Technical Service Center. Have the
serial number of the MCP card available, and the service representative will
provide you with a password.
After entering your login ID and password, the system displays the Hotwire
Chassis Main Menu.

2. Menus and Screens
2-6 February 2003 8335-A2-GB20-70
Quick Card Select Screen
The Quick Card Select screen displays all the cards in the chassis and lets you
Telnet to a selected card in the chassis. Information is displayed only for
populated slots. See the
Hotwire Management Communications Controller
(MCC) Card, IP Conservative, User’s Guide
for more information about the
Hotwire Chassis Main Menu.
Procedure
To select a card:
1. From the Hotwire Chassis Main Menu, select Afor Quick Card Select.
2. At the Goto: prompt, type the slot number of the desired card and press
Enter.
The appropriate menu appears.
