Paradyne COMSPHERE 6700 Series User manual

COMSPHERE
6700 SERIES NETWORK
MANAGEMENT SYSTEM
SNMP PROXY AGENT FEATURE
USER’S GUIDE
Document No. 6700-A2-GB20-30
September 1998

Printed on recycled paper
A 6700-A2-GB20-30
September 1998
Copyright 1998 Paradyne Corporation.
All rights reserved.
Printed in U.S.A.
Notice
This publication is protected by federal copyright law. No part of this publication may be copied or distributed,
transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form
or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the
express written permission of Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773.
Paradyne Corporation makes no representation or warranties with respect to the contents hereof and specifically
disclaims any implied warranties of merchantability or fitness for a particular purpose. Further, Paradyne Corporation
reserves the right to revise this publication and to make changes from time to time in the contents hereof without
obligation of Paradyne Corporation to notify any person of such revision or changes.
Changes and enhancements to the product and to the information herein will be documented and issued as a new
release to this manual.
Warranty, Sales, and Service Information
Contact your local sales representative, service representative, or distributor directly for any help needed. For
additional information concerning warranty, sales, service, repair, installation, documentation, training, distributor
locations, or Paradyne worldwide office locations, use one of the following methods:
Via the Internet: Visit the Paradyne World Wide Web site at http://www.paradyne.com
Via Telephone: Call our automated call system to receive current information via fax or to speak with a
company representative.
— Within the U.S.A., call 1-800-870-2221
— Outside the U.S.A., call 1-727-530-2340
Document Feedback
We welcome your comments and suggestions about this document. Please mail them to Technical Publications,
Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773, or send e-mail to [email protected]. Include
the number and title of this document in your correspondence. Please include your name and phone number if you
are willing to provide additional clarification.
Trademarks
All products and services mentioned herein are the trademarks, service marks, registered trademarks or registered
service marks of their respective owners.

i
6700-A2-GB20-30 September 1998
Contents
About This Guide
Document Purpose and Intended Audience iii. . . . . . . . . . . . . . . . . . . . . . . . .
Document Summary iii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product-Related Documents iv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 SNMP Proxy Agent Overview
What is SNMP? 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What is the SNMP Proxy Agent Feature? 1-1. . . . . . . . . . . . . . . . . . . . . . . . . .
Feature List 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software Description 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SNMP Proxy Agent Feature Package Contents 1-2. . . . . . . . . . . . . . . . . . . . .
SNMP Network Topology 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Proxy Agent Interface 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 SNMP Proxy Agent Installation
Hardware and Software Requirements 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing for Installation and Configuration 2-1. . . . . . . . . . . . . . . . . . . . .
Installing the SNMP Proxy Agent Feature 2-2. . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the SNMP Proxy Agent Feature for TCP/IP Networks 2-4. .
SNMP Community Views 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Community Name Example 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting SNMP Request Timeouts 2-6. . . . . . . . . . . . . . . . . . . . . .
3 Traps and Report Formats
SNMP Traps Overview 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trap Messages 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Traps OIDs 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 1 Traps 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 2 Traps 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMS Events and Status 3-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contents
ii 6700-A2-GB20-30
September 1998
File Formats 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alarm Filter Profile 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alarm History Report 3-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call Fault Report 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call History Report 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Report 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A Enterprise Device MIBs
Enterprise Device MIBs Overview A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Front Panel MIB Overview A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Call Directory MIB Overview A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Configuration MIB Overview A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
MIB-II Support A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OID Prefix Tree A-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B NMS 6700 MIB Specifications
NMS 6700 MIB Overview B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Action Request Tables B-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Action Request Setup Rules B-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessing the NMS 6700 MIB B-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Action Request Setup Procedure B-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Test Table Setup B-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaction Table Setup B-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaction Table Setup Example B-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Report Table Setup B-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Report Table Setup Example B-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMS 6700 MIB Objects B-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transaction Commands B-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C NMS Device MIB Specifications
NMS Device MIB Overview C-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Index

iii
6700-A2-GB20-30 September 1998
About This Guide
Document Purpose and Intended Audience
This guide describes how to install and use the COMSPHERE 6700 Series
Network Management System (NMS) SNMP Proxy Agent feature. It is assumed
that you have a basic understanding of COMSPHERE modems and data service
units (DSUs) and their operation, are knowledgeable about data communications,
and are familiar with Windows terminology and conventions.
Document Summary
Section Description
Chapter 1 SNMP Proxy Agent Overview. Provides an introduction
to the SNMP Proxy Agent features and the Proxy
Agent Interface.
Chapter 2
SNMP Proxy Agent Installation. Describes hardware
and software requirements and installation procedures.
Chapter 3
Traps and Report Formats. Provides an overview of
SNMP traps with specific device traps actions.
Presents file formats for reports.
Appendix A
Enterprise Device MIBs. Defines supported MIB
objects in the Paradyne Enterprise MIBs and standard
MIB-II support.
Appendix B
NMS 6700 MIB Specifications. Provides MIB objects
and descriptions for the Enterprise NMS 6700 MIB with
details regarding table entries.
Appendix C
NMS Device MIB Specifications. Provides MIB objects
and descriptions for the Enterprise NMS Device MIB
with details regarding table entries.
Glossary Refer to
COMSPHERE 6700 Series Network
Management System User’s Guide,
Document
Number 6700-A2-GY31.
Index Lists key terms, acronyms, concepts, and sections in
alphabetical order.

About This Guide
iv 6700-A2-GB20-30
September 1998
Product-Related Documents
Document Number Document Title
3000-A2-GA31 COMSPHERE 3000 Series Carrier, Installation
Manual
3610-A2-GB46 COMSPHERE 3600 Series Data Service Units,
Models 3610 and 3611, User’s Guide
3610-A2-GB48 COMSPHERE 3600 Series Data Service Units,
Models 3610 and 3611, Time Division Multiplexer,
Multichannel Multipoint, and Digital Bridge Options
Supplement
3610-A2-GB49 COMSPHERE 3600 Series Data Service Units,
Models 3610 and 3611, Dial Backup Module Options
Supplement
3810-A2-GB30 COMSPHERE 3800 Series Modems, Models 3810,
3811, and 3820, User’s Guide
3910-A2-GN32 COMSPHERE 3900 Series Modems, Models 3910
and 3911, Point-to-Point/Multipoint, Installation and
Operation Manual
6700-A2-GB21 COMSPHERE 6700 Series Network Management
System Multiuser Feature User’s Guide
6700-A2-GB22 COMSPHERE 6700 Series Network Management
System Network Configuration Guide
6700-A2-GB23 COMSPHERE 6700 Series Network Management
System Remote Monitor Feature User’s Guide
6700-A2-GB41 COMSPHERE 6700 Series Network Management
System Security Manager Feature Supplement
6700-A2-GY31 COMSPHERE 6700 Series Network Management
System User’s Guide
7800-A2-GB24 Proxy Agent Interface for HP OpenView Application
Guide
7800-A2-GB26 OpenLane DCE Manager User’s Guide
Contact your sales or service representative to order additional product
documentation.
Paradyne documents are also available on the World Wide Web at:
http://www.paradyne.com
Select
Service & Support → Technical Manuals

1-1
6700-A2-GB20-30 September 1998
SNMP Proxy Agent Overview 1
What is SNMP?
Simple Network Management Protocol (SNMP) is an Internet standard protocol
for managing TCP/IP devices.
Using SNMP, a network administrator can address queries and commands to
network nodes and devices. SNMP can be used to:
Monitor network performance and status
Control operational parameters
Report, analyze, and isolate faults
Agents, managers, and Management Information Bases (MIBs) combine to
control network devices.
Agents collect management information and store in a database called the MIB.
The agent provides management information to an SNMP manager upon
request.
Non-TCP/IP devices can be managed with SNMP proxy agents.
What is the SNMP Proxy Agent Feature?
The COMSPHERE6700 Series Network Management System SNMP Proxy
Agent feature provides the capability for any device managed by a COMSPHERE
6700 Series Network Management System (NMS) to also be monitored and
controlled by an SNMP network management system, such as HP OpenView.

SNMP Proxy Agent Overview
1-2 6700-A2-GB20-30
September 1998
Feature List
The SNMP Proxy Agent feature provides the following features:
SNMP Proxy Agent for COMSPHERE devices using Enterprise MIBs
SNMP Agent for COMSPHERE 6700 Series NMS using Enterprise MIBs
SNMP Agent for MIB-II
COMSPHERE 6700 Series NMS Alerts exported as SNMP Traps
One IP address per COMSPHERE 6700 Series NMS
Specific Community View Access for each managed device
Software Description
The SNMP Proxy Agent feature includes SNMP software, which supports
transmission of SNMP messages across any Winsock-compliant TCP/IP protocol
stack installed on the system.
COMSPHERE 6700 Series NMS Release 5.0 or higher is required to execute the
SNMP Proxy Agent feature. The SNMP Proxy Agent feature is a software
package that can be installed on top of COMSPHERE 6700 Series NMS
Release 5.0 or higher.
You can install the SNMP Proxy Agent feature in the following COMSPHERE
6700 Series NMS installations:
Single user
Multiuser server
SNMP Proxy Agent Feature Package Contents
The SNMP Proxy Agent feature package includes the following:
SNMP feature software on one 3 1/2″disk with a Software Abstract
COMSPHERE 6700 MIBs on one 3 1/2″disk with a Software Abstract
One COMSPHERE 6700 Series Network Management System SNMP Proxy
Agent Feature User’s Guide
(this manual)

SNMP Proxy Agent Overview
1-3
6700-A2-GB20-30 September 1998
SNMP Network Topology
The figure below shows a sample SNMP network topology.

SNMP Proxy Agent Overview
1-4 6700-A2-GB20-30
September 1998
Proxy Agent Interface
The Paradyne Proxy Agent Interface application for HP OpenView runs in
conjunction with DCE Manager. HP OpenView can establish a management link
to a system running the 6700 Series NMS SNMP Proxy Agent feature over a LAN
(via router or LAN adapter), leased line, or dial-up connection. The Proxy Agent
Interface application can be used to manage the 6700 Series NMS as well as the
devices.
The 3550 Series DSUs, 3610 Series DSUs, 3810 Series modems, and 39xx
Series modems support SNMP
indirectly through the COMSPHERE 6700 Series
Network Management System SNMP Proxy Agent Feature software product as
illustrated below. These devices are referred to as proxied devices.
SNMP Manager
Running HP OpenView
LAN - TCP/IP
495-14590-01
Ethernet, Token Ring, or FDDI
SLIP
or
PPP
Asynchronous
Serial
COMSPHERE 6700 Series NMS
Running 6700 Series NMS
SNMP Proxy Agent Feature
COMSPHERE 3550 Series DSUs
COMSPHERE 3600 Series DSUs
COMSPHERE 3800 Series Modems
COMSPHERE 3900 Series Modems
COMSPHERE 6700 Series NMS
Running 6700 Series NMS
SNMP Proxy Agent Feature
COMSPHERE 3550 Series DSUs
COMSPHERE 3600 Series DSUs
COMSPHERE 3800 Series Modems
COMSPHERE 3900 Series Modems
COMSPHERE3610
P
a
r
a
dyn
e
COMSPHERE3610
P
a
r
a
dyn
e
COMSPHERE3610
P
a
r
a
dyn
e
Modem
Modem
COMSPHERE3610
P
a
r
a
dyn
e
COMSPHERE3610
P
a
r
a
dyn
e
COMSPHERE3610
P
a
r
a
dyn
e
COMSPHERE3610
P
a
r
a
dyn
e
COMSPHERE3610
P
a
r
a
dyn
e
SLIP
or
PPP
P a
r
a dyn e
P a
r
a dyn e
ACCULINK 3100
Series DSU/CSUs
ACCULINK 3100
Series DSU/CSUs
Modem
SLIP
or
PPP
SLIP
or
PPP
3000
Series Carrier
For additional information, refer to Proxy Agent Interface for HP OpenView
Application Guide.

2-1
6700-A2-GB20-30 September 1998
SNMP Proxy Agent Installation 2
Hardware and Software Requirements
The SNMP Proxy Agent feature has the same hardware and software
requirements as the basic single-user NMS, except that the agent requires at
least 16 MB of RAM. Refer to the
Hardware Description and Software Description
sections in Chapter 1, Introduction , of the COMSPHERE 6700 Series Network
Management System User’s Guide
for details.
Preparing for Installation and Configuration
Before installing and configuring the SNMP Proxy Agent feature, you need some
system and network information. A Winsock-compliant TCP/IP stack must be
installed on the PC, such as the one provided by Windows 95 and Windows NT.

SNMP Proxy Agent Installation
2-2 6700-A2-GB20-30
September 1998
Installing the SNMP Proxy Agent Feature
Procedure
To install the SNMP Proxy Agent feature software, start from the Program
Manager window and perform the following steps:
1. Insert Disk #1 into Drive A. From the Program Manager window, choose File.
From the File menu, choose Run.
2. In the Command Line field, type A:\INSTALL.

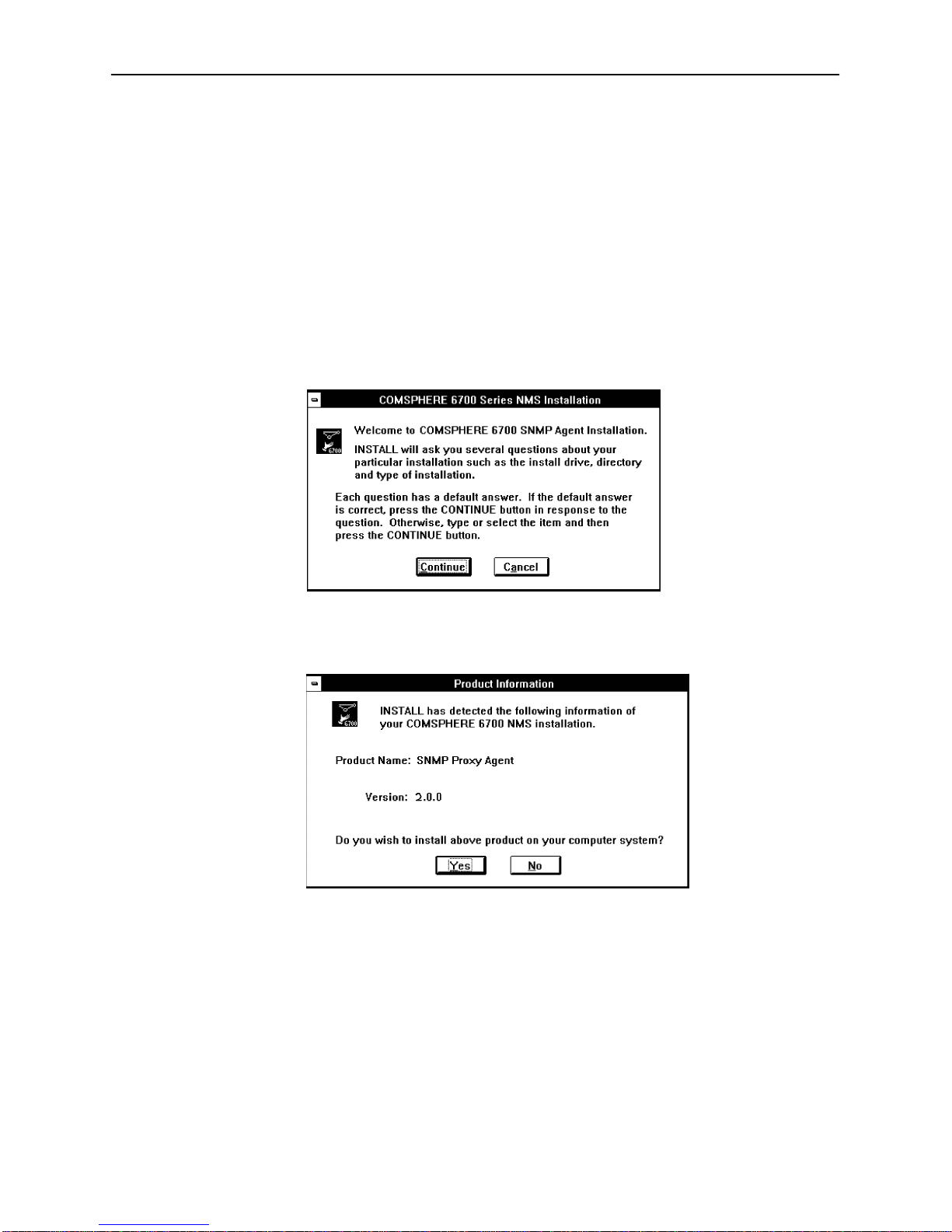

3. Choose OK. The Welcome window appears.
4. Choose Continue. The Product Information window appears.

SNMP Proxy Agent Installation
2-3
6700-A2-GB20-30 September 1998
5. Choose Yes. The Destination Directory window appears.
The Destination Directory window allows you to place the NMS software into
a specific directory. A single directory within a single partition is required.
Enter a subdirectory location or choose the default setting C:\PCNMS.
6. Choose Continue. The Confirmation window appears.
7. Choose Install to confirm the installation of the NMS software into the
specified directory. The Completion status window appears.
This window displays a bar indicating the percentage of completion for the
current installation. In addition, the names of the files being installed appear
above the bar until the installation is complete.

SNMP Proxy Agent Installation
2-4 6700-A2-GB20-30
September 1998

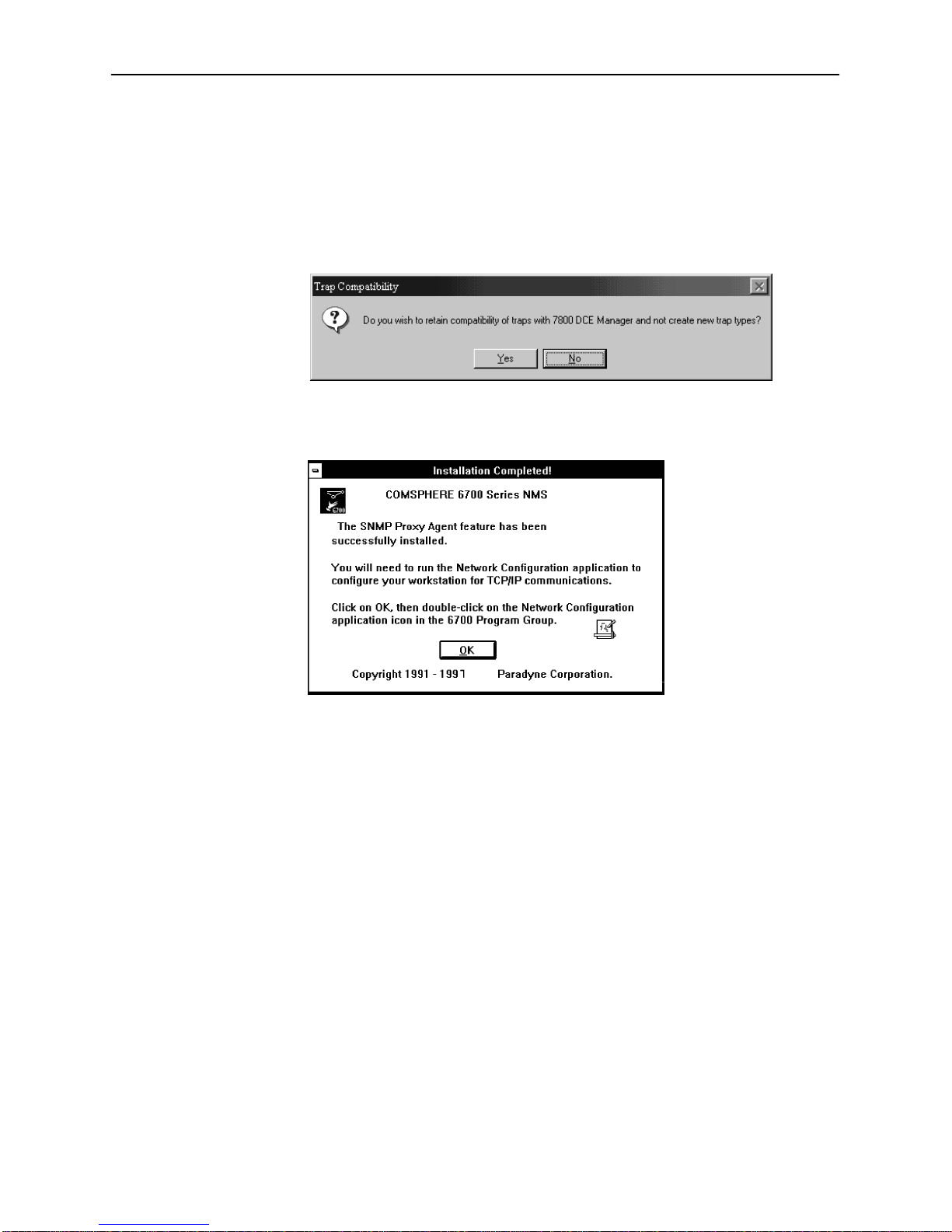

8. The Trap Compatibility window appears. No is the default.
The 7800 DCE Manager trap types and format are available. To maintain
compatibility, select Yes if you are using the DCE Manager software also.
Choosing Yes results in Mode 1 for Release 1 and disables the traps new to
Release 2 and other new functionality, including filtering from the NMS Alarm
MIB.
9. The Installation Completed! window appears.
10. Choose OK.
Configuring the SNMP Proxy Agent Feature for TCP/IP Networks
After installation, use the Network Configuration application to customize your
configuration for TCP/IP networks. For details, refer to the
COMSPHERE
6700 Series Network Management System Network Configuration Guide
.

SNMP Proxy Agent Installation
2-5
6700-A2-GB20-30 September 1998
SNMP Community Views
Different read and write community views are used for the COMSPHERE 6700
NMS MIB and for each managed device under the COMSPHERE 6700 Device
MIB. Set up the community names for community views using the COMSPHERE
6700 Series NMS Network Configuration feature. Refer to the
COMSPHERE
6700 Series Network Management System Network Configuration Guide
.
NOTE:
The default community names are:
nmsAdminNmsReadCommunity = “public”
nmsAdminNmsWriteCommunity = “public”
nmsAdminBaseReadCommunity = “” (null)
nmsAdminBaseWriteCommunity = “” (null)
With the default settings, the community names for the devices are the
device names. Refer to Chapter 4,
Configuration, in the COMSPHERE 6700
Series Network Management System User’s Guide
.
The community names for the Device MIB are generated by appending the
desired device name to the appropriate base name. Consider the following rules
when creating community names:
Community names should not be the prefix of a device name.
Write community names can be used for both read and write.
Device Call Directory MIB and Device Front Panel MIB both use the same
communities as the Device Configuration MIB. Refer to Appendix A,
Enterprise Device MIBs.
Community Name Example
To better understand the use of community names, consider the following
example. Using community name settings as follows:
nmsAdminNmsReadCommunity = clear
nmsAdminNmsWriteCommunity = orange
nmsAdminBaseReadCommunity = teal
nmsAdminBaseWriteCommunity = pink
The community name for Get requests to the NMS MIB can be either “clear” or
“orange.” The community name for Set requests to the NMS MIB must be
“orange.”
The Device MIB community name for Get requests to a device named “
modem1 ”
in the Device MIB would be either “teal
modem1 ” or “pink modem1. ” The
community name for Set requests to the device would be “pink
modem1. ”
To access a Dial Backup Module (DBM) within a COMSPHERE 3600 Series
DSU, the suffix “.dbm” is appended to the device community name. For example,
the DBM for a device named “
DSU5 ” would have a write community name of
“pink
DSU5. dbm.”

SNMP Proxy Agent Installation
2-6 6700-A2-GB20-30
September 1998
Troubleshooting SNMP Request Timeouts
The following table includes most common causes of SNMP request timeouts.
Symptom Solution
Community name is not valid. Use the Network Configuration application
SNMP/Community Names menu item to
determine the valid community names.
SNMP Manager is not authorized. Use the Network Configuration application
SNMP/Community Names menu item to add a
manager or change its access.
Timeout setting for SNMP
Manager is too short. Allow at least 30 seconds (recommended minimum). For tributary or tail circuit access,
60 seconds may be required.
6700 NMS is not running. Check the PC to ensure that the 6700 NMS is up
and running. For additional troubleshooting, refer
to the
COMSPHERE 6700 Series Network
Management User’s Guide
. Additional related
documents are listed in
Product-Related
Documentation
in About This Guide on page iv.

3-1
6700-A2-GB20-30 September 1998
Traps and Report Formats 3
SNMP Traps Overview
The COMSPHERE 6700 Series NMS supports several SNMP traps and reports.
COMSPHERE 6700 NMS alerts may be exported to authorized SNMP managers
as SNMP traps. Traps are forwarded for any event that makes it through the
COMSPHERE 6700 Series NMS’s alert filter.
All traps are enterprise specific, with an OBJECT IDENTIFIER (OID) specifying
the COMSPHERE 6700 Enterprise Device product.
Trap forwarding can be turned on/off for each SNMP manager in the authorized
manager list through the COMSPHERE 6700 Series NMS Network Configuration
feature or via SNMP. To do so, refer to the
COMSPHERE 6700 Series Network
Management System Network Configuration Guide
.
Traps may be:
Configured to operate in Mode 1 or Mode 2.
— Use Mode 1 with Release 1 for compatibility with previous SNMP Proxy
Agent releases and with the DCE Manager Proxy Agent Interface (UNIX
platform).
— Use Mode 2 with Release 2 for additional traps, filtering, more
information, and serialization.
Individually filtered for each manager through the NMS Alarm MIB group in
Mode 2 only.
Trap Messages
The COMSPHERE 6700 Device MIB variable bindings are dependent on the
specific trap and Trap Mode.
Table 3-1, Mode 1 Traps
Table 3-2, Mode 2 Traps
Table 3-3, Mode 2 NMS Events and Status

Traps and Report Formats
3-2 6700-A2-GB20-30
September 1998
Traps OIDs
Traps are generated for alert conditions detected by the COMSPHERE 6700
Series NMS.
The Enterprise OBJECT IDENTIFIER (OID) used in device traps in Trap Mode 1
is the following:
iso(1) org(3) dod(6) internet(1) private(4) enterprises(1)
att-2(74) att-products(1) paradyneNMS-products(13)
nms-6700-products(2) att67 devOid(2)
For Trap Mode 2, the OBJECT IDENTIFIER (OID) varies depending on the
device type generating the trap.
For dial devices, the following OID is used:
iso(1) org(3) dod(6) internet(1) private(4) enterprises(1)
att-2(74) att-products(1) paradyneNMS-products(13)
nms-6700-products(2) att67 devOid(2) att67dialOid(1)
For APL devices, the following OID is used:
iso(1) org(3) dod(6) internet(1) private(4) enterprises(1)
att-2(74) att-products(1) paradyneNMS-products(13)
nms-6700-products(2) att67 devOid(2) att67aplOid(2)
For DSU devices, the following OID is used:
iso(1) org(3) dod(6) internet(1) private(4) enterprises(1)
att-2(74) att-products(1) paradyneNMS-products(13)
nms-6700-products(2) att67 devOid(2) att67dsuOid(3)
For the NMS system, the following OID is used:
iso(1) org(3) dod(6) internet(1) private(4) enterprises(1)
att-2(74) att-products(1) paradyneNMS-products(13)
nms-6700-products(2) att67nmsOid(1)
The community name used in device product traps is the Device Read
Community. This is formed by concatenating base read community with the
device name.
Mode 1 Traps
The following COMSPHERE 6700 Device MIB variable bindings are included in
each trap message.
Device Name (devAdminName)
Device Type (devAdminModelType)
System Time (nmsSystemTime)

Traps and Report Formats
3-3
6700-A2-GB20-30 September 1998
Table 3-1 identifies Mode 1 traps that apply to all Paradyne devices (DSU, Dial,
and APL) and includes an alarm clearing actions column. Use Mode 1 traps for
compatibility with the Proxy Agent Interface application for DCE Manager.
Traps 101–117 are Dial Security alerts.
NOTE:
Trap numbers 1–32 are reserved for Primary Alerts. The state of a device’s
Primary Alerts can also be read from devStatusAlert.
Table 3-1. Mode 1 Traps (1 of 3)
Trap Trap Description Alarm Clearing Actions
ÁÁÁ
Á
Á
Á
ÁÁÁ
1
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Device Failure
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
2
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Configuration Change Notify
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
User must explicitly clear the alarm
ÁÁÁ
ÁÁÁ
3
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Test Mode
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
ÁÁÁ
4
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Disabled
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
Á
Á
Á
5
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁ
Á
Out of Threshold/VF Threshold
Exceeded
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
ÁÁÁ
6
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Facility Alarm
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
7
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
External Alarm
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
8
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Streaming Terminal
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
ÁÁÁ
9
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Access Security
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
ÁÁÁ
10
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
TDM Failure/Dial Backup
Active for APL
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
ÁÁÁ
11
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
DTE Alarm
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
12
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Sub-normal Operating Speed
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
13
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Primary Channel Interrupted
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
14
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
Firmware Downloading
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
ÁÁÁ
15
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Make Busy Mode
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
16
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Service Line
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
17
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Non-answering Modem
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
ÁÁÁ
18
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Short Holding Time Modem
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
19
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Sub Tree Truncation
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
20
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
TDM Failure/Good APL Line
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
21
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Tributary Timeout
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
Á
Á
Á
ÁÁÁ
22
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Dial Tone Test
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
23
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Redundant Power Supply
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves

Traps and Report Formats
3-4 6700-A2-GB20-30
September 1998
Table 3-1. Mode 1 Traps (2 of 3)
Trap Alarm Clearing ActionsTrap Description
ÁÁÁ
ÁÁÁ
32
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
No Response
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Automatically clears when condition improves
ÁÁÁ
ÁÁÁ
101
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
VF Login OK
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
ÁÁÁ
102
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
User Login OK
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
103
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
User Login Rejected – Retry
Failed
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
104
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
User Login Rejected –
Password Timeout
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
105
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
User Login Aborted – Line
Disconnected
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
106
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
VF Login Rejected – Password
Invalid
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
107
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
VF Login Rejected – Password
Timeout
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
108
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
VF Login Aborted – Line
Disconnected
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
109
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
User Login OK – Multiple
Password Retries
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
110
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
User ID and Password
Combination Invalid
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
Á
Á
Á
111
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁ
Á
Invalid User ID – Password
Valid for Device
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
112
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Invalid Access Time
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
113
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
User Login Hack – Multiple
Sequential Password Retries
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
ÁÁÁ
114
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Device Security Table Invalid
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
ÁÁÁ
116
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Security Download Failed
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
117
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Front Panel Modification of
Security Options
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
ÁÁÁ
201
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Device Failure Cleared
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
202
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Configuration Change Notify
Cleared
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
203
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
Test Mode Cleared
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
204
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
Device Disabled Cleared
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
ÁÁÁ
205
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Threshold Exceeded Cleared
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
ÁÁÁ
206
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Facility Alarm Cleared
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
ÁÁÁ
Á
Á
Á
ÁÁÁ
207
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁ
External Alarm Cleared
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
One-time event notification; no clearing needed
