ACCULINK 3161 DSU/CSU
Quick Reference
Document Number 3161-A2-GL11-40
February 1998
Quick Start Procedure
The following procedure is for experienced DSU/CSU users who are familiar with the
3161 DSU/CSU installation process and have no special requirements for their
application. See the
ACCULINK 316x Data Service Unit/Channel Service Unit
Operator’s Guide
(3160-A2-GB21) for more information. A copy is included with the
Auxiliary Backplane.
1. Install the Auxiliary Backplane onto the 3000 Series Carrier. See the
ACCULINK
3151 CSU and 3161 DSU/CSU General Information Guide (3100-A2-GK40) for
installation procedures.
2. Attach the DTE cable (DB15) and/or port cables (DB25) to the appropriate
connectors on the Auxiliary Backplane. See the
COMSPHERE 3000 Series Carrier
Installation Manual
(3000-A2-GA31) for detailed cable and connector information.
Connect the other end of the DTE cable to the customer premises equipment.

2
3. Attach the network cable to the Auxiliary Backplane using either a 50-pin cable or
the T1 Network Interface Adapter. Connect the other end of the network cable to
the connection provided by the telephone company.
496-14386-0
3

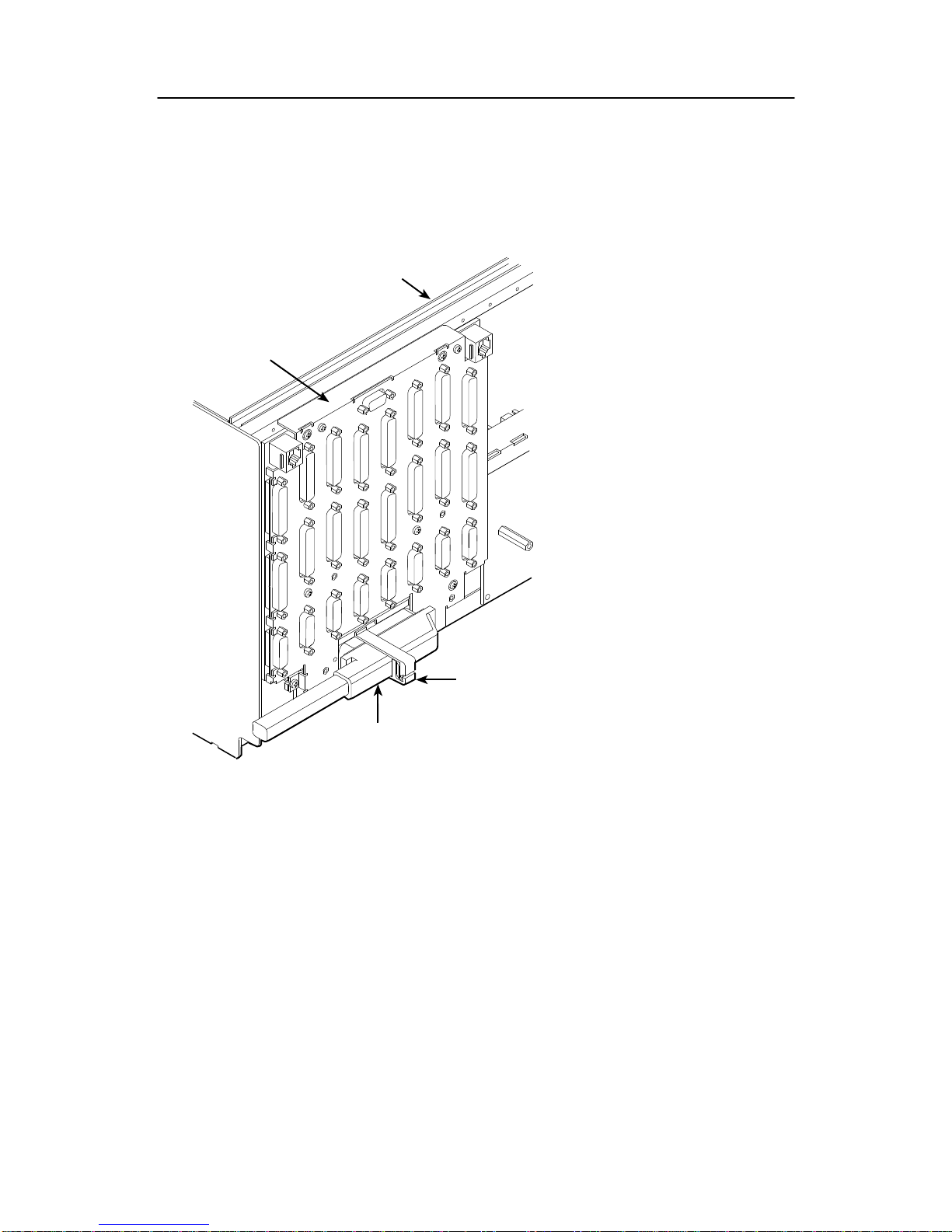

Auxiliary
Backplane
over Slots 9–16
COMSPHERE
3000 Series
Carrier (Rear)
T1 Network
Cable
Cable
Retainer
4. Turn on the power to the 3000 Series Carrier.

3
5. Insert the DSU/CSU circuit card into the appropriate slot in the carrier. The
power-up self-test begins.
495-1479
7
6. If you intend to use front panel emulation, connect the cable from the PC to Port 2
on the Auxiliary Backplane using the COM port adapter and COM-port-to-PC cable.
7. If you do not intend to use the DTE Drop/Insert T1 port, disable it using the
configuration procedures in Chapter 3,
Operation , and Appendix C, Configuration
Options
, of the ACCULINK 316x Data Service Unit/Channel Service Unit
Operator’s Guide
(3160-A2-GB21). (The default setting for this port is Enabled.)
8. The Factory 1 configuration for ESF framing format and B8ZS line coding format is
the default configuration and is appropriate for most networks. If this configuration
does not work for you, try the Factory 2 configuration for D4 framing format and
AMI line coding format. To further customize configuration options, refer to
Changing Configuration Options in Chapter 3, Operation , and Appendix C,
Configuration Options , in the ACCULINK 316x Data Service Unit/Channel Service
Unit Operator’s Guide .
9. During the power-up self-test, the FAIL LED flashes, then all LEDs blink twice.
When the test is complete, verify that the DSU/CSU is functional by observing that
the OK, NETWORK SIG, and DTE SIG LEDs are lit.
10. Configure the ports and channels you intend to use and assign channels to the
network interface.

4

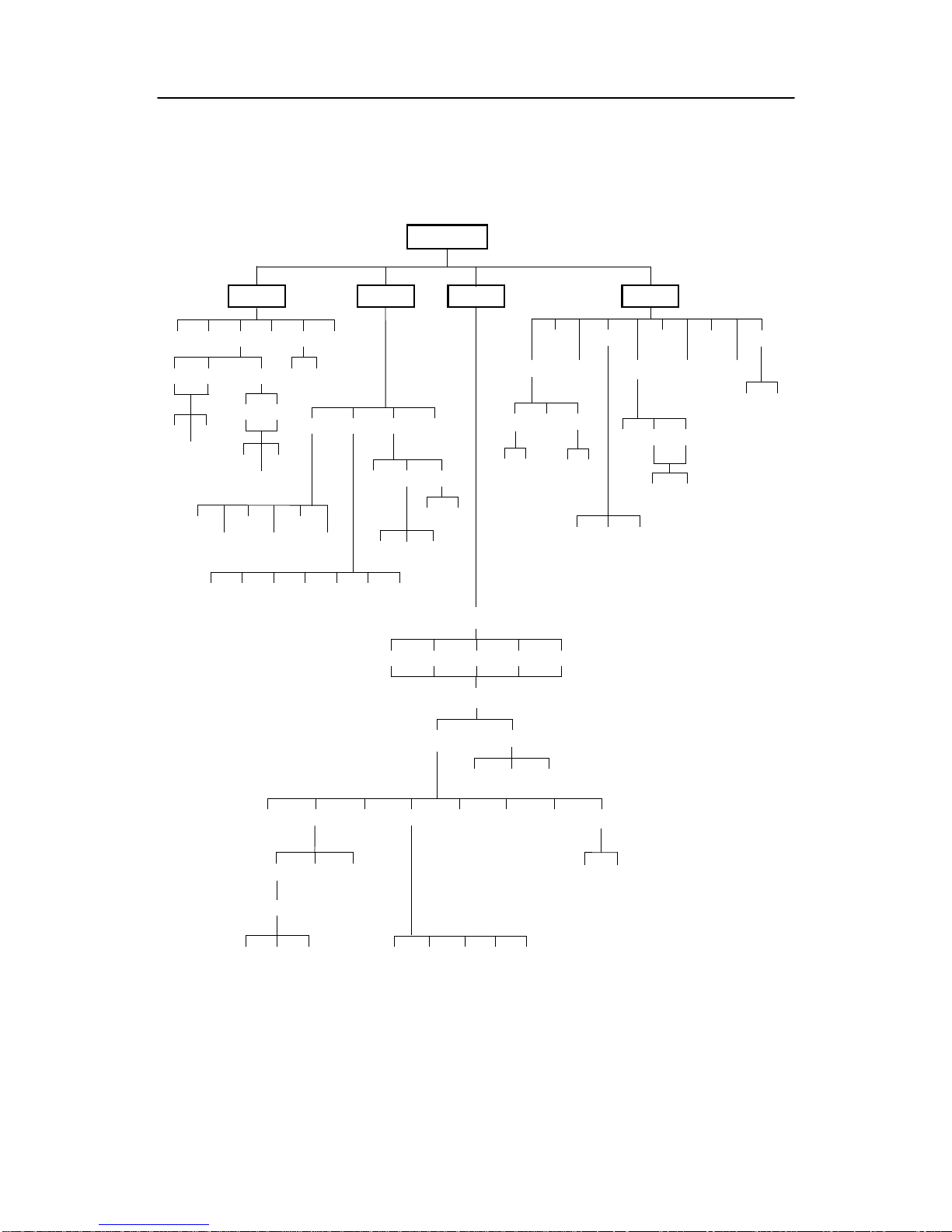

Configuration Options
Configuration options are accessed from the Cnfig branch of the front panel menu.
DSU ESF
Stat
97-15577
DevHS STest Perf TStat LED ID
T1 PrtnPrtnUserTelco
Cur
24Tot
Intvl
FarNear
Cur
8Tot
Intvl
Test
Rlpbk Lpbk Ptrns Lamp
QRSS 511
Abort Mon
LLBUP
LLBDN
54UP
54DN
FT1UP
FT1DN
PLB DLB RLBLLBAbort DCLB DTLB
QRSS 1in8 511
Send
Cnfig
EQPT NET
Ctrl
Rel ClrReg
Reset
CID
PasswdLED ACO
DL
Mon
Call
DiscDial ChDir
1 . . 5,A
(Directory) 1 . . 5,A
(Directory)
DTE Prt1 Prt2
User Prt1 Prt2
FarNear
Load Edit Area From:
Choose Function:
Activ Cust1 Cust2 Fact1 Fact2
User AlarmNETDTE Port Chan Gen Mgmt
Gen Trap
DTE Prt1 Prt2 ClearDsply
Copy Prt1 Prt2
Port Select :
All Prt1 Prt2
Save
Cust1Activ Cust2
Edit

5
Table 1. DTE Interface Configuration Options
Option Factory 1 Factory 2 Comments/Description
DTE Port:
Enab Enab Enables the use of the DTE
DTE Port: Disab Disab
Enables
the
use
of
the
DTE
Drop/Insert port.
DTE Framing:
D4 D4
Selects D4 or ESF framing format
DTE Framing: ESF ESF Selects D4 or ESF framing format.
DTE Coding:
AMI AMI Selects AMI or B8ZS line codin
g
DTE Coding: B8ZS B8ZS
S
e
l
ec
t
s
AMI
or
B8ZS
li
ne co
di
ng
format.
0–133 0–133
Equal:
133–266 133–266
Equal:
(DTE Line
Eli)
266–399 266–399 Provides selectable extended DTE
ran
g
e ca
p
abilit
y
.
(DTE Line
Equalizer) 399–533 399–533 range capa
bilit
y.
533–655 533–655
Extrn DLB:
(External DTE
Enab Enab Allows control of DLB on external
(External DTE
Loopback) Disab Disab
All
ows con
t
ro
l
o
f
DLB
on ex
t
erna
l
contact closure.
Send Ones:
Enab Enab Sends all ones on channels
allocated to the network T1 on
Send Ones: Disab Disab allocated to the network T1 on
LOS, LOF, or AIS.
Table 2. Port Configuration Options (1 of 3)
Option Factory 1 Factory 2 Comments/Description
E530 E530
Port Type:
V.35 V.35 Selects the
p
ort t
yp
e: EIA-530A
,
Port Type: RS449 RS449
S
e
l
ects t
h
e port type:
EIA
-530
A
,
V.35, RS449, or X.21.
X.21 X.21
Base Rate:
Nx64 Nx64 Enables the
p
ort to either Nx56 or
Base Rate: Nx56 Nx56
E
na
bl
es
th
e por
t
t
o e
ith
er
N
x
56
or
Nx64 rates.
Disab Disab
Net DCLB:
V.54 V.54 Network-initiated DCLB, allows
DCLB t b t ll d b i b d
Net DCLB: FT1 FT1
Network initiated DCLB, allows
DCLB to be controlled by inband
V.54 or FT1 (ANSI) codes.
Both Both
5 o ( S ) codes

6
Table 2. Port Configuration Options (2 of 3)
Option Comments/DescriptionFactory 2Factory 1
Disab Disab
Port LB:
DTLB DTLB Port-initiated Loopbacks, allows
Loopbacks to be initiated through
Port LB: DCLB DCLB
p,
Loopbacks to be initiated through
the port by the external DTE.
Both Both
epo by ee e a
Disab Disab
All Ones:
DTR DTR All ones sent to network
(
DTE
)
T1
All Ones: RTS RTS
All
ones sen
t
t
o ne
t
wor
k
(DTE)
T1
when DTR or RTS interrupted.
Both Both
Rcv Yellow: None None Data port remains enabled, or is
disabled on receiving Yellow on
R
cv
Y
e
ll
ow:
(Received Yellow) Halt Halt
p,
disabled, on receiving Yellow on
network T1.
Tx Clock:
Int Int Selects whether the transmitted
data clock is internal (TXC) or
Tx Clock: Ext Ext data clock is internal (TXC) or
external (XTXC).
InvertTxC: Enab Enab Selects
p
hase inversion of the
I
nver
tT
x
C
:
(Invert Tx Clock) Disab Disab
S
e
l
ec
t
s p
h
ase
i
nvers
i
on o
f
th
e
transmit clock (TXC).
InvertData:
Enab Enab Allows the data on the
p
ort to be
InvertData: Disab Disab
All
ows
th
e
d
a
t
a on
th
e por
t
t
o
b
e
inverted.
EDL:
Enab Enab S
p
ecifies whether the Embedded
EDL: Disab Disab
S
pec
ifi
es w
h
e
th
er
th
e
E
m
b
e
dd
e
d
Data Link is enabled.
10E–4 10E–4
10E–5 10E–5
Err Rate:
(Excessive Error
10E–6 10E–6 Selects the error rate threshold for
Excessive Error Rate Alarm
(Excessive Error
Rate) 10E–7 10E–7 Excessive Error Rate Alarm.
ae)
10E–8 10E–8
10E–9 10E–9
Disab Disab
Near end:
Maint Maint Specifies whether the device will
maintain near end performance
Near-end: Send Send
p
maintain near-end performance
statistics.
Both Both
sascs

7
Table 2. Port Configuration Options (3 of 3)
Option Comments/DescriptionFactory 2Factory 1
Far end:
Disab Disab Specifies whether the device will
maintain far end performance
Far-end: Maint Maint
p
maintain far-end performance
statistics.
Mgmt Link:
Enab Enab S
p
ecifies whether the EDL
Mgmt Link: Disab Disab
S
pec
ifi
es w
h
e
th
er
th
e
EDL
Management Link is enabled.
Table 3. Network Interface Configuration Options
Option Factory 1 Factory 2 Comments/Description
NET Framing:
D4 D4
Selects D4 or ESF framing format
NET Framing: ESF ESF Selects D4 or ESF framing format.
NET Coding:
AMI AMI Selects AMI or B8ZS line coding
NET Coding: B8ZS B8ZS
Selects
AMI
or
B8ZS
line
coding
format.
0.0 0.0
LBO:
–7.5 –7.5
Provides Line Build Out in dB
LBO: –15 –15 Provides Line Build Out in dB.
–22.5 –22.5
ANSI PRM:
Enab Enab Sends ANSI Performance Report
ANSI PRM: Disab Disab
Sends
ANSI
Performance
Report
Messages.
Mgmt Link:
Enab Enab Specifies whether the FDL’s
Mgmt Link: Disab Disab
Specifies
whether
the
FDLs
Management Link is enabled.
NET LLB:
Enab Enab Network-initiatedLLB allows LLB to
NET LLB: Disab Disab
Network-initiated
LLB
allows
LLB
to
be controlled by inband LLB codes.
NET PLB:
Enab Enab Network-initiated PLB allows PLB
to be controlled by FDL PLB
NET PLB: Disab Disab to be controlled by FDL PLB
messages.
62411 62411 Provides enforcement of ones
d it t ti AT&T TR
BitStuff: Part68 Part68
Provides enforcement of ones
density protection per AT&T TR
62411
,
ANSI T1-403
,
and FCC
BitStuff:
Disab Disab
62411
,
ANSI
T1
-
403
, an
d
FCC
Part 68 TechnicalPublication.
Circuit Ident: Edit Edit Specifies the transmission vendor’s
Circuit
Ident:
Clear Clear
Specifies
the
transmission
vendor s
circuit identifier.

8
Table 4. DTE Drop/Insert Port Channel Configuration Options
Line 1 Displays: Line 2 Displays: Meaning Comments/Description
— Unassigned
N1 N2 N3 ...... N24:
D1, D2 ... D24 Channel
assigned to this
DTE channel
Function key under the channel
(N1, N2, etc.) selects the DTE
channel to assi
g
n
(
D1
,
D2
,
... D24
,
N1
N2
N3
......
N24
:Prt1
Prt2
Prt3
Prt4
Channel
assigned to port
1,2,3, or 4
c
h
anne
l
to ass
i
gn
(D1
,
D2
, ...
D24
,
or –).
Data Data Channel Function key under the channel
D1 D2 D3 ...... D24: RBS Voice
Channel
Function
key
under
the
channel
(D1, D2, etc.) selects either Data
or RBS.

9
Table 5. Data Port Channel Configuration Options (1 of 2)
Option Factory 1 Factory 2 Comments/Description
NET NET
Assigns this port to channels on
Assign To: DTE DTE Assigns this port to channels on
the Network or DSX-1 T1 interface,
ttht
Assign To:
Prt n Prt n
the Network or DSX 1 T1 interface,
or to another port.
Block Block
Determines how channels are
Assign By: ACAMI ACAMI Determines how channels are
assigned: contiguous blocks,
ACAMI i di id l h l
Assign By:
Chan Chan
assigned: contiguous blocks,
ACAMI or individual channels.
Option Factory 1 Factory 2 Comments/Description
Port Rate:
64 (56)
128 (112)
192 (168)
256 (224)
320 (280)
384 (336)
448 (392)
512 (448)
576 (504)
640 (560)
704 (616)
768 (672)
832 (728)
896 (784)
960 (840)
1024 (896)
1088 (952)
1152 (1008)
1216 (1064)
1280 (1120)
1344 (1176)
1408 (1232)
1472 (1288)
1536 (1344)
64 (56)
128 (112)
192 (168)
256 (224)
320 (280)
384 (336)
448 (392)
512 (448)
576 (504)
640 (560)
704 (616)
768 (672)
832 (728)
896 (784)
960 (840)
1024 (896)
1088 (952)
1152 (1008)
1216 (1064)
1280 (1120)
1344 (1176)
1408 (1232)
1472 (1288)
1536 (1344)
Selects the data rate for the port.
The possible rates depend on
whether the port is configured for
Nx56 or Nx64.
This configuration option only
appears if the “Assigned By”
configuration option is Block or
ACAMI.

10
Table 5. Data Port Channel Configuration Options (2 of 2)
Option Factory 1 Factory 2 Comments/Description
Clear Clear Clears (unassigns) channels for
this port.
Start At:
N1 (D1)
N2 (D2)
N3 (D3)
N4 (D4)
N5 (D5)
N6 (D6)
N7 (D7)
N8 (D8)
N9 (D9)
N10 (D10)
N11 (D11)
N12 (D12)
N13 (D13)
N14 (D14)
N15 (D15)
N16 (D16)
N17 (D17)
N18 (D18)
N19 (D19)
N20 (D20)
N21 (D21)
N22 (D22)
N23 (D23)
N24 (D24)
N1 (D1)
N2 (D2)
N3 (D3)
N4 (D4)
N5 (D5)
N6 (D6)
N7 (D7)
N8 (D8)
N9 (D9)
N10 (D10)
N11 (D11)
N12 (D12)
N13 (D13)
N14 (D14)
N15 (D15)
N16 (D16)
N17 (D17)
N18 (D18)
N19 (D19)
N20 (D20)
N21 (D21)
N22 (D22)
N23 (D23)
N24 (D24)
This configuration option appears if
the “Assigned By” configuration
option is Block or ACAMI.
Line 1 Displays: Line 2 Displays: Meaning Comments/Description
— Unassigned
N1 N2 N3 ...... N24:
(If assigned to NET)
Prt1
Prt2
Prt3
Prt4
Channel
assigned to port 1,
2, 3, or 4
This configuration option appears if
the “Assigned By” configuration
option is individual channels
(Chan)
(If
assigned
to
NET)
D1 D2 D3 ..... D24:
(If assigned to DTE) D1, D2 ... D24 Channel
assigned to this
DTE channel
p
(Chan).
Function key under the channel
(N1, N2 etc.) assigns (unassigns)
(1 2 3 4) h h l
N1, N2 ... N24 Channel assigned
to this NET
channel
(N1
,
N2
etc
.
)
assigns
(unassigns)
port (1, 2, 3, or 4) to that channel.

11
Table 6. General Configuration Options
Option Factory 1 Factory 2 Comments/Description
Gen Yellow: Enab Enab Yellow alarm is
g
enerated b
y
the
G
en
Y
e
ll
ow:
(Generate Yellow) Disab Disab
Y
e
ll
ow a
l
arm
i
s genera
t
e
d
b
y
th
e
DSU/CSU on LOS, LOF, or AIS.
NET NET
DTE DTE
Selects the clock source to be
Clock Src: Prt1 Prt1 Selects the clock source to be
used as the master clock for the
DSU/CSU
Clock Src:
Int Int
used as the master clock for the
DSU/CSU.
Ext Ext
2048 2048
Clock Rate: 1544 1544 Selects the clock rate of the source
if external.
Clock Rate:
8 8
if
ex
t
erna
l
.
Tst Timeout:
Enab Enab Specifies whether the durations of
user initiated tests are limited by
Tst Timeout: Disab Disab
p
user-initiated tests are limited by
Tst Duration.
10 10
Tst Duration: Up Up Specifies the duration of
iititdl b k d tt
Tst Duration:
Down Down
Specifies the duration of
user-initiated loopback and pattern
tests.
Save Save
es s

12
Table 7. User Configuration Options (1 of 3)
Option Factory 1 Factory 2 Comments/Description
Self
-
Test:
Enab Enab Allows bypass of self-test on
Self-Test: Disab Disab
Allows
bypass
of
self
-
test
on
initialization.
Dial
-
In:
Enab Enab Controls whether dial-in access is
Dial-In: Disab Disab
Controls
whether
dial
-
in
access
is
allowed.
Password:
None None Controls whether a password is
Password: Com Com
Controls
whether
a
password
is
required for remote access.
Com Port:
Enab Enab Controls whether the COM port is
Com Port: Disab Disab
Controls
whether
the
COM
port
is
enabled or disabled.
Mgmt Mgmt
Com Use: ASCII ASCII Controls how the COM port is
used.
Term Term use
d
.
Disab Disab
ComExtDev: AT AT Controls the COM port’s external
device commands.
Other Other
d
ev
i
ce comman
d
s.
ComConnPrefix:
Edit Edit Controls the COM port’s connect
ComConnPrefix: Clear Clear
Controls
the
COM
ports
connect
prefix.
ComConnected:
Edit Edit Controls the COM port’s connect
ComConnected: Clear Clear
Controls
the
COM
ports
connect
indication string.
ComEscapeSeq:
Edit Edit Controls the COM port’s escape
ComEscapeSeq: Clear Clear
Controls
the
COM
ports
escape
sequence.
None None
0.2s 0.2s
ComEscDel:
0.4s 0.4s Controls the COM port’s escape
ComEscDel: 0.6s 0.6s
Controls
the
COM
ports
escape
sequence delay.
0.8s 0.8s
1.0s 1.0s
ComDisconnect:
Edit Edit Controls the COM port’s
ComDisconnect: Clear Clear
Controls
the
COM
ports
disconnect string.

13
Table 7. User Configuration Options (2 of 3)
Option Comments/DescriptionFactory 2Factory 1
1.2 1.2
2.4 2.4
Com Rate:
4.8 4.8
Com Rate:
(CommunicationPort
Rt)
9.6 9.6 Selects the bit rate for the COM
p
ort.
(CommunicationPort
Rate) 14.4 14.4 por
t
.
19.2 19.2
38.4 38.4
Char Length:
7 7 Selects the character length for the
Char Length: 8 8
Selects
the
character
length
for
the
COM port.
CParity:
None None
CParity:
(CommunicationPort
Parity)
Even Even Selects the parity for the COM port.
(
Parity) Odd Odd
py p
CStop Bits:
1 1
CStop Bits:
(CommunicationPort
St Bit )
1.5 1.5 Selects the number of stop bits for
the COM
p
ort.
(CommunicationPort
Stop Bits) 2 2
th
e
COM
por
t
.
Ignore DTR:
Yes Yes S
p
ecifies whether the COM
p
ort
Ignore DTR: No No
S
pec
ifi
es w
h
e
th
er
th
e
COM
por
t
ignores DTR.
CmInActTm:
(COM Port Inactivity
Enab Enab Specifies whether the
communication port disconnects
(COM Port Inactivity
Timeout) Disab Disab
p
communication port disconnects
after a certain period of inactivity.
5 5
CmDiscTm:
(
COM Port Up Up Specifies the period of inactivity
(
1 to 60 minutes
)
that causes a
(COM
P
or
t
Disconnect Time) Down Down
(1
t
o
60
m
i
nu
t
es
)
th
a
t
causes a
disconnect if CmInActTm is
enabled.
Save Save
ena
bl
e
d
.
TnSession: Enab Enab Specifies whether the DSU/CSU
responds to Telnet session
T
n
S
ess
i
on:
(Telnet Session) Disab Disab
p
responds to Telnet session
requests.
TnPaswd: Enab Enab S
p
ecifies whether a
p
assword is
T
n
P
asw
d
:
(Telnet Password) Disab Disab
S
pec
ifi
es w
h
e
th
er a passwor
d
i
s
required for Telnet sessions.
TnInActTm:
(Telnet Inactivity
Enab Enab Specifies whether a Telnet session
disconnects after a certain period
(Telnet Inactivity
Timeout) Disab Disab
p
disconnects after a certain period
of inactivity.

14
Table 7. User Configuration Options (3 of 3)
Option Comments/DescriptionFactory 2Factory 1
5 5
TnDiscTm:
(
Telnet Disconnect Up Up The period of inactivity (1 to
60 minutes
)
that causes a
(T
e
l
ne
t
Di
sconnec
t
Time) Down Down
60
m
i
nu
t
es
)
th
a
t
causes a
disconnect if TnInActTm is
enabled.
Save Save
ena
bl
e
d
.
Table 8. Alarm Configuration Options (1 of 2)
Option Factory 1 Factory 2 Comments/Description
Alrm Msg:
Disab Disab Does not display alarm messages.
Alrm Msg: Com Com Sends alarm messages to COM
port.
SNMP Trap:
Enab Enab
Sends SNMP traps
SNMP Trap: Disab Disab Sends SNMP traps.
TrapDisc:
Enab Enab Specifies whether the modem
connection will disconnect after a
TrapDisc: Disab Disab
p
connection will disconnect after a
trap is sent.
DialOut:
Enab Enab Provides the option to allow
automatic dial out to send alarm
DialOut: Disab Disab
p
automatic dial-out to send alarm
messages on MODEM port.
Call Retry:
Enab Enab Specifies whether an outgoing call
is retried on a busy or failed call
Call Retry: Disab Disab
pgg
is retried on a busy or failed call
attempt.
Dial Delay: 1–4
5
6–10
1–4
5
6–10
The time (in minutes) to delay
between successive alarm
dial-outs or retry attempts.
AltDialDir: None
1–5 None 1–5
The alternate dial-out directory to
use if a call to the primary number
cannot be completed.
10E–4 10E–4
10E–5 10E–5
Err Rate:
(Excessive Error
10E–6 10E–6 The error rate threshold for
Excessive Error Rate Alarm
(Excessive Error
Rate) 10E–7 10E–7 Excessive Error Rate Alarm.
Rate)
10E–8 10E–8
10E–9 10E–9

15
Table 8. Alarm Configuration Options (2 of 2)
Option Comments/DescriptionFactory 2Factory 1
AlrmRelay: Enab Enab Specifies whether to activate the
AlrmRelay:
(Alarm Relay) Disab Disab
Specifies
whether
to
activate
the
alarm relay on an alarm condition.
Table 9. General Management Configuration Options (1 of 2)
Option Factory 1 Factory 2 Comments/Description
SNMP Mgt:
Enab Enab Specifies whether the DSU/CSU
responds to SNMP session
SNMP Mgt: Disab Disab
p
responds to SNMP session
requests.
NMS Valid:
Enab Enab Specifies whether the DSU/CSU
validates the IP address of an
NMS Valid: Disab Disab
validates
the
IP
address
of
an
SNMP manager attempting
access.
Num Sec Mgrs:
1 1 The number of SNMP managers
Num Sec Mgrs: 2–10 2–10
The
number
of
SNMP
managers
allowed to access the DSU/CSU.
NMS n IP Adr:
Edit Edit Allows you to define or clear the
allowable IP address of an SNMP
NMS n IP Adr: Clear Clear
y
allowable IP address of an SNMP
manager.
NMS n Access:
Read Read The type of access allowed for an
SNMP manager using community
NMS n Access: R/W R/W
yp
SNMP manager using community
name 1.
System Name:
Edit Edit The SNMP system name for this
System Name: Clear Clear
The
SNMP
system
name
for
this
device.
System Location:
Edit Edit The SNMP system location for this
System Location: Clear Clear
The
SNMP
system
location
for
this
device.
System Contact:
Edit Edit The SNMP system contact name
System Contact: Clear Clear
The
SNMP
system
contact
name
for this device.
CommunityName1:
Edit Edit A community name that is allowed
access to this device Defaults to
CommunityName1: Clear Clear
y
access to this device. Defaults to
public .
Access 1:
Read Read The type of access allowed for
Access 1: R/W R/W
The
type
of
access
allowed
for
community name 1.
CommunityName2:
Edit Edit A community name that is allowed
CommunityName2: Clear Clear
A
community
name
that
is
allowed
access to this device.
Access 2:
Read Read The type of access allowed for
Access 2: R/W R/W
The
type
of
access
allowed
for
community name 2.

16
Table 9. General Management Configuration Options (2 of 2)
Option Comments/DescriptionFactory 2Factory 1
IP Adr:
Edit Edit The IP address needed to access
IP Adr: Clear Clear
The
IP
address
needed
to
access
the device.
NetMask:
Edit Edit The Subnet Mask needed to
NetMask: Clear Clear
The
Subnet
Mask
needed
to
access the device.
Com IP Adr:
Edit Edit The IP address for the COM port
Com IP Adr: Clear Clear
The
IP
address
for
the
COM
port
when configured for SNMP.
Com NetMask:
Edit Edit The Subnet Mask needed to
access the device when the COM
Com NetMask: Clear Clear access the device when the COM
port is configured for SNMP.
Com Link:
PPP PPP The link layer protocol for the COM
Com Link: SLIP SLIP
The
link
layer
protocol
for
the
COM
port when configured for SNMP.
IPBusMast:
Enable Enable Specifies whether the device is the
IPBusMast: Disab Disab
Specifies
whether
the
device
is
the
IP Bus Master.
None None
IPBus IPBus
Def Netwk: Com Com Specifies the default network
destination.
Def Netwk:
FDL FDL
d
es
ti
na
ti
on.
EDL n EDL n

17
Table 10. Management Trap Configuration Options
Option Factory 1 Factory 2 Comments/Description
Num Trap Mgrs: 1
2–6 1 2–6 The number of trap managers supported by the device.
Trap n IP Adr:
Edit Edit Specifies the IP address for each
trap manager. This configuration
Trap n IP Adr: Clear Clear
trap
manager
.
This
configuration
option is repeated for all n
managers.
Def Def
IPBus IPBus
Trap n Dst: Com Com Specifies the network destination
for Tra
p
Mana
g
er n .
FDL FDL
f
or
T
rap
M
anager n .
EDL n EDL n
Disab Disab
Gen Trap:
Warm Warm Specifies the general trap types to
enable: WarmStart Authentication
Gen Trap: Auth Auth
pgpyp
enable: WarmStart,Authentication
Failure or both.
Both Both
Failure
or
both
.
Entp Trap:
Enab Enab Specifies whether the
EnterpriseSpecific trap type is
Entp Trap: Disab Disab
p
EnterpriseSpecific trap type is
enabled.
Disab Disab
Link Trap:
Up Up Specifies the link trap type to
enable: Trap on Link Up Link
Link Trap: Down Down
ppyp
enable: Trap on Link Up, Link
Down, or both.
Both Both
Down
,
or
both
.
NET NET
DTE DTE
When any link trap types are
Trap I/F: T1s T1s When any link trap types are
enabled, specifies which links to
send traps for
Trap
I/F:
Ports Ports
,p
send traps for.
All All
