Paramount Fitness PFT-200 User manual

PFT-200
FUNCTIONAL TRAINER
ASSEMBLY MANUAL
AM-PFT-200A

2
Thank you for purchasing the Paramount PFT-200 Functional Trainer. Because of the many
unique features included in this product, this manual was created to provide you with information
on how to properly assemble and maintain your equipment. Proper maintenance will ensure that
your new equipment will last for years.
For your convenience, product questions can be answered by an Authorized Paramount Dealer or
by contacting a Paramount Customer Service Representative at:
1-800-721-2121 or 1-323-721-2121
Office hours are Monday-Friday, 7:30 am - 4:30 pm PST
Or email us at [email protected]
Thank You for your patronage.
Paramount Fitness Corporation
6450 East Bandini Blvd.
Los Angeles, CA 90040
IMPORTANT
REVIEW THE GENERAL MAINTENANCE MANUAL FOR IMPORTANT SAFETY AND MAINTENANCE
TIPS. THE MANUAL HAS BEEN INCLUDED WITH YOUR MACHINE ORDER AND CAN ALSO BE
DOWNLOADED FROM OUR WEBSITE AT: http://www.paramountfitness.com
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
A MESSAGE TO OUR CUSTOMERS
!

3
SAFETY.......................................................................................................................................... 4
GENERAL CARE AND MAINTENANCE................................................................................................. 5
MACHINE SPECIFICATIONS.............................................................................................................. 6
PREPARATION................................................................................................................................7
ASSEMBLING THE MACHINE............................................................................................................ 8
OPTIONAL INCREMENTAL A DDER WEIGHT S YSTEM............................................................................ 10
OPTIONAL ACCESSORY KIT.............................................................................................................. 13

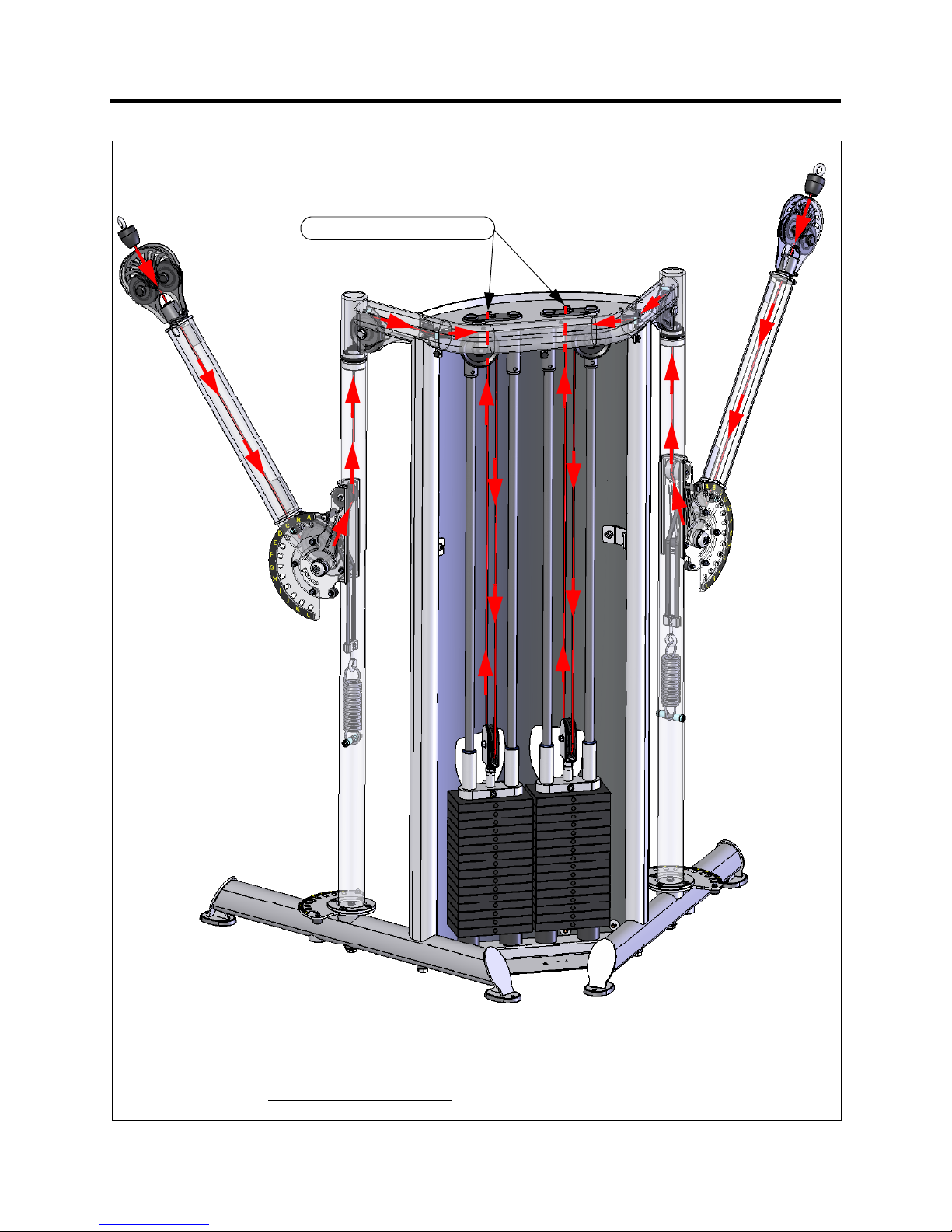

CABLE ROUTING & INFORMATION.................................................................................................... 14
MACHINE LABELS........................................................................................................................... 15
MACHINE DISASSEMBLY................................................................................................................. 16
SERVICE........................................................................................................................................ 18
PARAMOUNT LIMITED WARRANTY................................................................................................... 19
TABLE OF CONTENTS

4
1. Review and understand all of the warning labels affixed to this machine and on the facility safety
sign. Replace any warning label at first sign of wear. Labels and the Facility Safety Sign may be
obtained from Paramount free of charge.
2. Be certain that the machine operation is understood before it is used. Refer to the instruction label
provided with the machine.
3. Keep children away from this equipment. Supervise use by teenagers.
4. DO NOT high-pin or double-pin the weight stack. DO NOT allow the machine to be used if the top
plate or weight stack is pinned in a raised position. Use an assistant and carefully return the
machine to the proper position with the cap plate resting on the top weight. Inspect the cable to
ensure that it is seated in all of the pulleys.
5. Use ONLY Paramount weight selector pins. Other manufacturer’s pins may work free of the weight
stack causing possible injury. Be certain the pin is completely inserted prior to use.
6. Cables: Inspect the entire cable weekly and the end fittings daily. Pay close attention to the area
going over pulleys and to the end connections. Replace all cables at first signs of wear or on an
annual basis. Use only Paramount supplied replacement cables.
7. Nuts, Bolts, and Fasteners: Check tightness weekly. If any hardware has become loose, retighten
and/or use Loctite™Threadlocker 242.
8. Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first
signs of wear.
9. Adjustment Pins: check the function of the position selector pins on the adjustable arms. Make
sure that the selector pin inserts completely into each position without binding.
10. DO NOT attempt to free any jammed assemblies by yourself as this may cause injury.
11. USE ONLY the Paramount incremental adder weight system designed for this machine.
12. Instruct Users NOT to make arm position adjustments during exercise or when pulling on the
cable end. Always support the arms when making position adjustments.
13. Instruct Users to return the handgrips and bars to their rest position before releasing. Sudden
release of the handgrips and bars may cause serious injury to users or bystanders.
14. Instruct users NOT to attach two cables to single bars or handles unless provided by Paramount &
specifically designed for this purpose.
15. Instruct Users not to wear loose or dangling clothes or have headphone wires hanging when using
this equipment.
16. It is recommended that users receive a thorough medical exam before commencing an exercise
program. All medical issues should be reviewed to ensure that weight training will not aggravate
pre-existing medical conditions.
17. Check the function of your machine regularly by verifying the following:
• Cables and end fittings are intact.
• All adjustments are possible and carried out with ease.
• The proper selector pin is in the weight stack.
• The exercise is performed smoothly, free of noise and/or binding.
• The guide rods are properly lubricated.
18. If you have any questions, do not hesitate to contact your Paramount dealer or Paramount
Fitness Corp. at [phone] or [phone] or [email protected].
19. Refer to Maintenance Schedule label on the machine and this manual for when to perform
maintenance.
SAFETY

5
1. Cable Ends: Inspect end fittings daily for wear. Replace cables at the first sign of wear or on an
annual basis. If the cable tension has been adjusted, be certain that the cable nut is tight.
2. Nuts, Bolts, and Fasteners: Check tightness weekly. If any hardware has become loose, retighten
and/or use LoctiteTM brand Threadlocker 242.
3. Frames: Wipe machine with a damp cloth and dry completely each day. This includes painted
parts, chrome parts and upholstered pads.
4. Painted and chrome plated parts: Use Simple Green or similar cleaner for light dirt and grime. Use
Turtle Wax Polishing Compound or a good car polish to remove heavier dirt and grease as well as
for polishing. DO NOT use solvents, lacquer thinner, acetone or finger nail polish remover. For
scuffs and marks that are not removed by the above methods use a soft scrub cleanser. Make
sure all parts are dry upon completion.
5. Weight stack enclosures (shrouds): Wipe down with a damp cloth as needed.
6. Exercise instruction labels: Clean with soap and water as needed.
7. Guide rods: Wipe all dirt and dust from the guide rods before applying a light application of Tri-
FlowTM or other teflon spray lubricant. Spray the Tri-FlowTM on a rag and then wipe the guide rods
with the rag. DO NOT use oil lubricants such as WD-40. Caution: Tri-FlowTM will stain carpet and
clothing.
8. Bronze bushings: Check monthly for signs of wear and replace as needed. Lubricate monthly with
Tri-FlowTM.
DO NOT install any fitness equipment near a pool, hot tub or other damp locations. Corrosion
caused by installation in these locations can lead to premature failure of components.
!
GENERAL CARE AND MAINTENANCE

6
FEATURES
• Two independent weight stacks (170 lb. per stack)
• 2:1 weight stack reduction for low momentum movements.
• 85 lb. max resistance at cable end (per handle).
• (17) weight stack settings in 5 lb. increments (5 lb. - 85 lb.)
• 90” cable travel per handle.
• Machine weight = 730 lbs. [331 kg.]
• Floor loading = 50 lbs/ft2[336 kg/m2]
• 12 vertical arm adjustments (154 degrees per arm)
• 9 horizontal arm adjustments (105 degrees per arm)
• OPTIONAL incremental adder weight system. Adds a +2.5 lb [1.13 kg.] increment for a
total of (34) weight stack settings (5 lb. - 87.5 lb.)

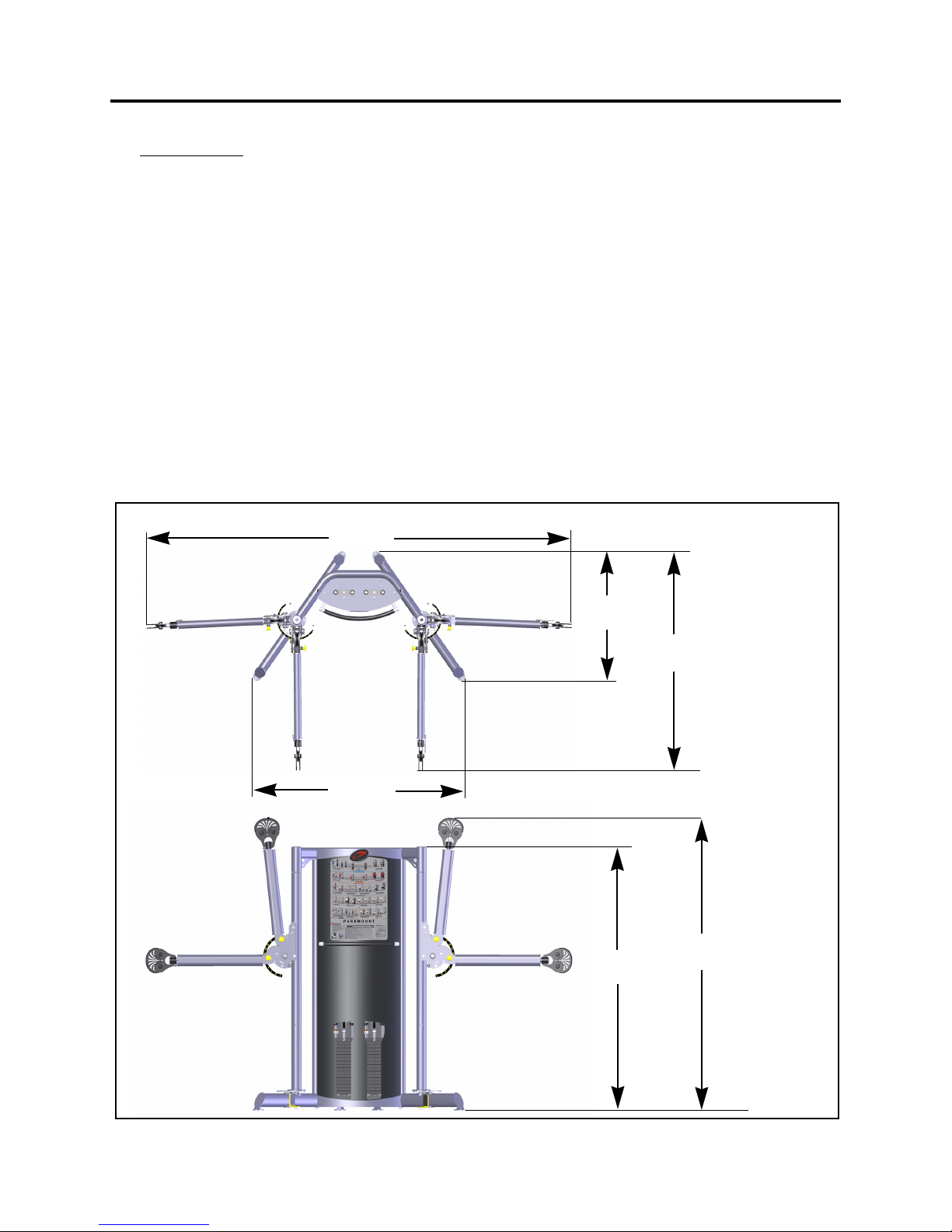

MACHINE SPECIFICATIONS
[325 CM ]
128
IN
[162.5 CM ]
64
IN
[99 CM ]
[167.6
CM ]
39
IN
66 IN
[201.3 CM ]
[223.3
CM ]
79-1/4
IN
88 IN

7
HARDWARE BAG CONTENTS
WEIGHT PLATE REQUIREMENTS

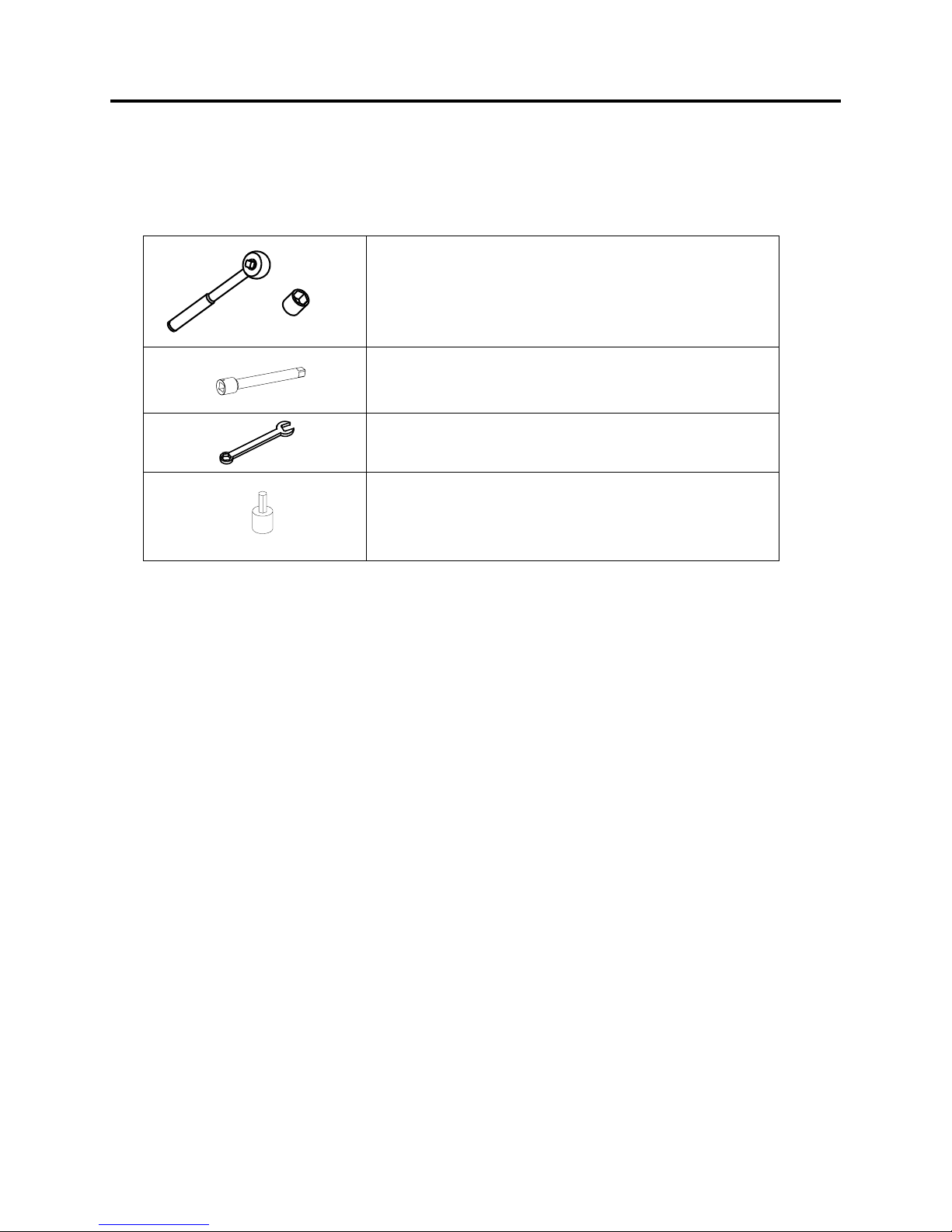

TOOL REQUIREMENTS
ITEM DESCRIPTION QTY PART #
1 SELECTOR PIN, MAGNETIC 2 B 470
2 MOLDED FOOT 4 S 550
3 SNAP HOOK 2 B1005
4 STRAP HANDLE 2 B1110A
5WEIGHTSTACKLABEL
85 LBS (38.5 KG.)
2B2173
PREPARATION
Each machine requires (8) boxes of weight plates,
(4) boxes per weight stack. Each box contains four
10 lb. weight plates. 10 LB. Weight Plate Box
Part Number: B1602
Comprised of
(4) x 10 lb. Weight Plates
Ratchet and Socket:
- 9/16” (Basic Installation)
Wrenches:
- 9/16” (Basic Installation)
- 7/8” (Adder Weight Installation)
- 15/16” (Adder Weight Installation)
Phillips Screw Driver (Adder Weight Installation)
Allen wrenches:
- 5/32” (Adder Weight Installation)
- 3/16” (Adder Weight Installation)
- 5/16” (Adder Weight and/or Accessory Kit Installation)

8

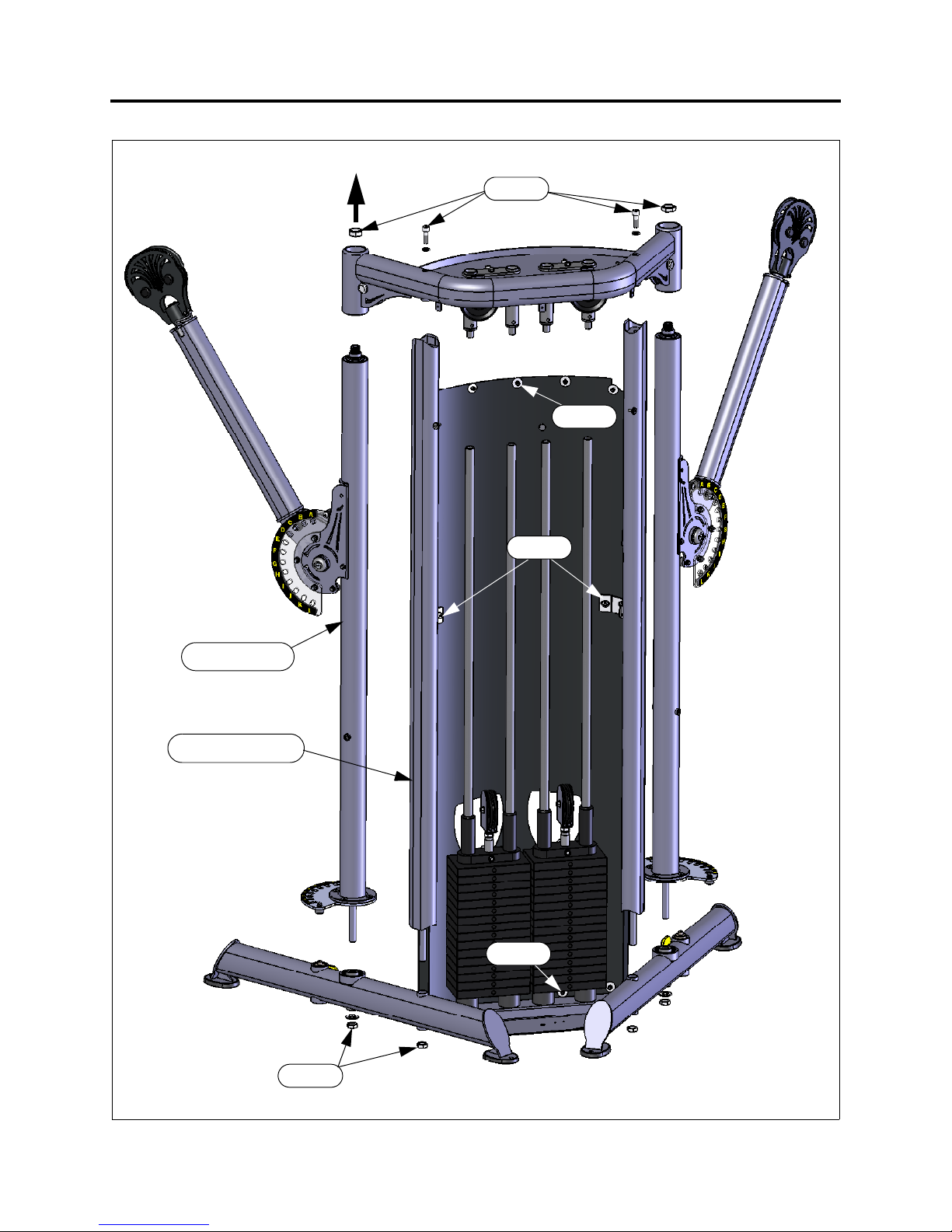

ASSEMBLE FEET TO BASE FRAME
INSTALL WEIGHT PLATES
1. Remove the rear panel held in place
by the three thumbscrews at the top.
2. If you ordered the optional adder
weight system, remove the adder
weight guide rods by pulling down on
the adder weight guide rod retainers
at the top of the guide rods. There is a
spring directly under the guide rod
sleeve. Retain it for re-assembly. (see
page 12).
3. Remove the bolt holding the guide rod
retainer. Slide the guide-rod retainer
up and allow guide rods to tilt toward
the rear of the machine.
4. Lift cap plate off of the guide rods.
5. Install the weight plates, 16 plates
per stack.
6. Re-assemble the cap plate, guide rod
retainers, incremental adder weight
assembly (if ordered) and rear panel.
ASSEMBLING THE MACHINE
GUIDE ROD RETAINER
CAP PLATE
GUIDE RODS

9

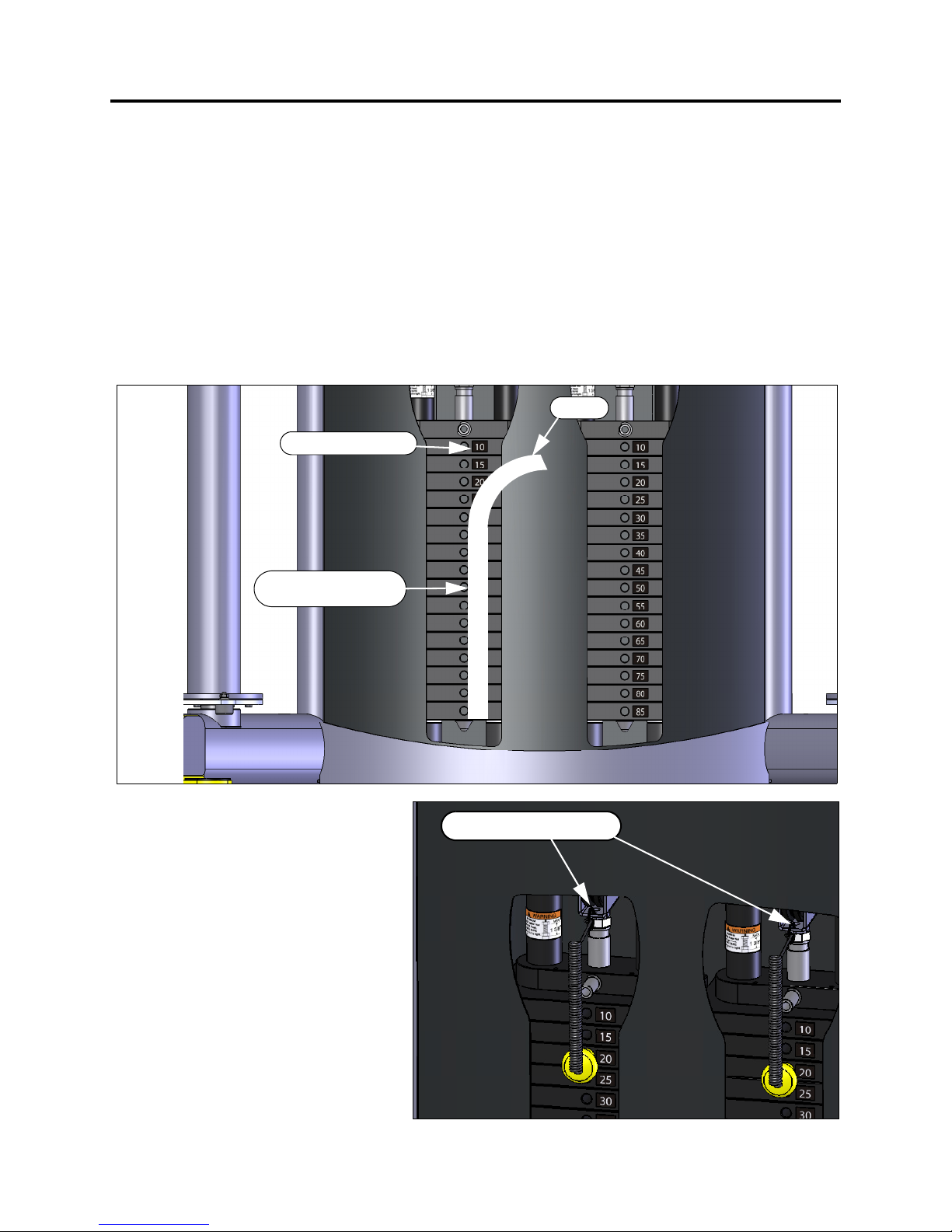

INSTALL WEIGHT STACK LABELS
1. Verify that there are 16 weight plates installed on each stack.
2. Wipe the front surface of the weights with isopropyl alcohol and allow to dry completely.
3. Remove the backing from the label. Vertically center the 10 lb. label on the top weight and align
the side of the label liner (front surface) with the outside edge of the pin hole in the weights.
4. Verify that the label strip is straight and then remove the liner. As the liner comes off the labels,
press and rub each label into place.
5. Allow the adhesive to cure for 48 hours. DO NOT attempt to “test” the integrity of the labels after
they have been installed.
6. The part number is B2173 for the 85 lb. label and B2173KG for kg. label.
ASSEMBLE THE SELECTOR PINS
ASSEMBLING THE MACHINE
ATTACH LANYARD RING
LINER
Align with outside
edge of pin holes
Individual Labels

10
If you purchased your machine with the optional incremental adder weight system, it has been pre-
installed. If you ordered the adder weight system after receiving the machine, these instructions
will show you how to properly assemble it. The following parts are included with your kit:
A. Remove the rear panel.
B. Remove the pulleys from the cap
plates (thereby disconnecting the
cable).
C. Remove the selector pin lanyard
from the front of the cap plate pulley
housing.
D. Remove the weight stack guide rod
retainers and slide the cap plates up &
off the guide rods.
See following page...
ITEM PART NUMBER DESCRIPTION QTY.
1PFT2007G301 Guiderods,square 2
2 PFT2007W300X Adder weight assembly 2
3 PFT2007W399 Base Support 2
4D721 Washer,Rubber 2
5 C 608 Screw, socket head, 1/4-20 x 3/4” lg. 4
6C747 Lockwasher,1/4 4
7 D 913 Spring, guide rod retainer 2
8 S 572 Guide rod retainer 2
9 9005ADR030X Adder Weight Selector Assembly 2
10 PFT2007A199X Plate, Adder Weight Label 2
11 9005ADR035 Cover, Adder Weight Selector 2
12 C 702 Set Screw, cup point, 5/16-18 x 3/8” Lg. 4
13 C 904A Screw, Truss Head, 1/4-20 x 3/4” Lg. 4
14 D 588 Thrust Washer, 1” ID x .125 Thick 4
15 D 160 Wave Spring Washer 2
OPTIONAL INCREMENTAL ADDER WEIGHT SYSTEM
GUIDE ROD RETAINER
CAP PLATE
GUIDE RODS

11

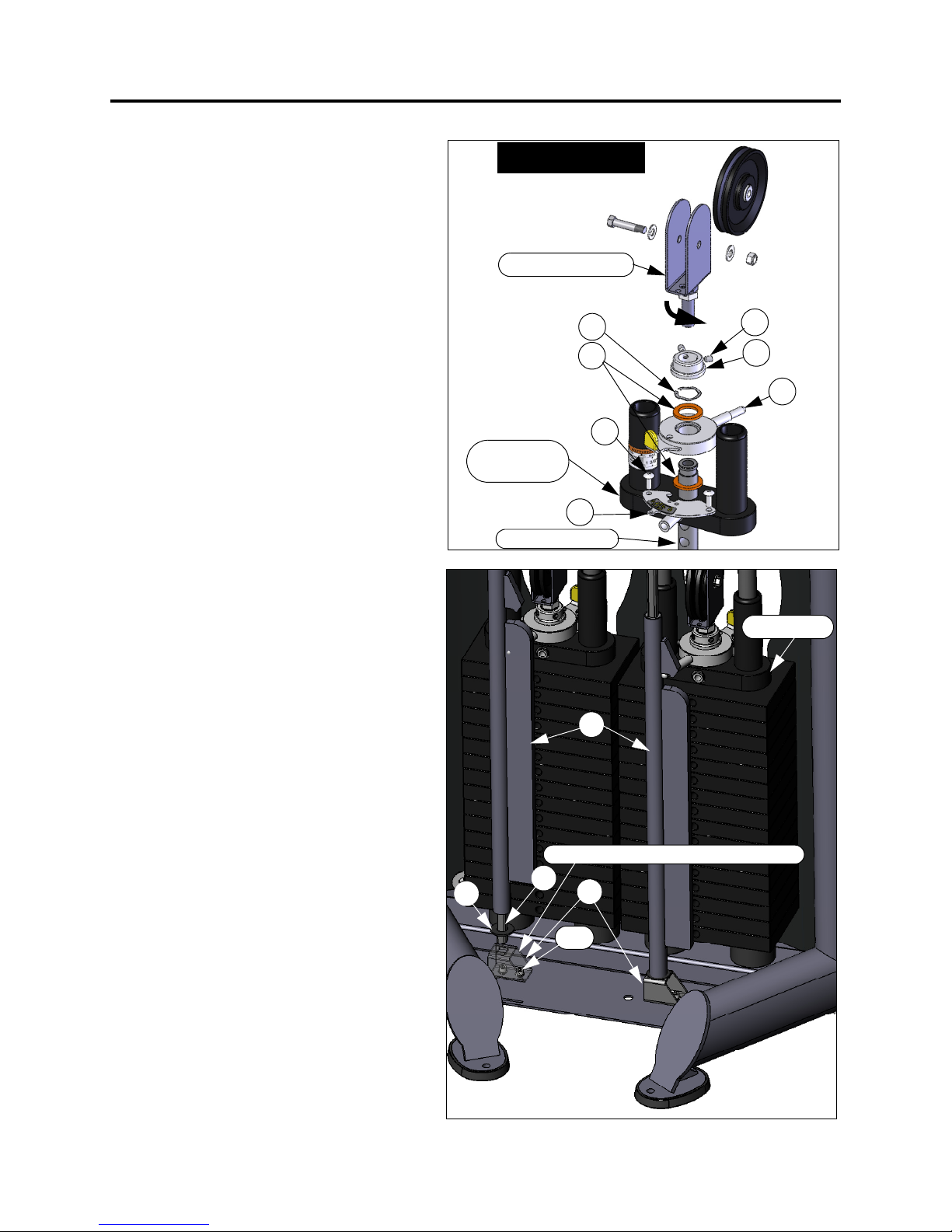

E. Remove the pulley housing from the cap
plate by unscrewing it from the selector
bar.
F. Assemble the adder weight selector
mechanism, thrust washers, wave spring
washer, cover, and label plate to the cap
plate as shown.
G. Re-assemble the cap plate and guide
rod retainers to the machine.
H. Re-assemble the cables and pulleys to
the cap plate pulley housing along with the
selector pin lanyard.
I. Install the adder weight base supports
with the noted hardware. Make sure to
orient the angled cuts as shown.
J. Insert the square adder weight guide
rods into the base supports.
K. Slide the rubber washers and adder
weight assemblies onto the guide rods as
shown.
See following page...
OPTIONAL INCREMENTAL ADDER WEIGHT SYSTEM
PULLEY HOUSING
14
15 12
11
13
10
9
SEE TABLE ON PREVIOUS
PAGE FOR ITEM NUMBERS
SELECTOR BAR
CAP PLATE
ASSEMBLY
SHOWN TRANSPARENT FOR CLARITY
CAP PLATE
5,6
3
4
2
1

12
L. Assemble the spring and adder weight
guide rod retainer sleeves as shown.
Test the adder weight selector
mechanism. Make sure that it engages
into the adder weight smoothly.
Lubricate the guide rods using a Teflon
based spray lubricant. Paramount
recommends TriFlow brand.
Test the system by placing the selector pin
into the cap plate and engaging the adder
weight. Pull the cable to its maximum
extension. Verify that it moves freely
without binding or chattering. Return to
the rest position. Verify that the cap plate
returns smoothly.
OPTIONAL INCREMENTAL ADDER WEIGHT SYSTEM
8
1
7

13
If you purchased the optional accessory
kit, these instructions will show you how
to properly assemble it to your machine.
1. Remove the rear panel.
2. Remove the two bolts holding the
balance bar. Have someone support
the bar while you remove the bolts.
3. Attach the rubber protector sheet to
the front shroud as shown. First,
clean the shroud area with isopropyl
alcohol and let dry completely.
Remove the backing from the rubber
sheet. Start at the top and align the
holes in the sheet with the holes in
the shroud. Lightly press the sheet
onto the shroud face by working your
way from the top middle, out to the
sides, then work your way down. After
the sheet is in position, apply firm
pressure, starting at the middle and
work your way out toward either side.
4. Place the balance bar over the
accessory hanger plate. Line up the
holes with the holes in the shroud and
reinstall bolts. Hint: It may help to
loosen the bolts on the side of the
balance bar to assist in installing the
bolts. Check the alignment and fully
tighten all bolts.
OPTIONAL ACCESSORY KIT HANGER
REMOVE BOLTS
RUBBER PROTECTOR SHEET
BALANCE BAR
ACCESSORY HANGER PLATE
LOOSEN BOLTS
IF NECESSARY

14
CABLE ROUTING & SPECIFICATION
REPLACE CABLES at the first sign of wear OR on an annual basis!
Part number: PFT2010CBL100X
CABLE RETAINER SCREWS

15
MACHINE LABELS
B2084
If this machine is to be installed in a
public use facility, ASTM F1749
requirements specify that the facility
sign shown to the right is to be
installed in plain view.
If you did not receive the facility sign
with your order, you can obtain one
free of charge from Paramount by
calling 1-800-721-2121.
BE ALERT!
THE FITNESS EQUIPMENT IN THIS FACILITY
PRESENTS HAZARDS WHICH, IF NOT AVOIDED,
COULD CAUSE SERIOUS INJURY OR DEATH.
PRIOR TO USING THE EQUIPMENT, READ THE WARNING LABELS
AND INSTRUCTION PLACARDS AFFIXED TO EACH MACHINE.
IF YOU ARE UNSURE ON HOW TO USE A MACHINE, SEEK THE
ASSISTANCE OF OUR FLOOR PERSONNEL. WE WILL BE HAPPY
TO INSTRUCT YOU ON HOW TO USE THE EQUIPMENT PROPERLY.
IMMEDIATELY REPORT ANY PIECE OF EQUIPMENT THAT IS NOT
FUCTIONING PROPERLY TO OUR FLOOR PERSONNEL SO THAT
IT MAY BE EVALUATED AND SERVICED PROMPTLY.
DO NOT ATTEMPT TO USE OR FIX ANY PIECE OF EQUIPMENT
THAT IS NOT FUNCTIONING PROPERLY
ASTM F1749-96
B2051
B2173
LBL-PR-PFT200A
LBL-WRN-PFT200A
B2612
The following are the Warning labels required for this PFT-200 machine. If any of these
labels are missing or become damaged contact Paramount.
Note: these labels are not to scale.

16
If you need to disassemble your machine for any reason (i.e. maneuver the machine through small
doorway during installation), the diagram on the following page will show you the frame clamping
locations.
You will need the following tools:
MACHINE DISASSEMBLY
•Ratchet (1/2” drive, minimum)
•1-7/16” Socket (1/2” drive, minimum)
•6” Extension (1/2” drive, minimum)
•1-1/16” Wrench (or socket)
•7/16” Wrench (for shroud removal)
•3/8” Hex Bit for 1/2” Drive Ratchet
•5/16” Hex Bit or allen wrench (balance bar removal)
DISASSEMBLY STEPS:
1. Remove the Rear Shroud.
2. If the weight stacks are installed, remove them from the machine. Also, remove the guide
rods.
3. Remove both cables.
4. Disassemble the Balance Bar from the Front Shroud by removing (2) bolts.
5. Remove the nuts and washers retaining the front shroud (5 top & 5 bottom).
6. Disassemble the top frame first by removing the (2) 1”-8 lock nuts from inside the front pivot
column tube. Then remove the 1/2”-13 socket head screws and lock washers (2) as shown.
Lift the top frame off of the pivot columns.
7. Remove the front shroud.
8. Remove the (4) 3/4”-10 lock nuts from the base frame. Lift to separate the Pivot Columns
and Support Columns from the machine.
9. To reassemble the machine, follow these steps in reverse order. Loosely assemble ALL frame
components and the front shroud before fully tightening any hardware. MAKE SURE that the
frame hardware is FULLY tightened using a 1/2” drive ratchet. Re-assemble the remainder of
the components.

17
MACHINE DISASSEMBLY
Pivot Column
STEP 6
Support Column
STEP 5
STEP 4
STEP 5
STEP 8

18
SERVICE
HOW TO OBTAIN SERVICE
For warranty service, contact an Authorized Paramount Dealer or a Paramount Customer Service
representative at 1-800-721-2121 or 1-323-721-2121. You can also email us at
[email protected].
Before you call, please have the following information ready:
• Model Number: PFT-200A
• Serial Number: ________________________
• Date of Installation: ____________________
• A brief description of the problem
FINAL CHECK
1. If you haven’t already done so, lubricate all of the guide rods with a teflon spray lubricant.
Paramount recommends using TriFlowTM brand.
2. Verify that the adjustment pins on both arms and both columns can be fully engaged into each
position on the adjustment discs.
3. Verify that the selector pin can be fully inserted into each weight plate.
4. Place the selector pin into the holder on the cap plate. Slowly pull the handle through its full range
of travel and let it retract. Verify that the cable moves freely, without any binding. Repeat this
procedure for the other side.
Serial Number
The serial number tag is located inside of the base
frame at the rear of the machine as shown.
NOTE: Remove the rear panel to access the serial
number information.

19
PARAMOUNT LIMITED WARRANTY
Paramount warrants to the original purchaser from a Paramount authorized dealer that
Paramount equipment or equipment from a Paramount authorized manufacturing contractor will be
free from defects in material and workmanship under normal use and service for the following periods
and in the following respects:
LIFETIME WARRANTY - Welds, Weight Plates and Guide Rods
FIVE YEAR WARRANTY - Bronze Bushings, Sealed Rotating Bearings and Pulley Wheels
ONE YEAR WARRANTY - Cables, Linear Bearings, Linear Shafts and all other components not
mentioned elsewhere in this warranty
NINETY DAY WARRANTY - Upholstery and Grips
This limited warranty DOES NOT cover and no warranty is given with respect to:
• Products not manufactured by Paramount
• Products which are altered without the express written consent of Paramount
• Products purchased other than directly from Paramount or through a Paramount
Authorized Dealer.
All warranty periods begin to run from the date of delivery to the original purchaser. The
obligation of Paramount under this warranty is limited to repairing or replacing warranted defective
parts, as Paramount may elect, at Paramount's plant in Los Angeles, California, without charge to
purchaser for either parts or labor. Purchaser is responsible for all transportation and insurance costs
on returned or replaced equipment to and from Paramount's plant in Los Angeles.
ANY IMPLIED WARRANTY, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE AND THE IMPLIED WARRANTY OF MERCHANTABILITY, IS
LIMITED TO ONE YEAR DURATION FROM THE DATE OF DELIVERY TO THE ORIGINAL PURCHASER.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU. THE REMEDY OF REPAIR AND REPLACEMENT IS THE
EXCLUSIVE AND SOLE REMEDY OF THE PURCHASER. PARAMOUNT SHALL NOT BE LIABLE FOR ANY
SPECIAL, INCIDENTAL, CONTINGENT OR CONSEQUENTIAL DAMAGES OF ANY KIND, INCLUDING, BUT
NOT LIMITED TO, DAMAGE OF LOSS OF OTHER PROPERTY OR EQUIPMENT AND LOST PROFITS OR
REVENUE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
No action for breach of this written limited warranty or an implied warranty shall be
commenced more than one year after the accrual of the cause of action. This written limited warranty
is the complete, final and exclusive agreement of the parties with respect to the quality or
performance of the goods and any and all warranties and representations. No modifications of this
limited warranty or waiver of its terms shall be binding on either party unless approved in writing by an
authorized corporate officer of Paramount. This limited warranty gives you specific legal rights, and
you may also have other rights which may vary from state to state. Contact Paramount Fitness Corp.,
6450 E. Bandini Blvd., Los Angeles, California 90040-3185, for a list of authorized dealers or before
returning any defective equipment. Paramount Fitness Corp. © 2008
PARAMOUNT FITNESS CORPORATION
6450 E. Bandini Blvd., Los Angeles, CA 90040-3185 USA

Paramount Fitness Corporation
6450 E. Bandini Blvd.
Los Angeles, CA 90040-3185
Phone: [phone] Fax: [phone]
1-800-721-2121
www.paramountfitness.com
AM-PFT-200A.fm
REV:6/9/10
