Park Safe PSV602 User manual
SPECIFICATIONS
GENERAL
- Display: No - via WiFi
- Chipset: Mstar 8328Q
- Image Sensor: Front: OV2718, Rear: H65
- Image Sensor Resolution: 4 Mega Pixels
- Resolutions: Front: 1920 x 1080p @ 30fps
Rear: 1280 x 720p @ 30fps
- Lens: 6G Element Glass, F/2.6
- Lens Viewing Angle: 150° Diagonal
- Memory Support: 1 x 64GB Micro SD Card*
- WiFi: Yes (APP - MK Smart)
- GPS Function: Yes
- Night Vision: Low Lux, WDR (Wide Dynamic Range)
- Mapping Data: Route, Speed
- G-Sensor: Yes
- Parking Monitoring: Yes (Requires constant power)
- Seamless Loop Recording: Yes
- Photo Function: Smart Gesture for Instant Photos
- Codec: H.264
-File Type: .MP4
- Power Supply: 12/24V Dual USB Cig Power Adaptor
- Built-In Battery: No
- Settings Memory: Built-In Super Capacitor
-Dimensions: Front: 117W x 36H x 58Dmm (Without Mount)
Rear: 60W x 29H x 22Dmm (Without Mount)
- Mounting: 2 Sided Adhesive (Included)
INCLUDED
4m Power/GPS Cable,
Adhesive Pads,
Dual USB Cig Power Adapter,
6.3m Rear Cam Extension Lead,
Sandisk High Endurance 64GB
MLC SD Card
PSV602
DUAL DASH CAM with GPS & WiFi
INSTRUCTION MANUAL
2

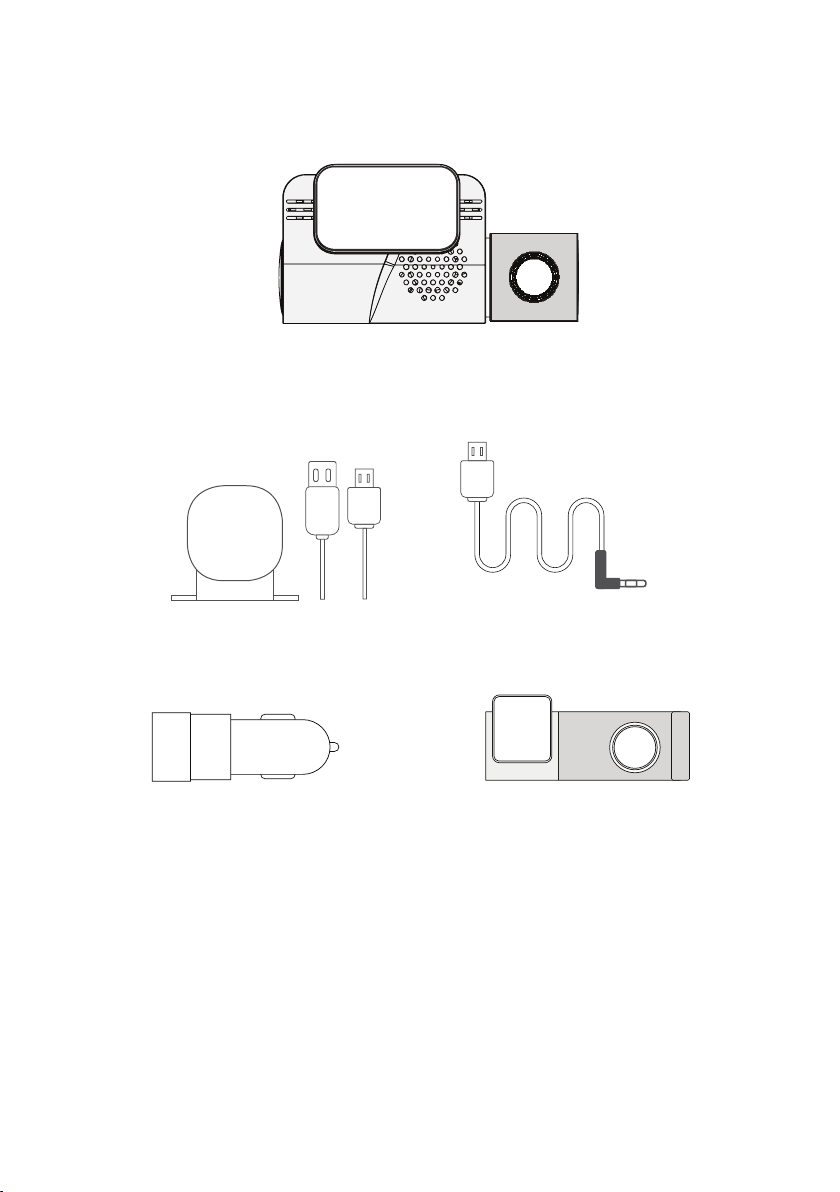

WHATS INCLUDED
1: Front Dash Cam
2: 4m Power/GPS Cable
3: 6m Rear Facing Dash Cam Cable
4: Dual USB Cig Power Adaptor
5: Rear Dash Cam
1
23
45
3
1: Speaker
2: Reset
3: LED + Manual Start/Stop Recording
4: MicroSD Card Slot
5: Rear Dash Cam Input
6: Mic
7: Front Lense
8: Gesture Sensor (For Photos)
9: Power Input
STRUCTURE
1
4
5
l
�1
0
I)
6
7
8
9
INSTALLATION
1 - Insert a Memory Card
Select the appropriate Memory Card
• Pro Endurance MLC MicroSD card is recommended for continuous use and
has a longer cycle life.
• High Quality Class 10 TLC MicroSD card is recommended for intermittent
use only and has lower cycle life.
The Memory Card is a consumable product.
Because the SD Card will be used for a long time, please check it regularly.
It needs to be replaced if it has reached the end of its cycle life.
Please ensure that Memory Card is installed correctly.
Please insert the memory card before starting the device. Make sure the
memory card is installed correctly and formatted in the unit.
Do not remove the Memory Card while saving or extracting data.
Otherwise recorded information will be damaged or lead to a
malfunction.
Card Slot
l-
D
• •••
" insert
I l
4
INSTALLATION cont. ..
2 - Position Device
0
Suggested areas
3 - Install the Power Cord
5
6
USE
1 - Connect the Device to Mobile Phone
Settings--- WiFi--- Select “M-XXXXX“--- Enter password “12345678“---
Connect--- Open CarCam APP--- Success.
The default WiFi password is 12345678
Scan barcode above with suitable smartphone APP or simply
search for “MK Smart Carcam” on Android or IOS device.
++
INSTALLATION cont...
4 - Connect the Device
Please connect the unit to the USB Cig Power Adaptor with the 4m Power/
GPS Cable. The unit will start to record when accessories is ON and will turn
OFF when accessories is OFF. (Use the 2.1A port)
GPS
Antenna
4m Power/GPS
Cable
Front Cam Dual USB Cig
Power Adaptor
USE cont. ..
NOTE: Video replay is not possible while recording.
NOTE: Video replay is not possible while recording.
(
-
-
7
USE cont. ..
5 - Parking Monitor
The parking monitor setting button is on the opening page of the APP. When
you open it, the dash cam will begin to detect the car's movement.
If the car is stationary for more than 5 minutes and the APP is not connected
to the device, the Dash Cam will start Parking Monitor Mode*.
When the following 3 situations occur, the Dash Cam will start normal
recording:
1) Mobile Phone is connected to the APP
2) Trigger Gesture capture
3) Continuous Vibration for more than 2 minutes.
*NOTE: Constant Power to the unit is required for this function
6 - Rear Camera (Optional)
You can install the optional rear Dash Cam on the rear window of your vehicle.
It is best to have it installed by a professional installer.
Connecting Rear Cam to Front Cam:
+
0 Pl Oil
Front Cam
7 - Reset
6m Rear Facing
Dash Cam Cable
(Incl with Optional Rear Cam)
Press the reset button for a few seconds to reset the device.
Reset
Rear Cam
+
SPECIFICATIONS
Hardware
Mstar 8328Q - Chipset:
- Image Sensor: OV2718
,PDJH6HQVRU5HV 0HJD3L[HOV
6G Element Glass, F/2.6
- Lens Viewing Angle: 150° Diagonal
- Lens:
- WiFi:
- GPS Function:
*6HQVRU
Technical Parameters
5HVROXWLRQV
0HPRU\6XSSRUW
Yes (APP - MK Smart)
Yes
<HV$[LV$FFHOHURPHWHU
)URQW[S#ISV
[*%0LFUR6'&DUG1RW,QFOXGHG
32KHz PCM
JPG
/RZ/X[:'5:LGH'\QDPLF5DQJH
H.264
.MP4
- Working Temperature: -20°C to +70°C
- Working Volt/Current: DC 5V/2.1A
- Audio Information:
- Photo Information:
1LJKW9LVLRQ
- Video Codec:
- Video File Type:
- Video Processing: Image Enhancement, LDC Correction
CONNECTING WI-FI ON ANDROID
When connecting an Android phone to this model via
Wi-Fi, make sure that the mobile data setting is turned off
in the phone's network settings.
PSV601/602
ADDENDUM
9
