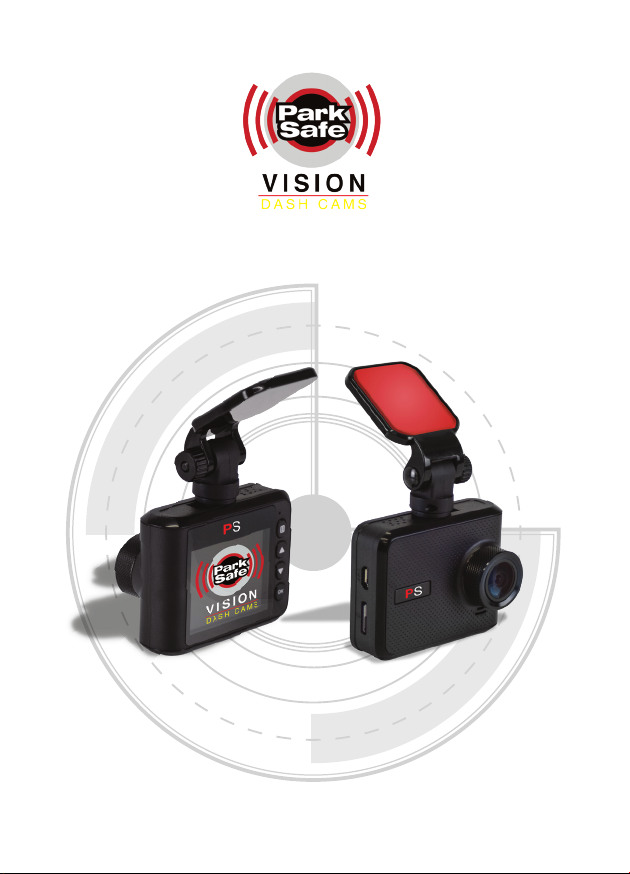

Park Safe VISION PSV126 User manual

PSV126 DASH CAMERA
User Manual
PARKSAFEAUTOMOTIVE.COM

Thank You
Thank you for purchasing the Parksafe Vision PSV126 Dash Camera.
This user manual contains technical specications and instructions for use,
operation and installation. Please read this manual carefully before use.
Product Overview
The PSV126 Dash Camera is a high-denition digital video camera with
high quality digital audio & video.
Package Contents:
• 1 x PSV126 Dash Cam
• 1 x Car Charger
• 1 x Charging Cable
• 1 x Fixing Bracket
• 1 x User Manual
• 1 x Warranty Card
• 1 x 16GB Micro SD Card
PARKSAFEAUTOMOTIVE.COM

Product Features:
1. Mini DVR with grade A+ high resolution, ultra wide 120º angle lens
2. The built-in lithium battery is charged while the camera is recording
3. Continuous recording
4. 2.0 inch TFT LCD screen
5. Built-in Mic/Speaker
6. Supports Micro SD card up to 32GB
7. Motion detection
8. G-Sensor
9. 12mpx still images
8. SOS le locking function
9. Loop recording with time and date stamp
Dash Camera Operation:
PARKSAFEAUTOMOTIVE.COM
Mic Hole
Indicator LED
Power/Return/Menu/SOS Button
& Micro USB Slot
Up Button
Down Button
OK Button
Micro SD Card
LCD Screen
Fixing Bracket

Panel Illustration:
LED:
• Red-Flashing LED indicates recording
• Blue-Indicates there is power supplied
Power /Return /Menu/SOS Button:
• Recording Mode: Start emergency recording
• Preview Mode: Return recording mode
• Playback Mode: Return preview model
Up Button:
• Recording Mode: Turn on/off video recording voice
• Preview Mode: Enter into playback mode
• Playback Mode: Delete Current / Delete All
Down Button:
• Recording Mode: Enter into photo mode
• Preview Mode: Toggle to next le
• Playback Mode: 2X/4X/8X quick play
OK Button:
• Recording Mode: Stop recording
• Preview Mode: Enter into preview
• Playback Mode: Stop playback
• Power: Press and hold for 3 Seconds to turn on; Press and hold for 3
seconds to turn off.
Battery Charge:
OK Button:
1. Directly connect the car charger with charging cable in USB interface of the
device.
2. USB charging, using the USB cable connected to the computer.
PARKSAFEAUTOMOTIVE.COM

PARKSAFEAUTOMOTIVE.COM
Micro SD Card Installation and Removal:
1. Insert the Micro SD card into the Micro SD card slot
2. To take out the Micro SD card, please gently press down the Micro SD card
until it releases from the Micro SD card slot.
Cautions:
3. Please pay attention to the direction of the Micro SD card when inserting.
4. If the device and Micro SD card is incompatible, insert a different Micro SD
card and try again.
5. Please use a high speed Micro SD card (Class 6 or above)
Video recording settings:
In standby mode, press OK button to enter video settings, then press the Up/
Down buttons to choose the menu you want. Press OK button to conrm.
1. Video Resolution: 1080FHD 1920X1080 / 1080P 1440X1080 / 720P
1280X720 / WVGA 848X480 / VGA 640X480 / GVGA 320X240
2. Loop recording: Off / 1 Minute / 3 Minutes
3. Park mode: Off / On
4. Record Audio: Off / On
5. Date Stamp: Ev: Off / On
6. G-sensor: Off / High / Medium / Low
7. Date/Time: YY/MM/DD
8. Auto Power Off: Off / 1 Minute / 3 Minutes
9. Beep Sound: Off / On
10. Languages: English / Deutsch / Français / Español / Português / Italiana /
简体中文 / 日本語
11. LCD OFF: Off / 30 Seconds / 1 Minute / 3 Minutes
12. Format: Cancel / OK
13. Default Setting: Cancel / OK
14. Card Volume
15. Version
Recording:
When connected to a car charger, the device automatically goes into the
record mode and starts recording, the ● icon will display on the screen.
A ashing red dot ● icon ash indicates that the device is recording. To stop
recording, press OK button and the red dot disappears, indicating that the
recording has stopped.

Recording: (Continued)
If you want to protect the current recordings, then press the SOS button, the
emergency icon will appear on the screen, This indicates that those recordings
have been locked and will not be overwritten by new video clips.
In recording mode, press OK button to stop recording , then press up button to
enter into playback mode.
Playback Mode:
In Standby mode, press the Down button to enter playback mode. The device
stores the video on the Micro SD Card. Playback mode will allow you to review
the saved video and play back the video with sound.
If you wish to delete or protect the le, press the OK button to access the
playback setting menu.
To return to record mode, press and hold the RETURN button.
Connecting to a PC:
The PSV126 can be connected to a PC by using a USB data cable (not
supplied). The supplied USB cable is for charging and supplying power only.
When the device is connected to the PC, mass storage is displayed on the
device’s screen. You can view the Micro SD card contents on the PC. When
the device is detected on the PC as an external drive, select to view the DCIM
folder. Recordings or images are arranged in folders.
The locked and protected recording les have a locked icon on the thumbnail
of the le and start with LOCK name. The park mode recording les will start
with PARK name.
Please Note:
• Improper operation will cause the device to crash. In the event that this
occurs, press the reset button to return the camera to default settings.
• Don’t leave the camera in direct sunlight or where the temperature could go
above 60 degree for long time
PARKSAFEAUTOMOTIVE.COM

Technical Specications:
Need more assistance?
Visit our website at PARKSAFEAUTOMOTIVE.COM or e-mail our
Parksafe Vision support team on [email protected]
for more support if required.
LCD Screen 2.0” TFT LCD screen
Video Resolution
1080FHD 1920X1080 / 1080P 1440X1080 / 720P
1280X720 / WVGA 848X480 / VGA 640X480 / GVGA
320X240
Lens 120º wide angle
Languages English / Deutsch / Français / Español / Português /
Italiana / 简体中文 / 日本語
Photo Format JPEG
Video Format .MOV
Motion Detection Yes
G-sensor Yes
Loop Recording Yes
USB Interface USB 2.0
Working Temperature 0℃~60℃
Storage Temperature -10℃~70℃
Memory card Micro SD card up to 32GB, Class 6 or above
Power 5V/1.0A
Battery Capacity Li-battery 320mAh
