DEVICE DESCRIPTION
Parkell’s TurboVUE® is a 30 KHz
magnetostrictive, ultrasonic tooth scaler that
provides a bright, white light directly to the
intraoral operating field when used in conjunction
with Parkell’s 30 KHz light-transmitting inserts.
The unit is designed to work with Parkell 30k
inserts. Users of the unit with non-Parkell
inserts might experience heat proximate to
the handpiece. Moreover, for other important
information about usage with non-Parkell inserts,
please see our warranty policy.
The TurboVue features auto-tuning technology,
a dramatically expanded low-power range that
improves comfort during debridement, and a
power-boosting Turbo feature for an increase in
scaling power when needed.
The TurboVue will not operate with 25 KHz
ultrasonic inserts.
INDICATIONS / INTENDED USE
For removal of calculus, plaque and oral debris
during dental prophylaxis
CONTRAINDICATIONS TO USE
Because of the potential for electromagnetic
interference, this device should not be used on
patients or by clinicians with cardiac pacemakers,
internal defibrillators, intracorporeal fluid pumps
or any other implantable electronic devices, or
in close proximity to sensitive patient monitoring
devices such as pulse oximeters.
WARNINGS
• The water supply line to the scaler should
always be turned off whenever the device is
being connected, disconnected, or when not
in use.
• The power supply line cord is the AC power
disconnect device for the scaler.
• Locate the transformer above and away from
any sources of water that may enter the unit. As
with all electrical devices, the unit should not
be immersed in water or other liquids. Do not
reach for the device if it has fallen into liquid
until power is disconnected, and do not use the
device after it has fallen into liquid. Return it to
Parkell for servicing.
• Modifying this device violates safety codes,
endangers patients and operators, and will void
the warranty.
• This equipment produces electromagnetic
energy and may cause interference with other
electronic devices. Should this occur, changing
the position or location of the device may
be necessary.
CAUTION: RX ONLY
This manual, in whole or in part, should not be considered a substitute for formal training in Ultrasonic Scaling.
Appropriate professional education is STRONGLY RECOMMENDED prior to using this device clinically.
ILLUMINATED ULTRASONIC SCALER
30KHz Inserts
(not included)
“ON” Indicator:
Lights only when
footswitch is
depressed.
“TURBO” Light:
Indicates the device is operating
in high-power “Turbo” mode
(footswitch fully depressed).
“PERIO” Light:
Indicates low-power range where
large changes in knob produce
subtle changes in tip amplitude.
Light Control Button
Water Control Knob Power Control KnobAutoclavable Removable
Handpiece Sheath.
INSTRUCTIONS FOR USE
STOCK NO. D570
24-HOUR SAFETY HOTLINE
1-800-535-5053

• Parkell’s light-transmitting inserts use a high-
quality, high-strength glass sleeve to project
a bright light onto the operative field. These
tips may be ultrasonically cleaned, disinfected
and autoclaved using standard techniques.
However, take care to avoid dropping or
impacting the insert, as this may result in glass
breakage. Inspect the inserts prior to each use
for integrity and safety.
CLINICAL PRECAUTIONS
• Water flow through tip during use must be
sufficient to cool handpiece and insert.
• When operating the unit with non-light-
transmitting ultrasonic inserts, if you
experience uncomfortable heat at the
handpiece and desire to eliminate such heat,
set the “Light Off” button to the OUT position
to deactivate the light feature.
• Do not allow prolonged contact of tip with lips,
cheek, tongue or other soft tissues.
• Keep the long axis of the insert tip parallel to
the long axis of the tooth to wipe deposits from
the tooth.
• Do not gouge the tooth with the point of the tip
INDIVIDUALIZATION OF TREATMENT
If patient or operator is pregnant, or has any
medical condition which might be affected by
this device during treatment, consult a physician
prior to use.
WHAT’S INCLUDED:
(1) Scaler control unit with attached handpiece,
foot controller and water line (with male
quick-connect coupler)
(2) Autoclavable sheaths (one attached to
handpiece) (Stock No. D572)
(2) Inline water filters (one attached to water line)
(Stock No. D419)
(1) Transformer with cable (Stock No. D408-120V,
D403-230V)
(1) Operator’s Manual / Instructions for Use
TURBOVUE LIGHT-TRANSMITTING
INSERTS
• Universal Tip V - Purple hStock No. DLH30U
• Straight Perio Tip V - Blue hStock No. DLH30P
• Burnett Power-Tip V - Yellow hStock No. DLH30T
•
Triple-Bend Precision Flow - hStock No. DLH30Tri-PF
• Triple-Bend - hStock No. DLH30Tri
Replacement parts for certain components
are available by contacting Parkell
CONFORMANCE TO STANDARDS
The Parkell TurboVue is TUV listed and conforms to
IEC 60601-1, 60601-1-2 and CAN/CSA C22.2 No.
601.1. Parkell’s quality system is certied to ISO 9001/
ISO13485. The device is CE marked and is certied
to European Medical Device Directive
(93/42/EEC).
The symbol on the scaler indicates the
Protective Earth connection. The symbol or
in these scaler instructions is intended to alert
the user to the presence of important operating or
maintenance instructions.
SPECIFICATIONS
• Power: 120 VAC at 50/60 Hz or 230 VAC at
50/60 Hz or 100 VAC at 50/60 Hz
• Operating temperature between 50°F and
100°F (10°C - 38°C)
•
Weight - 35 oz.; Size – 1 1/2” H x 5 1/2” W x 7” D
• Handpiece operating frequency - 30 KHz
• Protection Against Electric Shock – Class 1,
Type B applied part
• Equipment not suitable for use in the presence
of a flammable anesthetic mixture (when used
with air or oxygen)
• Protection against Ingress of Liquids – Foot
Switch & Scaler: IPX1 (drip proof)
• Power Supply - IPX0 (Ordinary)
• Mode of Operation of Equipment: Intermittent –
10 minutes on, 5 minutes off
• Operating conditions: 15-30°C, 10-80% RH
(non-condensing)
• Transport and storage conditions: 10-40°C,
10-80% RH (non-condensing)
INSTALLING THE SCALER
Locate the device where the control panel will
be easy to reach during scaling procedures, and
where the water filter at the rear of the unit may
be periodically changed without difficulty. The
scaler requires access to a grounded electrical
outlet and a source of drinking-quality water. The
device and its separate transformer generate a
minimal amount of heat. Avoid covering them, to
allow normal cooling.
WATER CONNECTION
Before plugging in the
device, connect the
scaler’s water line to a
drinking-quality water
supply at 20-50 psi
(optimal). Water should be clean and free of
sediment. We suggest that an external, office-
wide water filter be used to minimize frequent
changes of the device’s in-line water filter. The

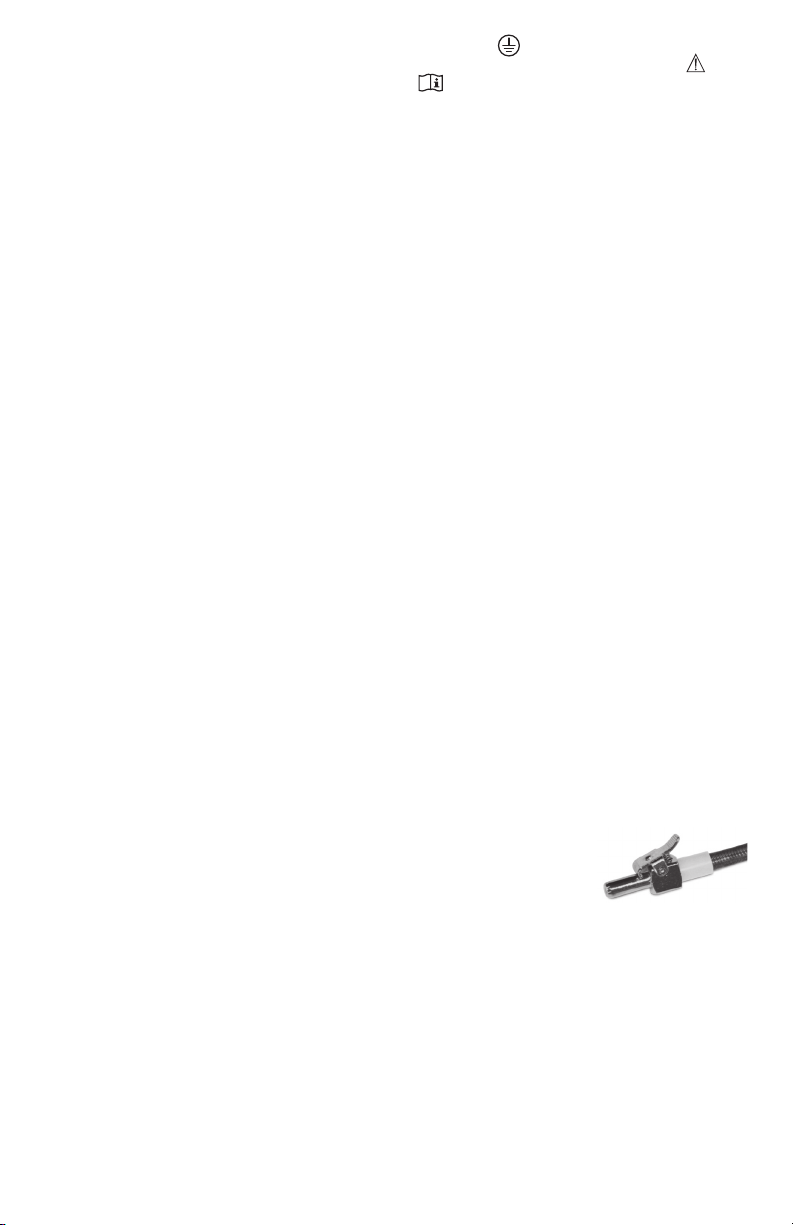

male quick-connect that comes on the end of the
water hose is the standard one presently used
in the dental industry. If the old scaler used a
different connector (“A-dec” or other), remove
the fitting from the old hose and attach it to the
new water line on your TurboVUE. Check for
leaks at all hose and filter connections before
use, and tighten if necessary

CONTROLLING THE WATER FLOW
While observing the arrow
printed on the control
panel, turn the water
control counter-clockwise
to increase the flow, or
clockwise to decrease
water flow.
ELECTRICAL CONNECTION
The scaler must only
be powered via the
Transformer Assembly
that is supplied with the
device by Parkell.
1. Insert the round
metal plug from the
transformer into the back of the scaler, with the
arrow on the plug on top.
2. Insert the plug from the transformer power
cord into any grounded electrical outlet.
USE OF AUTOCLAVABLE SHEATHS
AND ULTRASONIC INSERTS
1. Gently thread an autoclaved handpiece sheath
clockwise onto the handpiece, until there is
no gap between the two at the base. Do not
overtighten.
2. When removing
the autoclavable
handpiece sheath,
hold the handpiece
at the base with
one hand and turn
the sheath counter-
clockwise with the
other, taking care not
to twist the hose. The
sheath will unscrew
and slip off.
3. Avoid dropping
or impacting the
insert’s grip, which
contains the glass
sleeve. Such abuse
may cause the glass
to crack, and is
not covered by the
insert’s warranty.
4. This scaler does not
accept and will not function with 25K scaler
inserts.
5. Brand new inserts fit very tightly in the
handpiece. For ease of placement, lubricate
the O-ring with water and use a slight twisting
motion to seat or remove the insert from the
handpiece.
6. Old, worn or blunt instruments will provide
poor scaling action and should be replaced
when needed.
TURNING ON THE SCALER AND
CONTROLLING THE POWER OUTPUT
The unit does not have a traditional on/off switch.
The foot pedal turns the unit on when depressed,
and off when released. The pedal should be
placed where it will not accidentally be pressed
when the device is not in use.
The TurboVUE gives you two ways to adjust the
scaling power, either by using the Power Control
Knob for normal operation, or by using the Foot
Pedal to enter the “Turbo Mode”.
1. Use the Power Control Knob to set the initial
power for the scaling procedure at hand. With
the foot pedal depressed, turn the knob in a
clockwise direction to increase the power,
or counterclockwise to decrease the power.
A tip powered by the TurboVUE will begin
oscillating at much lower amplitude (power)
than a tip in a traditional scaler, allowing more
comfortable debridement. When the “Perio”
light is illuminated, the knob permits very
subtle adjustments in tip amplitude (relatively
large movements of the knob produce small
increases in amplitude). When the “Perio” light
is not illuminated, tip amplitude reacts more
dramatically to knob adjustment for high power
calculus removal.
2. For short-term increases in power during
scaling, use the “Turbo Mode”. Increase foot-
pressure on the pedal and the yellow “Turbo”
light will illuminate. This will instantly boost
scaling power to a point midway between
the current setting and the scaler’s maximum
power. Engaging the Turbo feature when the
scaler is operating at a low setting causes a
significant boost in power, while engaging
the Turbo feature when the scaler is already
operating at high power will produce very
little change. Since water flow is not affected
by “Turbo Mode”, extended procedures may
require a water adjustment. Partially lifting your
foot off of the pedal will return the scaler to
normal, non-Turbo scaling.
Note that whenever you fully release the foot
pedal, the green “on” light on the front panel will
turn off along with the yellow “Turbo” light. This
change may take several seconds.
CONTROLLING THE
HANDPIECE LIGHT
The handpiece light is
controlled by the “Light
Off” button on the scaler
front panel. To activate the
light feature, make sure
the “Light Off” button is in the IN position. To
deactivate the light feature, make sure the “Light
Off” button is in the OUT position.
Note: The light will ONLY come on when the
foot pedal is depressed.

To prevent leakage of light at the junction of the
handpiece and the insert, be sure to fully press
the insert into the handpiece before use, and
make sure that the autoclavable sheath is fully
threaded onto the handpiece.
There is a built-in, 4-second delay between
release of the foot pedal and the shut off of the
handpiece light. This time delay allows the
clinician to inspect the operating site using the
light after scaling has ceased.
CLINICAL SUGGESTIONS ON
TOOTH SCALING
• Ultrasonic scalers should be used by trained,
licensed professionals only.
• Inserts and handpiece sheaths must be
sterilized before each use.
• Use of face mask and high-volume intraoral
suction is strongly recommended when
operating this device, to avoid inhalation of
contaminated aerosols.
• The scaler water should be flushed for several
minutes at the beginning of each treatment day.
DO NOT OPERATE UNIT WITHOUT WATER
FLOWING.
• Use the lowest effective scaling power for the
case at hand. This keeps heat generation to
a minimum.
• Before using the insert in the oral cavity, adjust
the water spray mist over a sink using the water
control on the faceplate of the scaler. For patient
comfort, use a good flow of water as a coolant,
lubricant and debris flush.
• If patient is new to ultrasonic scaling, explain
to them what to expect. When done properly,
the patient should not experience any
uncomfortable heat. If patient experiences heat,
adjust power and water controls accordingly.
• Do not test a scaler tip on your fingers while
operating, as this is not a valid test of how
scaling feels to the patient. If you touch the tip, it
will feel uncomfortably hot to your fingers.
• Hold the handpiece in a comfortable pen-
grasp. Elevated heat may be felt if the lighted
handpiece is gripped where the insert meets the
sheath. To remove deposits from teeth, always
use a light brushing stroke with the side of the
insert tip, in contact with and parallel to the
root surface. Excess pressure will not improve
scaling action, but may cause heating and pain
to the patient. Keep the scaler insert in motion
at all times, using repeated gentle strokes to
remove all tenacious deposits. Occasionally
pause during scaling by removing foot from
pedal to evaluate deposit removal.
• Exercise caution near ceramic restorations, as
they can fracture if stressed.
CLEANING AND INFECTION CONTROL
• Consult www.CDC.gov for the document
“Guidelines for Infection Control in Dental
Health-Care Settings”.
• Autoclaving does not remove debris that has
accumulated on the sheath or the insert. Failure
to adequately remove debris will result in
inadequate sterilization.
• DO NOT AUTOCLAVE THE TurboVUE
CONTROL UNIT, as high heat will destroy it.
The control unit should be cleaned of debris
with a water-damp paper towel, disinfected
by wiping with a paper towel that has been
saturated with an EPA-registered low-level (HIV/
HBV claim) to intermediate-level (tuberculocidal
claim) hospital disinfectant, wiped of chemical
residue with a water-damp paper towel, and
dried. Utilize the surface disinfecting protocol of
the disinfectant manufacturer.
• The sheath and ultrasonic insert must be
washed in soap and water and rinsed in running
water prior to bagging them for processing in
a steam autoclave. They may be sterilized in
any conventional steam autoclave following
manufacturer’s instructions. A typical steam
cycle is 250°F-268°F / 121°C-131°C for 30
minutes at 15 psi, followed by a 15 minute cool-
down period. After cooling, inspect the device
in the autoclave bag for integrity. If suspicion
about the item exists, discard it and order a
replacement from Parkell or your dealer.
• DO NOT USE DRY HEAT OR CHEMCLAVE on
the sheath or the insert.
HOW TO REPLACE THE FILTER DISK
Parkell urges all scaler users to monitor the
condition of the water filter periodically and
change the filter every
3-4 months, or whenever
noticeable darkening of
the disk occurs, or when
water flow decreases.
The most common
reason for service for
ultrasonic scalers is
failure by the user to
periodically change
the water filter. This will result in contamination
and clogging of the internal water components.
Replacement filters are available from Parkell
(Stock No. D419 – ten per package).
1. To change the filter, close any water valves, and
bleed all water lines of residual water pressure.
2. Disconnect the scaler water supply hose from
the water supply at the quick-connect.
3. Remove the old filter disk by holding it in
one hand and twisting off the Luer-lock hose
connectors on either side. They rotate in
opposite directions.

• Parkell’s light-transmitting inserts use a high-
quality, high-strength glass sleeve to project
a bright light onto the operative field. These
tips may be ultrasonically cleaned, disinfected
and autoclaved using standard techniques.
However, take care to avoid dropping or
impacting the insert, as this may result in glass
breakage. Inspect the inserts prior to each use
for integrity and safety.
CLINICAL PRECAUTIONS
• Water flow through tip during use must be
sufficient to cool handpiece and insert.
• When operating the unit with non-light-
transmitting ultrasonic inserts, if you experience
uncomfortable heat at the handpiece and desire
to eliminate such heat, set the “Light Off” button
to the OUT position to deactivate the light
feature.
• Do not allow prolonged contact of tip with lips,
cheek, tongue or other soft tissues.
• Keep the long axis of the insert tip parallel to the
long axis of the tooth to wipe deposits from the
tooth.
• Do not gouge the tooth with the point of the tip
INDIVIDUALIZATION OF TREATMENT
If patient or operator is pregnant, or has any
medical condition which might be affected by this
device during treatment, consult a physician prior
to use.
WHAT’S INCLUDED:
(1) Scaler control unit with attached handpiece,
foot controller and water line (with male quick-
connect coupler)
(2) Autoclavable sheaths (one attached to
handpiece) (Stock No. D572)
(2) Inline water filters (one attached to water line)
(Stock No. D419)
(1) Transformer with cable (Stock No. D408-120V,
D403-230V)
(1) Operator’s Manual / Instructions for Use
TURBOVUE LIGHT-TRANSMITTING
INSERTS
• Universal Tip V - Purple hStock No. DLH30U
• Straight Perio Tip V - Blue hStock No. DLH30P
• Burnett Power-Tip V - Yellow hStock No. DLH30T
•
Triple-Bend Precision Flow - hStock No. DLH30Tri-PF
• Triple-Bend - hStock No. DLH30Tri
Replacement parts for certain components
are available by contacting Parkell
CONFORMANCE TO STANDARDS
The Parkell TurboVue is TUV listed and conforms to
IEC 60601-1, 60601-1-2 and CAN/CSA C22.2 No.
601.1. Parkell’s quality system is certied to ISO 9001/
ISO13485. The device is CE marked and is certied to
European Medical Device Directive
(93/42/EEC).
The symbol on the scaler indicates the Protective
Earth connection. The symbol or in these
scaler instructions is intended to alert the user to
the presence of important operating or maintenance
instructions.
SPECIFICATIONS
• Power: 120 VAC at 50/60 Hz or 230 VAC at 50/60
Hz or 100 VAC at 50/60 Hz
• Operating temperature between 50°F and 100°F
(10°C - 38°C)
•
Weight - 35 oz.; Size – 1 1/2” H x 5 1/2” W x 7” D
• Handpiece operating frequency - 30 KHz
• Protection Against Electric Shock – Class 1,
Type B applied part
• Equipment not suitable for use in the presence
of a flammable anesthetic mixture (when used
with air or oxygen)
• Protection against Ingress of Liquids – Foot
Switch & Scaler: IPX1 (drip proof)
• Power Supply - IPX0 (Ordinary)
• Mode of Operation of Equipment: Intermittent –
10 minutes on, 5 minutes off
• Operating conditions: 15-30°C, 10-80% RH (non-
condensing)
• Transport and storage conditions: 10-40°C,
10-80% RH (non-condensing)
INSTALLING THE SCALER
Locate the device where the control panel will
be easy to reach during scaling procedures, and
where the water filter at the rear of the unit may be
periodically changed without difficulty. The scaler
requires access to a grounded electrical outlet
and a source of drinking-quality water. The device
and its separate transformer generate a minimal
amount of heat. Avoid covering them, to allow
normal cooling.
WATER CONNECTION
Before plugging in the device, connect the scaler’s
water line to a drinking-quality water supply at 20-
50 psi (optimal). Water should be clean and free of
sediment. We suggest that an external, office-wide
water filter be used to minimize frequent changes
of the device’s in-line water filter. The male
quick-connect that comes on the end of the water
hose is the standard one presently used in the
dental industry. If the old scaler used a different
connector (“A-dec” or other), remove the fitting
from the old hose and attach it to the new water
line on your TurboVUE. Check for leaks at all hose
and filter connections before use, and tighten if
necessary
CONTROLLING THE WATER FLOW
While observing the arrow printed on the control
panel, turn the water control counter-clockwise to

CAUTION: RX ONLY
This manual, in whole or in part, should not be considered a substitute for formal training in Ultrasonic Scaling.
Appropriate professional education is STRONGLY RECOMMENDED prior to using this device clinically.
30KHz Inserts
(not included)
Transit should maintain a dry temperature
of 50°F-110°F. You will be contacted for your
approval of the repair, along with any associated
costs, prior to any work. Upon your approval, the
unit will be repaired and returned to you.
• Outside the US, repairs must be made by a
Parkell-authorized facility.
If you have any questions
or problems with the installation
or use of your TurboVUE,
call Technical Support Service
at 1-800-243-7446, M-F from
8:15 AM to 5:15 PM EST.
Outside of the USA
or Canada, call [phone].
WARRANTY
Please consult our website, www.parkell.com,
for complete details on the product warranty
for this scaler. This warranty is in lieu of all
warranties of merchantability, fitness for purpose
or other warranties, express or implied. Parkell
warrants the TurboVue power unit, transformer
and foot pedal as follows: 110 VAC - Five (5) years;
230 VAC or 100 VAC - One (1) year.
The handpiece, handpiece cable and water hoses
are warranted for one (1) year. The ultrasonic
inserts and autoclavable sheaths are not covered
by this warranty, and are not returnable.
No repairs or parts replacements made during
a warranty period extend the warranty beyond
the original expiration date. Parkell does not
accept liability for any loss or damage, direct,
consequential or otherwise, arising out of the
use of or the inability to use the product herein
described. Before using, the user shall determine
the suitability of the product for its intended
use and the user assumes all risk and liability
whatsoever in connection herewith.
PLEASE NOTE: Parkell scalers are designed
to work with Parkell inserts. While other
manufacturers claim to produce inserts that are
compatible, Parkell cannot guarantee proper
performance therewith. Please see our full
Warranty Policy and Terms of Use information at
www.parkell.com.
If you purchased this product directly from
Parkell, your unit is automatically registered.
Your invoice is your “Warranty Registration”
receipt. If you purchased this product from
a domestic or overseas dealer, please
register your product via the Internet at
www.parkell.com/ProductRegistration.aspx.
Locate and complete the online form, print a copy
for your records, and click the “Submit” button.
Store the printout in a safe place.
European Authorized Representative
(Not a dealer/distributor): EMERGO EUROPE
Molenstraat 15, 2513 BH, The Hague, The Netherlands
Tel: [phone] • Fax: [phone]
A00764revC0218
300 Executive Drive, Edgewood, NY 11717
Toll-Free: 1-800-243-7446 • Phone: [phone]
Fax: [phone] • E-mail: [e-mail]
www.parkell.com
Type “B”
Applied Part
THIS PRECISION DENTAL DEVICE WAS DESIGNED, MANUFACTURED
AND IS SERVICED IN THE UNITED STATES OF AMERICA BY:
