Parkinson Cowan CSIG 223 W User manual

1
INSTRUCTION BOOKLET
MIXED FUEL COOKER
CSIG 223 W
Please read this instruction booklet before using the appliance

2
Important Safety Information
You MUST read these warnings carefully before installing or using the
appliance. If you need assistance, contact our Customer Care Department
on 08705 950950
Installation
●This cooker must be installed by qualified
personnel, according to the manufacturer’s
instructions and to the relevant British Standards.
• This cooker is heavy. Take care when moving it.
●Any gas installation must be carried out by a
registered CORGI installer.
●Remove all packaging before using the cooker.
●Ensure that the gas and electrical supply complies
with the type stated on the rating plate, located
near the gas supply pipe.
●Do not attempt to modify the cooker in any way.
Child Safety
●This cooker is designed to be operated by adults.
Do not allow children to play near or with the
cooker.
●The cooker gets hot when it is in use. Children
should be kept away until it has cooled.
●Children can also injure themselves by pulling
pans or pots off the cooker.
During Use
●This cooker is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.
●When in use a gas cooker will produce heat and
moisture in the room in which it has been
installed. Ensure there is a continuous air supply,
keeping air vents in good condition or installing a
cooker hood with a venting hose.
●When using the cooker for a long period time, the
ventilation should be improved, by opening a
window or increasing the extractor speed.
●Do not use this cooker if it is in contact with
water. Do not operate the cooker with wet hands.
●Ensure the control knobs are in the ‘OFF’ position
when not in use.
●Do not store flammable materials such as oven
gloves, tea towels etc. in the drawer.
●When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the cooker.
●Unstable or misshapen pans should not be used on
the hob burners as unstable pans can cause an
accident by tipping or spillage.
●Never leave the cooker unattended when cooking
with oil and fats.
●This cooker should be kept clean at all times. A
build-up of fats or foodstuffs could result in a
fire.
●Never use plastic dishes in the oven or on the hob
burners. Never line any part of the oven with
aluminium foil.
●Always ensure that the oven vent which is located
at the centre back of the hob is left unobstructed to
ensure ventilation of the oven cavity.
●Perishable food, plastic items and areosols may be
affected by heat and should not be stored above
the cooker.
Service
●This cooker should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
●After installation, please dispose of the packaging
with due regard to safety and the environment.
●When disposing of an old appliance, make it
unusable, by cutting off the cable.
Keep this instruction book for future
reference and ensure it is passed on
to any new owner.

3
This appliance is manufactured according
to the following EEC directives:
73/23 EEC - 90/683 EEC - 93/68 EEC -
89/336 EEC - 90/396 EEC,
current edition.
Contents
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
☞
i
Oven Door Protection Device
All our appliances comply with the
European safety standards. Nevertheless,
in order to ensure the highest safety
level, and avoid small children to be
exposed to the heat when the appliance
is operated, it is possible to fit a special
protection device to the oven door. This
device can be purchased in our Service
Force Centres, specifying the relevant
code (35791) and the Product No. shown
on the rating plate.
Important Safety Information.............. 2
Description of the Cooker.................... 4
Control Panel ...................................... 5
The Oven Cavity.........................................5
Accessories ................................................5
Operation ............................................ 6
Hob burners ...............................................6
Gas oven and Electric grill......................... 7
Using the Oven .................................... 8
Oven light pushbutton................................9
Using the Gas oven .............................. 9
Gas Oven Cooking Charts .................. 10
Grilling.............................................. 12
Maintenance and Cleaning................. 13
Cleaning the Oven ............................. 14
Something Not Working ..................... 16
Service and Spare Parts ..................... 17
Guarantee Conditions........................ 17
Instructions for the Installer ............. 20
Important Safety Requirements......... 21
Installation........................................ 22
Electrical connections....................... 24
Commissioning.................................. 25
Conversion from Natural to LPG Gas.. 26
For the User For the Installer

4
RAPID NORMAL SIMMER NORMAL
GAS OVEN &
ELECTRIC GRILL
GRILL
ON
Description of the Cooker
Rapid burner
Semi-rapid burner
Control panel
Oven door
Semi-rapid
burner
Auxiliary burner
Storage drawer

5

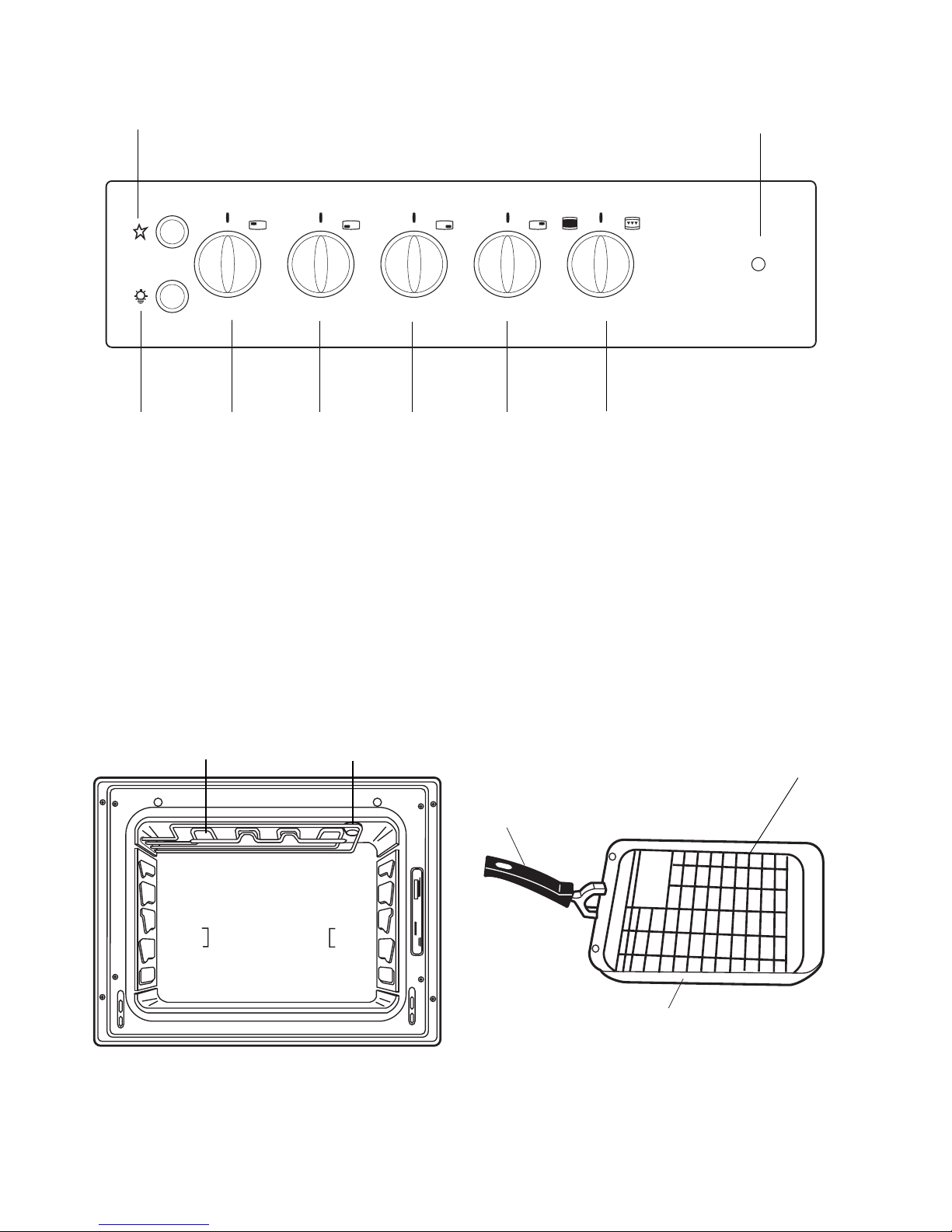

Control Panel
1. Grill Function Pilot Light
2. Electric Ignition push button
3. Oven Light push button
4. Back left burner control knob (rapid)
5. Front left burner control knob (semi-rapid)
6. Front right burner control knob (auxiliary)
7. Back right burner control knob (semi-rapid)
8. Oven function control knob
8765
1
2
4
The Oven Cavity
Grill element Oven Light
Accessories
3
P
Q
Grill trivet
Grill/roasting pan
Removable
handle
RAPID NORMAL SIMMER NORMAL
GAS OVEN &
ELECTRIC GRILL
GRILL
ON

6
Operation
Hob burners
To light a burner, push in and turn the relevant
control knob anticlockwise to maximum position. At
the same time push the electric ignition button which
is marked with a little spark. Then adjust the flame as
required.
If the burner does not ignite, turn the control knob to
zero, and try again.
When switching on the mains, after
installation or a power cut, it is quite normal
for the spark generator to be activated
automatically.
To ensure maximum burner efficiency, you should
only use pots and pans with a flat bottom fitting the
size of the burner used (see table).
Burner minimum maximum
diameter diameter
Large (rapid) 180 mm. 260 mm.
Medium (semi-rapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
i
i
If you use a saucepan which is smaller than
the recommended size, the flame will spread
beyond the bottom of the pan, causing the
handle to overheat.
As soon as a liquid starts boiling, turn down
the flame so that it will barely keep the
liquid simmering.
Take care when frying food in hot oil or fat,
as the overheated splashes could easily
ignite.
If the control knobs become difficult to turn,
please contact your local Parkinson Cowan
Service Centre.

7
Gas oven and Electric grill
140
160
200
240

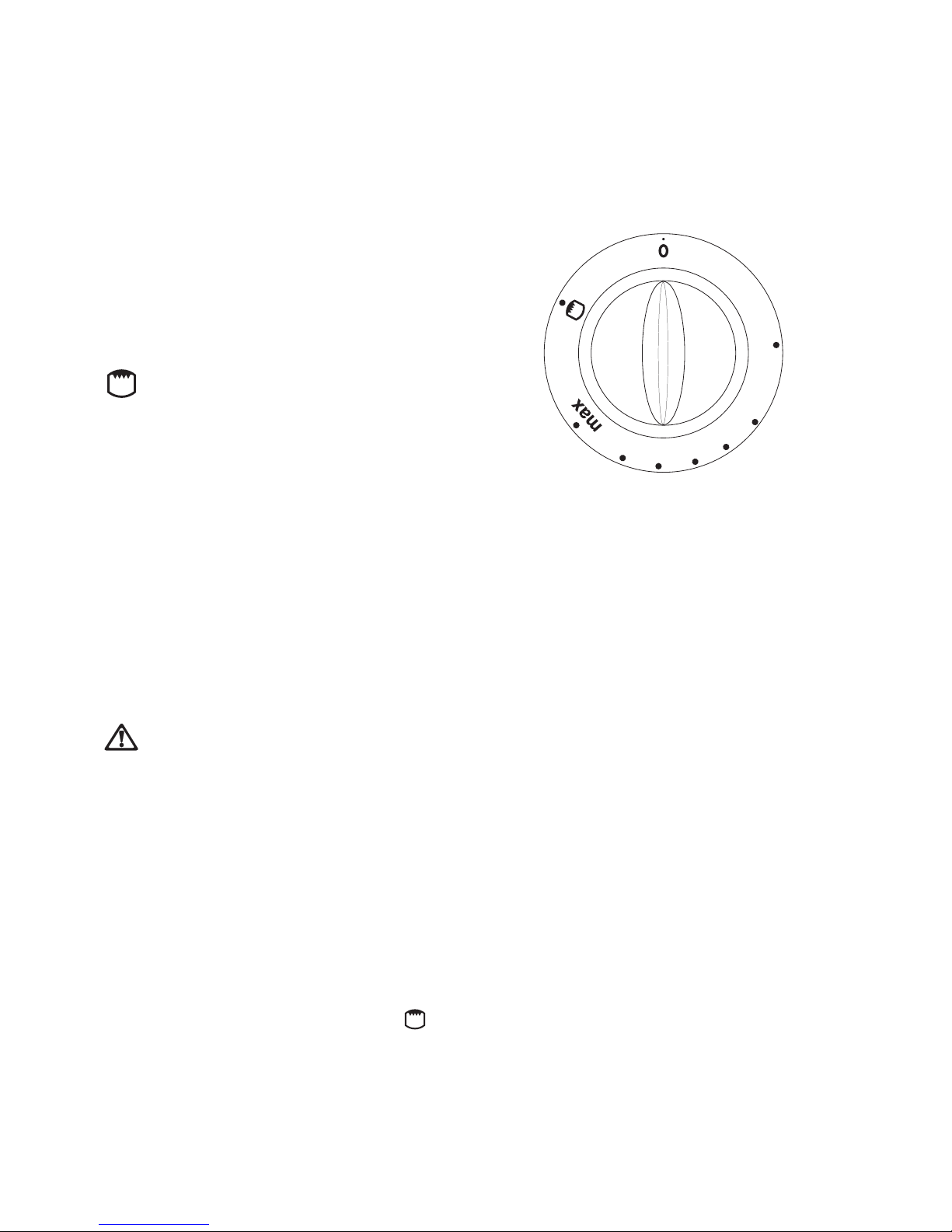

Oven Function Control Knob
0Oven switched off
0-MAX Range of temperature regulation for gas
oven
Grill - The heat comes only from the top
element
Before the First Use of the Cooker
Remove all packaging, both inside and
outside the cooker, before using it.
Before first use, the oven should be heated without
food. During this time, an unpleasant odour may be
emitted. This is quite normal.
☞1. Ignite the gas oven burner (see page 9)
and set the oven function control knob to
MAX.
2. Open a window for ventilation.
3. Allow the oven to run empty for
approximately 45 minutes.
This procedure should be repeated with the grill
function for approximately 5-10 minutes.

8
Using the Oven
• Always cook with the oven door closed.
• Stand clear when opening the drop
down oven door. Do not allow it to fall
open - support the door using the door
handle, until it is fully open.
• The oven has four shelf levels, and is
supplied with two shelves.
The shelf positions are counted from the
bottom of the oven as shown in the
diagram.
It is important that these shelves are
correctly positioned as shown in the
diagram.
• Donotplacecookwaredirectlyontheoven
base.
i
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat
to the food inside them.
AAluminium, earthenware, oven glassware and
bright shiny utensils reduce cooking and
underneath browning.
BEnamelled cast iron, anodized aluminium,
aluminium with non-stick interior and coloured
exterior and dark, heavy utensils increase cooking
and underneath browning.
Condensation and steam
When food is heated it produces steam in the same
way as a boiling kettle. The oven vents allow some of
this steam to escape. However, always stand back
from the oven when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense
and produce water droplets. This is quite normal and
is not a fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.
Cookware
• Use any oven proof cookware which will
withstand temperatures of 250°C.
• Baking trays, oven dishes, etc. should not be
placed directly against the grid covering the fan at
the back of the oven, or placed on the oven base.
• Do not use baking trays larger than 30 cm x 35 cm
(12 in x 14 in) as they will restrict the circulation
of heat and may affect performance.
i
Hints andTips
Storage Drawer
The storage drawer is located underneath the oven
cavity.
During cooking the storage drawer may
become hot if the oven is on high for a long
period of time, therefore flammable materials
such as oven gloves, tea towels, plastic aprons
etc. should not be stored in the drawer.
Oven accessories such as baking sheets, will
also become hot, therefore care should be
taken when removing these items from the
drawer whilst the oven is in use or still hot.
4
3
2
1

9
Before using your oven
Switch the oven to MAX. and leave it to run empty
for about 30 minutes to remove any unpleasant smell.
During cooking, the door should be opened as little as
possible to avoid heat loss, and excessive fuel
consumption.
☞To ignite the oven gas burner:
1. Open the oven door.
2. Hold a flame to the right-hand side hole
(see fig.)
3. Press the oven control knob and turn it anti-
clockwise until the maximum temperature
is reached.
4. Firmly press the oven control knob for
approximately 5 seconds, until the safety
valve automatically keeps the oven burner
lit.
5. Release the control knob and then gently
close the oven door. To adjust the
temperature, turn the knob to the required
setting after a few minutes.
Oven safety device
The cooker features a thermocouple; if for any
reason the flame should extinguish, the device will
stop the gas flow.
Oven light pushbutton
This button will turn the oven light on.
If the oven burner accidentally goes out,
turnthe ovenknob to"O" andwaitat least
1 minute before trying to light the burner
again.
Using the Gas oven

10
Gas Oven Cooking Charts
SHELF COOKING
POSITIONS TIME
MEAT & POULTRY
Beef with bone 160 2 or 3 20 minutes per lb
+ 20 minutes
Beef without bone 190 2 or 3 25 minutes per lb
+ 25 minutes
Lamb 160 2 or 3 20-25 minutes per lb
+ 20-25 minutes
Pork 175 2 or 3 25 minutes per lb
+ 25 minutes
Chicken 190 2 or 3 25 minutes per lb
+ 25 minutes
Duckling 160 2 or 3 30 minutes per lb
+ 30 minutes
Turkey 150 2 or 3 30 minutes per lb
+ 30 minutes
Casseroles 135 2 or 3 21/2 hours
YORKSHIRE
PUDDING
Small 200 2 or 3 25 minutes
Large 200 2 or 3 35 minutes
BAKED
VEGETABLES 160 2 varies according to
the vegetable
PASTRY
Fruit Tart 175 2 35 minutes
Fruit Pie 175 2 or 3 35 minutes
Sausage Rolls 200 2 or 3 20 minutes
Choux Pastry 190 2 or 3 25-30 minutes
Vol au Vents 200 2 or 3 15 minutes
Jam Tarts 200 2 or 3 10-15 minutes
TEMPERATURE ° CFOOD
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your
individual requirements. Only experience will enable you to determine the correct setting for your personal
requirements.

11
SHELF COOKING
POSITION TIME
PUDDINGS
Egg Custard in a
Bain Marie 135 2 or 3 1-1 1/4 hours
Pavlova 135 2 or 3 1 1/2 hours
Meringues 135 2 or 3 1 1/2 hours
CAKES
Rich Fruit 150 2 or 3 3 1/2-4 hours
Cake 8" 150 2 or 3
Plain Fruit Cake 160 2 or 3 2 1/2 hours
Victoria
Sandwich 175 2 or 3 25-35 minutes
Madeira Cake 160 2 or 3 1 3/4-2 hours
Small Cakes 160 3 20-30 minutes
Ginger Bread 160 3 35-45 minutes
Flapjack 160 3 20-25 minutes
YEAST MIXTURES
Bread
1lb Loaves 200 2 or 3 30-40 minutes
Bread
2lb Loaves 200 2 or 3 40-50 minutes
Rolls and Buns 200 2 or 3 15-20 minutes
Tea Rings 190 2 or 3 25-35 minutes
Scones 200 2 or 3 15-20 minutes
Shortbread 160 25-35 minutes
TEMPERATURE ° CFOOD
2 or 3 Change
trays over halfway
through the
cooking time
Gas Oven Cooking Charts
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your
individual requirements. Only experience will enable you to determine the correct setting for your personal
requirements.

12

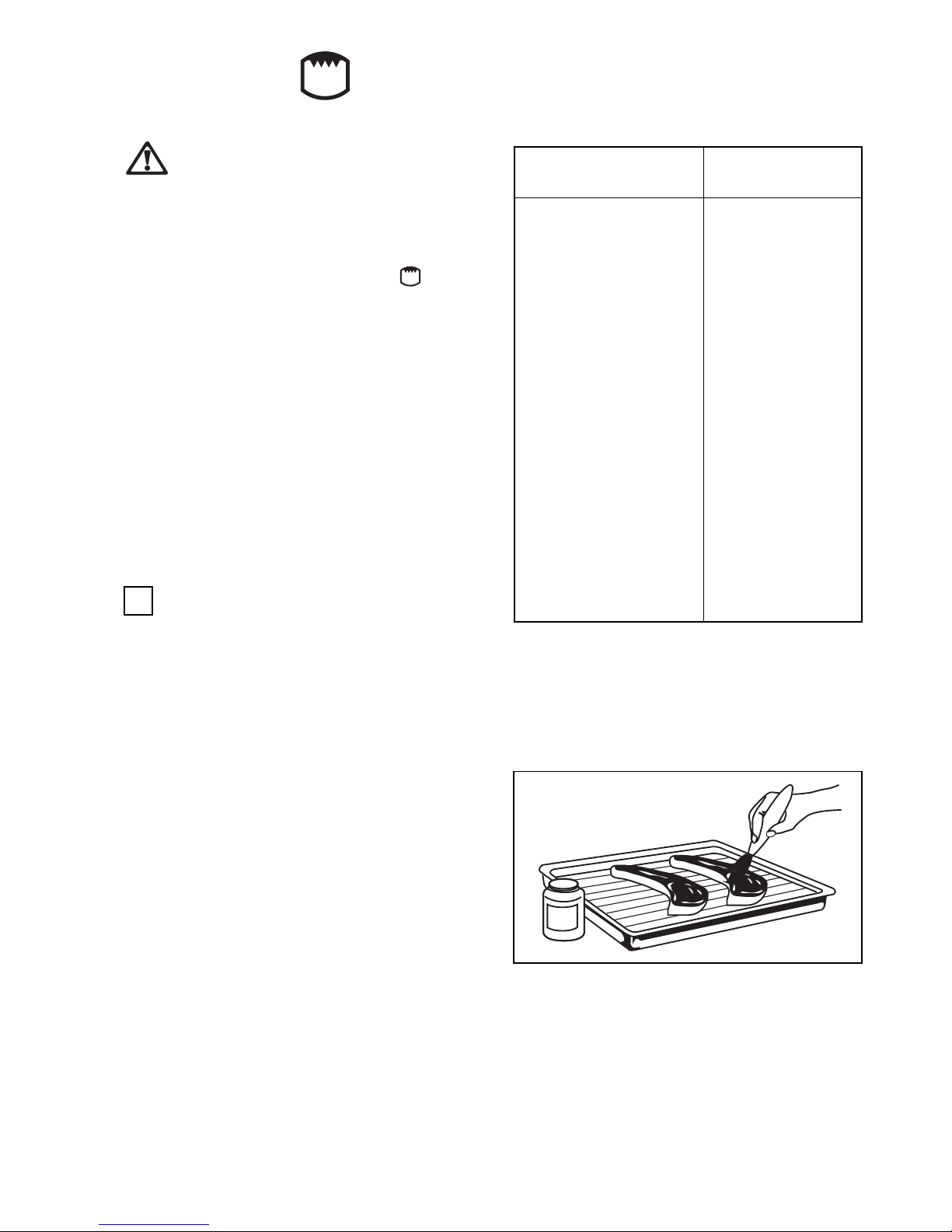

Grilling
Grilling must be carried out with the oven
door closed. The grill pan handles must be
removed from the pan.
☞
How to Use the Grill
1. Turn the oven control function knob to . The
grill pilot light will come on.
2. Adjust the grid and grill pan runner position to
allow for different thicknesses of food. Position
the food close to the element for faster cooking
and further away for more gentle cooking.
Preheat the grill for a few minutes before sealing
steaks or toasting. Adjust the shelf level as necessary,
during cooking.
- Most foods should be placed on the grid in the grill
pan to allow maximum circulation of air to lift the
food out of the fats and juices. Food such as fish,
liver and kidneys may be placed directly on the grill
pan, if preferred
- Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep them
moist during cooking
- Accompaniments such as tomatoes and mushrooms
may be placed underneath the grid when grilling
meats
- When toasting bread, we suggest that the top runner
position is used.
- The food should be turned over during cooking, as
required.
Hints andTips
i
OI
L
Bacon rashers 2-3 each side
Beefburgers 6-10 each side
Chicken joints 10-15 each side
Chops: 7-10 each side
10-15 each side
Fish: 8-12 each side
4-6 each side
Kebabs 10-15 each side
Kidneys: 4-6 each side
Liver: 5-10 each side
Sausages 10-15 turn as required
Steaks: 3-6 each side
6-8 each side
7-10 each side
Browning only 3-5
Food Conventional Grill
Time (Min)
lamb
pork
whole trout/herring
fillets plaice/cod
lamb/pig
lamb/pig
rare
medium
well

13
Before any maintenance or cleaning can be
carried out, you must DISCONNECT the
cooker from the electricity supply.
The HobTop
The hob is best cleaned whilst it is still warm, as
spillage can be removed more easily than if it is left
to cool.
Regularly wipe over the hob top using a soft cloth
well wrung out in warm water to which a little
wasing up liquid has been added. Avoid the use of the

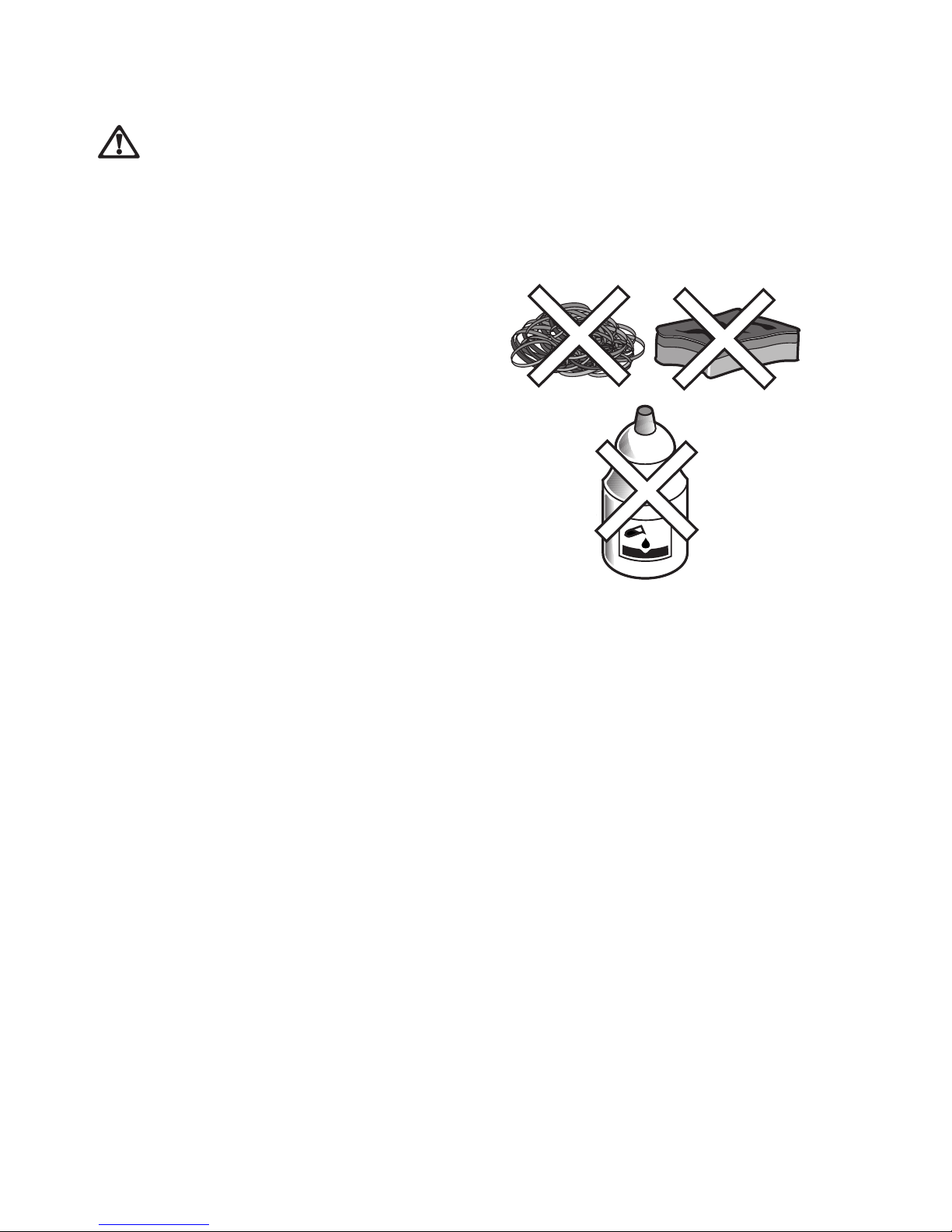

following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a cleaning product such as Hob
Brite or Bar Keepers Friend is used.
Pan Supports
The pan supports are dishwasher proof. If washing
them by hand, take care when drying them as the
enamelling process occasionally leaves rough edges.
If necessary, remove stubborn stains using a paste
cleaner.
The Burners
The burner caps and crowns can be removed for
cleaning.
Wash the burners caps and crowns using hot soapy
water, and remove marks with a mild paste cleaner. A
well moistened soap impregnated steel wool pad can
be used with caution, if the marks are particularly
difficult to remove.
After cleaning, be sure to wipe dry with a soft cloth.
Maintenance and Cleaning

14
The oven should be kept clean at all times.
A build-up of fats or other foodstuffs could
result in a fire, especially in the grill pan.
Cleaning materials
Before using any cleaning materials on your oven,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
External cleaning

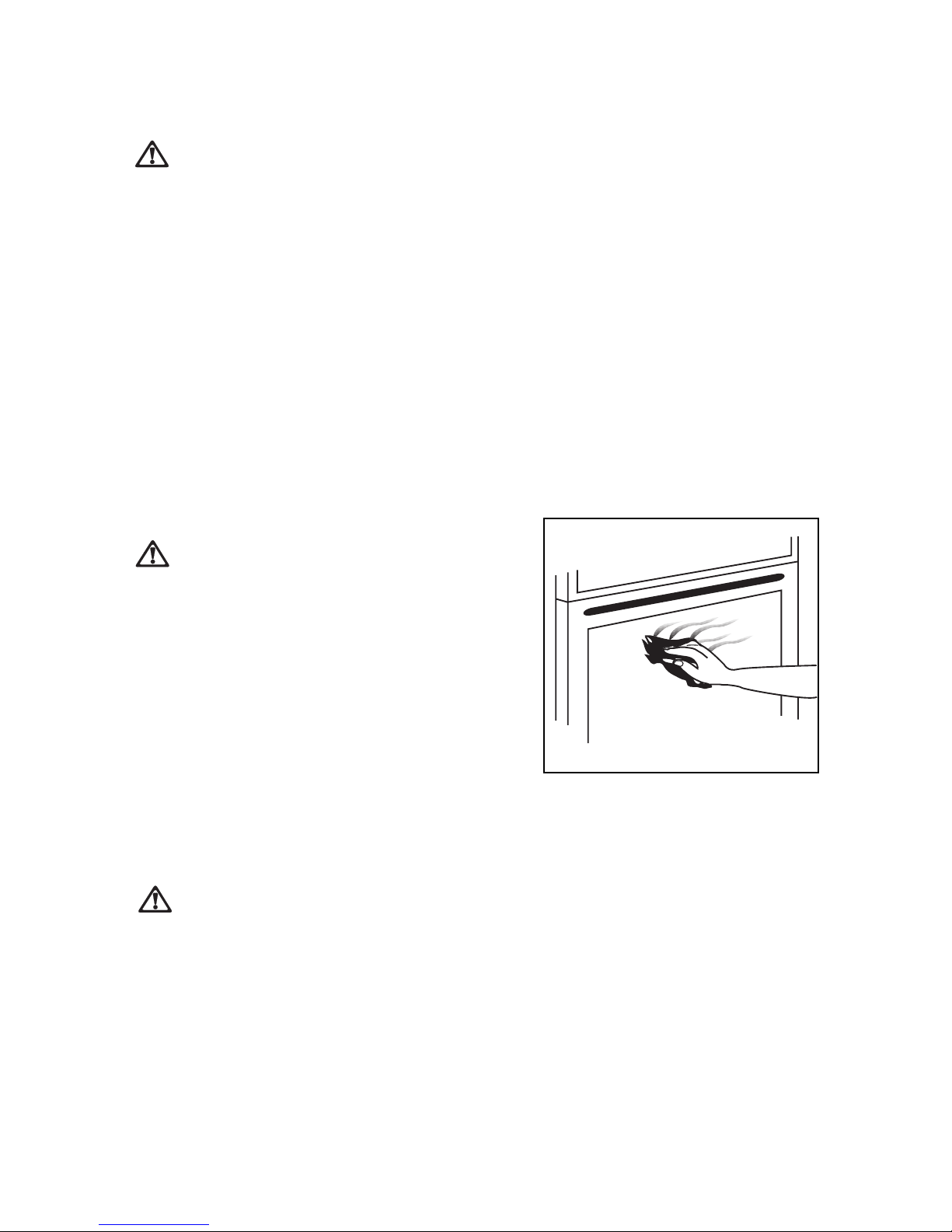

Regularly wipe over the control panel, oven door and
door seal using a soft cloth well wrung out in warm
water to which a little washing up liquid has been
added.
To prevent damaging or weakening the
door glass panels avoid the use of the
following:
• Household detergent and bleaches
• Impregnated pads unsuitable for non-
stick saucepans
• Brillo/Ajax pads or steel wool pads
• Chemical oven pads or aerosols
• Rust removers
• Bath/Sink stain removers
Clean the outer and inner door glass using warm
soapy water. Should the inner door glass become
heavily soiled it is recommended that a cleaning
product such as Hob Brite, or Bar Keepers Friend is
used.
DO NOT clean the oven door while the
glass panels are warm. If this precaution is
not observed the glass panel may shatter.
If the door glass panel becomes chipped or
has deep scratches, the glass will be
weakened and must be replaced to prevent
the possibility of the panel shattering.
Contact your local Service Centre who will
be pleased to advise further.
Cleaning the Oven

15
Cleaning around the flame spreader
☞- Remove the small flap.
- Slide forward the remainder of the lid.
- Lift from the back.
When cleaning around the flame spreader, particles
can fall into the drawer below. We recommend
placing some paper over the contents of the drawer
whilst cleaning.
Please ensure the paper is removed after cleaning or it
may ignite, when the oven is next used.
We advise using a stiff dry brush to remove stubborn
grease deposits around the base of the unit (see Fig.).
Remove any remaining surface fat with a sponge
while the oven is still warm.
Place a brush or other suitable cleaning implement
into the aperture and brush around the base of the unit
with a suitable detergent.
UNDER NO CIRCUMSTANCES
SHOULD THE FLAME SPREADER
BE REMOVED.
After cleaning, replace the lids correctly.
FO 0176
FO 0177
Oven Cavity
The enamelled oven cavity is best cleaned whilst the
oven is still warm.
Wipe the oven over with a soft cloth soaked in warm
soapy water after each use. From time to time it will
be necessary to do a more thorough cleaning, using a
proprietary oven cleaner.
Oven Shelves
To clean the oven shelves, soak in warm soapy water
and remove stubborn marks with a well wetted soap
impregnated pad. Rinse well and dry with a soft
cloth.
FO 0424
Oven lamp replacement
Disconnect the appliance.
Unscrew the lamp and substitute it with another
suitable for higher temperature (300°C) having the
following specifications:
Voltage: 230-240V (50Hz)
Power: 15W
Connection: E14

16
Something Not Working
If the appliance is not working correctly, please carry out the following checks, before contacting your local
Parkinson Cowan Service Centre.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
SYMPTOM
■There is no spark when lighting the gas
■The gas ring burns unevenly
■The oven does not come on
■The oven light does not come on
■It takes too long to finish the dishes, or they are
cooked too fast.
■Steam and condensation settle on the food and the
oven cavity.
SOLUTION
◆Check that the unit is plugged in and the electrical
supply is switched on
◆Check that the RCCB has not tripped (if fitted)
◆Check the mains fuse has not blown
◆Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
◆Check the main jet is not blocked and the burner
crown is clear of food particles.
◆Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
◆Check a cooking function / temperature have been
selected.
◆Check the socket switch or the switch from the
mains supply to the oven is ON.
◆Check the light bulb, and replace it if necessary
(see "Replacing the Oven Light")
◆The temperature may need adjusting
◆Refer to the contents of this booklet, especially to
the chapter “Using the Oven”.
◆Leave dishes inside the oven no longer than 15-20
minutes after the cooking is completed.
If after these checks, the appliance still does not work, contact your local Service Force Centre.
When you contact the Service Centre, they will need
the following information:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault
4. The model and the serial number (see rating label)
5. Date of purchase

17
If you require spare parts or an engineer contact your
local Service Force Centre by telephoning:
08705 929 929
Your call will be routed to the Service Centre
covering your post code area. The addresses of
Parkinson Cowan Service Force Centres are detailed
on the following pages.
CUSTOMER CARE
For general enquiries concerning your Parkinson
Cowan appliance and for further information on
Parkinson Cowan products, contact our Customer
Care Department by letter or telephone as follows:
Customer Care Department
Parkinson Cowan
55-77 High Street
Slough
Berkshire SL1 1DZ
Tel : [phone]
Guarantee Conditions
Service and Spare Parts
PARKINSON COWAN STANDARD
GUARANTEE CONDITIONS
We, Parkinson Cowan, undertake that if, within 12
months of the date of the purchase, this Parkinson
Cowan appliance or any part thereof is proved to be
defective by any reason only of faulty workmanship
or materials, we will, at our option, repair or replace
the same FREE OF ANY CHARGE for labour,
materials or carriage on condition that:
* The appliance has been correctly installed and
used only on the gas and electricity supply stated
on the rating plate.
* The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
* All service work under this guarantee must be
undertaken by a Parkinson Cowan Service Force
Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday.Visits may be available outside
these hours, in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside the United Kingdom.
* Appliances found to be in use within a
commercial or similar environment, plus those
which are the subject to rental agreements.
* Products of Parkinson Cowan manufacture which
are not marketed by Parkinson Cowan.
European Guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the
same extent for labour and parts as exist in the
new contry of use for this brand or range of
products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European
Community (EC) or European Free Trade Area.
* The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household
The electrical supply complies with the
specification given in the rating label.
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest
Customer Care centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

18
PARKINSON COWAN SERVICE FORCE
To contact your local Parkinson Cowan Service Force Centre telephone [phone]
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
PO Box 4
Vale , Guernsey
Channel Islands
JERSEY Jersey Electricity
Company
PO Box 45
Queens Road
St Helier
Jersey
Channel Islands
JE4 8NY
SCOTLAND
ABERDEEN 8 Cornhill Arcade
(M05) Cornhill Drive
Aberdeen
AB2 5UT
AUCHTERMUCHY 33A Burnside
(M03) Auchtermuchy
Fife
KY14 7AJ
BLANTYRE Unit 5
(M07) Block 2
Auchenraith Industrial
Estate
Rosendale Way
Blantyre
G72 0NJ
DUMFRIES 93 Irish Street
(M01) Dumfries
Scotland
DG1 2PQ
DUNOON Briar Hill
7 Hill Street
(M 67) Dunoon
Argyll
PA23 7AL
GLASGOW 20 Cunningham Road
(M04) Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
INVERNESS Unit 3B
(M06) Smithton Indust. Est.
Smithton
Inverness
IV1 2PD
ISLE OF ARRAN Arran Domestics
Unit 4 The Douglas
Centre
Brodick
Isle of Arran
(OWN SALES) KA27 8AJ
ISLE OF BARRA J Zerfah
244 Bruernish
Isle of Barra
Western Islands
(OWN SALES) HS9 5QY
ISLE OF BUTE Walker Engineering
(M66) Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute
PA20 9EH
NORTH EAST
GATESHEAD Unit 356a
(M39) Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
GRIMSBY Unit 2
(M42) Cromwell Road
Grimsby
South Humberside
DN31 2BN
HULL Unit 1
(M41) Boulevard Industrial
Estate
Hull
HU3 4AY
LEEDS 64-66 Cross Gates Road
(M37) Leeds
LS15 7NN
NEWTON AYCLIFFE Unit 16
(M45) Gurney Way
Aycliffe Ind Estate
Newton Aycliffe
DL5 6UJ
SHEFFIELD Pennine House
(M38) Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD 1 Kelvin Park
(M11) Dock Road
Birkenhead
L41 1LT
CARLISLE Unit 8
(M10) South John Street
Carlisle
CA2 5AJ
ISLE OF MAN South Quay Ind Estate
(M64) Douglas
Isle of Man
LIVERPOOL Unit 1
(M15) Honeys Green Precinct
Honeys Green Lane
Liverpool
L12 9JH
MANCHESTER Unit 30
Oakhill Trading
(M09) Estate
Devonshire Road
Worsley
Manchester
M28 3PT
PRESTON Unit 250
(M13) Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
STOCKPORT Unit 20 Haigh Park
(M16) Haigh Avenue
Stockport
SK4 1QR
ISLE OF LEWIS ND Macleod
(M69) 16 James Street
Stornoway
Isle of Lewis
PA872QW
KELSO 2-8 Wood Market
(M08) Kelso
Borders TD5 7AX
ORKNEY Corsie Domestics
(M65) 7 King Street
Kirkwall
Orkney KW15 1RE
PERTH Hydro Electrical
Inveralmond House
Ruthervenfield Road
Perth PH1 3AQ
PERTH Graham Begg Unit 4
Airport Ind Estate
(OWN SALES) Wick KW1 4QS
SHETLAND Tait Electronic Systems
Ltd.
Holmsgarth Road
Lerwick
(OWN SALES) Shetland ZE1 0PW
SHETLAND Bolts Shetland Ltd
26 North Road
Lerwick
(OWN SALES) Shetland ZE1 0PE
WHALSAY Leask Electrical
Harlsdale
Symbister, Whalsay
(OWN SALES) Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST Owenmore House
(M27) Kilwee Industrial Estate
Upper Dunmury Lane
Belfast
BT17 0HD
WALES
CARDIFF Guardian Industrial
(M28) Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
CLYWD Unit 6-7 Coed - Parc
(M14) Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
OSWESTRY Plas Funnon Warehouse
(M17) Middleton Road
Oswestry
SY11 2PP
HAVERFORDWEST Ark Appliances
(M75) Cromlech Lodge
Ambleston
Haverfordwest
Pembrokeshire
SA62 5DS
DYFED West Wales Appliances
(M77) Service
Maes Y Coed
High Mead
Llanybydder
Carmarthenshire
SA40 9UL

19
PARKINSON COWAN SERVICE FORCE
To contact your local Parkinson Cowan Service Force Centre telephone [phone]
MIDLANDS
BIRMINGHAM 66 Birch Road East,
(M18) Wyrley Road Industrial
Estate
Witton
Birmingham
B67DB
BOURNE Manning Road Ind
(M44) Estate
Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH 1 Underhill Street
(M72) Bridgnorth
Salop
WV16 4BB
GLOUCESTER 101 Rycroft Street
(M23) Gloucester
GL1 4NB
HEREFORD Unit 3
(M31) Bank Buildings
Cattle Market
Hereford
HE4 9HX
HIGHAM FERRERS The Old Barn
(M51) Westfield Terrace
Higham Ferrers
NN10 8BB
ILKESTON Unit 2
(M43) Furnace Road
Ilkeston
DE7 5EP
LEICESTER Unit 7
(M22) Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE0 5GF
LINCOLN Unit 8 Stonefield Park
(M40) Clifton Street
Lincoln
LN5 8AA
NEWCASTLE 18-21 Croft Road
UNDER LYME Brampton Industrial
(M12) Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
NUNEATON 19 Ptarmigan Place
(M21) Townsend Drive
Nuneaton
CV11 6RX
REDDITCH Heming Road
(M20) Washford
Redditch
Worcestershire
B98 0DH
TAMWORTH Unit 3
(M19) Sterling Park
Claymore
Tamworth
B77 5DO
WORCESTER Unit 1
(M73) Northbrook Close
Gregorys Mill Ind Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM 11a Gardener Ind Estate
(M79) Kent House Lane
Beckenham
Kent BR3 1QZ
CHELMSFORD Hanbury Road
(M47) Widford Ind Estate
Chelmsford
Essex
CM12 3AE
COLINDALE Unit 14
(M53) Capital Park
Capital Way
Colindale
London NW9 0EQ
ELTHAM 194 Court Road
(M78) Mottingham - Eltham
London SE9 4EW
ENFIELD 284 Alma Road
(M49) Enfield
London
EN3 7BB
GRAVESEND Unit B4,
(M57) Imperial Business Estate
Gravesend
Kent
DA11 0DL
HARPENDEN Unit 4
(M46) Riverside Estate
Coldharbour Lane
Harpenden
AL5 4UN
LETCHWORTH 16-17 Woodsite Ind Est.
(M50) Works Road
Letchworth
Herts
SG6 1LA
LONDON 2/4 Royal Lane
(M76) Yiewsley
West Drayton
Middlesex
UB7 8DL
MAIDENHEAD Reform Road
(M60) Maidenhead - Berkshire
SL6 8BY
MOLESEY 10 Island FarmAvenue
(M61) West Molesey
Surrey
KT8 2UZ
NEWBURY PO BOX 5672
(M24) Newbury
Berkshire
RG14 5GF
IPSWICH Unit 2B
(M48) Elton Park Business
Centre
Hadleigh Road
Ipswich
IP2 0DD
NORWICH 2b Trafalgar Street
(M52) Norwich
NR1 3HN
SUNBURY Unit 1a
(M63) The Summit
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
SOUTH EAST
ASHFORD Unit 2
(M58) Bridge Road Business
Estate
Bridge Road
Ashford
Kent
TN2 1BB
FLEET Unit 1
(M59) Redfields Industrial
Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
HAYWARDS HEATH 21-25 Bridge Road
(M55) Haywards Heath
Sussex
RH16 1UA
SOUTH WEST
BARNSTAPLE P.O. Box 12
(M30) Barnstaple
North Devon
EX31 2YB
BOURNEMOUTH 63-65 Curzon Road
(M26) Bournemouth
Dorset
BH1 4PW
BRIDGEWATER 6 Hamp Industrial Estate
(M35) Bridgewater
Somerset
BRISTOL 11 Eldon Way
(M25) Eldonwall Trading
Bristol
Avon
BS4 3QQ
EMSWORTH 266 Main Road
(M33) Southboure
Emsworth
PO10 8JL
ISLE OF WIGHT Unit 8
(M34) Enterprise Court
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
NEWTON ABBOT Unit 2
(M29) Zealley Industrial Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
PLYMOUTH 16 Faraday Mill
(M32) Cattledown
Plymouth
PL4 0ST
REDRUTH Unit 7D Pool Industrial
(M36) Estate
Wilson Way, Redruth,
Cornwall
TR15 3QW

20
Model Number: CSIG 223 XW
Appliance Class 2 sub class 1 and Class 1
APPLIANCE CATEGORY
:II 2H3+
APPLIANCE GAS SUPPLY: Natural gas G20 20mbar
Technical Data
BURNER RAPID SEMI-RAPID AUXILIARY OVEN
(large) (medium) (small)
POSITION MAX MIN MAX MIN MAX MIN MAX MIN
NOMINAL THERMAL
POWER kW 3.0 0.65 2.0 0.45 1.0 0.33 3.0 1.0
NOMINAL FLOW
RATE m
3
/h 0.286 0.057 0.190 0.038 0.095 0.028 0.286 0.095
NOZZLE REFERENCE 119 Adjust. 96 Adjust. 70 Adjust. 116 Adjust.
NOMINAL THERMAL
POWER kW 2.8 0.65 2.0 0.45 1.0 0.33 3.0 1.0
NOMINAL FLOW
RATE g/h 202 43.5 144 29 72 21,5 216 72
NOZZLE REFERENCE 86 40 71 32 50 28 82 52
NATURAL GAS
20 mbar TYPE OF
GAS
CHARACTERISTICS
LPG GAS
28-30/37 mbar
1/100 mm
1/100 mm
VALUE = 49.92 MJ/Kg
VALUE = 37.78 MJ/m
3
Ws - 50.7 MJ/ m
3
Instructions for the Installer
Oven
Grill Element 1,878 W
Oven light 15 W
Total rating 1,893 W
Supply voltage (50 Hz) 230-240 V
Oven burner 3,000 W
Dimensions
Height 900 mm
Depth 600 mm
Width 497 mm
Oven Capacity 1.7 Cu. ft
Hob
Rear left burner (rapid) 3,000 W
Front left burner (semi-rapid) 2,000 W
Rear right burner (semi-rapid) 2,000 W
Front right burner (auxiliary) 1,000 W
