Parkinson Cowan Renown RG50GL User manual

R G 5 0 G L
Operating
and
Installation Instructions

Introduction
This gas appliance has been designed and manufactured to all the
necessary British Standards. It also carries the C.E mark. The appliance
complies with European Council Directive 90/396/EEC.
It is important that you understand how to use and care for the
appliance properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the
booklet thoroughly before you use the appliance. Keep the booklet in a
safe place so that anyone who uses the appliance can read it. Pass the
booklet on with the appliance if you give or sell it to someone else.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
Do not remove the rating plate from the appliance as this may
invalidate the guarantee.
Introduction
R G 5 0 G L
2
For your safety
This appliance is designed for domestic use to cook food. You
must not use it for any other purpose. It is not designed for
commercial use.
Keep children, babies and toddlers away from the appliance at
all times.
The installation instructions tell you how and where it can be
fitted. If the appliance is already installed you must make sure
that all instructions have been followed. If you are in any doubt
ask a registered person. More details on installation on page 26.

Contents
Lighting the appliance 4
The grill 7
The hotplate 10
The oven 13
Oven cooking chart 16
Slow cooking 19
Care and cleaning 21
Installing the appliance 26
General information 28
What is wrong and why? 30
Servicing 31
Installation instructions 33
Technical data 34
Safety requirements/ventilation 35
Location of appliance 36
Testing 38
R G 5 0 G L
3
Contents
Page

Lighting the appliance

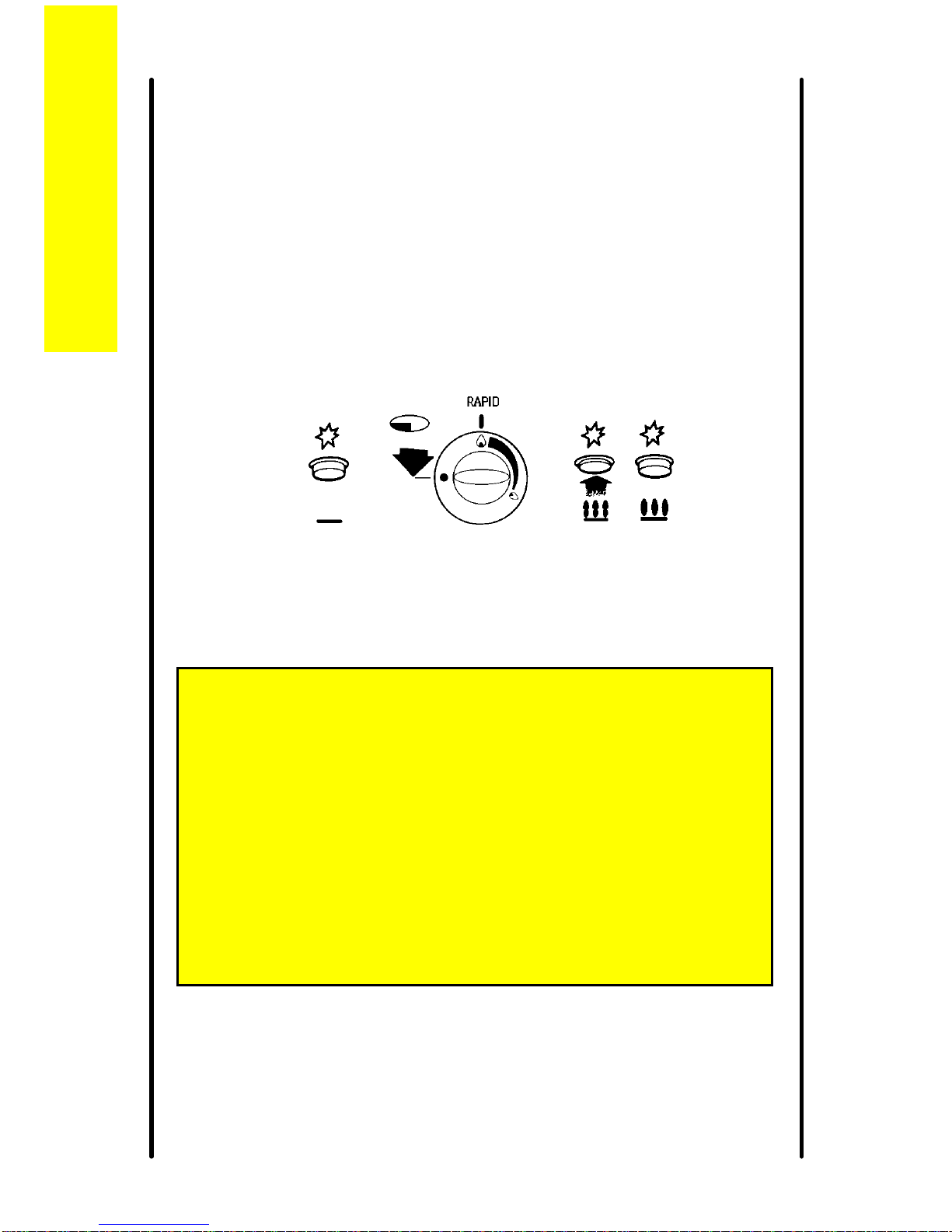

The ignition system works by means of a battery. Details on how to
replace the battery are given on page 28.
Hotplate
To light
1 Lift up the lid. You cannot use the hotplate when the lid is down.
2 Push in the control knob and turn to the large flame symbol (highest
setting), and press the ignition button immediately. When the burner
has lit release the button.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
R G 5 0 G L
4
For your safety
If you close the lid of the appliance while any of the hotplate
burners are lit the gas will go out. This is because it would be
dangerous if the burners stayed on when the lid was closed.
Always use the control knob to turn off a burner. Do not use
the lid as a cut-off device. This will only cut off the gas when
the lid is closed. The gas will flow again when the lid is
opened.
Always use the marked area to lower the lid.
Lighting the appliance

Grill

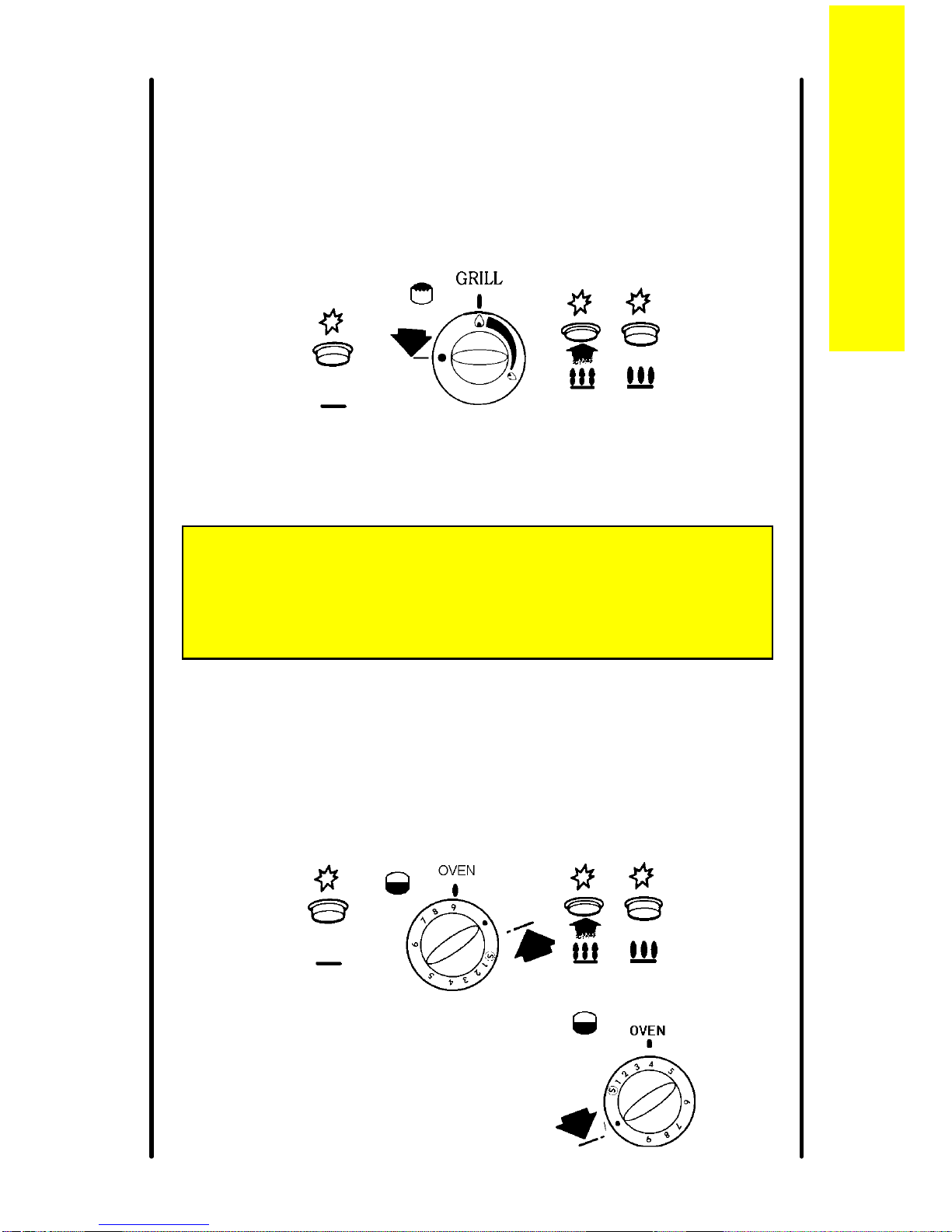

To light:
1 Open the door.
2 Push in the control knob and turn it to the large flame symbol
(highest setting), and press the ignition button immediately. When
the burner has lit release the button.
3 Leave the grill door open when you are using the grill.
Warning: If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
Oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to gas mark 9, and press the
ignition button immediately. When the burner has lit release the
button. There will only be small flames at first.
3 Now turn the control knob to the
gas mark you want.
4 Wait until the burner is showing
large flames.
5 Close the oven door.
R G 5 0 G L
5
For your safety
Never cover the grill pan or grid with foil as this can lead to grill
fires.
5
Lighting the appliance

To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
R G 5 0 G L
6
For your safety
When you are lighting any burner check that it has lit before you
leave the appliance.
When you are turning off a burner, do not leave the appliance
until the flame has gone out.
Lighting the appliance

The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.
Prior to using the grill
We suggest that you operate the grill for approximately 5 - 10 mins to
burn off any residue from the surface. During this period a slight odour
may be emitted, it is therefore advisable to open a window for
ventilation.
When you first operate the grill you may hear some sounds as the
burner heats up, this is quite normal and is not a fault on the appliance.

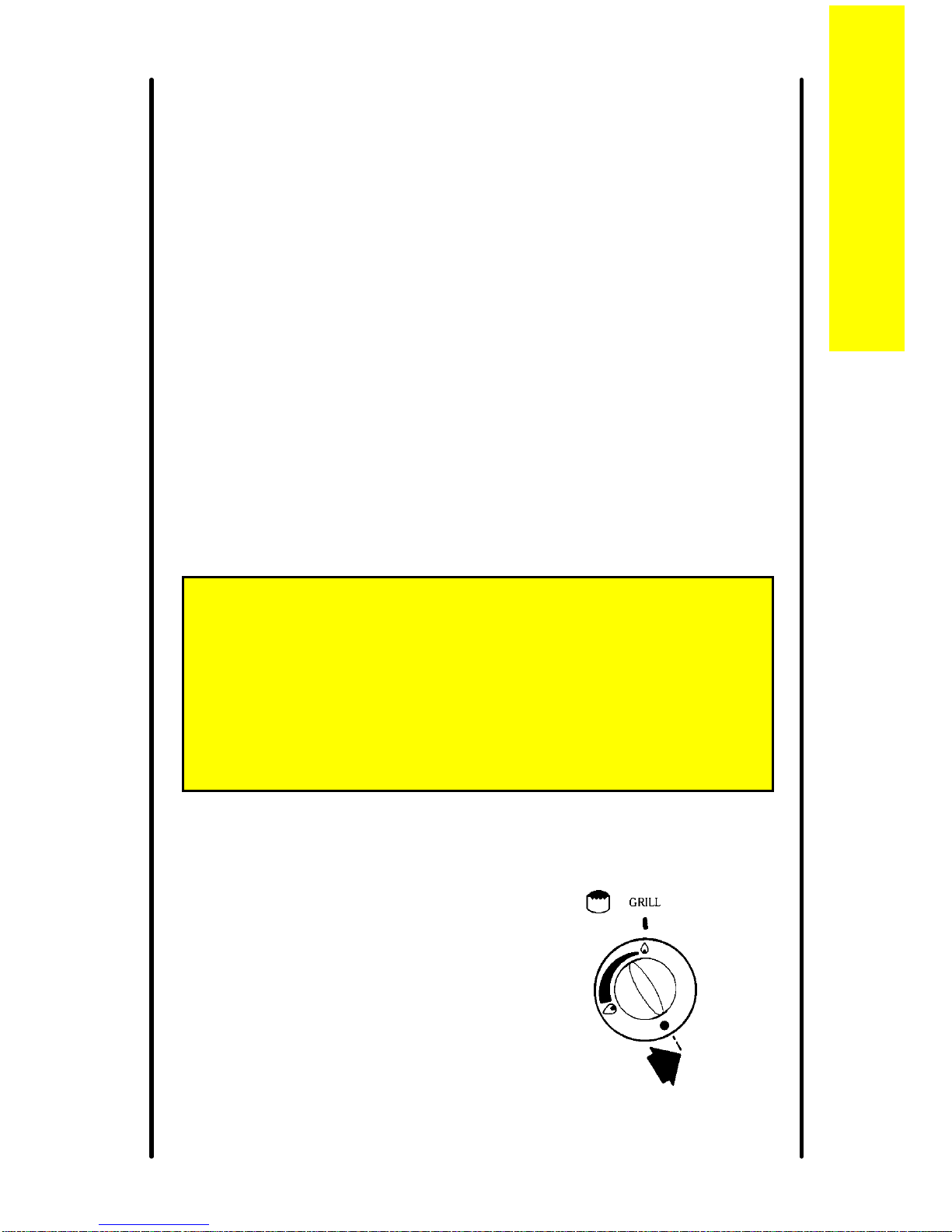

Heat control
The grill control has two heat
settings.
The control knob turns to the left
from 'OFF' to 'HIGH' and then to
'LOW'. Use the high setting for fast
cooking such as toast. Use the low
setting to cook thicker food such as
chicken after you have browned it
on the high setting.
R G 5 0 G L
7
The grill
For your safety
You must keep the grill door open when the grill burner is lit.
Accessible parts may be hot when the grill is used. Young
children should be kept away.
Never cover the grill pan or grid with foil as this can lead to grill
fires.
The grill

Cooking positions
When using the grill, the shelf must
be placed in the lower of the two
positions.
Most food should be cooked on
the grid in the grill pan. You can turn
the grid over to suit different
thicknesses of food.
You can place some dishes
straight on to the grill shelf. This is
useful when you are browning the
top of food such as cauliflower
cheese.
Plate warming
You can use the grill compartment to warm plates when you are using
the oven.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it for
a couple of minutes when you are cooking steak or browning food.

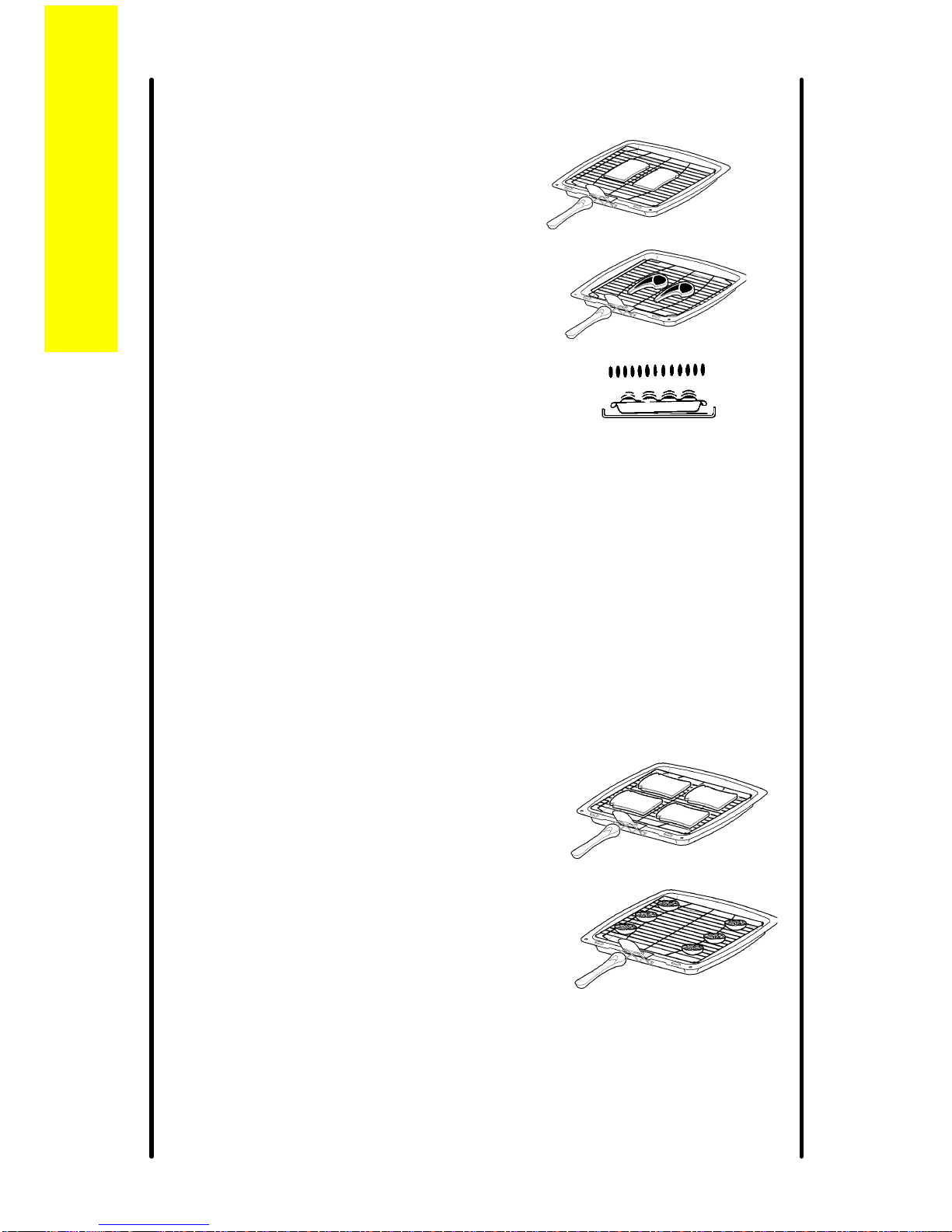

Positioning food on the grid
Place food such as toast, tea-cakes and
muffins towards the centre of the grid.
Place food which needs a gentle heat,
such as tomatoes and mushrooms towards
the edge of the grid.
Arrange meat, meat products and fish to
suit their thickness and how you like them
cooked.
R G 5 0 G L
8
The grill

The grill pan and handle
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the cut out in the pan so
that the metal plate hooks over the top of the grill pan.
Slide the handle to the left and over the central bump on the grill pan.
Ensure the handle is correctly located. It is not necessary to
remove the grill pan handle during grilling.
Place the grill pan on the shelf so that the pan is positioned centrally
beneath the grill.
To remove the handle, slide the handle to the right and lift the handle
away from the cut out on the grill pan.
Note
If you require an additional handle for your grill pan, this can be ordered
from your local Service Force Centreby quoting part number
311479800\6.
R G 5 0 G L
9
The grill

The hotplate
You can only use the hotplate when the lid is open. If you have any
trouble lighting a hotplate burner turn all hotplate control knobs off and
make sure the hotplate burner parts have been replaced correctly. See
page 22 for more information.

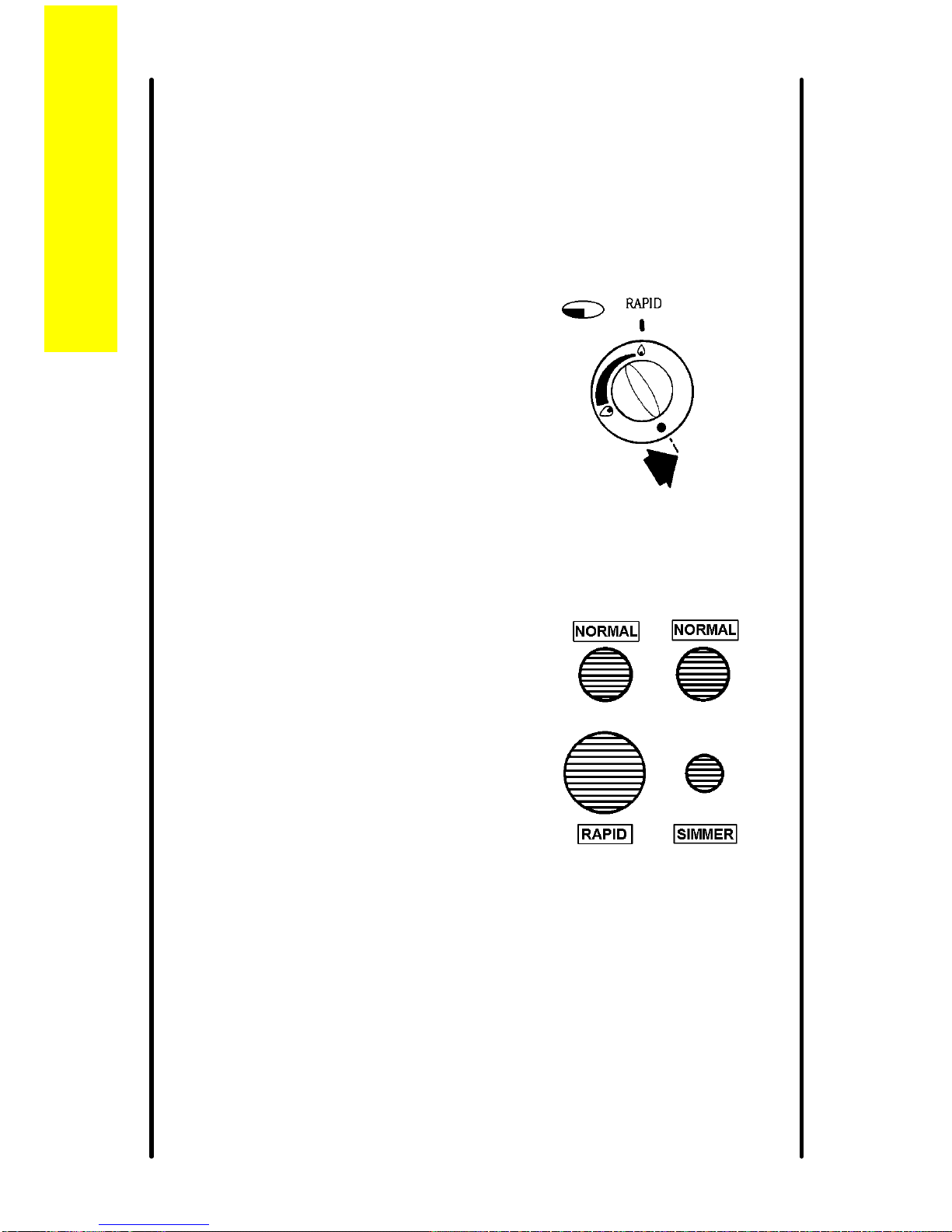

Heat control
The hotplate control knobs turn
anticlockwise from 'OFF' to 'HIGH'
and then to 'LOW'. You can adjust
the heat by turning the control
between the highest and lowest
settings. These are shown as a
large and a small flame symbol.
Burner sizes
The hotplate has three burner sizes
to suit different types of cooking:
Largest burner (Rapid) - use a large
pan for food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering food such as soups and
stews.
The largest pan which you should use on any burner is 230mm (9").
The base of the smallest pan should not measure less than 100mm (4").
R G 5 0 G L
10
The hotplate

R G 5 0 G L
11
The hotplate
For your safety

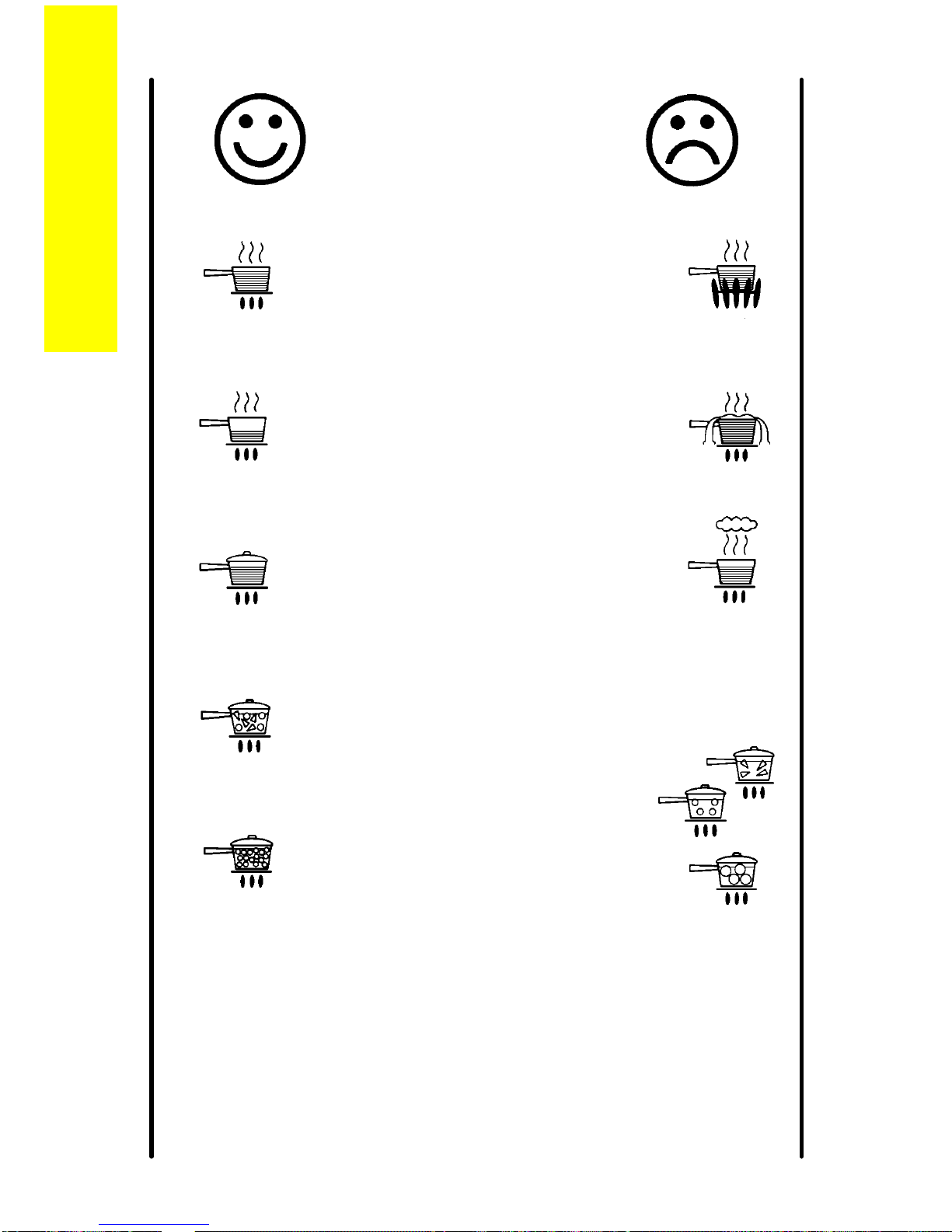

1 Take care to avoid burns and scalds when you are
reaching across the hotplate.
2 Use pans with flat bases. They are more stable than
pans which are warped.
3Do not use pans with very heavy handles which cause
the pan to tip.
4 Put pans on the centre of the burners.
5 Position pan handles so they cannot be accidentally
knocked.
6 Take extra care when you are deep fat frying. Do not
cover the pan with a lid.
Do Not leave a pan unattended. If the pan catches fire,
leave it where it is and turn off all controls.
Place a damp cloth or a fitting lid over the pan to
smother the flames.
Never put water on the fire.
Leave the pan to cool for 30 minutes.
7 If you are using a Wok we recommend it has a flat base
as it will stand stable on the pan supports. If you use a
round based Wok with a collar support, the collar must
be of the open wire work type. A closed collar will affect
the performance of the burner. Before you use the Wok
make sure that the collar is stable on the pan supports.
Always follow the instructions that come with the Wok.
8 Do not use the lid as a work surface or chopping board.
This could damage the glass and reduce its strength.

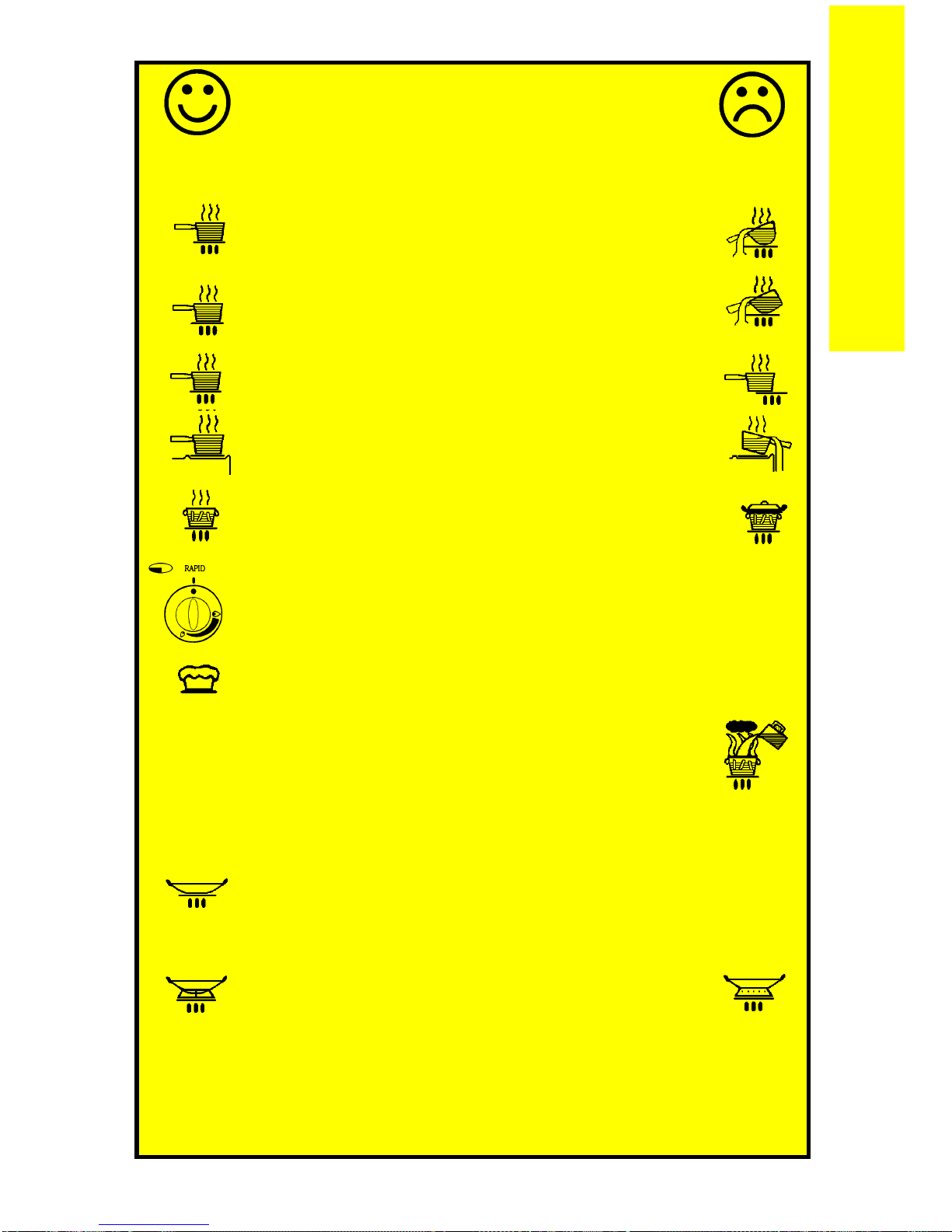

Helpful hints
1 Keep flames under the base of the pans. If the
flames lick round the sides of the pans you are
wasting gas.
2 Only heat the amount of liquid you need. Do
not overfill pans.
3 Cover pans with a lid whenever possible. The
food will heat up more quickly and there will be
less steam in the kitchen.
4 Try cooking more than one vegetable in the
same pan, for example potatoes and carrots.
5 Cut vegetables into smaller pieces. This way
they will cook more quickly.
6 A pressure appliance will save time and
energy.
R G 5 0 G L
12
The hotplate

The oven
Before you use the oven you should wipe it out with a damp cloth to
remove any dust.
Heat zones
There are zones of heat within the oven.
The temperature in the middle is the gas
mark you have chosen. The top of the oven
is slightly hotter and the lower shelf slightly
cooler. The base of the oven is quite a lot
cooler. You can make use of these heat
zones when you are cooking foods that
need different temperatures all at the same
time.
If you are cooking more than one tray of similar items, for example
cakes or biscuits, swap the trays around during cooking. Or you can
remove the top tray when the food is cooked and move the lower tray to
the higher shelf to finish cooking.
Preheating
You do not need to preheat the oven when casseroling and so on.
Preheat the oven for baking or when you are cooking sensitive food
such as Yorkshire puddings, soufflés and yeast mixtures.
When you are cooking or reheating frozen or chilled food read the
instructions on the packing.
When you need to preheat the oven, we recommend you do so for
20 minutes.
Oven shelves
You can slot the oven shelves into any of five
positions. Positions are counted from the top
downwards.
For safety the shelf will only pull out so
far. If you want to remove a shelf completely
pull it forward as far as it will go, raise the
front edge and lift it out. To put the shelf into
a different position keep the front edge
raised, slot the shelf on to the runner, lower
the front edge and slide the shelf in.
R G 5 0 G L
13
The oven

Baking trays and dishes
For the best results we recommend that you use a baking tray which is
310mm (12") square. If you use a tray or tin which is larger than this,
you may need to turn the food around during cooking.
Place single dishes on the centre of the shelf. You may need to turn
large items around during cooking.
Roasting
For best results we recommend open roasting using minimal fat or oil to
prevent splashing.
It is not necessary to cover meat or poultry or wrap food in foil when
roasting as this restricts the circulation of heat and will lead to extended
cooktimes.
If you are using a roasting bag or cover chicken breast with foil, be
prepared to allow an extra 10 - 15 minutes for each 1/2kg (1lb).
When cooking large items such as turkeys, the use of foil may be
required to prevent the breast becoming dry before the rest of the bird is
fully cooked.
For your safety
Never place cooking dishes, trays
and so on over the oven burner.
This will damage the appliance as
well as the ovenware and possibly
the floor covering underneath the
R G 5 0 G L
14
Leave a gap of 13mm (½")
between all dishes and the sides
of the oven so the heat can
circulate properly.
Do not push dishes too far back
as food will burn if it overhangs
the burner flames.
The oven

Condensation
Condensation may form on the appliance. This is quite normal and
nothing to worry about. The condensation forms when heat and
moisture are present, for example during cooking. Whenever possible
try to make sure that food which contains a lot of moisture, for example
casseroles, are covered. If you do notice any condensation, wipe it up
straight away.
R G 5 0 G L
15
The oven

Oven cooking chart
These instructions are for cooking in the oven after it has been pre-heated for 20 minutes.
If you are cooking more than one tray of similar items, for example cakes or biscuits, swap the trays around during cooking. Or you
can take the top tray out of the oven when the food is cooked and move the lower tray to the higher shelf to finish cooking.
Always leave at least one shelf position between shelves to allow heat to circulate.
The recommended shelf positions give the best results.
Put the dishes in the centre of the shelf.
You can change the gas marks and cooking times to suit your own tastes.
It is important to check that food is piping hot before serving.
Food Gas mark Shelf position Approximate cooking time
Roasting meat: Beef 5 4 Rare:
Medium:
Well Done:
20 mins. per ½kg (1lb) and 30 mins.
25 mins. per ½kg (1lb) and 25 mins.
30 mins. per ½kg (1lb) and 30 mins.
Lamb 5 4 Medium:
Well Done: 25 mins. per ½kg (1lb) and 25 mins. 30 mins. per ½kg (1lb) and 30 mins.
Pork and Veal 5 4 Medium:
Well Done: 30 mins. per ½kg (1lb) and 30 mins. 35 mins. per ½kg (1lb) and 35 mins.
Thaw frozen joints thoroughly before cooking them.
R G 5 0 G L
Oven cooking chart
16

Food Gas mark Shelf position Approximate cooking time
Poultry: Chicken
Turkey below 4.5kg (10lbs)
over 4.5kg (10lbs)
Duck and duckling
5
4
4
5
4
4
4 or 5
4
20 mins. per ½kg (1lb) and 20 mins.
25 mins. per ½kg (1lb) and 25 mins.
15 mins. per ½kg (1lb) and 15 mins.
25 mins. per ½kg (1lb)
Stuffed poultry Cook as above but calculate weight including stuffing.
Thoroughly thaw frozen joints before cooking them.
The times given above are for open roasting in a preheated oven. If you cover the food with foil or a lid allow an extra
10 - 15 minutes for each ½kg (1lb)
Yorkshire pudding - large
- individual 7 71 125-30 mins. 15-25 mins.
Cakes: Christmas cake (8")
Rich fruit, 180mm (7")
205mm (8")
Madeira, 180mm (7")
Small cakes
Scones
Victoria sandwich
180mm (7")
205mm (8")
2
2
2
4
5
7
4
4
4
3
3
4
1 & 3
1 & 3
2 & 4
2 & 4
4 - 5 hours
2¼-2½ hours
2½-2¾ hours
1 hour
15-25 mins.
10-20 mins.
20-30 mins.
20-35 mins.
R G 5 0 G L
Oven cooking chart
17

Food Gas mark Shelf position Approximate cooking time
Pastries: Plate tart (shortcrust)
Fruit pie (shortcrust)
Mince pies (flan pastry)
6
6
5
1
1
2 & 4
25 -35 mins.
25-35 mins.
15-25 mins.
To help pastry brown on the underside
cook on a metal plate, or if plates are flat
and have no rim underneath, place on
baking tray.
Puddings: Milk pudding
Baked sponge pudding
Baked custard
2
4
3
3
3
3
2 hrs.
45-60 mins.
50-60 mins.
Yeast mixtures: Bread 0.45kg (1lb loaves)
0.90kg (2lb loaves)
Rolls and buns
8*
8*
8*
3
3
2
30-40 mins.
30-40 mins.
10-20 mins.
* Note: When baking bread cook at gas mark 8 for 10 minutes before reducing to Gas mark 6 for remainder of cook time.
Note: You must soak dried beans then boil them in an open pan for 15 minutes before you add them to any dish.
R G 5 0 G L
Oven cooking chart
18

Slow cooking
The slow cook setting gives a very low heat in the oven. It is
particularly useful when cooking soups, stews and casseroles because
the long slow cooking will make cheaper, tougher cuts of meat more
tender.
You need to cook food at gas mark 6 for 30 minutes before you turn
the oven down to a slow cook setting. This makes sure that the
temperature of the food gets hot enough to start the food cooking.
Some foods such as pastry and biscuits are not suitable for slow
cooking because the temperature is too low.
Cover all food during cooking to prevent it from drying out. You can
uncover food for the last half hour if it is normally served golden brown.
Food preparation-slow cooking
Joints of meat and poultry
l Do not cook meat joints over 2.7kg (6lb).
l Do not cook poultry over 2kg (4lb 8oz).
l Cook on the middle shelf of the oven or above.
l Cook stuffing separately.
l Cook for a minimum of 6 hours.
l Joints of pork must only be cooked if you can make sure, by using a
meat thermometer, that an internal temperature of at least 88oC has
been reached .
l For good air circulation always stand joints on a rack in the roasting
tin or casserole.
l Thaw all frozen meat and poultry before cooking.
l Prime cuts of meat do not benefit from slow cooking.
l Remove excess fat and skin unless browned first.
l Cook for 30 minutes at gas mark 6, then reduce to the slow cook
setting.
R G 5 0 G L
19
Slow cooking
Turn to S

Soups, casseroles and stews
l Do not cook casseroles over 2.7kg (6lb).
l Bring to the boil on the hotplat then cook on slow cook.
l Cook in the middle of the oven or above.
l Cover food with a tight fitting lid or tin foil.
Vegetables
l Cut into small pieces.
l Dried beans must be pre-soaked then boiled in an open pan for 15
minutes before adding to any dish.
l Place vegetables under meat in casseroles.
l Cover food with a tight fitting lid or tin foil.
l Cook for 30 minutes at gas mark 6, then reduce to the slow cook
setting.
Milk puddings
l Cover the cereal with boiling water and allow to stand for 30 minutes.
l Drain and make the pudding in the usual way.
l Cook for 30 minutes at gas mark 6, then reduce to the slow cook
setting.
General points for slow cooking
Frozen foods
Thaw thoroughly before cooking.
Thickening
Toss meat in flour for casseroles. Alternatively blend cornflour with
water and add it at the end of cooking.
Flavouring
Flavours are retained because there is little evaporation. Adjust at the
end of the cooking time.
Liquid
Reduce normal liquid quantities slightly as there is little evaporation
during cooking.
Milk and milk products, for example cream
Add towards the end of the cooking to prevent curdling.
Reheating
Left over food should be cooled quickly and refrigerated.
Do Not reheat using the slow cook setting. Reheat food conventionally
or in a microwave. Food must only be reheated once.
R G 5 0 G L
20
Slow cooking
