Air rotary impact driver with
double impact mechanism
PDSS 400 A1
zIntroduction
Congratulations! You have chosen a
high-quality device from our com-
pany. Familiarise yourself with the
product before using it for the first time. In
addition, please carefully refer to the
operating instructions and the safety advice
below. Initial operation of this tool must be
performed by trained personnel.
KEEP OUT OF THE REACH OF CHILDREN!
zIntended use
This air powered impact driver is suitable for
loosening and tightening screw connection
during assembly and repairs, and for loosen-
ing bolts when changing tyres. Only use the
product as described and for the specified
applications. Keep these instructions in a
safe place. When passing this product on
to others please also include all documents.
Any use not specified is prohibited and po-
tentially dangerous. Damages resulting from
noncompliance or misuse are not covered
by the warranty and are not included in the
manufacturer‘s liability. This device has been
designed for household use and may not be
used for commercial or industrial purposes.
zFeatures
Verify contents are complete and the
device is in perfect condition
immediately after unpacking. Do not
use if the tool is defective.
1Rotary switch
(forward / reverse and torque control)
2Compressed air connection
(for ¼“ plug nipple)
3Trigger
4Square drive
Table of pictograms used / Introduction

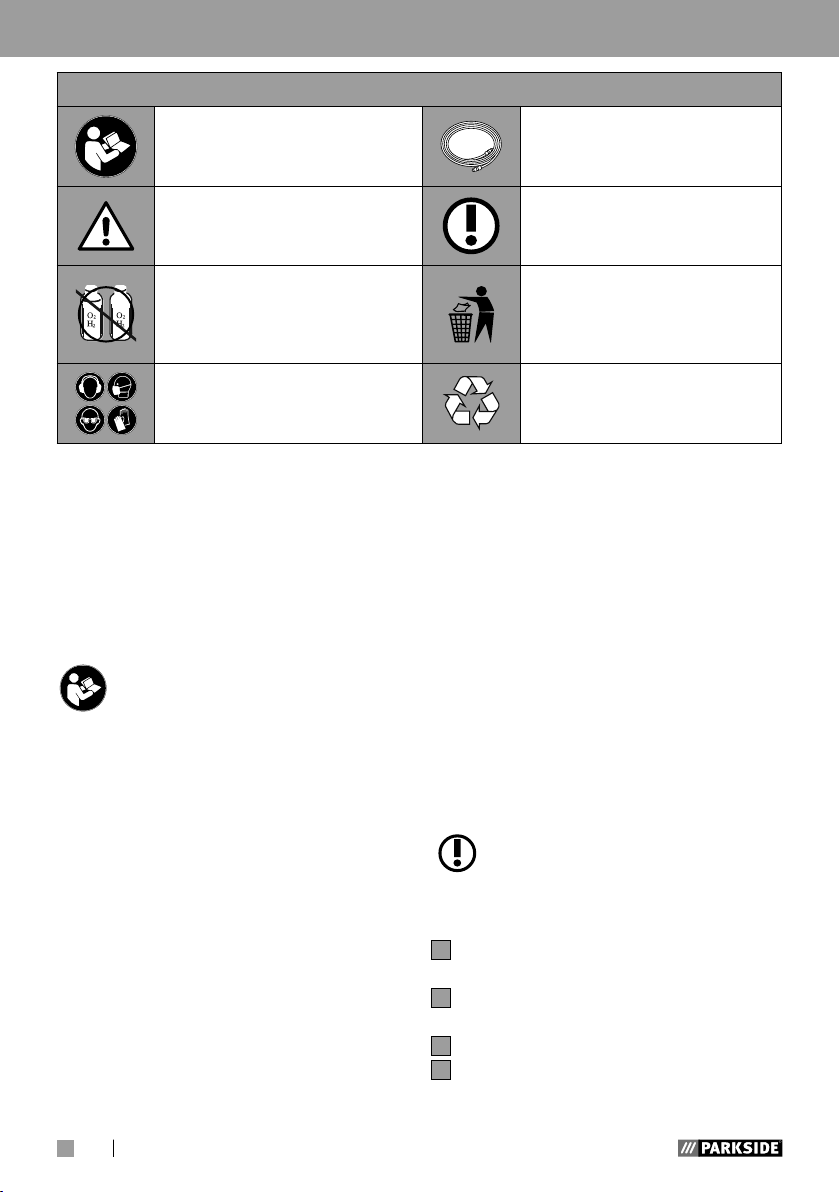

Table of pictograms used
Refer to operating manual! Compressed air hose
Follow warnings and safety
notices! Note
Never use hydrogen, oxygen,
carbon dioxide or other bottled
gasses as an power source!
Equipment, accessories and
packagingshould be recycled
in an environmentally friendly
manner.
Wear ear protection, dust
mask, safety glasses and pro-
tective gloves. Made from recycling material

7GB/IE/NI
Introduction / Safety instructions for air tools
The following parts are considered
accessories:
5Extension
6Plug nipple (¼“ = 6.35 mm)
7Machine oil
8Socket attachments
9Torx key
10 Line oiler
Note: The device can be opened for repair
purposes by using the torx key 9provided.
This must only be carried out by authorised,
qualified personnel from our service branch,
else the warranty of this device will be
voided. In this case, the manufacturer or
distribution company shall assume no
liability for any damages to goods or
persons caused by the unauthorised and/or
improper opening of the device.
zTechnical Data
Air consumption: approx. 127 l / min
Operating pressure: max. 6.3 bar
Square drive: ½“ (12.7 mm)
Compressed air
connection: ¼“ (6.35 mm)
Tool intake: ½“ (12.7 mm)
Max. torque: 400 Nm
Speed max.: 7800 min-1
Weight: approx. 2100 g
Air supply: via maintenance unit
with filter pressure re-
ducer and oil atomiser
Required air quality: purified, condensa-
tion-free and oil misted
Compressors: with min. 50 l tank
volume
Noise parameters
(per EN ISO 15744):app. LpA: 95,16dB(A)
app. LWA: 106,16 dB(A)
Instability K: 3 dB
Vibration
(per EN 28927-2): 5.778 m / s²
Instability K: 1,067 m / s²
zScope of Delivery
1 Air rotary impact driver with double
impact mechanism
1 Instructions for use
1 Extension
1 Plug nipple (¼“ = 6.35 mm)
1 Machine oil
11 Socket attachments
1 Torx key
1 Line oiler
Safety information for
air tools
Basic safety measures
must be followed when using
air tools to eliminate the risk of
fire, electric shock and personal
injury. Please be sure to read and
follow the notices in this operat-
ing manual prior to the first use
and store them in a safe place.
The manufacturer assumes no
liability for damages or personal
injury resulting from failure to fol-
low these operating instructions.
Do not wear watches, rings,
bracelets, necklaces or loose
clothing when pneumatic tools
are used.

8GB/IE/NI
Safety instructions for air tools
The hazards listed are foreseea-
ble for general use of handheld
air impact drivers. However, the
user must also assess specific
risks which may arise from its
use.
 DANGER! Keep your
hands or other limbs out
of reach of rotating
parts. Injuries may other-
wise occur.

CRUSHING HAZARD!
Keep hands away from the
counter bearing (e.g. box
spanner) during use. This par-
ticularly applies when remov-
ing screws in tight work envi-
ronments.

RISK OF INJURY! Discon-
nect the compressed air before
changing tools, adjustments
and maintenance.

EXPLOSION HAZARD!
Never use petrol or other flam-
mable liquids to clean the air
tool! Sparks could ignite resid-
ual vapours inside the com-
pressed air tool resulting in
explosion. Do not use the tool
in explosive environments with
flammable liquids, gasses or
dust. Never work on materials
which are or potentially could
be highly flamable or explo-
sive.
 In the cases of multiple haz-
ards the safety instructions
must be read and understood
before attaching, operating,
repairing and exchanging ac-
cessories and before working
near the ma-chine for screw
connections. Otherwise severe
bodily injuries may result.
 The machine for screw con-
nections should only be set up,
adjusted or used by qualified
and trained operators.
 Never modify the machine for
screw connections. Modifica-
tions may reduce the effective-
ness of safety measures and
increase operator risks.
 Do not lose the safety instruc-
tions – hand them to the oper-
ator.
 Never use a damaged ma-
chine on screw connections.
 Regularly maintain machines
to verify all required rated
values and markings such as
rated speed or rated air pres-
sure are legible on the ma-
chine. If necessary, the user
must contact the manufacturer
for replacement labels for
markings.
 Only use the equipment for

9GB/IE/NI
Safety instructions for air tools
applications for which it was
designed!
 Do not overburden the device.
 Never use hydrogen,
oxygen, carbon dioxide
or other bottled gasses to
power this tool as doing so
may result in explosion, thus
severe injuries.
 Regularly maintain and clean
the device as required (see
chapters „Maintenance“ and
Cleaning and care“).
 Check the device for damage
prior to initial operation. Al-
ways verify the tool‘s proper
condition before every use.
 Remain alert at all times! Un-
foreseen machine movement
due to reaction forces or the
tool or counter bearing break-
ing may result in injuries.
 Risk of injury due to chips be-
ing projected at high speeds
in the event the tool (socket)
breaks.
 Unforeseen tool movements
may result in hazardous situa-
tions.
 Crushing risk based on the
torque between the counter
bearing and the work piece.
 Keep hands away from the
tool (socket) being used to pre-
vent the risk of injuries.
 Only use holders and adapt-
ers in good condition and
intended for use with the ma-
chines described here.
 Avoid an unnatural posture.
Always maintain a proper
footing and balance. This will
allow you to better control the
electrical power tool in un-
foreseen circumstances.
 Switch the device off when not
in use.
 Always wear personal
protective equipment and
safety glasses. Wearing
personal protective equipment
such as dust mask, non-slip
safety shoes, hard hat or ear
protectors, depending on the
type of air tool and its applica-
tion, reduces the risk of inju-
ries.
 Protect hoses from kinks, con-
strictions, solvents and sharp
edges. Keep hoses away from
heat, oil and rotating parts.
 Replace damaged hoses im-
mediately. A damaged supply
line may result in the air hose
flapping about, possibly result-
ing in injuries.
 Do not use the equipment
when fatigued or under the
influence of drugs, alcohol or
medications. Just a moment of
carelessness when using this
equipment may result in seri-

10 GB/IE/NI
ous injuries.
 Do not directly inhale exhaust
air. Keep eyes away from ex-
haust air. Exhaust air from the
air tool may contain water, oil,
metal particles or contaminants
from inside the compressor.
This may result in health dam-
age.

CAREFUL WHEN PUTTING
THE TOOL DOWN! Always
put down the device so the
trigger is not activated. This
could potentially result in ac-
cidental activation of the tool,
which again could result in
hazards.
 Only use suitable accessories.
These can be purchased from
the manufacturer. Using non-
OEM accessories may result in
hazards.
 Only use filtered and regu-
lated compressed air. Dust,
caustic vapours and / or mois-
ture may damage the motor of
an air tool.
 The hose must be con-
structed for a minimum
pressure of 8.6 bar or
125 PSI, but no less than 150
% of the maximum pressure
produced by the system.
 DANGER! Avoid contact with
live lines. This device is not in-
sulated against electric shock.
 Do not modify this equipment
in any way without the manu-
facturer‘s approval.
 Only use the tool at the speci-
fied pressure (max. 6.3 bar).
 Disconnect the tool from the
air supply after each use and
when not in use.
 Discontinue use if the tool is
leaking or in need of repair.
 Never connect the tool to an
air hose with pressure exceed-
ing 6.3 bar.
 Keep your working area clean
and well lit. Untidy or poorly
lit working areas can result in
accidents. Doing so will allow
you better control of the equip-
ment, particularly in unfore-
seen circumstances. Disorder
and unlit work places can lead
to accidents.
 Only have the equip-
ment repaired by qualified
specialist personnel using
OEM spare parts. This will en-
sure your device remains safe
to use.
 Keep children and other indi-
viduals away from the equip-
ment during use. Distractions
can cause you to lose control
of the equipment.
 Wear suitable clothing. Do not
wear loose clothing or jewel-
Safety instructions for air tools

11GB/IE/NI
lery. Keep your hair, clothing
and gloves away from moving
parts. Loose clothing, jewel-
lery or long hair can become
caught in moving parts.
 Put down trigger and equip-
ment in the event of unex-
pected compressor failure.
 Never use or store the tool in
humid, dusty locations or near
water, other fluids or hazard-
ous gases.
 If possible, use a condensate
trap or regularly drain conden-
sate (water) from hoses and
pipes before and during air
tool use.
 Secure work pieces. Use
clamps or a vice to secure the
work piece. Holding the work
piece in your hand or pressing
it against your body will not
allow for safe use of the equip-
ment.
 ATTENTION! An under-
sized com- pressed air
system may reduce the
efficiency of your equip-
ment.
zRisks due to projecting
parts
 If the work piece, one of the
accessories or the tool itself
breaks, parts may be pro-
jected at great speeds.
 Always wear impact-resistant
eye protection when using the
machine for screw connec-
tions. The level of protection
required should be asses for
each individual application.
 Be sure the work piece is prop-
erly secured.
zRisks from gripping /
winding
 Risks from gripping / wind-
ing may result in suffocation,
scalping and / or cuts if loose
clothing, jewellery, necklaces,
hair or gloves are not kept
away from the machine and its
accessories.
 Gloves may become tangled
in the rotating drive, which
may result in injuries or frac-
tures in fingers.
 Rotating drives and extensions
may easily catch/ wind rub-
berised or metal reinforced
gloves.
 Never wear loose gloves or
gloves with cut or worn fin-
gers.
 Never hold on to the drive,
collect or the drive extension.
 Keep hands away from the ro-
tating drive.
Safety instructions for air tools

12 GB/IE/NI
zOperating hazards
 When using the machine the
operator‘s hands may be ex-
posed to crushing, impact, cut,
abrasion and heat hazards.
Wear suitable gloves to protect
hands.
 The operator and maintenance
personnel must be physically
capable to manage the weight
and power of the machine.
 Hold the machine correct: be
prepared to counteract typical
or sudden movements – keep
both hands ready.
 Be sure your body is well bal-
anced and maintain a solid
stance.
 If tools are required to absorb
the reaction torque, use a sus-
pension attachment whenever
possible. If this is not possible,
we recommend side handles
for machines with straight han-
dle and pistol grip. At any rate
we recommend using tools to
absorb if it is greater than 4
Nm for machines with straight
handles, greater than 10 Nm
for machines with pistol grip
and greater than 60 Nm for
offset screwdrivers.
 In the event of power failure
release the start- or stop con-
trol.
 Only use the lubricants recom-
mended by the manufacturer.
 Hex nut drivers with open flat-
head can crush fingers.
 Do not use the tool in tight
spaces and be sure your
hands are not crushed be-
tween the machine and work
piece, especially when un-
screwing.
zHazards due to repetitive
motions
 When using a machine for
screw connections the oper-
ator may experience discom-
fort in hands, arms, shoulders,
neck or other body parts whilst
performing work-related tasks.
 Maintain a comfortable posi-
tion whilst using this tool, be
mindful of a secure grip and
avoid awkward positions or
positions making it difficult to
maintain your balance. The
operator should change his
posture during extended pe-
riods of use, which may help
to prevent discomfort and fa-
tigue.
 If the operator experiences
symptoms such as persistent
malaise, discomfort, palpita-
tions, pain, tingling, numb-
ness, a burning sensation or
stiffness, these warning signs
Safety instructions for air tools

13GB/IE/NI
should not be ignored. The
user should consult a qualified
healthcare professional.
zRisks associated with
accessories
 Disconnect machine from the
power supply before changing
a tool or accessory.
 Do not touch collets or acces-
sories whilst impact driving, as
doing so may increase the risk
of cuts, burns or injuries from
vibration.
 Only use accessory and ma-
terial sizes and types recom-
mended by the manufacturer
for screw joints, do not use
other accessory and material
types and sizes.
 Only use impact sockets in
good working condition as
manual sockets and accesso-
ries in poor working condition
may break and be ejected
when used with impact drivers.
zHazards in the work en-
vironment
 Slipping, tripping and falls
are main causes of injuries at
the workplace. Be mindful of
surfaces which may have be-
come slippery during machine
use, and of tripping hazards
caused by the air- or hydraulic
hose.
 Proceed with caution in un-
familiar surroundings. These
may hold hidden dangers due
to electrical cables or supply
lines.
 The machine for screw connec-
tions is not suitable for use in
explosive environments and is
not insulated against contact
with electrical power sources.
 Verify there are no electrical
lines, gas lines, etc. which
may result in a hazard in the
event they are damaged dur-
ing machine use.
zHazards due to dust and
vapours
 Dusts and vapours generated
by use of machines for screw
connections may result in dam-
age to the health (e.g. cancer,
birth defects, asthma and / or
dermatitis); it is imperative to
perform a risk assessment for
these hazards and implement
the respective regulatory mech-
anisms.
 The risk assessment should in-
clude dust generated from ma-
chine use and dust in the area
possibly being blown around.
 Exhaust air must be dis-
charged so the amount of dust
Safety instructions for air tools

14 GB/IE/NI
being blown about in a dusty
environment is minimised.
 If dust or vapours are gener-
ated the principal task must
be to monitor them in the area
where they are released.
 All machine mounting parts or
accessories intended to collect,
extract or eliminate airborne
dust or vapours should be used
and maintained according to
manufacturer instructions.
 Use respiratory protection.
 Please use suitable respira-
tory protective equipment due
to the potential hazard posed
by the whirling up of asbestos
dust.
zNoise hazards
 With inadequate ear protec-
tors the impact of high noise
levels may result in permanent
hearing damage, hearing loss
and other problems, e.g. tinni-
tus (ringing, whistling or buzz-
ing in the ear).
 It‘s imperative to perform a risk
assessment for these hazards
and implement the suitable
regulatory mechanisms.
 Suitable regulatory mecha-
nisms to minimise the risk in-
clude measures such as using
insulation to prevent pinging
sounds on work pieces.
 Use hearing protection.
 The machine for screw con-
nections must be operated and
maintained as recommended
in these instructions to prevent
an unnecessary increase in the
noise level.
 If the machine for screw con-
nections features a silencer,
always ensure it is availa-
ble when using the machine
for screw connections and in
good working order.
 Select, maintain and replace
consumables and machine
tools as recommended in
these instructions to prevent an
unnecessary increase in the
sound level.
zHazard due to vibration
 Exposure to vibration may
cause damage to the nerves
and disturb blood circulation
in hands and arms.
 Keeps hands away from the
sockets of hex nut drivers.
 Wear warm clothes when
working in cold environments
and keep hands warm and
dry.
 If you notice your skin on
fingers or hands becoming
numb, tingling, hurting or be-
Safety instructions for air tools

15GB/IE/NI
coming white, stop working
with the machine and consult
a physician.
 Operate and maintain the ma-
chine for screw connections as
recommended in this manual
to prevent an unnecessary in-
crease in vibration.
 Do not use work or poorly fit-
ting sockets or extensions, as
these are very likely to signifi-
cantly increase vibration.
 Select, maintain and replace
consumables and machine
tools as recommended in these
instructions to prevent an un-
necessary increase in vibra-
tion.
 When possible use socket fit-
tings.
 Whenever possible, use a
stand, clamp or an equaliser
to support the weight of the
machine.
 Do not grip the machine too
tightly but firmly, maintaining
the necessary hand reaction
forces, as the vibration hazard
typically increases when tight-
ening the grip.
zAdditional safety instruc-
tions for pneumatic ma-
chinery
 Compressed air can result in
serious injuries.
- Always close the air supply,
release pressure from the hose,
and disconnect the machine
from the compressed air sup-
ply when the machine is not
in use, before switching ac-
cessories or when performing
repairs.
- Never aim the air flow at
yourself or others.
 Hoses flapping about can re-
sult in serious injuries. There-
fore always inspect hoses and
their fasteners for damage and
a secure fit.
 Direct cold air away from
hands.
 Do not use quick-release cou-
plings on the tool intake of
impact- and impulse drivers.
Only use connectors made
from hardened steel (or mate-
rial with comparable impact
resistance) on threaded hose
connections.
 If using universal swivel cou-
plings (coupling discs) always
use locking pins and use whip-
check hose safety cables for
protection in the event the con-
nection between the hose and
the machine or in between
hoses fail.
 Be sure not to exceed the max-
imum pressure specified on the
machine.
Safety instructions for air tools

16 GB/IE/NI
 In torque controlled machines
with continuous rotation the air
pressure has a safety-related
impact on the output. There-
fore hose length and diameter
requirements must be deter-
mined.
 Never carry pneumatic tools
by the hose.
zCommissioning
Note: the device is operational after install-
ing the plug nipple 6.
zConnecting
Note: only use connection hoses with a
minimum inside diameter of 9 mm.
 First wrap a piece of Teflon tape (not in-
cluded) around the outer threads of the
plug nipple 6and the lubricator 10 (see
Figure B).
 Now screw the plug nipple 6into the
thread of the lubricator 10 (see Figure C).
 You must use an open-end spanner (14
mm/17 mm) to tighten this connection
with moderate force.
 Now turn the combination of lubricator
10 and plug nipple 6into the connec-
tion thread 2of the impact driver (see
Fig. C).
 Also retighten this connection with an
open-end spanner (17 mm).
 Now press the air hose onto the plug nip-
ple 6using a little force, until the hose
locks in.
ATTENTION! Be sure the air hose is
firmly connected. A loose hose
whipping about out of control presents
a major hazard. Also ensure the two
screw connections between lubricator
10 , plug nipple 6and machine are
securely seated.
zInserting the socket wrench
or bit
 ATTENTION! Always install the desired
socket key before connecting the tool to
your compressed air system. Always dis-
connect the compressed air supply from
the compressed air connection 2before
attaching or changing socket keys 8.
 Insert the correct socket 8, if necessary
with extension 5, in the drive 4.
 Slide the socket attachment 8onto the
square 4of the drive.
 Be sure the snap ring is locked into the
notch of the socket attachment 8.
 Only use socket attachments sizes ½“
specified in figure A.
 Be sure the socket attachments 8used
are not damaged. Never use damaged
or the wrong size (not suitable) socket
attachments 8.
zAdjusting the compressed
air
Note: this device is designed for an operat-
ing pressure of up to 6.3 bar and a com-
pressor with the minimum air flow specified
in the technical specifications. When setting
the air pressure, remember the pressure
drops by approx. 0.6 bar with a hose length
of 10 m and an inside diameter of 9 mm.
Safety instructions for air tools / Commissioning

17GB/IE/NI
 Only use filtered, lubricated and regu-
lated compressed air.
zAdjusting the torque
 Set the torque control 1to the correct
torque by pressing it toward the housing
and turning it until it locks at the desired
setting.
 Be sure the operating pressure of the
compressor is between 5 and 6.3 bar.
Note: the ideal pressure is 6.3 bar. The
maximum torque cannot be reached at a
pressure of only 5 bar or with insufficient air
flow.
ATTENTION! Car/truck - do not tighten
wheels with the highest torque (F
- strong). If the torque is too high, it may
result in damages.
ATTENTION! The correct torque must
be examined using a torque wrench
once the pneumatic impact wrench has
been used.
Setting
F
R
R open
F tighten
(low)
F tighten
(normal)
F tighten
(high)
zInitial use
 Activate the trigger 3to start the equip-
ment.
 Release the trigger 3to deactivate the
equipment.
zChanging rotation
ATTENTION! The device must come to
a complete standstill before changing
the direction of rotation.
ATTENTION! A machine rotating in an
unexpected direction can be dangerous.
Always pay attention and use care.
Note: The impact driver clockwise /
counter- clockwise rotation. Use the
rotary switch 1to change the direction
of the impact driver.
 Turn the rotay switch 1to the right to-
wards the “F” mark („Forward / Fasten“)
for clockwise operation. You can choose
between three different torques (see
“Set torque”) You can now e.g. tighten
screws.
 Turn the switch to the left towards the “R”
mark (“Reverse/Release”). This setting
changed the direction of rotation. You
can now e.g. loosen screws.
zCorrectly holding the
equipment
This equipment weighs 2.1 kg.
 Hold the equipment with both hands to
ensure safe operation (see Fig. D).
zAfter initial use
Once the task has been finished the device
Commissioning / After initial use

18 GB/IE/NI
must be disconnect from the compressed air
supply 2.
 Switch off the compressor.
 Briefly activate the trigger 3of the
equipment to release any residual com-
pressed air.
 Now pull back the safety on the connec-
tion coupling of your compressed air
hose.
 Now remove the hose from the plug nip-
ple 6.
Careful when putting the device
down. Always put down the device so it
does not rest on the trigger. This could po-
tentially result in inadvertent activation of the
tool, which in turn could result in hazards.
zMaintenance
ATTENTION! All maintenance must be
performed by trained individuals. Follow the
specified maintenance instructions to ensure
a long life and proper operation of this
quality product.
 Disconnect equipment from the com-
pressed air source when performing
maintenance and care.
 Check the condition of wear and tear
items and accessories with each mainte-
nance.
Note: Daily cleaning and regular lu-
brication are an absolute necessity for
smooth operation.
 Only use special tool oil with a high vis-
cosity (thin fluid). Oil for compressed air
tools or SAE10-20 motor oil are suitable.
ATTENTION! Do not use other (espe-
cially high viscosity) lubricants. Malfunctions
or permanent damage may otherwise occur.
The following lubricating options are
available:
a) via the lubricator 10
 Fill the lubricator 10 included with a bit
of oil by first unscrewing the inlet screw
from the lubricator 10.
 Now install the lubricator in the com-
pressed air supply as described in chap-
ter „Establishing connections”.
b) via oil-mist generator
 If a complete maintenance unit with oil-
mist generator is installed on your com-
pressor the lubricator 10 does not neces-
sarily need to be mounted.
 To use the oil-mist generator plug the
plug nipple 6directly into the equip-
ment and connect with your air hose.
Note: Regular lubrication is imperative
to ensure the longest possible life for your
compressed air de- vice. We recommend
continuous lubrication via the included
lubricator 10.
 Always store your air tools / equipment
in dry locations.
 No maintenance is required beyond the
above lubrication and cleaning.
zCleaning and Care
 Only clean the tool with a dry cloth.
 Never clean with fluids such as petrol,
solvents or water.
 Do not allow liquids to enter the equipment.
zTroubleshooting
After every maintenance verify the equip-
ment is still operating as originally.
After initial use / Maintenance / Cleaning and Care / Troubleshooting

19GB/IE/NI
zWarranty and service
information
Warranty from Creative Marketing &
Consulting GmbH
Dear Customer, The warranty for this device
is 3 years from the date of purchase. In the
event of product defects, you have legal
rights against the retailer of this product.
Your statutory rights are not affected in any
way by our warranty conditions, which are
described below.
zWarranty conditions
The warranty period begins on the date of
purchase. Please retain the original sales
receipt. This document is required as your
proof of purchase. Should this product show
any defect in materials or manufacture within
3 years from the date of purchase, we will
repair or replace it – at our discretion – free
of charge. To claim against this warranty,
you must present the defective device and
your purchase receipt within the 3-year pe-
riod, and include a brief written description
of the nature of the defect and the date it
occurred. If the defect is covered by our war-
ranty, we will repair and return your product
Troubleshooting / Warranty and service information
Faults Possible causes Action
Impact driver not
working.
Trigger 3not pulled. Pull trigger 3.
No compressed air
supply.
If applicable, drain condensation from tube
(water bag).
Straighten kinks in the hose.
Connect compressed 2air.
Leak in compressed air
system. Remedy leak.
Compressor defective. Verify the compressor is supplying com- pressed air. If necessary, have compressor
repaired by a qualified professional.
Defect inside the air tool. Have air tool repaired by a qualified
professional.
Not properly
tightening
screw. Air pressure too low. Increase air pressure.
ATTENTION! Never exceed the maximum
approved operating pressure of the air tool!
Not loosening
screw.
Torque is too low. Turn the switch control 1to a higher
setting.
Rusted screw. Apply rust remover to screw.

20 GB/IE/NI
or send you a replacement.
The original warranty period is not extended
when a device is repair or replaced.
zExtent of warranty
The device has been manufactured accord-
ing to strict quality guidelines and meticu-
lously examined before delivery. The war-
ranty applies to material and manufacturing
defects only. This warranty does not extend
to product parts which are subject to normal
wear and tear and can thus be regarded as
consumable parts, or for damages to fragile
parts, e.g. switches, rechargeable batteries,
or parts made from glass. This warranty is
voided if the product becomes damaged or
is improperly used or maintained. For proper
use of the product, all of the instructions
given in the operating instructions must be
followed precisely. If the operating instruc-
tions advise you or warn you against certain
uses or actions, these must be avoided in all
circumstances. The product is for consumer
use only and is not intended for commercial
or trade use. The warranty becomes void in
the event of misuse and improper use, use
of force, and any work on the device that
has not been carried out by our authorised
service branch.
zProcessing of warranty
claims
Please follow the instructions below to ensure
quick processing of your claim: Please
retain your proof of purchase and quote the
product number (e.g. the IAN 12345) in all
correspondence. The product number can be
found on the type plate, an engraving, the
cover page of your instructions (bottom left),
or the sticker on the back or bottom. In the
event of malfunctions or other defects, please
first contact our service department below by
phone or email. If your product is found to
be defective, you can then send your prod-
uct with proof of purchase (till receipt) and a
statement describing what the fault involves
and when it occurred free of charge to the
service address given.
Note
If you visit www.lidl-service.com,
you can download this manual
and many other manuals, product
videos and software.
How to contact us:
GB, IE, NI
Name: C. M. C. GmbH
Website: www.cmc-creative.de
E-mail: ser[email protected]
Phone: [phone]
Registered office: Germany
IAN 309892
Please note that the following address is not
a service address. Please first contact the
service point given above.
Address:
C. M. C. GmbH
Katharina-Loth-Str. 15
D-66386 St. Ingbert
GERMANY
Warranty and service information
