Parkside AIR SANDBLASTING GUN - 2 User manual

AIR SANDBLASTING GUN
AIR sAndblAstIng gun
Operation and Safety Notes
ΠΙΣΤΟΛΙ ΑΜΜΟΒΟΛΗΣ ΑΕΡΟΣ
Υποδείξεις χειρισμού και ασφαλείας
sAndblÆsEpIstol mEd tRykluft
Brugs- og sikkerhedsanvisninger
dRuCkluftsAndstRAHlpIstolE
Bedienungs- und Sicherheitshinweise
Druckluft-Sandstrahlpistole_Cover_LB3 (GB-DK-GR-DE).indd 6 24.06.09 11:37

GB/IE/CY Operation and Safety Notes Page 5
DK Brugs- og sikkerhedsanvisninger Side 17
GR/CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 29
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 41
sAndblÆsEpIstol mEd tRykluft
Brugs- og sikkerhedsanvisninger
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions
of the device.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.
Druckluft-Sandstrahlpistole_Cover_LB3 (GB-DK-GR-DE).indd 7 24.06.09 11:37

215
34
C ED
A EB
6 109 12 138 117
1.
2.
Druckluft-Sandstrahlpistole_Cover_LB3 (GB-DK-GR-DE).indd 8 24.06.09 11:37

5GB/IE/CY
Introduction
Proper use............................................................. Page 7
Features and equipment ...................................... Page 7
Included items ...................................................... Page 8
Technical data...................................................... Page 8
Safety advice................................................ Page 9
Operation
Connecting the compressed air source .............. Page 10
Filling the blast medium container....................... Page 11
Using the air sandblasting gun............................ Page 11
Cleaning ............................................................ Page 12
Service................................................................ Page 12
Warranty.......................................................... Page 13
Disposal............................................................. Page 14
Declaration of Conformity/
Manufacturer............................................... Page 15
Table of contents
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 5 24.06.09 11:34

6 GB/IE/CY
The following icons/symbols are used in
this instruction manual:
Read instruction manual!
Observe caution and safety notes!
Risk of explosion!
Wear hearing protection, dust protection mask
and protective glasses.
Keep children away from the device!
No smoking!
Dispose packaging and appliance in an
environmentally-friendly way!
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 6 24.06.09 11:34

7GB/IE/CY
Air sandblasting gun
Q Introduction
Please make sure that you familiarise yourself fully with the
way the air sandblasting gun works before you use it for the
first time and that you understand how to handle compressed
air sand blasting guns correctly. To help you do this, please read the
accompanying operating instructions. Keep these instructions in a safe
place. If you pass the air sandblasting gun on to anyone else, please
ensure that you also pass on all the documentation. Keep these instruc-
tions in a safe place. If you pass the device on to anyone else, please
ensure that you also pass on all the documentation.
Q Proper use
This device is intended for the removal of rust and paint from metal
surfaces. Any other use or modification to the device shall be considered
as improper use and could give rise to considerable risk of accident.
We will not accept liability for loss or damage arising from improper
use. The device is intended for private, domestic use only.

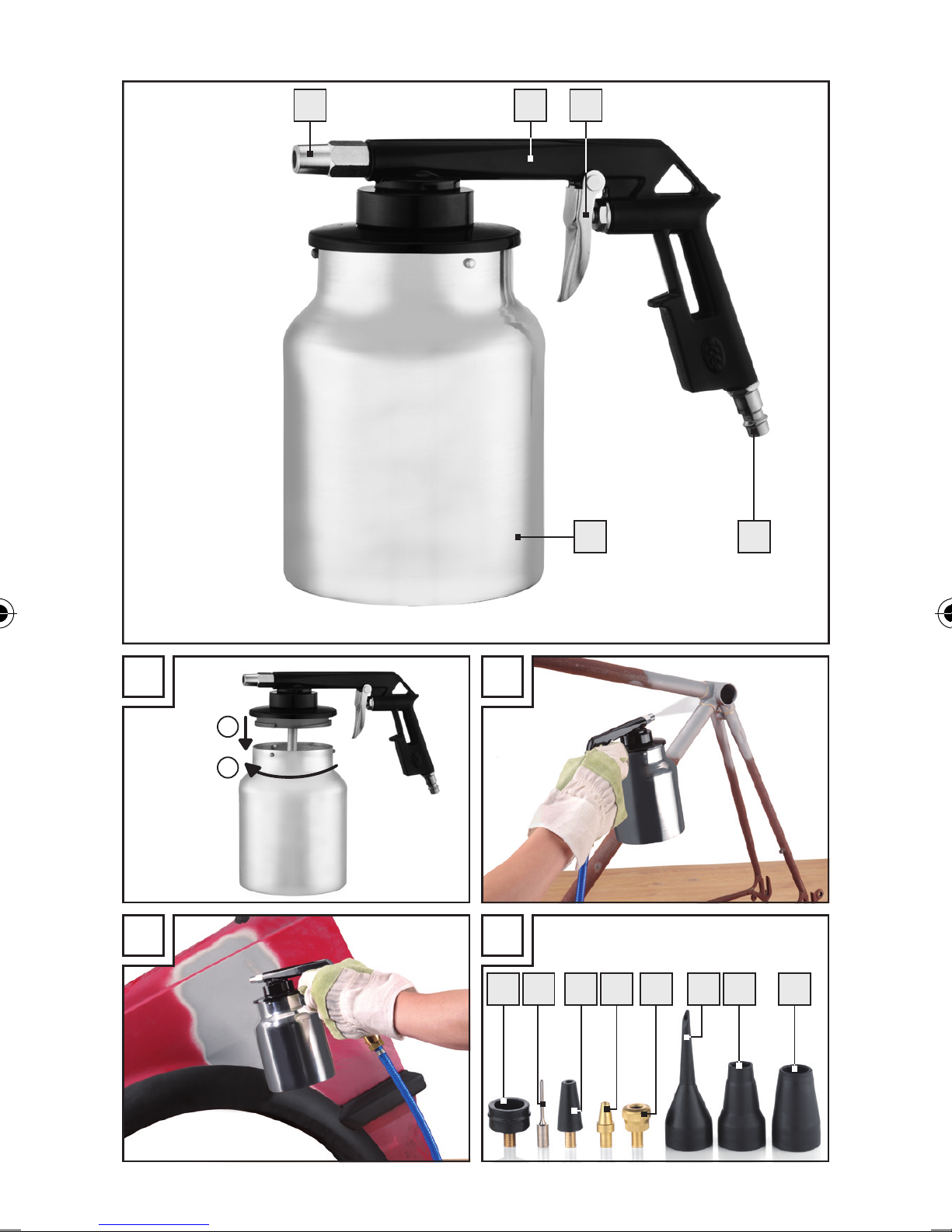

Q Features and equipment
1Air sandblasting gun
2Trigger
3Plug-in nipple for compressed air connection
4Blast medium container
5Blast nozzle
Introduction
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 7 24.06.09 11:34

8 GB/IE/CY
Introduction
Accessory (see Figs. D):
6Cap for 11, 12, 13
7Ball needle
8Universal adapter, for valves with internal Ø of approx. 9mm
9Universal adapter, for valves with internal Ø of approx. 6mm
10 Valve adapter, e.g. for cycle tyre valves
11 Universal adapter
12 Adapter for screw valves, e.g. on inflatable dinghies
13 Adapter for deflator valves
Q Included items
1 Air sandblasting gun
1 Operating instructions
1 Valve set (for use with a compressor)
Q Technical data
Max. Working pressure: 8bar
Recommended working air pressure: 6.3–8bar
Compressed air consumption: 130–260l/min
Nozzle ø: 2,8mm
Container capacity: 1000ml
Required air quality: Cleaned and oil-free
Working settings: Working air pressure setting at
the pressure reducer max. 8bar.
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 8 24.06.09 11:34

9GB/IE/CY
Safety advice
Safety advice
WARNING! Read all the safety advice and instructions. Even
minor failures to observe the safety advice and instructions could lead
to severe injury.
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE
PLACE FOR FUTURE REFERENCE.
JCheck the device for damage before bringing it into
use. Do not use the device if you discover any defects.
JKeep children and other people away while
you are operating the air sandblasting gun.
Distractions can cause you to lose control of the device.
JFor your own safety, wear suitable personal
protective equipment.
JWear an approved dust mask/
protective hood
JWear protective glasses!
JRISK OF EXPLOSION! Do not use the air sandblast-
ing gun 1in environments containing gases, open
flames, fires or gas-operated water heaters.
JNO SMOKING!
JWork in adequately ventilated spaces only.
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 9 24.06.09 11:34

10 GB/IE/CY
JNever use oxygen or other combustible gas as the
energy source.
JNever exceed the maximum working air pressure of
8bar.
JDANGER OF INJURY! Disconnect the device from the compressed
air source before carrying out any repairs or maintenance of the
device or moving it to another location.
JDANGER OF INJURY! Disconnect the device from the compressed
air source before filling it with blast medium.
JUse only materials for the blast medium that are suit-
able for the air sandblasting gun. Do not use quartz
sand. There is the danger of toxic silicon dust forming.
JTake precautions to ensure that other people are not
contaminated (dust generation).
JEnsure that the spent blast medium is trapped and
collected so that it can be disposed of in an environ-
mentally compatible manner.
Q Operation
Q Connecting the compressed air source
NOTE: Operate the air sandblasting gun 1only with cleaned, con-
densate- and oil-free compressed air and never exceed the maximum
working air pressure at the device of 8bar.
NOTE: The compressed air source must be fitted with a (filter)/pres-
sure reducer so that the air pressure can be regulated.
jConnect the air sandblasting gun to a suitable compressed air
source by connecting the quick-release coupling of the air supply
hose with the plug-in nipple 3to the air sandblasting gun 1. It
locks itself in place automatically.
Safety advice/Operation
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 10 24.06.09 11:34

11GB/IE/CY
Operation
Q Filling the blast medium container
JAlways use a suitable blast medium for your sand blasting work.
NOTE: We recommend using a silica-free blast medium
(e.g. ground blast furnace slag) with a grading of 0.2mm–0.8mm.
jEnsure that the blast medium is completely dry and not too coarse.
NOTE: The maximum particle size is 0.8mm.
jTurn the bayonet cap of the blast medium container 4to open it.
jPull the blast medium container 4off downwards.
jFill the blast medium container 4with the desired amount of
blast medium.
jEnsure that the maximum capacity of the container (1000ml) is
not exceeded.
jScrew the blast medium container 4back on and lock it in place
by inserting and turning it on to the container lid (see Figs. A).
QUsing the air sandblasting gun
(see Figs. B, C)
jCarefully prepare the workpiece before sand blasting it.
Clean it if necessary.
NOTE: Deposits of dust and grease can have a considerably
detrimental effect on the result.
jCarefully mask or tape off everything that is not to be sand blasted.
jEnsure that there is always a minimum distance of 20cm between
the air sandblasting gun 1and the surface being sand blasted.
Switching on:
jPress the trigger 2to start operating the air sandblasting gun 1.
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 11 24.06.09 11:34

12 GB/IE/CY
Operation/Cleaning/Service
Switching off:
jRelease the trigger 2to stop operating the air sandblasting gun 1.
jAfter you finish work, disconnect the device from the compressed
air source.
NOTE: First disconnect the hose from the compressed
air source and only then disconnect the compressed
air supply hose from the device. This will ensure that the
compressed air supply hose does not wave around in an uncon-
trolled manner.
Q Cleaning
JDANGER OF INJURY! Always disconnect the device from the
compressed air source before you clean or maintain it.
jClean the air sandblasting gun 1and blast medium container 4
after you finish working. Blow out the air sandblasting gun 1and
the blast medium container 4with compressed air.
jStore the air sandblasting gun 1in a dry, enclosed room.
Q Service
JWARNING! Have your air sandblasting gun re-
paired only by qualified specialist personnel using
original manufacturer parts only. This will ensure that your
air sandblasting gun remains safe to use.
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 12 24.06.09 11:34

13GB/IE/CY
Warranty
QWarranty
This appliance is guaranteed for 3 years from the date of
purchase. It has been care
fully produced and meti-culously
checked before delivery. Please keep your receipt as
proof of purchase. Contact your service centre by telephone
in case of questions pertaining to the warranty. Your
goods can
be transmitted free of cost only in this manner.
This warranty applies only to the initial
purchaser and is
non-transferable.
The warranty covers only material or manufacturing faults, not normal
wear or damage to fragile parts such as switches or rechargeable
batteries. The appliance is intended solely for private, not commercial,
use. If this product has been subjected to improper or inappropriate
handling, abuse, or interventions not carried out by one of our author-
ised sales and service outlets, the warranty will be considered void.
This warranty does not affect your statutory rights.
GB
DES Ltd
Units 14-15
Bilston Industrial Estate
Oxford Street
Bilston (Great Britain)
WV14 7EG
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 13 24.06.09 11:34

14 GB/IE/CY
Warranty/Disposal
IE
Kompernaß Service Ireland
Tel.: [phone] (0,082 €/Min.)
* Standard call rates apply.
Mobile operators may vary.
e-mail: [e-mail]
QDisposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
Do not dispose of the device with household rubbish!
For details of disposing of the appliance at the end of its useful life,
please contact your district or city council.
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 14 24.06.09 11:34

15GB/IE/CY
Declaration of Conformity/Manufacturer
QDeclaration of Conformity/
Manufacturer
We, Kompernaß GmbH, Burgstr. 21, D-44867 Bochum, Germany,
declare that this product complies with the following EU directives:
Machinery Directive
(98/37/EC)
Applicable harmonised standards: EN 1953:1998
Type/Device description:
Air sandblasting gun
Bochum, 30.06.2009
Hans Kompernaß
- Managing Director -
We reserve the right to make technical modifications in the course of
further development.
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 15 24.06.09 11:34

16
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 16 24.06.09 11:34

17DK
Indledning
Hensigtsmæssig anvendelse................................Side 19
Udstyr ...................................................................Side 19
Samlet levering.....................................................Side 20
Tekniske data........................................................Side 20
Sikkerhedshenvisninger .....................Side 21
Betjening
Tilslutning af trykluftkilde......................................Side 22
Påfyldning af blæsegods.....................................Side 23
Anvendelse af trykluft-sandblæsepistol...............Side 23
Rensning ...........................................................Side 24
Service................................................................Side 24
Garanti...............................................................Side 25
Renovation......................................................Side 26
Konformitetserklæring/
Fremstiller........................................................Side 26
Indholdsfortegnelse
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 17 24.06.09 11:34

18 DK
I denne betjeningsvejledning anvendes følgende
piktogrammer/symboler:
Læs betjeningsvejledningen!
Følg advarsels- og sikkerhedsanvisningerne!
Eksplosionsfare!
Anvend ånde- og høreværn,støvmaske
og beskyttelsesbriller.
Hold børn væk fra apparatet!
Rygning forbudt!
Bortskaf emballagen og maskinen
miljøvenligt efter forskrifterne!
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 18 24.06.09 11:34

19DK
Sandblæsepistol med trykluft
Q Indledning
Gør dig før første ibrugtagen fortrolig med trykluft-sandblæ-
sepistolens funktioner og informer dig om den rigtige
omgang med trykluft-sandblæsepistoler. Læs til dette formål
den følgende brugervejledning. Opbevar denne brugervejledning.
Udlever også alle dokumenter når trykluft-sandblæsepistolen gives videre
til tredje. Opbevar denne vejledning. Udlever også alle dokumenter når
apparatet gives videre til tredje.
Q Hensigtsmæssig anvendelse
Dette apparat er beregnet til at fjerne rust og maling fra metalflader.
Enhver anden anvendelse eller forandringer på apparatet gælder som
uhensigtsmæssig og skjuler alvorlige farer for ulykker. Vi hæfter ikke
for skader, som er opstået på grund af uhensigtsmæssig anvendelse.
Apparatet er kun beregnet til privat indsats.
Q Udstyr
1Sandblæsepistol med trykluft
2Udrykkerhåndtag
3Stiknippel til lufttilslutning
4Blæsegodsbeholder
5Blæsedyse
Indledning
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 19 24.06.09 11:34

20 DK
Indledning
Tilbehør (se fig. D):
6Opsats til 11 , 12, 13
7Boldnål
8Universaladapter, til ventiler med inder-Ø på ca. 9mm
9Universaladapter, til ventiler med inder-Ø på ca. 6mm
10 Ventiladapter, f.eks. til cykelhjulventiler
11 Universaladapter
12 Adapter til skrueventiler, f.eks. til gummibåde
13 Adapter til udluftningsventiler
Q Samlet levering
1 Trykluft-sandblæsepistol
1 Brugervejledning
1 Ventilkit (til anvendelse med en kompressor)
Q Tekniske data
Maksimalt arbejdstryk: 8bar
AnbefaleT arbejdstryk: 6,3–8bar
Luftforbrug: 130–260l/min
Dyse ø: 2,8mm
Beholderindhold: 1000ml
Krævet luftkvalitet: renset og oliefri
Indstillingsværdier til arbejdet: Indstillet arbejdstryk på trykformindskeren
eller filtertrykmåleren maks. 8bar.
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 20 24.06.09 11:34

21DK
Sikkerhedshenvisninger
Sikkerhedshenvisninger
ADVARSEL! Læs samtlige sikkerhedshenvisninger og
anvisninger. Forsømmelser ved overholdelsen af sikkerhedshenvis-
ningerne og anvisningerne kan forårsage alvorlige kvæstelser.
OPBEVAR SAMTLIGE SIKKERHEDSHENVISNINGER OG
ANVISNINGER TIL FREMTIDEN.
JKontroller apparatet før ibrugtagen for eventuelle
beskadigelser. Viser apparatet mangler, må det under ingen
omstændigheder tages i drift.
JHold børn og andre personer væk mens
apparatet er i drift. Ved afledning af opmærksom-
heden kan kontrollen over apparatet mistes.
JAnvend til din personlige beskyttelse egnede
kropsbeskyttelsesmidler.
JBær en pålidelig støvmaske/
beskyttelseshætte
JBær beskyttelsesbriller!
JFARE FOR EKSPLOSION! Trykluft-sandblæsepistolen
1må ikke anvendes i omgivelser, hvor der er gas/
flammer/ild/gasdrevne vandvarmere.
JRYGNING FORBUDT!
Druckluft-Sandstrahlpistole_Content_LB3 (GB-DK-GR-DE).indd 21 24.06.09 11:34
