Parkside KH 3040 AIR SANDBLASTING GUN User manual

AIR SANDBLASTING GUN
PNEUMATSKI PIŠTOLJ
ZA PJESKARENJE
Upute za posluživanje i za Vašu sigurnost
DRUCKLUFTSANDSTRAHLPISTOLE
Bedienungs- und Sicherheitshinweise
AIR SANDbLASTINg gUN
Operation and Safety Notes
Druckluft-Sandstrahlpistole_Cover_LB4 (GB-HR-DE).indd 6 24.06.09 11:37

GB Operation and Safety Notes Page 5
HR Upute za posluživanje i za Vašu sigurnost Stranica 17
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 29
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions
of the device.
Prije nego što pročitate tekst, otvorite stranicu sa slikama i upoznajte se na osnovu toga sa svim
funkcijama uređaja.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.
Druckluft-Sandstrahlpistole_Cover_LB4 (GB-HR-DE).indd 7 24.06.09 11:37

215
34
C ED
A EB
6 109 12 138 117
1.
2.
Druckluft-Sandstrahlpistole_Cover_LB4 (GB-HR-DE).indd 8 24.06.09 11:37

5GB
Introduction
Proper use............................................................. Page 7
Features and equipment ...................................... Page 7
Included items ...................................................... Page 8
Technical data...................................................... Page 8
Safety advice................................................ Page 9
Operation
Connecting the compressed air source .............. Page 10
Filling the blast medium container....................... Page 11
Using the air sandblasting gun............................ Page 11
Cleaning ............................................................ Page 12
Service................................................................ Page 12
Warranty.......................................................... Page 13
Disposal............................................................. Page 14
Declaration of Conformity/
Manufacturer............................................... Page 14
Table of contents
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 5 24.06.09 11:34

6 GB

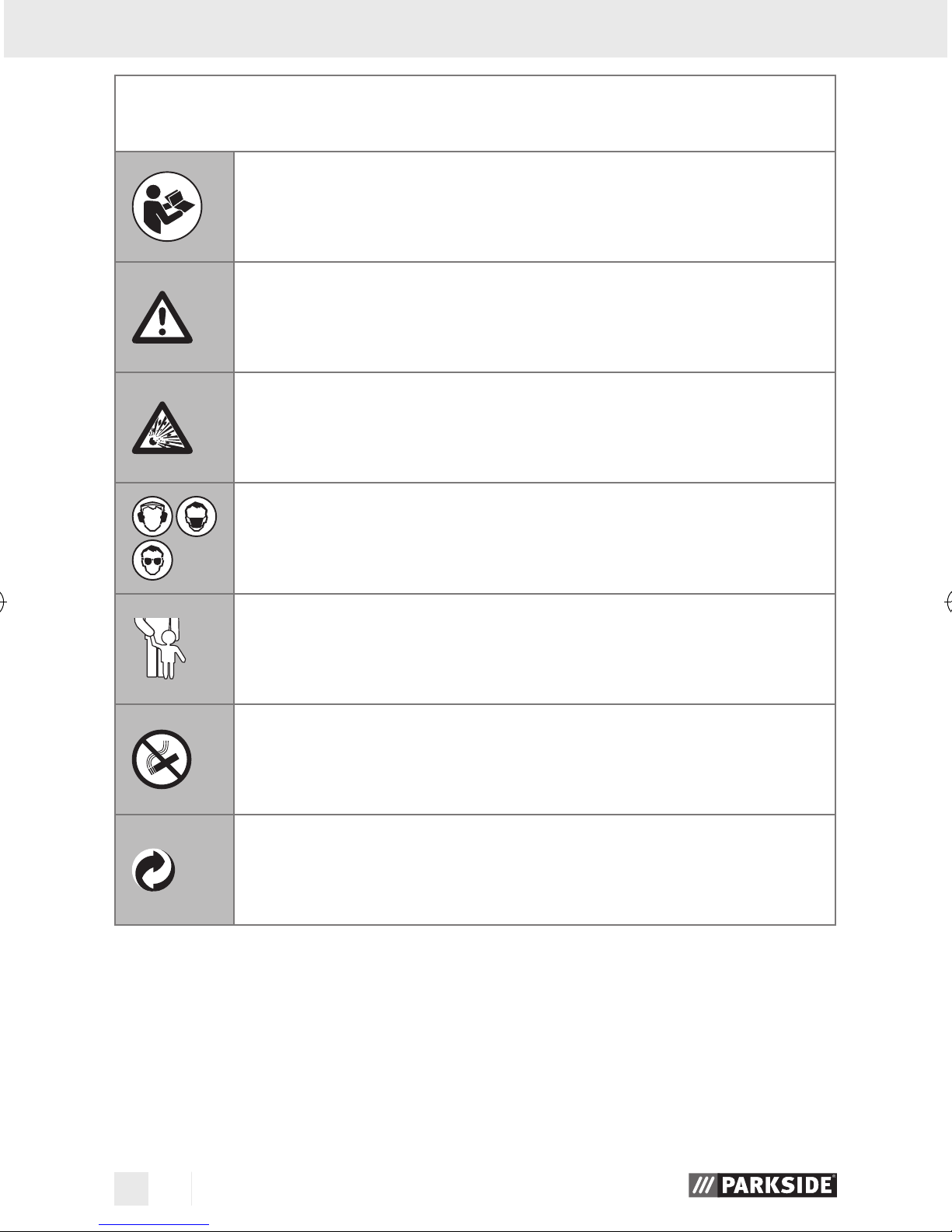

The following icons/symbols are used in
this instruction manual:
Read instruction manual!
Observe caution and safety notes!
Risk of explosion!
Wear hearing protection, dust protection mask
and protective glasses.
Keep children away from the device!
No smoking!
Dispose packaging and appliance in an environmentally-
friendly way!
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 6 24.06.09 11:34

7GB
Air sandblasting gun
Q Introduction
Please make sure that you familiarise yourself fully with the
way the air sandblasting gun works before you use it for the
first time and that you understand how to handle compressed
air sand blasting guns correctly. To help you do this, please read the
accompanying operating instructions. Keep these instructions in a safe
place. If you pass the air sandblasting gun on to anyone else, please
ensure that you also pass on all the documentation. Keep these instruc-
tions in a safe place. If you pass the device on to anyone else, please
ensure that you also pass on all the documentation.
Q Proper use
This device is intended for the removal of rust and paint from metal
surfaces. Any other use or modification to the device shall be considered
as improper use and could give rise to considerable risk of accident.
We will not accept liability for loss or damage arising from improper
use. The device is intended for private, domestic use only.

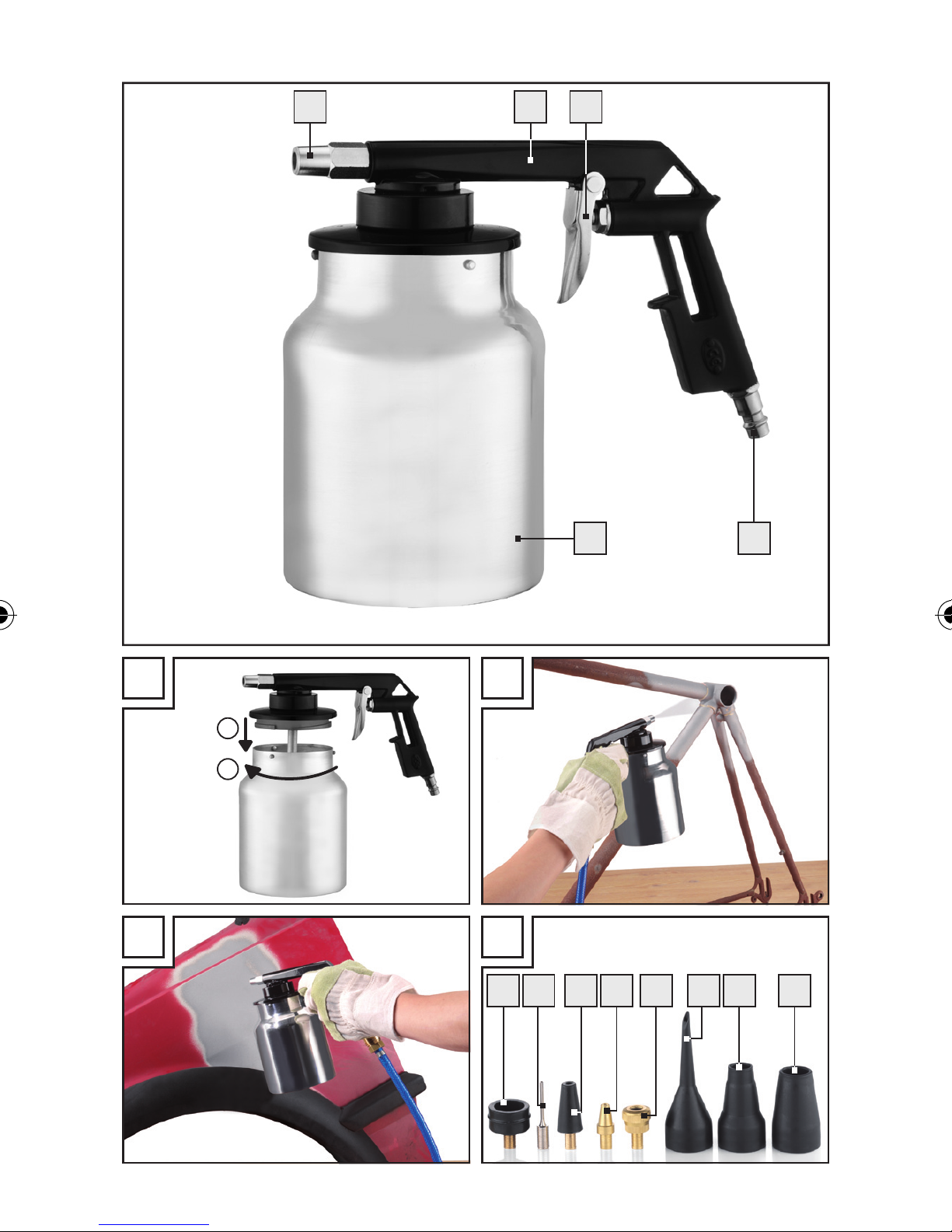

Q Features and equipment
1Air sandblasting gun
2Trigger
3Plug-in nipple for compressed air connection
4Blast medium container
5Blast nozzle
Introduction
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 7 24.06.09 11:34

8 GB
Introduction
Accessory (see Figs. D):
6Cap for 11 , 12 , 13
7Ball needle
8Universal adapter, for valves with internal Ø of approx. 9mm
9Universal adapter, for valves with internal Ø of approx. 6mm
10 Valve adapter, e.g. for cycle tyre valves
11 Universal adapter
12 Adapter for screw valves, e.g. on inflatable dinghies
13 Adapter for deflator valves
Q Included items
1 Air sandblasting gun
1 Operating instructions
1 Valve set (for use with a compressor)
Q Technical data
Max. Working pressure: 8bar
Recommended working air pressure: 6.3–8bar
Compressed air consumption: 130–260l/min
Nozzle ø: 2,8mm
Container capacity: 1000ml
Required air quality: Cleaned and oil-free
Working settings: Working air pressure setting at
the pressure reducer max. 8bar.
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 8 24.06.09 11:34

9GB

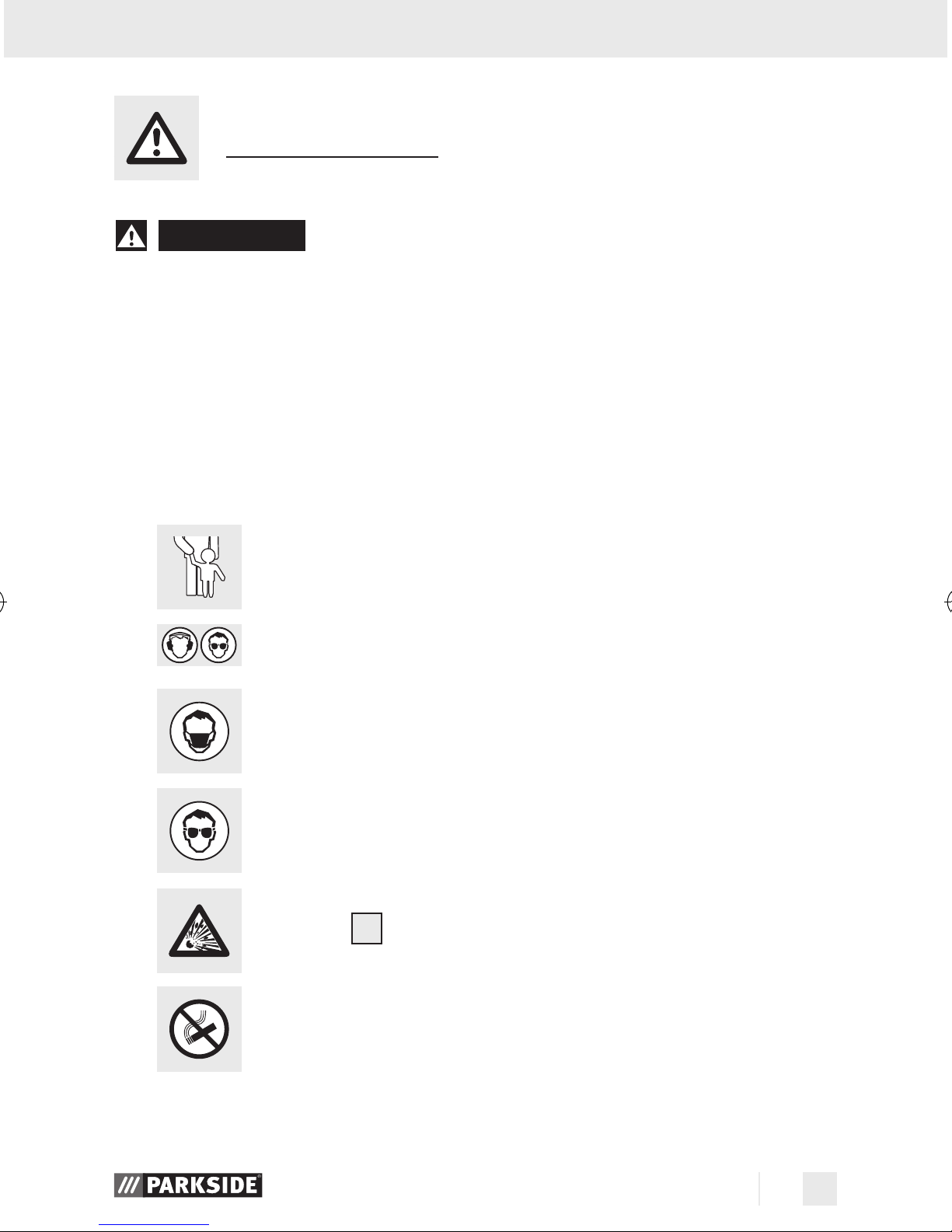

Safety advice
Safety advice
WARNING! Read all the safety advice and instructions. Even
minor failures to observe the safety advice and instructions could lead
to severe injury.
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE
PLACE FOR FUTURE REFERENCE.
JCheck the device for damage before bringing it into
use. Do not use the device if you discover any defects.
JKeep children and other people away while
you are operating the air sandblasting gun.
Distractions can cause you to lose control of the device.
JFor your own safety, wear suitable personal
protective equipment.
JWear an approved dust mask/
protective hood
JWear protective glasses!
JRISK OF EXPLOSION! Do not use the air sandblast-
ing gun 1in environments containing gases, open
flames, fires or gas-operated water heaters.
JNO SMOKING!
JWork in adequately ventilated spaces only.
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 9 24.06.09 11:34

10 GB
JNever use oxygen or other combustible gas as the
energy source.
JNever exceed the maximum working air pressure of
8bar.
JDANGER OF INJURY! Disconnect the device from the compressed
air source before carrying out any repairs or maintenance of the
device or moving it to another location.
JDANGER OF INJURY! Disconnect the device from the compressed
air source before filling it with blast medium.
JUse only materials for the blast medium that are suit-
able for the air sandblasting gun. Do not use quartz
sand. There is the danger of toxic silicon dust forming.
JTake precautions to ensure that other people are not
contaminated (dust generation).
JEnsure that the spent blast medium is trapped and
collected so that it can be disposed of in an environ-
mentally compatible manner.
Q Operation
Q Connecting the compressed air source
NOTE: Operate the air sandblasting gun 1only with cleaned, con-
densate- and oil-free compressed air and never exceed the maximum
working air pressure at the device of 8bar.
NOTE: The compressed air source must be fitted with a (filter)/pres-
sure reducer so that the air pressure can be regulated.
jConnect the air sandblasting gun to a suitable compressed air
source by connecting the quick-release coupling of the air supply
hose with the plug-in nipple 3to the air sandblasting gun 1. It
locks itself in place automatically.
Safety advice/Operation
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 10 24.06.09 11:34

11GB
Operation
Q Filling the blast medium container
JAlways use a suitable blast medium for your sand blasting work.
NOTE: We recommend using a silica-free blast medium
(e.g. ground blast furnace slag) with a grading of 0.2mm–0.8mm.
jEnsure that the blast medium is completely dry and not too coarse.
NOTE: The maximum particle size is 0.8mm.
jTurn the bayonet cap of the blast medium container 4to open it.
jPull the blast medium container 4off downwards.
jFill the blast medium container 4with the desired amount of
blast medium.
jEnsure that the maximum capacity of the container (1000ml) is
not exceeded.
jScrew the blast medium container 4back on and lock it in place
by inserting and turning it on to the container lid (see Figs. A).
QUsing the air sandblasting gun
(see Figs. B, C)
jCarefully prepare the workpiece before sand blasting it.
Clean it if necessary.
NOTE: Deposits of dust and grease can have a considerably
detrimental effect on the result.
jCarefully mask or tape off everything that is not to be sand blasted.
jEnsure that there is always a minimum distance of 20cm between
the air sandblasting gun 1and the surface being sand blasted.
Switching on:
jPress the trigger 2to start operating the air sandblasting gun 1.
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 11 24.06.09 11:34

12 GB
Operation/Cleaning/Service
Switching off:
jRelease the trigger 2to stop operating the air sandblasting gun 1.
jAfter you finish work, disconnect the device from the compressed
air source.
NOTE: First disconnect the hose from the compressed
air source and only then disconnect the compressed
air supply hose from the device. This will ensure that the
compressed air supply hose does not wave around in an uncon-
trolled manner.
Q Cleaning
JDANGER OF INJURY! Always disconnect the device from the
compressed air source before you clean or maintain it.
jClean the air sandblasting gun 1and blast medium container 4
after you finish working. Blow out the air sandblasting gun 1and
the blast medium container 4with compressed air.
jStore the air sandblasting gun 1in a dry, enclosed room.
Q Service
JWARNING! Have your air sandblasting gun re-
paired only by qualified specialist personnel using
original manufacturer parts only. This will ensure that your
air sandblasting gun remains safe to use.
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 12 24.06.09 11:34

13GB
QWarranty
This appliance is guaranteed for 3 years from the date of
purchase. It has been care
fully produced and meti-culously
checked before delivery. Please keep your receipt as
proof of purchase. Contact your service centre by telephone
in case of questions pertaining to the warranty. Your
goods can
be transmitted free of cost only in this manner.
This warranty applies only to the initial
purchaser and is
non-transferable.
The warranty covers only material or manufacturing faults, not normal
wear or damage to fragile parts such as switches or rechargeable
batteries. The appliance is intended solely for private, not commercial,
use. If this product has been subjected to improper or inappropriate
handling, abuse, or interventions not carried out by one of our author-
ised sales and service outlets, the warranty will be considered void.
This warranty does not affect your statutory rights.
GB
DES Ltd
Units 14-15
Bilston Industrial Estate
Oxford Street
Bilston (Great Britain)
WV14 7EG
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
Warranty
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 13 24.06.09 11:34

14 GB
Disposal/Declaration of Conformity/Manufacturer
QDisposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
Do not dispose of the device with household rubbish!
For details of disposing of the appliance at the end of its useful life,
please contact your district or city council.
QDeclaration of Conformity/
Manufacturer
We, Kompernaß GmbH, Burgstr. 21, D-44867 Bochum, Germany,
declare that this product complies with the following EU directives:
Machinery Directive
(98/37/EC)
Applicable harmonised standards: EN 1953:1998
Type/Device description:
Air sandblasting gun
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 14 24.06.09 11:34

15GB
Declaration of Conformity/Manufacturer
Bochum, 30.06.2009
Hans Kompernaß
- Managing Director -
We reserve the right to make technical modifications in the course of
further development.
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 15 24.06.09 11:34

16
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 16 24.06.09 11:34

17HR
Uvod
Namjenska uporaba.......................................Stranica 19
Oprema ...........................................................Stranica 19
Opseg pošiljke ................................................Stranica 20
Tehnički podatci ..............................................Stranica 20
Sigurnosne upute.................................Stranica 21
Opsluživanje
Priključivanje pneumatskog izvora .................Stranica 22
Punjenje spremnika tvari za pjeskarenje........Stranica 23
Uporaba pneumatskog pištolja
za pjeskarenje.................................................Stranica 23
Čišćenje .........................................................Stranica 24
Servis..............................................................Stranica 25
Jamstveni list............................................Stranica 25
Zbrinjavanje.............................................Stranica 26
Objašnjenje konformnosti/
Proizvođač.................................................Stranica 27
Popis sadržaja
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 17 24.06.09 11:34

18 HR
U ovim uputama za rukovanje će slijedeći piktogrami/
simboli biti korišteni:
Čitati upute za rukovanje!
Obratiti pažnju na upozoravajuće i sigurnosne upute!
Opasnost od eksplozije!
Nosite zaštitu za uši, masku za zaštitu od prašine
od prašine i zaštitne naočale.
Držite djecu podalje od uređaja!
Zabranjeno pušenje!
Materijal ambalaže i uređaj zbrinite na način
neškodljiv za okoliš!
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 18 24.06.09 11:34

19HR
Pneumatski pištolj za pjeskarenje
Q Uvod
Prije prvog stavljanja u pogon, upoznajte se sa funkcijama
pneumatskog pištolja za pjeskarenje i raspitajte se o ispravnom
ophođenju s pneumatskim pištoljem za pjeskarenje. Pročitajte
za to slijedeće upute za uporabu. Brižljivo sačuvajte ove upute. U slučaju
prosljeđivanja pneumatskog pištolja za pjeskarenje trećim osobama,
izručite također svu pripadajuću dokumentaciju. Brižljivo sačuvajte ove
upute. U slučaju prosljeđivanja uređaja trećim osobama, izručite također
svu pripadajuću dokumentaciju.
Q Namjenska uporaba
Ovaj uređaj je namijenjen za otklanjanje hrđe i boje sa metalnih
površina. Svaka druga uporaba ili promjene na uređaju, smatrat će se
nenamijenskim i mogu predstavljati znatnu opasnost od nezgode. Ne
preuzimamo nikakvu odgovornost za štete nastale od nenamjenske
uporabe. Uređaj je isključivo namijenjen za privatne svrhe.
Q Oprema
1pneumatski pištolj za pjeskarenje
2okidna poluga
3utična nazuvica za zračni priključak
4spremnik tvari za pjeskarenje
5mlazna sapnica
Uvod
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 19 24.06.09 11:34

20 HR
Uvod
Oprema (vidite prikaz D):
6nastavak za 11, 12, 13
7igla za loptu
8univerzalni adapter, za ventile sa unutarnjim Ø od cca. 9mm
9univerzalni adapter, za ventile sa unutarnjim Ø od cca. 6mm
10 ventilski adapter, npr. za ventile na zračnicama bicikle
11 universalni adapter
12 adapter za vijčane ventile, npr. kod gumenih čamaca
13 adapter za odušne ventile
Q Opseg pošiljke
1 pneumatski pištolj za pjeskarenje
1 upute za uporabu
1 komplet ventila (za uporabu sa kompresorom)
Q Tehnički podatci
Maks. radni tlak: 8bar
Preporučeni radni tlak: 6,3–8bari
Potrošnja zraka: 130–260l/min
Sapnica ø: 2,8mm
Zapremina spremnika: 1.000ml
Potrebna kakvoća zraka: pročišćen i oslobođen od ulja
Namještene vrijednosti za rad: Namješteni radni tlak na reduktoru
tlaka ili filterski tlakomjer maks. 8bar.
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 20 24.06.09 11:34

21HR
Sigurnosne upute
Sigurnosne upute
UPOZORENJE! Pročitajte sve sigurnosne i ine upute.
Propusti kod pridržavanja sigurnosnih i inih uputa mogu prouzročiti
teške ozljede.
SAČUVAJTE SVE SIGURNOSNE I OSTALE UPUTE ZA UBUDUĆE.
JPrije stavljanja u pogon, provjerite uređaj na moguća
oštećenja. Ukoliko uređaj sadrži manjkavosti, nesmije ga se ni u
kojem slučaju stavljati u pogon.
JDržite djecu i druge osobe tijekom korištenja
podalje od uređaja. Ako Vam se skrene pažnja,
mogli bi izgubiti kontrolu nad uređajem.
JRabite za Vašu osobnu zaštitu prikladna
zaštitna sredstva za tijelo.
JNosite dozvoljenu masku protiv prašine/
zaštitnu kapu!
JNosite zaštitne očale!
JOPASNOST OD EKSPLOZIJE! U području gdje se
nalaze plinovi/otvoreni plamenovi/vatra/pripremnici
tople vode s pogonom na plin, zabranjena je uporaba
pneumatskog pištolja za pjeskarenje 1.
JZABRANJENO PUŠENJE!
Druckluft-Sandstrahlpistole_Content_LB4 (GB-HR-DE).indd 21 24.06.09 11:34
