Parmco RTEL-9S-700 User manual

Installation
and Operating
Instructions
As part of Parmco Appliances commitment to improving and updang product ranges,
we reserve the right to alter, change and update technical specicaons and appearance
aributes of all Parmco Appliances products. E&OE.
Models:
RTEL-9S-700
727626052012

Dear Valued Customer,
Thank you and congratulations on purchasing your new Parmco appliance.
All Parmco products are made to the highest quality and design standards. We are
sure you will enjoy your new appliance.
As a note, please read through these instructions carefully, as these will assist you
in gaining a complete understanding of the functions and features oered by your
appliance.
Please take special note of all detailed technical information and installation
instructions. It is essential that you only allow a qualied technician to install this
appliance to ensure the safety and reliability of this appliance.
Furthermore, not using appropriate personnel to install this appliance may aect
any future warranty claims lodged, so please check with Parmco Appliances before
any installation is carried out.
We hope you enjoy your new appliance. If you would like to nd out more about
this product or any other products in Parmco’s extensive range, visit us on the web
at www.parmco.co.nz.
Regards,
The Parmco Team

2
INDEX
Content Page
Important Safety Information 3
Safety Information 3
Features 4
Installation 4
Use and Care 6
Maintenance 7
Warranty 9

3
IMPORTANT SAFETY INFORMATION
For best performance and to extend the life of your appliance we recommend that you read the
instructions in this owners manual thoroughly before using your new appliance. It will provide you
with all the information you need to ensure its safe installation, proper use and maintanence.
Retain this owners manual for future reference.
To maintain the efficiency and safety of this appliance we recommend the following:
BEFORE USING THIS APPLIANCE
Read the instructions thoroughly
Remove all plastic protective films on the appliance before operating the appliance.
The brackets and screws to fix this canopy to the wall are provided and are fixed to the inside
packaging. Please check that the brackets and screws are not discarded with the packaging.
This canopy must be installed by a qualified professional.
Parmco is not liable for any damages or injuries caused as a result of not following the
installation instructions in this manual.
SAFETY INFORMATION
This appliance is designed for non-commercial, household use only and must not be altered in
any way.
This appliance can only be used safely when it is correctly connected to an efficient earthing
system in compliance with New Zealand Electrical Standards requirements.
Before maintainence or cleaning always ensure that the appliance is disconnected from the
mains.
Packaging items such as plastic bags, polystyrene, nails etc that this appliance is delivered in
are potentially dangerous, and therefore appropriate measure must be taken to prevent
children from coming into contact with them.
This appliance must only be used by adults. Make sure that children do not touch the controls
or play with the appliance. Young children should be supervised to ensure they do not play
with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of this appliance by a person responsible
for their safety.
The exposed parts of this appliance heat up during the cooking process and remain hot for
some time aftewards, even after it has been switched off. Keep children well away during
operation and while the unit is cooling down.

4
Keep the appliance thoroughly cleaned. Residues may cause fire risks.
DO NOT use a steam cleaner to clean this appliance.
Avoid improper or dangerous use of this appliance.
Do not obstruct the ventilation or heat dissipation slots.
This appliance is intended for indoor use only. Avoid exposing the appliance to atmospheric
elements such as direct sunlight and rain.
If the supply cord is damaged, it must be replaced by a service agent or a similarly qualified
person.
FEATURES
Your canopy has been constructed using high quality materials.
Your canopy is fitted with a powerful centrifugal fan and is equipped with a low noise electric
motor.
Your canopy produces strong suction to rapidly ventilate your kitchen environment and each
model contains aluminium mesh filters designed to trap grease from the air as it is removed
from your kitchen.
INSTALLATION
Step 1: The canopy should be placed at a minimum distance of
65cm above the cooking surface when placed above an electric
hob and a minimum of 75cm above the cooking surface when
placed above a gas cooktop. (Refer Pic 1).
Step 2: To install, drill 3 holes of Ø8mm along a level line at the
desired height. This line will hold the bracket that holds the
canopy to the wall. (Refer Pic 2). Insert the screws into the holes
and fasten securely to the wall, ensuring that the screws fix into
material that has sufficient load capacity to hold the weight of
the canopy.

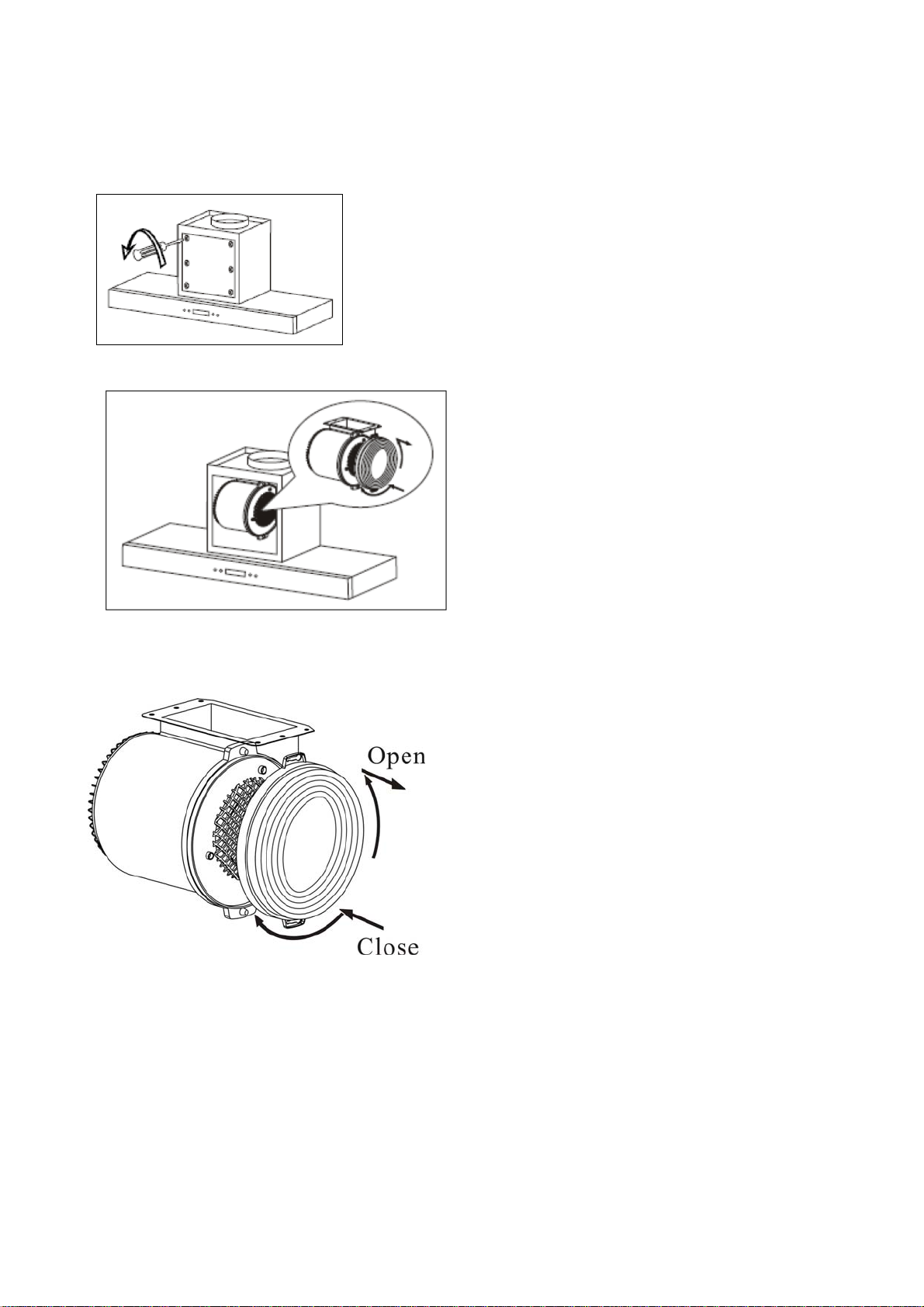

Step 3: Add the ducting to the top of the canopy and fix firmly. Run the ducting to the outside of
the building as per the NZ Building Code requirements ensuring that the ducting is not kinked or
crimped in any way. (Refer to Pic 3). Calculate the final height of the chimney cover and mark the
position of the second bracket. Affix the bracket to the wall at the desired height. (Refer to Pic 3).
Step 5: Lift the first section of chimney cover onto the canopy. Place the second part of the
chimney cover inside the first and lift up to the final bracket height. Fix the chimney cover to the
top bracket using the screws provided and fix the body using the screws provided. (Refer to Pic 4

5
and 5). Note: The two safety vents are positioned on the back casing, with diameter of 6mm.
Installation of kitchen ventilation over electrical and gas cooktops must be undertaken in full
accordance and reference to the relevant New Zealand building standards.
Before installation, please ensure the area is clean to avoid remaining bits of broken wood and dust
being sucked into the unit.
The exhaust air must not be discharged into an operating smoke or exhaust flue, or into a shaft
used for ventilating rooms in which a fireplace is located. The exhaust must not share the flue of
any other appliance.
After the initial installation, check that the unit has been installed level to avoid grease collection at
one end.
When the canopy is located above a gas appliance, the minimum distance from the top of the
cooking surface should be at least 75cm and comply with the relevant New Zealand standards.
When the canopy is located above an electric cooking surface the minimum distance from the
top of the cooking surface should be at least 65cm and comply with the relevant New Zealand
standards.

6
If installation instructions for the gas hob you are using specify a greater distance please follow
the hob manufacturer’s recommendation.
Regulations concerning the discharge of air must be adhered to. Please refer to the relevant
New Zealand standards.
USE AND CARE
1. Turn on the power. The backlight lights up, displaying the time. The backlight will turn off
automatically if there is no activity within 30 seconds.
2. Press the "light" button once to turn on the light. The light icon will light up. Press the button
again to turn off the lights.
3. Press the “speed” button. The hood automatically slides outwards and the motor starts to work
at low speed. Press the “speed” button again to increase the speed to medium, and again for
high.
4. Press the “power” button again to stop the motor and turn off the canopy. The hood
automatically slides inwards when powered off. Next press of the “power” button will turn on
the canopy and the motor will work at the speed it was last configured.
5. To set the clock, press and hold the “timer” button for 2-5 seconds. The hour segment flashes -
use the “speed” button to increase and “light” button to decrease the time. Press the “timer”
button again to adjust the minute segment. Press the “timer” for the third time to confirm the
time on the clock.
6. The clock must be set for the canopy to work.

7
MAINTENANCE

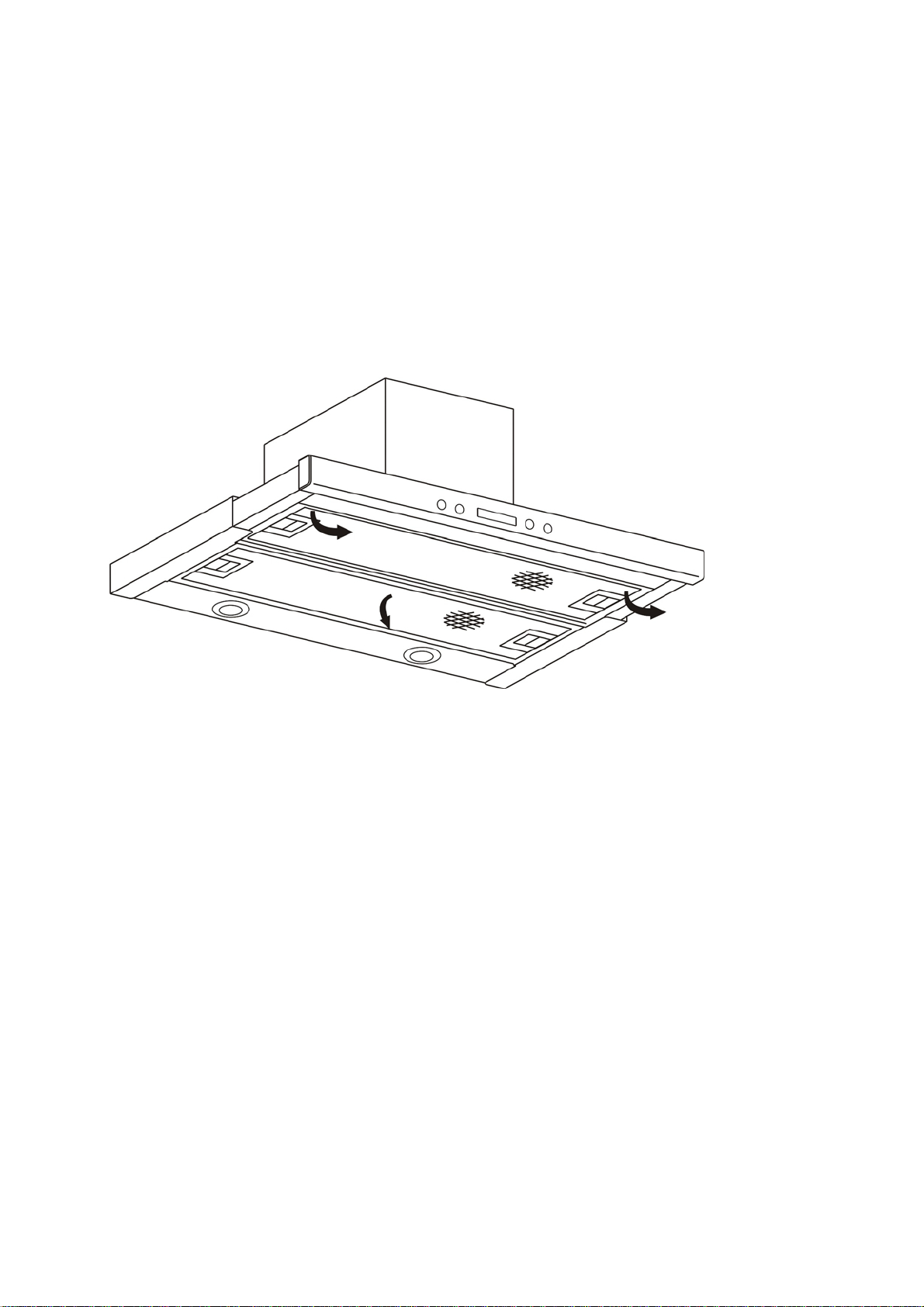

Cleaning of the Mesh Grease Filter
The filter mesh is made of high-density aluminium and stainless steel. Please do not use corrosive
detergents on it. If using a dishwasher to clean filters, please ensure that a non-caustic detergent is
used. Keeping this filter clean will keep the appliance running correctly.
Method 1: Put the mesh into 40-50oC clean soapy water. Allow soaking for several minutes. Clean
with a soft brush. Do not apply too much pressure as the mesh is delicate and will damage easily.
Method 2: If the detergent used in the dishwasher is of a non-caustic type, mesh filters can be put
into a dishwasher. Set the temperature at around 60oC.
Cleaning of the Canopy
Before cleaning the appliance, please remember to turn off the power.
To protect the main body from corrosion over time, it is essential that the canopy be
frequently cleaned with hot water plus non-corrosive detergent.
It is essential that the unit be dried with a suitable soft cloth after cleaning as residual
moisture can promote corrosion.
Do not use abrasive agents for cleaning, as this will damage the stainless steel body.
Keep the motor and other spare parts free from water, as this will cause damage to the
appliance.

8
Installing the carbon filter (optional):
1. Remove the lower and upper chimney sections from the main body of the canopy.
2. Use a screwdriver to unscrew the screws that hold the motor access panel in place.
3. Once the motor access panel is removed, you will be able to see the motor.
4. Hook the carbon filter over the pins that are located at the end of the motor. Turn the carbon
filter anticlockwise until you feel it click into place.
Warning: the carbon filters cannot be washed or recycled. It should be changed at three or six
months dependent on your cooking habits.
Replacing the Lights
Lever out the lamp cap at its indentation points with a blunt object and gently pull out the bulb.
Replace the bulb, holding it with the package wrapping or tissue paper, as holding it directly with
your fingers will cause the fuse to blow.

Parmco Appliances
extended 5 year
warranty
The Warranty:
• Subjecttothetermsandconditionscontainedwithinthis
warranty,iftheproductisnotofAcceptableQuality(as
denedintheConsumerGuaranteesAct)within5yearsof
thedateoforiginalpurchase,thenParmcoSalesundertakes
torepairor,atit’ssolediscretion,replacetheproduct.
• Thewarrantydoesnotcoverthecostsoftransport,mileage
ortravellingtimeiftheproductislocatedbeyond30kmofa
recognisedServiceAgent.
• Thiswarrantyisofferedasanextrabenet,anddoes
notaffectotherlegalrights,whichcannotbemodiedor
excludedbyagreement.
• Thiswarrantyonlyappliestogoodssuppliedandinstalledin
theNorthandSouthIslandsofNewZealand.
• Theprovisionsofthiswarrantyareinadditiontotherights
andremediesavailabletoconsumersundertheConsumer
GuaranteesAct1993.
The Warranty is not valid:
• Iftheproductisnotinstalledandoperatedinaccordancewiththeoperating
instructions.
• Iftheproductisnotinstalledtocomplywiththeelectrical,gas,plumbing
andotherRegulationsandCodesofPracticeinNewZealand.
• Iftheproductisoperatedonvoltagesorfrequenciesoutsidethenormal
rangefordomesticappliancesinNewZealand.
• Iftheproductisnotusedinnormaldomesticuse,orifitisusedina
businessasdenedintheConsumerGuaranteesAct.
• Ifanyserialnumberhasbeenremovedordefaced.
• Ifproofofdateofpurchaseisnotsupplied,exceptatthesolediscretionof
ParmcoSales.Proofofpurchasecanbefortheproductitself,orifinstalled
withakitchenorhousethenproofofpurchasecanbefromaParmco
resellerofproductssuppliedbyParmco.
Liability under this warranty will not be accepted for:
• Wearandtearfromnormaldomesticuse.
• Damageintransport.
• Damagecausedtotheproductbyneglect,abuse,negligence,wilfulactor
misuse.
• Anydefectcausedbyaccident,misuse,neglect,tamperingwithor
unauthorisedmodicationsoftheapplianceoranyattemptatinternal
adjustmentorrepairbyanypersonotherthananAuthorisedServiceAgent.
• Servicecallsthatrelateprincipallytothefollowing:
• Instructiononhowtousetheproduct.
• Repairorreplacementofhousefuses,electricalwiring,gasttingor
plumbing.
• Wearandtearcausedbynormaluseoftheproduct.
• Normalorscheduledmaintenanceincludingblockedltersorducting.
• Consumableitemssuchaslightbulbs.
• Anydamagetoceramicglasshobscausedbyspillswhencooking.
• Anybreakageordamageofglassitems.
• Anydamagecausedbynonrecommendedproductusedforcleaning,
maintaining,lubricatingorsimilar.
• Anyaspectrelatingtotheinstallationoftheproduct,ordamagecaused
duringinstallation.
• Anythirdparty(includingreseller)orconsequentiallossordamage(direct
orindirect)howeverarising.
Product Dateofpurchase
Dealer/RetailersName
PleaseretainthisWarrantycardtogetherwithreceiptorotherproofof
purchasedatewhenseekingserviceduringthewarrantyperiod
PleasecontactParmcoat095735678ifyour
applianceneedsservicingunderwarranty.Please
haveyourmodelnumberandproofofpurchaseready.
WarrantyrepairsmustbeauthorizedbyParmco.
p: 09 573 5678
f: 09 573 5699
e: [email protected]
w: www.parmco.co.nz
