Parmco RCOL-9G-1000 User manual

Installation
and Operating
Instructions
MODELS:
RCOL-9G-1000
As part of Parmco Appliances Ltd commitment to improving and updating product ranges,
we reserve the right to alter, change and update technical specifications and appearance
attributes of all Parmco Appliances. E&OE

2
Dear Valued Customer,
Thank you and congratulations on purchasing your new Parmco Canopy.
All Parmco products are made to the highest quality and design standards. We
are sure you will enjoy your new canopy.
As a note please read through these instructions carefully. These will assist you
in gaining a complete understanding of the functions and features offered by
your canopy.
Please take special note of all detailed technical information and installation
instructions.
We hope you enjoy your new appliance. If you would like to find out more about
this product or any other products in Parmco’s extensive range visit us on the
web at www.parmco.co.nz.
Regards,
The Parmco Team

3
Content Page
Important Safety Information 4
Features 5
Installation of The Glass 6
Installation of Unit 7
Use and care 10
Warranty 12
INDEX

4
For best performance and to extend the life of your appliance we
recommend that you read the instructions in this owners manual
thoroughly before using your new appliance. It will provide you with
all the information you need to ensure its safe installation, proper use
and maintanence. Retain this owners manual for future reference.
To maintain the efficiency and safety of this appliance we
recommend the following:
BEFORE USING THIS APPLIANCE
Read the instructions thoroughly
Remove all plastic protective films on the appliance before
operating the appliance.
The brackets and screws to fix this canopy to the wall are
provided and are fixed to the inside packaging. Please check that
the brackets and screws are not discarded with the packaging
IMPORTANT SAFETY INFORMATION

5
Your canopy has been constructed using high materials.
Your canopy is fitted with a powerful centrifugal fan and is
equipped with a low noise electric motor.
Your canopy produces strong suction to rapidly ventilate your
kitchen environment and each model contains aluminium mesh
filters designed to trap grease from the air as it is removed from
your kitchen.
Depending on the model you have purchased you will enjoy
either incandescent or halogen lighting from your appliance.
Features

6
1. Take the chimney out from the packing and put in onto a panel
standing upright. Remove the knobs holding the filter in place
and then remove as shown in (Pic 1)
2. Use screwdriver to remove the screws from the cylinder and
junction box. (See Pic 2).
3. Open the junction box and unplug all the lamp wires, then take
out the small cylinder part. (See Pic 3).
4. Lay the glass onto the linkboard panel of the main cylinder,
make sure the two holes on the glass are perfectly aligned with
the two holes on the linkboard panel. (See Pic 4).
5. Align the four slots of the small cylinder with the four prongs of
the link coil, then replace the glass (Pic 5). Fix this to the unit
with the screws previously removed
6. Reconnect the lamp wires previously unplugged and screw back
into place with 2 screws provided (Pic 6). Finally, replace the
filter and lock in place (Pic 7).
Installation of The Glass
Pic 1 Pic 2
Pic 3
Pic 4
Pic 7
Pic 5 Pic 6

7

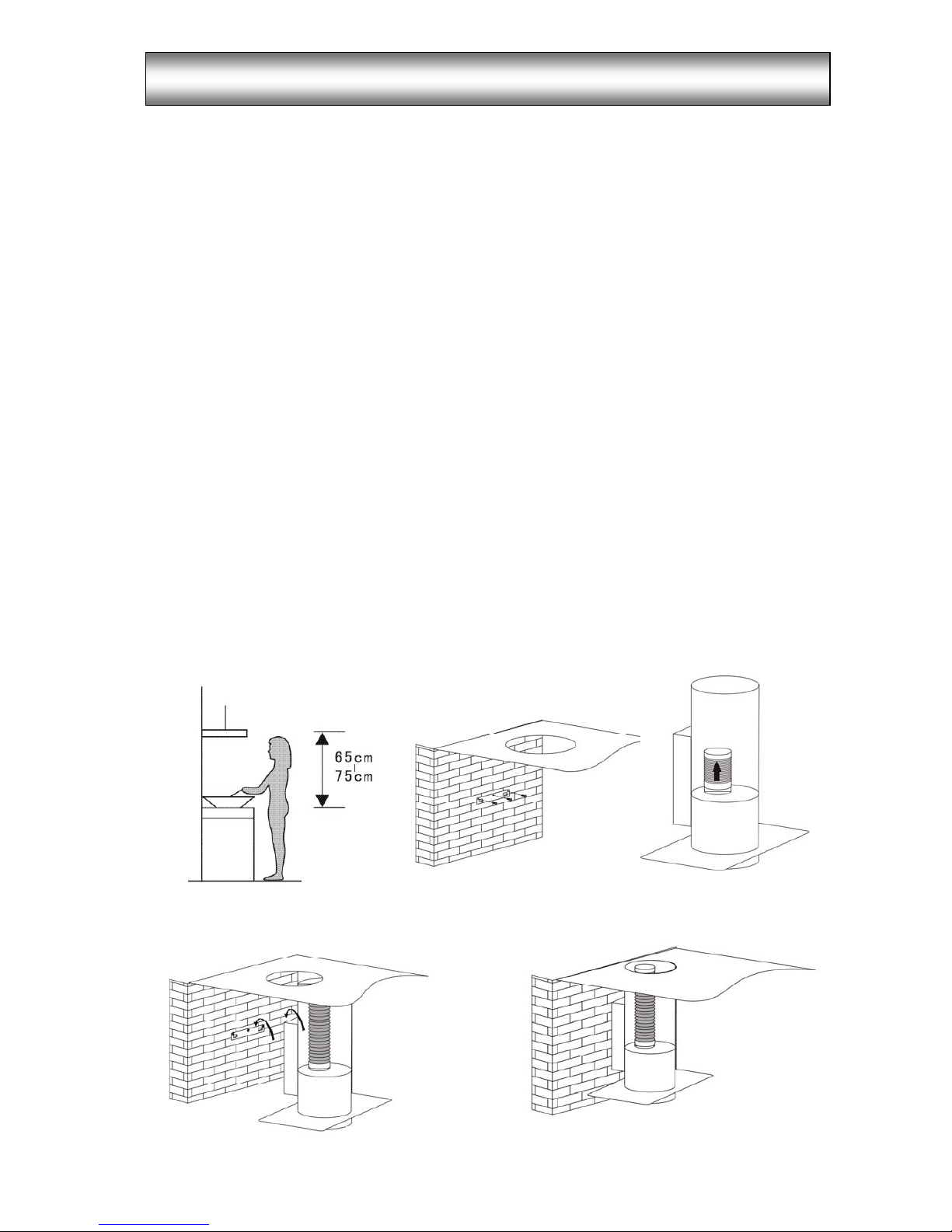

Step 1: The canopy should be placed at a minimum distance of 65cm
above the cooking surface when placed above an electric hob and a
minimum of 75cm above the cooking surface when placed above a gas
cooktop. (Refer Pic 8).
Step 2: To install, drill 3 holes of Ø8mm along a level line at the desired
height. This line will hold the bracket that holds the canopy to the wall
(Refer Pic 9). Insert the screws into the holes and fasten securely to the
wall ensuring that the screws fix into material that has sufficient load
capacity to hold the weight of the canopy.
Step 3: Add the ducting to the top of the canopy and fix firmly. Run the
ducting to the outside of the building envelope ensuring that the ducting
is not kinked or crimped in any way. (Refer Pic 10)
Step 4: Calculate the final height of the chimney cover and mark the
position of the second bracket. Affix the bracket to the wall at the desired
height.
Step 5: Lift the first section of chimney cover onto the canopy. Place the
second part of the chimney cover inside the first and lift up to the final
bracket height. Fix the chimney cover to the top bracket using the screws
provided. (Refer Pic 11 & Pic 12).
Installation of The Unit
Pic 8 Pic 9 Pic 10
Pic 12Pic 11

8
Before installation, please ensure the area is clean to avoid
remaining bits of broken wood and dust being sucked into the
unit.
The exhaust air must not be discharged into an operating smoke
or exhaust flue, or into a shaft used for ventilating rooms in which
a fireplace is located. The exhaust must not share the flue of any
other appliance.
After the initial installation check that the unit has been installed
level to avoid grease collection at one end.
When the canopy is located above a gas appliance the minimum
distance from the top of the cooking surface shall be 75cm and comply
with the relevant NZ standards.
When the canopy is located above an electric cooking surface the
minimum distance from the top of the cooking surface shall be 65cm
and comply with the relevant NZ standards.
If installation instructions for the gas hob you are using specify a
greater distance please follow the hob manufacturers recommendation.
Regulations concerning the discharge of air must be adhered to.
Please refer to the relevant NZ standards.
Installation of kitchen ventilation over electrical and gas cooktops
must be undertaken in full accordance and reference to the relevant
NZ building standards.

9
This appliance is designed for non-commercial, household use only
and must not be altered in any way.
This appliance can only be used safely when it is correctly connected
to an efficient earthing system in compliance with New Zealand
Electrical Standards requirements.
Before maintainence or cleaning always ensure that the appliance is
disconnected from the mains.
Packaging items such as plastic bags, polystyrene, nails etc that this
appliance is delivered in are potentially dangerous, and therefore
appropriate measure must be taken to prevent children from coming
into contact with them.
This appliance must only be used by adults. Make sure that children
do not touch the controls or play with the appliance. Young children
should be supervised to ensure they do not play with the appliance.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning the use of this appliance by a person
responsible for their safety.
The exposed parts of this appliance heat up during the cooking process
and remain hot for some time aftewards, even after it has been
switched off. Keep children well away during operation and while the
unit is cooling down.
Keep the appliance thoroughly cleaned. Residues may cause fire risks.
DO NOT use a steam cleaner to clean this appliance.
Avoid improper or dangerous use of this appliance.
Do not obstruct the ventilation or heat dissipation slots.
This appliance is intended for indoor use only. Avoid exposing the
appliance to atmospheric elements such as direct sunlight and rain.
If the supply cord is damaged, it must be replaced by the manufacturer
or a service agent or a similarly qualified person.
Safety Information

10

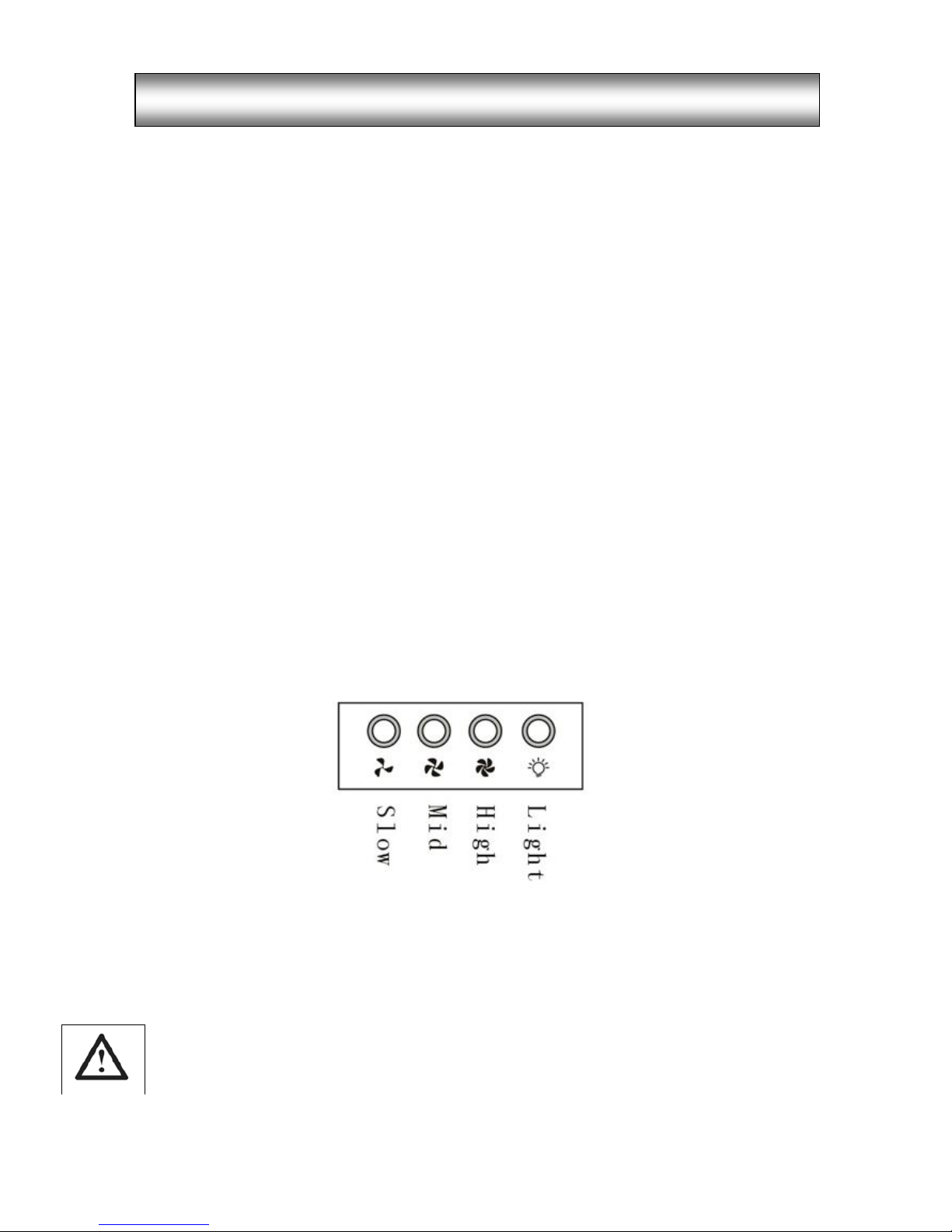

Control Interface
1. Turn on the power; the alarm will sound five times. This sound
indicates that the appliance is powered.
2. Push the button labelled ‘low’, the alarm will sound once and
the motor will run at low speed. Push it again and the motor
will stop.
3. Push the button labelled ‘Mid’, the alarm will sound once and
the motor will run at a medium speed. Push it again and the
motor will stop.
4. Push the button labelled ‘High’, the alarm will sound once and
the motor will run at maximum speed. Push it again and the
motor will stop.
5. Push the button labelled ‘Light’, the lights will turn on. Press
this again and they will shut off
MAINTENANCE

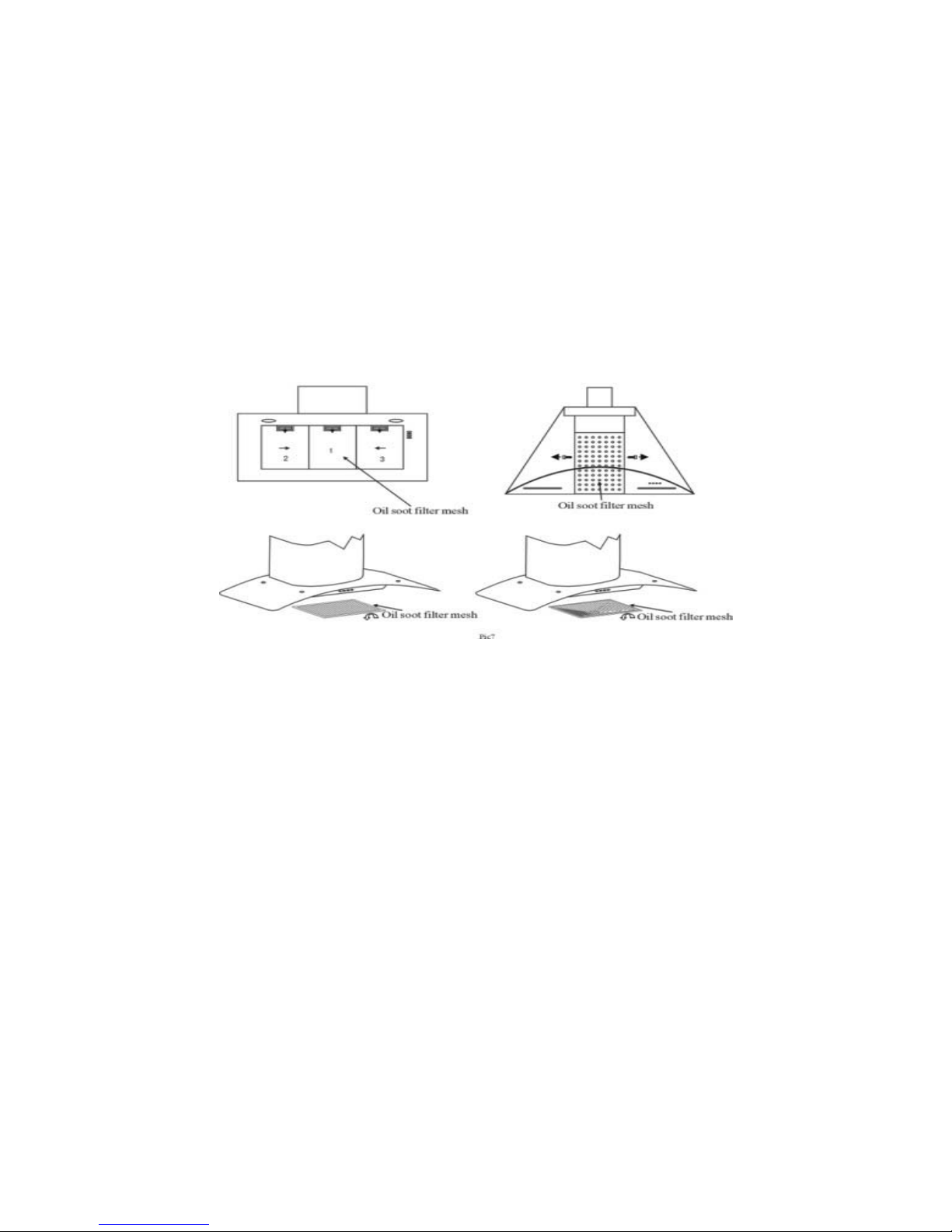

Cleaning of the mesh grease filter.
The filter mesh is made of high-density aluminium and stainless
steel. Please do not use a corrosive detergent on it. If using a
dishwasher to clean filters please ensure that a non-caustic detergent
Use and Care

11
is used. Keeping this filter clean will keep the appliance running
correctly.
Cleaning method.
Method 1: Put the mesh into 40-50℃clean soapy water. Allow
soaking for several minutes. Clean with a soft brush. Do not apply
too much pressure, as the mesh is delicate and will damage easily.
Method 2: If the detergent used in the dishwasher is of a non-caustic
type, mesh filters can be put into a dishwasher. Set the temperature
at around 60℃.
Cleaning of the canopy.
Before cleaning the appliance please remember to turn off the
power.
To protect the main body from corrosion over a long period of
time it is essential that the canopy be cleaned with hot water
plus non-corrosive detergent frequently.
It is essential that the unit be dried with a suitable soft cloth
after cleaning as residual moisture can promote corrosion.
Do not use abrasive agents for cleaning, as this will damage
the stainless steel body.
Keep the motor and other spare parts free from water, as this
will cause damage to the appliance.

The Warranty:
• Subject to the terms and conditions contained within this
warranty, if the product is not of Acceptable Quality (as
defined in the Consumer Guarantees Act) within 5 years
of the date of original purchase, then Parmco Sales
undertakes to repair or, at it’s sole discretion, replace the
product.
• The warranty does not cover the costs of transport,
mileage or travelling time if the product is located beyond
30km of a recognised Service Agent.
• This warranty is offered as an extra benefit, and does not
affect other legal rights, which can not be modified or
excluded by agreement.
• This warranty only applies to goods supplied and
installed in the North and South Islands of New Zealand.
• The provisions of this warranty are in addition to the
rights and remedies available to consumers under the
Consumer Guarantees Act 1993.
The Warranty is not valid:
• If the product is not installed and operated in accordance with
the operating instructions.
• If the product is not installed to comply with the electrical, gas,
plumbing and other Regulations and Codes of Practice in New
Zealand.
• If the product is operated on voltages or frequencies outside the
normal range for domestic appliances in New Zealand.
• If the product is not used in normal domestic use, or if it is used
in a business as defined in the Consumer Guarantees Act.
• If any serial number has been removed or defaced.
• If proof of date of purchase is not supplied, except at the sole
discretion of Parmco Sales. Proof of purchase can be for the
product itself, or if installed with a kitchen or house then proof of
purchase can be from a Parmco reseller of products supplied by
Parmco.
Liability under this warranty will not be accepted for:
• Wear and tear from normal domestic use.
• Damage in transport.
• Damage caused to the product by neglect, abuse, negligence,
wilful act or misuse.
• Any defect caused by accident, misuse, neglect, tampering with
or unauthorised modifications of the appliance or any attempt at
internal adjustment or repair by any person other than an
Authorised Service Agent.
• Service calls that relate principally to the following:
• Instruction on how to use the product.
• Repair or replacement of house fuses, electrical wiring, gas
fitting or plumbing.
• Wear and tear caused by normal use of the product.
• Normal or scheduled maintenance including blocked filters or
ducting.
• Consumable items such as light bulbs.
• Any damage to ceramic glass hobs caused by spills when
cooking.
• Any breakage or damage of glass items.
• Any damage caused by non recommended product used for
cleaning, maintaining, lubricating or similar.
• Any aspect relating to the installation of the product, or damage
caused during installation.
• Any third party (including reseller) or consequential loss or
damage (direct or indirect) however arising.
Product __________________________ Date of Purchase __________
Dealer / Retailers Name ________________________________________
Please retain this Warranty Card together with receipt or other proof of
purchase date
when seeking service during the warranty period.
For your convenience
we recommend you
attach proof of
purchase here











