Partizan Myers MSW-3B-220V/100W ZB User manual

Smart Light Switch
Myers MSW-3B-220V/100W ZB
User manual
PREMIUM SMART HOME SYSTEMS
by PARTIZAN
WWW.PARTIZAN.GLOBAL
2022

2
PREMIUM SMART HOME SYSTEMS by PARTIZAN
1. How to start ................................................................................................................................................ 3
2. Main elements of the device ....................................................................................................................... 5
3. Connecting device to the power grid ........................................................................................................... 6
4. Adding device to Partizan mobile application .............................................................................................. 9
4.1 Download and install Partizan mobile application ....................................................................................... 9
4.2 Starting the device via ZigBee Hub ............................................................................................................... 9
5. Control Screen ........................................................................................................................................... 11
6. Settings Menu ........................................................................................................................................... 12
6.1 Connection Settings ................................................................................................................................... 12
6.2 Switch names ............................................................................................................................................. 12
6.3 Switch settings ........................................................................................................................................... 13
6.4 Schedule ……………………………………………………………………………………………………………………………………………… 15
6.5 Delete device .............................................................................................................................................. 16

3
PREMIUM SMART HOME SYSTEMS by PARTIZAN
1. How to start
This device supports Partizan Cloud Storage service and Partizan mobile application for iOS and Android.
Partizan Cloud Storage benefits:
Your data cannot be stolen or damaged.
No one can access your devices, live and archived video without your permission.
Access to your account and devices from anywhere in the world. Even mobile Internet is enough.
Partizan app won "Best Mobile Video Surveillance App 2019" international award.
To take full advantage of the device, install Partizan mobile application for iOS or Android:
Partizan mobile application for iOS:
https://apps.apple.com/app/partizan/id1473001227
Partizan mobile application for Android:
https://play.google.com/store/apps/details?id=com.partizan.pro

4
PREMIUM SMART HOME SYSTEMS by PARTIZAN
To work with this device you need to sign in to your cloud account.
Open the app, use an existing account or create a new one:
After signing into the cloud account you can go directly to device setting.
If you have any questions,
please contact our technical support:
E-mail: [email protected]
Skype: partizan-support
Chat: [phone] (Viber, Telegram, WhatsApp)
Technical support working time:
https://partizan.global/support/
technical-support
Partizan software:
https://apps.partizan.global/

5
PREMIUM SMART HOME SYSTEMS by PARTIZAN
2. Main elements of the device
WARNING! You will need a ZigBee Hub to connect and configure this device. Make
sure it is available and connected to the Partizan mobile app.
1) Reset button
2) Wires for S1-S3 switches
3) Contacts for L1-L3 light sources, L and N power contacts
4) Wire connecting clips for S1-S3
1
2
3
L3
S1
S2
S3
L2 L1 L N
L N
reset
4

6
PREMIUM SMART HOME SYSTEMS by PARTIZAN
3. Connecting device to the power grid
The device is connected to the power grid using contacts L and N according to the following schemes:
a) With one 3 Gang Switch:
Light
Light
N
L
Light
Light Switch
L3
S1
S2
S3
L2 L1 L N
L N

7
PREMIUM SMART HOME SYSTEMS by PARTIZAN
b) With 3 Gang 2 Way Switch:
Light
Light
N
L
Light
3 Gang2 Way
Switch
L3
S1
S2
S3
L2 L1 L N
L N

8
PREMIUM SMART HOME SYSTEMS by PARTIZAN
c) With Wall Socket (3 sockets available):
ATTENTION! Danger of electric shock! The connection must be performed by qualified specialists!
Before installation, it is necessary to de-energize the electrical network (turn off the switch/circuit
breaker/fuse)
N
L
3 sockets
L3
S1
S2
S3
L2 L1 L N
L N

9
PREMIUM SMART HOME SYSTEMS by PARTIZAN
4. Adding device to Partizan mobile application
4.1 Download and install Partizan mobile application
4.2 Starting the device via ZigBee Hub
Launch Partizan mobile application. Click on ZigBee Hub in the list of added devices.
Make sure the device is connected correctly and turn on the power.
Wait 10 seconds for the device to boot.
Click the “+” button in the upper right corner of the screen for iOS or in the lower right corner of the
screen for Android.
Before starting work, it is necessary to press the Reset button or press the connected switch button 10
times with an interval of 0.5 seconds to reset device.
Partizan mobile application for iOS:
https://apps.apple.com/app/partizan/id1473001227
Partizan mobile application for Android:
https://play.google.com/store/apps/details?id=com.partizan.pro

10
PREMIUM SMART HOME SYSTEMS by PARTIZAN
If the device is already connected and you need to reset it, you can also do it in two other ways:
• For the return switch, press one of its keys 10 times with an interval of 0.5 seconds.
• For the rocker switch, press one of its keys 20 times (two cycles) with an interval of 0.5 seconds.
If the reset is done correctly, the device will beep and its indicator will flash blue.
Do not turn off the device and wait until it is connected and added to the device list of your
ZigBee Hub!

11
PREMIUM SMART HOME SYSTEMS by PARTIZAN

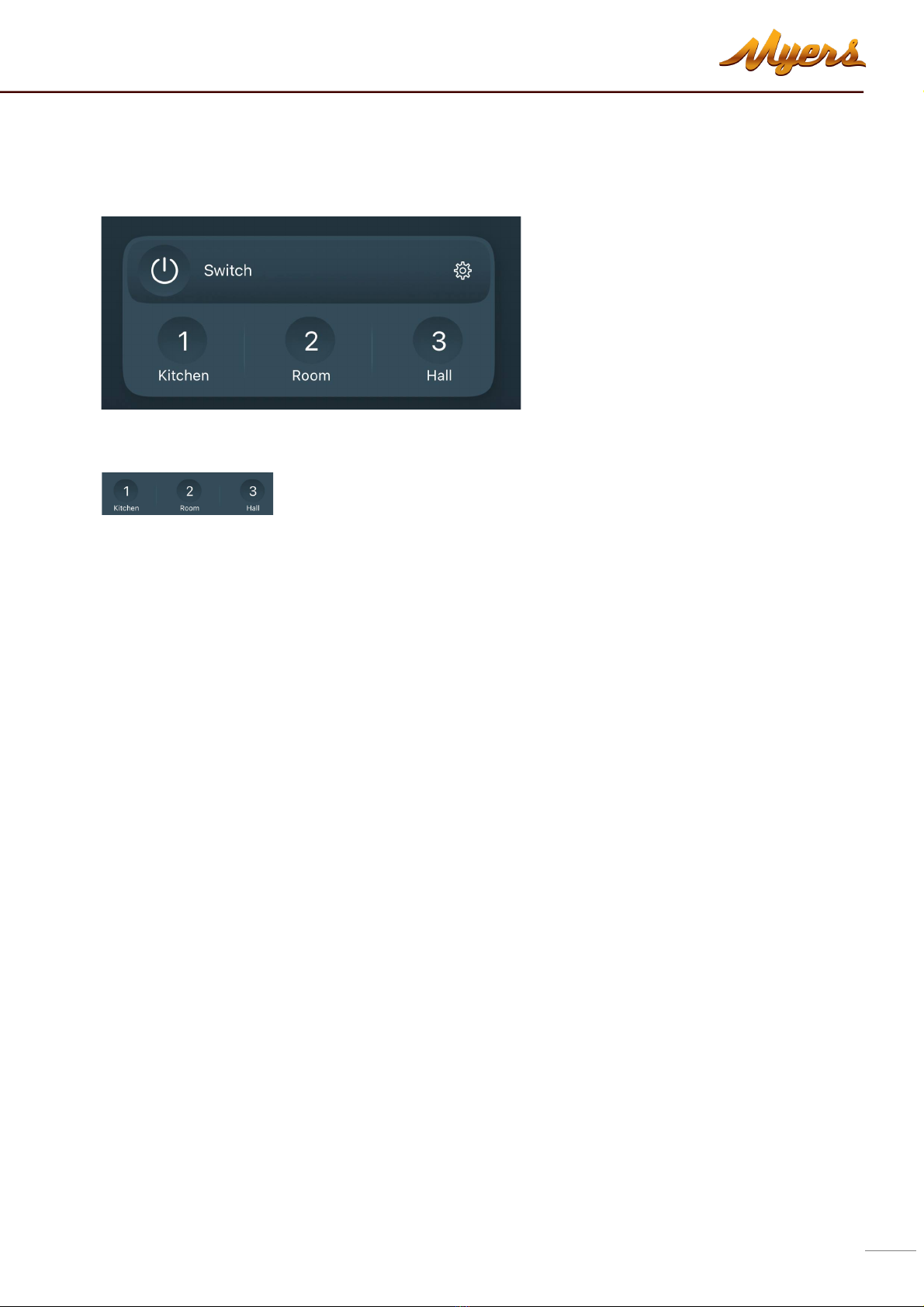

5. Control Screen
On this screen you can control the device.
Control buttons:
Control each switch separately

12
PREMIUM SMART HOME SYSTEMS by PARTIZAN

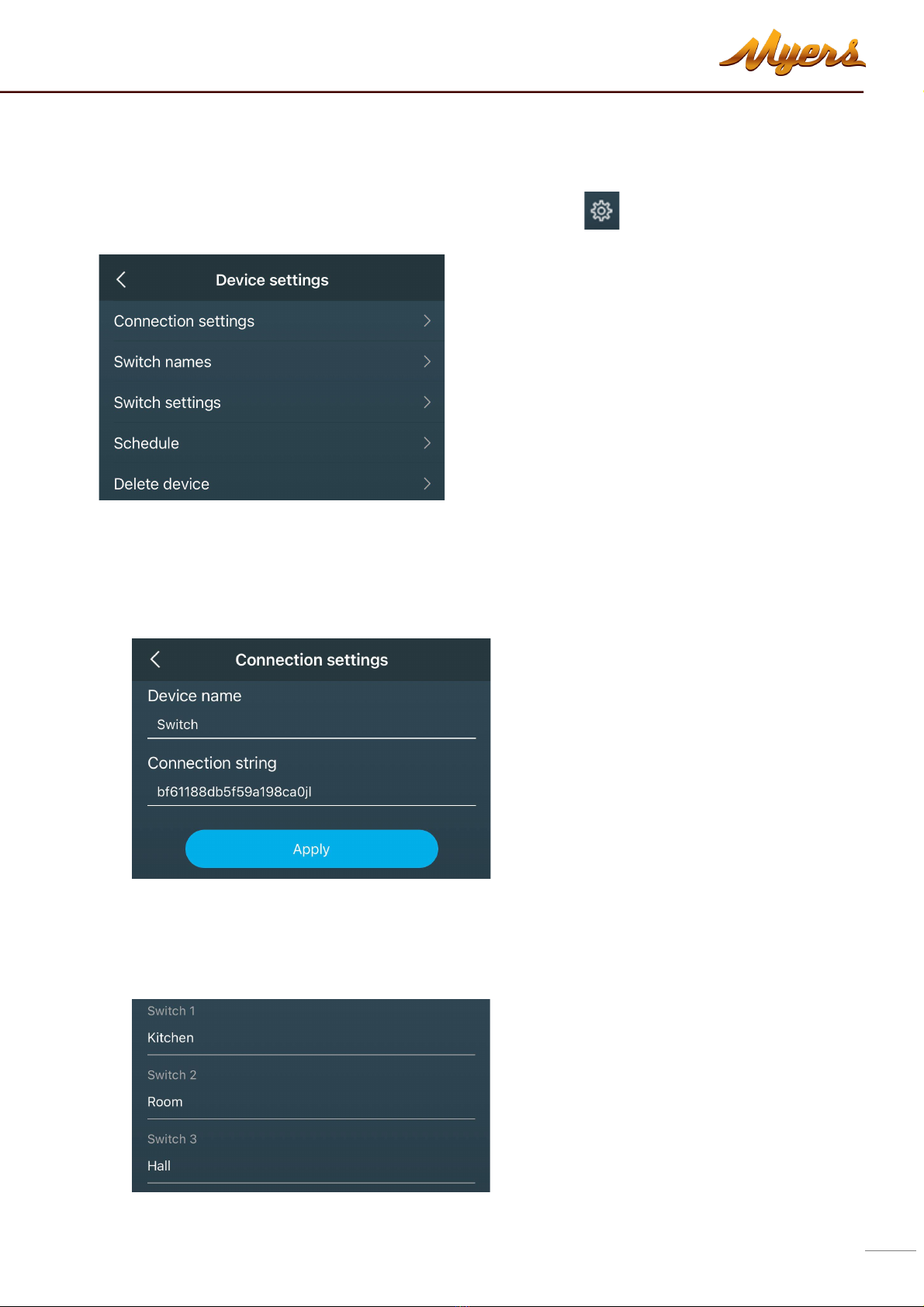

6. Settings Menu
To enter the settings menu, press the gear icon on the control screen .
6.1 Connection Settings
In this menu, you can give a name to the device or view the connection ID.
6.2 Switch names
In this section, you can give the switches their own names for more comfortable use of the device.

13
PREMIUM SMART HOME SYSTEMS by PARTIZAN
6.3 Switch settings
In this section, you can set special switch settings, namely:
• Startup state
• Switch mode
Startup state is the state to which the device returns after the disappearance of the power supply.
• Turn power off: when the power is restored, the light will be turned off.
• Turn power on: when the power is restored, the light will be turned off.
• Use the last state: when the power is restored, the state that was active before the power failure will
be applied.

14
PREMIUM SMART HOME SYSTEMS by PARTIZAN
• Async mode: in this mode, the device is not configured so that the up key is "On" and the down key is "Off".
• Sync mode: in this mode, the device is configured so that the up key is "On" and the down key is "Off".
• Button mode: used when a reverse push-button switch is installed instead of a normal "rocker" switch.

15
PREMIUM SMART HOME SYSTEMS by PARTIZAN

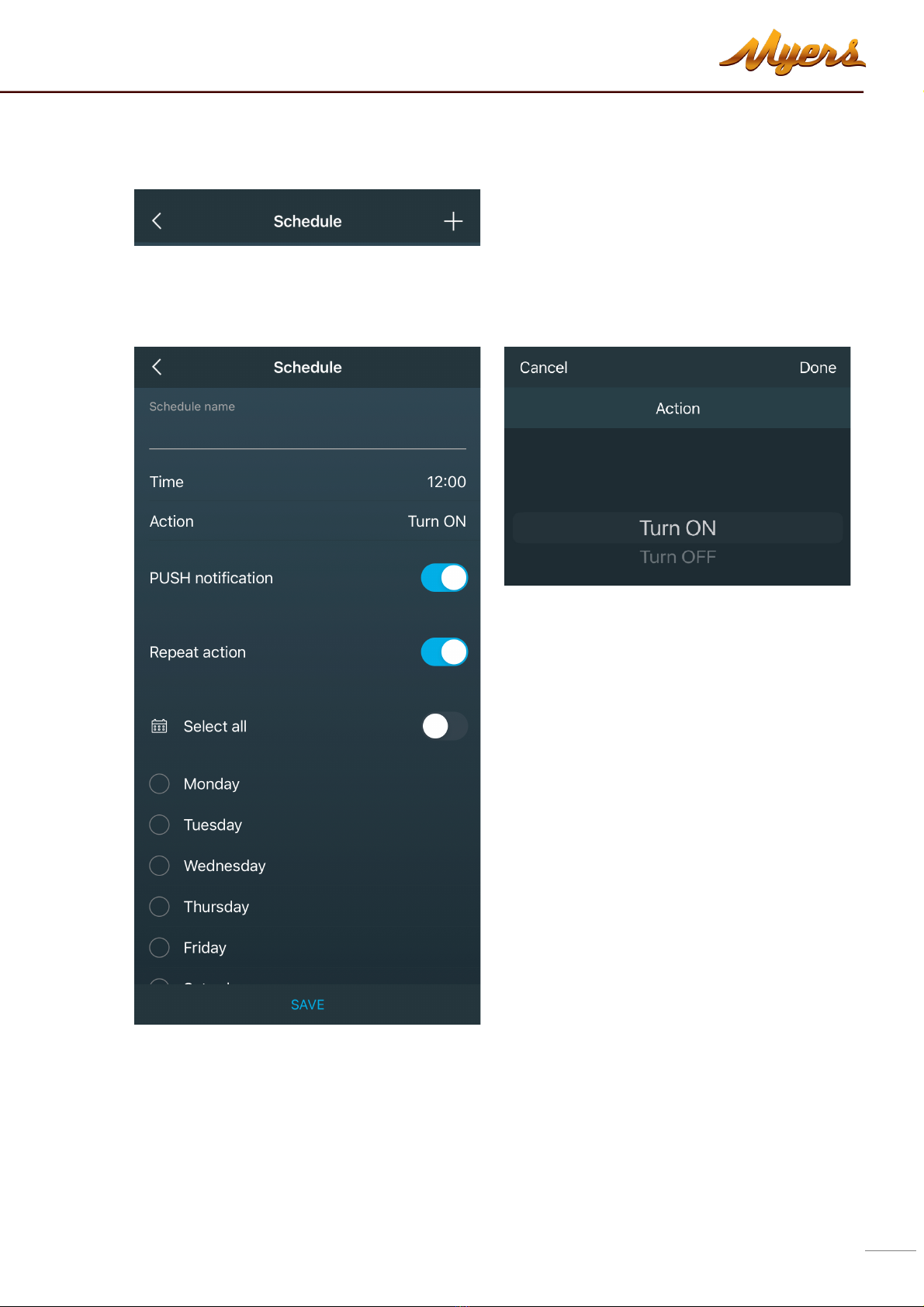

6.4 Schedule
By clicking on the “+” a menu is displayed where you can give a name to the schedule, select the
duration of the action, the action itself (Disable or Enable). You can receive notifications about the
schedule on your mobile device. The schedule can be made recurring.

16
PREMIUM SMART HOME SYSTEMS by PARTIZAN

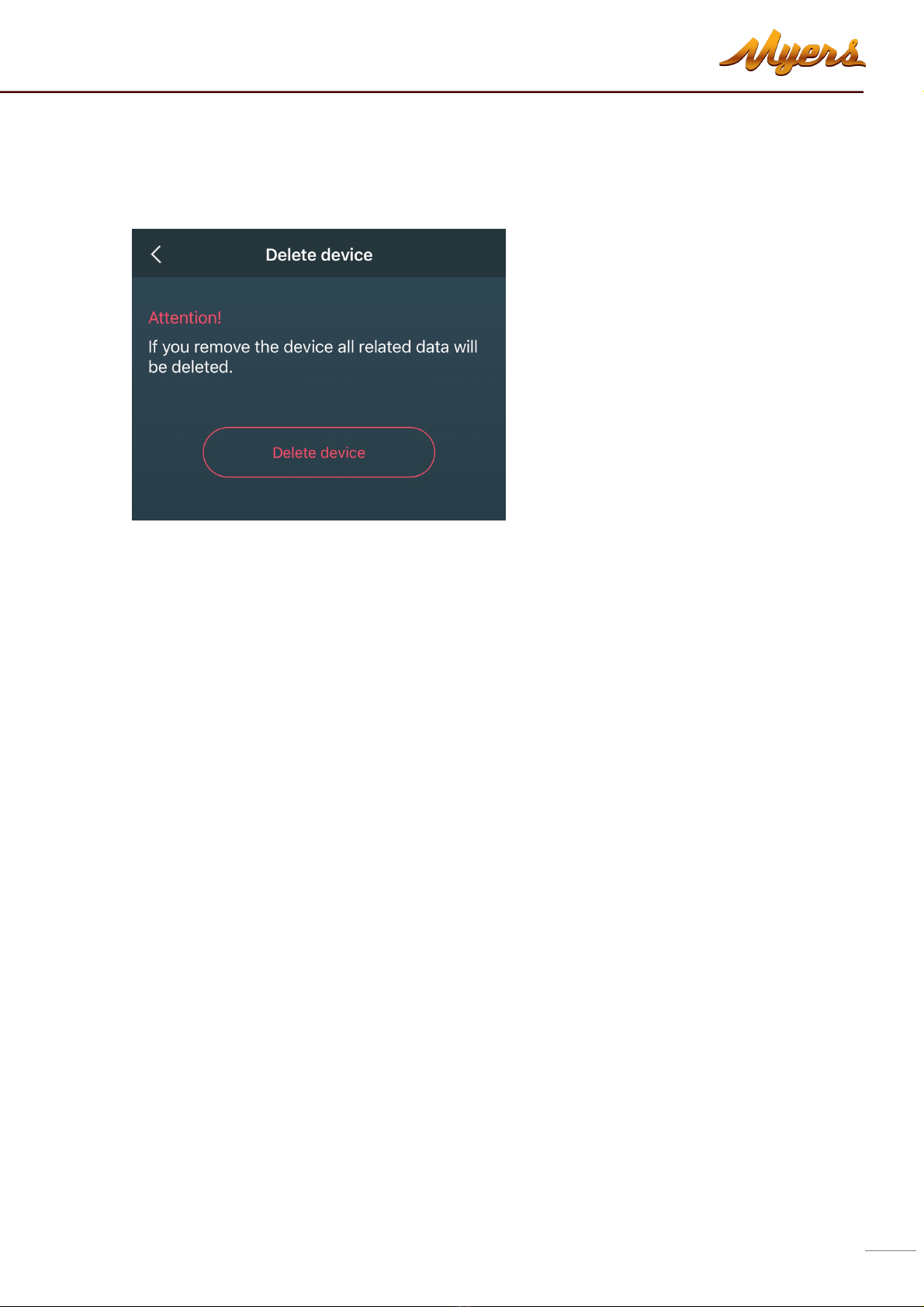

6.5 Delete device
To remove it, you must press "Delete device" button.

17
PREMIUM SMART HOME SYSTEMS by PARTIZAN
Technical support:
E-mail: [email protected]
Skype: partizan-support
Chat: [phone] (Viber, Telegram, WhatsApp)
Technical support working time:
https://partizan.global/support/technical-support
Partizan software:
https://apps.partizan.global/
