Pasontech E-Evolution E-Power F3A Areobatics Airplane User manual
Pasontech.com
Present
E-Evolution
E-Power F3A Areobatics Airplane
For Intermediate & Advanced Fliers.
SAFETY PRECAUTIONS
This radio control model is not a toy!
Fist-time builders should seek advice from people having building
Experience in order to assemble the model correctly and to produce
Its performance to full extent.
Assemble this kit only in places out of children’s reach!
Take enough safety precautions prior to operating this model.
You are responsible for this model’s assembly and safe operation!
Always keep this instruction manual ready at hand for quick
Reference, even after completing the assembly.
Notice:
By the time the Yak arrives in your shop, it will have endured several climate changes.
As a result you may find some wrinkles in the covering and wing or Fus. Part maybe
have some twisted. This is not a manufacturing defect. Please take a few moments
with your iron or heat gun to remove any wrinkles and correct all twisted parts. Iron
over all the edges to ensure they are sealed.
This Products Produce by Pasontech Hobby Company
Room J, Floor 22 Baiheyindu building Buji town Longgang district Shenzhen China
Find the Tail gear assemble parts as
show.
Cut out film as hole
Glue the four pin hinges with
Epoxy.
Install the tail gear wire in to the
gear mount.
Then bending the wire as the show.
Install the tail wheel and wheel
stopper as show.
Drill a 2mm hole into the exact
center of the rudder as marked to
accept the tail wheel wire.
Install the tail wheel wire to the
Rudder and
Glue the with Epoxy.
Install the Rudder to Fin and Fus.
Keep the Rudder and Fin top have
1mm grip .
Glue them in piece.
Drill four 1.0mm hole
Fix the tail gear with four 2X13mm
TP. Screw.
TP. Screw 2X13MM X4
find the Rudder control parts as
show.
Trim off covering film as show.
.Check the Rudder control horn in
line as the wire outlet.
Install Rudder control as show
Assemble ball link end and wire as
show
Use any tool to made the wire stopper
p
ipe tight as show.
Use some heat to made the heat sink
tube to cover wire stopper pipe as
show.
Install the ball link end with two M2
screw as show.
Use same way as Rudder Horn to
assemble Rudder servo horn as horn.
PIN hinges X8
After check the last hinges will not
stop Stab. Join. Glue Stabilizer and
Elevator together with epoxy.
Cut the last two hinges 3mm shorter
So the last hinge will not stop the
Stab. Join inside the Stab.
glue four hinges to each Elevator.
.
glue four hinges to each Elevator to
each side Stabilizer.
At the Stabilizer bottom trim off the
film servo horn slot as show.
Elevator servo bay was inside
Stabilizer and it size was stander size
servo.
Install the carbon anti roll pin as
show to each Stabilizer and glue it
together with thick CA. or epoxy.
.
Check Elevator servo horn
And Elevator horn was inline.
Install the Elevator control horn as
show.
Cut the push rob to 35mm.
Use iron to solid the push rod
connector as show .
After the push rod cool down install
the ball link end as show.
Install the Elevator control push rob
as show.
Install the carbon join to Fus. as
show .
Install each Stabilizer on lower
side of the Fus. With four M3 X
15mm screw and washer.
Important notice: Please apply
“thread locker” before you install
Stab. Screw.
Connecting the servo lead before
you install the Stabilizer.
Install each Stabilizer on upper
side of the Fus. With four M3 X
15mm screw and washer.
Important notice: Please apply
“thread locker” before you install
Stab. Screw.
Connecting the servo lead before
you install the Stabilizer.
Find the Aileron linkage set as
show.
Install aileron linkage as the
show.
Trim off the covering film as
show.
Install and Glue seven pin hinge in
to each side Aileron.
Glue them in piece with epoxy.
PIN hinge X 7
Install each side Aileron. To each
side wing panel.
Glue them in piece with epoxy
Trim off the cover film at servo bay
area under each wing panel.
Check the aileron Control horn and
servo horn in line as show.
Install aileron Control horn the show.
Cut the push rob to 45mm.
Use iron to solid the push rod
connector as show .
After the push rod cool down
install the ball link end as show.
Install aileron Control push rob as
show.
find two wing hookup plate as
show.
Install the wing mount plate from
inside wing root at both LE. And
TE.
Gluethe wing mount plate from
inside wing root at both LE. And
TE. With Epoxy.
Use M3X 15mm screw to fix the
canopy.
N
otice: please use the “O” ring and
washer to made the canopy screw
not easy to loosing .
Before you install wing panel to
fus. Trim off the cover at wing
mount slot as show.
Follow the mount plate hole to drill
a 3mm hole then remove the wing
and made hold bigger for blind nut
as show.
Install blind nut on wing mount and
use screw to made the blind nut tight
as show.
We stronger recommendedAfter
you find out the good CG. Point
for your flying style.
Reinforce your airplane with FRP.
Wing join tube and ply support.
Find the canopy and wire lock parts
as show.
Follow the slot to trim off covering
film for Fus. Side as show.
Install wire and glue wire and the
wood block in place as show.
Install the wire end cover as
show.
Important notice:
Please glue the wire end cover
before you use it. If you not
install wire cover it will cause
injury.
Find the engine mount and
template as show.
Placing engine mount template as
show.
Follow engine mount template to drill
the hole the engine or motor that you
use on the fire wall.
N
otice: “M” mark was for
YS140-160 or OS.160 .
“E” mark was for “Hacker C50 XL
motor.
After drill the engine mount hole the
engine or motor that you use on the fire
wall.
Install four blind nuts from back side o
f
fire wall.
as show.
Follow the mark to drill eight
3mm hole.
Install the motor as show.
Install the motor mount as show.
Find cowl fix parts.
Install the cowl and and made sure the
drive hub have distance for cowl end
3mm.
If you find the motor mount will touch
the cowl.
Please cut the cooling vent shorter as
shorter as show.
After you trim fit the motor mount with
the cowl drill two 4mm hole at each
side of cowl and fus. Side .
Then install two blind nut at each Fus.
Side.

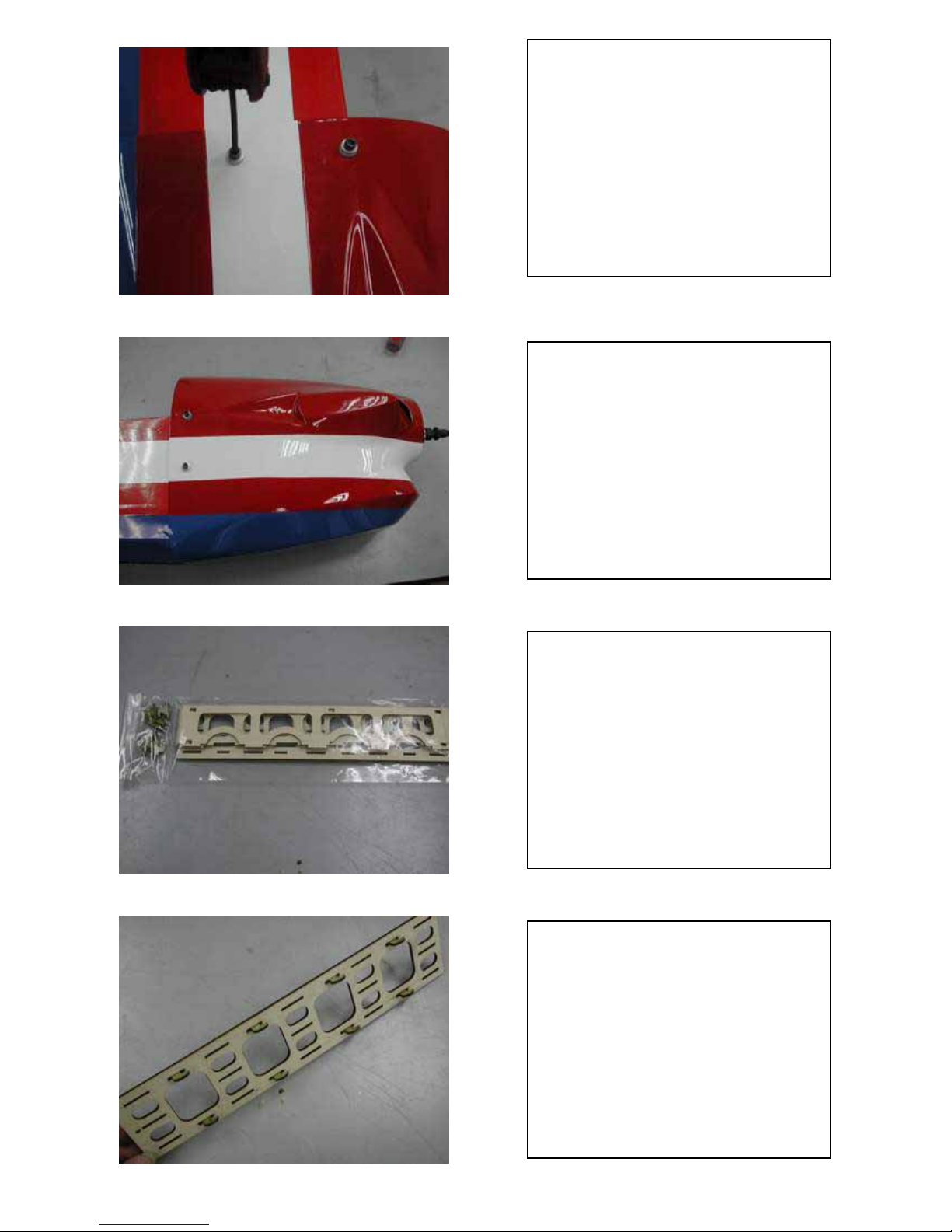

Install two “O” ring at each side of
cowl as show.
Fix the cowl with four M3 screw.
Find the battery tay as show.
Assemble FRP. Teeth as show.
N
otice: the teeth direction was forward.
Assemble battery tray as show.
Install the battery in side the battery
tray, if the are differ size you can
choice not use the center plywood.
Fix the battery with wire tight.
Trim off the film at slot area.
