Patriot Lighting 130910 Instruction manual

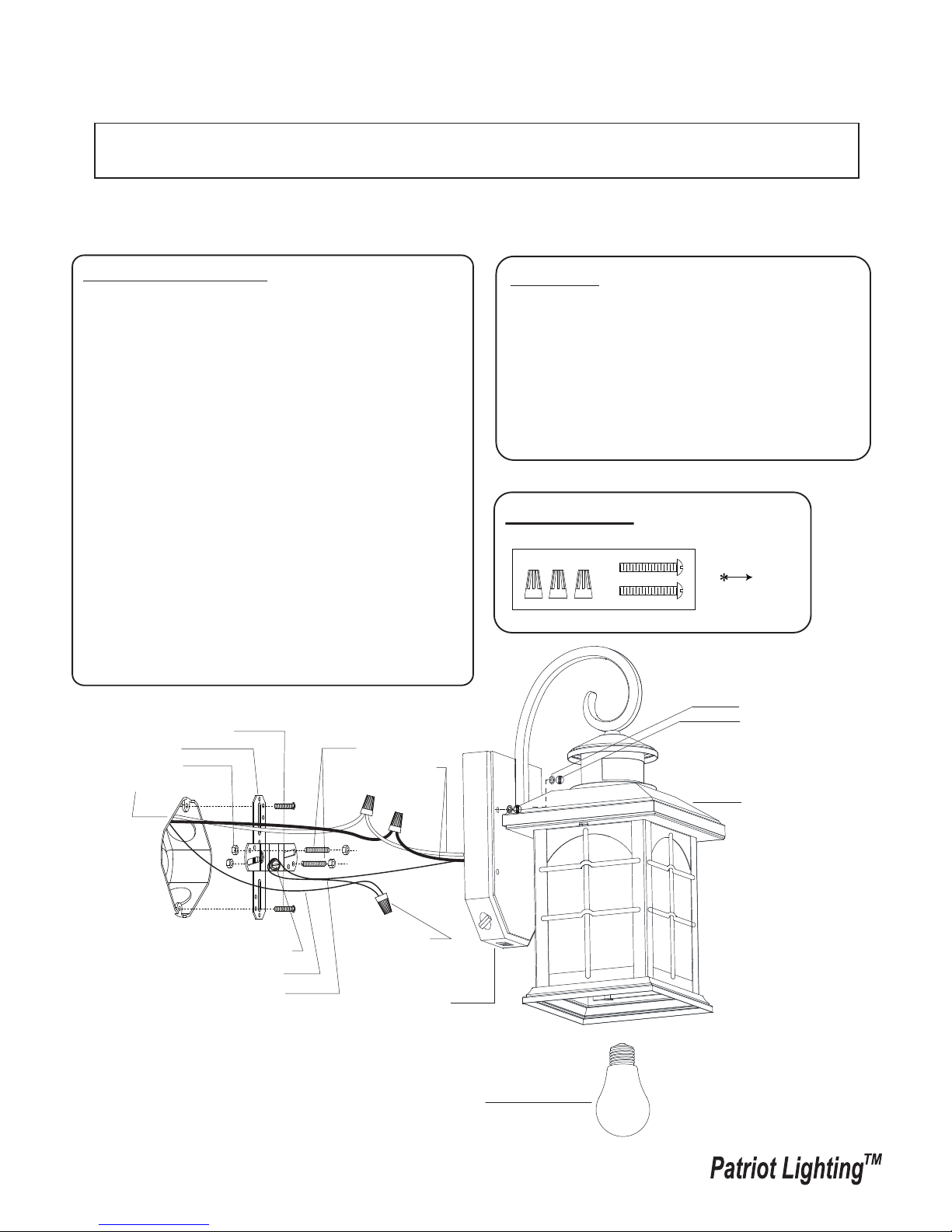

Main Fixture
Cross Bar
House Grounding Wire
Green Grounding Screw
Fixture Grounding Wire
Wire Nut
Outlet Box
Fixture Wire
Back Plate
Important to Know
1. Read all instructions carefully before installation
and operation.
2. If you are not familiar with state and local electrical
codes, it is recommended that you consult with a
qualified electrician.
3. Before installation, shut off power at the main fuse
or circuit breaker box. Be aware that simply turning
off the wall switch is not sufficient to prevent
an electrical shock.
4. This fixture requires a 120 VAC, 60 Hz power
source. Maximum wattage is 60W per socket.
5. Do not attempt to take the lantern apart; there are
no serviceable parts inside.
6. To avoid sensor damage by lighting or electrical
surge, make sure the grounding wire is
securely connected.
7. For general safety and to avoid any possible
damage to the sensor, be sure the power is
switched "off" before replacing the bulb.
Maximum Wattage: 1x60W
Mounting Screw
Headless Screw
Lock Nut
Bulb Type A Max.60W
(not included)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Customer Service: 1-800-887-6326 (weekdays 9 a.m. – 5 p.m. CST)
3. READ AND SAVE THESE INSTRUCTIONS.
356-4027
130910
Features
1. The motion be detected only at night.
2. Light will turn off automatically after motion is
no longer detected.
3. PC' Mode provides illumination from dusk
to dawn.
4. When in manual override mode, use wall
switch to keep the light ON all night long.
1 SET
Hardware Package:
Ball Nut
Rubber Pad

Installation Steps
1. Shut off power at the circuit breaker of where the fixture is to be installed.
2. Thread two headless screws through the cross bar, then secure them with four lock nuts. Adjust the length
of the headless screws if necessary.
3. Attach the cross bar to the outlet box using two mounting screws.
4. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections using the
wire nuts:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the cross bar with the green grounding screw. Then connect it to the
house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
5. Attach the back plate to the cross bar by inserting the headless screws, then secure it with rubber pads and
ball nuts.
6. With silicone caulking compound, caulk completely around where the back plate meets with the wall surface.
CAUTION: Be sure to caulk completely where the back plate meets the wall surface to prevent water
from seeping into the outlet box.
7. Install a bulb (not included). See relamping label at socket area or packaging for maximum allowed wattage.
Note: Make sure CFL bulbs are not being used with this light.
8. Turn on the power at the main fuse or circuit breaker box.
In case of damaged or missing parts, please call toll-free at 1-800-887-6326
130910
Function and Operation
MODES OF OPERATION
Choose a mode by sliding the switch on the bottom of the back plate of the fixture. (See FIG.2 on page 3)
When power is first applied, the light will turn on immediately. Wait for 15 seconds to allow the sensor to
warm up.
1. TEST mode (daytime and nighttime operation.)
The light will turn to low level brightness (30% brightness). The light will turn to high level brightness
(100% brightness) when motion is detected, and stays on as long as the motion is continuing. The
light will revert to low level brightness about 5 seconds after motion is no longer detected.
2. OFF mode (nighttime operation only; on at dusk, off at dawn)
At dusk, the sensor will turn lights on automatically when motion is detected, and stays on as long as
the motion is continuing. When the motion stops, the lights will remain on for the predetermined time
as you set (5 ~ 180 seconds), then all lights will turn off automatically.
Light will turn off automatically at dawn.
3. AUTO mode (nighttime operation only; on at dusk, off at dawn)
At dusk, the light will turn to low level brightness (30% brightness). The light will turn to high level
brightness (100% brightness) when motion is detected, and stay on as long as the motion is continuing.
When the motion stops, the light will remain on for the predetermined time as you set (5 ~ 180 seconds),
and then revert to low level brightness.
Light will turn off automatically at dawn.
Assembly Kit
(1 SET)
(4857MM)
Contents of Spare Parts:
Glass Panel
(3 PCS)
(9491CS)
Set Screw
(2 PCS)
(4857SS)

130910

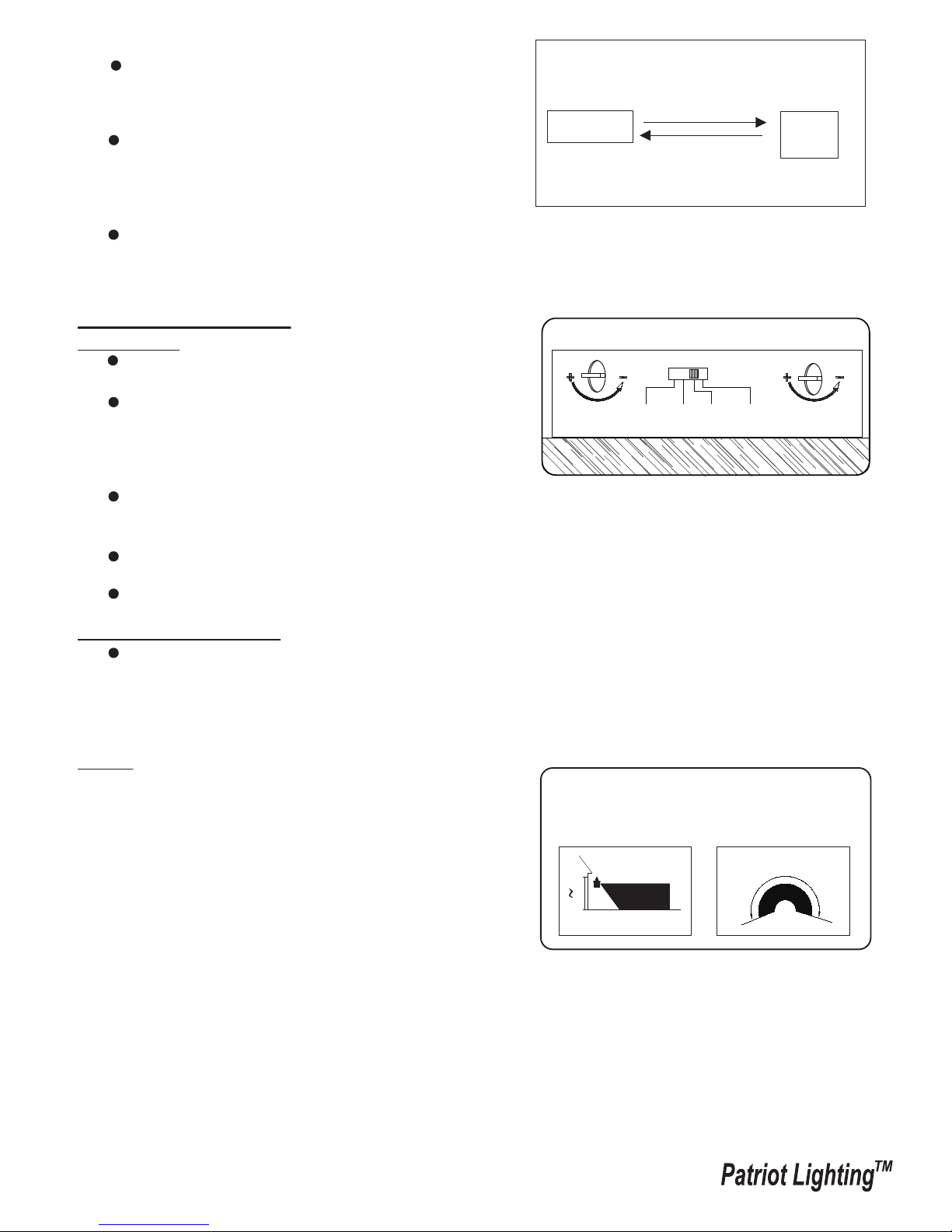

FIG.2 (View from Bottom of Backplate)
Shut-off Delay
The Shut-off delay is the length of time the light will stay
at brightness after motion has ceased to be detected.
You can set the Shut-off delay, set when operation is in
OFF Mode or AUTO Mode, by using the “TIME” knob
located on the left side of the panel at the bottom of the
back plate (See FIG.2). To increase shut-off delay, turn
the knob clockwise.
The delay may be adjusted from a minimum of 5 seconds to a maximum of 3 minutes. The light will stay
on as long as motion is detected. the light will automatically revert to low level brightness when no more
motion is detected.
In OFF Mode, the light will automatically turn off when no more motion is detected after the delay time
has passed.
In AUTO Mode, the light will automatically revert to low-level brightness when no more motion is
detected.
Sensitivity of Motion Sensor
You can adjust the sensitivity of the motion sensor by using the “SENSITIVITY” knob located on the
right side of the panel at the bottom of the back plate. To increase sensitivity, turn the knob clockwise.
To decrease sensitivity, turn the knob counterclockwise. The sensitivity may be adjusted from a
minimum of 5 feet to a maximum of 40 feet.
CUSTOMIZATION OPTIONS:
5'
8.0'
6.0'
40'
FIG.3 FIG.4
NOTE:
1. The sensitivity of the motion sensor will increase as the
environmental temperature gets cooler. You may wish to
make adjustments when the season changes temperature.
For best performance, gently clean the lens with a soft cloth
every 1 or 2 months to assure maximum sensitivity.
2. The magnitude of adjustment for sensitivity and time may
not be precisely proportionate to the amount the switch is
turned.
3. For best performance, install fixture at least 6 feet above the
ground. At such a height, the lantern will provide a detection distance of up to 40 feet at 68 degrees
Fahrenheit. (See FIG.3)
4. The sensor detects across a detection range of 220 degrees. (See FIG.4)
5. The sensor will be more sensitive to motion across its detection path than motion directly towards it.
6. To reduce possible nuisances, do not mount the fixture near a heat source like an air conditioner, vent or
furnace exhaust, or in a direction facing any reflecting object or other light source.
Where you install your lantern is important:
Be sure the light is mounted straight on the wall;
otherwise, the detection distance may be limited.
220'
4. PC mode (nighttime operation only; on at dusk, off at dawn)
The light will brighten at dusk. Light will turn off
automatically at dawn
5. Manual Override MODE (nighttime operation only)
To shift to the manual override mode, set the switch
to “OFF” or “AUTO.” mode. Turn the wall switch “OFF”,
and turn it “ON” within 3 seconds. The light will remain
on all night long. To shift back to the “OFF” or “AUTO”
mode, turn the wall switch “OFF”, and then wait over 5 seconds before switching it “ON” again.
The light will turn off automatically at dawn.
Note: To make sure the above functions operate properly, always keep the wall switch in the “ON” position
(including the daytime).
“Auto” or “OFF”
Mode
Manual
Override
Mode
Manual Override Operation Diagram
Turn wall switch OFF-ON
in 0.5~3 Seconds
Turn wall switch OFF over
5 Seconds and then turn
ON again
FIG.1
(Exterior Wall)
TIME
TEST OFF AUTO PC'
SENSITIVITY

130910
5-YEAR LIMITED WARRANTY:
This Patriot Lighting fixture carries a limited warranty against defects in material or workmanship. If the Patriot Lighting
product fails at any time within five (5) years after the original date of sale due to defects in material or workmanship,
return the product to Menards with the original sales receipt. At its discretion, Patriot Lighting will replace the defective
fixture with the same or similar fixture or issue a refund. This warranty and any implied warranty (including but not limited
to any implied warranty of merchantability or fitness for a particular purpose) does not cover glass globes, light bulbs and
other expendable items. This warranty excludes coverage of finish or color against tarnishing, flaking, and discoloration.
If the original purchaser ceases to own the Patriot Lighting product this warranty and any implied warranty will be void.
This warranty does not cover damage caused by misuse or abuse, including but not limited to improper installation,
improper usage, accident, negligence, unauthorized repair, unauthorized modifications, or unauthorized maintenance of
the fixture. This warranty does not include reimbursement for inconvenience, installation, setup time, returned shipping
charges or defects, losses, labor, injuries to personal property.
This warranty gives the consumer specific legal rights, and the consumer may have other rights which vary from state to
state. The seller’s employees are not qualified to advise on the use of the the fixture. Any oral representations made will
not be binding on seller or its employees.
For questions regarding this product, call toll-free at 1-800-887-6326.
Troubleshooting
---If the light doesn't work in Test Mode:
1. Make sure the slide switch is at the TEST position (when in day time)
2. Adjust the sensitivity knob in clockwise toward maximum.
---If the light does not come at all:
1. Make sure the wall switch and circuit breaker are on.
2. Make sure the wiring is correct.
3. Cover the sensor with your palm to verify the ambient light level is not too high.
---If the light stays on continuously:
1. Make sure the light is not in Manual Override Mode.
2. Make sure there is no movement to be detected by the sensor.
3. Adjust the time knob in counterclockwise to reduce the delay shut-off time.
---If the light blinks:
1. Make sure the light is not mounted near a barbecue, air conditioner or other heat source.
2. Adjust the sensitivity knob counterclockwise to avoid unintentional triggering of the sensor due to activities
like passing cars or reflecting objects.
