User Manual
12V 8,000mAh Jump-Starter/Charger
ITEM #50170058

1

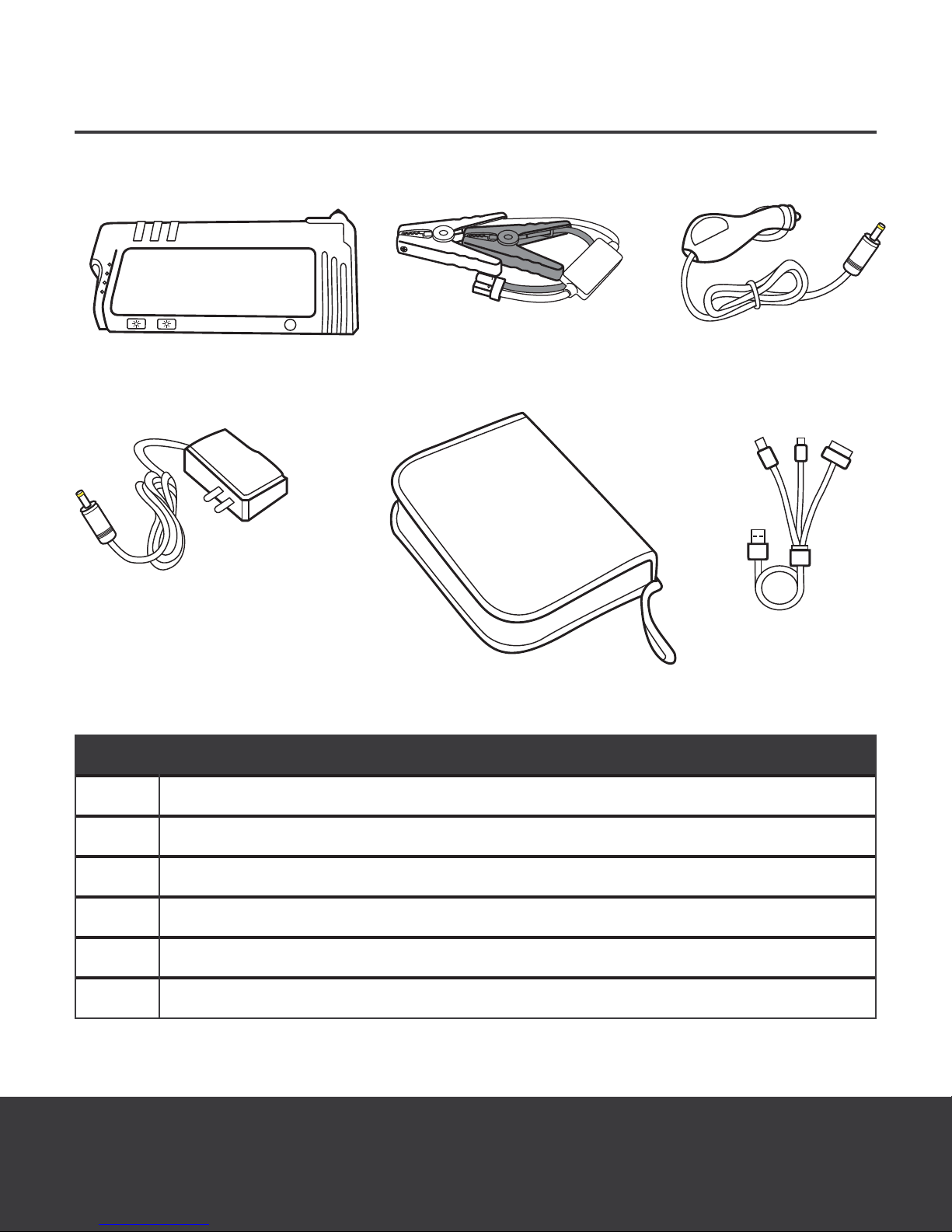

PRODUCT CONTENTS
Part Description
A Patriot Power Hub
B Jumper cables with fuse
C DC car charger
D AC charger
E Storage pouch
F Universal cell phone charger with three outputs
A
ED
B C
F

2
SAFETY INFORMATION
PLEASE read this entire manual before attempting to use this product.
1. Avoid dangerous environments. Do not charge this item in rain, snow or damp
or wet locations. Do not use this item or charger in the presence of explosive
atmospheres (gaseous fumes, dust or ammable materials) because sparks may
be generated when charging or discharging this item, possibly causing re.
2. Charge in a well-ventilated area. Do not allow smoking or open ames near a
charging battery. Vented gases may explode.
3. Do not burn or incinerate this item. This item may explode, causing personal
injury or damage. Toxic fumes and materials are created when batteries are
burned.
4. Do not crush, drop or damage this item. Do not use this item if it has received a
sharp blow or has been dropped, run over or damaged in any way (e.g., pierced
with a nail, hit with a car, etc.).
5. Do not disassemble. There are no serviceable parts. Disassembly increases the
risk of electric shock, re and exposure to battery chemicals that may cause
personal injury or damage.
6. Battery chemicals cause serious burns. Never allow battery chemicals into
contact with skin, eyes or mouth. If this item leaks battery chemicals, wear
rubber or neoprene gloves while disposing of the leaked chemicals. If skin is
exposed to battery uids, wash with soap and water and rinse with vinegar.
If eyes are exposed to battery chemicals, immediately ush with water for 20
minutes and seek medical attention. Remove and dispose of contaminated
clothing. Do not inhale vented battery fumes or smoke.
7. Do not short-circuit. This item will short-circuit if a metal object makes
connection to the AC or DC output ports. Do not place this item near anything
that may cause a short circuit, such as coins, keys or nails. A short-circuited
battery may cause re and personal injury.
8. Never charge or jump-start a frozen battery.
9. Store this item in a cool, dry place. Do not store this unit for more than 10 days
in an environment where temperatures may exceed 120 °F (49 °C), such as
direct sunlight, a vehicle or a metal building during the summer. Doing so may
cause damage to the unit.
10. This product is not intended for commercial applications.

3
TECHNICAL SPECIFICATIONS
CHARGING TIMES:
110V AC wall charger: 2.5 hours
12V car charger: 4.5 hours
BATTERY SPECIFICATIONS:
Cell technology: Lithium polymer
Cell capacity: 8,000mAh
Peak current: 320A
Life cycles: 500
Shelf life: 3–6 months; long-term storage
at 50% capacity and recharging every 3
months recommended
LIGHT:
LED lantern output: 130+ lumens
LED ashing output: 130+ lumens
OUTPUT PORTS:
Vehicle jump-starter: 12V, up to 400A
USB: 5.2V, up to 2.1A
INPUT CHARGING PORTS:
AC: 15V, up to 1A
DC: 12V, up to 1.5A
GENERAL:
Weight: 10.8 oz (308 g)
Dimensions: 7.3 x 3.8 x 1.3 in
(185 x 96 x 33 mm)
Operating usage temperature:
-4–185 °F (-20–85 °C)
A1
A7
A5
A6
A3A2
A9
Part Description
A1 Power/light button
A2 LED lantern/emergency ashing beacon
A3 Emergency beacon power button
A4 AC/DC charging input
A4
A8
A5 Magnetic base
A6 Emergency glass-breaking hammer end
A7 DC/12V jumper cables output
A8 Charge indicator lights (4 blue LEDs)
A9 USB output

4
OPERATING INSTRUCTIONS
CHARGE INDICATOR LIGHTS:
1. Press light button (see A1) quickly (for
0.5 seconds) to check battery charge
level. The number of continuously
lit blue LEDs (see A8) indicates the
charge level.
2. When the unit is charging, the
indicator lights will ash in sequence.
3. The entire unit, including the indicator
lights, will shut off automatically after
30 seconds of inactivity.
LED EMERGENCY BEACON & LANTERN:
1. To activate the ashing emergency warning beacon
(see A2), lightly press the emergency beacon power
button (see A3). To deactivate it, lightly press the
button a second time.
2. To activate the lantern, press the light button twice
quickly (for 0.5 seconds each) if the unit is turned
off and once quickly (for 0.5 seconds) if the unit is
turned on.

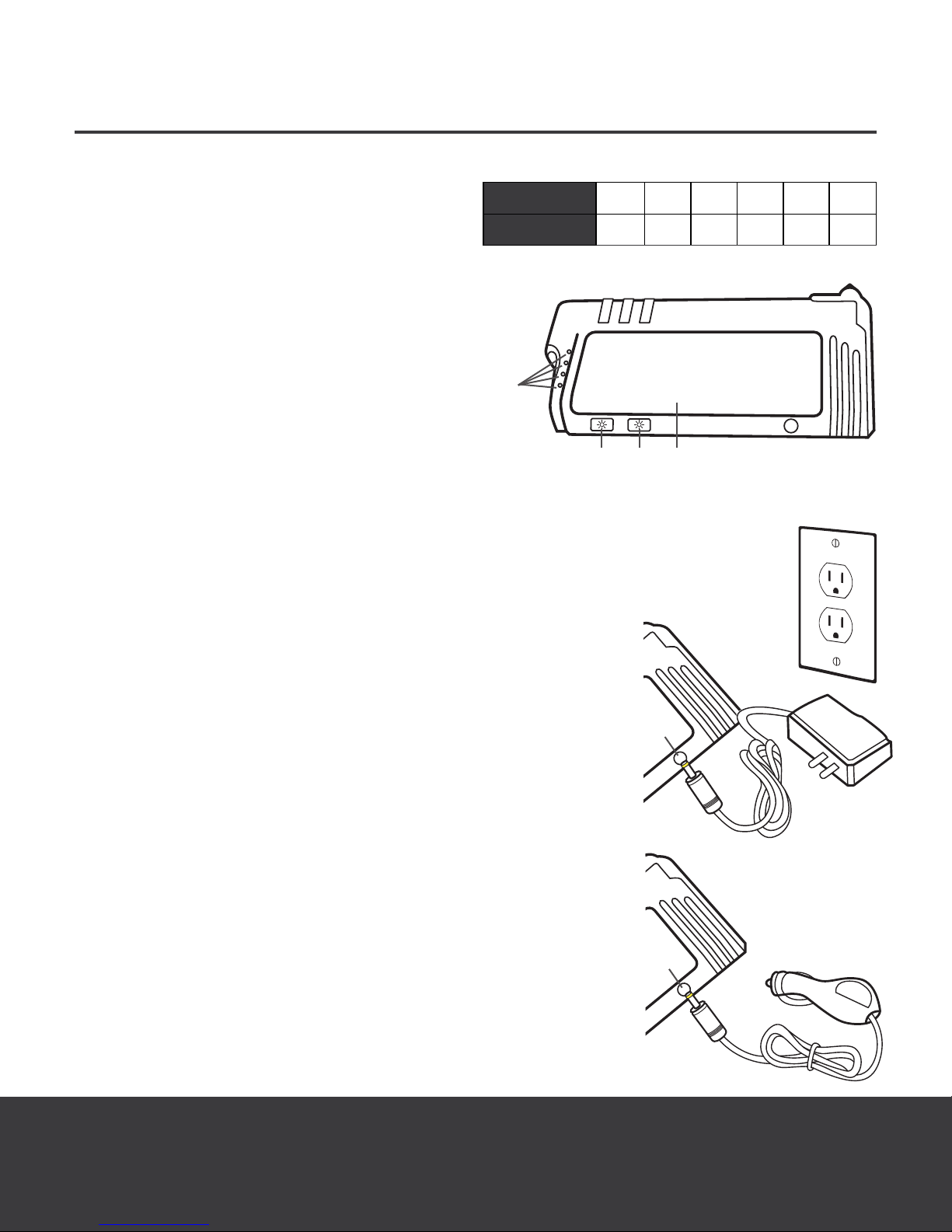

CHARGING THE BATTERY — 110V AC CHARGER:
To charge the Patriot Power Hub, connect the AC
charger plug (see D) to the Patriot Power Hub charging
input (see A4). Then plug the AC charger into any wall
outlet. The blue charge-indicator LEDs will ash. Once
all four blue LEDs are continuously lit, the Patriot Power
Hub is fully charged.
CHARGING THE BATTERY — 12V CAR CHARGER:
To charge the Patriot Power Hub, connect the DC car
charger (see C) to the charging input (see A4). Then
plug the DC car charger into any 12V cigarette lighter
outlet. The blue charge-indicator LEDs will ash. Once
all four blue LEDs are continuously lit, the Patriot Power
Hub is fully charged.
A8
Indicator Lights 011 2 3 4
Battery Charge 0% <25% 25% 50% 75% 100%
FLASHING
*
* Approaching auto shut-off
D
C
A4
A1 A3 A2
A4

5
OPERATING INSTRUCTIONS (CONT.)
JUMP-STARTING A VEHICLE’S BATTERY:
1. Press light button (see A1) quickly (for 0.5 seconds) to turn the Patriot Power
Hub on. For safe operation, please make sure that the blue LEDs indicate at
least a 75 percent charge.
2. Before proceeding to jump-start your battery, please make sure that you clean
both the positive and negative terminals on your vehicle’s battery for the best
connection possible. (Do not wipe your hand on your clothes afterward; battery
acid residue may damage your clothing.)
3. Before proceeding to jump-start your battery, please make sure to correctly
identify both positive and negative terminals and their position in relation to your
jumper cables. (Always remember RED = POSITIVE and BLACK = NEGATIVE.)
4. Plug the jumper cables (see B) into your Patriot Power Hub jumper-cable output
port (see A7).
5. Connect your jumper cables to your vehicle’s battery by FIRST connecting
the (+) POSITIVE/RED cable clamp onto your vehicle’s (+) POSITIVE battery
terminal and THEN connecting the (-) NEGATIVE/BLACK cable clamp onto
your vehicle’s (-) NEGATIVE battery terminal.
6. Start the vehicle.
7. Immediately disconnect the Patriot Power Hub. The Patriot Power Hub will
automatically turn off 30 seconds after the load is removed.
A1
A7
B
NEGATIVE/
BLACK
POSITIVE/
RED

6
OPERATING INSTRUCTIONS (CONT.)
WARNING
DO NOT crank the engine for longer than four seconds. This can cause damage to
the Patriot Power Hub or the vehicle’s battery. If the engine fails to start after four
seconds of continuous cranking, remove the jumper cable clamps from the vehicle’s
battery and wait two minutes before reconnecting and trying again. If you reconnect
too soon, this may cause the Patriot Power Hub and cables to become very warm
and the Patriot Power Hub to not operate.
CAUTION: Cranking the engine more than six consecutive times can cause the
Patriot Power Hub to become very warm and possibly damage the Patriot Power
Hub. Please handle with care and follow all safety instructions.
NOTE: If the engine does not crank or start, there may be a problem other than a
discharged battery. Call your local mechanic for service. The effectiveness of the
Patriot Power Hub will vary based on engine size and the age of the vehicle. The
Patriot Power Hub is not approved for charging electric cars.

7
A9
A8
OPERATING INSTRUCTIONS (CONT.)

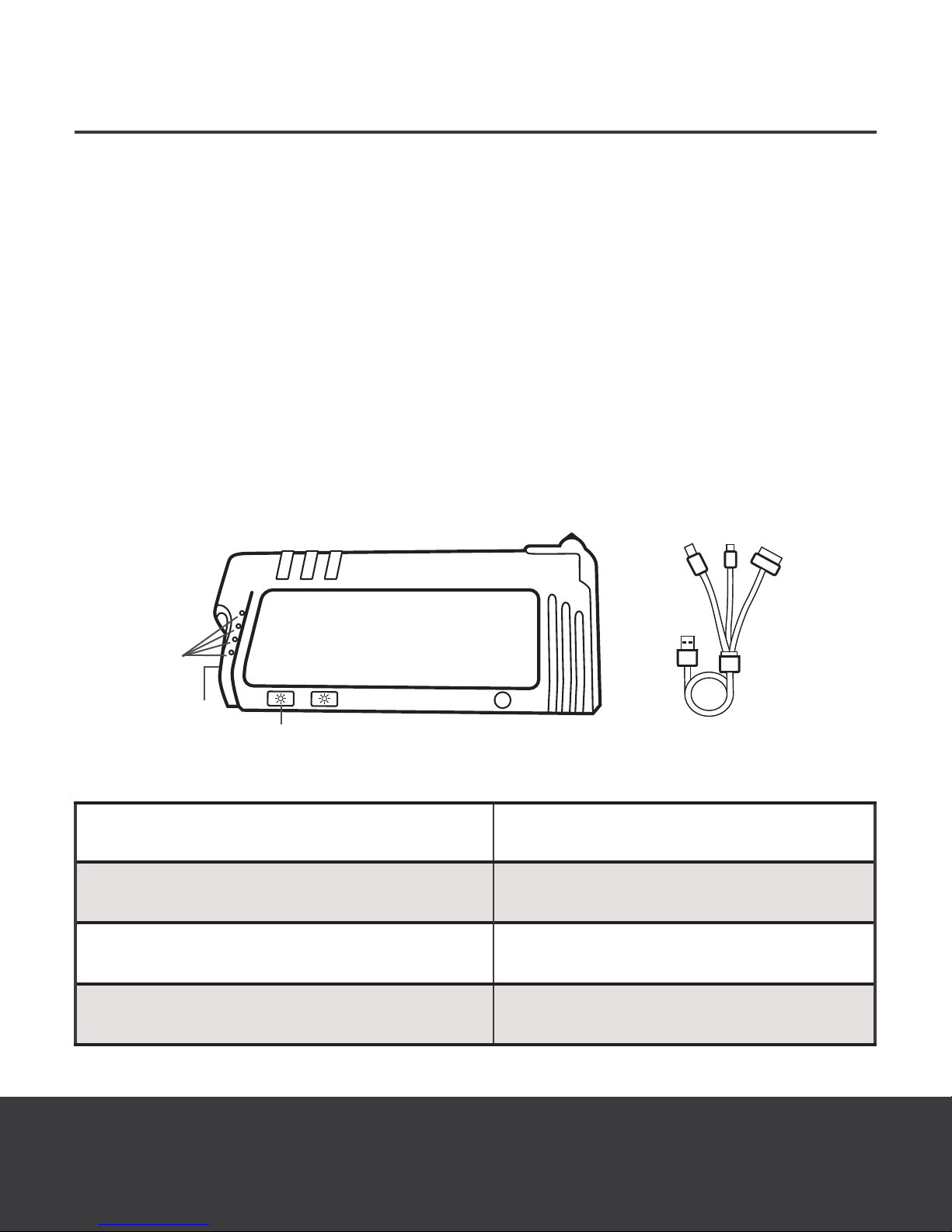

CHARGING USB DEVICES (PHONES, MUSIC PLAYERS, TABLETS):
1. Press the light button (see A1) quickly (for 0.5 seconds) to turn the Patriot Power
Hub on.
2. Make sure the Patriot Power Hub has a charge. NOTE: At least two of the LEDs
(see A8) should be continuously lit indicating a 50 percent charge.
3. Plug the USB cable of your USB device into the Patriot Power Hub’s USB output
(see A9). Alternatively, use one of the USB cables provided with your Patriot
Power Hub to charge compatible devices (see F).
4. When the desired charge level for your device is reached, disconnect the device
from the Patriot Power Hub.
5. The Patriot Power Hub will turn off automatically 30 seconds after you remove the
load.
A1
F
Time to full charge via AC plug Approx. 2.5 hrs
Time to full charge via DC plug Approx. 4.5 hrs
Run time with light only Approx. 12–14 hrs
Charge time for phone Approx. 2.5–3 hrs (varies by phone)

8
OPERATING INSTRUCTIONS (CONT.)

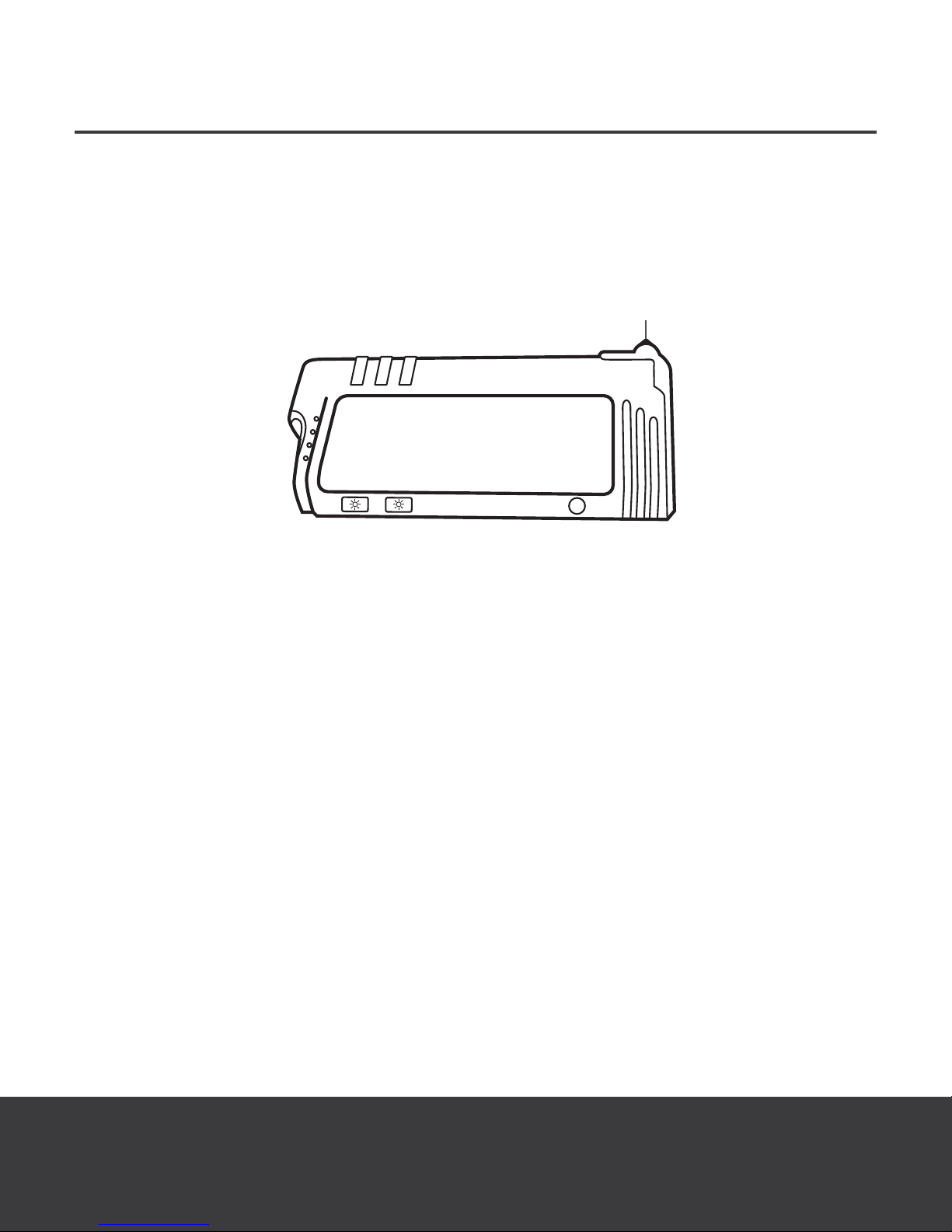

USING THE GLASS-BREAKING HAMMER:
During an accident, doors or windows may become jammed or inaccessible. The
glass-breaking hammer (see A6) on the Patriot Power Hub can help you escape
to safety when trapped in a vehicle or help you get back into your vehicle to help
others or retrieve important items.
USAGE INSTRUCTIONS:
1. Carefully remove the safety cover of the hammer on the end of the Patriot Power
Hub so the glass-breaking end is exposed.
2. Select a side window to break open. Before breaking the glass, shield your eyes
and face from the chosen window as best you can and instruct others to do the
same.
3. Smash the chosen window by swinging the Patriot Power Hub overhand, as you
would swing a household hammer. One or two strikes should shatter the glass.
4. Use the Patriot Power Hub to scrape the window edges clear of any remaining
glass.
5. Carefully exit or enter the vehicle.
IMPORTANT:
Use the glass-breaking hammer only in an emergency escape situation. The
effectiveness of the blade is guaranteed for one use only. The customer assumes all
risks associated with additional uses.
A6

9
CARE AND MAINTENANCE
1. Store the Patriot Power Hub within easy reach of both front-seat passengers.
2. Recharging after every use is recommended. This reduces your risk of being
stranded with little to no charge left in the Patriot Power Hub.
3. Keep the Patriot Power Hub and all components clean at all times.
4. Do not immerse the Patriot Power Hub in water or any other uids.
5. Wipe off debris using a soft cloth moistened with water only. Do not use any
cleaning solutions or solvents.
6. NEVER disassemble the Patriot Power Hub. The Patriot Power Hub has no
serviceable parts and must be repaired by an authorized service center.
TROUBLESHOOTING
PROBLEM CAUSE ACTION
The Patriot
Power Hub
USB/12V
devices will
not charge.
The Patriot Power
Hub has insufcient
charge.
Charge the Patriot Power Hub.
The Patriot
Power Hub
does not
jump-start
a vehicle’s
battery.
The Patriot Power
Hub may not have a
sufcient charge.
The jumper cables
are not properly
connected.
The cables may be
damaged.
Your vehicle may have
another problem.
Make sure the jumper cable clamps
are correctly connected to the
corresponding battery terminals and
that the battery has a full charge.
Inspect your cables. If the fuse
part of the cable looks damaged or
warped, discontinue use and call the
4Patriots Customer Service team to
purchase a new cable.
Speak with an Auto Mechanic for
further vehicle troubleshooting.
OR
OR
OR
OR
OR

10
WARRANTY INFORMATION
WARRANTY DURATION:
This product is warranted to the original purchaser from the original purchase date
for one year subject to the warranty coverage described herein. If this product is
used for commercial or industrial purposes, the warranty is limited to 90 days from
the date of purchase.
WARRANTY COVERAGE:
This product is warranted by Lion Energy, LLC (referred to hereinafter as Lion
Energy), 825 E. 800 N., Orem, UT 84097, to be free from defects in materials and
workmanship.
The warranty is void under the following conditions:
• Damages resulting from unauthorized repairs or alterations to the original product.
• Improper use of unit or any other failure to operate this product in accordance
with the instructions provided in this owner’s manual.
WARRANTY PERFORMANCE:
During the above described warranty period, should your product exhibit a defect
in materials or workmanship, such defect will be repaired or replaced by the
manufacturer.
WARRANTY DISCLAIMER:
No warranty, oral or written, other than the above warranty is made with regard
to this product. No implied warranties of manufacturer regarding this product,
including but not limited to the implied warranties or merchantability and tness for
a particular purpose, are limited in duration to the warranty period described above.
Manufacturer shall not be liable for loss of this product or any other incidental or
consequential costs, expenses or damages incurred by the purchaser.

Customer Service: 1-800-680-8504
Monday-Friday, 8:00 A.M. - 7:00 P.M.
Saturday, 10:00 A.M. - 4:00 P.M. CST
User Manual
12V 8,000mAh Jump-Starter/Charger
PART #50170065
