PAX SK600 User manual

SK600 Smart Kiosk
Note: Product images shown may be different than actual product received
PAX TECHNOLOGY LIMITED

1、ContentsChecklist
Please check the components after unpacking. If any are missing, please contact the dealer.
Part
Qty
SK600 Smart Kiosk
1
SK600 Wall Bracket
1
Printer Key
2
Thermal Paper Roll
1
M4-12 Combination Screw
2
Expansion Screw
6
Plastic Packaging
1
Power Cable
1
Telephone Handle (optional)
1
Product Manual
1

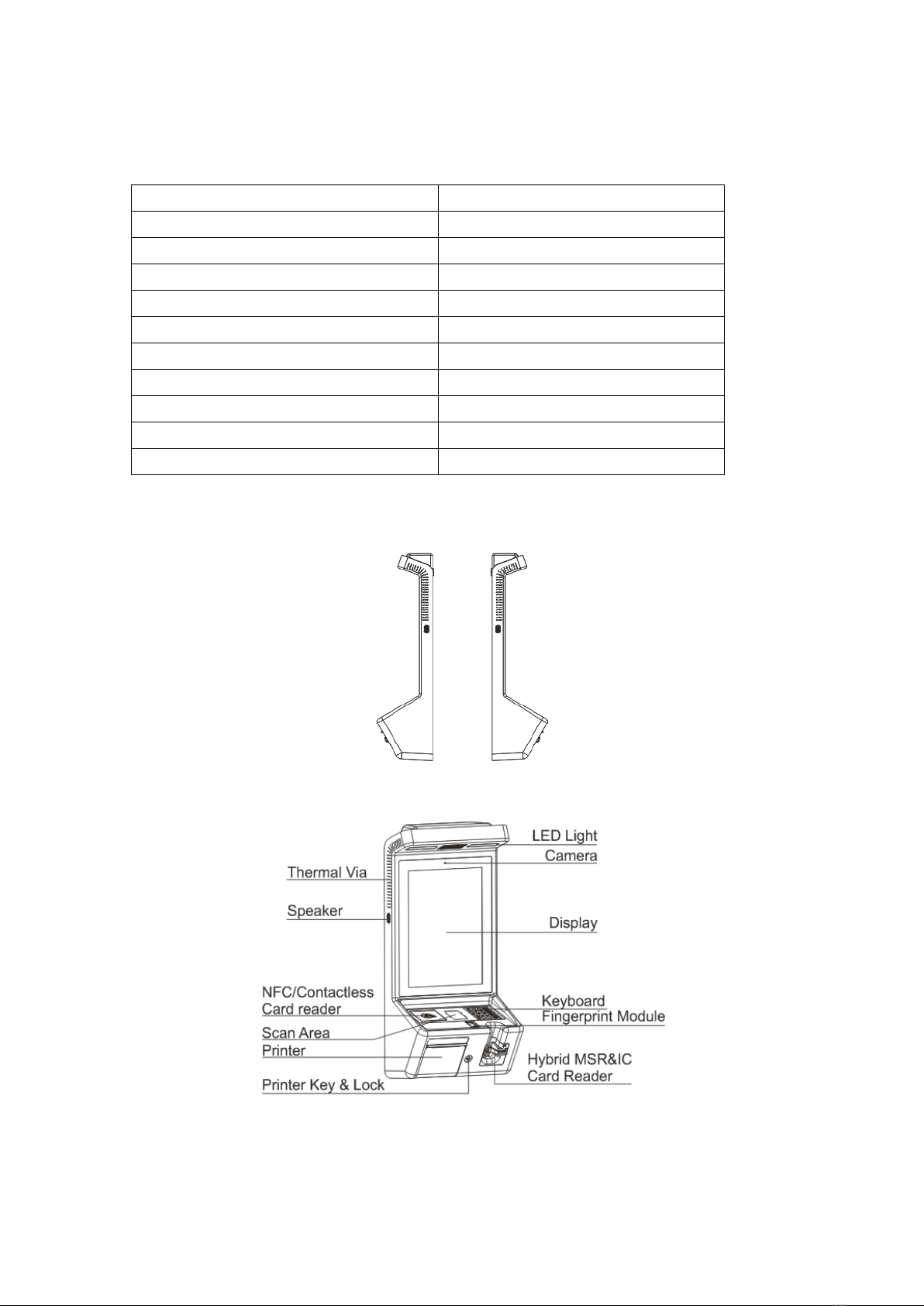

2、Product Description
Side View
Front View
Thermal Via，Speaker，NFC/Contactless Card reader，Scan Area，Printer，Printer Key & Lock，
LED Light，Camera，Display，Keyboard，Fingerprint Module，Hybrid MSR&IC Card Reader

Interface Diagram
Power Port，Power Button，D89 Serial，SD Card Slot，HDMI Port，RS485 Port，Micro USB，
SIM Card Slot，Ethernet Port
3、Operating Instruction
·Power on: Plug in the AC power cable and turn on the power button.
·Contactless module indicator: Light indication when using the Contactless module.
·LED working indicator: Light indication when the device is working at night.
·Card Readers:
Magnetic stripe card:
Insert magnetic stripe card into card slot and push to the end with magnetic stripe facing
down, then pull out the card at a constant speed to swipe card.
IC chip card:
Insert card with IC chip facing up, then push it to the end of the card slot. Keep the card
inserted for 2~4 seconds until the display prompts to remove the card.
Contactless card:
Place the contactless card at the center of contactless card reader logo area.
4、Specifications
Operating System: Android 6.0
CPU: Quad-Core Cortex A17, 1.8GHz
Memory: 2GB RAM+16GB Flash
Display: 15-inch, Resolution1024 x 768 pixels, multi-touch Anti-Vandalism capacitive screen
Printer: 3 inch high-speed / mute thermal printer with auto cutter, printer speed: 150mm/S,
Printer module is replaceable
Audio: Built-in speaker, support telephone handle (optional)
Camera: 5-mega pixels auto-focus front camera
Fingerprint Module: Capacitive Fingerprint, Image collection 256 * 360 pix (optional)
Wireless communication: LAN(10M/100M/1000M), WIFI(2.4GHz&5GHz), Bluetooth(4.0),
3G/4G
Positioning: GPS, GLONASS, Galileo, QZSS, SBAS
Card Slots:

Micro SIM card slot x 1
Micro SD card slot(Support maximum of 128GB) x 1
Peripheral Ports:
RJ45 (LAN)x1
RS232 (DB9)x1
RS485 Half-duplex (RJ-11)x1
HDMIPort(1.4)x1
Power Portx1
Micro USBx1
Note：RJ11 is the RS485 signal, which will not be connected to the public network and is only
used for data transmission of the same interface device
Card Readers: 2-in-1 magnetic stripe card / IC card reader; Contactless card reader
Magnetic Stripe Card Reader: Complied to the standards of ISO7811 and ISO7812
IC Card Reader:Complied to the standards of ISO7816, EMV2000 L1&L2, PBOC3.0
NFC/Contactless card reader: Complied to the standards of ISO14443 Type A&B
Working Environment Temperature: 0℃～50℃(32℉～122℉)
R.H.: 10%～93%( non-condense)
Storage Environment Temperature:-20℃～70℃(-4℉～158℉)
R.H.:5％～95％(non-condense)
5、Load Printer Paper

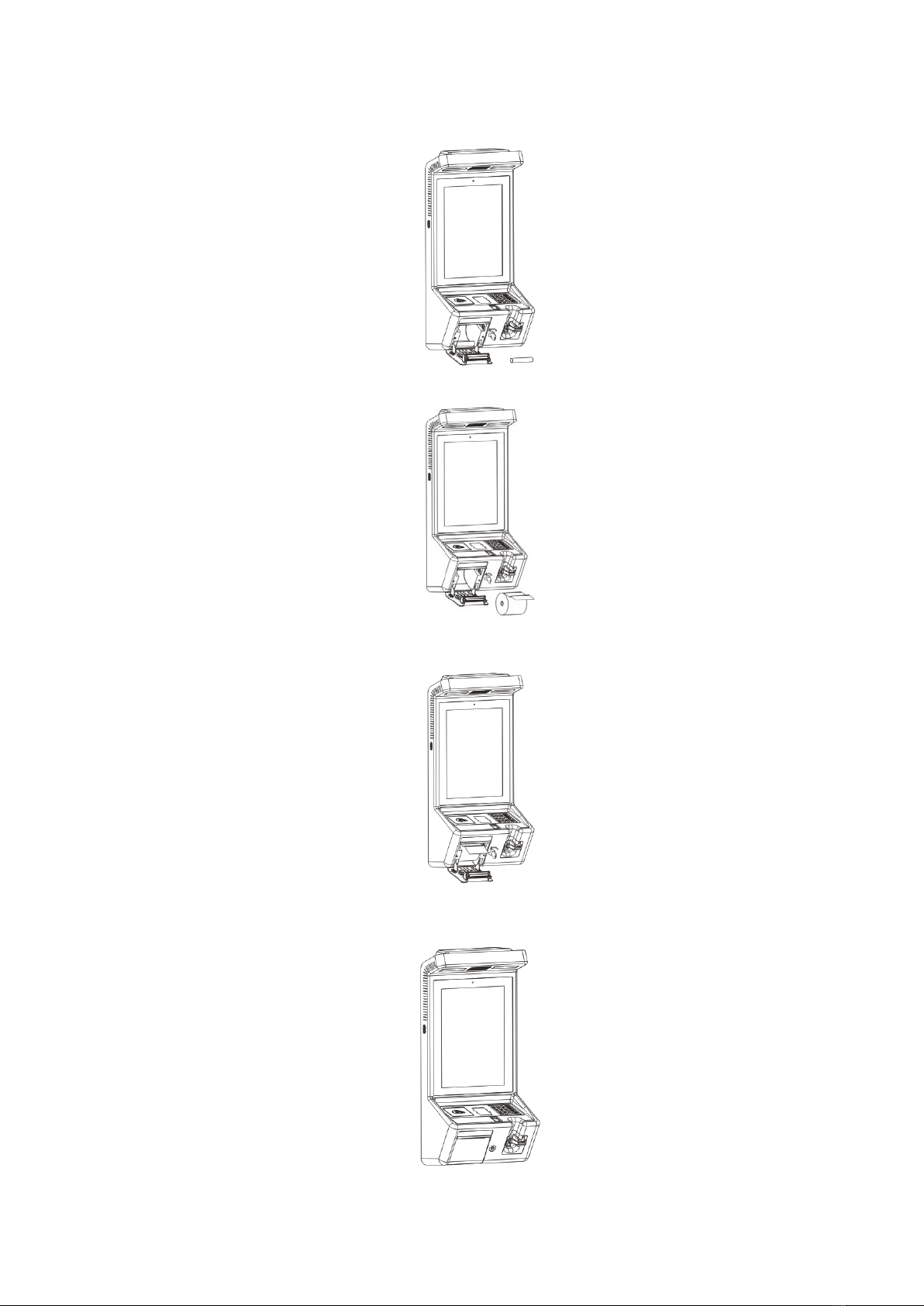

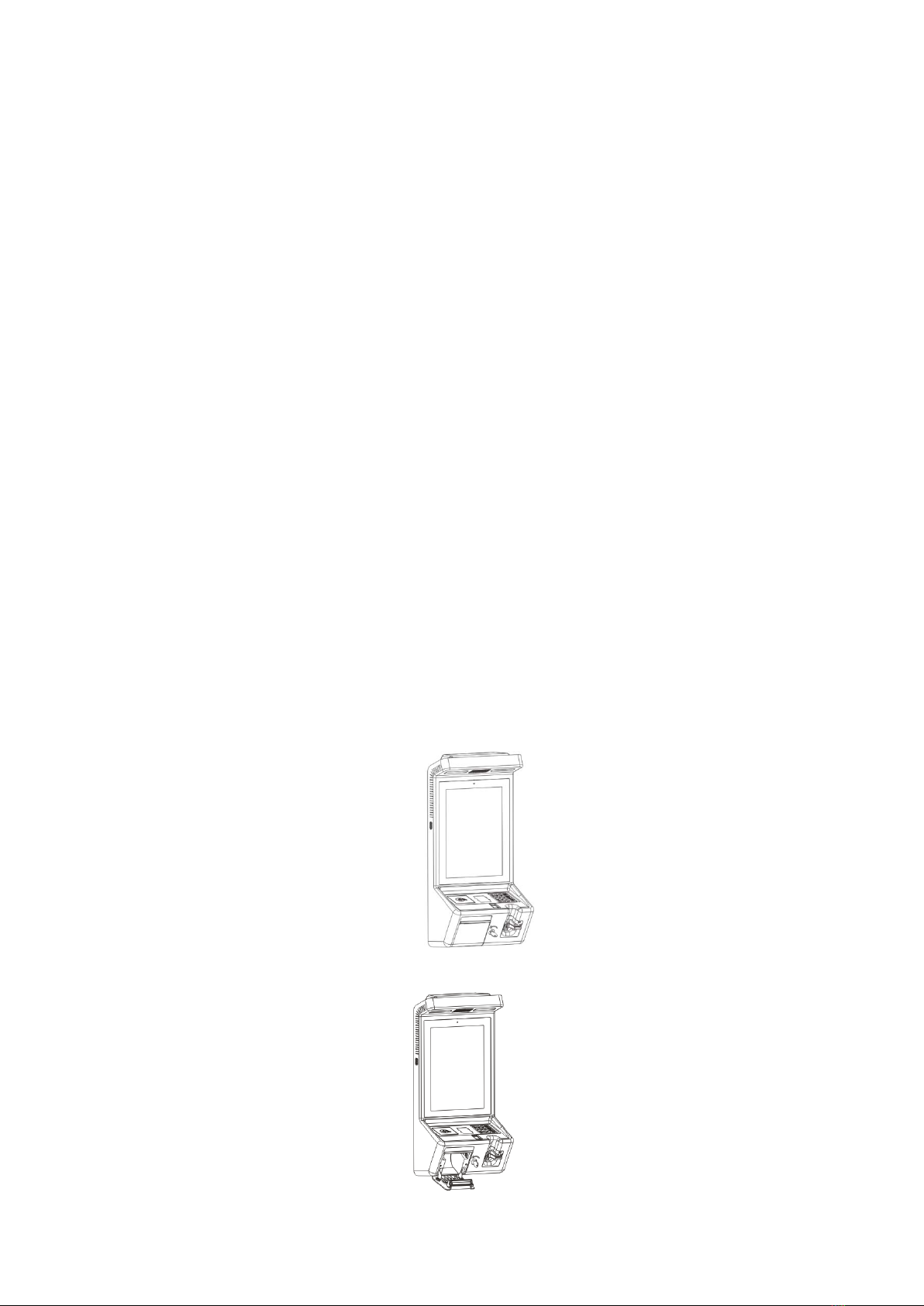

1. When the display shows that the paper has run out, insert the key into the keyhole and
turn it counterclockwise to open the printer cover.
2. Completely open the printer cover.

3. Remove the remaining paper roll.
4. Insert the new paper roll into the printer.
5. Pull out the end of the paper so that it extends past the cutting blade, Make sure the
paper roll is placed in the direction as shown in the figure below.
6.Close the printer cover, and pull out the key. Printer will automatically cut off the extra
paper, the paper is changed successfully.

6、Install introduction

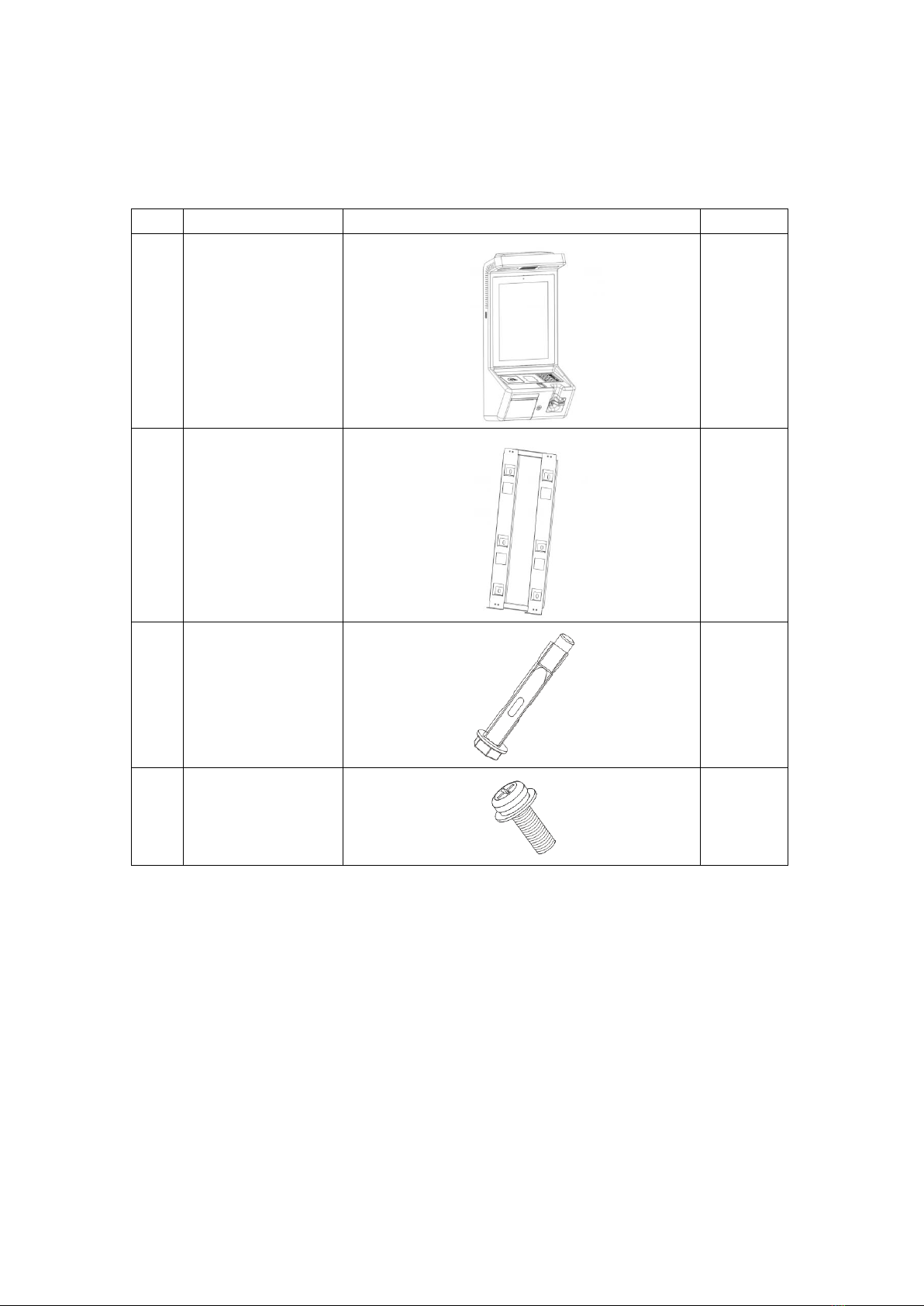

Installation List
No.
Part
Qty/pcs
1 SK600Kiosk 1
2 Wall Bracket 1
3
M6-60
Expansion Screw
6
4
M4-12
Combination Screw
2
Installation Steps
1. Use 6pcs expansion screws to fix the bracket on the wall.
• Use an 8.0 mm diameter drill bit to drill holes in the wall according to the position of the
bracket fixing hole. The le size is shown in the figurebelow:
• Note: Hole diameter is 8.0mm, Hole depth is above 60.0mm.

2.Use the 4pcs hooks on the back of the device to hang the whole device on the wall bracket.
3. Use 2pcs M4-12 combination 3screws to attach the machine to the wall bracket at the
bottom of the machine.
4. The device installation is completed.
7、Installation and Usage Tips
1) There is no built-in battery, and the device can only be powered by the power adapter.

2) Avoid exposing the device in overheated, humid, dusty, or strong electromagnetic
environment.
3) Do not vibrate, shake, or drop the device.
4) Do not insert or unplug any part of the device while it is powered on. Otherwise, it may
cause damage to the internal circuit.
5) If necessary, please contact PAX technical support for assistance with the device.
6) Before using the magnetic stripe /IC/contactless card, check if there is any suspicious
person nearby, if so, pay attention to guard against theft.
8、FCC Regulations:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.

ISED Notice
This device complies with Science and Economic Development Canada’s license-exempt
RSS standard(s). Operation is subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
1) l'appareil ne doit pas produire de brouillage, et
2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter, except tested built-in radios.
Cet appareil et son antenne ne doivent pas être situés ou fonctionner en conjonction avec
une autre antenne ou un autre émetteur, exception faites des radios intégrées qui ont été
testées.
The County Code Selection feature is disabled for products marketed in the US/ Canada.
La fonction de sélection de l'indicatif du pays est désactivée pour les produits
commercialisés aux États-Unis et au Canada.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
The device for operation in the band 5150-5250 MHz is only for indoor use.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur.
Icon shows
This symbol on power switch indicates "ON" (power)
This symbol on power switch indicates"OFF" (power)
This symbol indicates AC voltage
This product bears the selective sorting symbol for Waste electrical and
electronic equipment (WEEE). This means that this product must be handled
pursuant to European directive 2012/19/EU in order
to be recycled or
dismantled to minimize its impact on the environment.User has the choice to
give his product to a competent recycling organization or to the retailer when

he buys a new electrical or electronic equipment.
The mains plug is used as the disconnect device, The socket-outlet shall be installed near the
equipment and shall be easily accessible.
Warning
To avoid replacement of a battery with an incorrect type
Don't disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a
battery.
Don't leaving a battery in an extremely high temperature surrounding environment
To avoid battery subjected to extremely low air pressure.
- The marking information is located at the bottom of apparatus
- The equipment is only suitable for mounting at heights≤2m
- Moving partsKeep body parts away from moving parts
Hereby, PAX Computer Technology (Shenzhen) Co., Ltd. declares that the radio equipment
type SK600 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address：
http://www.pax.com.cn/ProductCE.aspx
PAX TECHNOLOGY LIMITED reserves the right to change
product technology specifications without notifying.
PAX TECHNOLOGY LIMITED
Manufacturer: PAX Computer Technology (Shenzhen) Co.,Ltd.
Address:4/F, No.3 Building, Software Park, Second Central Science-Tech Road,
High-Tech Industrial Park, Shenzhen, Guangdong, P.R.C.
Tel: [phone] Fax: [phone]
Website: http://www.pax.com.cn
Responsible Party:PAX Technology, Inc.
8880 Freedom Crossing Trail, Building 400, 3rd Floor Suite 300, Jacksonville , Florida,
32256
Help-desk
1 877-859-0099
P/N:200312000000423
