PAX SK700 User manual

SK700 Smart Kiosk
Note: Product images shown may be different than actual product received
PAX TECHNOLOGY LIMITED

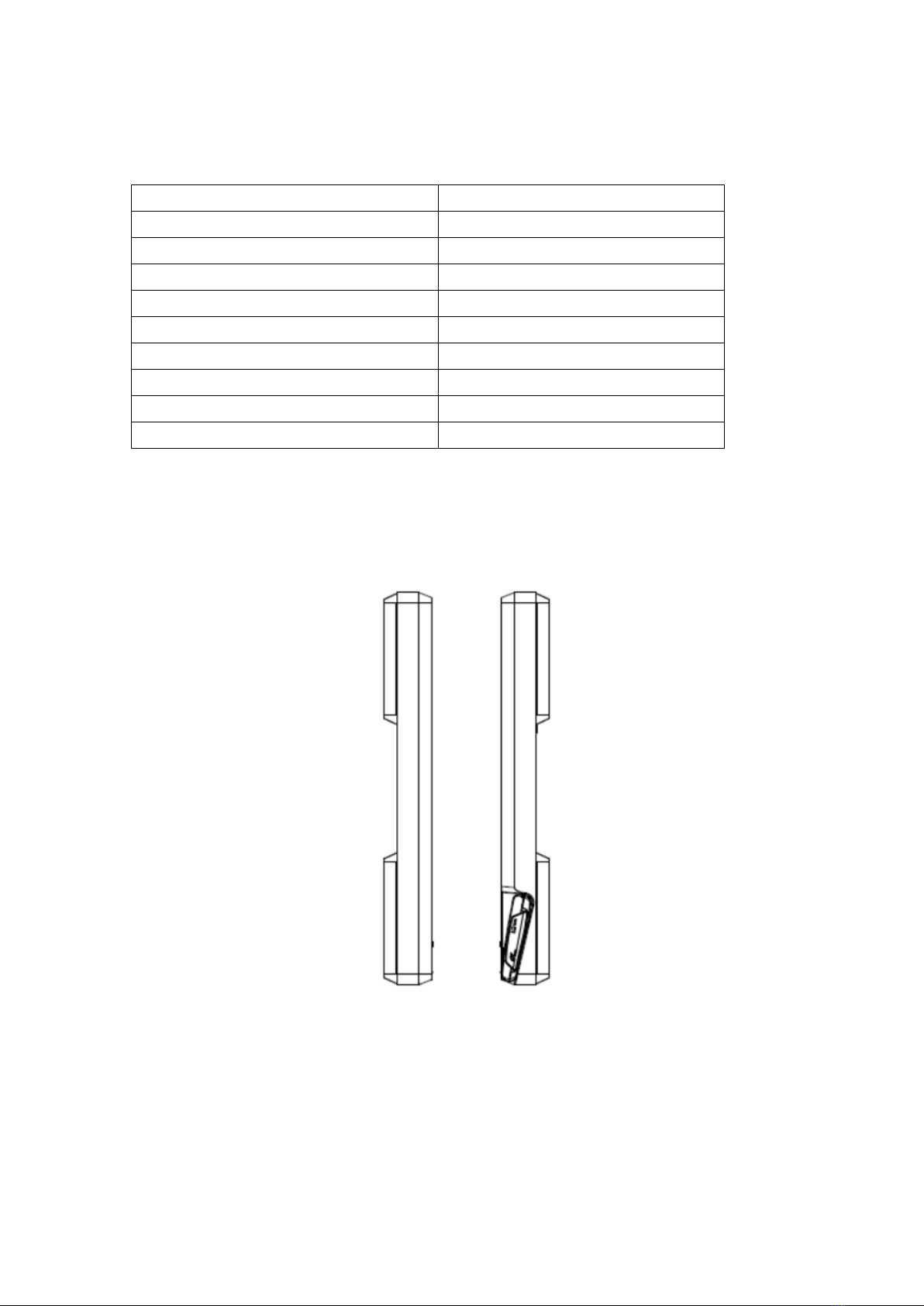

1、ContentsChecklist
Please check the components after unpacking. If any are missing, please contact the dealer.
Name
Qty
SK700 Smart Kiosk
1
SK700 Wall Bracket
1
Printer Key
2
Thermal Paper Roll
1
M4-10 Combination Screw
2
Expansion Screw
6
Plastic Packaging
1
Power Cable
1
Quick Setup Guide
1
2、Product Description
Side View

Front View
Interface Diagram
3.Operating Instruction
·Power on: Plug in the AC power cable, press and hold the Power button for

threesecondsuntil the boot animation appears.
Power off: Press and hold the Power button for threeseconds until the
shutdown menu displays. Select Power off. Theterminal turns off after a few
seconds.

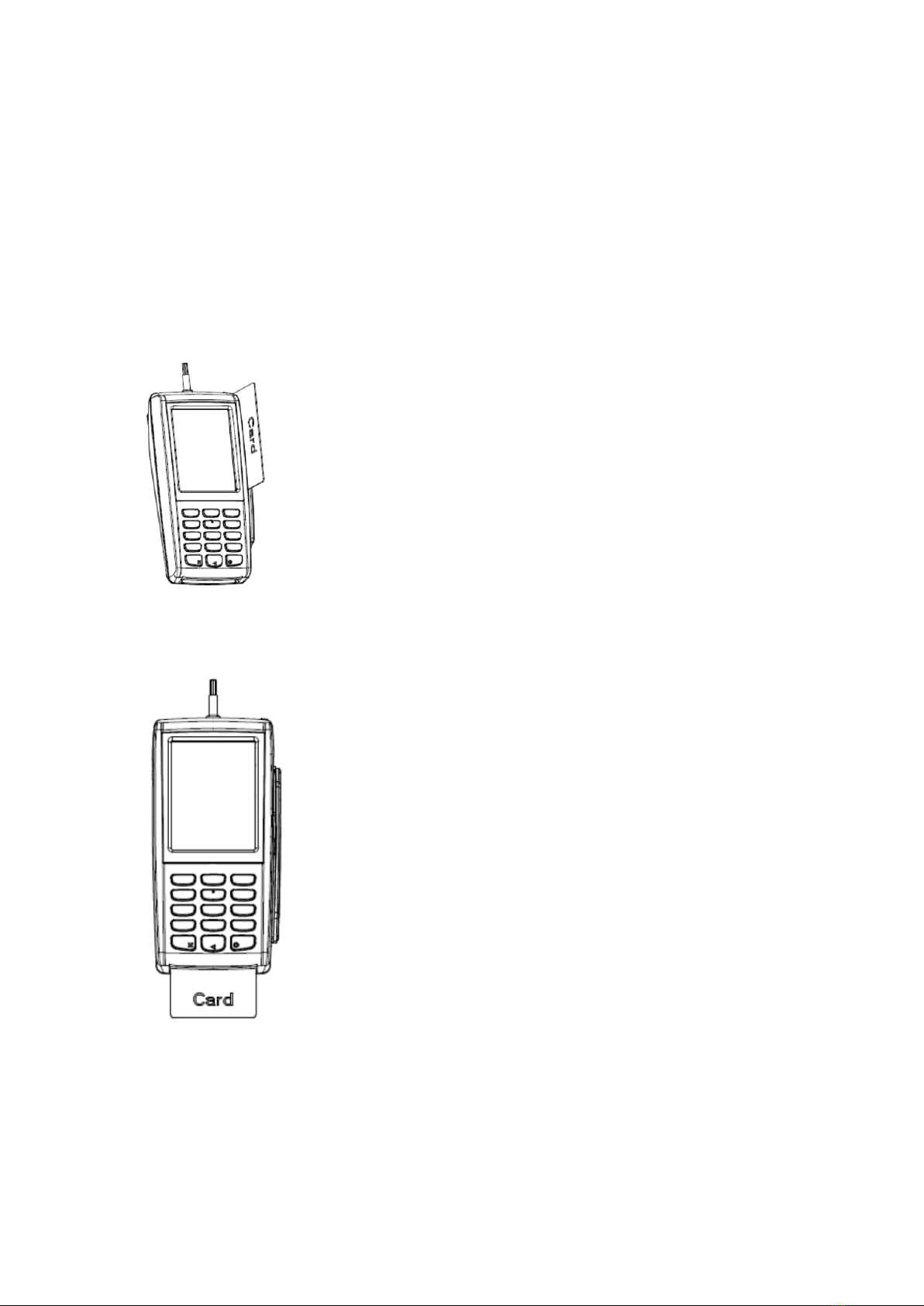

4.Payment Options
Magnetic stripe card
Insert magnetic stripe card into card slot and push to the end with magnetic stripe
facing down, then pull out the card at a constant speed to swipe card.
IC chip card
Insert card with IC chip facing up, then push it to theend of the card slot. Leave card inserted
until prompted to remove.
Contactless card
Place the contactless card over the center of contactless card reader logo area.

Scan
When the scan indicator is on, hold your QR code & bar code device in front of the scan
window to scan code.
5、Load Printer Paper
1. Insert the key into the keyhole and turn it counterclockwise to open printer cover.

2. Completely open the printer cover.
3. Insert the new paper roll into the printer.

4. Pull out the end of the paper so that itextends past the cutting blade, Make surethe paper
roll is placed in the direction asshown in the figure below.
5.Close the printer cover, and pull outthe key. Printer will automatically cut offthe extra paper,
the paper is changed successfully.

6、Wall-mounted Installation
Parts List
No.
Part
Qty/pcs
1 SK700Kiosk 1
2 Wall Bracket 1

3
M6-50
Expansion Screw 6
4
M4-10
Combination Screw
2

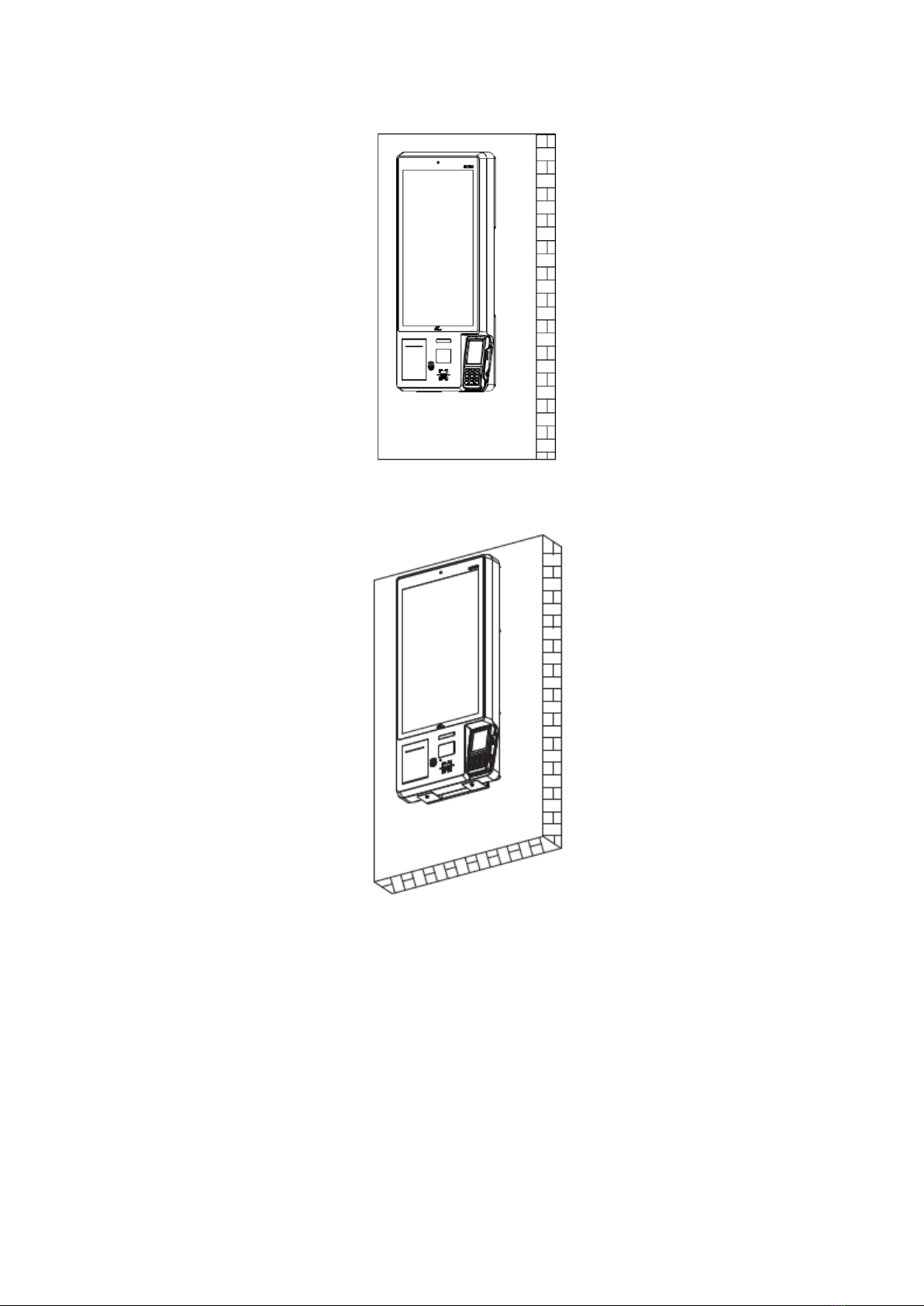

Installation Steps
1. Use 6pcs expansion screws to fix the bracket on the wall.
•Use an 8.0 mm diameter drill bit to drill holes in the wall according to the position of the
bracket fixing hole. The size is shown in the figurebelow:
•Note: Holediameter is 8.0mm, Hole depth is above 60.0mm.
2.Use the 4pcs hooks on the back of the device to hang the whole device on the wall bracket.

3. Use 2pcs M4-12 combination 3screws to attach the machine to the wall bracket at the
bottom of the machine.
4. The device installation is completed.
7.Usage Tips
1) There is no built-in battery, and the device can only be powered by the power adapter.
2) Avoid exposing the device in overheated, humid, dusty, or strong electromagnetic
environment.
3) Do not vibrate, shake, or drop the device.
4) Do not insert or unplug any part of the device while it is powered on. Otherwise, it may
cause damage to the internal circuit.
5) If necessary, please contact PAX technical support for assistance with the device.
6) Before using the magnetic stripe /IC/contactless card, check if there is any suspicious

person nearby, if so, pay attention to guard against theft.
FCC compliance statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
ISED compliance statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licencecontenu dans le présentappareilestconforme aux
CNR d’Innovation, Sciences et Développementéconomique Canada applicables aux appareils
radio exempts de licence. L’exploitationestautorisée aux deux conditions suivantes :
(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareildoit accepter tout brouillage radioélectriquesubi, même si le brouillageest
susceptible d’encompromettre le fonctionnement.
ISED 5G Wi-Fistatement
The user manual for LE-LAN devices shall contain instructions related to the restrictions
mentioned in the above sections, namely that:
i. the device for operation in the band 5150–5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems;

ii. where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s)
necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in
section 6.2.2.3 shall be clearly indicated.
i. le dispositifutilisé dans la bande 5150-5250 MHz estréservé à
uneutilisationenintérieurafin de réduire le risque de brouillagepréjudiciable aux systèmes
mobiles par satellite dans le même canal;
ii. le caséchéant, le (s) type (s) d'antenne, le (s) modèle (s) d'antenne et l'angle (s)
d'inclinaison le plus défavorablenécessaire (s) pour resterconforme (e) au p.e.L'exigence
relative au masque d'élévationénoncée à la section 6.2.2.3 doitêtreclairementindiquée.
PAX TECHNOLOGY LIMITED reserves the right to change product
technology specifications without notifying.
PAX TECHNOLOGY LIMITED
Manufacturer: PAX Computer Technology (Shenzhen) Co.,Ltd.
Address:4/F, No.3 Building, Software Park, Second Central Science-Tech Road,
High-Tech Industrial Park, Shenzhen, Guangdong, P.R.C.
Tel: [phone] Fax: [phone]
Website: http://www.pax.com.cn
Responsible Party:PAX Technology, Inc.
8880 Freedom Crossing Trail, Building 400, 3rd Floor Suite 300, Jacksonville , Florida,
32256
Help-desk
1 877-859-0099
Radiation Exposure statement
This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
Cet équipement est conforme aux limites d'exposition aux radiations FCC/IC CNR-102 établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance
minimale de 20 cm entre le radiateur et votre corps.
