PCB Piezotronics 8180-SH110A User manual

Model 8180-SH110A
LARGE INDUCTIVE HEAD W/ 5M EXT. CABLE
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

Manual 21354 Rev E
ECN 50523
Repair and Maintenance
PCB guarantees Total Customer Satisfaction through its
“Lifetime Warranty Plus” on all Platinum Stock Products
sold by PCB and through its limited warranties on all other
PCB Stock, Standard and Special products. Due to the
sophisticated nature of our sensors and associated
instrumentation, field servicing and repair is not
recommended and, if attempted, will void the factory
warranty.
Beyond routine calibration and battery replacements
where applicable, our products require no user
maintenance. Clean electrical connectors, housings, and
mounting surfaces with solutions and techniques that will
not harm the material of construction. Observe caution
when using liquids near devices that are not hermetically
sealed. Such devices should only be wiped with a
dampened cloth—never saturated or submerged.
In the event that equipment becomes damaged or ceases
to operate, our Application Engineers are here to support
your troubleshooting efforts 24 hours a day, 7 days a
week. Call or email with model and serial number as well
as a brief description of the problem.
Calibration
Routine calibration of sensors and associated
instrumentation is necessary to maintain measurement
accuracy. We recommend calibrating on an annual basis,
after exposure to any extreme environmental influence,
or prior to any critical test.
PCB Piezotronics is an ISO-9001 certified company whose
calibration services are accredited by A2LA to ISO/IEC
17025, with full traceability to SI through N.I.S.T. In
addition to our standard calibration services, we also offer
specialized tests, including: sensitivity at elevated or
cryogenic temperatures, phase response, extended high
or low frequency response, extended range, leak testing,
hydrostatic pressure testing, and others. For more
information, contact your local PCB Piezotronics
distributor, sales representative, or factory customer
service representative.
Returning Equipment
If factory repair is required, our representatives will
provide you with a Return Material Authorization (RMA)
number, which we use to reference any information you
have already provided and expedite the repair process.
This number should be clearly marked on the outside of
all returned package(s) and on any packing list(s)
accompanying the shipment.
Contact Information
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLine: [phone]
General inquiries: in[email protected]
Repair inquiries: [e-mail]
For a complete list of distributors, global offices and sales
representatives, visit our website, www.pcb.com.
Safety Considerations
This product is intended for use by qualified personnel
who recognize shock hazards and are familiar with the
precautions required to avoid injury. While our equipment
is designed with user safety in mind, the protection
provided by the equipment may be impaired if equipment
is used in a manner not specified by this manual.
Discontinue use and contact our 24-Hour Sensorline if:
Assistance is needed to safely operate equipment
Damage is visible or suspected
Equipment fails or malfunctions
For complete equipment ratings, refer to the enclosed
specification sheet for your product.
Definition of Terms and Symbols
The following symbols may be used in this manual:
DANGER
Indicates an immediate hazardous
situation, which, if not avoided, may
result in death or serious injury.

Manual 21354 Rev E
ECN 50523
CAUTION
Refers to hazards that could damage
the instrument.
NOTE
Indicates tips, recommendations and
important information. The notes
simplify processes and contain
additional information on particular
operating steps.
The following symbols may be found on the equipment
described in this manual:
This symbol on the unit indicates that
high voltage may be present. Use
standard safety precautions to avoid
personal contact with this voltage.
This symbol on the unit indicates that
the user should refer to the operating
instructions located in the manual.
This symbol indicates safety, earth
ground.

Manual 21354 Rev E
ECN 50523
PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

Manual 21354 Rev E
ECN 50523
Component Name
Hazardous Substances
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical Connectors
O
O
O
O
O
O
Piezoelectric Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit
requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

Model 8180
Manual – 51291 Rev. NR ECO: 36830

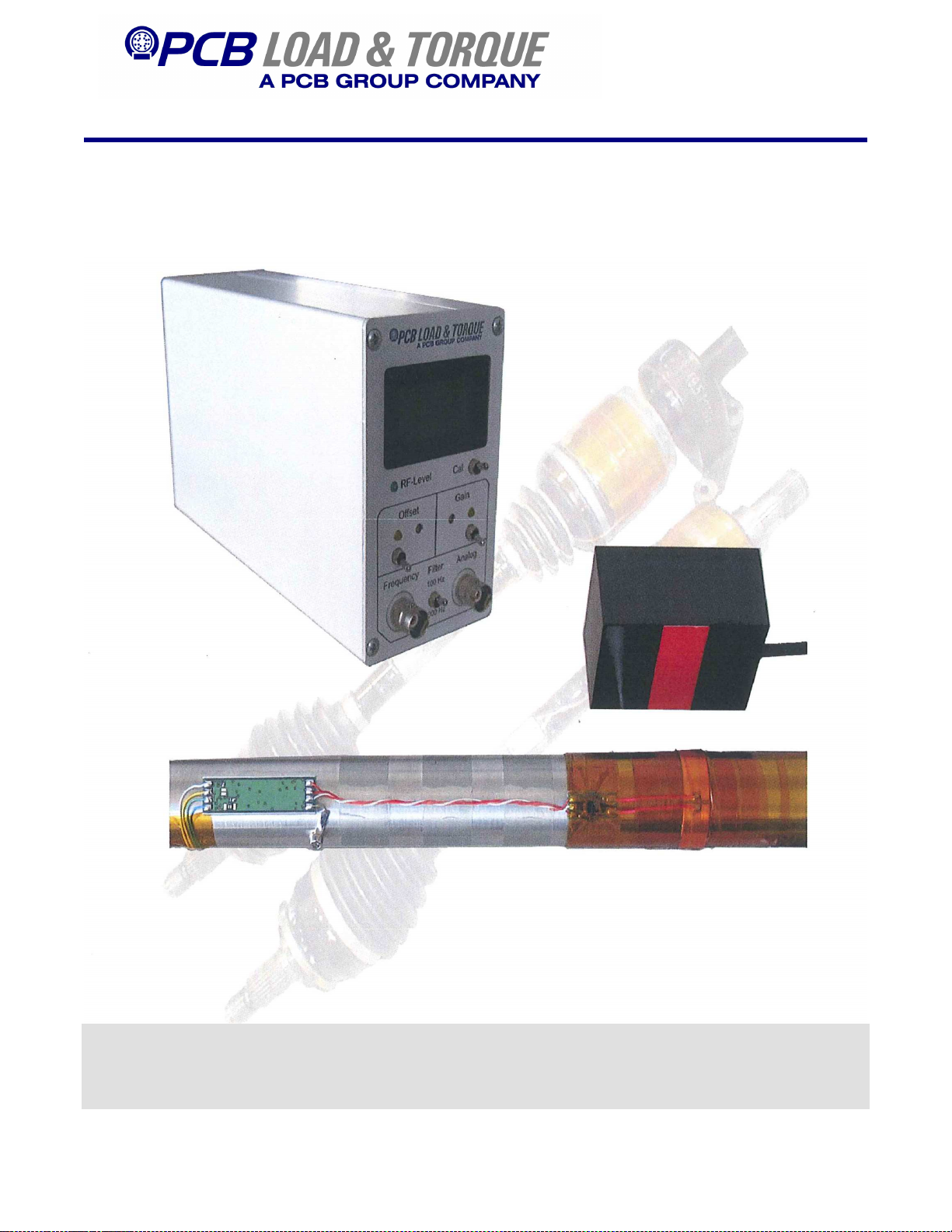

Single channel Telemetry
A simple, accurate method of conditioning and transmitting strain,
thermocouple, voltage or ICP®signals from moving or rotating
components.

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Contents
Page
Important Safety Tips ………………………………………………… 1
Important Installation Tips ………………………………………………… 2
Technical Data ………………………………………………… 3
Basic System Configuration ………………………………………………… 4
Rotor Electronics 8180-RE1 ………………………………………………… 5
Rotor Electronics 8180-RE1 ( Overview ) ………………………………………………… 6
Power the 8180-RE1 ………………………………………………… 7

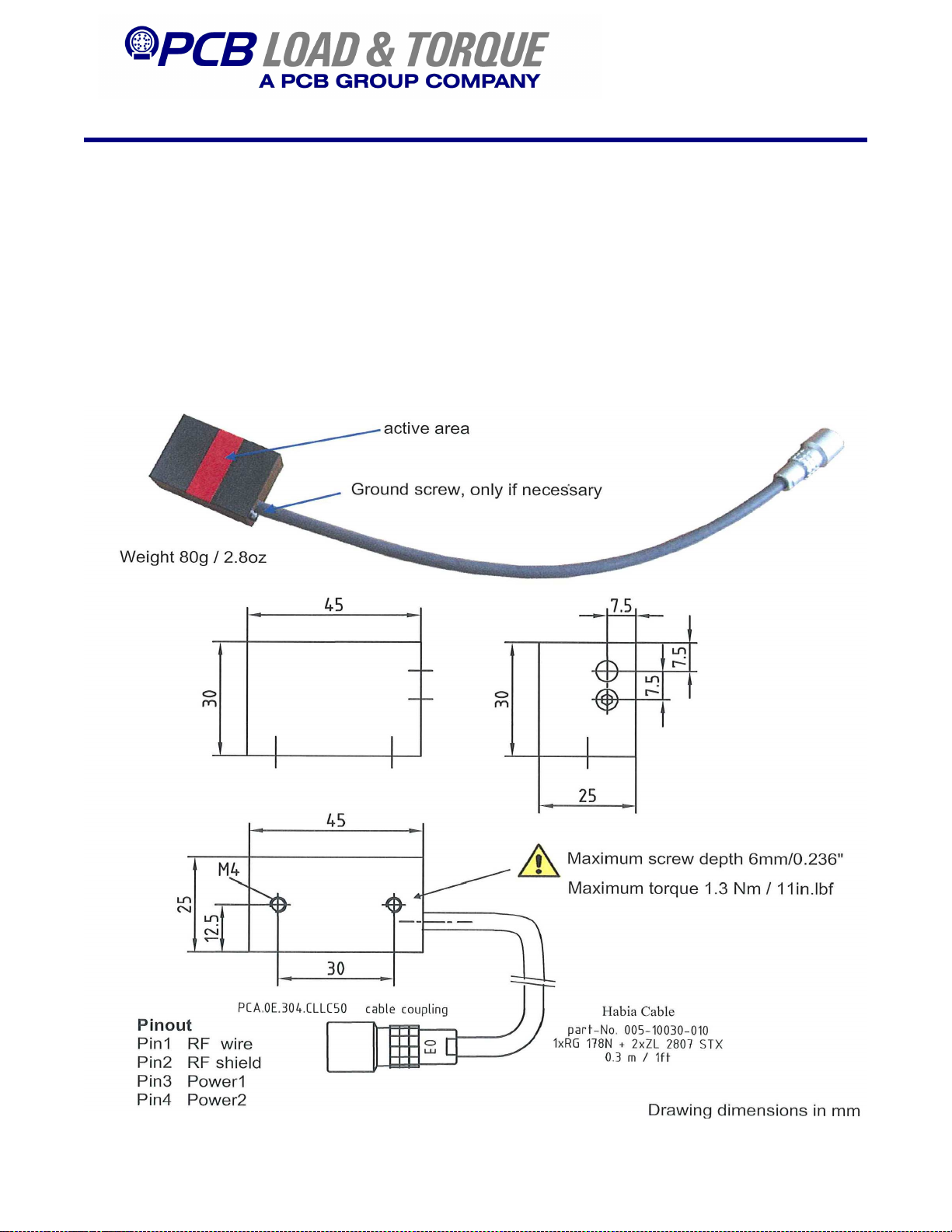

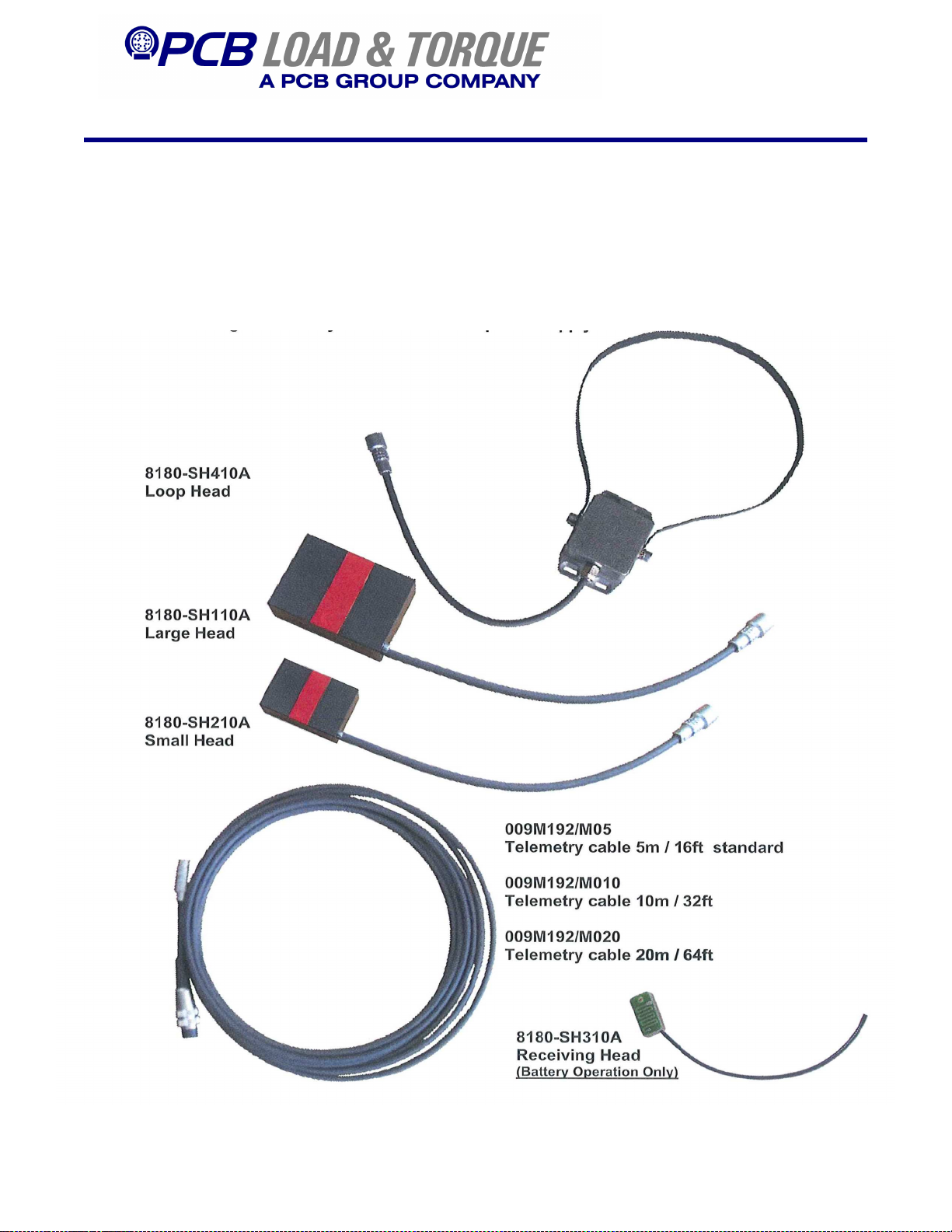

Inductive /Receiving Heads 8180-Sh ………………………………………………… 8

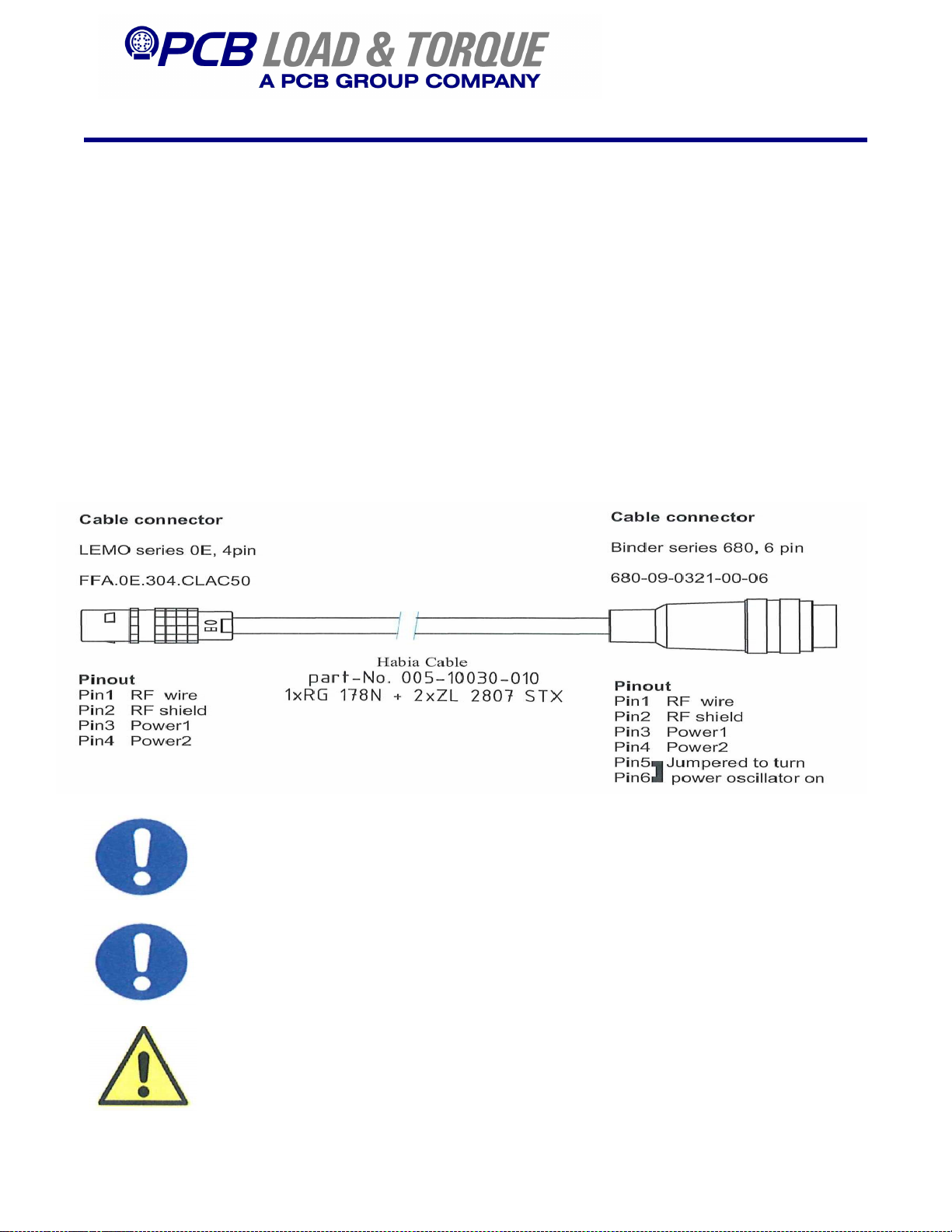

Telemetry Cable ………………………………………………… 13
Control Unit 8180-CU ………………………………………………… 14
Shunt Calibration ………………………………………………… 16
Installation of Antenna ………………………………………………… 17
Installation Kit 8180-IK00A ………………………………………………… 19
CE Approved …………………………………………………. 20
Abbreviations
TC Thermocouple STG Strain Gage n RPM
Mt Torque AC Alternating Current DC Direct Current
Units of physical dimensions
Voltage 1V = 1,000mV
Current 1A = 1,000mA
Weight 1kg = 1,000g = 35.275 oz.
Temperature °C = degrees Celsius
°F = degrees Fahrenheit
°K = degrees Kelvin
Length 1m = 1,000mm = 3.28ft = 39.37”
Torque 1Nm = 8.851in.lbf
In the interest of constant product improvement, we reserve the right to change specifications without notice

Model 8180
Manual – 51291 Rev. NR ECO: 36830
The 8180 single channel telemetry system utilizes an inductive electricity supply.
Avoid having combustible material in the area of the inductive head.
The power oscillator is regulated according to power usage.
With high power demand the inductive head can become hot to the touch, up to 60°C/140°F.
With high power use the Control Unit can become warm to touch and should be located in a well
ventilated area.
Potential heath hazard for heart pacemakers.
The inductive supply system generates a magnetic field.
Heart pacemakers and other sensitive medical devices should stay clear of the magnetic field. This
area is 50cm/20” around the inductive head.
Potential Burn Hazard.
Avoid metallic objects in and around the active magnetic field. Such as rings, chains and other metallic
jewelry. These objects become very hot and burn the skin.
Electrical Shock Hazard.
The Control Unit should not be opened except by authorized service personal. High voltages of up to
400V pp can be found in the Control Unit and stator head cable. Any damaged or frayed stator cables
should be discarded and replaced immediately as they may pose a shock hazard.
It is the responsibility of the user to ensure the rotor electronics and antenna are properly installed on
the shaft.
Components not correctly mounted may come loose during operation and cause injury to personnel
and damages to components and property.
Important Safety Tips!
1

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Important Installation Tips!
8180 Installation
All cable connections should be done with the power off.
Only apply power to the Control unit with a stator head connected, otherwise damage to the Control
Unit may occur.
If the inductive head is placed on a metallic surface with the power on, the power oscillator will produce
maximum power. While there is circuitry to prevent the system from being damaged for a short period
of time, this must be avoided.
The inductive head should be fastened to a non-metallic plate or bracket.
If a metallic bracket is used the stator should be isolated from the metal by more than 5 mm of a non
metallic material such as rubber or plastic.
Mounting the stator near or on metal could produce unnecessary warming of the stator head and cause
damage to the system. Every attempt should be made to keep a metal free area around the stator head
for best operation.
The installation of the 8180 single channel telemetry system requires the rotor electronics and antenna
be mounted in such a way they do not come loose during operation.
It is the responsibility of the user to ensure the components of the 8180 single channel telemetry
system are properly installed.
Knowledge of basic soldering techniques is required.
Soldering should be preformed using a regulated soldering iron. The recommended temperature setting
is 400 °C / 752 °F.
2
In the interest of constant product improvement, we reserve the right to change specifications without notice

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Technical data
3
In the interest of constant product improvement, we reserve the right to change specifications witho
ut notice

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Basic System Installation
Example: torque measure on a rotating shaft with strain gage, full bridge
4

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Rotor electronics 8180-RE1
Calculation
Gain resistor GA (soldered resistor) Calibration resistor CAL (soldered resistor)
GA = 100/ (125 / (3*S) 1) [kΩ] CAL = Rb (25000/ (D*S) 0.5) [kΩ]
Units S = Sensitivity [mV/V]; Rb = Bridge Resistor [kΩ]; D = Shunt [%]
Sensitivity [mV/V] 0.1 0.5 1.0 2.0 4.0 8.0
GA [kΩ] 0.241 1.215 2.459 5.042 10.619 23.762
CAL [kΩ]
80% Shunt350Ωbridge
1,093.575 218.575 109.200 54.512 27.169 13.497
Useful Link for calculation http://www.rt-m.de/dl/singlecal-pcb.jnlp
5

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Rotor Electronics 8180-RE1 Overview
6

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Powering the Rotor electronics 8180-RE1
DC Supply
AC Supply
7

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Inductive / Receiving Heads 8180-SH
All heads 8180-SH have an integrated active antenna.
Frequency range: 10 MHz to 40 MHz.
The 8180-SH310A head is designed for use with battery power and has no
integrated coil system for inductive power supply.
8

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Inductive head 8180-SH110A “Large Head”
Typical air gap 40 mm / 1.58”
The inductive head should be fastened to a non-metallic plate or bracket. If a
metallic bracket is used the stator should be isolated from the metal by more than
5 mm of a non metallic material such as rubber or plastic.
Mounting the stator near or on metal could produce unnecessary warming of the
stator head and cause damage to the system. Every attempt should be made to
keep a metal free area around the stator head for best operation.
9

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Inductive head 8180-SH210A “Small Head”
Typical air gap 10 mm / 0.4”
The inductive head should be fastened to a non-metallic plate or bracket. If a
metallic bracket is used the stator should be isolated from the metal by more than
5 mm of a non metallic material such as rubber or plastic.
Mounting the stator near or on metal could produce unnecessary warming of the
stator head and cause damage to the system. Every attempt should be made to
keep a metal free area around the stator head for best operation.
10

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Inductive head 8180-SH410A “Loop Head”
Typical loop length
350mm…650mm / 13.8”…25.6”
11

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Receiving head 8180-SH310A “Antenna Head”
Typical receiving distance
500mm/ 1.6ft
The receiving head is designed for use with battery powered installations.
It is not possible to inductively power the rotor electronics with the 8180-SH310A
Head.
While plug in the original connecting cable into the Control Unit the power
oscillator is not switched on
12

Model 8180
Manual – 51291 Rev. NR ECO: 36830
Telemetry cable
The Telemetry cable is supplied of the heads:
8180-SH110A
8180-SH210A
8180-SH410A
with standard length 5m / 16ft.
As an optional accessory the telemetry cable is available in 3 lengths:
Length 5m / 16ft part 009M192/M05
Length 10m / 32ft part 009M192/M010
Length 20m / 64ft part 009M192/M020
13
The cable is resistant to most oils, lubricants, water and acids.
The bending radius of the cable should not be less than 1”.
Operating temperature range: -40°F to 248°F/ -40° C to 120°C
This cable is specially designed and manufactured for this system. It is extremely
robust mechanically, and can be used in extreme environments.
This cable should only be substituted with a direct replacement as a non approved
cable will affect the data and tuning of the overall system.
Caution!
Voltage up to 400V pp , 22.5 kHz is on the cable.
Only use the approved original cable.
Damaged or frayed cable must be discarded and replaced immediately.
