PCB Piezotronics IMI SENSORS 691M157 User manual

Model 691M157
TERMINATION BOX
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 800-959-4464
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.imi-sensors.com

Manual 21354 Rev E
ECN 50523
Repair and Maintenance
PCB guarantees Total Customer Satisfaction through its
“Lifetime Warranty Plus” on all Platinum Stock Products
sold by PCB and through its limited warranties on all other
PCB Stock, Standard and Special products. Due to the
sophisticated nature of our sensors and associated
instrumentation, field servicing and repair is not
recommended and, if attempted, will void the factory
warranty.
Beyond routine calibration and battery replacements
where applicable, our products require no user
maintenance. Clean electrical connectors, housings, and
mounting surfaces with solutions and techniques that will
not harm the material of construction. Observe caution
when using liquids near devices that are not hermetically
sealed. Such devices should only be wiped with a
dampened cloth—never saturated or submerged.
In the event that equipment becomes damaged or ceases
to operate, our Application Engineers are here to support
your troubleshooting efforts 24 hours a day, 7 days a
week. Call or email with model and serial number as well
as a brief description of the problem.
Calibration
Routine calibration of sensors and associated
instrumentation is necessary to maintain measurement
accuracy. We recommend calibrating on an annual basis,
after exposure to any extreme environmental influence,
or prior to any critical test.
PCB Piezotronics is an ISO-9001 certified company whose
calibration services are accredited by A2LA to ISO/IEC
17025, with full traceability to SI through N.I.S.T. In
addition to our standard calibration services, we also offer
specialized tests, including: sensitivity at elevated or
cryogenic temperatures, phase response, extended high
or low frequency response, extended range, leak testing,
hydrostatic pressure testing, and others. For more
information, contact your local PCB Piezotronics
distributor, sales representative, or factory customer
service representative.
Returning Equipment
If factory repair is required, our representatives will
provide you with a Return Material Authorization (RMA)
number, which we use to reference any information you
have already provided and expedite the repair process.
This number should be clearly marked on the outside of
all returned package(s) and on any packing list(s)
accompanying the shipment.
Contact Information
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLine: [phone]
General inquiries: in[email protected]
Repair inquiries: [e-mail]
For a complete list of distributors, global offices and sales
representatives, visit our website, www.pcb.com.
Safety Considerations
This product is intended for use by qualified personnel
who recognize shock hazards and are familiar with the
precautions required to avoid injury. While our equipment
is designed with user safety in mind, the protection
provided by the equipment may be impaired if equipment
is used in a manner not specified by this manual.
Discontinue use and contact our 24-Hour Sensorline if:
Assistance is needed to safely operate equipment
Damage is visible or suspected
Equipment fails or malfunctions
For complete equipment ratings, refer to the enclosed
specification sheet for your product.
Definition of Terms and Symbols
The following symbols may be used in this manual:
DANGER
Indicates an immediate hazardous
situation, which, if not avoided, may
result in death or serious injury.

Manual 21354 Rev E
ECN 50523
CAUTION
Refers to hazards that could damage
the instrument.
NOTE
Indicates tips, recommendations and
important information. The notes
simplify processes and contain
additional information on particular
operating steps.
The following symbols may be found on the equipment
described in this manual:
This symbol on the unit indicates that
high voltage may be present. Use
standard safety precautions to avoid
personal contact with this voltage.
This symbol on the unit indicates that
the user should refer to the operating
instructions located in the manual.
This symbol indicates safety, earth
ground.

Manual 21354 Rev E
ECN 50523
PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

Manual 21354 Rev E
ECN 50523
Component Name
Hazardous Substances
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical Connectors
O
O
O
O
O
O
Piezoelectric Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit
requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Models 691M156 and 691M157
Termination Boxes for Triaxial ICP® Accelerometers
Operating Guide with Enclosed Warranty Information
3425 Walden Avenue, Depew, New York 14043-2495
Phone [phone]
Fax [phone]
Toll Free Line 1-800-959-4IMI
MANUAL NUMBER: 66865
MANUAL REVISION: NR
ECO 46608

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 2
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Table of Contents
Introduction...................................................................................................................... Page 3
Installation....................................................................................................................... Page 3
Wiring.......................................................................................................................... Pages 4-5
Figure 1 –Typical Input Channel Wiring................................................................ Pages 4-5
Calibration....................................................................................................................... Page 5
ESD Warning Information................................................................................................ Page 6
Warranty/Servicing
Warranty, Service & Return Procedure ........................................................................... Page 7
Customer Service............................................................................................................ Page 8

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 3
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Introduction
The termination boxes for triaxial ICP® accelerometers (Models 691M156 and 691M157) provide terminal strip
inputs with the convenience of 4-pin bayonet connector outputs. They are used in conjunction with commercially
available data collectors and analyzers. A few specifications are listed below for easy reference.
Specifications
691M56............................................................................ 1 Channel
691M57.......................................................................... 2 Channels
Input Connectors....................................... 4-Socket Terminal Strip
Output Connector(s) ..................................................4-Pin Bayonet
Enclosure Type.......................................................NEMA 4X [IP67]
Size..................................4.72 x 3.14 x 2.16 in [120 x 80 x 55 mm]
Weight......................................................................0.72 lbs [327 g]
Installation
Establish an easily accessible location for installation, keeping in mind the cabling will be coming from the bottom
panel of the enclosure. Use the supplied mounting feet and hardware to install the unit.
Note: The unit has one or two 4-pin Bayonet connector(s) that can be easily contaminated. Install the unit away
from sprays, cleaning fluids, steam, excess temperature (above 212  F) and other contaminants. Always leave
the dust cap on the connector when not taking data. This will protect the contacts. Do not use the unit outdoors
unless it is protected from the environment.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 4
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Wiring
Remove outer cover of the enclosure by loosening the four screws located in each corner of the front panel. Strip
cables back approximately 1/8” to 3/16”. Note the length of the conductor as not to short any neighboring cables.
Feed cables through cable grips.
To connect cable, push down on the top spring-loaded terminal strip connector with a flat head screwdriver. Push
the conductor into the connector front and then remove the screwdriver. This will clamp the cable conductor onto
the terminal strip. Pull gently on the conductor to make sure that it was installed correctly. Tighten the cable
clamp nut located on the outside of the enclosure. This will hold the cable jacket and also protect the internal
connections from environmental contaminants.

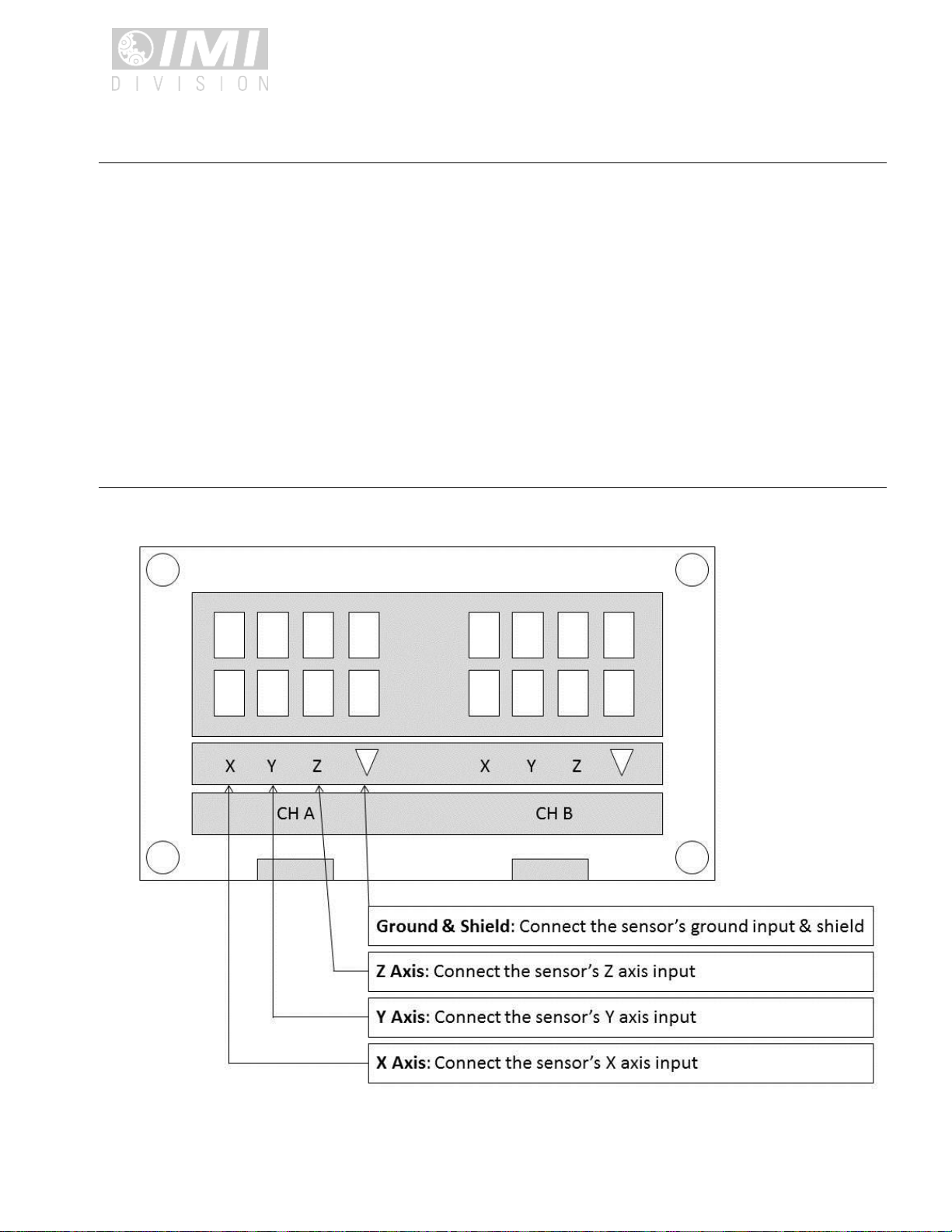

Figure 1 –Typical Input Channel Wiring

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 5
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

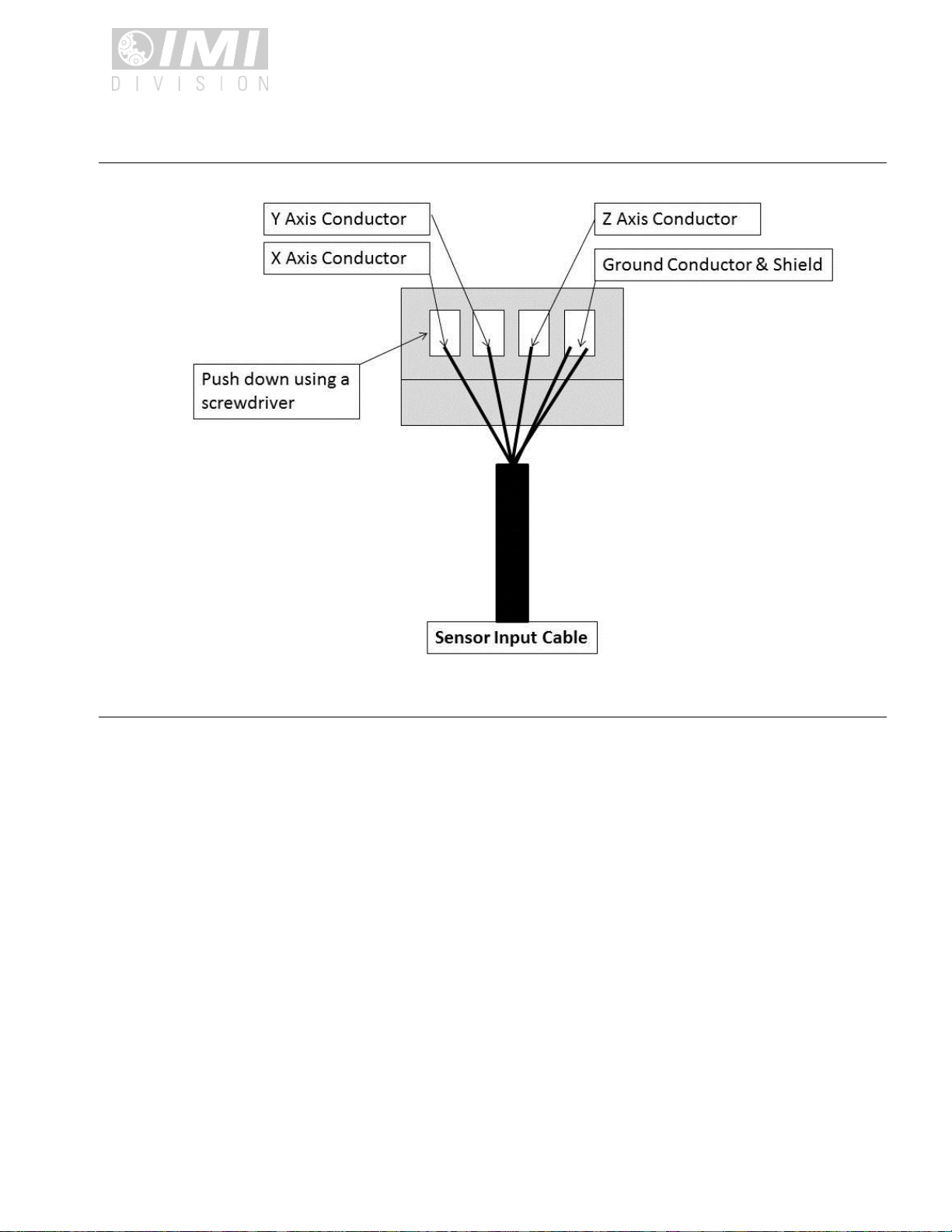

Figure 1 –Typical Input Channel Wiring (Continued)
Calibration
The termination boxes do not need any calibration. If there are any questions concerning these products, please
contact the factory.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 6
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Warning 1 –ESD Sensitivity
The power supply/signal conditioner should not be opened by anyone other than qualified service
personnel. This product is intended for use by qualified personnel who recognize shock hazards and are familiar
with the safety precautions required to avoid injury.
Warning 2 –ESD Sensitivity
This equipment is designed with user safety in mind; however, the protection provided by the equipment may be
impaired if the equipment is used in a manner not specified by PCB Piezotronics, Inc.
Caution 1 –ESD Sensitivity
Cables can kill your equipment. High voltage electrostatic discharge (ESD) can damage electrical devices.
Similar to a capacitor, a cable can hold a charge caused by triboelectric transfer, such as that which occurs in the
following:
Laying on and moving across a rug,
Any movement through air,
The action of rolling out a cable, and/or
Contact with a non-grounded person.
The PCB solution for product safety:
Connect the cables only with the AC power off.
Temporarily “short” the end of the cable before attaching it to any signal input or output.
Caution 2 –ESD Sensitivity
ESD considerations should be made prior to performing any internal adjustments on the equipment. Any
piece of electronic equipment is vulnerable to ESD when opened for adjustments. Internal adjustments should
therefore be done ONLY at an ESD-safe work area. Many products have ESD protection, but the level of
protection may be exceeded by extremely high voltage.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 7
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Warranty
IMI instrumentation is warranted against defective material and workmanship for 1 year unless otherwise
expressly specified. Damage to instruments caused by incorrect power or misapplication, is not covered by
warranty. If there are any questions regarding power, intended application, or general usage, please consult with
your local sales contact or distributor. Batteries and other expendable hardware items are not covered by
warranty.
Service
Because of the sophisticated nature of IMI instrumentation, field repair is typically NOT recommended and may
void any warranty. If factory service is required, return the instrumentation according to the “Return Procedure”
stated below. A repair and/or replacement quotation will be provided prior to servicing at no charge. Before
returning the unit, please consult a factory IMI applications engineer concerning the situation as certain problems
can often be corrected with simple on-site procedures.
Return Procedure
To expedite returned instrumentation, contact a factory IMI applications engineer for a RETURN MATERIAL
AUTHORIZATION (RMA) NUMBER. Please have information available such as model and serial number. Also,
to insure efficient service, provide a written description of the symptoms and problems with the equipment to a
local sales representative or distributor, or contact IMI if none are located in your area.
Customers outside the U.S. should consult their local IMI distributor for information on returning equipment. For
exceptions, please contact the International Sales department at IMI to request shipping instructions and an RMA.
For assistance, please call [phone], or fax us at [phone]. You may also receive assistance via e-
mail at [e-mail] or visit our web site at www.pcb.com.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 8
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Customer Service
IMI, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any reason, you
are not completely satisfied with any IMI product, IMI will repair, replace, or exchange it at no charge. You may
also choose, within the warranty period, to have your purchase price refunded.
IMI offers to all customers, at no charge, 24-hour phone support. This service makes product or application
support available to our customers, day or night, seven days a week. When unforeseen problems or emergency
situations arise, call the IMI Hot Line at [phone], and an application specialist will assist you.
3425 Walden Avenue, Depew, NY 14043-2495
Phone: [phone]  USA Fax: [phone]  INTL Fax: [phone]
ICP ® is a registered trademark of PCB Piezotronics, Incorporated,
which uniquely identifies PCB sensors that incorporate built-in microelectronics.

Model Number
691M157 TERMINATION BOX Revision: NR
ECN #: 46608
Performanc
e
ENGLISH S
I
Channels(Tri-Ax) 2 2
Environmenta
l
Enclosure Rating Nema 4X IP66
Physica
l
Electrical Connector(Input) Terminal Block Terminal Block
Electrical Connector(Output) 4-Pin Bayonet 4-Pin Bayonet
Cable Input PGME07 PGME07
Housing Material Fiberglass Fiberglass
Size (Height x Width x Depth) 4.33 in x 2.95 in x 2.16 in 110 mm x 80 mm x 55 mm
Weight 1.1 lb .50 kg
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
OPTIONAL VERSIONS
Optional versions have identical specifications and accessories as listed for the standard model
except where noted below. More than one option may be used.
Entered: LK Engineer: gs Sales: M
C
Approved: BAM Spec Number:
Date: 6/30/2017 Date: 6/30/2017 Date: 6/30/2017 Date: 6/30/2017 66869
3425 Walden Avenue, Depew, NY 14043
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]

1
1
2
2
A A
B B
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
ANGLES 2 DEGREES
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
DIMENSIONS IN INCHES
ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
FILLETS AND RADII
0.07 - 0.13

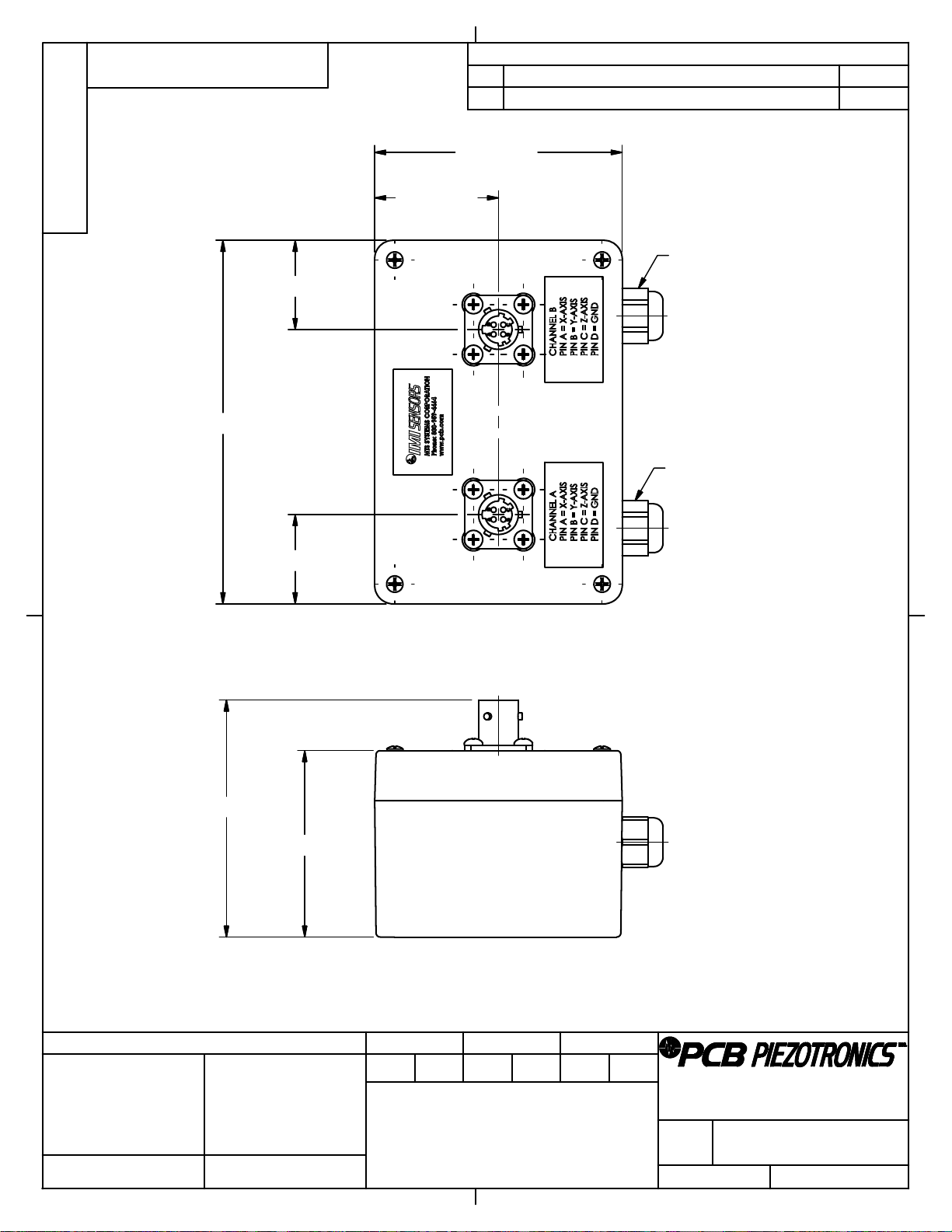

OUTLINE DRAWING
66870
1 OF 1
.75X
MODEL 691M157
TERMINATION BOX
DECIMALS XX ±.03
XXX ±.010
DECIMALS X ± 0.8
XX ± 0.25
KRM 6/30/17 JDM 6/30/17 GGS 6/30/17
66870
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
REVISIONS
REV DESCRIPTION DIN
NR RELEASED TO DRAFTING 46608
4.33 [110.0]
1.06 [27.0]
1.06 [27.0]
2.95 [74.9]
1.48 [37.5]
CABLE GRIP
CABLE GRIP
2.22 [56.4]
2.82 [71.7]

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Models 691M156 and 691M157
Termination Boxes for Triaxial ICP® Accelerometers
Operating Guide with Enclosed Warranty Information
3425 Walden Avenue, Depew, New York 14043-2495
Phone [phone]
Fax [phone]
Toll Free Line 1-800-959-4IMI
MANUAL NUMBER: 66865
MANUAL REVISION: NR
ECO 46608

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 2
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Table of Contents
Introduction...................................................................................................................... Page 3
Installation....................................................................................................................... Page 3
Wiring.......................................................................................................................... Pages 4-5
Figure 1 –Typical Input Channel Wiring................................................................ Pages 4-5
Calibration....................................................................................................................... Page 5
ESD Warning Information................................................................................................ Page 6
Warranty/Servicing
Warranty, Service & Return Procedure ........................................................................... Page 7
Customer Service............................................................................................................ Page 8

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 3
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Introduction
The termination boxes for triaxial ICP® accelerometers (Models 691M156 and 691M157) provide terminal strip
inputs with the convenience of 4-pin bayonet connector outputs. They are used in conjunction with commercially
available data collectors and analyzers. A few specifications are listed below for easy reference.
Specifications
691M56............................................................................ 1 Channel
691M57.......................................................................... 2 Channels
Input Connectors....................................... 4-Socket Terminal Strip
Output Connector(s) ..................................................4-Pin Bayonet
Enclosure Type.......................................................NEMA 4X [IP67]
Size..................................4.72 x 3.14 x 2.16 in [120 x 80 x 55 mm]
Weight......................................................................0.72 lbs [327 g]
Installation
Establish an easily accessible location for installation, keeping in mind the cabling will be coming from the bottom
panel of the enclosure. Use the supplied mounting feet and hardware to install the unit.
Note: The unit has one or two 4-pin Bayonet connector(s) that can be easily contaminated. Install the unit away
from sprays, cleaning fluids, steam, excess temperature (above 212  F) and other contaminants. Always leave
the dust cap on the connector when not taking data. This will protect the contacts. Do not use the unit outdoors
unless it is protected from the environment.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 4
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Wiring
Remove outer cover of the enclosure by loosening the four screws located in each corner of the front panel. Strip
cables back approximately 1/8” to 3/16”. Note the length of the conductor as not to short any neighboring cables.
Feed cables through cable grips.
To connect cable, push down on the top spring-loaded terminal strip connector with a flat head screwdriver. Push
the conductor into the connector front and then remove the screwdriver. This will clamp the cable conductor onto
the terminal strip. Pull gently on the conductor to make sure that it was installed correctly. Tighten the cable
clamp nut located on the outside of the enclosure. This will hold the cable jacket and also protect the internal
connections from environmental contaminants.
Figure 1 –Typical Input Channel Wiring

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION
PAGE 5
SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING
Figure 1 –Typical Input Channel Wiring (Continued)
Calibration
The termination boxes do not need any calibration. If there are any questions concerning these products, please
contact the factory.
